Hi MaLd0n, can you help me with my Clover Config of my desktops? thanks a lot...

GIGA.zip

MSI.zip

I'm sorry to ask you to keep asking. I replaced the graphics card and the computer broke down.

I bought a new computer presumptively. T.T

Can you help me, One more..I wish this was the last time I saw you.

I'm so sorry.

My System

OS : Sierra 10.12.6

CPU : Intel i5-6600

M/B : Asus B150M-A/m.2

Graphic : inno3D GTX 560 Ti

Storage :

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887



and have m.2 slot

CLOVER.zip

  • Like 1
Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted

@MaLd0n

hi hope you can help me I have uploaded all the files you want my hardware config is in my Signature and its up to date.

Its for my desktop.

Thanks.

attachicon.gifCLOVER.zip

attachicon.giffaradis’s iMac.ioreg.zip

attachicon.gifSend me faradis’s iMac.zip

CLOVER.zip

I am going to purchase nvme soon. Don't you need any more patches?

maybe I am gonna purchase Samsung 960 evo.



and.Don't I need the ssdt file anymore?

in high sierra samsungs work native, sierra no, need patches

dont need ssdts

Thanks, all works like charm!!!

welcome

enjoy

Link to comment
Share on other sites
Faradis
Faradis
Posted
Posted

@MaLd0n

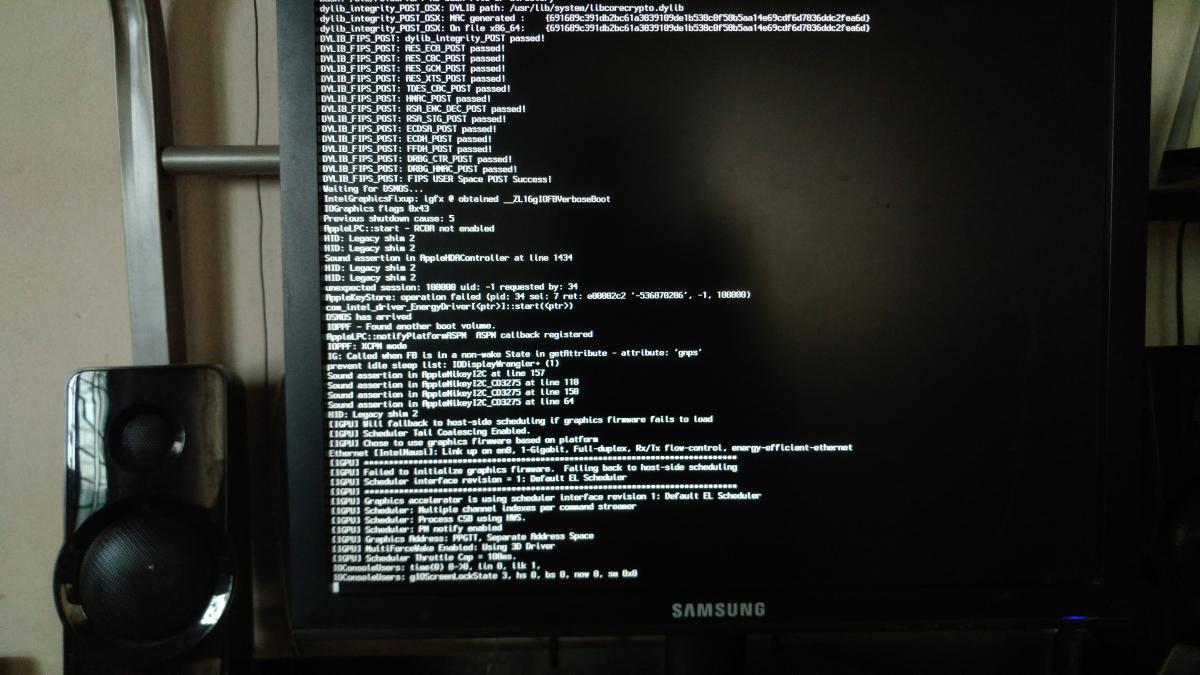

[IGPU] Will fallback to host-side scheduling if graphics firmware fails to load
[IGPU] Chose to use graphics firmware based on platform
[IGPU] ****************************************************************************
[IGPU] Failed to initialize graphics firmware. Falling back to host-side scheduling
[IGPU] Scheduler interface revision = 1: Default EL Scheduler
[IGPU] ****************************************************************************
[IGPU] Graphics accelerator is using scheduler interface revision 1: Default EL Scheduler
[IGPU] Scheduler: Multiple channel indexes per command streamer
[IGPU] Scheduler: Process CSB using HWS.
[IGPU] Scheduler: PM notify enabled
[IGPU] Graphics Address: PPGTT, Separate Address Space
[IGPU] MultiForceWake Enabled: Using 3D Driver
[IGPU] Scheduler Throttle Cap = 100ms

How to solve this

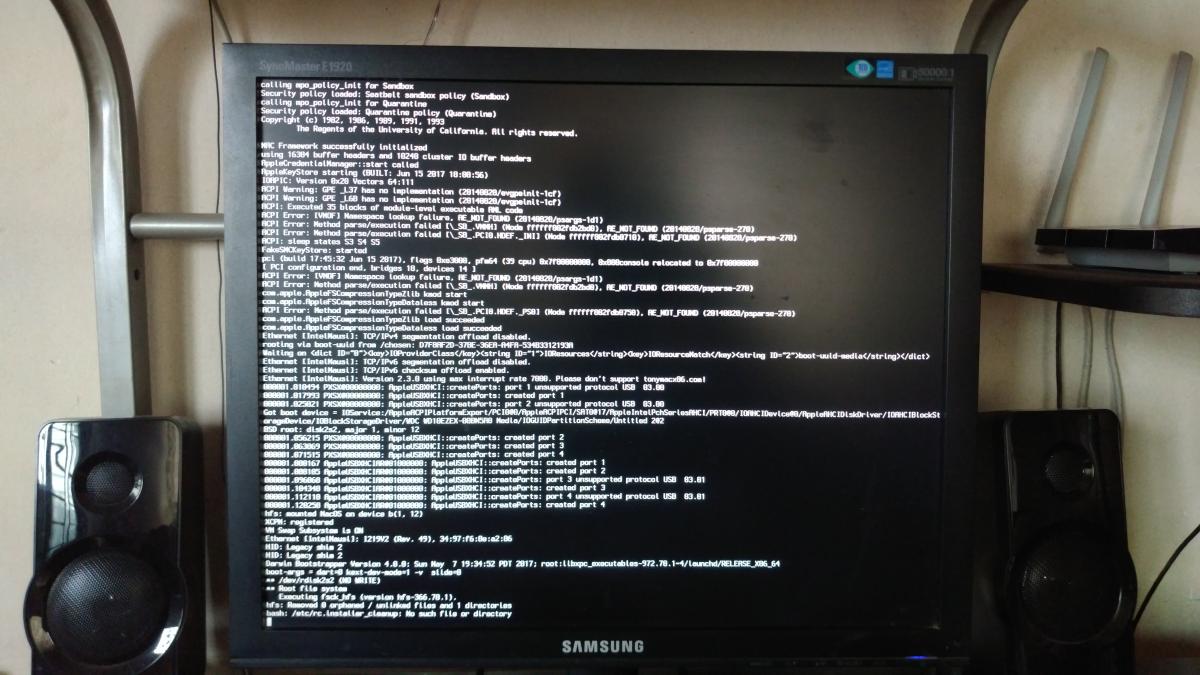

​also I have some ACPI error in my verbose log.how to solve those.

here is the both picture




Link to comment
Share on other sites
Ch4rl35.
Ch4rl35.
Posted
Posted

Hey man, I have a laptop (Acer Aspire V3-731-4634)

in which i have succesfully installed MacOs Sierra, the problem comes to the fact that the chipset is series 7 (Mobile Intel HM77 Express) and the processor is Sandy Bridge (Intel Pentium B960) with Intel Hd graphics Sandy Bridge that is recognized as Intel hd graphics 3000 with no QE/CI.



is it possible to get QE/CI or not? Thanks.





Link to comment
Share on other sites
nemois
nemois
Posted
Posted

My System

OS : Sierra 10.12.6

CPU : Intel i5-6600

M/B : Asus B150M-A/m.2

Graphic : msi r9 280x twin frozr 4 3gd5/oc gaming

Storage :

Samsung 950 por M.2

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887

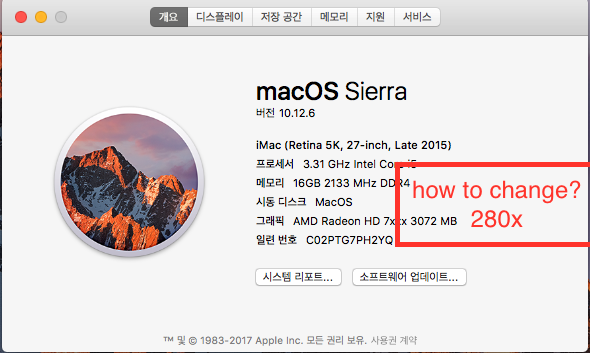

Is it working well?

I don't think the backpanel is working properly.

You try inject your GraphicCard in DSDT?

This Work for me

-----------------------------------------------------------------------------------------

# Maintained by: PJALM (help@pjalm.com) for: http://pjalm.com/repos/


# These patches are the registered property of PJALM.COM and can not be
# redistributed or modified without the written consent of PJALM.COM.
# Links to these patches are allowed. All material is protected under the DMCA.

# Last Updated  : 05/07/2016
# Patch Name    : GFX - Generic Discrete Graphics (AMD/nVidia)
# Patch Version : 1.0

# Warning : This patch is ment for Series 6/7 systems only, no guarantees of use on other systems.

# Desktop AMD/nVidia Graphics + HDMI Audio
# Credit to Toleda for the graphics and audio fixes

into device label PEGP parent_label PEG0 remove_entry;
into device label PEG0 parent_label PCI0 set_label begin PEGP end;

into scope label _SB.PCI0.PEG0 set_label begin _SB.PCI0.PEGP end;
into scope label _SB.PCI0.PEG0 set_label begin _SB.PCI0.PEGP end;
into scope label _SB.PCI0.PEG0.PEGP set_label begin _SB.PCI0.PEGP.GFX0 end;

into method label _L09 parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0(,\s0x[0-9A-F]{2}\)) replace_matched begin %1PEGP%2 end;
into method label _L09 parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0.PEGP(,\s(0x[0-9A-F]{2})\)) replace_matched begin %1PEGP.GFX0%2 end;
into method label OL1X parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0(,\sZero\)) replace_matched begin %1PEGP%2 end;
into method label _DSM parent_label GFX0 code_regex (If\s\(LEqual\s\(\^\^)PEG0\.PEGP(\.LNKV,\s0x[0-9A-F]{2}\)\)) replace_matched begin %1PEGP.GFX0%2 end;
into method label _DSM parent_label IGPU code_regex (If\s\(LEqual\s\(\^\^)PEG0\.PEGP(\.LNKV,\s0x[0-9A-F]{2}\)\)) replace_matched begin %1PEGP.GFX0%2 end;

# Insert device GFX0 (AMD/nVidia Graphics)
into device label GFX0 parent_label PEGP remove_entry;
into device label PEGP parent_label PCI0 insert begin
Device (GFX0)\n
{\n
Name (_ADR, Zero)\n
Name (_SUN, One)\n
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x0E) {\n
"AAPL,slot-name", "Slot-1",\n
"name", "Display Controller",\n
"@0,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n
"@1,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n
"@2,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n
"@3,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n
"hda-gfx", Buffer (0x0A) {"onboard-2"}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}\n
}
end;

# Insert device HDAU (AMD/nVidia HDMI Audio)
into device label HDAU parent_label PEGP remove_entry;
into device label PEGP parent_label PCI0 insert begin
Device (HDAU)\n
{\n
Name (_ADR, One)\n
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x02) {\n
"hda-gfx", Buffer (0x0A) {"onboard-2"}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}\n
}
end;

# Change HDEF layout-id for Intel HD audio
into method label _DSM parent_label HDEF code_regex ("layout-id",\s*Buffer\s+\(0x04\)\s*\{\s*)0x[0-9A-F]{2},\s*0x[0-9A-F]{2},\s*0x[0-9A-F]{2},\s*0x[0-9A-F]{2} replace_matched begin %10x01,0x00,0x00,0x00 end;
Link to comment
Share on other sites
nemois
nemois
Posted
Posted

Hey man, I have a laptop (Acer Aspire V3-731-4634)

in which i have succesfully installed MacOs Sierra, the problem comes to the fact that the chipset is series 7 (Mobile Intel HM77 Express) and the processor is Sandy Bridge (Intel Pentium B960) with Intel Hd graphics Sandy Bridge that is recognized as Intel hd graphics 3000 with no QE/CI.



is it possible to get QE/CI or not? Thanks.

You HD Graphics its no compatible with QE/CI, this Intel Pentium B960 is HD 2000 no HD3000

Link to comment
Share on other sites
Cyberdevs
Cyberdevs
Posted
Posted

My System

OS : Sierra 10.12.6

CPU : Intel i5-6600

M/B : Asus B150M-A/m.2

Graphic : msi r9 280x twin frozr 4 3gd5/oc gaming

Storage :

Samsung 950 por M.2

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887

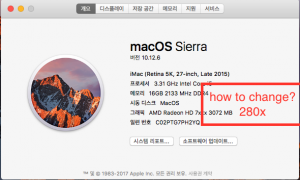

Is it working well?

I don't think the backpanel is working properly.

Use this path in your config.plist under Kext and Kernel Patches:



Name: AMD7000Controller

Find: 48442037 787878
Replace: 52392032383058
Comment:HD 7xxx to R9 280X

or

You can Lilu v.1.1.6 and Whatevergreen 1.1.3 kext files.
Link to comment
Share on other sites
Jangsangin
Jangsangin
Posted
Posted

Use this path in your config.plist under Kext and Kernel Patches:



Name: AMD7000Controller

Find: 48442037 787878

Replace: 52392032383058

Comment:HD 7xxx to R9 280X



or



You can Lilu v.1.1.6 and Whatevergreen 1.1.3 kext files.

thanks



나의 SM-N935S 의 Tapatalk에서 보냄

You try inject your GraphicCard in DSDT?

This Work for me

-----------------------------------------------------------------------------------------

# Maintained by: PJALM (help@pjalm.com) for: http://pjalm.com/repos/



# These patches are the registered property of PJALM.COM and can not be

# redistributed or modified without the written consent of PJALM.COM.

# Links to these patches are allowed. All material is protected under the DMCA.



# Last Updated : 05/07/2016

# Patch Name : GFX - Generic Discrete Graphics (AMD/nVidia)

# Patch Version : 1.0



# Warning : This patch is ment for Series 6/7 systems only, no guarantees of use on other systems.



# Desktop AMD/nVidia Graphics + HDMI Audio

# Credit to Toleda for the graphics and audio fixes



into device label PEGP parent_label PEG0 remove_entry;

into device label PEG0 parent_label PCI0 set_label begin PEGP end;



into scope label _SB.PCI0.PEG0 set_label begin _SB.PCI0.PEGP end;

into scope label _SB.PCI0.PEG0 set_label begin _SB.PCI0.PEGP end;

into scope label _SB.PCI0.PEG0.PEGP set_label begin _SB.PCI0.PEGP.GFX0 end;



into method label _L09 parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0(,\s0x[0-9A-F]{2}\)) replace_matched begin %1PEGP%2 end;

into method label _L09 parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0.PEGP(,\s(0x[0-9A-F]{2})\)) replace_matched begin %1PEGP.GFX0%2 end;

into method label OL1X parent_label _GPE code_regex (Notify\s\(\\_SB\.PCI0\.)PEG0(,\sZero\)) replace_matched begin %1PEGP%2 end;

into method label _DSM parent_label GFX0 code_regex (If\s\(LEqual\s\(\^\^)PEG0\.PEGP(\.LNKV,\s0x[0-9A-F]{2}\)\)) replace_matched begin %1PEGP.GFX0%2 end;

into method label _DSM parent_label IGPU code_regex (If\s\(LEqual\s\(\^\^)PEG0\.PEGP(\.LNKV,\s0x[0-9A-F]{2}\)\)) replace_matched begin %1PEGP.GFX0%2 end;



# Insert device GFX0 (AMD/nVidia Graphics)

into device label GFX0 parent_label PEGP remove_entry;

into device label PEGP parent_label PCI0 insert begin

Device (GFX0)\n

{\n

Name (_ADR, Zero)\n

Name (_SUN, One)\n

Method (_DSM, 4, NotSerialized)\n

{\n

Store (Package (0x0E) {\n

"AAPL,slot-name", "Slot-1",\n

"name", "Display Controller",\n

"@0,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n

"@1,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n

"@2,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n

"@3,connector-type", Buffer(0x04) {0x00,0x08,0x00,0x00},\n

"hda-gfx", Buffer (0x0A) {"onboard-2"}\n

}, Local0)\n

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n

Return (Local0)\n

}\n

}

end;



# Insert device HDAU (AMD/nVidia HDMI Audio)

into device label HDAU parent_label PEGP remove_entry;

into device label PEGP parent_label PCI0 insert begin

Device (HDAU)\n

{\n

Name (_ADR, One)\n

Method (_DSM, 4, NotSerialized)\n

{\n

Store (Package (0x02) {\n

"hda-gfx", Buffer (0x0A) {"onboard-2"}\n

}, Local0)\n

DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n

Return (Local0)\n

}\n

}

end;



# Change HDEF layout-id for Intel HD audio

into method label _DSM parent_label HDEF code_regex ("layout-id",\s*Buffer\s+\(0x04\)\s*\{\s*)0x[0-9A-F]{2},\s*0x[0-9A-F]{2},\s*0x[0-9A-F]{2},\s*0x[0-9A-F]{2} replace_matched begin %10x01,0x00,0x00,0x00 end;

thanks



나의 SM-N935S 의 Tapatalk에서 보냄

Link to comment
Share on other sites
Ch4rl35.
Ch4rl35.
Posted
Posted

Question, If i have a 7 series chipset HM77, can I buy a sandy bridge core i3, or do i have to buy an ivy bridge core i3?



I have read that MacOs doesnt activate the graphics since normal Macs dont have hybrids ("OS X gets confused when you run a 2nd generation Core-i "Sandy Bridge" CPU on one of the newer 7-series motherboards instead of a 3rd generation Core-i "Ivy Bridge" CPU, and vice versa").



I just want to be sure what processor I need to buy, taking into account that sandy bridge i3 is cheaper than i3 ivy bridge.

  • Like 1
Link to comment
Share on other sites
jlrycm98
jlrycm98
Posted
Posted

Hello MaLd0n, gengik84

I have a GA-z97-hd3 v2.1 with an intel i5 4690-k and an Nvidia 1050 ti SSC with 16 gb RAM ddr3 1600. Attached you will find my ioregistry file and two different clover settings that I have tried. My concern is that the booting process is taking more time than in the past after I tried both clover configurations. The clover.zip folder is booting after a while, the other one named clover 8-9-17.zip Im not sure is booting. The osx installation is 10.12.6 and is installed in a SSD devoted solely to osx. Could you check and share with me the best configuration which speed up the booting time.



Here is the other clover folder configuration I was referring to.


Here is the other clover folder configuration I was referring to.

CLOVER 8-9-17.zip

Jorge’s iMac.ioreg.zip

CLOVER.zip

  • Like 1
Link to comment
Share on other sites
MaLd0n
MaLd0n
Posted
  • Author
Posted

Question, If i have a 7 series chipset HM77, can I buy a sandy bridge core i3, or do i have to buy an ivy bridge core i3?



I have read that MacOs doesnt activate the graphics since normal Macs dont have hybrids ("OS X gets confused when you run a 2nd generation Core-i "Sandy Bridge" CPU on one of the newer 7-series motherboards instead of a 3rd generation Core-i "Ivy Bridge" CPU, and vice versa").



I just want to be sure what processor I need to buy, taking into account that sandy bridge i3 is cheaper than i3 ivy bridge.

sandy and ivy is lga 1155

Hello MaLd0n, gengik84

I have a GA-z97-hd3 v2.1 with an intel i5 4690-k and an Nvidia 1050 ti SSC with 16 gb RAM ddr3 1600. Attached you will find my ioregistry file and two different clover settings that I have tried. My concern is that the booting process is taking more time than in the past after I tried both clover configurations. The clover.zip folder is booting after a while, the other one named clover 8-9-17.zip Im not sure is booting. The osx installation is 10.12.6 and is installed in a SSD devoted solely to osx. Could you check and share with me the best configuration which speed up the booting time.



Here is the other clover folder configuration I was referring to.

Here is the other clover folder configuration I was referring to.

CLOVER.zip

  • Like 2
Link to comment
Share on other sites
Faradis
Faradis
Posted
Posted

attachicon.gifCLOVER.zip



in high sierra samsungs work native, sierra no, need patches

dont need ssdts



welcome

enjoy

@MaLd0n

my mac goes to sleep fine but fails to wake up how can i debug that is there any way to find out which component is the main culprit for not coming back from sleep i am using clover folder provided by you

  • Like 1
