[Guide] El Capitan, Sierra / High Sierra / Mojave / Catalina on Intel 5, 6, 7, 8, 9 Chipset Series / Nehalem, SandyBridge, IvyBridge, Haswell, Broadwell


MaLd0n
2,509 posts in this topic

Recommended Posts

Hello MaLdOn,

 I've just gotten a Dell desktop for my daughter, it's Dell DT6886 i5 7400 HD620. I'm trying to install Sierra 12.6 onto it.

 I created a Sierra 12.6.03 USB drive and it works well with all other hacks I have.

 I created a Sierra 12.6.03 USB installer.



 I couldn't boot into the Sierra 12.6 OS nor the installer.

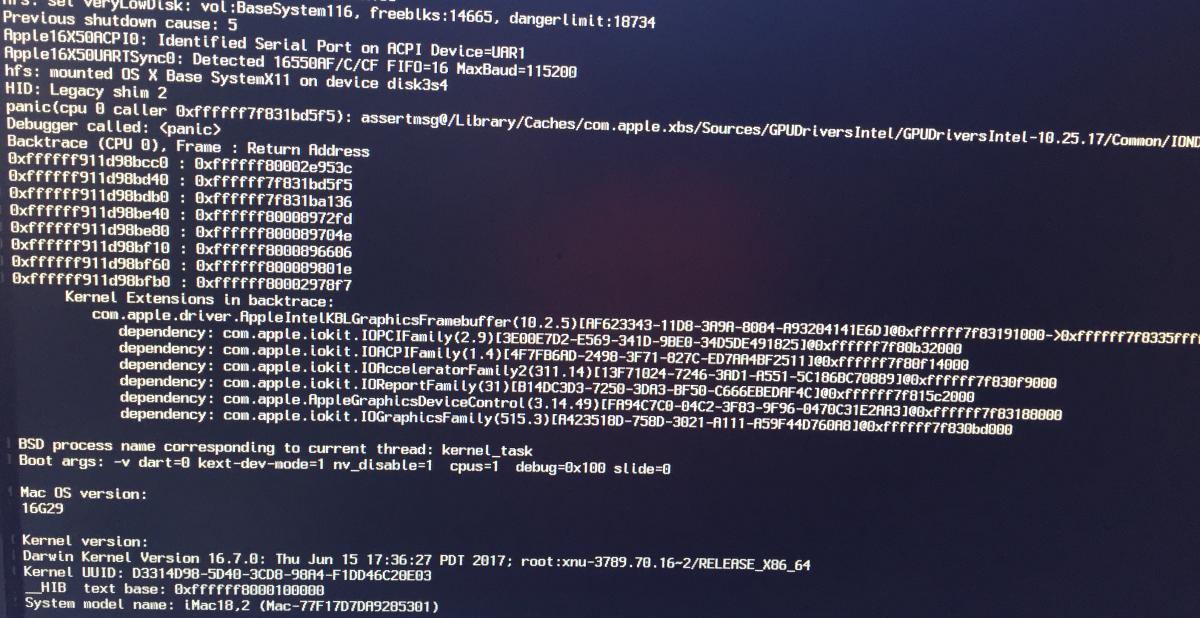

 Installer boot, I have KP at the KBLgraphicsFramebuffer.

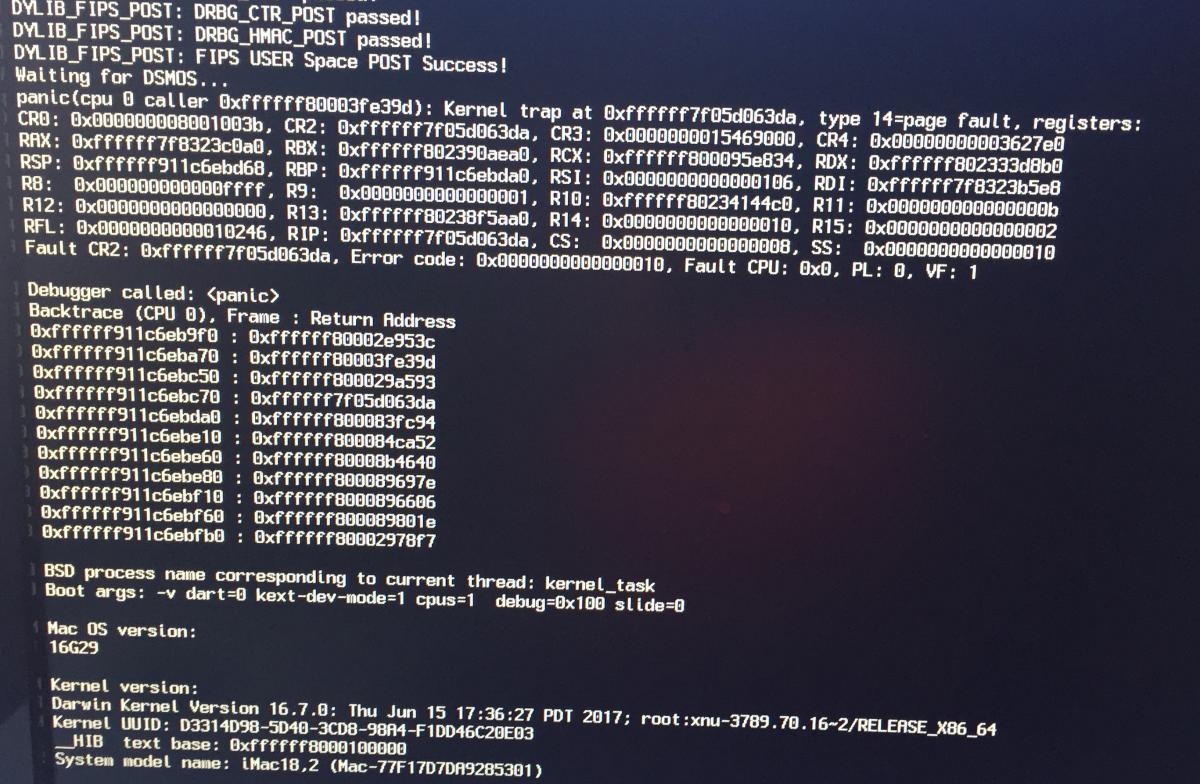

 USB Sierra OS, I have the KP at CPU0.



 I have tried to search for the failures, but not many exist. I don't know if you can help me with this since you seem to be well versed with Kaby Lake.



Thanks,



Louis







config182.plist.zip


  • Like 1
Link to comment
Share on other sites

Hello MaLdOn,

 I've just gotten a Dell desktop for my daughter, it's Dell DT6886 i5 7400 HD620. I'm trying to install Sierra 12.6 onto it.

 I created a Sierra 12.6.03 USB drive and it works well with all other hacks I have.

 I created a Sierra 12.6.03 USB installer.



 I couldn't boot into the Sierra 12.6 OS nor the installer.

 Installer boot, I have KP at the KBLgraphicsFramebuffer.

 USB Sierra OS, I have the KP at CPU0.



 I have tried to search for the failures, but not many exist. I don't know if you can help me with this since you seem to be well versed with Kaby Lake.



Thanks,



Louis

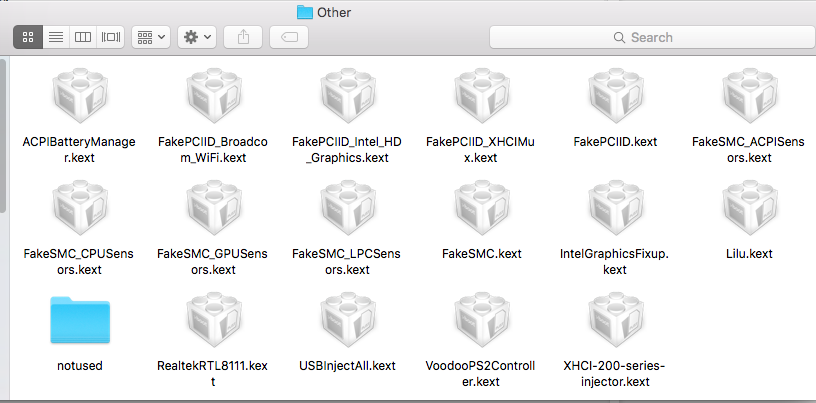

use IntelGraphicsDVMTFixup.kext, IntelGraphicsFixup.kext and Lilu.kext



- GRAPHICS : “ig-platform-id” changed to 0x59120000
- DEVICES : “Fake ID” for IntelGFX changed to 0x59128086
- BOOT : Add “-disablegfxfirmware” under Custom Flags
  • Like 1
Link to comment
Share on other sites

ThinkCentre M800



CPU Intel Core i3-6100

Nvidia GT 710 2GB.

Ram 4+4Gb DDR4 2400Mhz

Chipset  Intel Q150

Audio Realtek ALC662 <—no sound.

Intel Ethernet Connection I219-LM.



I ask if you can fix it

The DSDT for ThinkCentre M800



And what can I do to repair audio ?.

thank you.


Link to comment
Share on other sites

Hello MaLdOn,

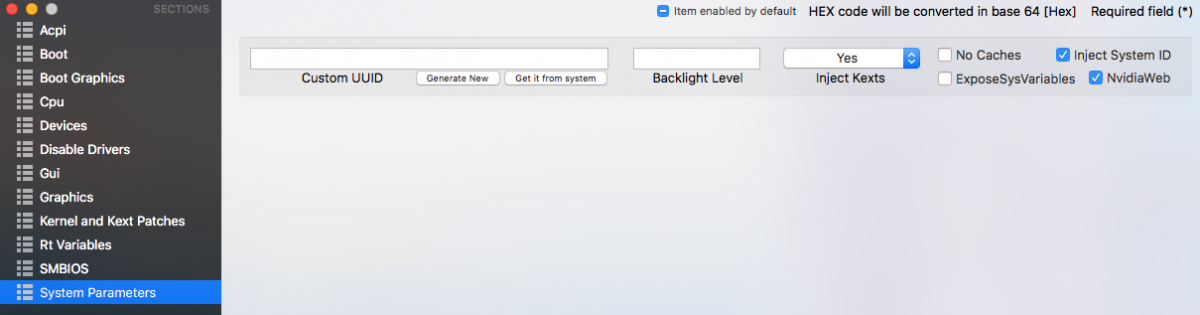

 I tried all of those, 2 times I saw the Lilu loaded and I got into the Sierra perfectly and it never happened again using skylark fakeid and injection. Never worked with 59120000. I did you boot flag with -disablegfxfirmware, still same kernel panic. I think unless I have the patch for Lilu KBLGraphicsFramebuffer, it won't load, and if it doesn't load, kp. I'm still not so sure about this. How do you add to custom flag on Clover?

 I create a 12.3 USB drive and it booted without QE/CI, video mem only shows 7mB.

 Do you still need FakeCPUID = 0x0506e3 with 0x59128086?



Thanks,



Louis

Link to comment
Share on other sites

ThinkCentre M800



CPU Intel Core i3-6100

Nvidia GT 710 2GB.

Ram 4+4Gb DDR4 2400Mhz

Chipset  Intel Q150

Audio Realtek ALC662 <—no sound.

Intel Ethernet Connection I219-LM.



I ask if you can fix it

The DSDT for ThinkCentre M800



And what can I do to repair audio ?.



thank you.







syntax error, unexpected PARSEOP_ARG0 FIX



Code (Text):

        Device (SAT0)
        {
            Name (_ADR, 0x00170000)  // _ADR: Address
            Method (_DSM, 4, Serialized)  // _DSM: Device-Specific Method
            {
                If (PCIC (Arg0))
                {
                    Return (PCID (Arg0, Arg1, Arg2, Arg3))
                }

                If (CondRefOf (\_SB.PCI0.SAT0.SDSM))
                {
                    Return (SDSM)
                    Arg0
                    Arg1
                    Arg2
                    Arg3
                }

                Return (Zero)
            }
Link to comment
Share on other sites

reHi. Can You help me, 1more time?

I just change from gtx560ti to gtx1060 6gb

help me plz..



My System

OS : Olarila Sierra 10.12.5 updat 10.12.6

CPU : Intel E3-1230v2

M/B : Ga-b75m-d3h

Graphic : Colorful GTX 1060 6gb

Storage :

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887

CLOVER.zip

Jangsangin의 iMac.zip

Send me Jangsangin의 iMac.zip

  • Like 1
Link to comment
Share on other sites

Hi,

I am setting up Sierra 10.12.6 on this hardware:



Motherboard: ASUS H87M-E

CPU: i5-4570

GPU: Intel HD Graphics 4600 (GT2)

Audio: ALC887

LAN: RTL8111G



Currently, I am using a messy config.plist to inject Intel integrated GPU and boot the system. Also, I do not have sound even if I included AppleALC.kext in my kexts. I would like to migrate to DSDT but currently I did not manage to achieve boot with graphics.



Also, I tried to attach my IOReg, but it is larger than 10 MB, even when compressed. Any idea why?



Thanks in advance for your assistance,

Alberto

origin.zip

Send me Alberto’s MacBook Pro.zip

  • Like 1
Link to comment
Share on other sites

reHi. Can You help me, 1more time?

I just change from gtx560ti to gtx1060 6gb

help me plz..



My System

OS : Olarila Sierra 10.12.5 updat 10.12.6

CPU : Intel E3-1230v2

M/B : Ga-b75m-d3h

Graphic : Colorful GTX 1060 6gb

Storage :

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887

replace folder

CLOVER.zip

install web driver

reboot

Hi,

I am setting up Sierra 10.12.6 on this hardware:



Motherboard: ASUS H87M-E

CPU: i5-4570

GPU: Intel HD Graphics 4600 (GT2)

Audio: ALC887

LAN: RTL8111G



Currently, I am using a messy config.plist to inject Intel integrated GPU and boot the system. Also, I do not have sound even if I included AppleALC.kext in my kexts. I would like to migrate to DSDT but currently I did not manage to achieve boot with graphics.



Also, I tried to attach my IOReg, but it is larger than 10 MB, even when compressed. Any idea why?



Thanks in advance for your assistance,

Alberto

DSDT.Alby128.zip

Hello MaLdOn,

 Thanks for your help, I got it working. I'll have a guide soon.



Cheers,



Louis

welcome, bro

enjoy

  • Like 2
Link to comment
Share on other sites

When generate ssdt, put in -x for xcpm???



나의 SM-N935S 의 Tapatalk에서 보냄

no

just run

SSDT_Automator.zip

Thanks, but the system does not boot with this, GPU is not recognized. What should I put in the config.plist? Should I still inject GPU or not?



Alberto

u need inject gpu, try with a simple InjectIntel

  • Like 1
Link to comment
Share on other sites

I'm sorry to ask you to keep asking. I replaced the graphics card and the computer broke down.

I bought a new computer presumptively. T.T

Can you help me, One more..I wish this was the last time I saw you.

I'm so sorry.

My System

OS : Sierra 10.12.6

CPU : Intel i5-6600

M/B : Asus B150M-A/m.2

Graphic : inno3D GTX 560 Ti

Storage :

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887



and have m.2 slot

CLOVER.zip

Jangsangin의 iMac.zip

Send me Jangsangin의 iMac.zip

  • Like 1
Link to comment
Share on other sites

I'm sorry to ask you to keep asking. I replaced the graphics card and the computer broke down.

I bought a new computer presumptively. T.T

Can you help me, One more..I wish this was the last time I saw you.

I'm so sorry.

My System

OS : Sierra 10.12.6

CPU : Intel i5-6600

M/B : Asus B150M-A/m.2

Graphic : inno3D GTX 560 Ti

Storage :

Sandisk 120gb ssd

2X hdd

1X ODD

Lan : Realtek 8111

Sound : Alc887



and have m.2 slot

u can use previous files ;) np

Hi MaLd0n, can you help me with my Clover Config of my desktops? thanks a lot...

what models?

Link to comment
Share on other sites

Hi MaLd0n, can you help me with my Clover Config of my desktops? thanks a lot...

Hi, The specs is into the zip file, thanks

MSI--------

Mobo: MSI B75MA-P45

GPU: i7 2600k

GPU: GTX 650 Ti 1gb



GIGABYTE--------

MOBO: GIGABYTE H110M-H

CPU: i7 7700



GPU: GT 730 2gb ddr3
