Lorenzoo Posted February 13, 2018 Share Posted February 13, 2018 Hello Maldon. I am Lorenzo, from France, we spoke some month ago about a z97 Asus model, and I told I was about to buy a b250 MSI Mortar. So I got, a bit later than I expected, but it is done now. So I installed with your method, without DSDT or SSDT. Everything seems to work perfectly, except the USB 3.0 front port, which doesn’t recognise a USB 3.0 device, but can read a USB 2.0. When I repair permissions and rebuild cache it works a time, well.. a day.. and then stops again. Do you think I need a dsdt ? I also had a problem with the last OsxAptionfixDrv, when booting, a listing of a lot of impossible allocated memory blocs appears, then a warning saying that it may not boot correctly.. The old version is working better, at least in my case. It this serious, doctor ? Thanks in advance ! Send me Lorenzs-iMac.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 13, 2018 Author Share Posted February 13, 2018 Hello Maldon. I am Lorenzo, from France, we spoke some month ago about a z97 Asus model, and I told I was about to buy a b250 MSI Mortar. So I got, a bit later than I expected, but it is done now. So I installed with your method, without DSDT or SSDT. Everything seems to work perfectly, except the USB 3.0 front port, which doesn’t recognise a USB 3.0 device, but can read a USB 2.0. When I repair permissions and rebuild cache it works a time, well.. a day.. and then stops again. Do you think I need a dsdt ? I also had a problem with the last OsxAptionfixDrv, when booting, a listing of a lot of impossible allocated memory blocs appears, then a warning saying that it may not boot correctly.. The old version is working better, at least in my case. It this serious, doctor ? Thanks in advance ! CLOVER.zip new ioreg after reboot 2 Link to comment Share on other sites More sharing options...
Lorenzoo Posted February 13, 2018 Share Posted February 13, 2018 Thanks a lot ! I will try this tomorrow and I 'll let you know. Thanks again for answering so fast ! 1 Link to comment Share on other sites More sharing options...
gloveda Posted February 13, 2018 Share Posted February 13, 2018 MaLd0n! You are the bestttt... 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 13, 2018 Author Share Posted February 13, 2018 Thanks a lot ! I will try this tomorrow and I 'll let you know. Thanks again for answering so fast ! k MaLd0n! You are the bestttt... Welcome! Enjoy! 1 Link to comment Share on other sites More sharing options...
Check-IN Posted February 13, 2018 Share Posted February 13, 2018 let's go replace folder, reboot and send me new ioreg CLOVER.zip i think no, use Intel HD Graphics check shiki https://github.com/vit9696/Shiki Thanx Maldon, i will try tomorrow! Link to comment Share on other sites More sharing options...
Jazzphone Posted February 14, 2018 Share Posted February 14, 2018 Hi MaLd0n Here are my files. Thank you for doing this! I currently have my USB ports mapped out in the SSDT-UIAC and use my Intel HD530 as a connectorless card for quick sync. Send me Jasons-Mac.zip 1 Link to comment Share on other sites More sharing options...
Lorenzoo Posted February 14, 2018 Share Posted February 14, 2018 Hello MaLdOn. So I tried with the files you sent me. I had to make a java update too, it asked for.. I don't know why exactly. Before that, usb 3.0 was not working, but now it does. I still have the problem with memory allocation when booting. I join a screenshot, maybe it can be useful. Thanks again for the time you spend for all of us ! Send me Lorenzs-iMac.zip Vboot.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Hi MaLd0n Here are my files. Thank you for doing this! I currently have my USB ports mapped out in the SSDT-UIAC and use my Intel HD530 as a connectorless card for quick sync. CLOVER.zip dont need ssdt just use uia_exclude flag E.G Unused Ports, uxcluded with flag uia_exclude=HS01;HS02;HS03;HS04;HS05;HS06;HS10;HS11;SSP1;SSP2;SSP6 Used Ports HS07, HS08, HS09, HS12, HS13, HS14, SSP3, SSP4, SSP5 Hello MaLdOn. So I tried with the files you sent me. I had to make a java update too, it asked for.. I don't know why exactly. Before that, usb 3.0 was not working, but now it does. I still have the problem with memory allocation when booting. I join a screenshot, maybe it can be useful. Thanks again for the time you spend for all of us ! try driver update AptioMemoryFix.efi.zip 1 Link to comment Share on other sites More sharing options...

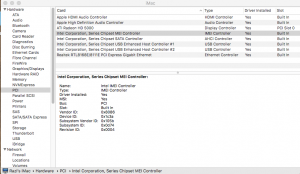

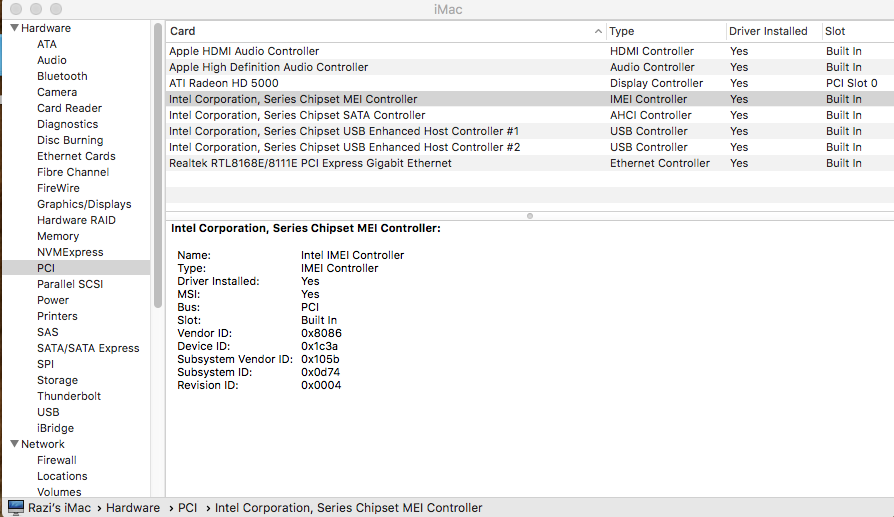

RandomTech Posted February 14, 2018 Share Posted February 14, 2018 Hi Mald0n I'm here again You fixed the SSDT of my Z370N Wifi and its all good, but have two more questions: 1. After 10 min of system start my 8700K runs all time at 4.70 GHz even with ssdt or plugin true, for now I underclocked to 4.5 GHz from BIOS just to keep things cool, is that normal for 8700K till it gets the full Apple support (if any)? 2. Under ''System Report/PCI'' is reported ''Intel 300 Series Chipset SATA Controller'' as I modified that 300, but in SATA/SATA Express section it says Intel 10 Series Chipset, why you think is that? Please tell me if you can help so I send you my EFI folder to take a look, cheers Correction: You fixed my motherboards DSDT, sorry 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Hi Mald0n I'm here again You fixed the SSDT of my Z370N Wifi and its all good, but have two more questions: 1. After 10 min of system start my 8700K runs all time at 4.70 GHz even with ssdt or plugin true, for now I underclocked to 4.5 GHz from BIOS just to keep things cool, is that normal for 8700K till it gets the full Apple support (if any)? 2. Under ''System Report/PCI'' is reported ''Intel 300 Series Chipset SATA Controller'' as I modified that 300, but in SATA/SATA Express section it says Intel 10 Series Chipset, why you think is that? Please tell me if you can help so I send you my EFI folder to take a look, cheers Correction: You fixed my motherboards DSDT, sorry send me ur dsdt Apple don't use serie 200 or 300, use only serie 100, for avoid appears "Generic Ahci" we apply serie 10 i creta one injector for serie 300 1 Link to comment Share on other sites More sharing options...
mihu_yo Posted February 14, 2018 Share Posted February 14, 2018 Hi! I succeed making work all,except audio.I think it needs DSDT layout ID patch... Every time I try to patch I receive several errors...By the way...there is a library with patches you use MaLd0n ? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Hi! I succeed making work all,except audio.I think it needs DSDT layout ID patch... Every time I try to patch I receive several errors...By the way...there is a library with patches you use MaLd0n ? send me files library is my hack and my brain xD 1 Link to comment Share on other sites More sharing options...
mihu_yo Posted February 14, 2018 Share Posted February 14, 2018 send me files library is my hack and my brain xD Gdrive Thanks! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Gdrive Thanks! CLOVER.zip 1 Link to comment Share on other sites More sharing options...
mihu_yo Posted February 14, 2018 Share Posted February 14, 2018 CLOVER.zip Real thanks!I sent you some beer, you deserve much more... 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Real thanks!I sent you some beer, you deserve much more... Welcome! Enjoy! 1 Link to comment Share on other sites More sharing options...
Lorenzoo Posted February 14, 2018 Share Posted February 14, 2018 Hi MaLdOn. So I just tried the update of AptioMemoryFix. The listing of all slides vales doesn't appear anymore, but I still have a warning message: AptioMemoryFix(R15) : starting \system\library\coreservices\ AMF: only 128/256 slide values are usable! Booting may fail Valid slides: 128-255 Can it work this way or any change to make? Thanks once again ! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Hi MaLdOn. So I just tried the update of AptioMemoryFix. The listing of all slides vales doesn't appear anymore, but I still have a warning message: AptioMemoryFix(R15) : starting \system\library\coreservices\ AMF: only 128/256 slide values are usable! Booting may fail Valid slides: 128-255 Can it work this way or any change to make? Thanks once again ! just a log, if work u can use without any problem 1 Link to comment Share on other sites More sharing options...
mihu_yo Posted February 14, 2018 Share Posted February 14, 2018 Welcome! Enjoy! Tomorrow I will receive new parts for my hackintosh...some RAM and one Plextor NVME ssd ...Considering that SSD will be on PCIE buss, there will be need for new DSDT patches to use that SSD? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Tomorrow I will receive new parts for my hackintosh...some RAM and one Plextor NVME ssd ...Considering that SSD will be on PCIE buss, there will be need for new DSDT patches to use that SSD? same files i think plextor NVME need a patch in config.plist Link to comment Share on other sites More sharing options...
Lorenzoo Posted February 14, 2018 Share Posted February 14, 2018 just a log, if work u can use without any problem Ok Thanks again. I will try it for some days and see. I will also make a fresh install on another SSD, with your clover folder. I will post some updates. Have a nice day. 1 Link to comment Share on other sites More sharing options...
41089 Posted February 14, 2018 Share Posted February 14, 2018 let's go replace folder, reboot and send me new ioreg CLOVER.zip i think no, use Intel HD Graphics check shiki https://github.com/vit9696/Shiki Thank you for the tip! l've got shiki installed and can play 4k content without a hitch. yet when I run the VDADecoderscript to check if i've got hardware decoding it returns : VDADecoderCreate failed. err: -12473 An error was returned by the decoder layer. This may happen for example because of bitstream/data errors during a decode operation. This error may also be returned from VDADecoderCreate when hardware decoder resources are available on the system but currently in use by another process. VDADecoderCreate failed. err: -12473 Even after a reboot. Since I can play 4k no problem and can view itunes trailers I can only assume shiki is working. Im kind of at a loss as to why performance is still so bad and my hackintosh sometimes crashes and kicks me back to the log in screen with "gIOScreenLockState 3, hs 0, bs 0, now 0, am 0x0" Surely I cant be the only one having this issue? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted February 14, 2018 Author Share Posted February 14, 2018 Thank you for the tip! l've got shiki installed and can play 4k content without a hitch. yet when I run the VDADecoderscript to check if i've got hardware decoding it returns : VDADecoderCreate failed. err: -12473 An error was returned by the decoder layer. This may happen for example because of bitstream/data errors during a decode operation. This error may also be returned from VDADecoderCreate when hardware decoder resources are available on the system but currently in use by another process. VDADecoderCreate failed. err: -12473 Even after a reboot. Since I can play 4k no problem and can view itunes trailers I can only assume shiki is working. Im kind of at a loss as to why performance is still so bad and my hackintosh sometimes crashes and kicks me back to the log in screen with "gIOScreenLockState 3, hs 0, bs 0, now 0, am 0x0" Surely I cant be the only one having this issue? - GRAPHICS : Check InjectIntel - GRAPHICS : “ig-platform-id” changed to 0x59120000 - DEVICES : “Fake ID” for IntelGFX changed to 0x59128086 - BOOT : Add “-disablegfxfirmware” under Custom Flags + use shiki.kext + IntelGraphicsFixup.kext + shikigva=60 2 Link to comment Share on other sites More sharing options...
41089 Posted February 14, 2018 Share Posted February 14, 2018 - GRAPHICS : Check InjectIntel - GRAPHICS : “ig-platform-id” changed to 0x59120000 - DEVICES : “Fake ID” for IntelGFX changed to 0x59128086 - BOOT : Add “-disablegfxfirmware” under Custom Flags + use shiki.kext + IntelGraphicsFixup.kext + shikigva=60 Wait I need intel graphics mixup.kext as well as Nvidiagraphicsfixup.kext and inject intel when running a 970? I never knew. Going to test this out. thank you very much! 1 Link to comment Share on other sites More sharing options...
