MaLd0n Posted January 14, 2018 Author Share Posted January 14, 2018 no all my system files are untouched I only used clover I disabled rootless I will enable and try again DSDT.without _DSM HDEF.zip Use it, without audio in DSDT, just inject via Clover best for test, first time i see this problem, work good with id 1, 7 or 11 1 Link to comment Share on other sites More sharing options...
erd0N01D Posted January 14, 2018 Share Posted January 14, 2018 DSDT.without _DSM HDEF.zip Use it, without audio in DSDT, just inject via Clover best for test, first time i see this problem, work good with id 1, 7 or 11 my clover config includes HDAS to HDEF patch maybe this conflicted with DSDT.0b I tested this new this DSDT only 1 and 7 layouts work but still have same issues no output selection for green audio out and system still selects headphone output after reboot jack sense not work either I think I have to give up that green output and wait for a new kext update includes fixes for this s1220a chip but I dont understand why jack sense not working now because it worked before and system switches the headphone output after every reboot I will add new m2 ssd soon and after clean install I will try again thanks for your time and effort really appreciated 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Author Share Posted January 14, 2018 my clover config includes HDAS to HDEF patch maybe this conflicted with DSDT.0b I tested this new this DSDT only 1 and 7 layouts work but still have same issues no output selection for green audio out and system still selects headphone output after reboot jack sense not work either I think I have to give up that green output and wait for a new kext update includes fixes for this s1220a chip but I dont understand why jack sense not working now because it worked before and system switches the headphone output after every reboot I will add new m2 ssd soon and after clean install I will try again thanks for your time and effort really appreciated HDAS to HDEF, u can use it, no conflict DSDT 0b is id 11, dont work for u u can try a applehda patcher, check in forum download section 3 Link to comment Share on other sites More sharing options...
PoMpIs Posted January 14, 2018 Share Posted January 14, 2018 welcome, enjoy keep up the good work thank you very much MaLd0n I'll keep trying, it's very fun 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 14, 2018 Author Share Posted January 14, 2018 thank you very much MaLd0n I'll keep trying, it's very fun 2 Link to comment Share on other sites More sharing options...
stalvatero Posted January 15, 2018 Share Posted January 15, 2018 Just to know, I read that in newer system maybe useless to patch DSDT because system and newer EUFI Bios togheter with the right Clover patches do the work. Is it right? In my CustoMac I've no DSDT and system seems to work just fine. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 Just to know, I read that in newer system maybe useless to patch DSDT because system and newer EUFI Bios togheter with the right Clover patches do the work. Is it right? In my CustoMac I've no DSDT and system seems to work just fine. This is a lie of those who are lazy or do not know how to do. All hacks need a many patches. People confuse the power of new processors with "I don't need it" 2 Link to comment Share on other sites More sharing options...

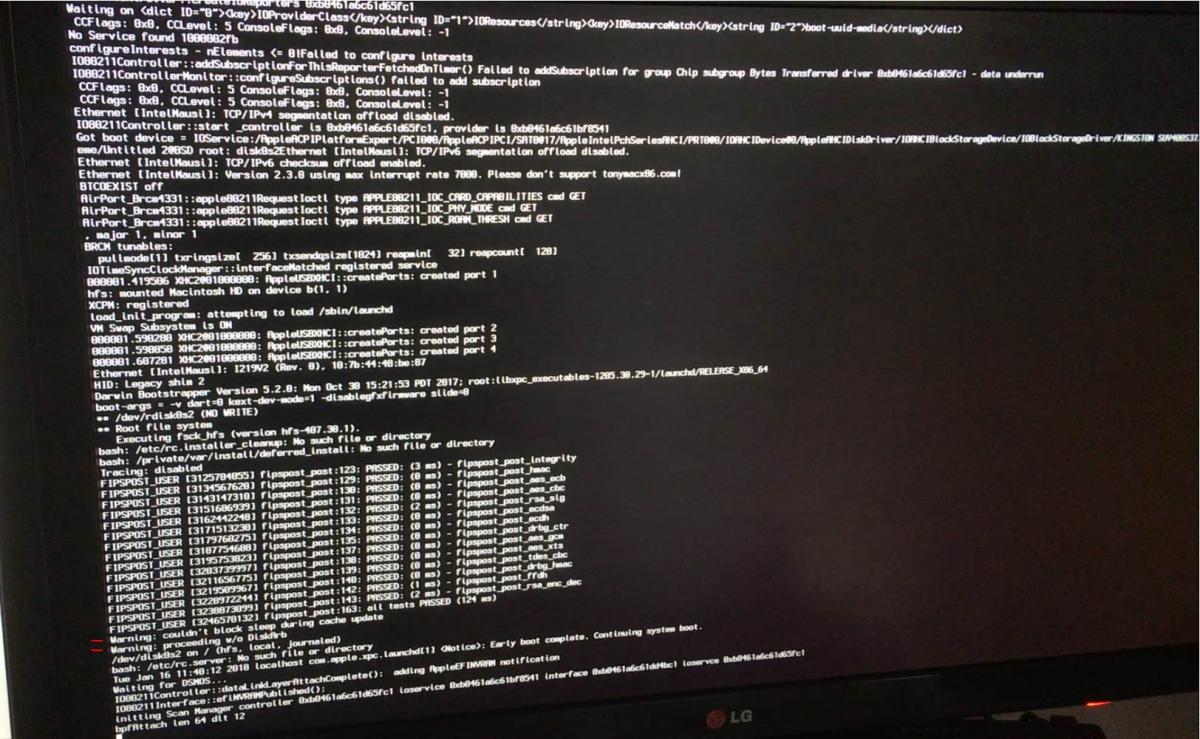

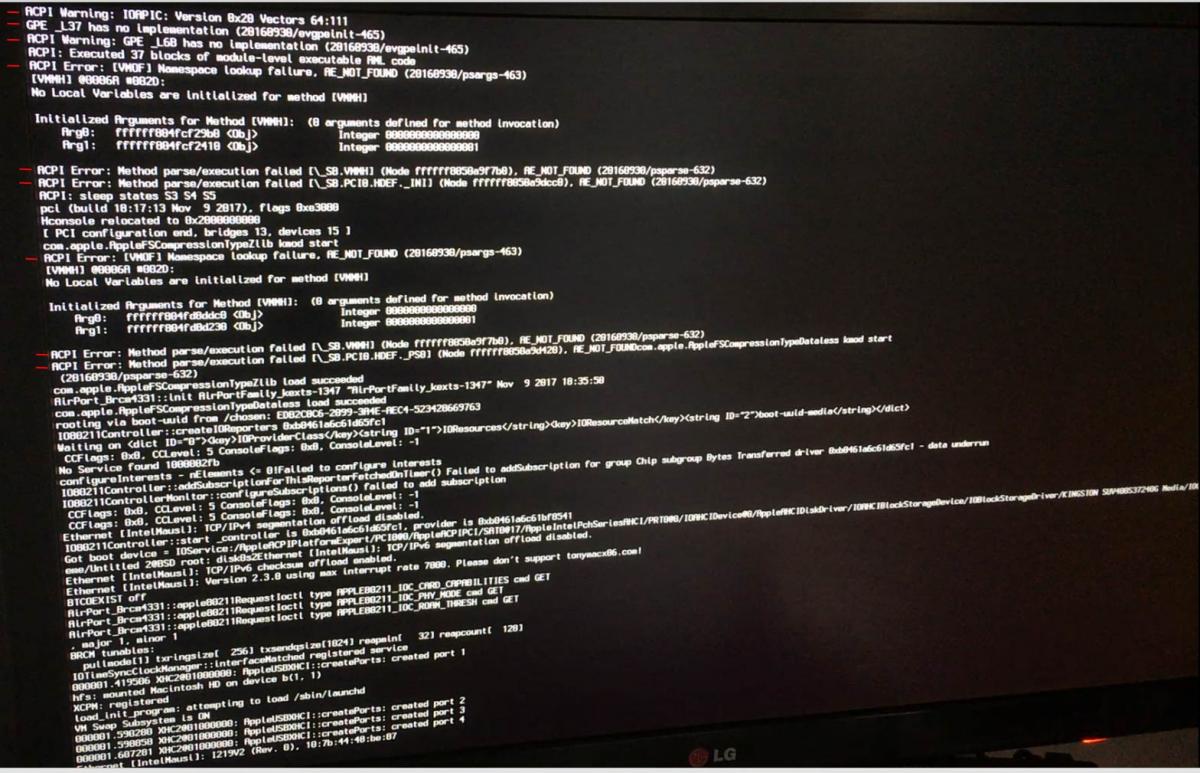

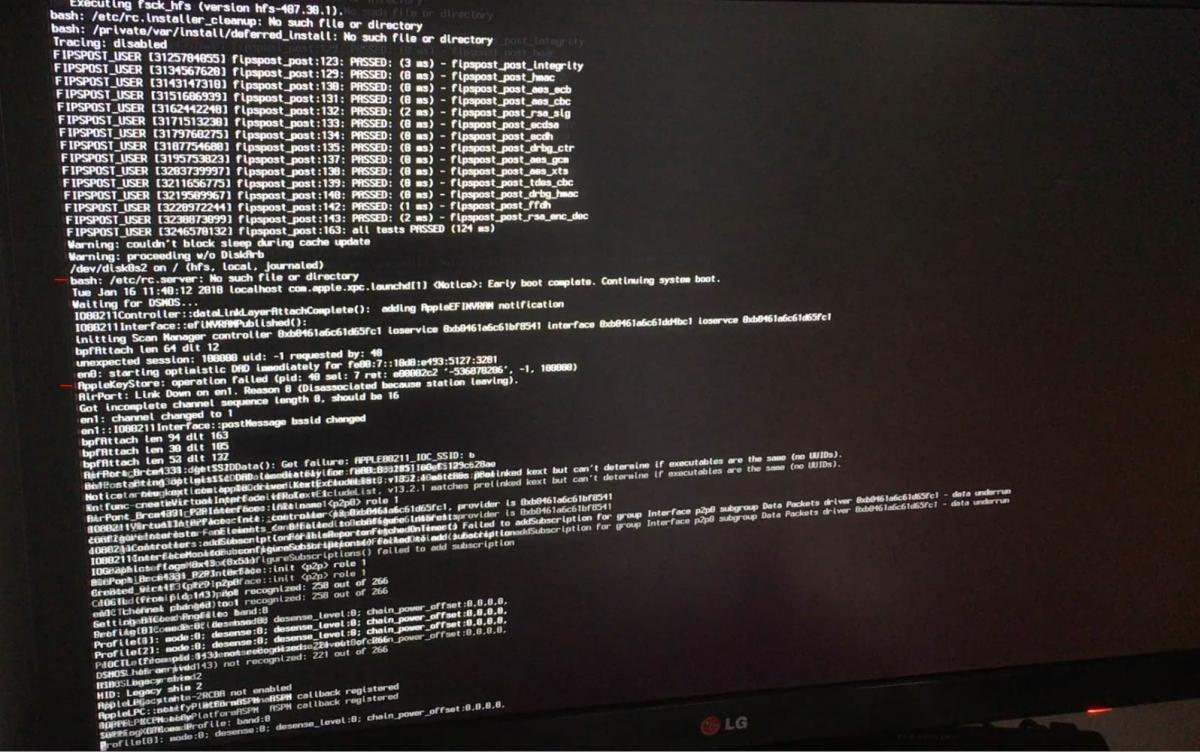

Check-IN Posted January 15, 2018 Share Posted January 15, 2018 i apply all in DSDT, essentials and cosmetics for work good CLOVER.zip send me new ioreg after reboot for check temps etc, use it Install Intel Power Gadget.pkg.zip replace full folder, reboot and send me one ioreg IORegistryExplorer.app.zip CLOVER.zip * i add new driver from... https://github.com/vit9696/AptioFixPkg let me know if work good i apply all in DSDT, essentials and cosmetics for work good CLOVER.zip send me new ioreg after reboot for check temps etc, use it Install Intel Power Gadget.pkg.zip Maldon, thanks for the reply! I am attaching the required files, but I also have included some photos because there are some strange things that were not there before DSDT in the System Profiler. I took some pictures even verbose boot because I do not know how to generate a complete log file of the boot. After entering your dsdt there are ACPI errors that without DSDT I did not have, I do not know how to solve them, maybe there are some patches that we can avoid since it is almost all native? Let me know and thanks again. MALDON-V3.zip 1 Link to comment Share on other sites More sharing options...
puffdawggie Posted January 15, 2018 Share Posted January 15, 2018 Where do I get the source for your DSDT patches? I see you lsited them out but I can't seem to find those specific patches anywhere. I have an Asus Z370i motherboard and figured the patches would be very similar to your asus z370g dsdt file... 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 send me ur DSDT, need inject correct info about xhc2 Sata serie 10, with DSDT only serie 10, apple dont use serie 20 or 30 we can remove _DSM and use injector, just for appears seriexx Acpi log ae not found, u can ignore it, i'm looking into it pci slot, i inject 3, we can put in slot 9 or other, just inject Where do I get the source for your DSDT patches? I see you lsited them out but I can't seem to find those specific patches anywhere. I have an Asus Z370i motherboard and figured the patches would be very similar to your asus z370g dsdt file... i create my patches and update some old patches u can check many links here http://www.insanelymac.com/forum/topic/235523-dsdt-auto-patcher/ 2 Link to comment Share on other sites More sharing options...
puffdawggie Posted January 15, 2018 Share Posted January 15, 2018 Is there any possible way you could load those patches into my dsl file? I've been using glasgood's dsdt mistankely which is causing problems for me. Mucho appreciated =) Archive.zip 1 Link to comment Share on other sites More sharing options...

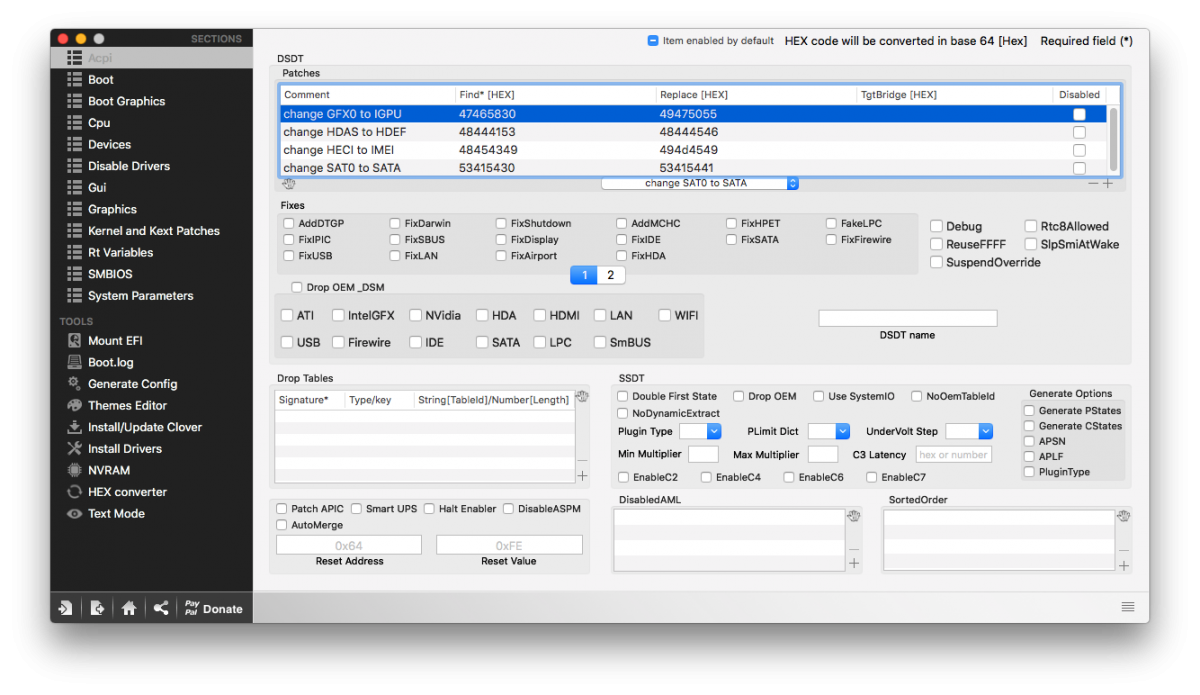

MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 Is there any possible way you could load those patches into my dsl file? I've been using glasgood's dsdt mistankely which is causing problems for me. Mucho appreciated =) DSDT.puffdawggie.zip Use patches in ur config.plist GLAN to GIGE 474c 414e 4749 4745 EC0 to EC 4543 305f 4543 5f5f GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 SAT0 to SATA 53415430 53415441 Here Link to comment Share on other sites More sharing options...
puffdawggie Posted January 15, 2018 Share Posted January 15, 2018 DSDT.puffdawggie.zip Use patches in ur config.plist GLAN to GIGE 474c 414e 4749 4745 EC0 to EC 4543 305f 4543 5f5f GFX0 to IGPU 47465830 49475055 HDAS to HDEF 48444153 48444546 HECI to IMEI 48454349 494d4549 SAT0 to SATA 53415430 53415441 Here MaLd0n 2018-01-15 às 17.15.02.png You are the man! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 You are the man! Enjoy! Let me know if work good 1 Link to comment Share on other sites More sharing options...
Check-IN Posted January 15, 2018 Share Posted January 15, 2018 send me ur DSDT, need inject correct info about xhc2 Sata serie 10, with DSDT only serie 10, apple dont use serie 20 or 30 we can remove _DSM and use injector, just for appears seriexx Acpi log ae not found, u can ignore it, i'm looking into it pci slot, i inject 3, we can put in slot 9 or other, just inject I attach to this link my EFI folder with the original (untouched) DSDT just extracted (F4 Clover). I have also left the extensions I use, including those to see the CPU and GPU values, etc...and the 20 series kext. Please do not remove patches or extensions if it is not necessary, because for me then it is easier to understand if something has changed for the better ... excuse my ignorance ... Using this I miss some small cosmetic correction in the System Profiler (eg. PCI Card) but everything else seems to go without errors. In the config file you sent me you removed also the Plugin option, I reactivated it so I have native powermanagement. I ask you: how do I get a complete log of the verbose boot without having to make a movie? Thanx! http://www.terminalstrip.net/MaLdOn/MaldonV4.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 I attach to this link my EFI folder with the original (untouched) DSDT just extracted (F4 Clover). I have also left the extensions I use, including those to see the CPU and GPU values, etc...and the 20 series kext. Please do not remove patches or extensions if it is not necessary, because for me then it is easier to understand if something has changed for the better ... excuse my ignorance ... Using this I miss some small cosmetic correction in the System Profiler (eg. PCI Card) but everything else seems to go without errors. In the config file you sent me you removed also the Plugin option, I reactivated it so I have native powermanagement. I ask you: how do I get a complete log of the verbose boot without having to make a movie? Thanx! http://www.terminalstrip.net/MaLdOn/MaldonV4.zip but without it u dont have many important patches, work the Acpi log ae not found is just a HDAS to HDEF renamed in all tables, in ur case i think in hdef _INI it works, Clover is magic, but a lot is missing. for sata appears a serie 20, just remove _DSM in DSDT device SATA/SAT0 take a test for me, run it and send me files, ill check if hot patch rename all HDAS RunMe.app.zip btw, u avoid one hdef log and gain 300 about usb 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 sorry not clear. do I have to test your last dsdt without the active patches or do you want a clean dsdt without a patch? In one hour ill send one dsdt for ur test, my light is gone here, many rain... bad Link to comment Share on other sites More sharing options...
jmjrr Posted January 15, 2018 Share Posted January 15, 2018 HI, Can you please check my config ? System is GA z170n-wifi i5-6500 rx470 mostly working , but sometimes wake after sleep no sound, and more rarely no screen! thanks 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 15, 2018 Author Share Posted January 15, 2018 I attach the send me generated from boot with your last clover folder I did not want to make you lose patience, I'm sorry. lol no problem HI, Can you please check my config ? System is GA z170n-wifi i5-6500 rx470 mostly working , but sometimes wake after sleep no sound, and more rarely no screen! thanks Ill check in a few minutes 1 Link to comment Share on other sites More sharing options...
jmjrr Posted January 15, 2018 Share Posted January 15, 2018 Ill check in a few minutes Obrigado 1 Link to comment Share on other sites More sharing options...
Rasstar Posted January 16, 2018 Share Posted January 16, 2018 Hoping that you can help me out with this install. I am a noob. I have attached the required files. I am having issues with sleep and I am using a config from a guide but it isn't the exact motherboard. I have an Asrock z270 Killer. The display freezes when I resume from sleep. Send me iMac.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
alireza_sh Posted January 16, 2018 Share Posted January 16, 2018 Hi for all I install Hackintash H S and work Sound network and graphic cards very well .But now when i login into Hackintash my login name and password is missing.I try to meany times type login name and password do not login in to Hackintash. 1 Link to comment Share on other sites More sharing options...
bkzdrpapi Posted January 16, 2018 Share Posted January 16, 2018 Hey thanks a bunch for the help in advance. Attached are requested files for dsdt edits. Gigabyte X299 Ultra Gaming Pro I9 7900X 64GB Ram Send me iMac 2.zip CLOVER 2 2.zip 1 Link to comment Share on other sites More sharing options...
stalvatero Posted January 16, 2018 Share Posted January 16, 2018 This is a lie of those who are lazy or do not know how to do. All hacks need a many patches. People confuse the power of new processors with "I don't need it" Thanks to your superb guide, I finally installed High Sierra 10.13.2 on my new machine (check it in my signature). Installation went smooth, using my dGPU RX 560 and avoid APFS conversion. Used also your EFI folder on SSD and make same little tweak and patch to optimize ma Radeon RX 560 with HEVC support. Everything seems to work really fine, also iMessage after correctly setting SMBIOS. Sleep / Wake also work flawlessly. Same little patch also for Audio (ALC887), working really good with high volume and good quality. I don't know if should useful some DSDT or SSDT patch, so please, could verify? I attached the file you request in OP. Thank you very very mach... you're the boss iMac-Stalvatero.zip 1 Link to comment Share on other sites More sharing options...
Check-IN Posted January 16, 2018 Share Posted January 16, 2018 lol no problem Hello, seems all ok but....see attached jpeg Send me Mirco’s iMac.zip 1 Link to comment Share on other sites More sharing options...
