YoYelloW Posted December 31, 2017 Share Posted December 31, 2017 use ur clover folder and my DSDT DSDT.02.zip use iMac17 smbios, if u need use gfx0 to igpu patch in config.plist That seems to work nicely, thanks alot! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 31, 2017 Author Share Posted December 31, 2017 That seems to work nicely, thanks alot! Good! Enjoy! 1 Link to comment Share on other sites More sharing options...
41089 Posted December 31, 2017 Share Posted December 31, 2017 Hey MaLd0n, Thanks a lot for the DSDT! Can I please know what bios version you where using for the Asus ROG Z370F ? 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted December 31, 2017 Author Share Posted December 31, 2017 Hey MaLd0n, Thanks a lot for the DSDT! Can I please know what bios version you where using for the Asus ROG Z370F ? dont remember, update ur bios for last version and send me ur original DSDT, extract with F4 in clover boot screen, send me one ioreg too 1 Link to comment Share on other sites More sharing options...
golgota Posted January 1, 2018 Share Posted January 1, 2018 Hi MaLd0n, and happy new year! Can you help me with DSDT for my gigabyte z370xp sli?? i dont know how upload files here, so this is a wetransfer link: https://we.tl/tFxsuEMZwU thanks in advance, muchas gracias! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 1, 2018 Author Share Posted January 1, 2018 Hi MaLd0n, and happy new year! Can you help me with DSDT for my gigabyte z370xp sli?? i dont know how upload files here, so this is a wetransfer link: https://we.tl/tFxsuEMZwU thanks in advance, muchas gracias! K I'm back to home in a few hours, i edit for u! 3 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 Hi MaLd0n, and happy new year! Can you help me with DSDT for my gigabyte z370xp sli?? i dont know how upload files here, so this is a wetransfer link: https://we.tl/tFxsuEMZwU thanks in advance, muchas gracias! Replace full Clover folder, reboot, don't change or add nothing, try with only my folder, test ur usb, etc CLOVER golgota.zip 1 Link to comment Share on other sites More sharing options...

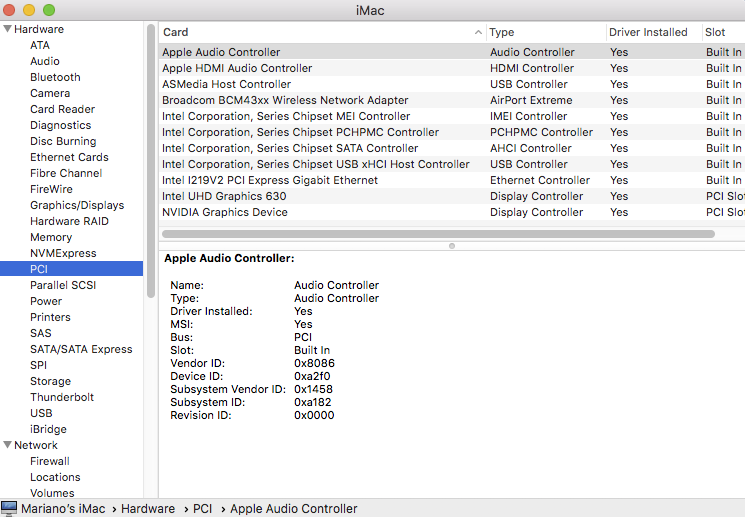

golgota Posted January 2, 2018 Share Posted January 2, 2018 thanks!! Stuck on verbose boot, something with igpu driver not loaded. From O option in clover, checked " inject intel" and boot. (now need to know what check or uncheck on clover configurator) Sound ok, usb ok, all drives as internal. Now on system report, pci part have the right info. Just a little things on clover configurator like: In Rt Variables, CsrActiveConfig show "0x3E7"(is correct?) Think i need to check "Inject Intel"in Graphics for boot or uncheck some argument on Boot. Just tell me. Many thanks MaLd0n! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 In Rt Variables, CsrActiveConfig show "0x3E7"(is correct?) Yes, Clover default about video, disable intel HD in bios, use only NVidia test sleep, i put wake in power button, if work good, we try wake from mouse/keyboard 1 Link to comment Share on other sites More sharing options...
golgota Posted January 2, 2018 Share Posted January 2, 2018 Yes, Clover default about video, disable intel HD in bios, use only NVidia test sleep, i put wake in power button, if work good, we try wake from mouse/keyboard Forgot to mention. I need intel uhd enable (for hardware acceleration in FCPX) Testing sleep and wake from keyboard or mouse click, no problem. Thanks for your help mate! Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 Forgot to mention. I need intel uhd enable (for hardware acceleration in FCPX) Testing sleep and wake from keyboard or mouse click, no problem. Thanks for your help mate! Enjoy! Link to comment Share on other sites More sharing options...
newphase Posted January 2, 2018 Share Posted January 2, 2018 Hi MaLd0n There seems to be a problem with sleep and wake. The HD630 also mentioned that there was a problem like not being able to wake up from sleep. Did you apply a fix? 1 Link to comment Share on other sites More sharing options...
golgota Posted January 2, 2018 Share Posted January 2, 2018 MaLd0n hi! Sorry for my english. Wake in power button is ok. Now can you try wake from mouse/keyboard? Thanks in advance. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 MaLd0n hi! Sorry for my english. Wake in power button is ok. Now can you try wake from mouse/keyboard? Thanks in advance. try DSDT.02.zip let me know if work good Hi MaLd0n There seems to be a problem with sleep and wake. The HD630 also mentioned that there was a problem like not being able to wake up from sleep. Did you apply a fix? in many cases with intel HD sleep don't work, send me files 1 Link to comment Share on other sites More sharing options...
mick3lson Posted January 2, 2018 Share Posted January 2, 2018 Hi Maldon, can you implement the DSDT for my desktop pc, this the spec: Motherboard: Asus Maximus X Hero bios v. 0802 CPU: i7 8700k @ 5.0Ghz Graphic Card: Nvidia GeForce 1070 + Intel UHD 630 both enabled for Intel Quick Sync hardware acceleration Thank's in advance for your work. Send me iMac mick3lson.zip iMac mick3lson.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 Hi Maldon, can you implement the DSDT for my desktop pc, this the spec: Motherboard: Asus Maximus X Hero bios v. 0802 CPU: i7 8700k @ 5.0Ghz Graphic Card: Nvidia GeForce 1070 + Intel UHD 630 both enabled for Intel Quick Sync hardware acceleration Thank's in advance for your work. replace full folder, dont change nothing CLOVER.zip send me new ioreg after reboot IORegistryExplorer.app.zip use ur serials, just put again Link to comment Share on other sites More sharing options...
badgenes Posted January 2, 2018 Share Posted January 2, 2018 MalD0n, I am running on GA-170x Gaming 3, BIOS F22d. Intel i5-6600K, SSD with Windows EFI partition and Windows 10, 3 internal HDD one with the following partitions: 1 NTFS 750GB partition, 1 EFI partition for MAC, 1 250GB MAC extended partition. Nvidia GTX9502GB. I have audio working thanks to your guides (haven't tested sleep), USB 2.0 working, video working, shutdown works. I have a single SSDT-i5-6600k.aml in my ACPI\patched folder. USB3 ports not working, OSX mounts all of my partitions on boot (annoying but I'll look that up shortly), and two entries for each drive in my Clover boot loader. Any help is appreciated. IOReg I did a Save As and wound up with an 18.7 MB file...I'm guessing that isn't right since I can only upload 10MB per post. Please advise on that. Thank you, badgenes MalD0n, I'd forgotten to complete the SMBIOS steps. That is now done, updated Clover folder attached. I also realized I have not completed the steps in guide for USB3. I will do that later this afternoon if you prefer to wait on edits. CLOVER.zip Send me Sean’s iMac.zip CLOVER.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 MalD0n, I am running on GA-170x Gaming 3, BIOS F22d. Intel i5-6600K, SSD with Windows EFI partition and Windows 10, 3 internal HDD one with the following partitions: 1 NTFS 750GB partition, 1 EFI partition for MAC, 1 250GB MAC extended partition. Nvidia GTX9502GB. I have audio working thanks to your guides (haven't tested sleep), USB 2.0 working, video working, shutdown works. I have a single SSDT-i5-6600k.aml in my ACPI\patched folder. USB3 ports not working, OSX mounts all of my partitions on boot (annoying but I'll look that up shortly), and two entries for each drive in my Clover boot loader. Any help is appreciated. IOReg I did a Save As and wound up with an 18.7 MB file...I'm guessing that isn't right since I can only upload 10MB per post. Please advise on that. Thank you, badgenes MalD0n, I'd forgotten to complete the SMBIOS steps. That is now done, updated Clover folder attached. I also realized I have not completed the steps in guide for USB3. I will do that later this afternoon if you prefer to wait on edits. replace, reboot and send me one ioreg, use ZippyShare to upload CLOVER.zip Link to comment Share on other sites More sharing options...
badgenes Posted January 2, 2018 Share Posted January 2, 2018 Will do. I screwed up when I configure smbios by changing to mac17, now black screen from Nvidia. Is it best to go back to 14 or stay at 17 and fix issue? If so what is best for I see several. Thanks again! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 u need a iMac17, i put fix for black screen, u try? Link to comment Share on other sites More sharing options...
badgenes Posted January 2, 2018 Share Posted January 2, 2018 No sir but forced off and booting to us now, will replace and reboot. You are two steps ahead of me lol! OK, thank you! Booted up with new Clover, all working including powered USB 3.0 ports! I have two questions: 1) Do I need to hide anything from the IOREg output (SMBIOSinfo)? 2) I noticed you set CSR back to 0x03 from 0x67 and my NIC no longer is configured there. Is it safe to set these back again? Toledo script notice was the first I'd heard of changing SIP to disabled and I'd thought it best to keep it that way but I'll take your direction here. Ready to upload to zippy if I don't need to make changes to the output of IOReg. again, thank yo! 1 Link to comment Share on other sites More sharing options...
mick3lson Posted January 2, 2018 Share Posted January 2, 2018 Thank's for your work, all work flawlessly only minor issue, Intel Quick Sync seems not enabled, this the screenshot: iMac mick3lson.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 No sir but forced off and booting to us now, will replace and reboot. You are two steps ahead of me lol! OK, thank you! Booted up with new Clover, all working including powered USB 3.0 ports! I have two questions: 1) Do I need to hide anything from the IOREg output (SMBIOSinfo)? 2) I noticed you set CSR back to 0x03 from 0x67 and my NIC no longer is configured there. Is it safe to set these back again? Toledo script notice was the first I'd heard of changing SIP to disabled and I'd thought it best to keep it that way but I'll take your direction here. Ready to upload to zippy if I don't need to make changes to the output of IOReg. again, thank yo! use 0x3E7 put ur serials again u can send ioreg without problem Link to comment Share on other sites More sharing options...
badgenes Posted January 2, 2018 Share Posted January 2, 2018 http://www70.zippyshare.com/v/Iu8MFgry/file.html serials still there, I will change car_active to above. 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted January 2, 2018 Author Share Posted January 2, 2018 Thank's for your work, all work flawlessly only minor issue, Intel Quick Sync seems not enabled, this the screenshot: remove fakecpuid in ur config.plist u dont need it http://www70.zippyshare.com/v/Iu8MFgry/file.html serials still there, I will change car_active to above. wait, apply thunderbolt Link to comment Share on other sites More sharing options...
