[Guide] Catalina / BigSur / Monterey on mobos Serie 100 / 200 / 300 / 400 / 500 / 600 SkyLake / KabyLake / CoffeeLake / CometLake / RocketLake / AlderLake DSDT


MaLd0n
5,455 posts in this topic

Recommended Posts

9 hours ago, Danual said:

Hi, I have a working high Sierra drive, was going to test Mojave on a separate drive to learn from. What files change to run Mojave?

Z270g asus

i5 7600 using igpu only via HDMI

as with High Sierra graphs are glitchy/stuttering

Mojave installed but  runme.app stalls at save ioreg in a loop

I would really like  to learn what to change/add etc. And understand what they do.

usb limit port

use flags for beta kexts, lilubetaall

7 hours ago, luky35 said:

MaLd0n hi,


Today I installed VoodoHDA repaired for Mojave.
I can listen to the radio stations normally through the browser and work great.
I imported URLs of radio stations in iTunes (as I have in HS 10.13.5), but it does not have a voice. iTunes shows the normal which song is currently playing only the volume is not.

Maybe it's a bug, or what iTunes settings do not know.



Greetings,

i think in next days, devs solve it

  • Like 1
Link to comment
Share on other sites

19 hours ago, MaLd0n said:

Hey mate , thank you very much for the files , I have used the files but I guess there is no support for battery and location for my machine , dsdt is patched correctly now thanks to you but battery and location is still not working. Im thinking I should start fresh with your files and lets see if it might be all the messing around I done prior to get the sound and things working

Link to comment
Share on other sites

1 hour ago, Danual said:

Thank. Got it to run



Send me Dans-iMac.zip

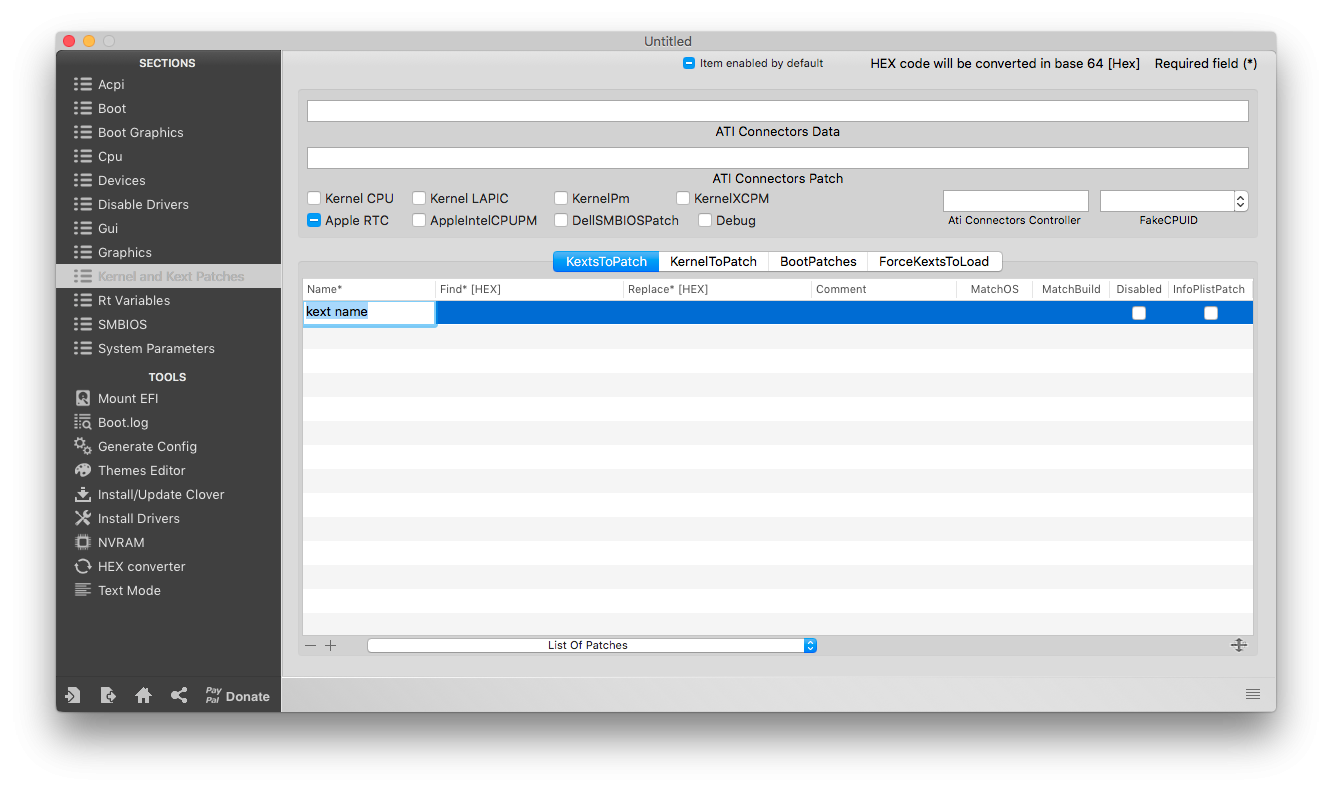

USB



kext: com.apple.driver.usb.AppleUSBXHCI
find: 83 FB 0F 0F 83 09 05 00 00
repl: 83 FB 0F 90 90 90 90 90 90

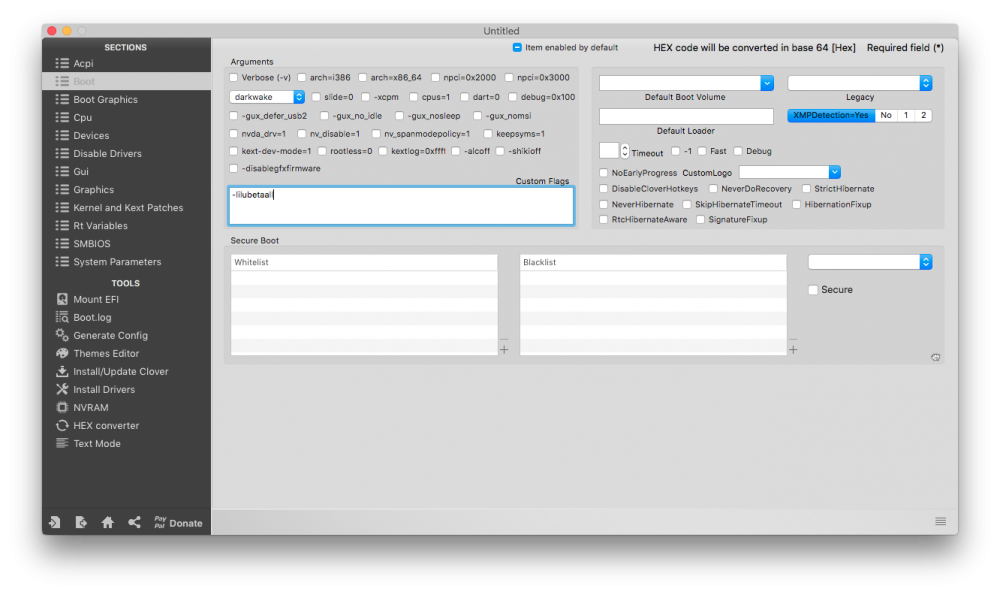

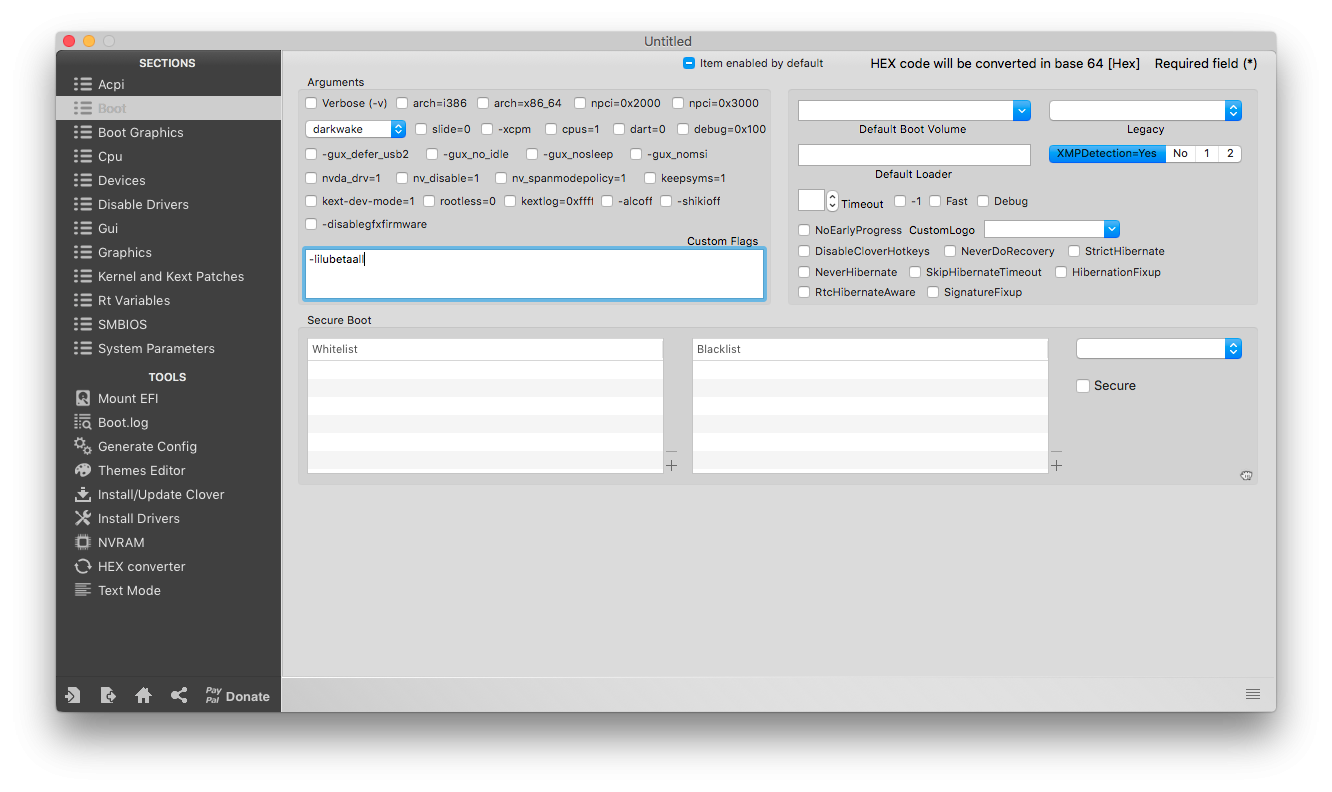

and use flag -lilubetaall

1 hour ago, pit5bul said:

Hey mate , thank you very much for the files , I have used the files but I guess there is no support for battery and location for my machine , dsdt is patched correctly now thanks to you but battery and location is still not working. Im thinking I should start fresh with your files and lets see if it might be all the messing around I done prior to get the sound and things working

battery have a repository, just apply there

Link to comment
Share on other sites

36 minutes ago, tathoenz said:

Hello MaLd0n

today try install 10.14 on my Rig..my computer boot very slow with clover 4522..

Cant you help me

Send me tathoenzs-imac.zip

CLOVER.zip

generate one ssdt for PM

http://olarila.com/files/Utils/SSDT_Automator.zip



send me new SEND_ME after reboot with new files

Link to comment
Share on other sites

Hi masters

My mobo H110M-S2H

i5 7600

16 gb ddr4 2400

gtx 1050



I have been following your guide and it seems that everything has gone fine but I can not get the audio to detect the connections well, when I connect the headphones the system does not detect it, and I have revised the configuration and it is like other similar models. I update the system to 10.13.5 and the appleALC and LILU kext.

the cdmi audio it does not detect it either.

I send you Mr MaLd0n the "sent me files" in case you can help me.

the filers are in drive

https://drive.google.com/open?id=1rNjzMDJq_eKL7x3Y0zZsHphKVlxzJsOq



thank you so much, I do something wrong by im a beginer





Link to comment
Share on other sites

2 hours ago, Fr0d0 said:

Hi masters

My mobo H110M-S2H

i5 7600

16 gb ddr4 2400

gtx 1050



I have been following your guide and it seems that everything has gone fine but I can not get the audio to detect the connections well, when I connect the headphones the system does not detect it, and I have revised the configuration and it is like other similar models. I update the system to 10.13.5 and the appleALC and LILU kext.

the cdmi audio it does not detect it either.

I send you Mr MaLd0n the "sent me files" in case you can help me.

the filers are in drive

https://drive.google.com/open?id=1rNjzMDJq_eKL7x3Y0zZsHphKVlxzJsOq



thank you so much, I do something wrong by im a beginer





CLOVER.zip



audio inject other layout id via clover, i put 7, test, if don't work, change

  • Like 1
Link to comment
Share on other sites

3 hours ago, MaLd0n said:

CLOVER.zip



audio inject other layout id via clover, i put 7, test, if don't work, change

put your clover folder and try with, 7,1,11,13 and with 3 seems work well

now I can change the conector and the system recognised. ¡¡¡¡¡

only hdmi audio don't work. but I will follow...

Link to comment
Share on other sites

20 hours ago, Fr0d0 said:

put your clover folder and try with, 7,1,11,13 and with 3 seems work well

now I can change the conector and the system recognised. ¡¡¡¡¡

only hdmi audio don't work. but I will follow...

audio DisplayPort work well hdmi not, but is not a problem. the system work well. thank you so much.



Link to comment
Share on other sites

Helo, MaLd0n, I am wondering if you could help me install Mojave on my system. High Sierra works perfectly fine, but I cannot even reach the installer when I try to install Mojave. I am stuck, don't know how to continue.



Send me iMac.zip



I use the same DSDT that works in HS:



DSDT.aml



Thank you for your time and patience!

Link to comment
Share on other sites

On 6/7/2018 at 5:11 PM, macinsane said:

Sorry, @Mald0n to disturb you again, but after some testing I have to say the dsdt isn't working at all... No matter if the dsdt is in place or not, this is what happens: Shutdown leads to instant restart, BUT: if I send the pc to sleep (what works using Gymnae's method with SSDT-GPRW.aml alongside with your or my dsdt), wake him up again, then shutdown works. BUT: After booting up again, system halts at bios splash screen. I can see that my usb devices aren't powered up properly (my USB audio stays off for example, so does the keyboard). I am totally out of ideas at the moment. :cry:

I have added the dsdt I compiled for reference.

DSDT.aml.zip

UPDATE: Just updated to 10.13.6 beta 2 and everything is running great now. No dsdt needed anymore, sleep, restart and shutdown just works without any patching :) Thanks Apple!

Link to comment
Share on other sites

18 minutes ago, macinsane said:

UPDATE: Just updated to 10.13.6 beta 2 and everything is running great now. No dsdt needed anymore, sleep, restart and shutdown just works without any patching :) Thanks Apple!

nothing work good without patches

just check ur logs and u see, do not be deceived



log show --last boot --style syslog





  • Like 1
Link to comment
Share on other sites

27 minutes ago, MaLd0n said:

nothing work good without patches

just check ur logs and u see, do not be deceived



log show --last boot --style syslog





:) I meant without any active dsdt patching, the usual GFX0-IGPU hot patches are of course in place. But it is just awesome, that whole thing drove me crazy but it seems Apple added some Coffee Lake "compatibilities" to 10.13.6. So great! On the other hand: I wasted hours for nothing... ;)

Link to comment
Share on other sites

8 hours ago, BackwardMac said:

Hi Every one,

Hi Mald0n



Can you make files for me?

Try by myself tu patch the SSDT but not enough knowledge I guess.



Thanks for your hard work.

Send me Pierres-iMac.zip

send me new SEND_ME after reboot with new folder

CLOVER.zip

Just now, macinsane said:

:) I meant without any active dsdt patching, the usual GFX0-IGPU hot patches are of course in place. But it is just awesome, that whole thing drove me crazy but it seems Apple added some Coffee Lake "compatibilities" to 10.13.6. So great! On the other hand: I wasted hours for nothing... ;)

Clover put all hardware to work, the problems is a fine tune, all hacks need many many patches, u can inject via ssdt, clover or edit dsdt

  • Like 1
