@ MaLd0n hi,

Thanks again for the help. She's doing it all right.
When VoodoHDA is fixed, then I go to Mojave 10.14 because now audio does not work there. Not with AppleALC either.

Greetings,

Link to comment
Share on other sites

22 minutes ago, luky35 said:

@ MaLd0n hi,

Thanks again for the help. She's doing it all right.
When VoodoHDA is fixed, then I go to Mojave 10.14 because now audio does not work there. Not with AppleALC either.

Greetings,

work good too, but wait some time, first beta, some bugs

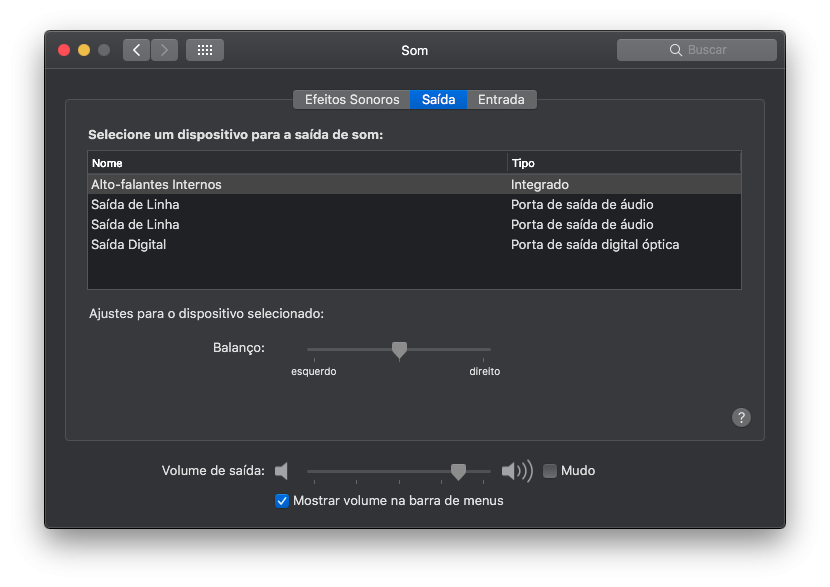

Captura de Tela 2018-06-09 às 01.23.27.png



  • Like 1
Link to comment
Share on other sites

1 hour ago, MaLd0n said:

work good too, but wait some time, first beta, some bugs

Captura de Tela 2018-06-09 às 01.23.27.png



MaLd0n just one more question?



When I install Clover what I choose:

1. UEFI.only or
2. Target.ESP



In the next month, I will send you another donation because you deserve it for help.



Greetings,

Link to comment
Share on other sites

Hi MaLd0n.



I trying install macOS to my new build with specs:



CPU: Intel core i5-8400

Motherboard: gigabyte h170m-d3h ddr3 with modded bios

VGA: gigabyte gtx750 ti 2gb

Ssd: Samsung 960evo



I installed macOS 10.13.5, and i do sendme.app. But sendme.app loop with IOreg and can not complete. I try 3-4 times but it still loop again.



Can you help me with this issue.



Thanks a lot.



Link to comment
Share on other sites

6 hours ago, visin said:

Hi,MaLd0n

This is a new B360 motherboard.
Need a DSDT.
The test found that the ShutDown automatic power-on was caused by the USB device. If the USB port is not connected to any device, ShutDown is normal; as long as the USB port is connected to the device (including the mouse), ShutDown will change to Restart.



https://www36.zippyshare.com/v/XN55irzJ/file.html

use same patyches, check ur dsdt

5 hours ago, ngocson16 said:

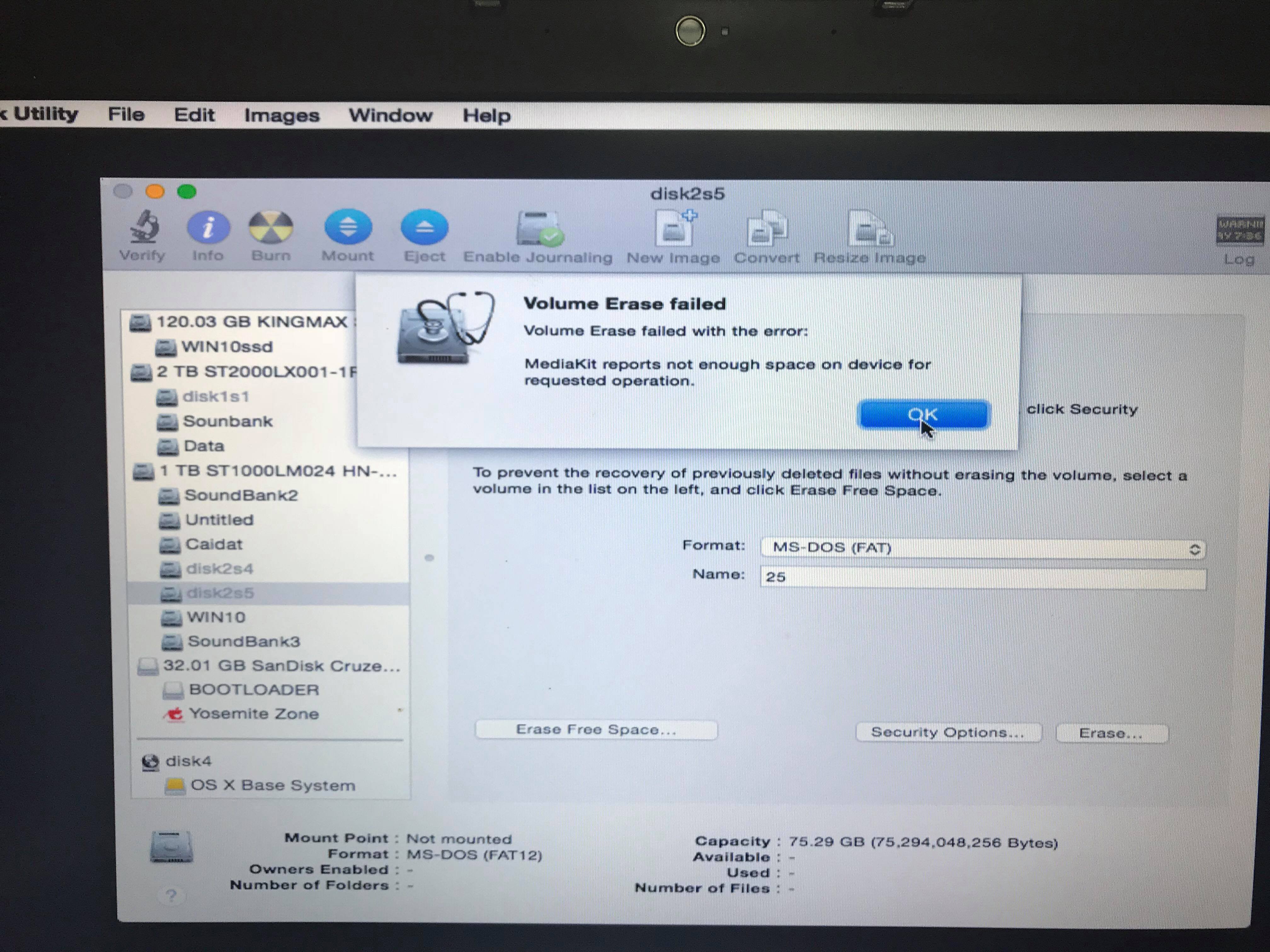

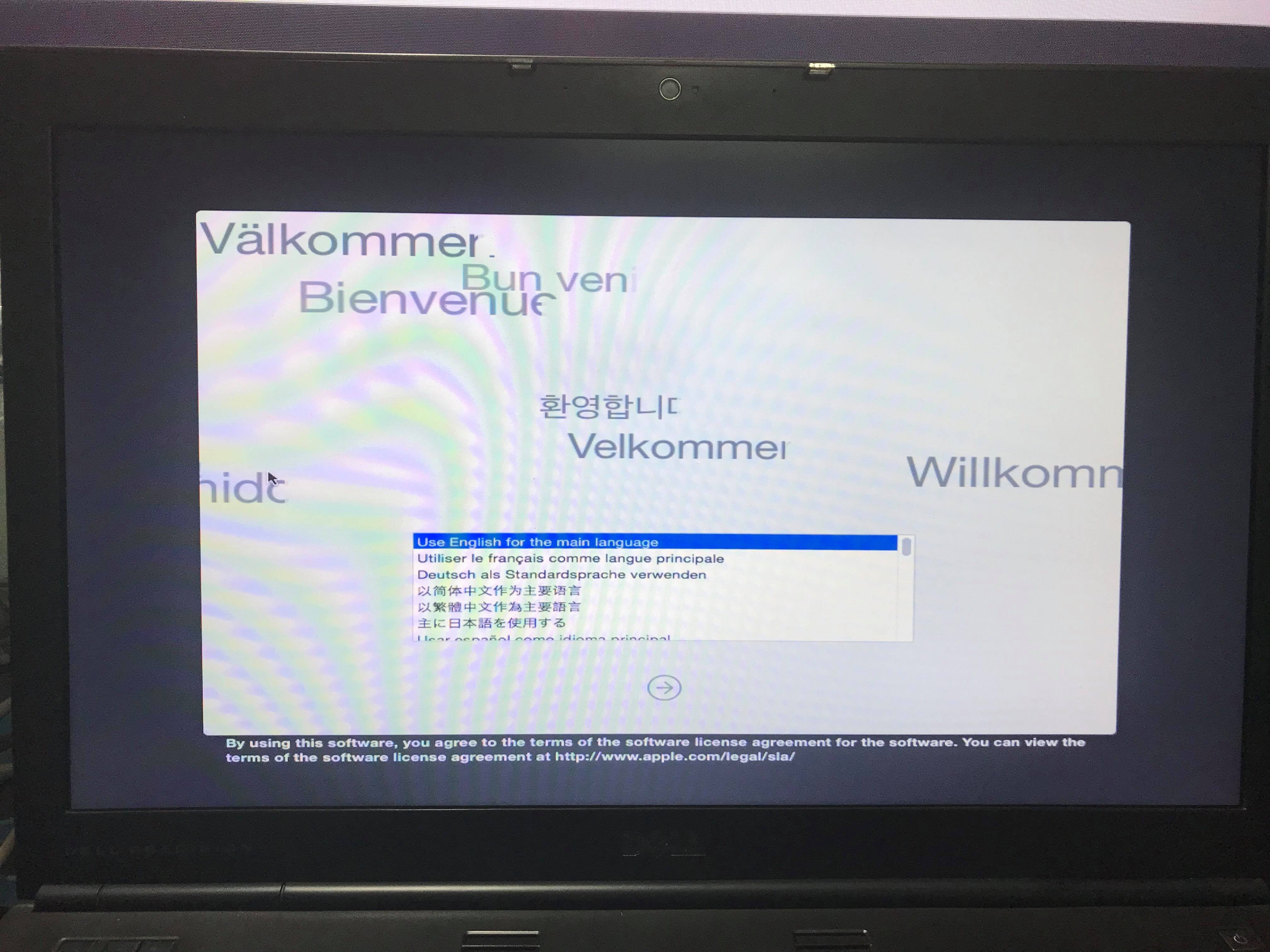

Hello Moderators ! I'm trying and i enter this step, but i have stuck here. Please help me!



u need format ur hdd/ssd or use MBR patch

back to basics

10 hours ago, luky35 said:

MaLd0n just one more question?



When I install Clover what I choose:

1. UEFI.only or
2. Target.ESP



In the next month, I will send you another donation because you deserve it for help.



Greetings,

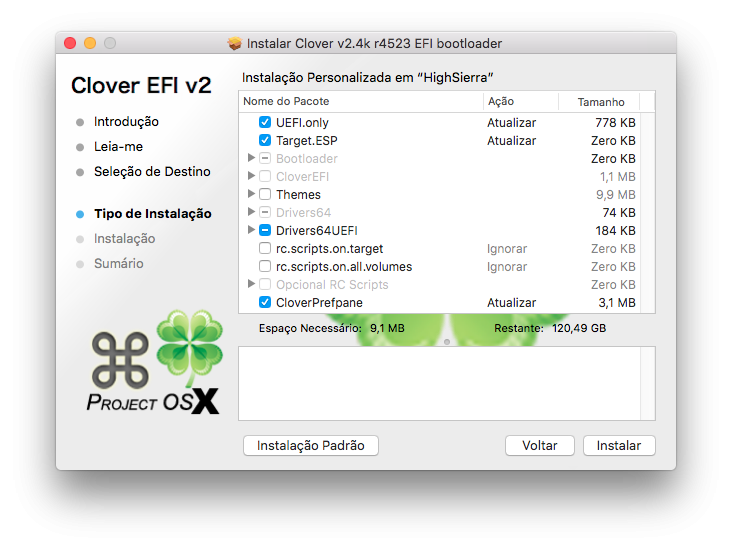

MaLd0n 2018-06-09 às 13.32.02.png

  • Like 1
Link to comment
Share on other sites

On 5/26/2018 at 10:23 PM, MaLd0n said:

yes

same here, i use IntelHD only for it whtout connector, my principal GPU is AMD, Intel HD work only for it

work for me with IntelHD Enable instead Automatic, shiki kext + shigva=60

- GRAPHICS : Check InjectIntel
- GRAPHICS : “ig-platform-id” changed to 0x59120003
- DEVICES : “Fake ID” for IntelGFX changed to 0x59128086
- BOOT : Add “-disablegfxfirmware” under Custom Flags



Bruce X is 9/12 seconds



MaLd0n 2018-05-26 às 23.19.12.png

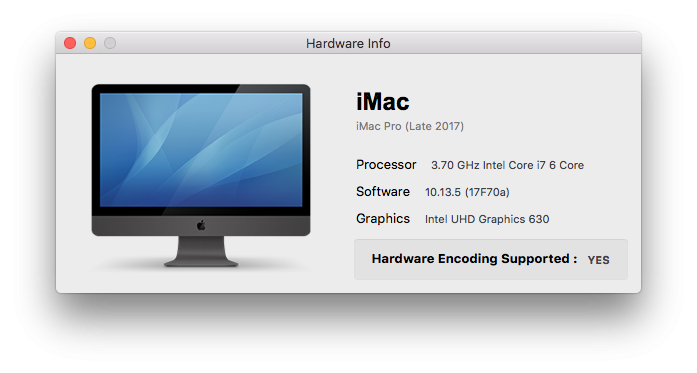

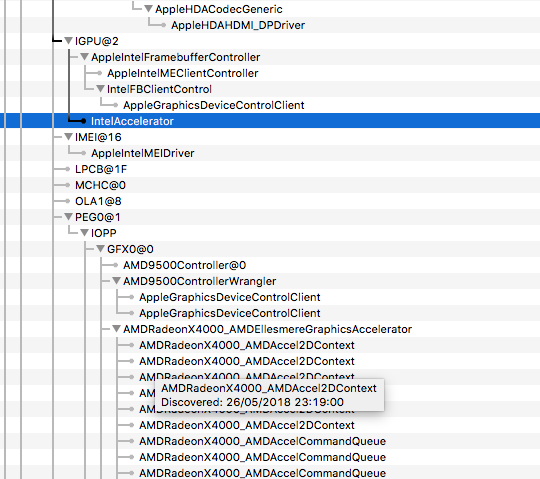

MaLd0n 2018-05-26 às 23.19.24.png

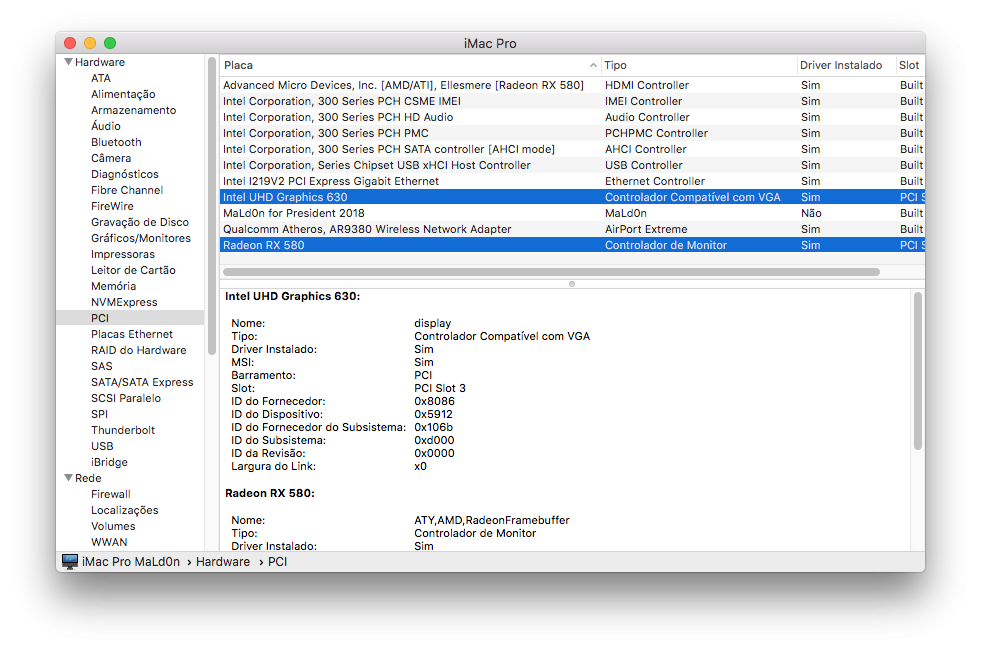

MaLd0n 2018-05-26 às 23.19.37.png

Got it working now it turns out there were a few settings in the BIOS needed some tweaking and now it works just fine

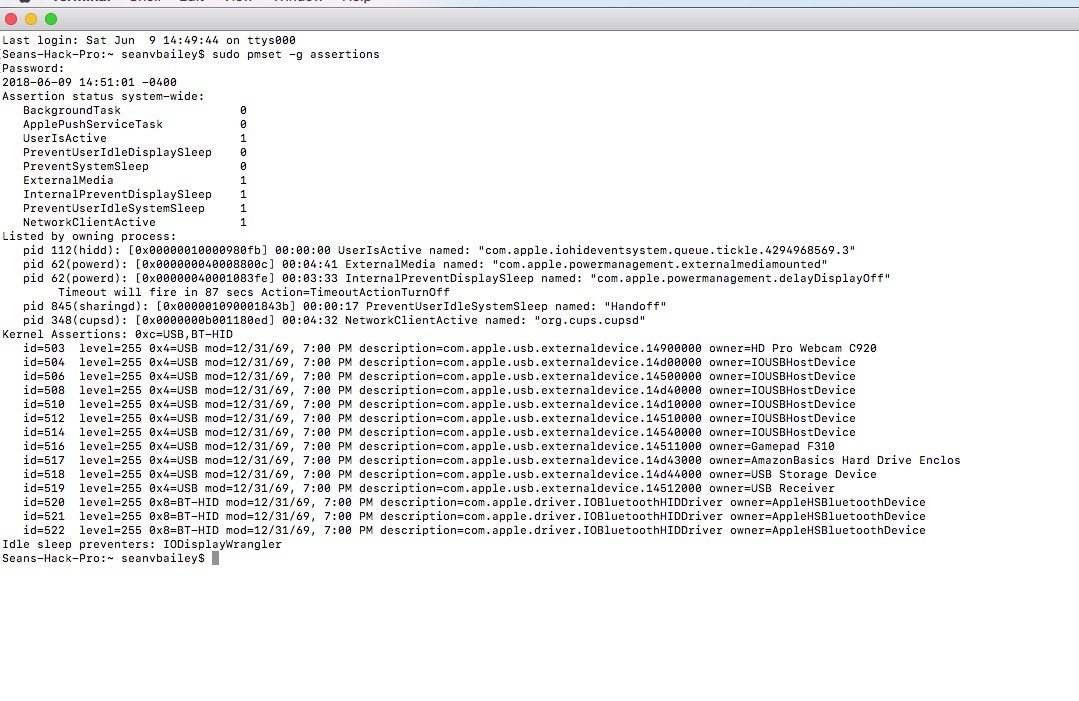

Screen Shot 2018-06-09 at 2.51.18 PM.jpg

Edited by rob88v
Link to comment
Share on other sites

14 minutes ago, rob88v said:



@MaLd0n Having an issue with sleep it could be that since the Gaming 5 board I have uses the onboard bluetooth it needs to be set to internal in the USBInjectAll although I'm not too sure if that is the case.

https://www.dropbox.com/s/zzclmdfdkb7algj/Send me Seans-Hack-Pro.zip?dl=0



Screen Shot 2018-06-09 at 2.51.18 PM.jpg

try set HS02 to 0, default is 3

btw, u dont need any ssdt, ssdts just made some acpi errors, have all patches in DSDT

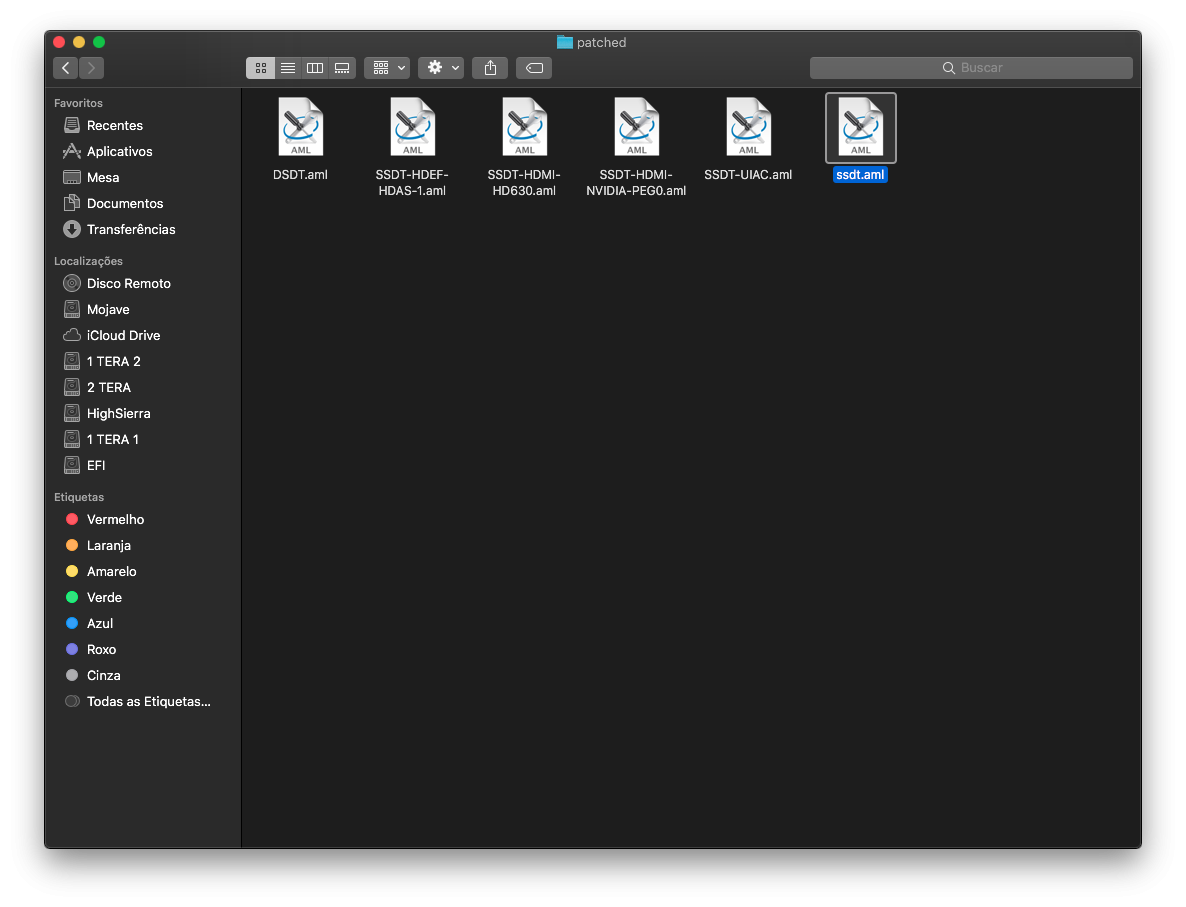

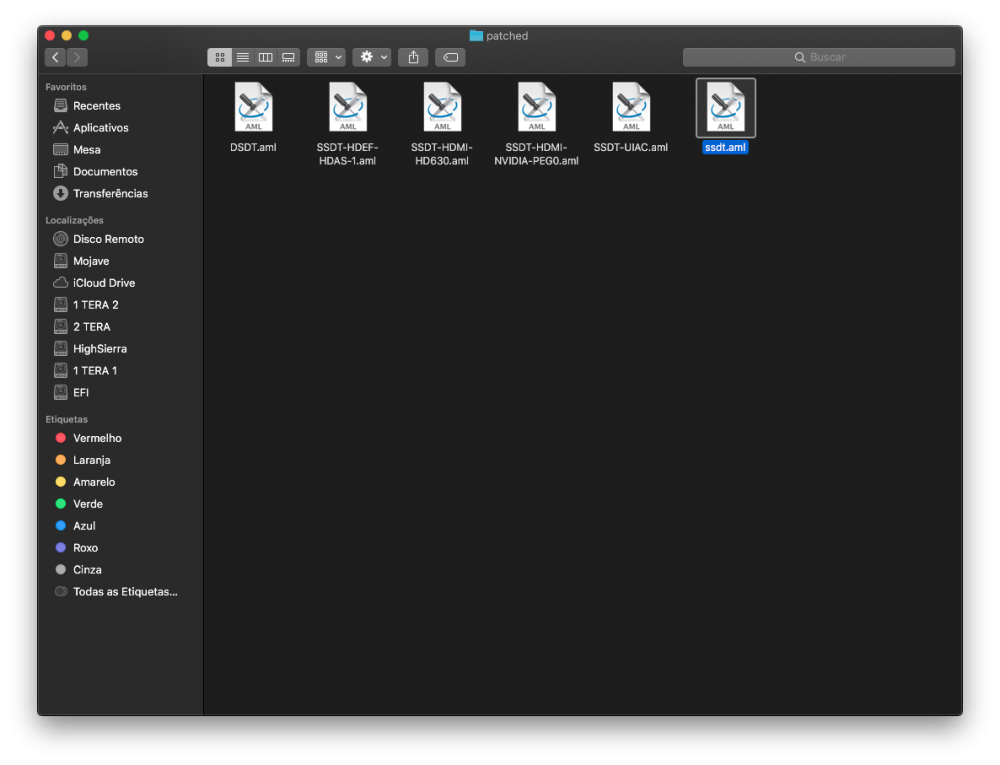

Captura de Tela 2018-06-09 às 16.32.50.png

  • Like 1
Link to comment
Share on other sites

Hi mate ,



I have an Envy 13 2017 ,i5 7200 U Kaby Lake based , I have done the sound and brightness, using external WLAN , no ethernet adapter .

I have attached the send me file to this message , let me know what I'm doing wrong.

Battery doesn't work , trackpad is not getting recognised ( it works but I haven't got the trackpad preference panel) , location is not working , I tried patching the DSDT but decompiling leads to errors.

Thank you

Send me Petruts-MacBook-Pro-3.zip

Link to comment
Share on other sites

23 minutes ago, pit5bul said:

Hi mate ,



I have an Envy 13 2017 ,i5 7200 U Kaby Lake based , I have done the sound and brightness, using external WLAN , no ethernet adapter .

I have attached the send me file to this message , let me know what I'm doing wrong.

Battery doesn't work , trackpad is not getting recognised ( it works but I haven't got the trackpad preference panel) , location is not working , I tried patching the DSDT but decompiling leads to errors.

Thank you

Send me Petruts-MacBook-Pro-3.zip

CLOVER.zip

Link to comment
Share on other sites

7 hours ago, MaLd0n said:

use same patyches, check ur dsdt

This is a motherboard with different models and different BIOS and requires a brand new DSDT.
Can I use DSDT for Z370M-DH for this B360 motherboard?

Link to comment
Share on other sites

39 minutes ago, visin said:

This is a motherboard with different models and different BIOS and requires a brand new DSDT.
Can I use DSDT for Z370M-DH for this B360 motherboard?

no, never use dsdt from other mobo

just apply same patches, check diff in both dsdt

  • Like 1
Link to comment
Share on other sites

Hi, I have a working high Sierra drive, was going to test Mojave on a separate drive to learn from. What files change to run Mojave?

Z270g asus

i5 7600 using igpu only via HDMI

as with High Sierra graphs are glitchy/stuttering

Mojave installed but  runme.app stalls at save ioreg in a loop

I would really like  to learn what to change/add etc. And understand what they do.

Edited by Danual
Link to comment
Share on other sites

MaLd0n hi,


Today I installed VoodoHDA repaired for Mojave.
I can listen to the radio stations normally through the browser and work great.
I imported URLs of radio stations in iTunes (as I have in HS 10.13.5), but it does not have a voice. iTunes shows the normal which song is currently playing only the volume is not.

Maybe it's a bug, or what iTunes settings do not know.



Greetings,
