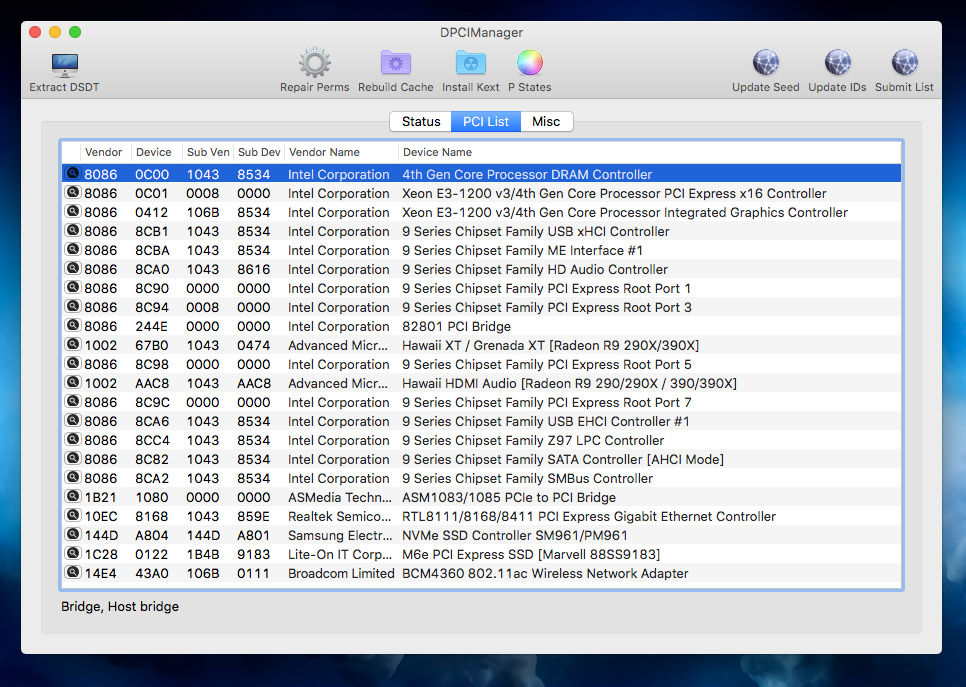

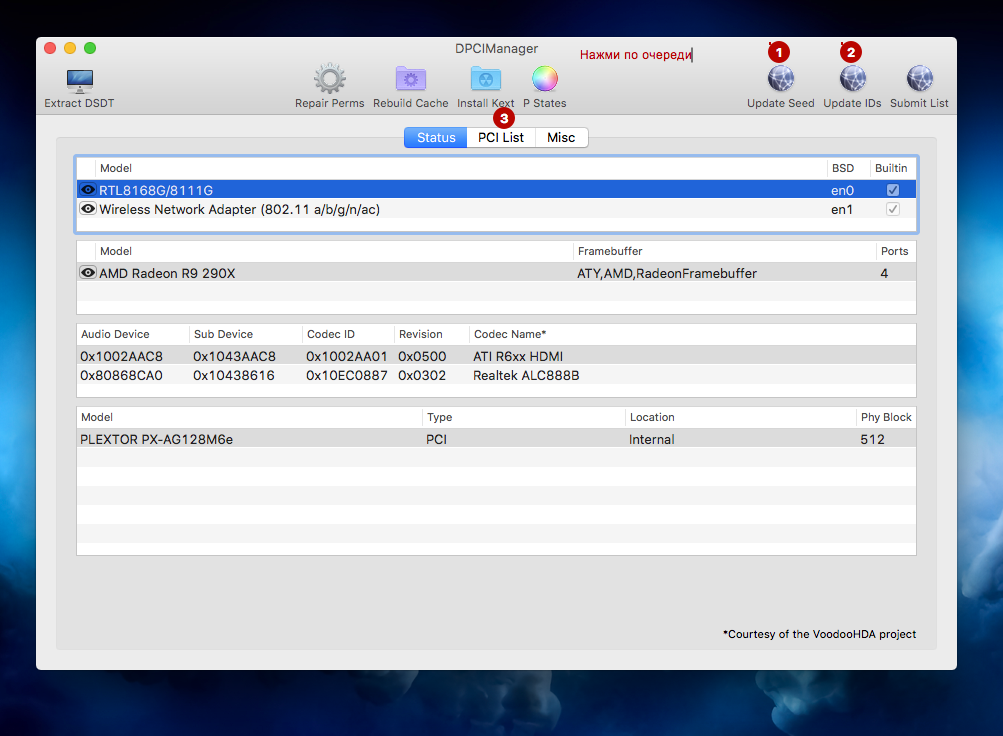

korlione2009 Posted May 5, 2018 Share Posted May 5, 2018 11 hours ago, Handzo85 said: thanks for your help.. hope can solve acpi on my board Сделай как на скринах по очереди Link to comment Share on other sites More sharing options...
Handzo85 Posted May 5, 2018 Share Posted May 5, 2018 1 hour ago, MaLd0n said: Post a new full dump RunMe.app.zip this is the result files https://www116.zippyshare.com/v/nidFtsTG/file.html Link to comment Share on other sites More sharing options...
Handzo85 Posted May 5, 2018 Share Posted May 5, 2018 @korlione2009 ; you mean like this one.. Link to comment Share on other sites More sharing options...
korlione2009 Posted May 5, 2018 Share Posted May 5, 2018 8 minutes ago, Handzo85 said: @korlione2009 ; you mean like this one.. Попробуй эту папку CLOVER.zip Link to comment Share on other sites More sharing options...
MaLd0n Posted May 5, 2018 Author Share Posted May 5, 2018 29 minutes ago, Handzo85 said: this is the result files https://www116.zippyshare.com/v/nidFtsTG/file.html CLOVER.zip if u solve warnings and errors in DSDT, no diff, u need a patches, many 2 minutes ago, korlione2009 said: Попробуй эту папку CLOVER.zip skylake+ dont use LPC, is a PPMC / PMCR devices 1 1 Link to comment Share on other sites More sharing options...
Handzo85 Posted May 5, 2018 Share Posted May 5, 2018 1 hour ago, MaLd0n said: CLOVER.zip if u solve warnings and errors in DSDT, no diff, u need a patches, many skylake+ dont use LPC, is a PPMC / PMCR devices thats my problem.. I can't solving self PPMC?PMCR? just hope an assistance Link to comment Share on other sites More sharing options...
RandomTech Posted May 5, 2018 Share Posted May 5, 2018 Hi Mald0n, Your fixes and DSDT made my AirDrop working for a while, now it doesn't work. Can you please help me to fix it again? Thanks. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 5, 2018 Author Share Posted May 5, 2018 6 hours ago, Handzo85 said: thats my problem.. I can't solving self PPMC?PMCR? just hope an assistance use my full clover folder above, reboot and send me neq SEND_ME, is just it for start a good tests 1 hour ago, RandomTech said: Hi Mald0n, Your fixes and DSDT made my AirDrop working for a while, now it doesn't work. Can you please help me to fix it again? Thanks. AirDrop is not in dsdt, is a wifi/bt things i think Link to comment Share on other sites More sharing options...
RandomTech Posted May 5, 2018 Share Posted May 5, 2018 22 minutes ago, MaLd0n said: AirDrop is not in dsdt, is a wifi/bt things i think Yes thats right, but after you send me the Clover folder it worked and when I checked I saw you included AirportBrcmFixup.kext inside the kexts folder (or maybe that was done by me I don't remember). Anyway, thanks for replay I will check to see if I can fix it 1 Link to comment Share on other sites More sharing options...
Gymnae Posted May 5, 2018 Share Posted May 5, 2018 Dear @MaLd0n, I sent you the link to my "Send me" folder via PM, since it's on my private cloud and was too big a file for the upload function of this forum. I'm running a Gigabyte H370 HD3 with an i5 8400 and a GeForce 1080 on 10.13.4 with supplemental update So far I have a semi-working setup: Sound via newest FakePCIID and FakePIID_Intel_HDMI_Audio and AppleALC Accelerated Graphics via Nvidia Web Driver iGPU for keeping the DGPU offline for most of the Desktop work I haven't found an USB port yet which is not working, I think my catch all with USBInjectAll and XHCI-300-series-injector work Not working so far: Shutdown -> Seems to start the process until the Screen turns off, then fans keep running sleep -> Leads to reboot Reboot -> black screen, running fans About Mac doesn't know my CPU Link to comment Share on other sites More sharing options...
RandomTech Posted May 6, 2018 Share Posted May 6, 2018 (edited) Hi Maldon, I have second build running Sierra 12.10.6, can you please help to create SSDT for this one too ? Send Me files are included in this link: https://www51.zippyshare.com/v/xy2DQMCq/file.html Edited May 6, 2018 by RandomTech Link to comment Share on other sites More sharing options...
korlione2009 Posted May 6, 2018 Share Posted May 6, 2018 44 minutes ago, RandomTech said: Hi Maldon, I have second build running Sierra 12.10.6, can you please help to create SSDT for this one too ? Send Me files are included in this link: https://www51.zippyshare.com/v/xy2DQMCq/file.html Пробуй с этой папкой. CLOVER.zip Link to comment Share on other sites More sharing options...

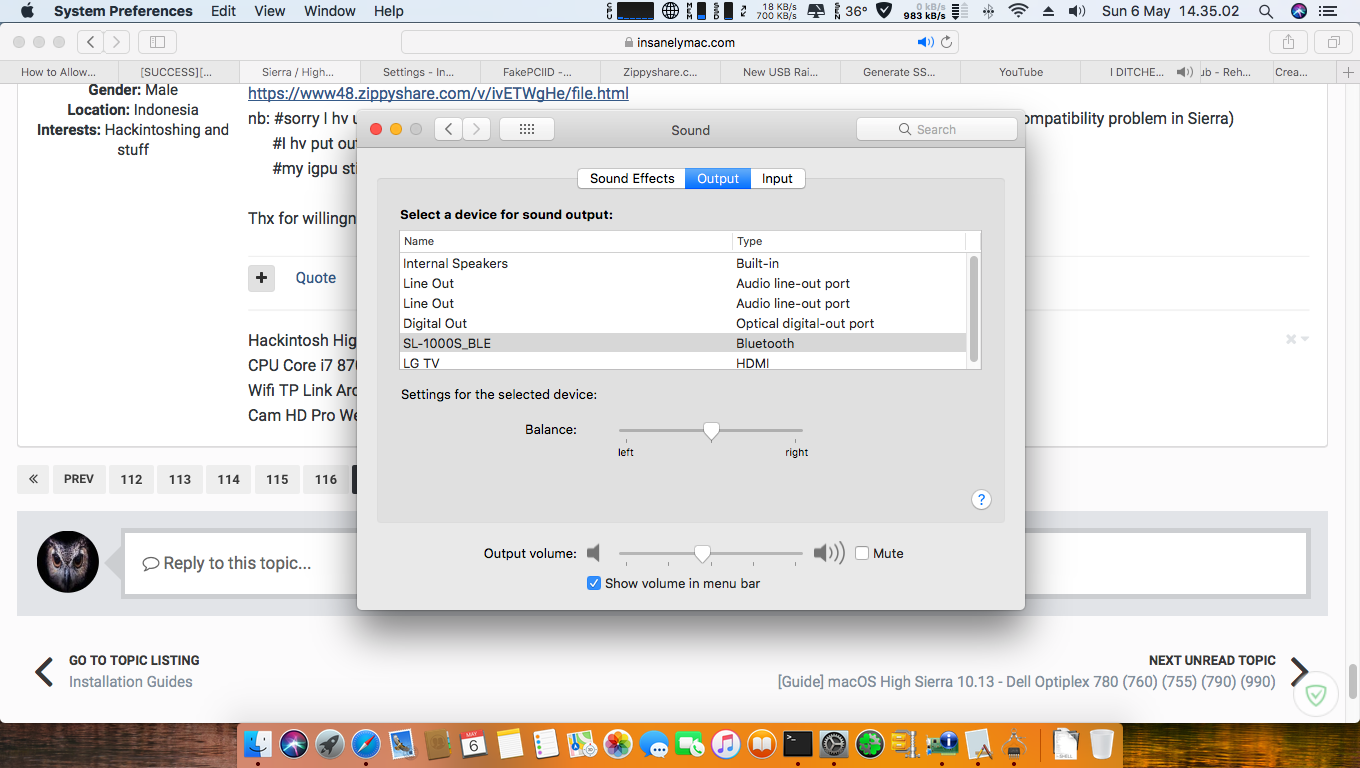

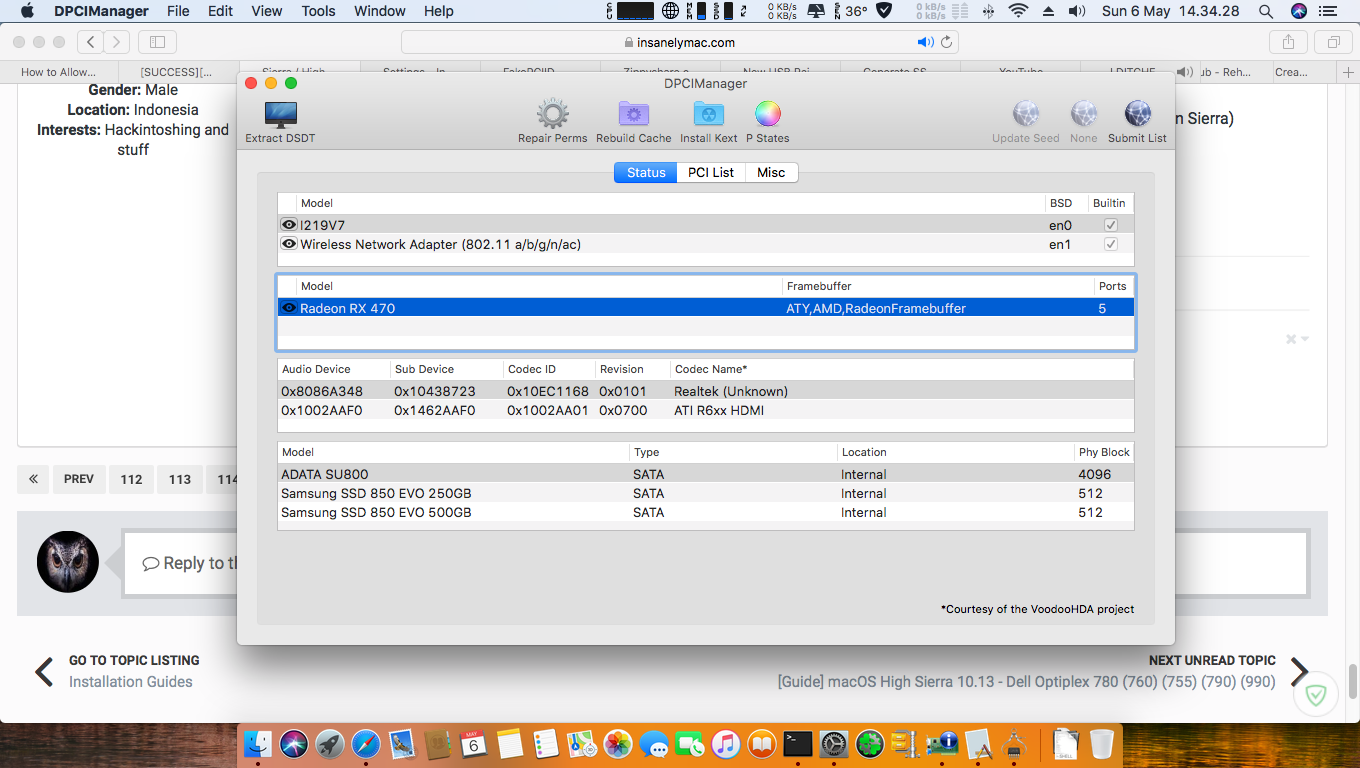

Handzo85 Posted May 6, 2018 Share Posted May 6, 2018 dear @MaLd0n; this my latest config that almost everything has been work.. I tried to polish my efi folder & config to make it work. usb work great, handoff and my bluetooth speaker awesome. right now I'm just curiously why my igpu doesn't work at all either display or sound I'm proud for positive progress u hv given to me, just little more to be excellent https://www17.zippyshare.com/v/HhLaeCv9/file.html please cross-check what is lacking in this configuration Link to comment Share on other sites More sharing options...
RandomTech Posted May 6, 2018 Share Posted May 6, 2018 (edited) 7 hours ago, korlione2009 said: Пробуй с этой папкой. CLOVER.zip it works but, intel igpu injected in config plist where I have it disabled in my system, no information in pci list. you are not Mald0n right? Edit: it doesn't work I lost USB 3, I deleted this and returned back to my CLOVER folder was made by me Edited May 6, 2018 by RandomTech Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 16 hours ago, Gymnae said: Dear @MaLd0n, I sent you the link to my "Send me" folder via PM, since it's on my private cloud and was too big a file for the upload function of this forum. I'm running a Gigabyte H370 HD3 with an i5 8400 and a GeForce 1080 on 10.13.4 with supplemental update So far I have a semi-working setup: Sound via newest FakePCIID and FakePIID_Intel_HDMI_Audio and AppleALC Accelerated Graphics via Nvidia Web Driver iGPU for keeping the DGPU offline for most of the Desktop work I haven't found an USB port yet which is not working, I think my catch all with USBInjectAll and XHCI-300-series-injector work Not working so far: Shutdown -> Seems to start the process until the Screen turns off, then fans keep running sleep -> Leads to reboot Reboot -> black screen, running fans About Mac doesn't know my CPU use zippyshare http://www.zippyshare.com/ Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 9 hours ago, RandomTech said: Hi Maldon, I have second build running Sierra 12.10.6, can you please help to create SSDT for this one too ? Send Me files are included in this link: https://www51.zippyshare.com/v/xy2DQMCq/file.html CLOVER.zip send me new files after reboot, test all usb ports with device usb 3 9 hours ago, korlione2009 said: Пробуй с этой папкой. CLOVER.zip ENGLISH HERE, ONLY ENGLISH LAGUAGE Link to comment Share on other sites More sharing options...

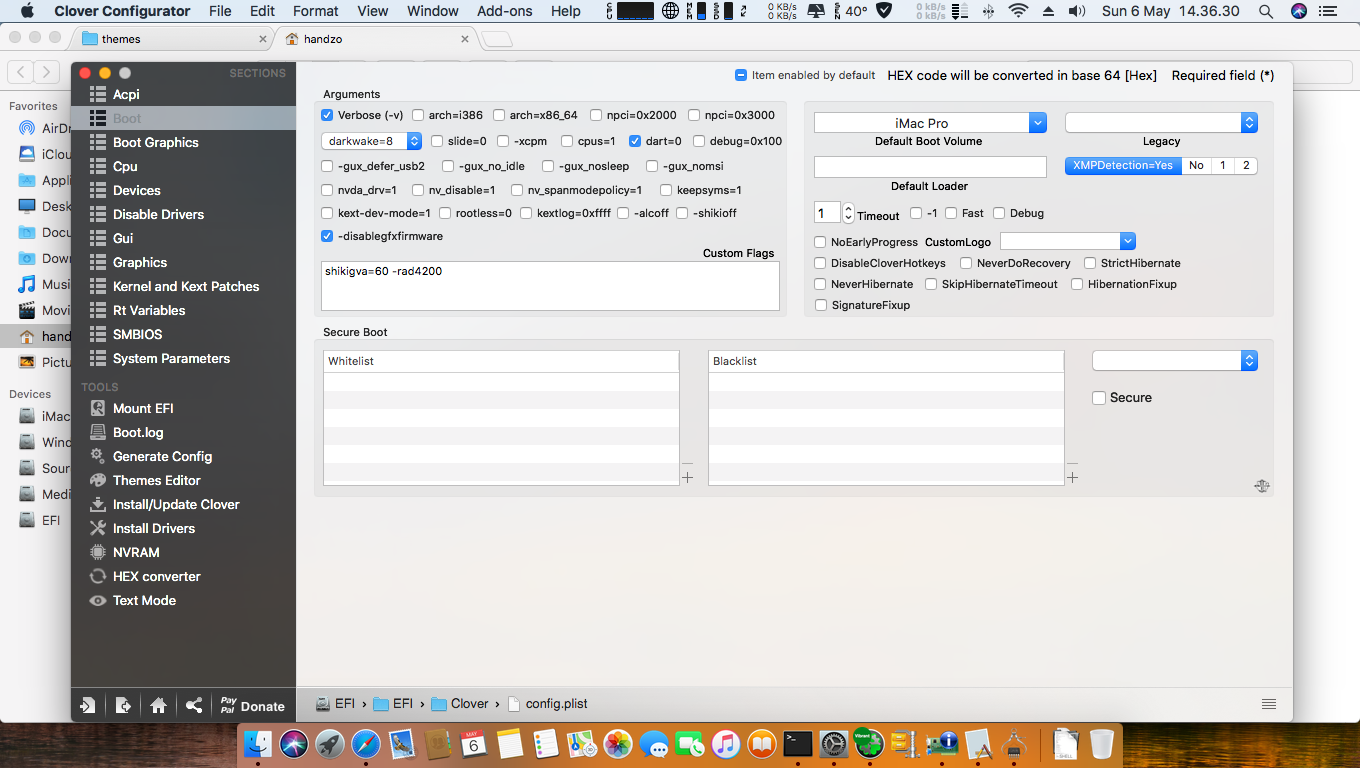

MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 6 hours ago, Handzo85 said: dear @MaLd0n; this my latest config that almost everything has been work.. I tried to polish my efi folder & config to make it work. usb work great, handoff and my bluetooth speaker awesome. right now I'm just curiously why my igpu doesn't work at all either display or sound I'm proud for positive progress u hv given to me, just little more to be excellent https://www17.zippyshare.com/v/HhLaeCv9/file.html please cross-check what is lacking in this configuration DSDT.aml.zip - GRAPHICS : Check InjectIntel - GRAPHICS : “ig-platform-id” changed to 0x59120003 - DEVICES : “Fake ID” for IntelGFX changed to 0x59128086 - BOOT : Add “-disablegfxfirmware” under Custom Flags Link to comment Share on other sites More sharing options...
Handzo85 Posted May 6, 2018 Share Posted May 6, 2018 1 hour ago, MaLd0n said: DSDT.aml.zip - GRAPHICS : Check InjectIntel - GRAPHICS : “ig-platform-id” changed to 0x59120003 - DEVICES : “Fake ID” for IntelGFX changed to 0x59128086 - BOOT : Add “-disablegfxfirmware” under Custom Flags @MaLd0n I hv tried with your dsdt & clover config u gv me.. but while booting it suddenly getting error like this clover log below what to do now? waiting for solution here.. https://www17.zippyshare.com/v/qb7wekrc/file.html Link to comment Share on other sites More sharing options...
RandomTech Posted May 6, 2018 Share Posted May 6, 2018 2 hours ago, MaLd0n said: send me new files after reboot, test all usb ports with device usb 3 Now USB 2 or 3 tested in USB 2 and 3 ports but doesn't work, ''USB Accessory Needs Power'' error. btw, Motherboard is Gigabyte GA-H81M-D2W and it uses 3rd party USB 3. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 40 minutes ago, Handzo85 said: @MaLd0n I hv tried with your dsdt & clover config u gv me.. but while booting it suddenly getting error like this clover log below what to do now? waiting for solution here.. https://www17.zippyshare.com/v/qb7wekrc/file.html u need a correct config in bios, for me is intelhd enable and csm disable Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 27 minutes ago, RandomTech said: Now USB 2 or 3 tested in USB 2 and 3 ports but doesn't work, ''USB Accessory Needs Power'' error. btw, Motherboard is Gigabyte GA-H81M-D2W and it uses 3rd party USB 3. DSDT.EHCI KILLED.zip DSDT.WITH EHCI.zip take a shots and let me know what file work USB 3 non intel, work native some new asmedia and FL1100, the others u need a genericxhci, but kext in el capo+ cause some problems send me new files with tests above Link to comment Share on other sites More sharing options...
Gymnae Posted May 6, 2018 Share Posted May 6, 2018 3 hours ago, MaLd0n said: use zippyshare http://www.zippyshare.com/ Hi @MaLd0n, did you see my PM with the link? Anyway, there's the zippyshare: https://www103.zippyshare.com/v/AJTQ9yAz/file.html Link to comment Share on other sites More sharing options...
Mikentosh2016 Posted May 6, 2018 Share Posted May 6, 2018 System without DSDT?! Today I opened Clover Configurator to tick SipSmiAtWake so Shutdown will stay down. I immediately noticed that there are no DSDT Patches. I'm almost afraid to Restart it. The last time I unticked Verbose argument, the video drivers would not install. It was weird but it is somewhat stable. Remaining issues: Shutdown doesn't stay off. Monitor periodically sleeps. I keep forgetting to inspect the cooling hardware. Link to comment Share on other sites More sharing options...
MaLd0n Posted May 6, 2018 Author Share Posted May 6, 2018 31 minutes ago, Gymnae said: Hi @MaLd0n, did you see my PM with the link? Anyway, there's the zippyshare: https://www103.zippyshare.com/v/AJTQ9yAz/file.html CLOVER.zip 4 minutes ago, Mikentosh2016 said: System without DSDT?! Today I opened Clover Configurator to tick SipSmiAtWake so Shutdown will stay down. I immediately noticed that there are no DSDT Patches. I'm almost afraid to Restart it. The last time I unticked Verbose argument, the video drivers would not install. It was weird but it is somewhat stable. Remaining issues: Shutdown doesn't stay off. Monitor periodically sleeps. I keep forgetting to inspect the cooling hardware. without dsdt u have a shit system, just check ur kernel log, ur bios/uefi dont made for osx, forget it Link to comment Share on other sites More sharing options...
Mikentosh2016 Posted May 6, 2018 Share Posted May 6, 2018 (edited) On 5/6/2018 at 11:40 AM, MaLd0n said: CLOVER.zip without dsdt u have a {censored} system, just check ur kernel log, ur bios/uefi dont made for osx, forget it Yes, I know DSDTs are required. I don’t understand what happened to them. What do I look for in the Kernel Log? I know the UEFI is for PCs. Edited May 12, 2018 by Mikentosh2016 Link to comment Share on other sites More sharing options...
