Gigabyte GA-965P-DS3 rev3.3 (beginner)

[zeg66]

Oh ok I get it. I am going to create the installer now and will come back. Thank you.

[MaLd0n]

ok

[zeg66]

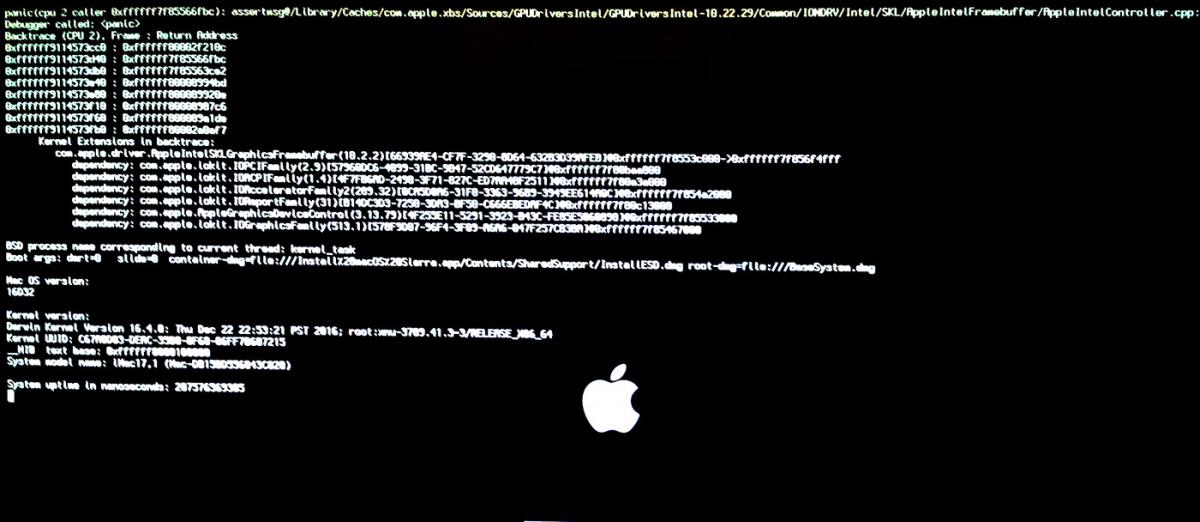

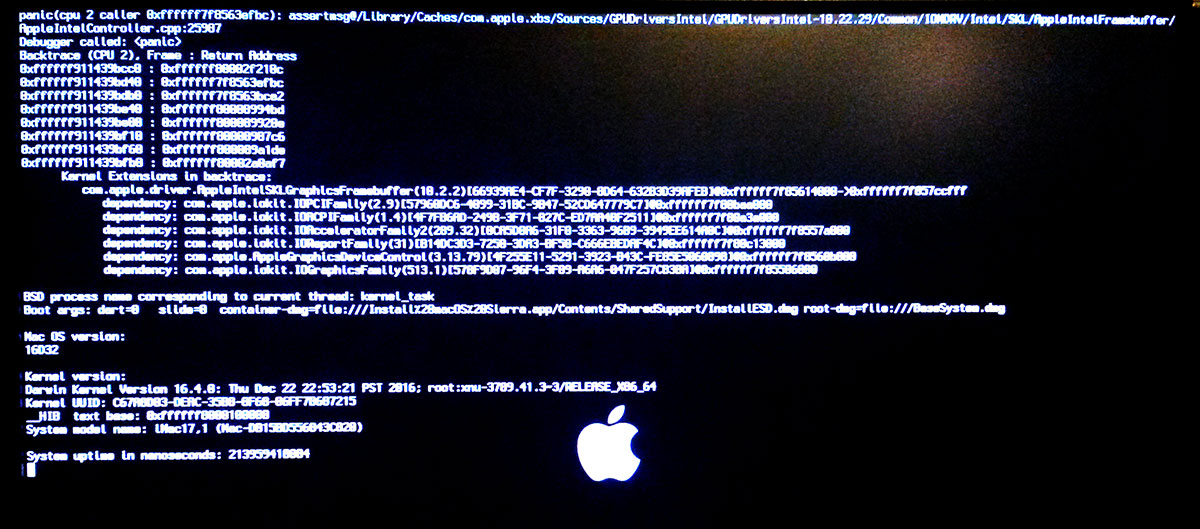

after a very long time I get a kp saying:

AppleIntelController.cpp:25987

   com.apple.driver.AppleIntelSKLGraphicsFramebuffer(10.2.2).....



do you want the picture?  :-)

[MaLd0n]

u use onboard graphics or nvidia?

[zeg66]

I use onboard HD530 on the i3-6100 cpu







and the monitor is connected to the VGA port on the motherboard (not sure if that is important)

[MaLd0n]

vga dont work, use hdmi or dvi

[zeg66]

ok I connected a DVI monitor, but....same kp.

the installer goes very slowly because there is a very long list of <Warning> and <Error> messages:



com.apple.xpc.launchd[1]...



is that relevant?

picture:



[MaLd0n]

try it

config.plist.zip

if dont work set DVMT in bios to 64 or 96

[zeg66]

about 7 minutes remaining..........could take an hour? crossing fingers.....

DVMT set to 96

it's so slow.....and you think SSDs are fast?  :-)

[MaLd0n]

wait and u see or not  like a the flash

[zeg66]

Yes you are right, I know but that installer...must be near a blackhole....measures "time" differently.

about 4 minutes remaining (20 minutes later)



Love the Flash!



(waiting)

[MaLd0n]

after install and boot into system, send me files

-Post Ioreg, extract with Ioreg Explorer

http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=222606

-Run it, post files generate in ur desktop

http://www.insanelymac.com/forum/index.php?app=core&module=attach&section=attach&attach_id=222609



i dont remember model motherboard

[zeg66]

Yes of course I will send you the files. WHEN it finishes, ha ha....

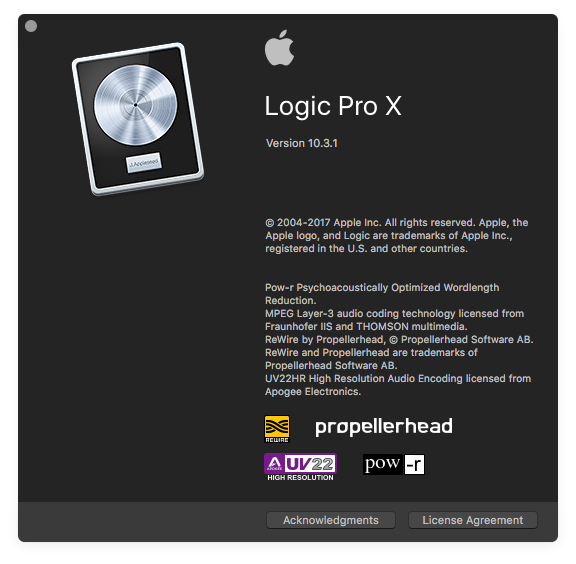

Wow Logic 10.3.1 !!



Motherboard is Asus H110M-E D3



(about 2 minutes remaining so....about 20)

[MaLd0n]

i think ur usb stick generate with createmediainstall command, is very slow

[zeg66]

Ok it has booted (after an ultra fast kp/reboot but I didn't stop)



Files:



iMac.ioreg.zip



Send me iMac.zip



On the top left screen corner there is some black thing blinking (is it a monster?) when I move the mouse.\





[MaLd0n]

yes, ill try solve it in one folder

[zeg66]

And may I say there is neither sound nor lan, but, of course, you know that :-)

It went to sleep, I pressed a key and it rebooted into bios. Interesting...

[MaLd0n]

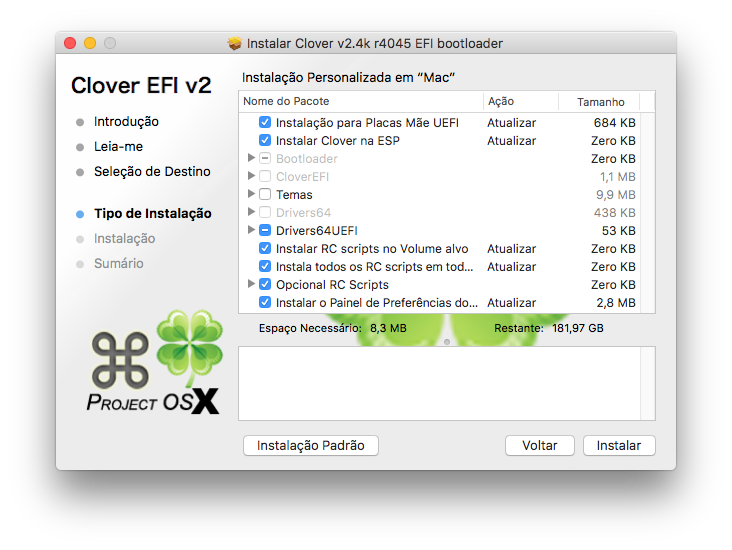

-Install Clover

https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4035.zip/download

-Replace folder

CLOVER.zip



after reboot, if all ok, send me new ioreg

[zeg66]

unfortunately now it doesn't reboot at all. I get a stop sign just before the graphics start. Tried with the usb stick, the same.

[MaLd0n]

just uncheck Inject Intel in Clover boot screen, press O, go to Graphics and uncheck, if have problem after that, go to acpi too, and rename dsdt.aml to dsdt02.aml

use it

Arquivo Comprimido.zip

[zeg66]

ok I am on the machine now. I had to un-check Intel and rename dsdt.aml to dsdt02.aml



I have never done this before :-)



So now it has LAN, obviously. No audio and the black screen tearing (top left corner) is there.



Wait, I am going to download the Arquivo.

[MaLd0n]

replace two files

[zeg66]

files replaced. In the /dev/disk0s1 SSD partition (EFI)

ready to reboot.  :-)

it only reboots if I uncheck IntelGraphics and rename dsdt.aml to dsdt02.aml.

but it's very fast

[MaLd0n]

try just uncheck IntelGraphics

[zeg66]

If I just uncheck IntelGraphics it doesn't boot.



BUT



if I just rename dsdt.aml to dsdt02.aml it boots (and it's very fast).

(and I think the screen tearing top left corner is gone too)
