[RYZEN] macOS 10.12.x (Sierra) Kernel Research&Development Thread

Sinetek

By Sinetek,
in macOS 10.12 (Sierra)

 Share
774 posts in this topic

Recommended Posts

Gigamaxx
Gigamaxx
Posted
Posted

Thanks for this test2 kernel which can boot to desktop in FX-6300 hackintosh at 10.12.6 (sysctl -a in FX-6300.txt), but unfortunately it can NOT be booted by Enoch/Bronya bootloader or CLOVER EFI in my Ryzen 1700X hackintosh !

It won't load on my Ryzen 1700 in Sierra 12.6 as well. Stops at *******************************************************.

Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

Yes I should say Bronya is assisting me in adding support to my kernel source :D







@Shaneee, and @Bronya, this is a remark from the lilu and WhateverGreen kext coder.     Its in regards to Ryzen compatibility with lilu and WhateverGreen kexts for AMD graphics cards.    These kexts work in Sierra 12.5 for Ryzen ( I don't need helper card for my RX 480), but in Sierra 12.6 it boots to black screen.



http://www.insanelymac.com/forum/topic/325987-whatevergreen-support-topic/page-3?do=findComment&comment=2476541

  • Like 1
Link to comment
Share on other sites
sembrex
sembrex
Posted
Posted

Hi guys, i have a runing Sierra 10.12.5 with Ryzen 5 1500X and Radeon RX 560. Here i share details about software, hardware and settings i use

Hardware:
Board       : ASRock AB350 Pro4
CPU         : AMD Ryzen 5 1500X 4C/8T @3.5GHz
GPU         : Sapphire Radeon RX 560 4GB OC
Memory      : Corsair LPX Vengeance 2x4GB DDR4 2666MHz
Display     : Dell 1909Wb 1440x900@60Hz
HDD         : WDC Blue 1TB + Seagate Barracuda 1TB
Standard USB mouse and keyboard


Software:
OS Image    : SierraAMD v4 (10.12.5)
Bootloader  : Clover_v2.4k_r4152


Configurations:
BIOS :

  • SMT             : Enable
  • Super I/O       : Disable
  • XMP             : Enable
  • Virtualization  : Enable

Clover : config.plist

Kexts:

  • Lilu.kext           -> EFI/CLOVER/kexts/Other
  • WhateverGreen.kext  -> EFI/CLOVER/kexts/Other



Modified kext:

  • /S/L/E/AMD9510Controller.kext//Contents/Info.plist

from:

<key>IOPCIMatch</key>
<string>0x67EF1002</string>

to:

<key>IOPCIMatch</key>
<string>0x67FF1002</string>


Benchmark:

- Cinebench R15




- Geekbench 4

CPU .   : https://browser.geekbench.com/v4/cpu/3697268

Compute : https://browser.geekbench.com/v4/compute/1015156

Link to comment
Share on other sites
crashmymac
crashmymac
Posted
Posted

GOOD MORNING VIETNAM, I AM GOING TO TRY THIS!



WINDOWS 10 IS LAME AS ****



Hi guys, i have a runing Sierra 10.12.5 with Ryzen 5 1500X and Radeon RX 560. Here i share details about software, hardware and settings i use

Hardware:
Board       : ASRock AB350 Pro4
CPU         : AMD Ryzen 5 1500X 4C/8T @3.5GHz
GPU         : Sapphire Radeon RX 560 4GB OC
Memory      : Corsair LPX Vengeance 2x4GB DDR4 2666MHz
Display     : Dell 1909Wb 1440x900@60Hz
HDD         : WDC Blue 1TB + Seagate Barracuda 1TB
Standard USB mouse and keyboard


Software:
OS Image    : SierraAMD v4 (10.12.5)
Bootloader  : Clover_v2.4k_r4152


Configurations:
BIOS :

  • SMT             : Enable
  • Super I/O       : Disable
  • XMP             : Enable
  • Virtualization  : Enable

Clover : config.plist

Kexts:

  • Lilu.kext           -> EFI/CLOVER/kexts/Other
  • WhateverGreen.kext  -> EFI/CLOVER/kexts/Other



Modified kext:

  • /S/L/E/AMD9510Controller.kext//Contents/Info.plist

from:

<key>IOPCIMatch</key>
<string>0x67EF1002</string>

to:

<key>IOPCIMatch</key>
<string>0x67FF1002</string>

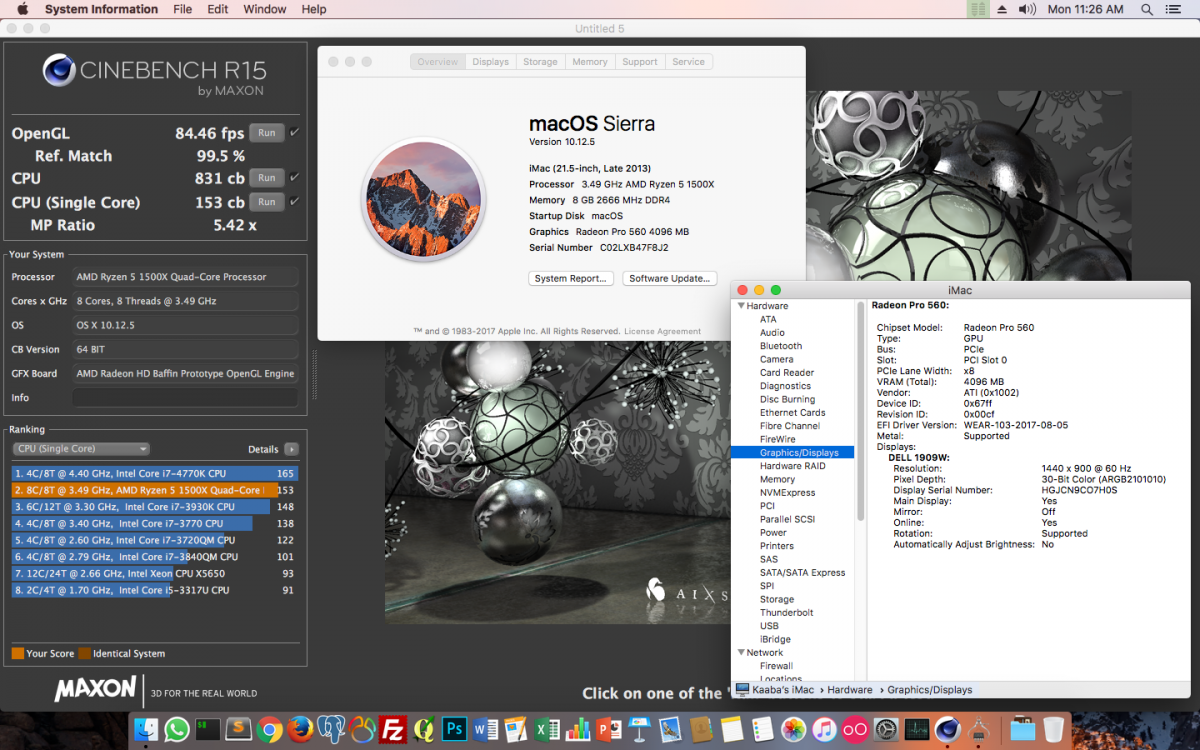

Benchmark:

- Cinebench R15

attachicon.gifScreen Shot 2017-08-14 at 11.26.19 AM.png



- Geekbench 4

CPU .   : https://browser.geekbench.com/v4/cpu/3697268

Compute : https://browser.geekbench.com/v4/compute/1015156

  • Like 1
Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

And.... if that doesn't work at all like it failed to boot on my FX here's another test...



I just finished testing the first one from today, reboot. I will try this one now.



Update:   Still reboots at kernel loading ******************************************************.    reboot.



I then placed it in with 16.5 auto kernel.    New kernel as kernel-2 rebuilt caches and booted, ran disk cleanup again, switched kernels new as kernel and 16.5 as kernel-2 it loaded first time to about Shim2 then rebooted.     I tired this with both kernels and this #4 version got the farthest or progressed further than the other.



I was able to do this with High Sierra kernel using 16.5 auto kernel as -2 then after rebuilding caches moving out to kernel spot and HS kernel as -2.    It booted my macBook 6.1 doing this. I was able to remove the HS kernel and run on the rebuilt 16.5 kernel in High Sierra.     I was hoping it would work for this kernel as well.

Link to comment
Share on other sites
jsl
jsl
Posted
Posted

And.... if that doesn't work at all like it failed to boot on my FX here's another test...

Thanks for this kernel for testing, but unfortunately it can NOT boot to desktop at 10.12.6 in FX-6300 hackintosh due to too many errors !

  • Like 1
Link to comment
Share on other sites
jsl
jsl
Posted
Posted (edited)

Hi .

Try kernel 10.2.4 !

attachicon.gifkernel_10.2.4.zip



P.S. For me Sierra - not a good system, think  is bad system. Сannot use this system .. :no:

Thanks for this new kernel which can boot to desktop in my FX-6300 hackintosh at 10.12.5 & 10.12.6, but it may get KP if ApplePS2Controller or AppleACPIPS2Nub.kext was in /S/L/E.

It can boot to desktop in my Ryzen 1700X hackintosh at 10.12.5 and 10.12.6 by Enoch/Bronya or Clover EFI 4101, but its scores by Cine Bench R15 were 10~15 % lower than previous kernels.

[Edit]

One minor bug at 10.12.5 & 10.12.6 : this kernel & System.kext disabled HDMI audio from AMD 7950 card in Ryzen 1700X hackintosh, but they can enable HDMI audio from AMD 5770 card in FX-6300 hackintosh. I am not sure whether is related to the version of OS X or different kernels/System.kext loaded. CPU-X.app crashed immediately on open with this test kernel too.

Edited by jsl
Link to comment
Share on other sites
JahStories
JahStories
Posted
Posted

Hi .

Try kernel 10.2.4 !

attachicon.gifkernel_10.2.4.zip



P.S. For me Sierra - not a good system, think  is bad system. Сannot use this system .. :no:



Hi!



I've tested the kernel on 10.12.6 ryzen 1600 and it's working,

But I'm just using the kernel can you please explain what's the purpose of patched system.kext?

Thanks a lot!

Link to comment
Share on other sites
MarkMeretz
MarkMeretz
Posted
Posted
Hi,



I have an Asus Prime B350M-A motherboard with an AMD Ryzen 5 1400 and try to install macOS Sierra with the current Bronya kernel "Kernel, System.kext and Frameworks" have an AMD R7770



I have created the stick already 3 times, but always get the error



Crashed: Language Chooser. To many corpses being created.



Enoch: Bootflags -v npci = 0x2000 busratio = 32



Can someone help me I find but no solution

Link to comment
Share on other sites
Gigamaxx
Gigamaxx
Posted
Posted

Hi,



I have an Asus Prime B350M-A motherboard with an AMD Ryzen 5 1400 and try to install macOS Sierra with the current Bronya kernel "Kernel, System.kext and Frameworks" have an AMD R7770



I have created the stick already 3 times, but always get the error



Crashed: Language Chooser. To many corpses being created.



Enoch: Bootflags -v npci = 0x2000 busratio = 32



Can someone help me I find but no solution

The USB bootloader isn't working correctly if you have sierra 12.6, it worked well for Sierra 12.4-12.5 but the solution is to load sierra onto a disk drive using a working Mac or hack via a USB or sata connection. Or you can clone a disk and then make the same edits.

Link to comment
Share on other sites
kolutshan
kolutshan
Posted
Posted

Hi,
I have successfully installed OS X 10.12.6 on my Ryzen 1800x system. I also managed to get the Nvidia Web Driver with my 1070 working. However, when I change the resolution anything above 1080p (I have a 4k TV connected via Ckub 3D DisplayPort HDMI converter) the overall GPU performance seems sluggish. I even get the feeling that the system itself gets slower. I also had problems with OsxAptioFix2Drv-64.efi on boot up. Every now and than I needed to try up to 6 times before it completed to boot into OS X. I changed OsxAptioFix2Drv-64.efi to OsxAptioFix2Drv-free2000.efi and that fixed it. So has anyone an idea how to increse the GPU power? Thnx :)

Link to comment
Share on other sites
