Gigamaxx Posted May 30, 2017 Share Posted May 30, 2017 Thanks, 3 more hours to get home and test. 1 Link to comment Share on other sites More sharing options...
gills83 Posted May 30, 2017 Share Posted May 30, 2017 In picture, it is sometimes more speaking, especially for me who does not speak English 1 Link to comment Share on other sites More sharing options...
Xsario Posted May 30, 2017 Share Posted May 30, 2017 Thanks for the Clover bootloader Bronya.If possible, can you tell us how to install a ryzen machine with a new user clover?USB installer how to prepareKernel and clover files will be copied to where ...vscan you help me.For example my system:Ryzen 1700XMsi x370 pro carbon16 gb 3200 MHz memory256 ssdNVidia GTX960 video card Link to comment Share on other sites More sharing options...
gills83 Posted May 30, 2017 Share Posted May 30, 2017 Thanks for the Clover bootloader Brona. If possible, can you tell us how to install a ryzen machine with a new user clover? USB installer how to prepare Kernel and clover files will be copied to where ...vs can you help me. For example my system: Ryzen 1700X Msi x370 pro carbon 16 gb 3200 MHz memory 256 ssd NVidia GTX960 video card Yes, is possible with clover and chamelon ------------------------------------------------------------ problem with Pstates and Cstates 255:289 0:000 Patch table: SSDT CPMCMN len=0x1664 255:289 0:000 Patch table: SSDT len=0x8C4C 255:289 0:000 Patch table: SSDT AmdTable len=0x20E4 255:289 0:000 Patch table: SSDT AOD len=0x17E1 255:289 0:000 Patch table: SSDT FCHZP len=0x24 255:289 0:000 Patch table: SSDT len=0xF8 255:289 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 255:289 0:000 Xsdt has tables count=18 255:289 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=16 255:289 0:000 Not an Intel platform: P-States will not be generated !!! 255:289 0:000 GeneratePStates failed: Status=Not Found 255:289 0:000 === [ RestSetup macOS ] =================================== 255:289 0:000 EdidDiscovered size=128 Link to comment Share on other sites More sharing options...
Bronya Posted May 30, 2017 Share Posted May 30, 2017 Yes, is possible with clover and chamelon ------------------------------------------------------------ problem with Pstates and Cstates 255:289 0:000 Patch table: SSDT CPMCMN len=0x1664 255:289 0:000 Patch table: SSDT len=0x8C4C 255:289 0:000 Patch table: SSDT AmdTable len=0x20E4 255:289 0:000 Patch table: SSDT AOD len=0x17E1 255:289 0:000 Patch table: SSDT FCHZP len=0x24 255:289 0:000 Patch table: SSDT len=0xF8 255:289 0:000 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0 255:289 0:000 Xsdt has tables count=18 255:289 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=16 255:289 0:000 Not an Intel platform: P-States will not be generated !!! 255:289 0:000 GeneratePStates failed: Status=Not Found 255:289 0:000 === [ RestSetup macOS ] =================================== 255:289 0:000 EdidDiscovered size=128 this only for intel ))) Link to comment Share on other sites More sharing options...
gills83 Posted May 30, 2017 Share Posted May 30, 2017 this only for intel ))) Yes but Ryzen is Cstate, luckily the CPU does not heat up much, voodooPstate does a little bit of what update voodooPstate for Ryzen ? yeah !!! Link to comment Share on other sites More sharing options...
Bronya Posted May 30, 2017 Share Posted May 30, 2017 No will voodoopstate for ryzen , because i dunno ... )) Link to comment Share on other sites More sharing options...
gills83 Posted May 30, 2017 Share Posted May 30, 2017 cool !! C-state works !! force enable in the bios and config.plist 5:505 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=165:505 0:000 SSDT with CPU C-States generated successfully 1 Link to comment Share on other sites More sharing options...
Bronya Posted May 30, 2017 Share Posted May 30, 2017 1 Link to comment Share on other sites More sharing options...
gills83 Posted May 31, 2017 Share Posted May 31, 2017 ok, update bêta 10.12.6 (16G12b) works your kernel Holds good Bronya !! 1 Link to comment Share on other sites More sharing options...
Gigamaxx Posted May 31, 2017 Share Posted May 31, 2017 Very nice, with clover UEFI? 1 Link to comment Share on other sites More sharing options...
cyrhex Posted May 31, 2017 Share Posted May 31, 2017 cool !! C-state works !! force enable in the bios and config.plist 5:505 0:000 CPUBase=0 and ApicCPUBase=1 ApicCPUNum=16 5:505 0:000 SSDT with CPU C-States generated successfully how do u test your c states if it was working or not?coz i got working sleep/wake on 10.12.4 using kernel rc2 by bronya.,working both on clover uefi and chameleon 1 Link to comment Share on other sites More sharing options...
Ciro82 Posted May 31, 2017 Share Posted May 31, 2017 need copy this kexts in clover ... tried ? )) Yes, of course i did, i'm not that kind of noob LOL Link to comment Share on other sites More sharing options...
gills83 Posted May 31, 2017 Share Posted May 31, 2017 Very nice, with clover UEFI? I do not have the risk of doing the update with Clover, let's do the first part with clover and to finish the update by restarting with chameleon in -f, we had at least to replace the kernel. Once finished the manipulation with previously rebuilding the kernelcache, I rebooted with clover, I had too much HDD breakdown, I'm careful now. 2 Link to comment Share on other sites More sharing options...
jsl Posted May 31, 2017 Share Posted May 31, 2017 I do not have the risk of doing the update with Clover, let's do the first part with clover and to finish the update by restarting with chameleon in -f, we had at least to replace the kernel. Once finished the manipulation with previously rebuilding the kernelcache, I rebooted with clover, I had too much HDD breakdown, I'm careful now. Thanks for your previous advice and help which made Clover boot working at 10.12.5/10.12.6 in my Ryzen 1700X hackintosh now. However unable to login desktop at 10.11.6 or 10.10.5 by Clover EFI, which was possible by Bronya's Chameleon 2667 only. For 10.9.5 booted by Bronya's 2667 everything is fine, but booted by Clover always got too fast timers and very low performance by Cinebench R15. Can you boot by Clover at 10.9.5 and got normal timers and performance ? Any modification of config.plist at 10.9.5 is required ? Link to comment Share on other sites More sharing options...

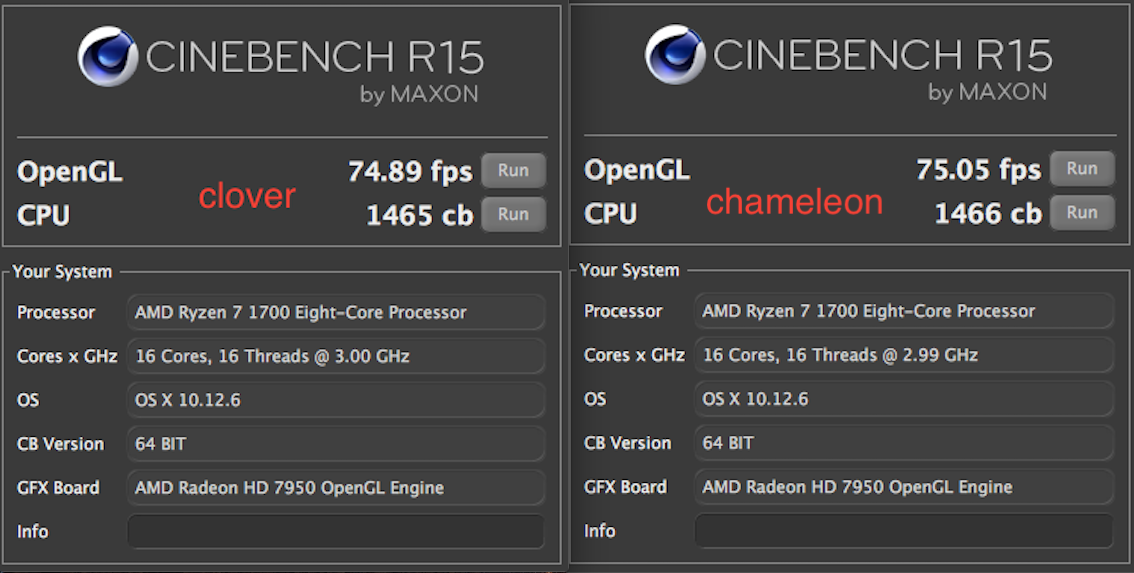

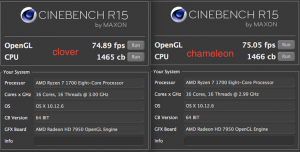

gills83 Posted May 31, 2017 Share Posted May 31, 2017 The opening time is also the same, about 20 seconds on the hard drive (Samsung 1T 103 SJ), for the Mavericks is the same, except that Opengl makes 85 fsp and 99 fps on Windows 10.Windows 10 starts at the same speed, about 20 seconds too Chameleon / clover, clover / chameleon, it's the same Mavericks : open/halt/restar/sleep works (clover) Sierra: open/halt/restar/sleep but blackscreen out sleep (small problem GPU ) (clover) Ryzen 7 1700 @ stock (no o/c) 3 Link to comment Share on other sites More sharing options...
Ciro82 Posted May 31, 2017 Share Posted May 31, 2017 Still no luck with my USB Controller... Link to comment Share on other sites More sharing options...
gills83 Posted May 31, 2017 Share Posted May 31, 2017 how do u test your c states if it was working or not?coz i got working sleep/wake on 10.12.4 using kernel rc2 by bronya.,working both on clover uefi and chameleon I do not have too much reference on OS X, the only one I have is to compare it to Windows 10 by noticing that the PC does not heat more than on Windows, I will regulate the bios in eco mode to see Link to comment Share on other sites More sharing options...
cyrhex Posted May 31, 2017 Share Posted May 31, 2017 ok,my cstate is working as well coz my a10 5800k temp drops to zero when idle same on win10 Link to comment Share on other sites More sharing options...
jsl Posted May 31, 2017 Share Posted May 31, 2017 The opening time is also the same, about 20 seconds on the hard drive (Samsung 1T 103 SJ), for the Mavericks is the same, except that Opengl makes 85 fsp and 99 fps on Windows 10.Windows 10 starts at the same speed, about 20 seconds too Chameleon / clover, clover / chameleon, it's the same Mavericks : open/halt/restar/sleep works (clover) Sierra: open/halt/restar/sleep but blackscreen out sleep (small problem GPU ) (clover) Ryzen 7 1700 @ stock (no o/c) Can you share your config.plist of Mavericks for me? Or take a look at my config.plist here ? Need figure out why it not working well at Mavericks (10.9.5), but working well at 10.12.5. config.plist.zip Link to comment Share on other sites More sharing options...

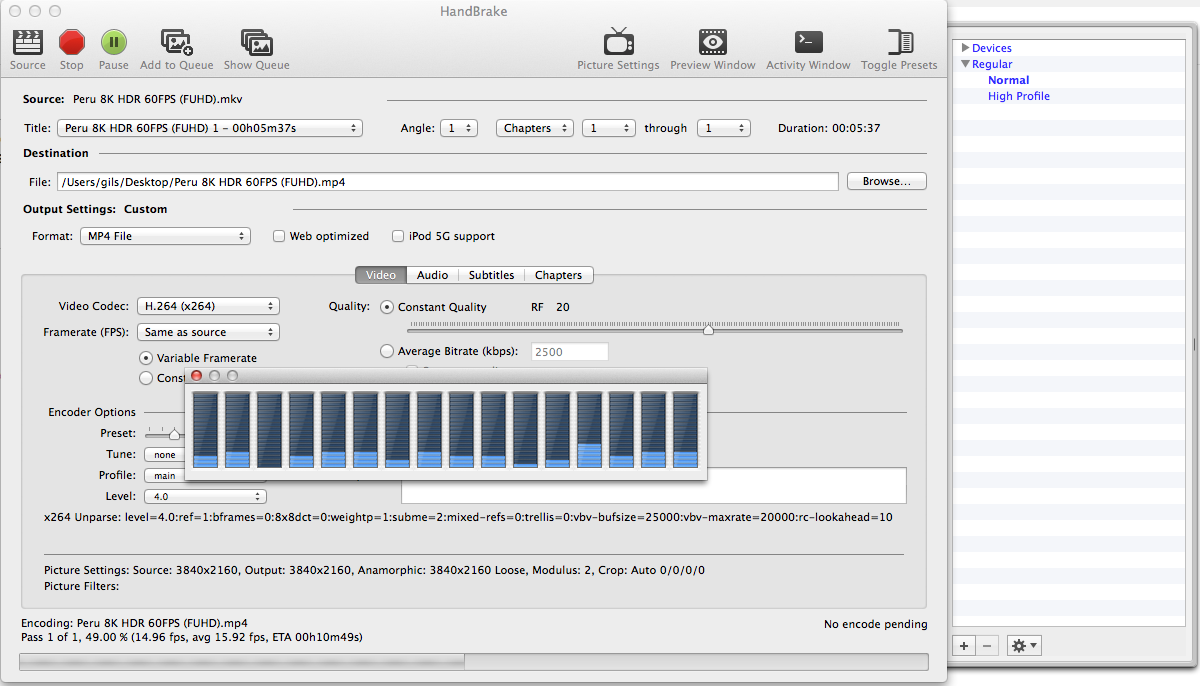

gills83 Posted May 31, 2017 Share Posted May 31, 2017 (edited) Bad news, the MKV is super badly decoded, Ryzen is dragging as well as the HD 7950, of course I have a video file 4k 60 fps MKV, whether on mavericks or sierra, it's the same, it drags so much to do Encoding from MKV to MP4!Try at home. the problem MKV is even worse on windows !! Thank you Can you share your config.plist of Mavericks for me? Or take a look at my config.plist here ? Need figure out why it not working well at Mavericks (10.9.5), but working well at 10.12.5. timout 57 s ?? What you have as problem exactly, The HD 7950 is a great graphics card !! why SMBIOS iMac ? Edited June 1, 2017 by papiercul Link to comment Share on other sites More sharing options...
jsl Posted May 31, 2017 Share Posted May 31, 2017 Bad news, the MKV is super badly decoded, Ryzen is dragging as well as the HD 7950, of course I have a video file 4k 60 fps MKV, whether on mavericks or sierra, it's the same, it drags so much to do Encoding from MKV to MP4! Try at home. Thank you timout 57 s ?? What you have as problem exactly, The HD 7950 is a great graphics card !! why SMBIOS iMac ? 1. Timeout for selection of different partitions to boot for testing (10.9.5, 10.10.5, 10.11.6, 10.12.5, & 10.12.6, etc). 2. At 10.9.5 only Bronya's 2667 is working well, Clover 4078 got too fast Timer and very, very poor performance in Cinebench R15 3. Use iMac14,2 instead of MP5,1/6,1 because of USB 3.0/3.1 on board (need USBInjectAll & GenericXHCI to get ports without restriction). Thanks for your attention and help again ! No change when timeout=0 or SMBIOS=MP6,1 before, all got the same problem as current settings. Link to comment Share on other sites More sharing options...

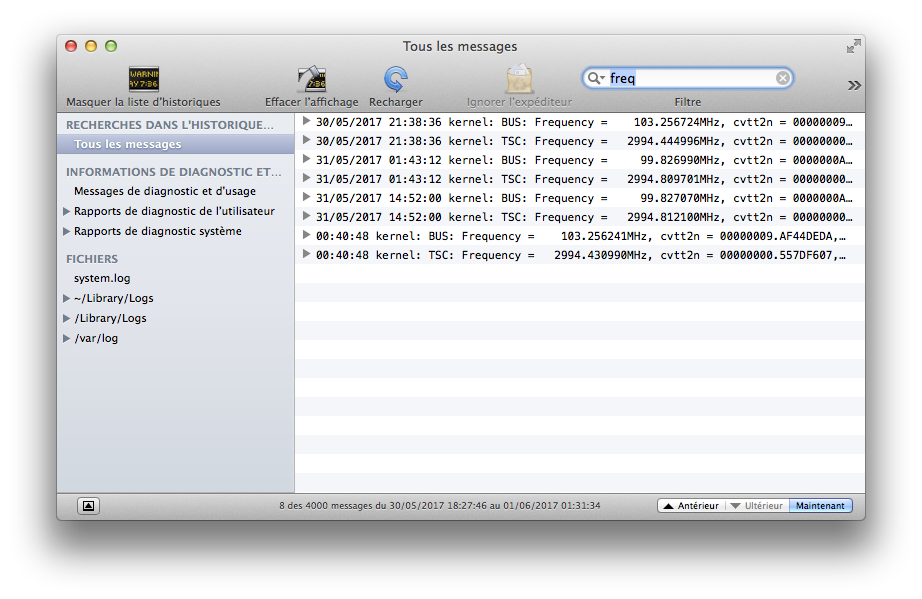

gills83 Posted May 31, 2017 Share Posted May 31, 2017 (edited) 1. Timeout for selection of different partitions to boot for testing (10.9.5, 10.10.5, 10.11.6, 10.12.5, & 10.12.6, etc). 2. At 10.9.5 only Bronya's 2667 is working well, Clover 4078 got too fast Timer and very, very poor performance in Cinebench R15 3. Use iMac14,2 instead of MP5,1/6,1 because of USB 3.0/3.1 on board (need USBInjectAll & GenericXHCI to get ports without restriction). Thanks for your attention and help again ! No change when timeout=0 or SMBIOS=MP6,1 before, all got the same problem as current settings. There is no problem of usb ports on Mavericks!? Use Dummyusbehcipci.kext for Sierra and all your ports should work without. That said, you may have a CPU clock problem... hum look in consol/freq Edited May 31, 2017 by papiercul 1 Link to comment Share on other sites More sharing options...

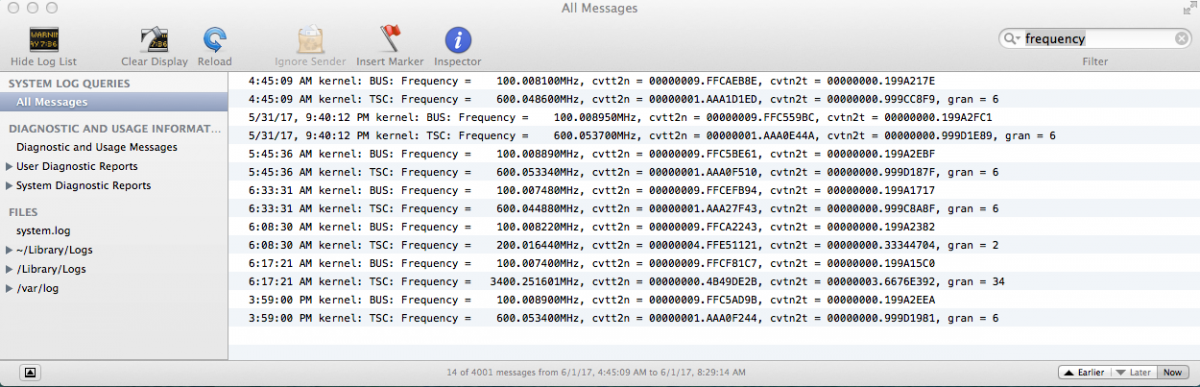

jsl Posted May 31, 2017 Share Posted May 31, 2017 There is no problem of usb ports on Mavericks!? Use Dummyusbehcipci.kext for Sierra and all your ports should work without. That said, you may have a CPU clock problem... hum look in consol/freq Yes, I have found that if booted by Clover at Mavericks (10.9.5) always got abnormal FSB frequency & CPU ratio. No such an issue if booted by Bronya's 2667 Chameleon. Any setting in config.plist can fix it ? No such an issue if booted by Clover at 10.12.5/10.12.6 Link to comment Share on other sites More sharing options...
Bronya Posted June 1, 2017 Share Posted June 1, 2017 Clover is Strange and horror programming 3 Link to comment Share on other sites More sharing options...
