Cyberdevs Posted March 3, 2017 Share Posted March 3, 2017 As a matter of fact you don't need to do much with your DSDT all the new systems work perfectly fine without a patched DSDT. But older systems couldn't function properly without a patched DSDT. You can make a copy of the DSDT.aml from the following folder EFI\Clover\ACPI\origin to EFI\Clover\ACPI\patched for activating HDMI Audio you might need to run Toleda's script to add the required settings to your config.plist since I don't use HDMI Audio I'm not sure if it works completely or not but you can find it here: https://github.com/t...ect.command.zip for more see https://github.com/toleda/ I also added a fix for shutdown problem to your config.plist check it out and let me know if it worked. P.S. What I mean about not needing a patched DSDT is back in the day when we were using chameleon as the boot loader there wasn't much we could do about DSDT patching via the boot loader like. Almost all the patching should have been applied to the DSDT.aml file itself, but know with Clover we have so many great options to apply all the patches we need on the fly so the DSDT.aml is untouched. Clover and the patches we apply using it do all the magic! So technically it's DSDT patching But in some cases adding a patch to DSDT.aml is necessary. 1 Link to comment Share on other sites More sharing options...

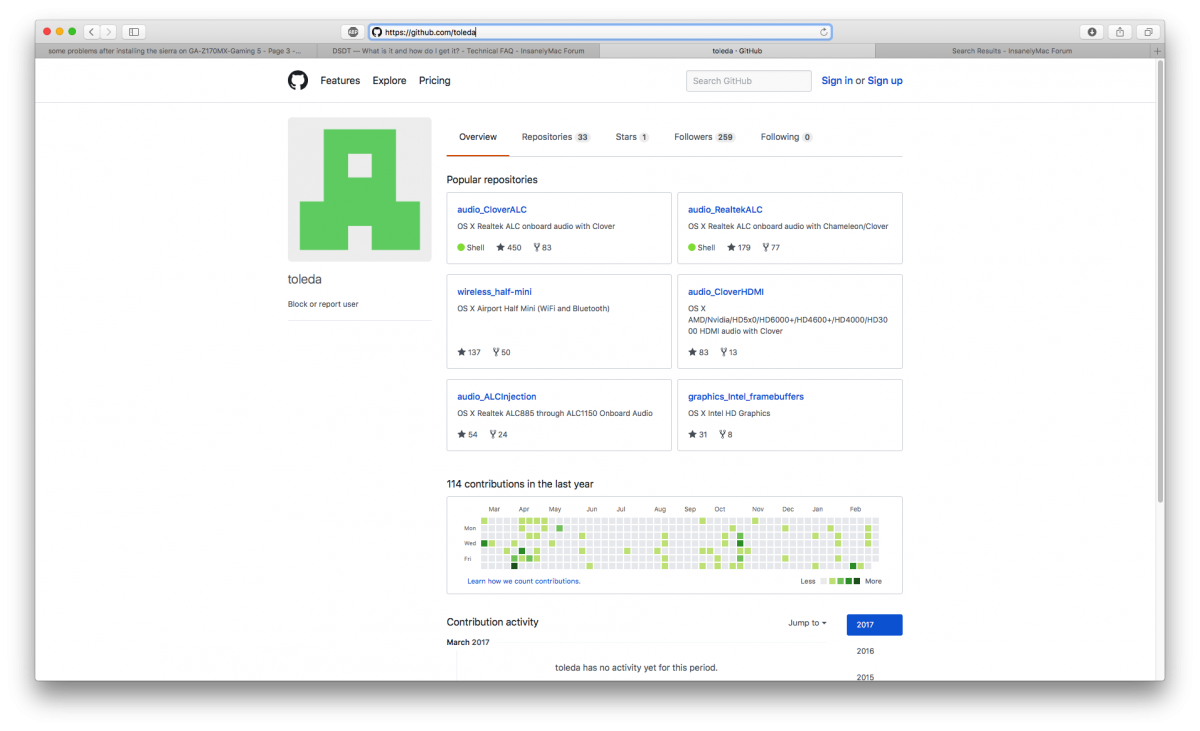

psydrug Posted March 3, 2017 Author Share Posted March 3, 2017 cyberdevs Thank you very much for answering You are very helpful to me appreciate it a lot I copied the file DSDT.aml From EFI\Clover\ACPI\origin to EFI\Clover\ACPI\patched And the computer starts just fine HDMI audio does not work out with Toleda's script And this link is not working https://github.com/toleda (404) shutdown problem is resolved, thank you very much Thanks in advance Link to comment Share on other sites More sharing options...
Cyberdevs Posted March 3, 2017 Share Posted March 3, 2017 You're welcome That's weird because I just opened the site with no problem! see if you can open this one: https://github.com/toleda/audio_hdmi_100series 1 Link to comment Share on other sites More sharing options...
psydrug Posted March 3, 2017 Author Share Posted March 3, 2017 Sorry, the site now works 404 error was promoted I will remain without sound in HDMI there's nothing to do You really deserve a huge thank you You want that I will send you 5-10 $ to your paypal? Link to comment Share on other sites More sharing options...
Cyberdevs Posted March 3, 2017 Share Posted March 3, 2017 Sorry, the site now works 404 error was promoted I will remain without sound in HDMI there's nothing to do You really deserve a huge thank you You want that I will send you 5-10 $ to your paypal? It's ok dude! No need to pay anything. Just glad I could help These files might help you resolve the HDMI audio problem. Cheers! Guide_HD5x0-hdmi_audio_(clover_or_ssdt).pdf audio_codecdetect.command.zip ssdt_hdmi-hd530.zip 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 3, 2017 Share Posted March 3, 2017 As a matter of fact you don't need to do much with your DSDT all the new systems work perfectly fine without a patched DSDT. But older systems couldn't function properly without a patched DSDT. All hacks need DSDT, the system without dsdt work, all work with clover, old and news, but u avoid many problems, conflicts, usb, sata, speed, etc with DSDT. if u use patches in clover....u patched binary, this amazin' but not a full, u need more and more. Do not confuse the "power of Skylake", "SSD speed", "DDR4" with "dont need..." LMU HDMI Full SBUS with Mikey Cosmetics all in one DSDT, u need one DSDT and one SSDT, master Pike(Skylake dont need SSDT for PM). Hackintosh and DSDT walkin' togehter, ever. This phrase "dont need" is a current legend, only that All need. But new users need to know the bios of their mobo and now all patches in Clover in New Way, bug many patches in skylake. we need wait new realeases Link to comment Share on other sites More sharing options...
psydrug Posted March 3, 2017 Author Share Posted March 3, 2017 It's ok dude! No need to pay anything. Just glad I could help These files might help you resolve the HDMI audio problem. Cheers! Wow, this is very complex I'll leave it for next time I kept all the files in case of security thank you very very much Link to comment Share on other sites More sharing options...

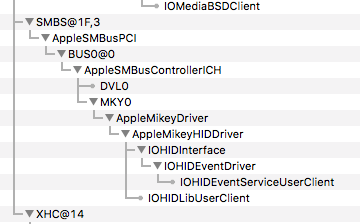

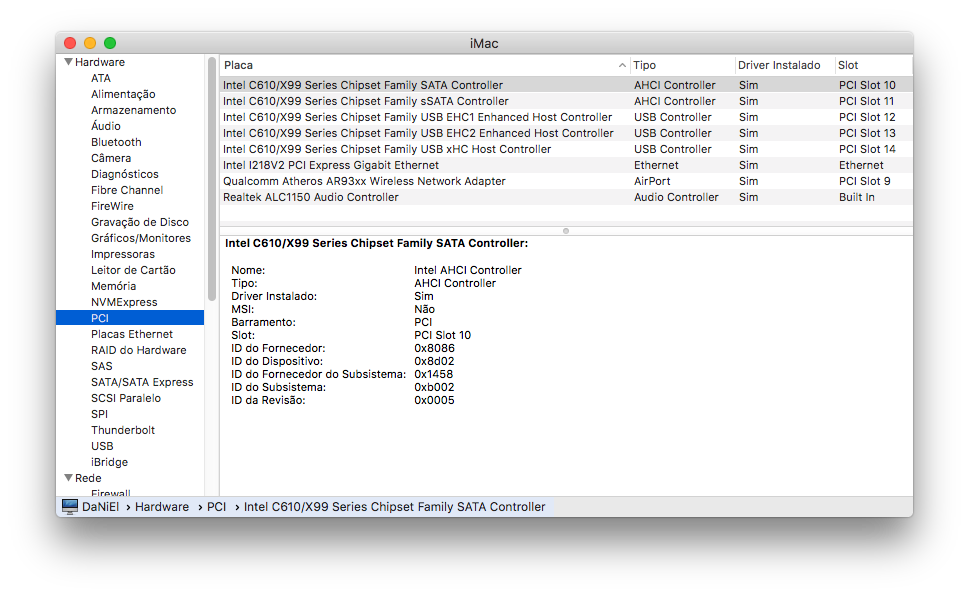

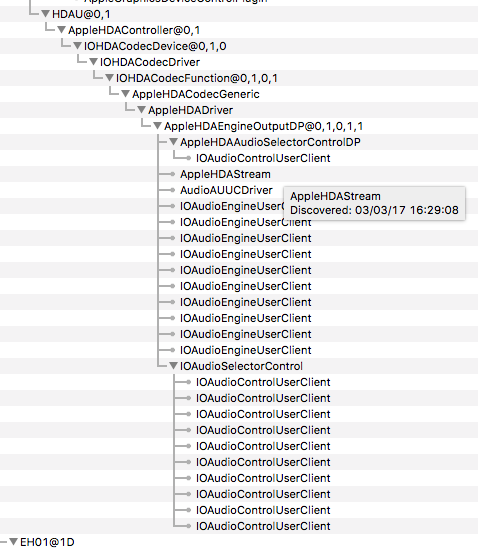

Cyberdevs Posted March 3, 2017 Share Posted March 3, 2017 All hacks need DSDT, the system without dsdt work, all work with clover, old and news, but u avoid many problems, conflicts, usb, sata, speed, etc with DSDT. if u use patches in clover....u patched binary, this amazin' but not a full, u need more and more. Do not confuse the "power of Skylake", "SSD speed", "DDR4" with "dont need..." LMU DaNiEl 2017-03-03 às 16.29.22.png HDMI DaNiEl 2017-03-03 às 16.29.38.png Full SBUS with Mikey DaNiEl 2017-03-03 às 16.29.57.png Cosmetics DaNiEl 2017-03-03 às 16.30.36.png all in one DSDT, u need one DSDT and one SSDT, master Pike(Skylake dont need SSDT for PM). Hackintosh and DSDT walkin' togehter, ever. This phrase "dont need" is a current legend, only that All need. But new users need to know the bios of their mobo and now all patches in Clover in New Way, bug many patches in skylake. we need wait new realeases Hey man thanks for the details , I didn't say they "don't need DSDT or SSDT" I just said they don't need to be patched like the old systems did. But with all means feel free to correct me if I'm wrong. I'm a big fan 2 Link to comment Share on other sites More sharing options...
Cyberdevs Posted March 4, 2017 Share Posted March 4, 2017 Wow, this is very complex I'll leave it for next time I kept all the files in case of security thank you very very much You're Welcome Actually editing the DSDT.aml or patching it is a very complex process and needs a deep knowledge about computers and programming. But there are so many great people in this forum whom do all the heavy lifting and come up with amazing solutions and patches which makes life so much easier for us. Thanks to all of them. Toledo's one of them whom created a handful of great scripts and programs to activate audio components of a hackintosh computer. If you don't want to go through the process of running toleda's script which is not as hard as it seems you can use VoodooHDA to activate the audio for your hackintosh. you can find it here: http://www.insanelymac.com/forum/files/file/324-voodoohda/ Cheers! 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 7, 2017 Share Posted March 7, 2017 All work, you have the trick and DSDT solved all. 1 Link to comment Share on other sites More sharing options...
Cyberdevs Posted March 7, 2017 Share Posted March 7, 2017 All work, you have the trick and DSDT solved all. gathering.gif I edited my previous post about not needing a Patched DSDT to avoid any further confusions. So please read it and let me know if it's right. http://www.insanelymac.com/forum/topic/321545-some-problems-after-installing-the-sierra-on-ga-z170mx-gaming-5/?p=2377266 1 Link to comment Share on other sites More sharing options...
MaLd0n Posted March 7, 2017 Share Posted March 7, 2017 Link to comment Share on other sites More sharing options...
