Lilu — kext and process patcher

[Pavo]

1 hour ago, vinhtq115 said:

After doing that, I can't boot through Apple logo so I will downgrade back to 1.2.8 since it worked with kexts in /L/E.

The newest Lilu, WhateverGreen also work in L/E. You just have to rebuild your kernel cache without using depreciated Kext at the same time.

Edited December 30, 2018 by Pavo

[vinhtq115]

54 minutes ago, Pavo said:

The newest Lilu, WhateverGreen also work in L/E. You just have to rebuild your kernel cache without using depreciated Kext at the same time.

I rebuilt kernel cache after installing the new kext (deleted the old version before doing that) but somehow, all Lilu plugins complained like this:

Kext with invalid signatured (-67062) allowed: <OSKext 0x7fdc1d072790 [0x7fff916f98f0]> { URL = "AppleALC.kext/ -- file:///Library/Extensions/", ID = "as.vit9696.AppleALC" }
AppleALC.kext - no compatible dependency found for as.vit9696.Lilu.
AppleALC.kext is missing dependencies (including anyway; dependencies may be available from elsewhere)

You can check the output of kextcache rebuild and kextstat here.

[Andrey1970]

7 hours ago, Pavo said:

The newest Lilu, WhateverGreen also work in L/E.

No, it it is not guaranteed.

[vit9696]

Alright, while this is not strictly supported, I published a new release fixing up /Library/Extensions loading.

https://github.com/acidanthera/Lilu/releases/tag/1.3.1

Enjoy! Season's greetings =)

[Badruzeus]

2 hours ago, vit9696 said:

Alright, while this is not strictly supported, I published a new release fixing up /Library/Extensions loading.

https://github.com/acidanthera/Lilu/releases/tag/1.3.1

Enjoy! Season's greetings =)

Thanks @vit9696 it also fixes my problem with VirtualSMC that caused kernel panic on every mach shutdown, previously (though, I'm not really sure it' s related to Lilu). Do we need to also rebuild kext plugins (ie. AppleALC, VirtualSMC, WhataverGreen etc.) with newer debug version once Lilu is updated?

(Oh ya, have a nice day).

MacBook-Pro:~ badruzeus$ cat /private/var/log/system.log | grep VirtualSMC
Dec 30 12:50:39 localhost kernel[0]: VirtualSMC:   efend @ failed to find valid status (800000000000000E, 8), VirtualSMC EFI module is broken
Dec 30 12:50:39 localhost kernel[0]: VirtualSMC:   efend @ no extra rtc memory is present for key erase



Edited December 30, 2018 by Badruzeus

[vit9696]

Rebuilding is not necessary. Regarding RTC, there are notes in VirtualSMC FAQ =)

[Badruzeus]

1 minute ago, vit9696 said:

Rebuilding is not necessary. Regarding RTC, there are notes in VirtualSMC FAQ =)

OK thanks, I missed that vSMC FAQ. So I need to recheck them and also my configs.

[Pavo]

1 hour ago, vit9696 said:

Rebuilding is not necessary. Regarding RTC, there are notes in VirtualSMC FAQ =)

What do you think causes VirtualSMC to instant reboot whenever you do not boot with verbose. I get instant reboots when using VirtualSMC every single time without booting with verbose.

[vit9696]

¯\_(ツ)_/¯ almost impossible to know without panic log.

[Pavo]

7 minutes ago, vit9696 said:

¯\_(ツ)_/¯ almost impossible to know without panic log.

Trust me, if I knew how to get that panic log. I would provide it. It only happens when using VirtualSMC.kext and not booting with verbose. If I boot with verbose, it boots perfectly fine.

[the_gael]

22 hours ago, the_gael said:

Thank you @vit9696 I updated 3 kexts this morning so will download all again directly from your Github repository and try again. I suspect that a corrupted download may be more likely than a corruption of the EFI partition as the issue is stable, repeatable and reversible i.e. reverting to an earlier version of Lilu.kext fixes the issue. The kexts in question were AirportBrcmFixup, Lilu and WhateverGreen - I will report back on how I get on. Thanks again.



Edited To Add: I have downloaded the 3 kexts directly from your Github but the result was the same - using Lilu.kext v1.3.0 with either the latest or previous versions of AirportBrcmFixup.kext or WhateverGreen.kext cause my machine to not boot. I inserted a different SSD which was using Lilu.kext v1.2.8, and previous versions of the other two kexts - it works perfectly but if I update to latest version of Lilu.kext v1.3.0 I get the same failure to boot.



I tried booting in safe mode and also with -disablegfxfirmware but neither option will allow me to boot. I do however have Lilu.kext v1.2.9 in EFI/Clover/Kexts/Other and so I booted using the option to boot with injected Kexts after pressing spacebar.







@vit9696 Thank you! Lilu.kext v1.3.1 resolves the issue - I had not realised I was meant to load Lilu.kext from Clover I was booting from within /L/E hence no doubt the reason v1.3.1 resolves my issue.

[Pavo]

Ok looks like Lilu 1.3.0 has fixed my issues with VirtualSMC instant rebooting with non-verbose booting. Thanks again @vit9696 for helping me debug that issue.

[barleyjuice]

Hi all.. few days ago started having issues with my sierra machine rebooting. Kept getting bootloop.



Looking at the error one of the lines mentioned lilu so i found this thread and updated lilu to 1.3.1.

I did not have lilu before in EFI/CLOVER/kexts/other before but regardless i placed the new updated kext using clover in EFI/CLOVER/kexts/other and saved.



However when i boot im still getting the same loop error pointing to lilu.

I am able to boot normally with the flag -liludisable but cannot boot without disabling.



Ive also updated my webdrivers for the Gforce 760 card but not sure if the bootloop is related.

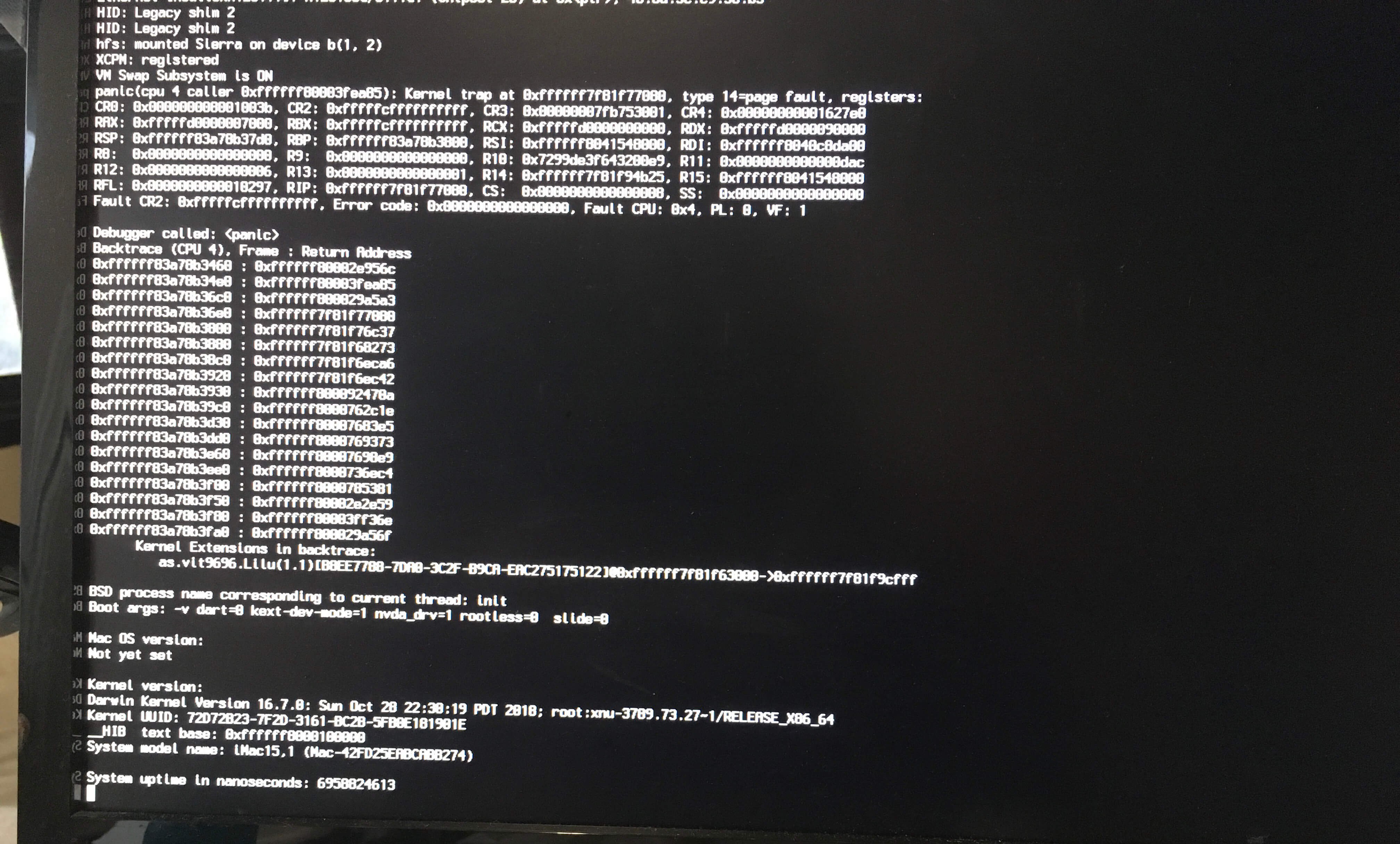

Attached is a screenshot of the error



Any suggestions?





[vit9696]

Please redo with keepsyms=1 and DEBUG Lilu.

[barleyjuice]

1 hour ago, vit9696 said:

Please redo with keepsyms=1 and DEBUG Lilu.

hi there vit9696.

Hopefully i did what you ask correctly.

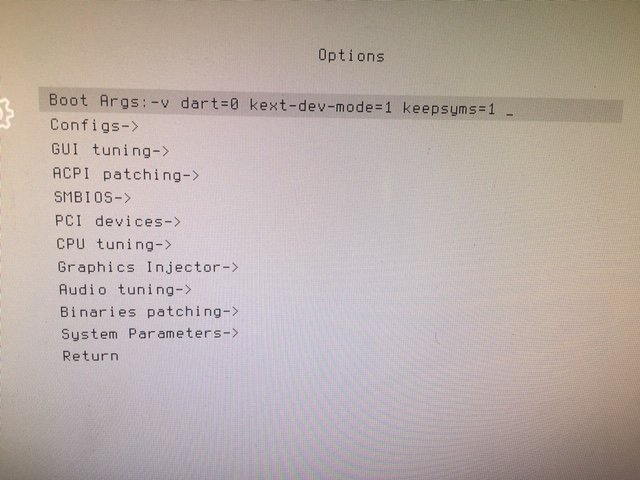

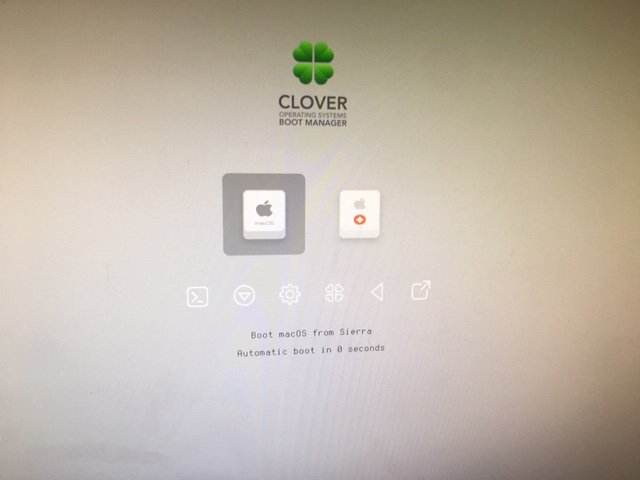

I removed the bootflag -liluoff and used keepsyms=1  ( see screenshot)

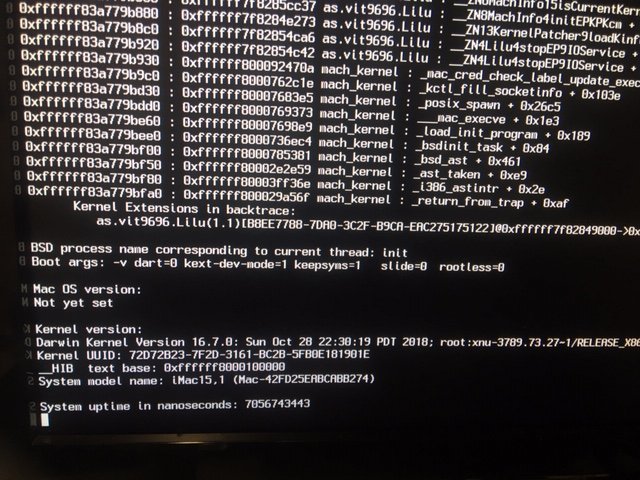

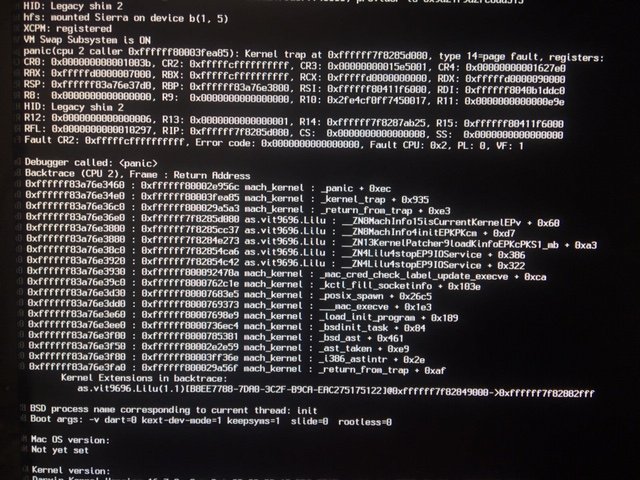

Its still causing the bootloop but i took another photo hoping it reveals why. ( screenshot 2)

Please let me know if you see anything else i should add/update/change.



Thanks for your help

[vit9696]

You have legacy Lilu 1.1 somewhere. Likely in /Library/Extensions.

[barleyjuice]

39 minutes ago, vit9696 said:

You have legacy Lilu 1.1 somewhere. Likely in /Library/Extensions.

Hi..

ive checked /System/Library/Extensions and also /Library/Extensions but there is no lilu.kext

ive also searched using kextstat | grep -v com.apple  but there is no lilu also.



Is there anywhere else i can check for this older version?

ive searched the efi and SLE & LE with no luck



did i delete the old one improperly?

is there a way to ignore that old version or rebuild system to only see the updated kext?





[Andrey1970]

Look at others EFI partitions.

[AkimoA]

or block the kext with Clover , boot into system rebuild prelinkedkernel  if no dice boot in Singleusermode rebuild plk since it is nowhere located its possible the only place where it still could be.

[barleyjuice]

Hi all.



so i searched all efi partitions and none of them had a lilu kext.



so then tried to rebuild prelinkedkernel ..first while logged in Admin i tried

sudo kextcache -i /

did not achieve desired result.



then i rebuild prelinkedkernel while logged in as Admin user

kextcache -system-prelinked-kernel
kextcache -system-cache



But after restarting same issue persisted.



I then rebooted as SingleUser with -s

in the command line i first entered

fsck -fy
mount -uw /

but if i try to rebuild prelinkedkernel

kextcache -system-prelinked-kernel
kextcache -system-cache

I get a permissions error

what am i doing wrong?



Im really hoping i dont have to reinstall to get rid of this error but worst case scenario is there a way to disable Lilu and still have a functional Sierra with Geforce 760 card?

or is this kext mission critical?



Thanks again for all your help.





Edited January 13, 2019 by barleyjuice
edit

[LockDown]

Do you have another MacOS located on the other drive?

[barleyjuice]

Hi there

Yes i checked all EFI partitions and none of them are bootable or have kexts/lilu.



is there anywhere else this rogue lilu.kext might be hiding?

Is there are search tools/grep or something similar that i can use to search for the 1.1V of Lilu?



Really got myself into a pickle this time...





[Badruzeus]

10 minutes ago, barleyjuice said:

Hi there

Yes i checked all EFI partitions and none of them are bootable or have kexts/lilu.



is there anywhere else this rogue lilu.kext might be hiding?

Is there are search tools/grep or something similar that i can use to search for the 1.1V of Lilu?

At least give us your EFI\CLOVER\misc\preboot.log (Press F2 on Clover GUI) or ..\misc\debug.log:

<key>Boot</key>
	<dict>
		<key>Debug</key>
		<true/>
		...
	</dict>



[barleyjuice]

Hi

Thanks i think i did the log correctly.

This is what it shows.

Also please note this is using -liluoff as im unable to boot without that flag.



0:100  0:100  MemLog inited, TSC freq: 3990761294
0:100  0:000  CPU was calibrated with ACPI PM Timer
0:100  0:000
0:100  0:000  Now is 14.1.2019,  4:34:16 (GMT)
0:100  0:000  Starting Clover revision: 4844 on American Megatrends EFI
0:100  0:000  Build with: [Args: -nb -mc --no-usb -D NO_GRUB_DRIVERS_EMBEDDED | -D DISABLE_USB_SUPPORT -D NO_GRUB_DRIVERS_EMBEDDED -D USE_BIOS_BLOCKIO -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE8 -n 5 | OS: 10.13.6 | XCODE: 10.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000) @BC134518
0:100  0:000  SelfDirPath = \EFI\BOOT
0:100  0:000  === [ Get Smbios ] ========================================
0:100  0:000  Type 16 Index = 0
0:100  0:000  Total Memory Slots Count = 4
0:100  0:000  Type 17 Index = 0
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 0 ChannelA-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 524903325
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S001.
0:100  0:000  Type 17 Index = 1
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 1 ChannelA-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 524900617
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 2 ChannelB-DIMM0
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 52490068
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S001.
0:100  0:000  Type 17 Index = 3
0:100  0:000  SmbiosTable.Type17->Speed = 1600MHz
0:100  0:000  SmbiosTable.Type17->Size = 8192MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = BANK 3 ChannelB-DIMM1
0:100  0:000  SmbiosTable.Type17->Vendor = 1315
0:100  0:000  SmbiosTable.Type17->SerialNumber = 52490210
0:100  0:000  SmbiosTable.Type17->PartNumber = BLS8G3D1609DS1S00.
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'H97M-D3H' with board 'H97M-D3H'
0:100  0:000  === [ GetCPUProperties ] ==================================
0:100  0:000  CPU Vendor = 756E6547 Model=306C3
0:100  0:000   The CPU supported SSE4.1
0:100  0:000  BrandString = Intel(R) Core(TM) i7-4790K CPU @ 4.00GHz
0:100  0:000   The CPU supported turbo
0:100  0:000  MSR 0x35               40008
0:100  0:000  MSR 0xE2 before patch 1E000404
0:100  0:000  MSR 0xCE              00080838_F3012800
0:100  0:000  corrected FLEX_RATIO = E0000
0:100  0:000  FSBFrequency = 100 MHz, DMI FSBFrequency = 100 MHz, Corrected FSBFrequency = 100 MHz
0:100  0:000  MaxDiv/MinDiv: 40.0/8
0:100  0:000  Turbo: 42/43/44/44
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 8
0:100  0:000  Cores: 4
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 4000 MHz
0:100  0:000  TSC: 4000 MHz
0:100  0:000  PIS: 100 MHz
0:100  0:000  ExternalClock: 25 MHz
0:100  0:000  === [ GetDevices ] ========================================
0:100  0:000  PCI (00|00:00.00) : 8086 0C00 class=060000
0:100  0:000  PCI (00|00:01.00) : 8086 0C01 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 1187 class=030000
0:100  0:000   - GFX: Model=nVidia GeForce GTX 760 family 1FF (Nvidia)
0:100  0:000  PCI (00|01:00.01) : 10DE 0E0A class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 0412 class=030000
0:100  0:000   - GFX: Model=Intel HD Graphics 4600 (Intel)
0:100  0:000  PCI (00|00:03.00) : 8086 0C0C class=040300
0:100  0:000  PCI (00|00:14.00) : 8086 8CB1 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 8CBA class=078000
0:100  0:000  PCI (00|00:1A.00) : 8086 8CAD class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 8CA0 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 8C90 class=060400
0:100  0:000  PCI (00|00:1C.02) : 8086 8C94 class=060400
0:100  0:000  PCI (00|03:00.00) : 10EC 8168 class=020000
0:100  0:000   - LAN: 0 Vendor=Realtek
0:100  0:000  PCI (00|00:1C.03) : 8086 8C96 class=060400
0:100  0:000  PCI (00|04:00.00) : 8086 244E class=060401
0:100  0:000  PCI (00|00:1C.04) : 8086 8C98 class=060400
0:100  0:000  PCI (00|06:00.00) : 168C 0030 class=028000
0:100  0:000   - WIFI: Vendor=Atheros
0:100  0:000  PCI (00|00:1D.00) : 8086 8CA6 class=0C0320
0:100  0:000  PCI (00|00:1F.00) : 8086 8CC6 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 8C82 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 8CA2 class=0C0500
0:100  0:000  === [ GetDefaultSettings ] ================================
0:100  0:000  Clover load options size = 0 bytes
0:103  0:003  EFI\CLOVER\config.plist loaded: Success
0:103  0:000  === [ GetListOfThemes ] ===================================
0:104  0:000  - [00]: EMBEDDED
0:105  0:001  - [00]: RANDOM
0:106  0:001  === [ Found config plists ] ===============================
0:106  0:000  - config.plist
0:106  0:000  === [ GetEarlyUserSettings ] ==============================
0:106  0:000  timeout set to 5
0:106  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:106  0:000  KextsToPatch: 2 requested
0:106  0:000   - [00]: com.apple.driver.usb.AppleUSBXHCIPCI (change 15 port limit to 20 in XHCI kext (9-series)) :: MatchOS: 10.11.x :: BinPatch :: data len: 7
0:106  0:000   - [01]: com.apple.driver.usb.AppleUSBXHCIPCI (change 15 port limit to 20 in XHCI kext (9-series)) :: MatchOS: 10.12.x :: BinPatch :: data len: 7
0:106  0:000  Default theme: embedded
0:106  0:000  Hiding entries with string BOOTX64.EFI
0:106  0:000  Hiding entries with string Windows
0:106  0:000  === [ LoadDrivers ] =======================================
0:109  0:003  Loading AudioDxe-64.efi  status=Success
0:112  0:002   - driver needs connecting
0:112  0:000  Loading DataHubDxe-64.efi  status=Success
0:117  0:005  Loading FSInject-64.efi  status=Success
0:119  0:001  Loading SMCHelper-64.efi  status=Success
0:120  0:001  Loading HFSPlus.efi  status=Success
0:122  0:002   - driver needs connecting
0:122  0:000  Loading AppleImageCodec-64.efi  status=Success
0:123  0:001  Loading AppleKeyAggregator-64.efi  status=Success
0:125  0:001  Loading AppleUITheme-64.efi  status=Success
0:126  0:001  Loading EmuVariableUefi-64.efi  status=Success
0:127  0:001  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
0:127  0:000  Loading FirmwareVolume-64.efi  status=Success
0:128  0:001  Loading OsxAptioFixDrv-64.efi  status=Success
0:130  0:001  Loading OsxFatBinaryDrv-64.efi  status=Success
0:131  0:001  Loading PartitionDxe-64.efi  status=Success
0:133  0:001   - driver needs connecting
0:133  0:000  Loading VBoxHfs-64.efi  status=Success
0:134  0:001   - driver needs connecting
0:134  0:000  4 drivers needs connecting ...
0:134  0:000  PlatformDriverOverrideProtocol->GetDriver overriden
0:134  0:000  Partition driver loaded:
0:134  0:000  HFS+ driver loaded
0:134  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
6:518  6:384  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
6:587  0:068  === [ InitScreen ] ========================================
6:587  0:000  SetMaxResolution: found best mode 4: 1920x1080
6:755  0:168  Video mode change to mode #4: Success
6:755  0:000   - set
6:755  0:000  Console modes reported: 6, available modes:
6:755  0:000   - [01]: 80x25 (current mode)
6:755  0:000   - [02]: 80x50
6:755  0:000   - [03]: 100x31
6:755  0:000   - [04]: 128x30
6:755  0:000   - [06]: 120x50
6:755  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
6:756  0:000  Using embedded font: Success
6:843  0:086  === [ GetMacAddress ] =====================================
6:843  0:000  MAC address of LAN #0= 40:8D:5C:C9:58:B5:
6:843  0:000  === [ ScanSPD ] ===========================================
6:843  0:000  Scanning SMBus [8086:8CA2], mmio: 0xF7A18004, ioport: 0xF040, hostc: 0x11
6:862  0:018  Slot: 0 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=05020409000302015
6:880  0:018  Slot: 1 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=05020409000006017
6:899  0:018  Slot: 2 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=05020409000006018
6:918  0:018  Slot: 3 Type 24 8192MB 1600MHz Vendor=Crucial Technology PartNo=BLS8G3D1609DS1S00. SerialNo=05020409000201010
6:918  0:000  === [ GetAcpiTablesList ] =================================
6:918  0:000  Get Acpi Tables List from RSDT:
6:918  0:000   - [00]: FACP  A M I len=132
6:918  0:000   - [01]: APIC  A M I len=146
6:918  0:000   - [02]: FPDT  A M I len=68
6:918  0:000   - [03]: SSDT  Ther_Rvp len=3054
6:918  0:000   - [04]: SSDT  Cpu0Ist len=1337
6:918  0:000   - [05]: SSDT  CpuSsdt len=2932
6:918  0:000   - [06]: MCFG  A M I len=60
6:918  0:000   - [07]: HPET  A M I len=56
6:918  0:000   - [08]: SSDT  SataTabl len=877
6:918  0:000   - [09]: SSDT  SaSsdt  len=23390
6:918  0:000   - [10]: BGRT  A M I len=56
6:918  0:000   - [11]: DMAR  BDW  len=184
6:918  0:000  Calibrated TSC Frequency = 3990761294 = 3990MHz
6:918  0:000  === [ GetUserSettings ] ===================================
6:918  0:000  USB FixOwnership: yes
6:918  0:000  Dropping 3 tables:
6:918  0:000   - [00]: Drop table  signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)
6:918  0:000           - set table: 54445353,       6D50757043 to drop: no
6:918  0:000   - [01]: Drop table  signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)
6:918  0:000           - set table: 54445353,   74734930757043 to drop: yes
6:918  0:000   - [02]: Drop table  signature="DMAR" (52414D44)
6:918  0:000           - set table: 52414D44,                0 to drop: yes
6:918  0:000   - final DSDT Fix mask=00000000
6:918  0:000  EnableC6: yes
6:918  0:000  Using ProductName from config: iMac15,1
6:918  0:000  Using latest BiosVersion from clover
6:918  0:000  BiosVersion: IM151.88Z.0219.B00.1809190740
6:918  0:000  BiosReleaseDate: 09/19/2018
6:918  0:000  Using EfiVersion from clover: 222.0.0.0.0
6:918  0:000  Using FirmwareFeatures from clover: 0xF80FE137
6:918  0:000  Using FirmwareFeaturesMask from clover: 0xFF1FFF3F
6:918  0:000  Using PlatformFeature from clover: 0x1
6:918  0:000  Board-ID set from config as Mac-42FD25EABCABB2714
6:918  0:000  BoardType: 0xA
6:918  0:000  ChassisType: 0x13
6:918  0:000  Converted CustomUUID 19318076-A102-5D39-9B41-4212150510091
6:925  0:006  === [ Found DSDT tables ] =================================
6:981  0:055  === [ ScanVolumes ] =======================================
6:981  0:000  Found 13 volumes with blockIO
6:981  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
6:982  0:001  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
6:983  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)
6:985  0:002  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
6:985  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
6:986  0:000          Result of bootcode detection: bootable unknown (legacy)
6:991  0:004  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,959E644F-0C18-4C89-83D1-4D0F13BD8970,0x64028,0x1BE80460)
6:991  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
6:992  0:000          Result of bootcode detection: bootable unknown (legacy)
7:002  0:010          This is SelfVolume !!
7:002  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)
7:003  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,E0589854-A446-4574-A6EF-5BB51B592B3E,0x37D0D768,0x135F20)
7:003  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
7:004  0:000          Result of bootcode detection: bootable unknown (legacy)
7:008  0:004  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D1C306E8-66DD-4C1E-9EE9-59D38BAEA89E,0x64028,0x3A2E1FE0)
7:009  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
7:009  0:000          Result of bootcode detection: bootable unknown (legacy)
7:019  0:009  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,D893CF8D-690E-4027-B965-75A17FFF45E8,0x64028,0x74662D60)
7:020  0:000  PutNvramPlistToRtVars: nvram.plist not found
7:020  0:000  === [ InitTheme ] =========================================
7:020  0:000  use night theme
7:020  0:000   using embedded theme
7:020  0:000  Using embedded font: Success
7:020  0:000  theme inited
7:020  0:000  Chosen embedded theme
7:020  0:000  after NVRAM boot-args=-v dart=0 kext-dev-mode=1
7:020  0:000  === [ Dump SMC keys from NVRAM ] ==========================
7:020  0:000  found AppleSMC protocol
7:020  0:000  Registered 0 SMC keys
7:020  0:000  === [ ScanLoader ] ========================================
7:020  0:000  - [04]: 'EFI'
7:020  0:000  - [05]: 'vmfarm-ssd-240'
7:020  0:000  - [06]: 'EFI'
7:022  0:002          AddLoaderEntry for Volume Name=EFI
7:022  0:000          skipped because entry is hidden
7:022  0:000  - [07]: 'Sierra'
7:026  0:003          AddLoaderEntry for Volume Name=Sierra
7:029  0:002      Check if volume Is Hibernated:
7:029  0:000      Check sleep image 'by signature':
7:034  0:004      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
7:034  0:000      using default sleep image name = \private\var\vm\sleepimage
7:037  0:003      no valid sleep image offset was found
7:037  0:000      no valid sleep image offset was found
7:038  0:000      no valid sleep image offset was found
7:038  0:000       sleepimage offset could not be acquired
7:038  0:000      hibernated: no - sign
7:038  0:000  - [08]: 'Recovery HD'
7:039  0:000          AddLoaderEntry for Volume Name=Recovery HD
7:040  0:000  - [09]: 'EFI'
7:040  0:000  - [10]: 'Samsung-500GB'
7:040  0:000  - [11]: 'EFI'
7:040  0:000  - [12]: 'VMFARMZ'
7:040  0:000  Scanning legacy ...
7:040  0:000  === [ AddCustomTool ] =====================================
7:041  0:001  found tool \EFI\CLOVER\tools\Shell64U.efi
7:041  0:000  Checking EFI partition Volume 4 for Clover
7:041  0:000  Checking EFI partition Volume 6 for Clover
7:042  0:000   Found Clover
7:042  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
7:042  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
7:111  0:068  === [ GetEfiBootDeviceFromNvram ] =========================
7:111  0:000   - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)\System\Library\CoreServices\boot.efii'
7:111  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
7:111  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
7:111  0:000  not run anime
7:175  0:063  GUI ready
14:930  7:754  not run anime
17:417  2:487  not run anime
23:601  6:183  not run anime
25:017  1:416  not run anime
27:793  2:775  not run anime
33:257  5:463  not run anime
101:425  68:167  not run anime
103:201  1:776  not run anime
106:257  3:055  not run anime
111:825  5:568
Boot options:
-------------
111:825  0:000  BootOrder: 5: Boot0002, Boot0005, Boot0006, Boot0007, Boot0003
111:827  0:001   0) Boot0002: UEFI: ST1000DM010-2EP102, Attr: 0x1
111:827  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
111:827  0:000      Size: 200 (Attr:4 + FPl:2 + Desc:50 + FP:140 + Opt:4 = 200 -> OK)
111:827  0:000   1) Boot0005: UEFI OS, Attr: 0x1
111:827  0:000      HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)\EFI\BOOT\BOOTX64.EFII
111:827  0:000      Size: 116 (Attr:4 + FPl:2 + Desc:16 + FP:94 + Opt:0 = 116 -> OK)
111:828  0:000   2) Boot0006: UEFI: Samsung SSD 860 EVO 500GB, Attr: 0x1
111:828  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
111:828  0:000      Size: 214 (Attr:4 + FPl:2 + Desc:64 + FP:140 + Opt:4 = 214 -> OK)
111:828  0:000   3) Boot0007: UEFI: MSI REFLEX RX-240, Attr: 0x1
111:828  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
111:828  0:000      Size: 198 (Attr:4 + FPl:2 + Desc:48 + FP:140 + Opt:4 = 198 -> OK)
111:829  0:000   4) Boot0003: Hard Drive , Attr: 0x1
111:829  0:000      BBS(HD,)
111:829  0:000      Size: 735 (Attr:4 + FPl:2 + Desc:24 + FP:13 + Opt:692 = 735 -> OK)
111:829  0:000
Boot options not in BootOrder list:
132:469  20:640   not found
132:469  0:000  -------------
132:503  0:033  ReinitSelfLib after theme change
132:503  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
132:503  0:000  === [ ScanVolumes ] =======================================
132:503  0:000  Found 13 volumes with blockIO
132:503  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
132:503  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
132:510  0:006  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)
132:510  0:000          This is SelfVolume !!
132:510  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
132:518  0:008  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
132:519  0:000          Result of bootcode detection: bootable unknown (legacy)
132:519  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,959E644F-0C18-4C89-83D1-4D0F13BD8970,0x64028,0x1BE80460)
132:519  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
132:521  0:001          Result of bootcode detection: bootable unknown (legacy)
132:521  0:000          This is SelfVolume !!
132:521  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)
132:521  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,E0589854-A446-4574-A6EF-5BB51B592B3E,0x37D0D768,0x135F20)
132:522  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
132:522  0:000          Result of bootcode detection: bootable unknown (legacy)
132:522  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D1C306E8-66DD-4C1E-9EE9-59D38BAEA89E,0x64028,0x3A2E1FE0)
132:523  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
132:543  0:020          Result of bootcode detection: bootable unknown (legacy)
132:543  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,D893CF8D-690E-4027-B965-75A17FFF45E8,0x64028,0x74662D60)
132:544  0:000  theme inited
132:544  0:000  Chosen embedded theme
132:544  0:000  after NVRAM boot-args=-v dart=0 kext-dev-mode=1
132:544  0:000  === [ ScanLoader ] ========================================
132:544  0:000  - [04]: 'EFI'
132:544  0:000  - [05]: 'vmfarm-ssd-240'
132:544  0:000  - [06]: 'EFI'
132:544  0:000          AddLoaderEntry for Volume Name=EFI
132:544  0:000          skipped because entry is hidden
132:544  0:000  - [07]: 'Sierra'
132:545  0:000          AddLoaderEntry for Volume Name=Sierra
132:545  0:000      Check if volume Is Hibernated:
132:545  0:000      Check sleep image 'by signature':
132:545  0:000      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
132:545  0:000      using default sleep image name = \private\var\vm\sleepimage
132:545  0:000       sleepimage offset could not be acquired
132:545  0:000      hibernated: no - sign
132:545  0:000  - [08]: 'Recovery HD'
132:545  0:000          AddLoaderEntry for Volume Name=Recovery HD
132:545  0:000  - [09]: 'EFI'
132:545  0:000  - [10]: 'Samsung-500GB'
132:546  0:000  - [11]: 'EFI'
132:546  0:000  - [12]: 'VMFARMZ'
132:546  0:000  Scanning legacy ...
132:546  0:000  === [ AddCustomTool ] =====================================
132:546  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
132:546  0:000  Checking EFI partition Volume 4 for Clover
132:546  0:000  Checking EFI partition Volume 6 for Clover
132:546  0:000   Found Clover
132:546  0:000  EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored
132:546  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
132:614  0:068  === [ GetEfiBootDeviceFromNvram ] =========================
132:614  0:000   - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)\System\Library\CoreServices\boot.efii'
132:614  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
132:614  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
132:614  0:000  not run anime
136:057  3:443  not run anime
139:577  3:520
Boot options:
-------------
139:577  0:000  BootOrder: 5: Boot0002, Boot0005, Boot0006, Boot0007, Boot0003
139:579  0:001   0) Boot0002: UEFI: ST1000DM010-2EP102, Attr: 0x1
139:579  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
139:579  0:000      Size: 200 (Attr:4 + FPl:2 + Desc:50 + FP:140 + Opt:4 = 200 -> OK)
139:579  0:000   1) Boot0005: UEFI OS, Attr: 0x1
139:579  0:000      HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)\EFI\BOOT\BOOTX64.EFII
139:579  0:000      Size: 116 (Attr:4 + FPl:2 + Desc:16 + FP:94 + Opt:0 = 116 -> OK)
139:580  0:000   2) Boot0006: UEFI: Samsung SSD 860 EVO 500GB, Attr: 0x1
139:580  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
139:580  0:000      Size: 214 (Attr:4 + FPl:2 + Desc:64 + FP:140 + Opt:4 = 214 -> OK)
139:580  0:000   3) Boot0007: UEFI: MSI REFLEX RX-240, Attr: 0x1
139:581  0:000      PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
139:581  0:000      Size: 198 (Attr:4 + FPl:2 + Desc:48 + FP:140 + Opt:4 = 198 -> OK)
139:581  0:000   4) Boot0003: Hard Drive , Attr: 0x1
139:581  0:000      BBS(HD,)
139:581  0:000      Size: 735 (Attr:4 + FPl:2 + Desc:24 + FP:13 + Opt:692 = 735 -> OK)
139:581  0:000
Boot options not in BootOrder list:
160:221  20:640   not found
160:221  0:000  -------------
160:221  0:000  ReinitSelfLib after theme change
160:221  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
160:221  0:000  === [ ScanVolumes ] =======================================
160:221  0:000  Found 13 volumes with blockIO
160:221  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
160:224  0:002  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
160:230  0:006  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)
160:233  0:002          This is SelfVolume !!
160:233  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
160:233  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
160:234  0:000          Result of bootcode detection: bootable unknown (legacy)
160:234  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,959E644F-0C18-4C89-83D1-4D0F13BD8970,0x64028,0x1BE80460)
160:234  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
160:235  0:000          Result of bootcode detection: bootable unknown (legacy)
160:235  0:000          This is SelfVolume !!
160:235  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)
160:235  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,E0589854-A446-4574-A6EF-5BB51B592B3E,0x37D0D768,0x135F20)
160:236  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
160:236  0:000          Result of bootcode detection: bootable unknown (legacy)
160:236  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D1C306E8-66DD-4C1E-9EE9-59D38BAEA89E,0x64028,0x3A2E1FE0)
160:237  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
160:237  0:000          Result of bootcode detection: bootable unknown (legacy)
160:237  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,D893CF8D-690E-4027-B965-75A17FFF45E8,0x64028,0x74662D60)
160:238  0:000  theme inited
160:238  0:000  Chosen embedded theme
160:239  0:000  after NVRAM boot-args=-v dart=0 kext-dev-mode=1
160:239  0:000  === [ ScanLoader ] ========================================
160:239  0:000  - [04]: 'EFI'
160:239  0:000  - [05]: 'vmfarm-ssd-240'
160:239  0:000  - [06]: 'EFI'
160:239  0:000          AddLoaderEntry for Volume Name=EFI
160:239  0:000          skipped because entry is hidden
160:239  0:000  - [07]: 'Sierra'
160:239  0:000          AddLoaderEntry for Volume Name=Sierra
160:239  0:000      Check if volume Is Hibernated:
160:239  0:000      Check sleep image 'by signature':
160:239  0:000      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
160:239  0:000      using default sleep image name = \private\var\vm\sleepimage
160:239  0:000       sleepimage offset could not be acquired
160:239  0:000      hibernated: no - sign
160:240  0:000  - [08]: 'Recovery HD'
160:240  0:000          AddLoaderEntry for Volume Name=Recovery HD
160:240  0:000  - [09]: 'EFI'
160:240  0:000  - [10]: 'Samsung-500GB'
160:240  0:000  - [11]: 'EFI'
160:240  0:000  - [12]: 'VMFARMZ'
160:240  0:000  Scanning legacy ...
160:240  0:000  === [ AddCustomTool ] =====================================
160:240  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
160:240  0:000  Checking EFI partition Volume 4 for Clover
160:240  0:000  Checking EFI partition Volume 6 for Clover
160:240  0:000   Found Clover
160:240  0:000  EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored
160:240  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
160:308  0:068  === [ GetEfiBootDeviceFromNvram ] =========================
160:308  0:000   - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)\System\Library\CoreServices\boot.efii'
160:308  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
160:308  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
160:308  0:000  not run anime
163:954  3:645  not run anime
169:003  5:049  EDITED: -v dart=0 kext-dev-mode=1 -liluoff
171:737  2:734  ReinitSelfLib after theme change
171:737  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
171:737  0:000  === [ ScanVolumes ] =======================================
171:737  0:000  Found 13 volumes with blockIO
171:737  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
171:740  0:002  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)
171:747  0:006  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)
171:749  0:002          This is SelfVolume !!
171:749  0:000  - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)
171:749  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,DFE85A06-586C-4A82-AF33-28C226F20A4E,0x28,0x64000)
171:750  0:000          Result of bootcode detection: bootable unknown (legacy)
171:750  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,959E644F-0C18-4C89-83D1-4D0F13BD8970,0x64028,0x1BE80460)
171:750  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,A658A4FE-BED1-4E65-AB16-7CCB75017D7C,0x28,0x64000)
171:751  0:000          Result of bootcode detection: bootable unknown (legacy)
171:751  0:000          This is SelfVolume !!
171:751  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)
171:751  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,E0589854-A446-4574-A6EF-5BB51B592B3E,0x37D0D768,0x135F20)
171:752  0:000  - [09]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0ED45EAB-600C-4561-BF07-44F02BD6262C,0x28,0x64000)
171:752  0:000          Result of bootcode detection: bootable unknown (legacy)
171:752  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,D1C306E8-66DD-4C1E-9EE9-59D38BAEA89E,0x64028,0x3A2E1FE0)
171:753  0:000  - [11]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(1,GPT,F6F95B83-FDF3-497C-ABF1-EB7222B6F4C4,0x28,0x64000)
171:753  0:000          Result of bootcode detection: bootable unknown (legacy)
171:753  0:000  - [12]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)\HD(2,GPT,D893CF8D-690E-4027-B965-75A17FFF45E8,0x64028,0x74662D60)
171:754  0:000  theme inited
171:754  0:000  Chosen embedded theme
171:755  0:000  after NVRAM boot-args=-v dart=0 kext-dev-mode=1 -liluoff
171:755  0:000  === [ ScanLoader ] ========================================
171:755  0:000  - [04]: 'EFI'
171:755  0:000  - [05]: 'vmfarm-ssd-240'
171:755  0:000  - [06]: 'EFI'
171:755  0:000          AddLoaderEntry for Volume Name=EFI
171:755  0:000          skipped because entry is hidden
171:755  0:000  - [07]: 'Sierra'
171:755  0:000          AddLoaderEntry for Volume Name=Sierra
171:755  0:000      Check if volume Is Hibernated:
171:755  0:000      Check sleep image 'by signature':
171:755  0:000      read prefs \Library\Preferences\com.apple.PowerManagement.plist status=Success
171:755  0:000      using default sleep image name = \private\var\vm\sleepimage
171:756  0:000       sleepimage offset could not be acquired
171:756  0:000      hibernated: no - sign
171:756  0:000  - [08]: 'Recovery HD'
171:756  0:000          AddLoaderEntry for Volume Name=Recovery HD
171:756  0:000  - [09]: 'EFI'
171:756  0:000  - [10]: 'Samsung-500GB'
171:756  0:000  - [11]: 'EFI'
171:756  0:000  - [12]: 'VMFARMZ'
171:756  0:000  Scanning legacy ...
171:756  0:000  === [ AddCustomTool ] =====================================
171:756  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
171:756  0:000  Checking EFI partition Volume 4 for Clover
171:756  0:000  Checking EFI partition Volume 6 for Clover
171:756  0:000   Found Clover
171:756  0:000  EmuVariable UninstallEmulation: CloseEvent = Invalid Parameter, original var services restored
171:756  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
171:825  0:068  === [ GetEfiBootDeviceFromNvram ] =========================
171:825  0:000   - found entry 0. 'Boot macOS from Sierra', Volume 'Sierra', DevicePath 'PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,F69E56F1-3E8B-43D9-9B59-B34A05352DA5,0x64028,0x37CA9740)\System\Library\CoreServices\boot.efii'
171:825  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
171:825  0:000  DefaultIndex=0 and MainMenu.EntryCount=8
171:825  0:000  not run anime
172:650  0:824  Boot option Boot0000 not found
172:650  0:000  === [ StartLoader ] =======================================
172:650  0:000  Finally: ExternalClock=25MHz BusSpeed=99770kHz CPUFreq=3991MHz PIS: hw.busfrequency=100000000Hz
172:650  0:000  Loading boot.efi  status=Success
172:716  0:066  GetOSVersion: 10.12.6 (16G1710)
172:716  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM
172:716  0:000  Filtering KextPatches:
172:716  0:000   - [00]: com.apple.driver.usb.AppleUSBXHCIPCI (change 15 port limit to 20 in XHCI kext (9-series)) :: BinPatch :: [OS: 10.12.6 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed
172:716  0:000   - [01]: com.apple.driver.usb.AppleUSBXHCIPCI (change 15 port limit to 20 in XHCI kext (9-series)) :: BinPatch :: [OS: 10.12.6 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed
172:716  0:000  Will not patch boot.efi
172:716  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
172:785  0:068  === [ PatchSmbios ] =======================================
172:785  0:000  insert table 9 for dev 0:0
172:785  0:000  insert table 9 for dev 0:1
172:785  0:000  insert table 9 for dev 0:0
172:785  0:000  insert table 9 for dev 0:0
172:786  0:000  Trusting SMBIOS...
172:786  0:000  Channels: 2
172:786  0:000  Interleave: 0 2 1 3 4 6 5 7 8 10 9 11 12 14 13 15 16 18 17 19 20 22 21 23
172:786  0:000   partNum=BLS8G3D1609DS1S00.
172:786  0:000  SMBIOS Type 17 Index = 0 => 0 0:
172:786  0:000  BANK 0 DIMM0 1600MHz 8192MB
172:786  0:000   partNum=BLS8G3D1609DS1S00.
172:786  0:000  SMBIOS Type 17 Index = 1 => 2 2:
172:786  0:000  BANK 1 DIMM0 1600MHz 8192MB
172:786  0:000   partNum=BLS8G3D1609DS1S00.
172:786  0:000  SMBIOS Type 17 Index = 2 => 1 1:
172:786  0:000  BANK 0 DIMM1 1600MHz 8192MB
172:786  0:000   partNum=BLS8G3D1609DS1S00.
172:786  0:000  SMBIOS Type 17 Index = 3 => 3 3:
172:786  0:000  BANK 1 DIMM1 1600MHz 8192MB
172:786  0:000  mTotalSystemMemory = 32768
172:786  0:000  NumberOfMemoryDevices = 4
172:786  0:000  Type20[0]->End = 0x7FFFFF, Type17[0] = 0x2000
172:786  0:000  Type20[1]->End = 0x17FFFFF, Type17[2] = 0x8000
172:786  0:000  Type20[2]->End = 0xFFFFFF, Type17[1] = 0xC000
172:786  0:000  Type20[3]->End = 0x1FFFFFF, Type17[3] = 0x14000
172:786  0:000  Table 131 is present, CPUType=31
172:786  0:000  Change to: 705
172:786  0:000  === [ PatchACPI ] =========================================
172:786  0:000  Xsdt reallocation done
172:786  0:000  old FADT length=10C
172:786  0:000   SignatureFixup: 0x2 -> 0x0
172:787  0:001  Apply DsdtFixMask=0x00000000
172:787  0:000     drop _DSM mask=0x0000
172:787  0:000  === [ FixBiosDsdt ] =======================================
172:899  0:112    0 replacements
172:900  0:000  PreCleanup XSDT: count=12, length=132
172:900  0:000  PreCleanup XSDT, corrected XSDT: count=12, length=132
172:900  0:000  === [ ACPIDropTables ] ====================================
172:900  0:000  Drop tables from XSDT, SIGN=DMAR TableID=BDW  Length=184
172:900  0:000   Table[11]: DMAR  BDW   184 dropped
172:900  0:000  Drop tables from XSDT, SIGN=SSDT TableID=Cpu0Ist Length=1337
172:900  0:000   Table[4]: SSDT  Cpu0Ist  1337 dropped
172:900  0:000    0 replacements
172:900  0:000    0 replacements
172:900  0:000  Found OperationRegion(PNVS, SystemMemory, C85E0F18, ...)
172:900  0:000    0 replacements
172:900  0:000    0 replacements
172:900  0:000  Found OperationRegion(SANV, SystemMemory, C85DDE18, ...)
172:900  0:000  Found OperationRegion(CCDC, SystemMemory, 80000000, ...)
172:900  0:000  === [ ACPIPatchedAML ] ====================================
172:900  0:000  Unsorted
172:900  0:000  Inserting SSDT-UIAC.aml from EFI\CLOVER\ACPI\patched: size=660 ... Success
172:900  0:000  Inserting SSDT.AML from EFI\CLOVER\ACPI\patched: size=2614 ... Success
172:901  0:001  CPUBase=0 and ApicCPUBase=1 ApicCPUNum=8
172:901  0:000  Maximum control=0x28
172:901  0:000  Turbo control=0x2C
172:901  0:000  P-States: min 0x8, max 0x2C
172:901  0:000  SSDT with CPU P-States and plugin-type generated successfully
172:901  0:000  SSDT with CPU C-States generated successfully
172:901  0:000  Cleanup XSDT: count=16, length=164
172:901  0:000  corrected XSDT count=14, length=148
172:901  0:000  === [ RestSetup macOS ] ===================================
172:901  0:000  EdidDiscovered size=128
172:901  0:000  --- Discovered EDID Table size:128
172:901  0:000  000  |  00  FF  FF  FF  FF  FF  FF  00  04  72
172:901  0:000  010  |  E3  03  8F  D3  60  63  24  1A  01  03
172:901  0:000  020  |  80  35  1E  78  CA  39  B0  A5  54  50
172:901  0:000  030  |  9E  26  11  50  54  BF  EF  80  71  4F
172:901  0:000  040  |  81  40  81  80  81  C0  81  00  95  00
172:901  0:000  050  |  B3  00  D1  C0  02  3A  80  18  71  38
172:901  0:000  060  |  2D  40  58  2C  45  00  13  2B  21  00
172:901  0:000  070  |  00  1E  00  00  00  FD  00  37  4C  1E
172:901  0:000  080  |  50  11  00  0A  20  20  20  20  20  20
172:901  0:000  090  |  00  00  00  FC  00  4B  32  34  32  48
172:901  0:000  100  |  4C  0A  20  20  20  20  20  20  00  00
172:901  0:000  110  |  00  FF  00  54  30  46  53  53  30  30
172:901  0:000  120  |  31  38  35  30  33  0A  00  28
172:901  0:000  NVidia GFX injection not set
172:901  0:000  Intel GFX injection not set
172:902  0:000  stringlength = 1878
172:902  0:000  CurrentMode: Width=1920 Height=1080
172:902  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BC134298
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: BC134298
172:902  0:000  Use origin smbios table type 1 guid.
172:902  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
172:902  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_GPUSensors.kext (v.1800)
172:907  0:004  Extra kext: EFI\CLOVER\kexts\Other\AppleALC.kext (v.1.3.4)
172:930  0:022  Extra kext: EFI\CLOVER\kexts\Other\SMCSuperIO.kext (v.1.0.2)
172:932  0:002  Extra kext: EFI\CLOVER\kexts\Other\SMCProcessor.kext (v.1.0.2)
172:935  0:002  Extra kext: EFI\CLOVER\kexts\Other\SMCLightSensor.kext (v.1)
172:937  0:002  Extra kext: EFI\CLOVER\kexts\Other\VirtualSMC.kext (v.1.0.2)
172:941  0:004  Extra kext: EFI\CLOVER\kexts\Other\Lilu.kext (v.1.3.1)
172:945  0:003  Extra kext: EFI\CLOVER\kexts\Other\WhateverGreen.kext (v.1.2.6)
172:956  0:011  Extra kext: EFI\CLOVER\kexts\Other\USBInjectAll.kext (v.0.7.1)
173:002  0:045  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_CPUSensors.kext (v.1800)
173:006  0:003  Extra kext: EFI\CLOVER\kexts\Other\RealtekRTL81xx.kext (v.0.0.90)
173:017  0:010  Extra kext: EFI\CLOVER\kexts\Other\NullCPUPowerManagement.kext (v.1.0.0d2)
173:022  0:005  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1800)
173:029  0:006  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
173:029  0:000  Custom boot screen not used because entry has unset use graphics



[Badruzeus]

5 minutes ago, barleyjuice said:

This is what it shows.

Also please note this is using -liluoff as im unable to boot without that flag.

Boot into Desktop then run:

sudo rm -f /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache && sudo touch /System/Library/Extensions && sudo kextcache -u / && sudo update_dyld_shared_cache -force
// Reboot

Spoiler

Seems not related to Lilu, but logs said that you're using 2 different SMC's kext at a same time: FakeSMC + VirtualSMC:

.......  .....  ...
172:902  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
172:902  0:000  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_GPUSensors.kext (v.1800)
172:930  0:022  Extra kext: EFI\CLOVER\kexts\Other\SMCSuperIO.kext (v.1.0.2)
172:932  0:002  Extra kext: EFI\CLOVER\kexts\Other\SMCProcessor.kext (v.1.0.2)
172:935  0:002  Extra kext: EFI\CLOVER\kexts\Other\SMCLightSensor.kext (v.1)
172:937  0:002  Extra kext: EFI\CLOVER\kexts\Other\VirtualSMC.kext (v.1.0.2)
173:002  0:045  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC_CPUSensors.kext (v.1800)
173:022  0:005  Extra kext: EFI\CLOVER\kexts\Other\FakeSMC.kext (v.1800)
173:029  0:006  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
.......  .....  ...

Not sure where this idea came from but I guess, choose 1 of them and don't use both altogether.
