I'm wondering if someone had/has issues with one of the USB ports?

The one on the right works fine, but the one on the left is "laggy" (i.e. when I plug an external mouse there, it stops from time to time, it looks like it lose communication temporarily), it's not reliable.

Probably I did something wrong on my setup, but I can't find what I've done wrong.


Link to comment
Share on other sites
Krim404
Krim404
Posted
  • Author
Posted

I'm wondering if someone had/has issues with one of the USB ports?



The one on the right works fine, but the one on the left is "laggy" (i.e. when I plug an external mouse there, it stops from time to time, it looks like it lose communication temporarily), it's not reliable.



Probably I did something wrong on my setup, but I can't find what I've done wrong.



sounds more like a loose connection than a software bug.

Link to comment
Share on other sites
golimpio
golimpio
Posted
Posted

sounds more like a loose connection than a software bug.

It might be... everything that I plug in that USB port doesn't work well, if I plug a pen drive or external disk it will disconnect after a few seconds. I thought I've messed up with some settings. Thanks for the reply.

Link to comment
Share on other sites
golimpio
golimpio
Posted
Posted

This is a bit off topic, but it might be useful for some people.

Last week my laptop's battery was swelling at a point that I couldn't even use the trackpad.

I was browsing for a new battery when I came across people telling that Dell is replacing XPS 15 9550 batteries for free, since this is a known issue. I can confirm that this is true for Australia, I got a new battery for free and a technician came to my place to replace it (but if your battery is not swelling yet, they will send the battery by mail and you can replace it yourself).

Have a look at Dell Product Bulletin website for more information (need your service tag):
https://www.dellproduct.com/

From their product bulletin:




Bulletin Name:  Precision 5510 and XPS 9550 swelling system battery

Dell has recently noticed that certain customers who purchased Dell XPS 9550 or Precision 5510 system(s) may be experiencing swelling or bulging system batteries.

According to our records, your Dell System(s) is impacted by this issue.  As part of a proactive effort, Dell would like to offer a replacement battery for each applicable service tag.

Please inspect your system and batteries, if you identify symptoms of a swollen battery such as bulging of the system chassis or palm rest or if the battery has become stuck or lodged in the system it is considered a damaged battery.  Visit Dell support at www.dell.com/support and select the contact method that best suits your needs to request a replacement/ support for damaged batteries and reference QNA44171.

 If your battery is not swollen, please use the process below to request a replacement battery.

Please select “Continue” at the bottom of this page to request a replacement battery for your system(s).

The battery is internal to the system but can be easily accessed and replaced using a #5 TORX head and #2 Phillips head screw driver following the procedure below or included in the Dell XPS 9550 or Precision 5510 Owner's Manual available online at the Dell support page.

If you do wish to replace the battery yourself please select “Self Install” under the Installation Type section on the next page.  The replacement battery(s) will be shipped directly to the address you provide.

Should you feel you are unable to replace the battery yourself Dell will arrange to have a certified technician replace the battery at no cost to you.

To request a Dell service technician install your replacement battery, please select “Service” under the Installation Type section on the next page.  The replacement battery(s) will be brought by the Dell technician at the time of service.
Onsite service may take 4 to 6 weeks to schedule and will require the system be available for service during normal business hours Monday – Friday.

For the Self Install option Dell requires that you return the old battery.  Please follow the return process outlined in the documents shipped with your replacement battery.

Should you have any questions during this process please select “Contact Dell” at the top of any page and put “Dell XPS 9550 or Precision 5510 battery packs swelling Issue” in the subject line along with the applicable service tag/s in the body of your email.
  • Like 1
Link to comment
Share on other sites
reycingef9
reycingef9
Posted
Posted

Great tutorial! My issue is reformatting my Samsung PM951 SSD. It errors out. Can't delete partitions or reformat. I have used gpart to delete and reformat SSD but still can't get SSD to right format to install os. Disk utility just errors out. Hope someone can help. Thanks.

Link to comment
Share on other sites
Krim404
Krim404
Posted
  • Author
Posted

Great tutorial! My issue is reformatting my Samsung PM951 SSD. It errors out. Can't delete partitions or reformat. I have used gpart to delete and reformat SSD but still can't get SSD to right format to install os. Disk utility just errors out. Hope someone can help. Thanks.

Samsung Drives are a pain in the.....

you cant reformat them to 4k and the native nvme driver of high sierra has sometimes problems with this drive.



your issue on the other hand sound like a broken drive / controller

Link to comment
Share on other sites
reycingef9
reycingef9
Posted
Posted

Samsung Drives are a pain in the.....

you cant reformat them to 4k and the native nvme driver of high sierra has sometimes problems with this drive.



your issue on the other hand sound like a broken drive / controller

Thanks for the response. It's strange that windows works fine on it. Do you recommend a dive that had the most compatibility ? Thanks again for your help.

Link to comment
Share on other sites
goodwin_c
goodwin_c
Posted
Posted

Samsung Drives are a pain in the.....

you cant reformat them to 4k and the native nvme driver of high sierra has sometimes problems with this drive.



your issue on the other hand sound like a broken drive / controller

Using Samsung 960 Pro for last few months on High Sierra - no problems so far (sure, i have regular TM with me :-D )

Link to comment
Share on other sites
Gymnae
Gymnae
Posted
Posted

FYI - Dell has removed the latest BIOS update from their website, following Intel's adsival, that the Microcode updates for their products where foobar. The latest, right now, is 1.5.7.

I will downgrade. This also means that outside of OS protections, Intel does not deliver protection from Spectre 1 & 2 and Meltdown.



What an f'n chaos.

Link to comment
Share on other sites
BeatMag
BeatMag
Posted
Posted

the beta? nah. but the 10.13.2 security patch works w/o a problem.

Just wanted to let you all know that I tried bios 1.6.1. I couldn't detect any problems. But it appears that dell has pulled this bios. So I will be reverting back to 1.5.1.



Also I've tried 10.13.2. then also updating to the 10.13.2 supplement updates also worked fine.



I will be attempting to downgrade my bios to 1.5.1 then applying 10.13.3 tonight.

Will report back later.

Link to comment
Share on other sites
Krim404
Krim404
Posted
  • Author
Posted

Just wanted to let you all know that I tried bios 1.6.1. I couldn't detect any problems. But it appears that dell has pulled this bios. So I will be reverting back to 1.5.1.



Also I've tried 10.13.2. then also updating to the 10.13.2 supplement updates also worked fine.



I will be attempting to downgrade my bios to 1.5.1 then applying 10.13.3 tonight.

Will report back later.

does the backlight slider work for you after the upgrade?

EDIT: kernel caches are required to work, so after cache recreation backlight works

Link to comment
Share on other sites
BeatMag
BeatMag
Posted
Posted

does the backlight slider work for you after the upgrade?

EDIT: kernel caches are required to work, so after cache recreation backlight works

Which backlight slider? The one in control panel? Which version are you referring to?

I’m downgrading bios now and will be going to 10.13.3.



Yes I got the same brightness keyboard keys stopped working. Just tried to flush the kernel cache like you suggested now it’s hung. Lol. Reboot and hope it works.



so the first boot after the update (I had to download the update seperately, app store came up with update and i downloaded 2gb then reboot and it didn't work). So had to download the update seperately.

First boot it booted, but the brightness controls didn't work... so I tried to flush the kernel cache. This lead me to hanging on boot. So I went into recovery to rebuild kernel cache again. This made it come back.



However the brightness still doesnt work. So I'm going to try and recopy the kext, from the guide (post installation section).

Link to comment
Share on other sites
BeatMag
BeatMag
Posted
Posted

I’m on 10.13.3 now. I still can get my brightness controls to work.
Even after rebuilding the kernel caches.

I’m getting some complains about invalid signatures what appears to say it was allowed.

I did the commands from the guide to flush the kernel cache.
Any ideas on how to fix?





EDIT: I have  no idea what i've done. After a few flushes, the brightness control is working  again. I tried to allow unsigned code again through that spctl command. And after the last flush it seems to have fixed it. I'm not really sure.



Are there any advantages in going to the new Clover, also the github repo seems to have been updated with a few new things, something about nvram and aptio v3..... should i move to those?

Link to comment
Share on other sites
  • 2 weeks later...
cjh990707
cjh990707
Posted
Posted

Where should I put SSD patch in config.plist

I put patch in Patches sector.

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Fixes</key>
			<dict>
				<key>FIX_RTC_20000</key>
				<true/>
				<key>FIX_TMR_40000</key>
				<true/>
				<key>FixHeaders_20000000</key>
				<true/>
				<key>FixIPIC_0040</key>
				<true/>
			</dict>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>IONVMeFamily Pike R. Alpha Hynix SSD patch</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					9sEQD4UcAQAA
					</data>
					<key>Name</key>
					<string>IONVMeFamily</string>
					<key>Replace</key>
					<data>
					9sECD4UcAQAA
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>rename HPET to XPET,  pair with SSDT-HPET.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SFBFVA==
					</data>
					<key>Replace</key>
					<data>
					WFBFVA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>fix Return(SDSM) problem (not the perfect way)</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					U00ApFNEU01oaWprpABbgg==
					</data>
					<key>Replace</key>
					<data>
					U00AoAgKEaRTRFNNpABbgg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>fix Method ADBG problem (not the perfect way)</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					RwmgDlsSTURCRwCkTURCR2ikAA==
					</data>
					<key>Replace</key>
					<data>
					RwmgBQoRpACgBQoRpACgBAGkAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Rename _DSM to XDSM</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X0RTTQ==
					</data>
					<key>Replace</key>
					<data>
					WERTTQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change ECDV to EC</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					RUNEVg==
					</data>
					<key>Replace</key>
					<data>
					RUNfXw==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Change H_EC to EC</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SF9FQw==
					</data>
					<key>Replace</key>
					<data>
					RUNfXw==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Device AC rename to ADP1  pair with SSDT-ADP1 - credit syscl</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					QUNfXw==
					</data>
					<key>Replace</key>
					<data>
					QURQMQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Remove _STA method for PNP0C04 to load - credit syscl</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					AQEiACB5ABQYX1NUQQA=
					</data>
					<key>Replace</key>
					<data>
					AQEiACB5ABQYWFNUQQA=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Device SBTN rename to SLPB pair with SSDT-SLPB - credit syscl</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					U0JUTg==
					</data>
					<key>Replace</key>
					<data>
					U0xQQg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Device ALSD rename to ALS0 - credit syscl</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					QUxTRAhfSEk=
					</data>
					<key>Replace</key>
					<data>
					QUxTMAhfSEk=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Rename Method GPRW,02 to Method XPRW,02 and need add-on  SSDT-PRW.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					R1BSVwJwaA==
					</data>
					<key>Replace</key>
					<data>
					WFBSVwJwaA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Rename HS12 -> HS92 to avoid the patchmatic error, pair with SSDT-TB.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SFMxMg==
					</data>
					<key>Replace</key>
					<data>
					SFM5Mg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Rename  Method BRT6,2 to BRTX,2, and need add-on  SSDT-BRT6.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					FCBCUlQ2Ag==
					</data>
					<key>Replace</key>
					<data>
					FCBCUlRYAg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change GFX0 to IGPU, optionally pair with SSDT-IGPU.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					R0ZYMA==
					</data>
					<key>Replace</key>
					<data>
					SUdQVQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change HDAS to HDEF, optionally pair with SSDT-HDEF.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SERBUw==
					</data>
					<key>Replace</key>
					<data>
					SERFRg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change OSID to OSSD, that because of the _OSI rename patch may cause problem</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					T1NJRA==
					</data>
					<key>Replace</key>
					<data>
					T1NTRA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change _OSI to XOSI, pair with SSDT-XOSI.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X09TSQ==
					</data>
					<key>Replace</key>
					<data>
					WE9TSQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change LPC to LPCB, optionally pair with SSDT-EHCI_Disable.aml, SSDT-LPC.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					TFBDXw==
					</data>
					<key>Replace</key>
					<data>
					TFBDQg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change SAT0 to SATA, optionally pair with SSDT-SATA.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					U0FUMA==
					</data>
					<key>Replace</key>
					<data>
					U0FUQQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change HECI to IMEI, optionally pair with SSDT-IMEI.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					SEVDSQ==
					</data>
					<key>Replace</key>
					<data>
					SU1FSQ==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(_PTS,1,N) to ZPTS, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X1BUUwE=
					</data>
					<key>Replace</key>
					<data>
					WlBUUwE=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(_PTS,1,S) to ZPTS, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X1BUUwk=
					</data>
					<key>Replace</key>
					<data>
					WlBUUwk=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(_WAK,1,N) to ZWAK, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X1dBSwE=
					</data>
					<key>Replace</key>
					<data>
					WldBSwE=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(_WAK,1,S) to ZWAK, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X1dBSwk=
					</data>
					<key>Replace</key>
					<data>
					WldBSwk=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(XWAK,0,N) to ZWAK, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WFdBSwA=
					</data>
					<key>Replace</key>
					<data>
					WldBSwA=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(XWAK,0,S) to ZWAK, pair with SSDT-PTSWAK.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WFdBSwg=
					</data>
					<key>Replace</key>
					<data>
					WldBSwg=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(GPRW,2,N) to XPRW, pair with SSDT-PRW.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					R1BSVwI=
					</data>
					<key>Replace</key>
					<data>
					WFBSVwI=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change Method(UPRW,2,..) to Method(XPRW,2,..), pair with SSDT-PRW.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					VVBSVwpwEg==
					</data>
					<key>Replace</key>
					<data>
					WFBSVwpwEg==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>change LANC Method(_PRW,0,S) to Method(XPRW,0,..), pair with SSDT-LANC_PRW.aml</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					AAAZABQfX1BSVwg=
					</data>
					<key>Replace</key>
					<data>
					AAAZABQfWFBSVwg=
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex SMIX,01 to SMIX,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFTTUlYAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFTTUlYAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex WMIX,01 to WMIX,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFXTUlYAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFXTUlYAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex ECMX,01 to ECMX,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFFQ01YAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFFQ01YAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex ECSX,01 to ECSX,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFFQ1NYAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFFQ1NYAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex ECM1,01 to ECM1,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFFQ00xAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFFQ00xAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex QSEV,01 to QSEV,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFRU0VWAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFRU0VWAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>Mutex ECAX,01 to ECAX,00</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					WwFFQ0FYAQ==
					</data>
					<key>Replace</key>
					<data>
					WwFFQ0FYAA==
					</data>
				</dict>
				<dict>
					<key>Comment</key>
					<string>rename _RMV to XRMV</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					X1JNVg==
					</data>
					<key>Replace</key>
					<data>
					WFJNVg==
					</data>
				</dict>
			</array>
		</dict>
		<key>DropTables</key>
		<array>
			<dict>
				<key>Signature</key>
				<string>DMAR</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>BGRP</string>
			</dict>
			<dict>
				<key>Signature</key>
				<string>SSDT</string>
				<key>TableId</key>
				<string>xh_rvp10</string>
			</dict>
		</array>
		<key>ResetAddress</key>
		<string>0xB2</string>
		<key>ResetValue</key>
		<string>0x73</string>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<false/>
			<key>Generate</key>
			<dict>
				<key>CStates</key>
				<false/>
				<key>PStates</key>
				<false/>
			</dict>
			<key>PluginType</key>
			<integer>1</integer>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>-v slide=0 dart=0 nv_disable=1 kext-dev-mode=1 brcmfx-country=#a abm_firstpolldelay=16000</string>
		<key>DefaultVolume</key>
		<string>OSX</string>
		<key>Log</key>
		<false/>
		<key>NeverHibernate</key>
		<true/>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>5</integer>
		<key>XMPDetection</key>
		<string>Yes</string>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>AddProperties</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Inject "name" as (data)"#display" to disable graphics drivers on NVidia</string>
				<key>Device</key>
				<string>NVidia</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>name</string>
				<key>Value</key>
				<data>
				I2Rpc3BsYXkA
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Inject "IOName" as "#display" to disable graphics drivers on NVidia</string>
				<key>Device</key>
				<string>NVidia</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>IOName</string>
				<key>Value</key>
				<string>#display</string>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Inject bogus class-code to prevent graphics drivers loading for NVidia</string>
				<key>Device</key>
				<string>NVidia</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>class-code</string>
				<key>Value</key>
				<data>
				/////w==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL00,PanelPowerUp</string>
				<key>Value</key>
				<data>
				MAAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL,Gfx324</string>
				<key>Value</key>
				<data>
				AQAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL00,PanelPowerDown</string>
				<key>Value</key>
				<data>
				PAAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL00,PanelPowerOff</string>
				<key>Value</key>
				<data>
				EQAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL00,PanelCycleDelay</string>
				<key>Value</key>
				<data>
				+gAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL00,PanelPowerOn</string>
				<key>Value</key>
				<data>
				GQEAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>device-colors</string>
				<key>Value</key>
				<data>
				AAIAAKCdnQAAAAAAAAAAAA==
				</data>
			</dict>
			<dict>
				<key>Device</key>
				<string>IntelGFX</string>
				<key>Disabled</key>
				<false/>
				<key>Key</key>
				<string>AAPL,GfxYTile</string>
				<key>Value</key>
				<data>
				AQAAAA==
				</data>
			</dict>
		</array>
		<key>FakeID</key>
		<dict>
			<key>IntelGFX</key>
			<string>0x12345678</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>AddClockID</key>
			<true/>
			<key>FixOwnership</key>
			<true/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>VBoxHfs</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>#ScreenResolution</key>
		<string>1920x1080</string>
		<key>Custom</key>
		<dict>
			<key>Entries</key>
			<array>
				<dict>
					<key>Disabled</key>
					<false/>
					<key>FullTitle</key>
					<string>UEFI internal</string>
					<key>Hidden</key>
					<string>Always</string>
					<key>Ignore</key>
					<false/>
					<key>NoCaches</key>
					<false/>
					<key>Type</key>
					<string>Other</string>
				</dict>
			</array>
		</dict>
		<key>Hide</key>
		<array>
			<string>Preboot</string>
		</array>
		<key>Language</key>
		<string>en_US:0</string>
		<key>Mouse</key>
		<dict>
			<key>Enabled</key>
			<false/>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>Theme</key>
		<string>BGM</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>EDID</key>
		<dict>
			<key>Inject</key>
			<false/>
		</dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<true/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>ig-platform-id</key>
		<string>0x19160000</string>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<true/>
		<key>AsusAICPUPM</key>
		<true/>
		<key>ForceKextsToLoad</key>
		<array>
			<string>\System\Library\Extensions\IONetworkingFamily.kext</string>
		</array>
		<key>KernelLapic</key>
		<true/>
		<key>KernelPm</key>
		<true/>
		<key>KernelToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>MSR 0xE2 _xcpm_idle instant reboot(c) Pike R. Alpha</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				ILniAAAADzA=
				</data>
				<key>Replace</key>
				<data>
				ILniAAAAkJA=
				</data>
			</dict>
		</array>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Boot graphics glitch, 10.13 beta (based on denskop patch)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AQAAdSI=
				</data>
				<key>MatchOS</key>
				<string>10.13.x</string>
				<key>Name</key>
				<string>com.apple.iokit.IOGraphicsFamily</string>
				<key>Replace</key>
				<data>
				AQAA6yI=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Enable TRIM for SSD</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AEFQUExFIFNTRAA=
				</data>
				<key>Name</key>
				<string>com.apple.iokit.IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>eDP, port 0000, 0x191e0000, 0x19160000, 0x19260000, 0x19270000, 0x191b0000, 0x19160002, 0x19260002, 0x191e0003, 0x19260004, 0x19270004, 0x193b0005 credit syscl</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AAAIAAIAAACYAAAAAQUJAAAEAAA=
				</data>
				<key>Name</key>
				<string>com.apple.driver.AppleIntelSKLGraphicsFramebuffer</string>
				<key>Replace</key>
				<data>
				AAAIAAAEAACYAAAAAQUJAAAEAAA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.12.2 fudge USB 3.1 device ID</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<string>30783135623638303836</string>
				<key>InfoPlistPatch</key>
				<true/>
				<key>Name</key>
				<string>AppleUSBXHCIPCI</string>
				<key>Replace</key>
				<string>30783135623538303836</string>
			</dict>
			<dict>
				<key>Comment</key>
				<string>Bypass ThunderBolt3 SkipEnumeration credit kid2010 implemented by syscl</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				VUiJ5UFXQVZBVUFUU0iB7DgB
				</data>
				<key>MatchOS</key>
				<string>10.12.x</string>
				<key>Name</key>
				<string>IOThunderboltFamily</string>
				<key>Replace</key>
				<data>
				VUiJ5THAXcNBVUFUU0iB7DgB
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>change F%uT%04x to F%uTxxxx in AppleBacklightInjector.kext (credit RehabMan)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				RiV1VCUwNHgA
				</data>
				<key>Name</key>
				<string>com.apple.driver.AppleBacklight</string>
				<key>Replace</key>
				<data>
				RiV1VHh4eHgA
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x67</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>04/11/2016</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>IM171.88Z.0105.B08.1604111319</string>
		<key>Board-ID</key>
		<string>Mac-B809C3757DA9BB8D</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardSerialNumber</key>
		<string>C02QLPM3H2YQABCD1</string>
		<key>BoardType</key>
		<integer>10</integer>
		<key>ChassisAssetTag</key>
		<string>iMac-Aluminum</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>13</string>
		<key>Family</key>
		<string>iMac</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>ProductName</key>
		<string>iMac17,1</string>
		<key>SerialNumber</key>
		<string>C02QLPM3H2YQ</string>
		<key>SmUUID</key>
		<string>E0BA6AA9-283A-44D9-AC8A-6D8A38BBED1E</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Detect</string>
	</dict>
</dict>
</plist>

if it's correct, It's not working for me. I have Hynix PC300 256GB SSD

Link to comment
Share on other sites
karelson
karelson
Posted
Posted

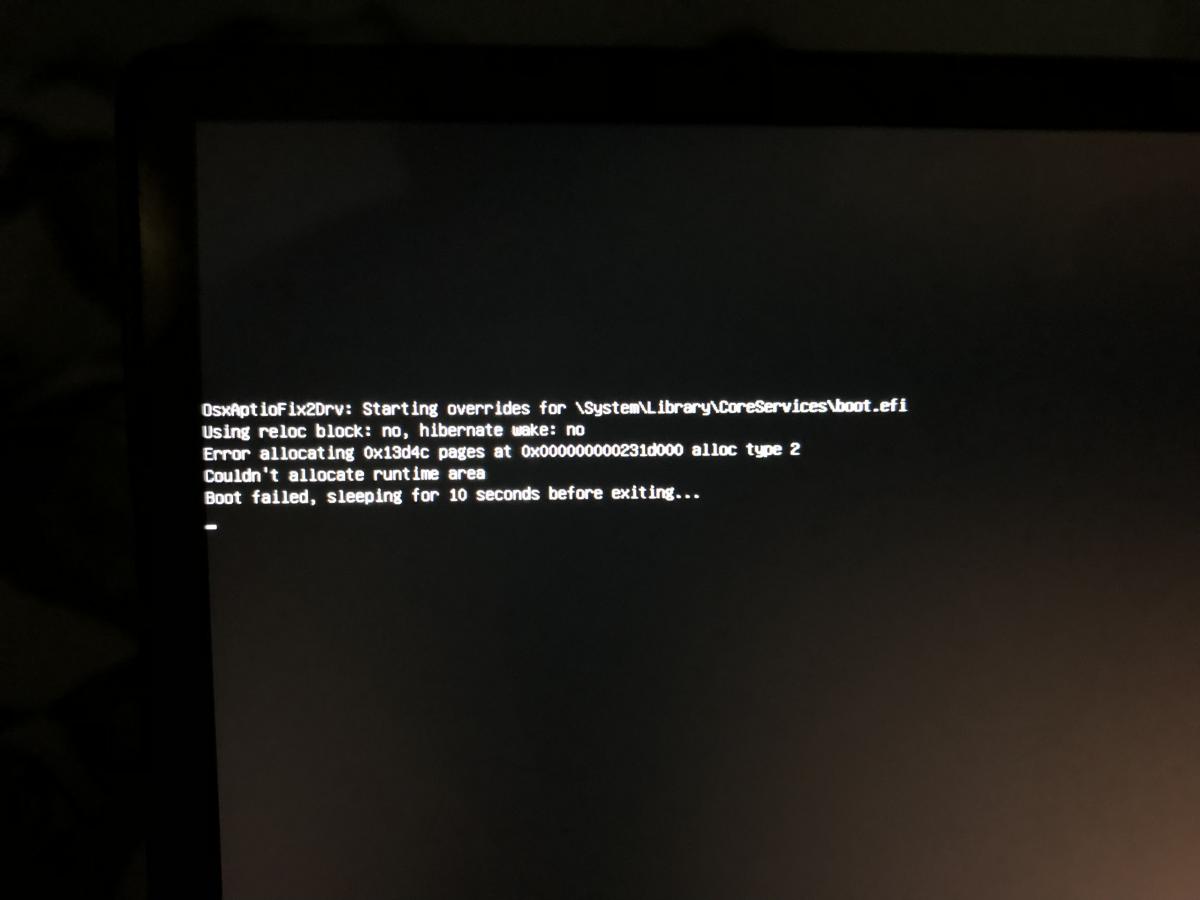

post-1655018-0-82578100-1518113932_thumb.jpegHello,



i am using thuis guid.



http://www.insanelym...ation-tutorial/



bios 1.2.21 ( tried 1.2.29,1.2,25,1.4,1.5)

32gb

1tb Samsung



i cant boot the installer.



I am am getting the can’t allocate err.



I replaced OsxAptioFix3Drv-64 with OsxAptioFix2Drv-64



used slide 33 and 288. Followed this guid.



 https://github.com/w..._10.13_Step7.md



it did not help still can’t boot installer.



any ideas??




Link to comment
Share on other sites
Krim404
Krim404
Posted
  • Author
Posted

it did not help still can’t boot installer.



any ideas??

see: https://github.com/wmchris/DellXPS15-9550-OSX/tree/10.13/10.13/CLOVER/drivers64UEFI/other

also check your slide parameter. >200 is very dubious and 33 is one too low.

Where should I put SSD patch in config.plist

I put patch in Patches sector.

if it's correct, It's not working for me. I have Hynix PC300 256GB SSD

you added it to the DSDT patches, this is a Kext Patch.

Link to comment
Share on other sites
karelson
karelson
Posted
Posted

where to look? http://bfy.tw/GWUc (scnr ;-) ). Never had this issue before. seems like a bad usb install media.

Thank you.



seems that the installer USB was bed. redid it with other method and it worked fine.



ALSO, unchecked slide=0 at the plist file with OsxAptioFixDrv-64.efi   in the CLOVER/drivers64UEFI - made the install to work.







Had some problems with reformatting the  Samsung 960 Pro







Thanks for the response. It's strange that windows works fine on it. Do you recommend a dive that had the most compatibility ? Thanks again for your help.



 reycingef9-   Don't know if that helps, I had problems with formatting and mounting and so on, with diskutil in the installer, in diskutil above drive list on the drives there is an option to "show all devices" then you see the master drive and you can partition and reformat with no problems.

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
