angry.cheburashka Posted October 16, 2017 Share Posted October 16, 2017 Hey, i have read the complete thread. Because I buyed a Xiaomi Air 13.3 (2017 Version) and I want WLAN and Bluetooth without any ugly mini usb stick looking out of my book... I understand that the 13.3 Inch (2016) have in the first revisions a M.2-Port (NGFF) with B-Key. Soo, I have read from another forum, that a guy tested a M.2 adapter and put a Broadcom-WLAN-Bluetooth-Card on it. But it doesn't appear in Windows.. That's because the Bluetooth on the card needs USB, that doesn't provide from the third WWAN-M.2-Slot in the Air 13.3.. So, my idea.. And I have no idea, if a third WWAN-M.2-Slot in the Air 13" 2017 Version longer exists (or a second with PCIe). Because there is no picture on the whole internet, only disasembly videos for the 2016-Version, where the hype came.. But when it have a second M.2 PCIe-Slot, I want to try following. You buy following stuff (it's in german, but you can see what I mean.. ) http://www.ebay.de/itm/USB-3-0-Verl...553593?hash=item1ecdd8c1f9:g:~CEAAOSw9DVZsRhW http://www.ebay.de/itm/USB-3-0-Adap...&sd=132302553593&_trksid=p2047675.c100623.m-1 https://www.amazon.de/dp/B01N23UMRB/?tag=tonymacx8603-21 You put it all together and then add Hackintosh-compatible USB-WLAN and Bluetooth-Sticks. Maybe you find a U.FL-Pigtail to SMA-Adapter and connect the USB-WLAN with the original Xiaomi-WLAN-Antenna. The only problem I see: The space in the notebook. Maybe you must cut off the plastic from the M.2-USB-Adapter to fit in. But it is worth a try! Sorry for my english, I hope you can unterstand my idea. I hope, I get an answer - maybe a pic on the open backside from a 2017-Version? When I get my from china in a few days (hopefully), I can say you more! Greetings, Robin If I understand your idea that I see at least one more problem - the metal housing is unlikely to provide a good signal passage. It also seems to me that you still do not have enough space for all (I could be wrong - I have version 2016). Link to comment Share on other sites More sharing options...
odb8 Posted October 16, 2017 Share Posted October 16, 2017 Yes, your file named ProductID-1447 instead of DisplayProductID-1447, but it shouldn't be the reason of animation lags. Attach you config.plist and boot log (you can create it by CloverConfigurator from left menu Boot.log) Hi Nayzebo, sorry for the delay, here you can find both the bootlog and the config file. let me know if you see anything wrong. Thank you so much config.txt bootlog.log.txt Link to comment Share on other sites More sharing options...
JahStories Posted October 17, 2017 Author Share Posted October 17, 2017 Hello! Hm, strange, I do checked sleep on my laptop and it does not respond to a power key ... But now it works, though the computer still does not sleep well. Thanks for the answer I updated my post I wrote it multiple times, sleep was partially disabled willingly because if the xiaomi go to full sleep when it wakes up it loses usb functionality... Link to comment Share on other sites More sharing options...
angry.cheburashka Posted October 17, 2017 Share Posted October 17, 2017 I wrote it multiple times, sleep was partially disabled willingly because if the xiaomi go to full sleep when it wakes up it loses usb functionality... Yes, I read your posts, and do not consider incomplete sleep deficiency. Thank you for your work done on the hackintosh! 1 Link to comment Share on other sites More sharing options...

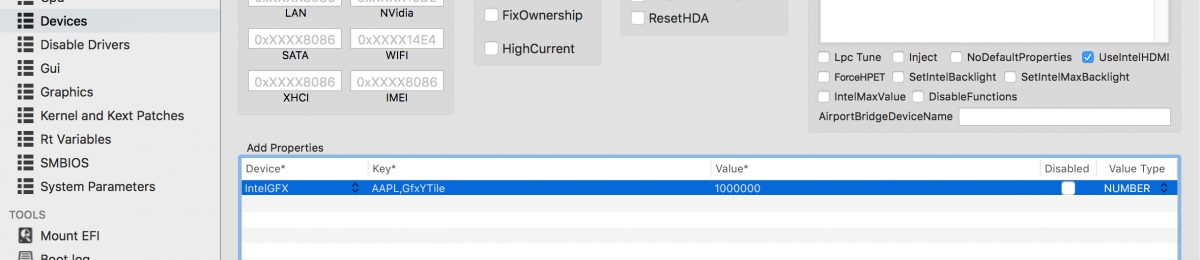

nayzebo Posted October 17, 2017 Share Posted October 17, 2017 let me know if you see anything wrong. Try to replace IntelGFX property from EAAAAA== to 1000000 as in the screenshot. I didn't find any other significant differences between your and my config.plist and boot.log Link to comment Share on other sites More sharing options...
nayzebo Posted October 17, 2017 Share Posted October 17, 2017 Hi angry.cheburashka! Can you share you config.plist and archived directory with kexts? I still have the following problems: 1. Battery state is not displayed sometimes. Installation of the last ACPIBatteryManager.kext from RehabMan's repository didn't solve the problem 2. HiDPI screen resolution chosen via RDM program is not saved after reboot. For example I have selected 1366x768(HiDPI) but after reboot I have simple 1366x768 3. The internal SSD is displayed as external. Your patch didn't help. Do you mean here original NVMe drive or additionally installed SATA M.2 SSD? Link to comment Share on other sites More sharing options...
angry.cheburashka Posted October 18, 2017 Share Posted October 18, 2017 Hi angry.cheburashka! Can you share you config.plist and archived directory with kexts? I still have the following problems: 1. Battery state is not displayed sometimes. Installation of the last ACPIBatteryManager.kext from RehabMan's repository didn't solve the problem 2. HiDPI screen resolution chosen via RDM program is not saved after reboot. For example I have selected 1366x768(HiDPI) but after reboot I have simple 1366x768 3. The internal SSD is displayed as external. Your patch didn't help. Do you mean here original NVMe drive or additionally installed SATA M.2 SSD? Hey. Of course, that's an archive of my kext and config.plist (I sent a personal message) 1. If you use apfs - try disabling the trim, it should help with battery status display; 2. I do not use RDM, so I can not help with that; 3. I mean the original the SSD, try to use my configuration, it can help you. I use all kext of 1 post, except for the keyboard and touchpad. 1 Link to comment Share on other sites More sharing options...
JahStories Posted October 18, 2017 Author Share Posted October 18, 2017 For those who wants full sleep, just remove SLEEP SSDT but remember that if you put the xiaomi to sleep closing the lid you'll lose USB until reboot. @angry please remove your files, it will be hard to provide help if everyone will start using different files, there is already a file pack for everyone to download, thanks. 2 Link to comment Share on other sites More sharing options...
nayzebo Posted October 18, 2017 Share Posted October 18, 2017 Hey. Of course, that's an archive of my kext and config.plist (I sent a personal message) 1. If you use apfs - try disabling the trim, it should help with battery status display; 2. I do not use RDM, so I can not help with that; 3. I mean the original the SSD, try to use my configuration, it can help you. I use all kext of 1 post, except for the keyboard and touchpad. Thank you! I found the mistake in config for problem with SSD. I used wrong data for IONVMeFamily/External icon fix patch. Also these wrong data are present in files pack 2.1. To fix the problem with external SSD it is need to use the following data: <dict> <key>Comment</key> <string>External icon fix</string> <key>Disabled</key> <false/> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>IONVMeFamily</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> 1 Link to comment Share on other sites More sharing options...
angry.cheburashka Posted October 19, 2017 Share Posted October 19, 2017 Thank you! I found the mistake in config for problem with SSD. I used wrong data for IONVMeFamily/External icon fix patch. Also these wrong data are present in files pack 2.1. To fix the problem with external SSD it is need to use the following data: <dict> <key>Comment</key> <string>External icon fix</string> <key>Disabled</key> <false/> <key>Find</key> <data> RXh0ZXJuYWw= </data> <key>Name</key> <string>IONVMeFamily</string> <key>Replace</key> <data> SW50ZXJuYWw= </data> </dict> I confirm it works. Thank you. Link to comment Share on other sites More sharing options...
angry.cheburashka Posted October 21, 2017 Share Posted October 21, 2017 I think I was able to eliminate the bug charts at startup - you need to change a little patch. I have added a solution in my post, unsubscribe about results if you try. 1 Link to comment Share on other sites More sharing options...
nayzebo Posted October 21, 2017 Share Posted October 21, 2017 I think I was able to eliminate the bug charts at startup - you need to change a little patch. I have added a solution in my post, unsubscribe about results if you try. It works well for me. Thanks! Link to comment Share on other sites More sharing options...
kevin_1351 Posted November 7, 2017 Share Posted November 7, 2017 Implement Lilu.kext un conjunction with some plugins as: HibernationFixup.kext IntelgraphicsFixup.kext IntelGraphicsDVMTFixup.kext NvidiaGraphicsFixup.kext This will fix the sleep issue for good. And remove the necessity for all your nvidia related dsdt patches. It will also remove the fakeid step and all other {censored} during installation. Some other kexts to include would be: Shiki.kext ACPIBatteryManager.kext AppleBacklightInjector.kext ApplePs2SmartTouchpad.kext for multitouch! There are a few more I forgot about. I'll make a more detailed list. Anyway, these changes will fix almost all issues. There is also a bt injector in the works, if I manage to get it stable. Edit: I was probably wrong about the nvidia patches. They are still necessary. Sent from my iPhone using Tapatalk 2 Link to comment Share on other sites More sharing options...
odb8 Posted December 9, 2017 Share Posted December 9, 2017 Implement Lilu.kext un conjunction with some plugins as: HibernationFixup.kext IntelgraphicsFixup.kext IntelGraphicsDVMTFixup.kext NvidiaGraphicsFixup.kext This will fix the sleep issue for good. And remove the necessity for all your nvidia related dsdt patches. It will also remove the fakeid step and all other {censored} during installation. Some other kexts to include would be: Shiki.kext ACPIBatteryManager.kext AppleBacklightInjector.kext ApplePs2SmartTouchpad.kext for multitouch! There are a few more I forgot about. I'll make a more detailed list. Anyway, these changes will fix almost all issues. There is also a bt injector in the works, if I manage to get it stable. Edit: I was probably wrong about the nvidia patches. They are still necessary. Sent from my iPhone using Tapatalk Is there any way we can get multitouch for the trackpad? it works way worse than in Windows Link to comment Share on other sites More sharing options...
sakoula Posted December 10, 2017 Share Posted December 10, 2017 Hi! I am trying to install 10.13 on my 2016 13.3 laptop (Bios A05) on a second SSD (Samsung 850 Evo Series, 500GB). However I am facing a problem when trying to boot with my USB stick that I have created: It starts to boot, passes the 'Darwin bootstrap....` writes something about launchd and then dumps some staff and reboots. I have used: * Clover_v2.4k_r4334 * 10.13.2 * XiaoMi Notebook Air 13" (2.1) I have installed clover on the stick using: * `Install for UEFI booting only` * `Install Clover in the ESP` * `Drivers64UEDI` * `Install RC scripts on target volume` Then I: * rename `EFI/CLOVER` to `EFI/CLOVER_` * copy `XiaoMi Notebook Air 13" (2.1)\EFI:CLOVER` to `EFI/CLOVER` * rename `EFI/CLOVER/kexts/10.13` to `EFI/CLOVER/kexts/Other` * copy `HD/Library/Extensions/CodecCommander.kext` to `EFI/CLOVER/kexts/Other` * copy `HD/Library/Extensions/MiNote13-FrequenciesInjector-MPB13.1-I56200U.kext` to `EFI/CLOVER/kexts/Other` * used Clover Configurator to create a `SMBIOS > MacbookPro 13.1` while booting I made sure that: * Graphics Injector > InjectIntel > FakeID: 0x123456789 * Graphics Injector > InjectIntel > *-platform-id:19160002 Any idea what may be wrong? Thanks! Link to comment Share on other sites More sharing options...
sakoula Posted December 11, 2017 Share Posted December 11, 2017 Any idea anyone? Thanks! Link to comment Share on other sites More sharing options...
sakoula Posted December 17, 2017 Share Posted December 17, 2017 Hello, Sorry for asking again. Has any one recently managed to install 10.13.2 on the 2016 13.3 laptop (Bios A05). I followed the instructions from the first post carefully. My laptop gets into clover. I change the fake-id to 0x123456789, the platform-id to 0x19160002 add a -v argument on the boot args clover options. The laptop tries to boot for 5-6 seconds making progress (passes some Darwin bootstrap). Eventually it dumps some IO things (very fast) and reboots. I tried resetting the BIOS but I keep on having this experience. Does anyone else experiencing the same thing? I have added a second sata M2 disk. I have installed 10.13.2 from the same USB stick on a different hack (desktop with different clover configuration). Possibly the clover files in 2.1 do not work with 10.13.2? Thanks for the help!!!!! Link to comment Share on other sites More sharing options...
^GoJo^ Posted December 22, 2017 Share Posted December 22, 2017 It's been a while i haven't been on hackintosh nor this machine.. "NVME not working" isn't mentionned for high sierra, does it means it works directly unlike with sierra? Link to comment Share on other sites More sharing options...
MariusPrd Posted December 22, 2017 Share Posted December 22, 2017 My screen flashes in login and when I go in dashboard and on some app I don't understand why ??? Help me ? Link to comment Share on other sites More sharing options...
bergui45 Posted December 23, 2017 Share Posted December 23, 2017 Hello everybody, Since my Sierra works flawlessly on my Notebook Air 13.3 2016 (Bios A5) installed on a Crucial MX300 M.2 SATA i am now wondering about upgrading to HighSierra with the hope that from the mac side i may have now full access to the windows files on the NVMe disk... But the upgrade process seams to me a bit complex and not so easy step by step straightforward... In the meantime, i will wait some time just until the process become easier to perform Happy Xmas to all Link to comment Share on other sites More sharing options...
bergui45 Posted December 26, 2017 Share Posted December 26, 2017 hello i tried to upgrade from 2.0 to 2.1 using step by step what said Mc Banjo but whwn i try to select MacOs Install boot options i get a NO WAY Flag? He said select the macOS INSTALL BOOT OPTIONS TWICE? and then the MacOs volume to complete the setup ??? I cannot perform this? Thanx for any accurte help Link to comment Share on other sites More sharing options...
bergui45 Posted December 28, 2017 Share Posted December 28, 2017 Now when i launch the highsierra installer from within my Sandisk USB disk i have an error telling the installation cannot be performed on this kind of Mac? the reason was i mistyped 8 instead of B at the end of the BOARD ID... Now the High Sierra installer starts with an Apple Flag on the right side of the Clover Window but it stops after about 10 seconds and the laptop re Boot in Windows... Holy {censored}! The Mr Banjo upgrade process doesn't work on my laptop and i will try from scratch with a USB key instead Link to comment Share on other sites More sharing options...

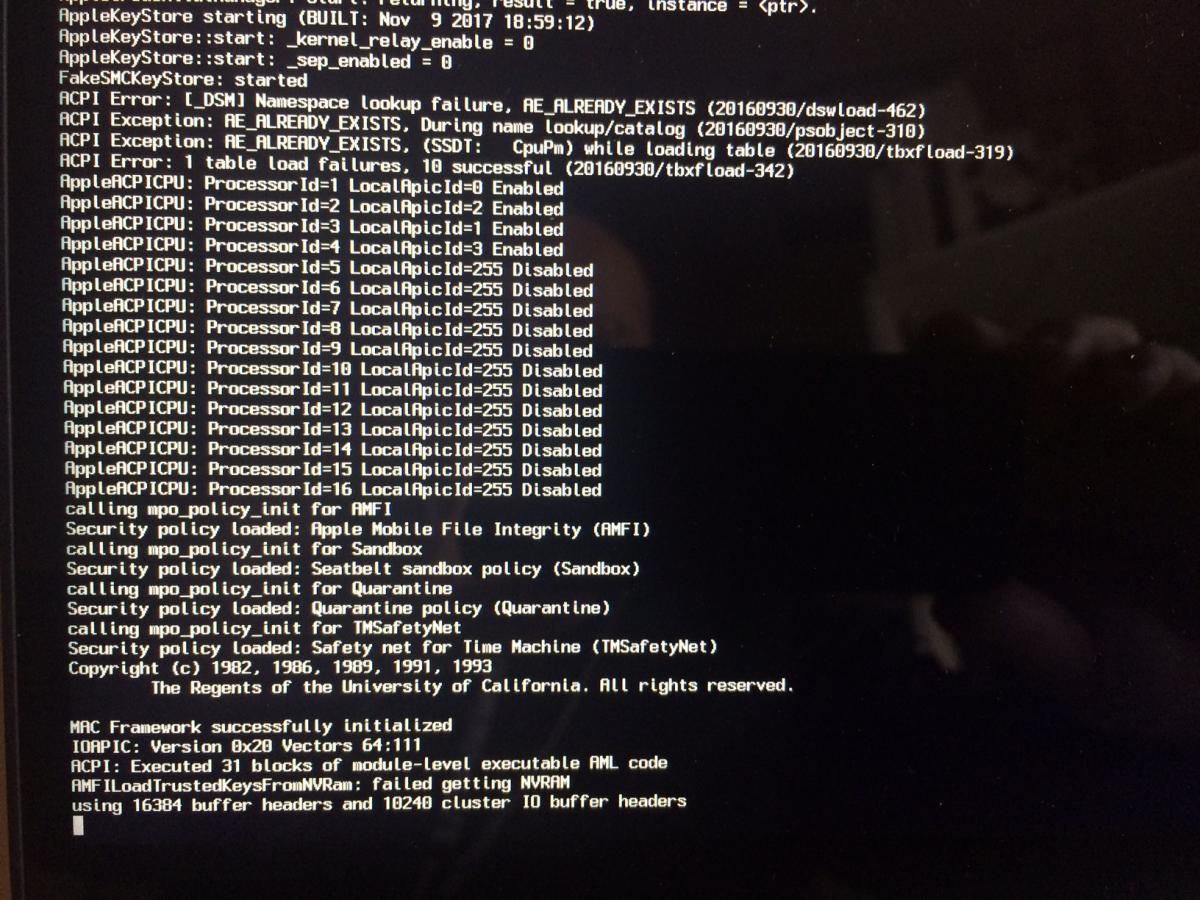

carlang59 Posted January 3, 2018 Share Posted January 3, 2018 Ho un notebook xiaomi air 13.3 con Intel Core i5-7200U Kaby Lake, RAM 8 GB DDR4 256 GB M.2 SSD, NVIDIA GeForce MX150. Vorrei installare 10.13.2 come guida. Usando il dual boot con win 10 senza doppio disco. Ho questo errore, AMFILoadTrustedKeysFromNVRam. Mi potete aiutare? Grazie j attact the image Link to comment Share on other sites More sharing options...
bergui45 Posted January 10, 2018 Share Posted January 10, 2018 it sounds no HELP available on this website! ;-( Link to comment Share on other sites More sharing options...
McBanjo Posted January 12, 2018 Share Posted January 12, 2018 it sounds no HELP available on this website! ;-( What do you need help with? Your last post suggests you were starting from scratch with a USB key - how did that go? Are you getting the prohibition symbol? That's normally a kernel panic, I've had it before due to a bad kext install with EasyKextPro and it might require a fresh reinstall. You can sometimes find out more about the issue by booting into verbose mode and reading the text before the crash and reboot. I've previously had to video record the screen to read the text. Double-check your EFI volumes have the required files in it. If you have Windows, you can load the EFI to check there. I followed my steps to upgrade from Sierra to High Sierra and it worked for me. By select twice I mean the boot volume needs to be selected once, then it reboots and you have to select it again a 2nd time to finalise the setup. Note your mileage may vary as the High Sierra installer has been updated since I tried. I would suggest that you start from scratch. 1 Link to comment Share on other sites More sharing options...
