Slice Posted January 8, 2017 Share Posted January 8, 2017 If he needs to he can make a Donation button from his paypal First link in my signature. Link to comment Share on other sites More sharing options...
JorgeMax Posted January 8, 2017 Share Posted January 8, 2017 Last login: Sun Jan 8 00:40:49 on console iMac-de-Jorge:~ jorge$ sudo -s Password: bash-3.2# sudo chown -R root:wheel ~/Downloads/RadeonPCI.kext bash-3.2# sudo chmod -R 755 ~/Downloads/RadeonPCI.kext bash-3.2# sudo kextutil -v ~/Downloads/RadeonPCI.kext Defaulting to kernel file '/System/Library/Kernels/kernel' Diagnostics for /Users/jorge/Downloads/RadeonPCI.kext: Code Signing Failure: not code signed /Users/jorge/Downloads/RadeonPCI.kext appears to be loadable (not including linkage for on-disk libraries). kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext "/Users/jorge/Downloads/RadeonPCI.kext" kext signature failure override allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext "/Users/jorge/Downloads/RadeonPCI.kext" Loading /Users/jorge/Downloads/RadeonPCI.kext. /Users/jorge/Downloads/RadeonPCI.kext successfully loaded (or already loaded). bash-3.2# ~/Downloads/RadeonDump2 -r 0,100 Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX0@0/RadeonPCI it matched on name "ATY,FutomakiParent" 0x0000: BFFF7008 00000390 0000002C 4058B880 0000002C 4058B880 00000000 00000000 0x0020: 00000000 00000000 00000000 00000000 0000001C 0E0F0000 000000A2 00D816E6 0x0040: 00000000 00000000 00010000 00010000 00000000 00000000 00000000 00000000 0x0060: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0080: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00A0: 00000000 00000000 000000D4 2D333131 00000000 00000000 00000000 00000000 0x00C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0100: 00000048 00000001 062EC000 00095401 00000000 0001733D 00000000 43CC0100 bash-3.2# ~/Downloads/RadeonDump2 -r 0,200 Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX0@0/RadeonPCI it matched on name "ATY,FutomakiParent" 0x0000: BFFF7008 00000390 0000002C 4058B880 0000002C 4058B880 00000000 00000000 0x0020: 00000000 00000000 00000000 00000000 0000001C 0E0F0000 000000A2 00D816E6 0x0040: 00000000 00000000 00010000 00010000 00000000 00000000 00000000 00000000 0x0060: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0080: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00A0: 00000000 00000000 000000D4 33303443 00000000 00000000 00000000 00000000 0x00C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0100: 00000048 00000001 062EC000 00095401 00000000 0001733D 00000000 43CC0100 0x0120: 0000B700 00000013 00000000 00000010 10068191 55BE6928 00020205 00000000 0x0140: 22800001 00000000 00000000 00000000 0000007E 00000000 00000000 00000000 0x0160: 00000000 00000000 00000000 00000000 002B002A 00002B20 02400017 00000000 0x0180: 00000000 00000000 00000000 00000000 00168109 00000002 00000000 00000000 0x01A0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0200: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 bash-3.2# ~/Downloads/RadeonDump2 -r 1700,1750 Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX0@0/RadeonPCI it matched on name "ATY,FutomakiParent" 0x1700: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x1720: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x1740: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 bash-3.2# ~/Downloads/RadeonDump2 -r 5400,5450 Found a device of class RadeonPCI: IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEGP@1/IOPP/GFX0@0/RadeonPCI it matched on name "ATY,FutomakiParent" 0x5400: 08000000 0A1028B0 00008400 10625210 C0004AB4 60000080 10068191 000006D5 0x5420: 00080200 00000000 00000400 80000000 00000100 00040000 00000000 00000000 0x5440: 00000000 ABC906D8 00000100 00000000 00000000 00000000 00040020 4010C110 bash-3.2# sudo pmset sleepnow Sleeping now... bash-3.2# [Restaurado 8 de jan de 2017 00:49:21] Last login: Sun Jan 8 00:49:17 on console iMac-de-Jorge:~ jorge$ I do not know if I'm doing it right, but here the machine does not sleep. Only the HDD's sleep. Still getting fans of the GPU spinning and also CPU Link to comment Share on other sites More sharing options...
Slice Posted January 11, 2017 Share Posted January 11, 2017 I do not know if I'm doing it right, but here the machine does not sleep. Only the HDD's sleep. Still getting fans of the GPU spinning and also CPU This is unrelated to Radeon problem. You should first make all devices working, especially HDA sound. Then check your DSDT. Link to comment Share on other sites More sharing options...
JorgeMax Posted January 11, 2017 Share Posted January 11, 2017 This is unrelated to Radeon problem. You should first make all devices working, especially HDA sound. Then check your DSDT. Slice. Everything is working here. It just does not "sleep" because of the "RadeonDump2" command, while the fans stay connected. I placed kext in the Clover folder on the EFI partition. Without the kext being loaded and putting to sleep, the pc sleeps, but when I go "wake it up", the video card does not return, getting the fans without turning. With the RadeonPCI kext loaded, when I shoot the pc from "sleep", fans rotate but no signal on the monitor. Link to comment Share on other sites More sharing options...
sdfewfe Posted January 12, 2017 Share Posted January 12, 2017 Slice. Everything is working here. It just does not "sleep" because of the "RadeonDump2" command, while the fans stay connected. I placed kext in the Clover folder on the EFI partition. Without the kext being loaded and putting to sleep, the pc sleeps, but when I go "wake it up", the video card does not return, getting the fans without turning. With the RadeonPCI kext loaded, when I shoot the pc from "sleep", fans rotate but no signal on the monitor. Why do you keep the RadeonPCI.kext loaded? My understanding is that its only purpose is to collect debug info for RadeonDump2. Link to comment Share on other sites More sharing options...
JorgeMax Posted January 12, 2017 Share Posted January 12, 2017 Why do you keep the RadeonPCI.kext loaded? My understanding is that its only purpose is to collect debug info for RadeonDump2. It was just a test. I removed it later. Link to comment Share on other sites More sharing options...
Matthew82 Posted January 17, 2017 Share Posted January 17, 2017 It is normal that my X99 hack start going to sleep and wake with R9 290X? 1 Link to comment Share on other sites More sharing options...
Slice Posted January 17, 2017 Share Posted January 17, 2017 It is normal that my X99 hack start going to sleep and wake with R9 290X? After what? Link to comment Share on other sites More sharing options...
Matthew82 Posted January 17, 2017 Share Posted January 17, 2017 I put VooDooTSSych because someone write that it is necessarily to wake. Test...and it work. 1 Link to comment Share on other sites More sharing options...

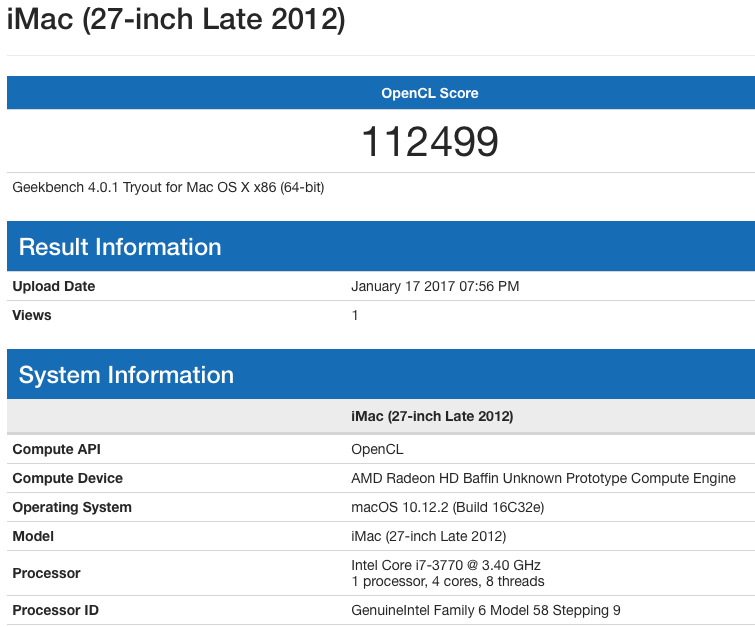

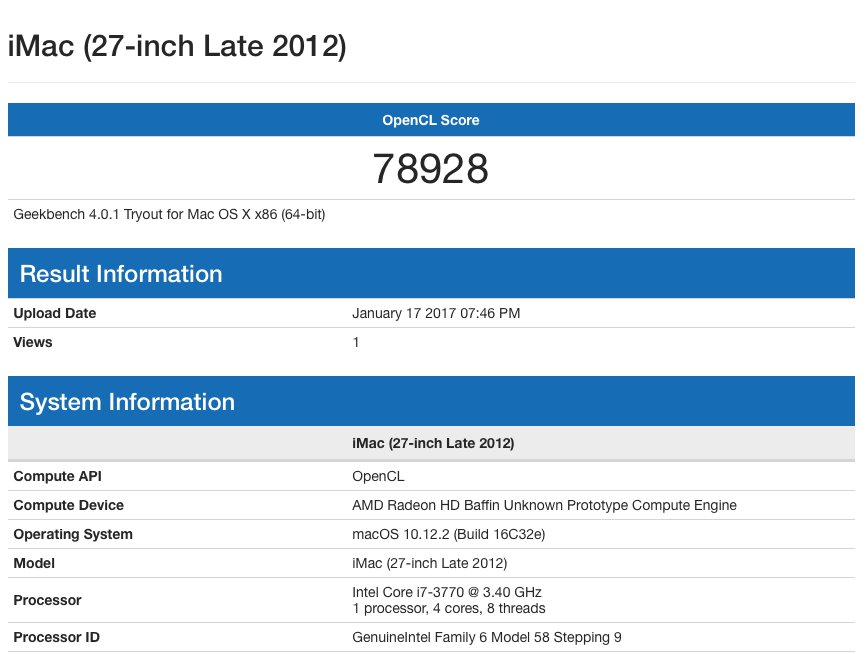

Ciro82 Posted January 17, 2017 Share Posted January 17, 2017 Added Florian and Okrasit patches: Right: without patches Left: with patches Sleep and wake are working 2 Link to comment Share on other sites More sharing options...
JorgeMax Posted January 18, 2017 Share Posted January 18, 2017 I put VooDooTSSych because someone write that it is necessarily to wake. Test...and it work. I tried here with this kext, but did not "wake up" the monitor, was without video signal. But I noticed that with this kext, the fans spin when they return from sleep, before that it did not happen without this kext Added Florian and Okrasit patches: Right: without patches Left: with patches Sleep and wake are working Schermata 2017-01-17 alle 20.57.17.pngSchermata 2017-01-17 alle 20.46.33.png What patch? Is it only for the RX460 (Baffin) or for any AMD card? Link to comment Share on other sites More sharing options...
Matthew82 Posted January 18, 2017 Share Posted January 18, 2017 I tried here with this kext, but did not "wake up" the monitor, was without video signal. But I noticed that with this kext, the fans spin when they return from sleep, before that it did not happen without this kext I using this solution for my card http://www.insanelymac.com/forum/topic/317915-clover-test-and-patches-for-polaris-gpu/?p=2334128 Link to comment Share on other sites More sharing options...
Ciro82 Posted January 18, 2017 Share Posted January 18, 2017 What patch? Is it only for the RX460 (Baffin) or for any AMD card? Is for the RX480 of course <key>KernelAndKextPatches</key> <dict> <key>ForceKextsToLoad</key> <array> <string>\System\Library\Extensions\AMDRadeonX4100.kext</string> <string>\System\Library\Extensions\AMD9500Controller.kext</string> </array> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> D0LIiYuAAAAARIizmQAAAESIcyA= </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> kJCQiYuAAAAARIizmQAAAESIcyA= </data> </dict> <dict> <key>Comment</key> <string>Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> 6EmF/v++SAEAAEyJ9w== </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> 6EbkAAC+SAEAAEyJ9w== </data> </dict> <dict> <key>Comment</key> <string>Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> SLgCAAAAAQAAAEiJQ1THQ3wIAAAA </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> SLgEAAAAAQAAAEiJQ1THQ3wSAAAA </data> </dict> <dict> <key>Comment</key> <string>PP_DisablePowerContainment=1</string> <key>Disabled</key> <false/> <key>Find</key> <data> PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv a2V5PjxpbnRlZ2VyPjA8L2ludGVnZXI+ </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>AMD9500Controller</string> <key>Replace</key> <data> PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv a2V5PjxpbnRlZ2VyPjE8L2ludGVnZXI+ </data> </dict> </array> </dict> 4 Link to comment Share on other sites More sharing options...
MattsCreative Posted January 19, 2017 Share Posted January 19, 2017 Is for the RX480 of course <key>KernelAndKextPatches</key> <dict> <key>ForceKextsToLoad</key> <array> <string>\System\Library\Extensions\AMDRadeonX4100.kext</string> <string>\System\Library\Extensions\AMD9500Controller.kext</string> </array> <key>KextsToPatch</key> <array> <dict> <key>Comment</key> <string>Remove_CU_limit_of_RX4x0-(C)_by_okrasit_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> D0LIiYuAAAAARIizmQAAAESIcyA= </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> kJCQiYuAAAAARIizmQAAAESIcyA= </data> </dict> <dict> <key>Comment</key> <string>Change_init_from_BAFFIN_to_ELLESMERE-(C)_by_Fl0r!an_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> 6EmF/v++SAEAAEyJ9w== </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> 6EbkAAC+SAEAAEyJ9w== </data> </dict> <dict> <key>Comment</key> <string>Change_#_of_RX4x0_CUs-(C)_by_okrasit_2016</string> <key>Disabled</key> <false/> <key>Find</key> <data> SLgCAAAAAQAAAEiJQ1THQ3wIAAAA </data> <key>Name</key> <string>AMDRadeonX4100</string> <key>Replace</key> <data> SLgEAAAAAQAAAEiJQ1THQ3wSAAAA </data> </dict> <dict> <key>Comment</key> <string>PP_DisablePowerContainment=1</string> <key>Disabled</key> <false/> <key>Find</key> <data> PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv a2V5PjxpbnRlZ2VyPjA8L2ludGVnZXI+ </data> <key>InfoPlistPatch</key> <true/> <key>Name</key> <string>AMD9500Controller</string> <key>Replace</key> <data> PGtleT5QUF9EaXNhYmxlUG93ZXJDb250YWlubWVudDwv a2V5PjxpbnRlZ2VyPjE8L2ludGVnZXI+ </data> </dict> </array> </dict> http://www.insanelymac.com/forum/topic/317915-clover-test-and-patches-for-polaris-gpu/?p=2334128this patch goes into the bios and makes it so no more igpu then you apply your patch Link to comment Share on other sites More sharing options...
Ciro82 Posted January 19, 2017 Share Posted January 19, 2017 http://www.insanelymac.com/forum/topic/317915-clover-test-and-patches-for-polaris-gpu/?p=2334128this patch goes into the bios and makes it so no more igpu then you apply your patch Yes i've seen that post, but i don't want to mess around my Vbios since my card hasn't dualbios 1 Link to comment Share on other sites More sharing options...
MattsCreative Posted January 19, 2017 Share Posted January 19, 2017 Yes i've seen that post, but i don't want to mess around my Vbios since my card hasn't dualbios no dual bios wow that card is a waste always get a dual bios card Link to comment Share on other sites More sharing options...
mhaeuser Posted January 19, 2017 Share Posted January 19, 2017 Has anyone ever tried hooking GetMemoryMap() or ExitBS() to disconnect all GOP controllers? The GPU EFI driver may not release its ownership on the device at ExitBS() (pure speculation!) as it's the case with USB stuff when 'EHCI/XHCI handoff' is disabled. It may also be an AMI UEFI bug... from what I remember, UEFI has no such concept as a 'primary display' and the determination of the default display is undefined (again, iirc), so the whole 'Primary Display: IGPU/PCIe' would be AMI propietary anyway (EDK2 has a ConSplitter driver which means there should be no primary display there... apropos, does it work with CloverEFI?). Someone could also check the leaked AMI sources (from 2012) what the option does exactly. 2 Link to comment Share on other sites More sharing options...
MattsCreative Posted January 19, 2017 Share Posted January 19, 2017 Has anyone ever tried hooking GetMemoryMap() or ExitBS() to disconnect all GOP controllers? The GPU EFI driver may not release its ownership on the device at ExitBS() (pure speculation!) as it's the case with USB stuff when 'EHCI/XHCI handoff' is disabled. It may also be an AMI UEFI bug... from what I remember, UEFI has no such concept as a 'primary display' and the determination of the default display is undefined (again, iirc), so the whole 'Primary Display: IGPU/PCIe' would be AMI propietary anyway (EDK2 has a ConSplitter driver which means there should be no primary display there... apropos, does it work with CloverEFI?). Someone could also check the leaked AMI sources (from 2012) what the option does exactly. i miss you in chat and give me away to try it in a clover patch and i will report back Link to comment Share on other sites More sharing options...
Ciro82 Posted January 19, 2017 Share Posted January 19, 2017 no dual bios wow that card is a waste always get a dual bios card Reference Card Inviato dal mio iPhone utilizzando Tapatalk Link to comment Share on other sites More sharing options...
Pavo Posted January 24, 2017 Share Posted January 24, 2017 Slice, you might wanna remove the RX 480 injection patch Clover is doing when using ATI injection True, there is no more Dayman FB for RX 480 this is from 10.12.4 beta btw. -------------------------AMD2400Controller.kext------------------------- Iago (2) @ 0x109df0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 -------------------------AMD2600Controller.kext------------------------- Hypoprion (2) @ 0x109dc0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 Lamna (2) @ 0x109df0 SDVI, DDVI 000200001400000080000000000000000001021100000000 040000001600000080000000000000000010011200000000 -------------------------AMD3800Controller.kext------------------------- Megalodon (3) @ 0x10ada0 SDVI, DDVI, SVIDEO 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 800000000200000004000000000000000010000000000000 Triakis (2) @ 0x10adf0 SDVI, DDVI 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 -------------------------AMD4600Controller.kext------------------------- Flicker (3) @ 0x107d20 DP, DP, SDVI 000400000004000000010000000000000201030500000000 000400000004000000010000000000000100020200000000 000200001402000000010000000000000010010400000000 Gliff (3) @ 0x107d70 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000406000000010000000000001000010100000000 Shrike (3) @ 0x107dc0 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000403000000010000000000001000010100000000 -------------------------AMD4800Controller.kext------------------------- Cardinal (2) @ 0x106d50 SDVI, DDVI 000200001402000000010000000000000101010400000000 040000001402000000010000000000000010020300000000 MotMot (2) @ 0x106d80 DP, DDVI 000400000401000000010000000000001000020300000000 040000001402000000010000000000000111010400000000 Quail (3) @ 0x106db0 LVDS, LVDS, DP 020000004000000019010000000000002201000700000000 020000000001000019010000000000002001030400000000 000400000403000000010000000000001000020300000000 -------------------------AMD5000Controller.kext------------------------- Douc (2) @ 0xc8630 LVDS, DP 020000000005000019030000000000002103020200000000 000400000402000000030000000000001102010100000000 Langur (3) @ 0xc8660 DP, DP, DDVI 000400000406000000010000000000002103040200000000 000400000406000000010000000000001102010100000000 040000001402000000010000000000000204050300000000 Uakari (4) @ 0xc86b0 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040100000000 040000001400000000710000000000000112010300000000 000200001400000000710000000000000000060500000000 000800000002000000710000000000002205050400000000 Zonalis (6) @ 0xc8710 DP, DP, DP, DP, DP, DP 000400000406000000710000000000002001060600000000 000400000406000000710000000000001000050500000000 000400000406000000710000000000002103020400000000 000400000406000000710000000000001102010300000000 000400000406000000710000000000002205040200000000 000400000406000000710000000000001204030100000000 Alouatta (4) @ 0xc87a0 LVDS, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000406000000710000000000001102010100000000 000400000406000000710000000000002103020200000000 000400000406000000710000000000002205040400000000 Hoolock (3) @ 0xc8800 DP, DP, DDVI 000400000406000000010000000000002103050100000000 000400000406000000010000000000001102040200000000 040000001402000000010000000000000204010300000000 Vervet (4) @ 0xc8850 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040200000000 040000001400000000710000000000000112010400000000 000200001400000000710000000000000000060300000000 000800000002000000710000000000002205050100000000 Baboon (3) @ 0xc88b0 DDVI, HDMI, VGA 040000001400000000010000000000000102010300000000 000800000002000000710000000000002205020100000000 100000001000000000010000000000000010000200000000 Eulemur (3) @ 0xc8900 DDVI, HDMI, VGA 040000001400000000010000000000000102010400000000 000800000002000000710000000000001204040200000000 100000001000000000000000000000000010000100000000 Galago (2) @ 0xc8960 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Colobus (2) @ 0xc89a0 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Mangabey (2) @ 0xc89e0 LVDS, DP 020000004000000019010000000000000000000300000000 000400000406000000730000000000001102010100000000 Nomascus (4) @ 0xc8a20 LVDS, LVDS, DP, DP 020000004000000019010000000000000000000500000000 020000000001000019030000000000001204030300000000 000400000406000000730000000000001102010100000000 000400000407000000730000000000002103020200000000 Orangutan (2) @ 0xc8a90 LVDS, DP 020000004000000019010000000000000000000500000000 000400000406000000730000000000001102010100000000 -------------------------AMD6000Controller.kext------------------------- Pithecia (2) @ 0xe7650 DP, DDVI 000400000403000000010000000000002103020400000000 040000001402000000010000000000000000040300000000 Bulrushes (6) @ 0xe7680 DP, DP, DP, DP, DP, DP 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 000400000403000000010000000000001204030300000000 000400000403000000010000000000002205040400000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000002001060600000000 Cattail (4) @ 0xe7710 LVDS, DP, DP, DP 020000004000000039050000000000000000000500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Hydrilla (5) @ 0xe7770 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205050400000000 000400000403000000010000000000001000040500000000 Duckweed (4) @ 0xe77f0 DP, DP, HDMI, SDVI 000400000403000000010000000000001204040100000000 000400000403000000010000000000002205050200000000 000800000402000000010000000000001102030400000000 000200001402000000010000000000000000060500000000 Fanwort (4) @ 0xe7850 LVDS, DP, DP, DP 020000004000000039050000000000000000000400000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Elodea (5) @ 0xe78b0 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205040400000000 Kudzu (2) @ 0xe7930 DP, HDMI 000400000403000000010000000000001204030300000000 000800000402000000010000000000001102010100000000 Gibba (5) @ 0xe7960 DP, DP, HDMI, SDVI, DDVI 000400000403000000010000000000001204050100000000 000400000403000000010000000000002205040200000000 000800000402000000010000000000001102060400000000 000200001402000000010000000000000000030500000000 040000000402000000010000000000001102010300000000 Lotus (3) @ 0xe79e0 DP, HDMI, DP 000400000403000000010000000000001102010100000000 000800000402000000010000000000002205040400000000 000400000001000000010000000000002103020200000000 Ipomoea (3) @ 0xe7a30 DP, HDMI, VGA 000400000403000000010000000000001204010500000000 000800000402000000010000000000001102040300000000 100000001000000000010000000000000000000200000000 Muskgrass (4) @ 0xe7a80 DP, DP, DP, HDMI 000400000403000000010100000000001102010100000000 000400000001000000091200000000002103020200000000 000400000001000000091300000000002205040400000000 000800000402000000010400000000001204030300000000 Juncus (4) @ 0xe7ae0 DP, DP, DP, DP 000400000403000000010000000000001204030300000000 000400000403000000010000000000001000040500000000 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 Osmunda (4) @ 0xe7b40 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Pondweed (3) @ 0xe7ba0 LVDS, DP, DP 020000000001000019010100000000001000050500000000 000400000403000000010200000000001102010100000000 000400000403000000010300000000002103020200000000 Spikerush (4) @ 0xe7bf0 LVDS, DP, DP, DP 020000004000000039050100000000000000000500000000 000400000403000000010200000000001102010100000000 000400000001000000090200000000002103020200000000 000400000001000000090300000000001204030300000000 Typha (5) @ 0xe7c50 DP, DP, DP, DP, DDVI 000400000403000000010100000000001102040100000000 000400000403000000010200000000002103050200000000 000400000001000000090300000000001000020500000000 000400000001000000090400000000002001030600000000 040000001402000000010500000000000204010300000000 -------------------------AMD7000Controller.kext------------------------- Ramen (6) @ 0xed750 LVDS, HDMI, DP, DP, DP, DP 020000000001000039050108000000002001050600000000 000800000402000000010200000000001000030500000000 000400000403000000010343000000001102010100000000 000400000001000000010431000000002103040300000000 000400000403000000010563000000001204020200000000 000400000001000000010651000000002205040300000000 Tako (6) @ 0xed850 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Namako (4) @ 0xed8e0 LVDS, LVDS, DP, DP 020000000001000000010151000000002205020200000000 020000000001000000010261010000001204010100000000 000400000403000000010343000000001102030300000000 000400000403000000010433000000002103040400000000 Aji (4) @ 0xed9a0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 Buri (4) @ 0xeda00 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Chutoro (5) @ 0xeda60 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Dashimaki (4) @ 0xedae0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010200000000002205030500000000 040000001402000000010301000000000000040400000000 000800000402000000010400000000001102010100000000 Ebi (5) @ 0xedb40 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090301000000002103020200000000 000400000001000000090401000000002205040400000000 000400000403000000010501000000001000050500000000 Gari (5) @ 0xedbc0 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Futomaki (4) @ 0xedc70 DP, DP, DDVI, HDMI 000400000403000000010101000000001204040100000000 000400000403000000010201000000002205050200000000 040000001402000000010300000000000000060600000000 000800000402000000010400000000001102010300000000 Hamachi (4) @ 0xedcd0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 OPM (6) @ 0xedd70 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001102010100000000 000400000403000000010001000000002103020200000000 000400000403000000010001000000001204030300000000 000400000403000000010001000000002205040400000000 000400000403000000010001000000001000050500000000 000400001403000000010001000000002001060600000000 Ikura (1) @ 0xede00 HDMI 000800000402000000010100000000001204030100000000 IkuraS (6) @ 0xede20 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 Junsai (6) @ 0xedeb0 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001204030100000000 000400000403000000010001000000002205040200000000 000400000403000000010001000000001102010300000000 000400000403000000010001000000002103020400000000 000400000403000000010001000000001000050500000000 000400000403000000010001000000002001060600000000 Kani (1) @ 0xedf40 HDMI 000800000402000000010100000000001204030100000000 KaniS (6) @ 0xedf60 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 DashimakiS (4) @ 0xedff0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010201000000002205030500000000 040000001402000000010300000000000000040400000000 000800000402000000010400000000001102010100000000 Maguro (1) @ 0xee050 HDMI 000800000402000000010100000000001204030100000000 MaguroS (6) @ 0xee070 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 -------------------------AMD8000Controller.kext------------------------- Exmoor (6) @ 0xf3f00 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Baladi (6) @ 0xf4090 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9000Controller.kext------------------------- Exmoor (6) @ 0x13e520 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 OPM (6) @ 0x13e5b0 DP, DP, DP, DP, DP, DP 000400000403000000000001000000001000010100000000 000400000403000000000001000000002001020200000000 000400000403000000000001000000001102030300000000 000400000403000000000001000000002103040400000000 000400000403000000000001000000001204050500000000 000400000403000000000001000000002205060600000000 MalteseS (1) @ 0x13e640 HDMI 000800000402000000010100000000001204030100000000 Lagotto (4) @ 0x13e660 DP, HDMI, DDVI, DDVI 000400000403000000010100000000001102040100000000 000800000402000000010200000000002103050300000000 040000000402000000010300000000000000010500000000 040000000402000000010400000000000204060600000000 GreyhoundS (1) @ 0x13e6c0 HDMI 000800000402000000010100000000001204030100000000 Maltese (6) @ 0x13e750 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Labrador (6) @ 0x13e800 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010131000000002103020400000000 020000000001000000010241010000001102010300000000 000400000403000000010323000000001000030100000000 000400000001000000010411000000002001050500000000 000400000403000000010563000000001204040200000000 000400000001000000010651000000002205050500000000 Basset (4) @ 0x13e890 LVDS, LVDS, DP, DP 020000000001000000010131000000002103020200000000 020000000001000000010241010000001102010100000000 000400000403000000010323000000001000030300000000 000400000403000000010413000000002001040400000000 Greyhound (6) @ 0x13e970 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Baladi (6) @ 0x13ea20 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9510Controller.kext------------------------- Exmoor (6) @ 0x106060 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Berbice (5) @ 0x1060f0 LVDS, DP, DP, DP, DP 020000000001000039050108000000002001010100000000 000400000001000000010243000000001000020200000000 000400000403000000010313000000002103030300000000 000400000403000000010453000000001102040400000000 000400000403000000010533000000001204050500000000 Baladi (6) @ 0x1062e0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 Link to comment Share on other sites More sharing options...
Slice Posted January 25, 2017 Share Posted January 25, 2017 Slice, you might wanna remove the RX 480 injection patch Clover is doing when using ATI injection True, there is no more Dayman FB for RX 480 this is from 10.12.4 beta btw. -------------------------AMD2400Controller.kext------------------------- Iago (2) @ 0x109df0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 -------------------------AMD2600Controller.kext------------------------- Hypoprion (2) @ 0x109dc0 LVDS, ???? 020000004000000019000000000000000001001200000000 0010000016000000c4000000000000001000011100000000 Lamna (2) @ 0x109df0 SDVI, DDVI 000200001400000080000000000000000001021100000000 040000001600000080000000000000000010011200000000 -------------------------AMD3800Controller.kext------------------------- Megalodon (3) @ 0x10ada0 SDVI, DDVI, SVIDEO 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 800000000200000004000000000000000010000000000000 Triakis (2) @ 0x10adf0 SDVI, DDVI 000200001400000000000000000000000001021100000000 040000001600000000000000000000000010011200000000 -------------------------AMD4600Controller.kext------------------------- Flicker (3) @ 0x107d20 DP, DP, SDVI 000400000004000000010000000000000201030500000000 000400000004000000010000000000000100020200000000 000200001402000000010000000000000010010400000000 Gliff (3) @ 0x107d70 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000406000000010000000000001000010100000000 Shrike (3) @ 0x107dc0 LVDS, LVDS, DP 020000004000000019010000000000000201000300000000 020000000001000019010000000000002001020200000000 000400000403000000010000000000001000010100000000 -------------------------AMD4800Controller.kext------------------------- Cardinal (2) @ 0x106d50 SDVI, DDVI 000200001402000000010000000000000101010400000000 040000001402000000010000000000000010020300000000 MotMot (2) @ 0x106d80 DP, DDVI 000400000401000000010000000000001000020300000000 040000001402000000010000000000000111010400000000 Quail (3) @ 0x106db0 LVDS, LVDS, DP 020000004000000019010000000000002201000700000000 020000000001000019010000000000002001030400000000 000400000403000000010000000000001000020300000000 -------------------------AMD5000Controller.kext------------------------- Douc (2) @ 0xc8630 LVDS, DP 020000000005000019030000000000002103020200000000 000400000402000000030000000000001102010100000000 Langur (3) @ 0xc8660 DP, DP, DDVI 000400000406000000010000000000002103040200000000 000400000406000000010000000000001102010100000000 040000001402000000010000000000000204050300000000 Uakari (4) @ 0xc86b0 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040100000000 040000001400000000710000000000000112010300000000 000200001400000000710000000000000000060500000000 000800000002000000710000000000002205050400000000 Zonalis (6) @ 0xc8710 DP, DP, DP, DP, DP, DP 000400000406000000710000000000002001060600000000 000400000406000000710000000000001000050500000000 000400000406000000710000000000002103020400000000 000400000406000000710000000000001102010300000000 000400000406000000710000000000002205040200000000 000400000406000000710000000000001204030100000000 Alouatta (4) @ 0xc87a0 LVDS, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000406000000710000000000001102010100000000 000400000406000000710000000000002103020200000000 000400000406000000710000000000002205040400000000 Hoolock (3) @ 0xc8800 DP, DP, DDVI 000400000406000000010000000000002103050100000000 000400000406000000010000000000001102040200000000 040000001402000000010000000000000204010300000000 Vervet (4) @ 0xc8850 DP, DDVI, SDVI, HDMI 000400000004000000710000000000001204040200000000 040000001400000000710000000000000112010400000000 000200001400000000710000000000000000060300000000 000800000002000000710000000000002205050100000000 Baboon (3) @ 0xc88b0 DDVI, HDMI, VGA 040000001400000000010000000000000102010300000000 000800000002000000710000000000002205020100000000 100000001000000000010000000000000010000200000000 Eulemur (3) @ 0xc8900 DDVI, HDMI, VGA 040000001400000000010000000000000102010400000000 000800000002000000710000000000001204040200000000 100000001000000000000000000000000010000100000000 Galago (2) @ 0xc8960 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Colobus (2) @ 0xc89a0 LVDS, DP 020000000001000019030000000000002103020200000000 000400000406000000730000000000001102010100000000 Mangabey (2) @ 0xc89e0 LVDS, DP 020000004000000019010000000000000000000300000000 000400000406000000730000000000001102010100000000 Nomascus (4) @ 0xc8a20 LVDS, LVDS, DP, DP 020000004000000019010000000000000000000500000000 020000000001000019030000000000001204030300000000 000400000406000000730000000000001102010100000000 000400000407000000730000000000002103020200000000 Orangutan (2) @ 0xc8a90 LVDS, DP 020000004000000019010000000000000000000500000000 000400000406000000730000000000001102010100000000 -------------------------AMD6000Controller.kext------------------------- Pithecia (2) @ 0xe7650 DP, DDVI 000400000403000000010000000000002103020400000000 040000001402000000010000000000000000040300000000 Bulrushes (6) @ 0xe7680 DP, DP, DP, DP, DP, DP 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 000400000403000000010000000000001204030300000000 000400000403000000010000000000002205040400000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000002001060600000000 Cattail (4) @ 0xe7710 LVDS, DP, DP, DP 020000004000000039050000000000000000000500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Hydrilla (5) @ 0xe7770 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205050400000000 000400000403000000010000000000001000040500000000 Duckweed (4) @ 0xe77f0 DP, DP, HDMI, SDVI 000400000403000000010000000000001204040100000000 000400000403000000010000000000002205050200000000 000800000402000000010000000000001102030400000000 000200001402000000010000000000000000060500000000 Fanwort (4) @ 0xe7850 LVDS, DP, DP, DP 020000004000000039050000000000000000000400000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000001204030300000000 Elodea (5) @ 0xe78b0 LVDS, DP, DP, DP, DP 020000000001000019010000000000001204030300000000 000400000403000000010000000000001000050500000000 000400000403000000010000000000001102010100000000 000400000001000000091000000000002103020200000000 000400000001000000091000000000002205040400000000 Kudzu (2) @ 0xe7930 DP, HDMI 000400000403000000010000000000001204030300000000 000800000402000000010000000000001102010100000000 Gibba (5) @ 0xe7960 DP, DP, HDMI, SDVI, DDVI 000400000403000000010000000000001204050100000000 000400000403000000010000000000002205040200000000 000800000402000000010000000000001102060400000000 000200001402000000010000000000000000030500000000 040000000402000000010000000000001102010300000000 Lotus (3) @ 0xe79e0 DP, HDMI, DP 000400000403000000010000000000001102010100000000 000800000402000000010000000000002205040400000000 000400000001000000010000000000002103020200000000 Ipomoea (3) @ 0xe7a30 DP, HDMI, VGA 000400000403000000010000000000001204010500000000 000800000402000000010000000000001102040300000000 100000001000000000010000000000000000000200000000 Muskgrass (4) @ 0xe7a80 DP, DP, DP, HDMI 000400000403000000010100000000001102010100000000 000400000001000000091200000000002103020200000000 000400000001000000091300000000002205040400000000 000800000402000000010400000000001204030300000000 Juncus (4) @ 0xe7ae0 DP, DP, DP, DP 000400000403000000010000000000001204030300000000 000400000403000000010000000000001000040500000000 000400000403000000010000000000001102010100000000 000400000403000000010000000000002103020200000000 Osmunda (4) @ 0xe7b40 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Pondweed (3) @ 0xe7ba0 LVDS, DP, DP 020000000001000019010100000000001000050500000000 000400000403000000010200000000001102010100000000 000400000403000000010300000000002103020200000000 Spikerush (4) @ 0xe7bf0 LVDS, DP, DP, DP 020000004000000039050100000000000000000500000000 000400000403000000010200000000001102010100000000 000400000001000000090200000000002103020200000000 000400000001000000090300000000001204030300000000 Typha (5) @ 0xe7c50 DP, DP, DP, DP, DDVI 000400000403000000010100000000001102040100000000 000400000403000000010200000000002103050200000000 000400000001000000090300000000001000020500000000 000400000001000000090400000000002001030600000000 040000001402000000010500000000000204010300000000 -------------------------AMD7000Controller.kext------------------------- Ramen (6) @ 0xed750 LVDS, HDMI, DP, DP, DP, DP 020000000001000039050108000000002001050600000000 000800000402000000010200000000001000030500000000 000400000403000000010343000000001102010100000000 000400000001000000010431000000002103040300000000 000400000403000000010563000000001204020200000000 000400000001000000010651000000002205040300000000 Tako (6) @ 0xed850 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Namako (4) @ 0xed8e0 LVDS, LVDS, DP, DP 020000000001000000010151000000002205020200000000 020000000001000000010261010000001204010100000000 000400000403000000010343000000001102030300000000 000400000403000000010433000000002103040400000000 Aji (4) @ 0xed9a0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 Buri (4) @ 0xeda00 LVDS, DP, DP, HDMI 020000000001000039050100000000001000050500000000 000400000403000000090200000000001102010100000000 000400000403000000090300000000002103020200000000 000800000402000000010400000000001204030300000000 Chutoro (5) @ 0xeda60 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Dashimaki (4) @ 0xedae0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010200000000002205030500000000 040000001402000000010301000000000000040400000000 000800000402000000010400000000001102010100000000 Ebi (5) @ 0xedb40 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090301000000002103020200000000 000400000001000000090401000000002205040400000000 000400000403000000010501000000001000050500000000 Gari (5) @ 0xedbc0 LVDS, DP, DP, DP, DP 020000000001000019010100000000001204030300000000 000400000403000000010201000000001102010100000000 000400000001000000090300000000002103020200000000 000400000001000000090400000000002205040400000000 000400000403000000010500000000001000050500000000 Futomaki (4) @ 0xedc70 DP, DP, DDVI, HDMI 000400000403000000010101000000001204040100000000 000400000403000000010201000000002205050200000000 040000001402000000010300000000000000060600000000 000800000402000000010400000000001102010300000000 Hamachi (4) @ 0xedcd0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204050100000000 000400000403000000010201000000002205040200000000 040000001402000000010300000000000000030600000000 000800000402000000010400000000001102010400000000 OPM (6) @ 0xedd70 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001102010100000000 000400000403000000010001000000002103020200000000 000400000403000000010001000000001204030300000000 000400000403000000010001000000002205040400000000 000400000403000000010001000000001000050500000000 000400001403000000010001000000002001060600000000 Ikura (1) @ 0xede00 HDMI 000800000402000000010100000000001204030100000000 IkuraS (6) @ 0xede20 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 Junsai (6) @ 0xedeb0 DP, DP, DP, DP, DP, DP 000400000403000000010001000000001204030100000000 000400000403000000010001000000002205040200000000 000400000403000000010001000000001102010300000000 000400000403000000010001000000002103020400000000 000400000403000000010001000000001000050500000000 000400000403000000010001000000002001060600000000 Kani (1) @ 0xedf40 HDMI 000800000402000000010100000000001204030100000000 KaniS (6) @ 0xedf60 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 DashimakiS (4) @ 0xedff0 DP, DP, DDVI, HDMI 000400000403000000010101000000001204020200000000 000400000403000000010201000000002205030500000000 040000001402000000010300000000000000040400000000 000800000402000000010400000000001102010100000000 Maguro (1) @ 0xee050 HDMI 000800000402000000010100000000001204030100000000 MaguroS (6) @ 0xee070 DP, DP, DP, DP, DP, DP 000400000403000000010143000000001102010300000000 000400000403000000010233000000002103020400000000 000400000403000000010363000000001204030100000000 000400000403000000010453000000002205040200000000 000400000403000000010523000000001000050500000000 000400000403000000010613000000002001060600000000 -------------------------AMD8000Controller.kext------------------------- Exmoor (6) @ 0xf3f00 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Baladi (6) @ 0xf4090 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9000Controller.kext------------------------- Exmoor (6) @ 0x13e520 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 OPM (6) @ 0x13e5b0 DP, DP, DP, DP, DP, DP 000400000403000000000001000000001000010100000000 000400000403000000000001000000002001020200000000 000400000403000000000001000000001102030300000000 000400000403000000000001000000002103040400000000 000400000403000000000001000000001204050500000000 000400000403000000000001000000002205060600000000 MalteseS (1) @ 0x13e640 HDMI 000800000402000000010100000000001204030100000000 Lagotto (4) @ 0x13e660 DP, HDMI, DDVI, DDVI 000400000403000000010100000000001102040100000000 000800000402000000010200000000002103050300000000 040000000402000000010300000000000000010500000000 040000000402000000010400000000000204060600000000 GreyhoundS (1) @ 0x13e6c0 HDMI 000800000402000000010100000000001204030100000000 Maltese (6) @ 0x13e750 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Labrador (6) @ 0x13e800 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010131000000002103020400000000 020000000001000000010241010000001102010300000000 000400000403000000010323000000001000030100000000 000400000001000000010411000000002001050500000000 000400000403000000010563000000001204040200000000 000400000001000000010651000000002205050500000000 Basset (4) @ 0x13e890 LVDS, LVDS, DP, DP 020000000001000000010131000000002103020200000000 020000000001000000010241010000001102010100000000 000400000403000000010323000000001000030300000000 000400000403000000010413000000002001040400000000 Greyhound (6) @ 0x13e970 DP, DP, DP, DP, DP, DP 000400000403000000010123000000001000010300000000 000400000403000000010213000000002001020400000000 000400000403000000010343000000001102030100000000 000400000403000000010433000000002103040200000000 000400000403000000010563000000001204050500000000 000400000403000000010653000000002205060600000000 Baladi (6) @ 0x13ea20 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 -------------------------AMD9510Controller.kext------------------------- Exmoor (6) @ 0x106060 LVDS, LVDS, DP, DP, DP, DP 020000000001000000010151000000002205020400000000 020000000001000000010261010000001204010300000000 000400000403000000010343000000001102030100000000 000400000001000000010431000000002103050500000000 000400000403000000010523000000001000040200000000 000400000001000000010611000000002001050500000000 Berbice (5) @ 0x1060f0 LVDS, DP, DP, DP, DP 020000000001000039050108000000002001010100000000 000400000001000000010243000000001000020200000000 000400000403000000010313000000002103030300000000 000400000403000000010453000000001102040400000000 000400000403000000010533000000001204050500000000 Baladi (6) @ 0x1062e0 DP, DP, DP, DP, DP, DP 000400000403000000010300000000001204030300000000 000400000403000000010100000000001102010100000000 000400000403000000010200000000002103020200000000 000400000403000000010400000000002205040400000000 000400000403000000010500000000001000050500000000 000400000403000000010600000000002001060600000000 So Baladi? Link to comment Share on other sites More sharing options...
Pavo Posted January 25, 2017 Share Posted January 25, 2017 So Baladi? Doesn't look like RX 480 is supported at all, once I get back home Friday will get you more info. Link to comment Share on other sites More sharing options...
metacollin Posted January 25, 2017 Share Posted January 25, 2017 RX480 on 2008 Mac Pro, sleep working: RX480 on hackintosh, sleep not working: ATY_GPU offset 0x0000-0x0200 ATY_GPU offset 0x0000-0x0200 0x0000: C0500198 FFC9BC30 00000001 00000000 00000000 00000000 00000003 00000000 0x0000: C0500198 1C2DE4BB 00000001 00000000 00000000 00000000 00000003 00000000 0x0020: 00000000 00000000 00000000 00000000 100100BB 00000010 100100A2 5A8814E6 0x0020: 00000000 00000000 00000000 00000000 100100BB 00000014 100100A2 5A9816E6 0x0040: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0040: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0060: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0060: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0080: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0080: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00A0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00A0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x00E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0100: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0100: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0120: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0120: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0140: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0140: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0160: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0160: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0180: 00000100 00000000 FFFFFFFF 00000000 00000000 00000002 0000000B 00000000 0x0180: 00000100 00000000 FFFFFFFF 00000000 00000000 00000002 0000000B 00000000 0x01A0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01A0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01C0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x01E0: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x0200: E00030A4 0003001E C010010C 9C6A81C0 00000000 AAAA5555 C030000C 08005E60 0x0200: E00030A4 0003001E C010010C AF6F85BE 00000000 AAAA5555 C030000C 08005E60 ====================================================================================================================================================================== RX480 on 2008 Mac Pro, sleep working: RX480 on hackintosh, sleep not working: ATY_GPU offset 0x1700-0x1750 ATY_GPU offset 0x1700-0x1750 0x1700: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x1700: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x1720: 00000000 00810000 00000000 00000000 00000000 00000000 00000008 00001000 0x1720: 00000000 00000000 00000000 00000000 00000000 00000000 00000000 00000000 0x1740: 00000200 00000000 00000000 0000ECD7 00000000 00000000 00000000 00000000 0x1740: 00000200 00000000 00000000 00000000 00000000 00000000 00000000 00000000 ====================================================================================================================================================================== RX480 on 2008 Mac Pro, sleep working: RX480 on hackintosh, sleep not working: ATY_GPU offset 0x5400-0x5450 ATY_GPU offset 0x5400-0x5450 0x5400: 00000000 00000001 00000000 00000000 00000000 0000001A 00000002 00000006 0x5400: 00000000 00000001 00000000 00000000 00000000 0000001A 00000002 00000006 0x5420: 00000000 00000000 00002000 80000000 00000100 00040000 00000000 00000000 0x5420: 00000000 00000000 00002000 C0000000 00000100 00040000 00000000 00000000 0x5440: 00000000 00000000 00000000 00000000 00018003 00000000 00040040 4010E110 0x5440: 00000000 00000000 00000000 00000000 00018003 00000000 00040040 4010E110 And here is a visual diff for your convenience: https://www.diffchecker.com/8XjpxBUb 1 Link to comment Share on other sites More sharing options...
Slice Posted January 26, 2017 Share Posted January 26, 2017 Noticeable difference is #define R600_BIOS_0_SCRATCH 0x1724 00810000 vs 00000000 should be set during POST initialisation and may be used by drivers. It will be nice to find this address in drivers codes. 2 Link to comment Share on other sites More sharing options...
jalavoui Posted March 14, 2017 Share Posted March 14, 2017 did u guys check on clover log if it is using the correct region5 as MMIO space ? i'm testing with clover rev 4035 and it always use region2 on a bonaire family card . if (rdev->family >= CHIP_BONAIRE) { rdev->rmmio_rid = PCIR_BAR(5); } else { rdev->rmmio_rid = PCIR_BAR(2); } The RadeonPCI.kext is a great tool - both versions works - tks to Slice. i believe the card init issue might be fixed by looking at the driver memory mapping - i'm working on it atm but not for this card. 1 Link to comment Share on other sites More sharing options...
