junaed.rx Posted October 4, 2019 Share Posted October 4, 2019 2 hours ago, nijhawank said: @nostu It seems there are few T460 for which brightness is an issue. I also have this issue with my T460 that on fresh boot brightness works (can reduce and increase) but not all brightness levels are present (screen turns off at around or below 60%). However, after a sleep and wakeup cycle, all brightness levels work. Hello Guys, I want to ask a question, because I am also victim of this brightness problem and my laptop has 1080p LGD touch panel. so are you guys having problem with touch panel or normal panel? Link to comment Share on other sites More sharing options...
nijhawank Posted October 5, 2019 Share Posted October 5, 2019 (edited) 4 hours ago, junaed.rx said: Hello Guys, I want to ask a question, because I am also victim of this brightness problem and my laptop has 1080p LGD touch panel. so are you guys having problem with touch panel or normal panel? Mine is also a full-hd touch panel and I have this brightness problem Edited October 5, 2019 by nijhawank Link to comment Share on other sites More sharing options...
junaed.rx Posted October 5, 2019 Share Posted October 5, 2019 3 hours ago, nijhawank said: Mine is also a full-hd touch panel and I have this brightness problem Tough I don't have the expertise to solve this problem, I think the problem is only occurring with touch panel laptops. @tluck can you help with this touch panel related problem. thanks in advance. Link to comment Share on other sites More sharing options...
Mat Posted October 5, 2019 Share Posted October 5, 2019 17 hours ago, nijhawank said: @nostu It seems there are few T460 for which brightness is an issue. I also have this issue with my T460 that on fresh boot brightness works (can reduce and increase) but not all brightness levels are present (screen turns off at around or below 60%). However, after a sleep and wakeup cycle, all brightness levels work. For trackpad, please use the acidanthera's version of voodoops2, it is much more smooth, however the physical trackpad buttons don't work but I guess (based on some recent commits) he's working on it. @Mat I believe the non-working bluetooth after sleep are resolved with the @kolodzieski version of brcm Thanks. One more question : to add in the tluck's release the latest Clover package, I thought that I only needed to update it in the Utilities folder. But in fact it's not the case. How do you do ? Link to comment Share on other sites More sharing options...
nijhawank Posted October 5, 2019 Share Posted October 5, 2019 (edited) 1 hour ago, Mat said: Thanks. One more question : to add in the tluck's release the latest Clover package, I thought that I only needed to update it in the Utilities folder. But in fact it's not the case. How do you do ? You should put all the third party kexts (including this brcm) under /Library/Extensions and rebuild the kext cache or you can install it with hackintool that will do the job for you Find this on google and follow the first result “install third party kexts hackintosh” Edited October 5, 2019 by nijhawank Link to comment Share on other sites More sharing options...
nostu Posted October 6, 2019 Share Posted October 6, 2019 (edited) On 10/4/2019 at 10:41 PM, nijhawank said: @nostu It seems there are few T460 for which brightness is an issue. I also have this issue with my T460 that on fresh boot brightness works (can reduce and increase) but not all brightness levels are present (screen turns off at around or below 60%). However, after a sleep and wakeup cycle, all brightness levels work. For trackpad, please use the acidanthera's version of voodoops2, it is much more smooth, however the physical trackpad buttons don't work but I guess (based on some recent commits) he's working on it. @Mat I believe the non-working bluetooth after sleep are resolved with the @kolodzieski version of brcm Thanks I reinstalled everything again with acidanthera's version of VoodooPS2Controller and indeed the gestures works, I also updated WhatEverGreen to version 1.3.2. But now I get the below panic error, any of you guy know what went wrong here :p Anonymous UUID: 23B51CAE-056F-7393-167C-13C5F3109B1C Sun Oct 6 15:47:49 2019 *** Panic Report *** panic(cpu 2 caller 0xffffff7f92795aa3): assertmsg@/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.10.12/Common/IONDRV/Intel/SKL/AppleIntelFramebuffer/AppleIntelController.cpp:26815 Backtrace (CPU 2), Frame : Return Address 0xffffff91fd54ba90 : 0xffffff80105ae6ed 0xffffff91fd54bae0 : 0xffffff80106ea185 0xffffff91fd54bb20 : 0xffffff80106db8ba 0xffffff91fd54bb90 : 0xffffff801055bb40 0xffffff91fd54bbb0 : 0xffffff80105ae107 0xffffff91fd54bcd0 : 0xffffff80105adf53 0xffffff91fd54bd40 : 0xffffff7f92795aa3 0xffffff91fd54bdb0 : 0xffffff7f927929bc 0xffffff91fd54be40 : 0xffffff8010c300bb 0xffffff91fd54be80 : 0xffffff8010c2fd75 0xffffff91fd54bf00 : 0xffffff8010c2f337 0xffffff91fd54bf50 : 0xffffff8010c30e26 0xffffff91fd54bfa0 : 0xffffff801055b0ce Kernel Extensions in backtrace: com.apple.driver.AppleIntelSKLGraphicsFramebuffer(12.1)[8D86F4D4-52FD-36D4-80C0-9DB02125513E]@0xffffff7f9276a000->0xffffff7f9296efff dependency: com.apple.iokit.IOPCIFamily(2.9)[BFDEB8D4-50FE-3DDB-87B7-F6A504393830]@0xffffff7f90e95000 dependency: com.apple.iokit.IOACPIFamily(1.4)[3E8E9870-2E41-33F6-ACBF-35DDC08F22B5]@0xffffff7f90f11000 dependency: com.apple.iokit.IOAcceleratorFamily2(404.14)[618B24B5-1387-31FD-A7F7-53283E2C3FEA]@0xffffff7f926b3000 dependency: com.apple.iokit.IOReportFamily(47)[0BC9F93B-456A-3D97-BE4C-69DCBB5E8A3C]@0xffffff7f91a1f000 dependency: com.apple.AppleGraphicsDeviceControl(3.50.12)[5334847D-B612-3E8C-88A3-C2A5853675CD]@0xffffff7f91992000 dependency: com.apple.iokit.IOGraphicsFamily(530.66)[373EAB85-2C5F-3B84-B86D-421F79C47DF2]@0xffffff7f9164b000 BSD process name corresponding to current thread: kernel_task Boot args: dart=0 Mac OS version: 18G103 Kernel version: Darwin Kernel Version 18.7.0: Tue Aug 20 16:57:14 PDT 2019; root:xnu-4903.271.2~2/RELEASE_X86_64 Kernel UUID: C41337A1-0EC3-3896-A954-A1F85E849D53 Kernel slide: 0x0000000010200000 Kernel text base: 0xffffff8010400000 __HIB text base: 0xffffff8010300000 System model name: iMac14,2 (Mac-27ADBB7B4CEE8E61) System uptime in nanoseconds: 3531839554 last loaded kext at 3531076707: com.apple.iokit.IOBluetoothFamily 6.0.14d3 (addr 0xffffff7f9328f000, size 1019904) loaded kexts: org.netkas.driver.FakeSMC 1800 com.apple.driver.pmtelemetry 1 com.apple.driver.AppleIntelSKLGraphics 12.1.0 com.apple.driver.AppleIntelPCHPMC 2.0.1 com.apple.Dont_Steal_Mac_OS_X 7.0.0 com.apple.driver.eficheck 1 com.apple.driver.AppleOSXWatchdog 1 com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0 com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0 com.apple.driver.AppleIntelSKLGraphicsFramebuffer 12.1.0 com.apple.driver.AppleFIVRDriver 4.1.0 com.apple.filesystems.apfs 945.275.7 com.apple.driver.AppleFileSystemDriver 3.0.1 com.apple.driver.AppleVirtIO 2.1.3 com.apple.filesystems.hfs.kext 407.200.4 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1 com.apple.BootCache 40 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0 com.apple.AppleSystemPolicy 1.0 com.apple.driver.AppleAHCIPort 329.260.5 com.apple.private.KextAudit 1.0 com.apple.driver.AppleRTC 2.0 com.apple.driver.AppleHPET 1.8 com.apple.driver.AppleACPIButtons 6.1 com.apple.driver.AppleSMBIOS 2.1 com.apple.driver.AppleACPIEC 6.1 com.apple.driver.AppleAPIC 1.7 com.apple.nke.applicationfirewall 201 com.apple.security.TMSafetyNet 8 com.apple.iokit.IOBluetoothFamily 6.0.14d3 com.apple.AppleGPUWrangler 3.50.12 com.apple.iokit.IONDRVSupport 530.51 com.apple.driver.AppleHDAController 282.54 com.apple.iokit.IOHDAFamily 282.54 com.apple.iokit.IOAudioFamily 206.5 com.apple.vecLib.kext 1.2.0 com.apple.driver.IOPlatformPluginLegacy 1.0.0 com.apple.driver.IOPlatformPluginFamily 6.0.0d8 com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0 com.apple.driver.AppleSMBusPCI 1.0.14d1 com.apple.AppleGraphicsDeviceControl 3.50.12 com.apple.iokit.IOAcceleratorFamily2 404.14 com.apple.iokit.IOGraphicsFamily 530.66 com.apple.iokit.IOSurface 255.6.1 com.apple.driver.AppleXsanScheme 3 com.apple.iokit.IOSerialFamily 11 com.apple.filesystems.hfs.encodings.kext 1 com.apple.iokit.IOAHCIBlockStorage 301.270.1 com.apple.driver.AppleIntelLpssGspi 3.0.60 com.apple.iokit.IOAHCIFamily 288 com.apple.driver.usb.AppleUSBXHCIPCI 1.2 com.apple.driver.usb.AppleUSBXHCI 1.2 com.apple.driver.usb.AppleUSBHostPacketFilter 1.0 com.apple.iokit.IOUSBFamily 900.4.2 com.apple.driver.AppleEFINVRAM 2.1 com.apple.driver.AppleEFIRuntime 2.1 com.apple.driver.AppleUSBHostMergeProperties 1.2 com.apple.iokit.IOSMBusFamily 1.1 com.apple.iokit.IOHIDFamily 2.0.0 com.apple.security.quarantine 3 com.apple.security.sandbox 300.0 com.apple.kext.AppleMatch 1.0.0d1 com.apple.driver.DiskImages 493.0.0 com.apple.driver.AppleFDEKeyStore 28.30 com.apple.driver.AppleEffaceableStorage 1.0 com.apple.driver.AppleKeyStore 2 com.apple.driver.AppleUSBTDM 456.260.3 com.apple.driver.AppleMobileFileIntegrity 1.0.5 com.apple.iokit.IOUSBMassStorageDriver 145.200.2 com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3 com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3 com.apple.iokit.IOStorageFamily 2.1 com.apple.kext.CoreTrust 1 com.apple.driver.AppleCredentialManager 1.0 com.apple.driver.KernelRelayHost 1 com.apple.iokit.IOUSBHostFamily 1.2 com.apple.driver.usb.AppleUSBCommon 1.0 com.apple.driver.AppleBusPowerController 1.0 com.apple.driver.AppleSEPManager 1.0.1 com.apple.driver.IOSlaveProcessor 1 com.apple.iokit.IOReportFamily 47 com.apple.iokit.IOTimeSyncFamily 740.2 com.apple.iokit.IONetworkingFamily 3.4 com.apple.driver.AppleACPIPlatform 6.1 com.apple.driver.AppleSMC 3.1.9 com.apple.iokit.IOPCIFamily 2.9 com.apple.iokit.IOACPIFamily 1.4 com.apple.kec.pthread 1 com.apple.kec.Libm 1 com.apple.kec.corecrypto 1.0 EOF Model: MacBookPro13,1, BootROM 236.0.0.0.0, 2 processors, Intel Core i5, 2,50 GHz, 16 GB, SMC 2.36f97 Graphics: Intel HD Graphics 520, Intel HD Graphics 520, spdisplays_builtin Memory Module: BANK 0/DIMM0, 8 GB, DDR3, 1600 MHz, Ramaxel Technology, RMT3160MP68FAF1600A Memory Module: BANK 0/DIMM1, 8 GB, DDR3, 1600 MHz, Ramaxel Technology, RMT3160MP68FAF1600A Bluetooth: Version 6.0.14d3, 3 services, 19 devices, 1 incoming serial ports PCI Card: Realtek ALC293 HD Audio, Audio Controller, Built in Serial ATA Device: SAMSUNG MZ7TY256HDHP-000L7, 256,06 GB USB Device: USB 3.0 Bus USB Device: Integrated Camera USB Device: Vendor-Specific Device USB Device: LGD AIT Touch Controller USB Device: Bluetooth HCI Thunderbolt Bus: And for the brightness after closing and opening the lid, i have the all brightness levels. thank you. Edited October 6, 2019 by nostu Link to comment Share on other sites More sharing options...
lisnake Posted October 7, 2019 Share Posted October 7, 2019 Just updated my secondary laptop to Catalina, everything seems to be working fine. Bluetooth seems to be janky, but it was the same on Mojave for me I have T470 with i5 6300u, same as @kolodzieski has. Link to comment Share on other sites More sharing options...
kolodzieski Posted October 9, 2019 Share Posted October 9, 2019 On 10/7/2019 at 7:30 PM, lisnake said: Just updated my secondary laptop to Catalina, everything seems to be working fine. Bluetooth seems to be janky, but it was the same on Mojave for me I have T470 with i5 6300u, same as @kolodzieski has. I also updated my t470 to Catalina. All was working except for Bluetooth. I switch to acidanthera's brcm repo, and got bluetooth working OK. I had to use brcmpatchram2, brcmfirmwarerepo, and brcmbluetoothinjector. I just dumped these in /Library/Extensions, and BT works; no parameters required. Seems to have survived a couple of sleep/wake cycles, but will keep everyone posted as to the long term stability. Link to comment Share on other sites More sharing options...
Mat Posted October 12, 2019 Share Posted October 12, 2019 On 10/1/2019 at 11:40 PM, carlinyos said: The new ps2 kext is quite smooth. @tluck how hard would it be to have that code put back in? Myself (and I'm sure others) might like that feature. Hello @tluck : yes can you tell us how hard it would be ? Thanks Link to comment Share on other sites More sharing options...
pure.wisdom Posted October 14, 2019 Share Posted October 14, 2019 On 10/9/2019 at 5:08 AM, kolodzieski said: I also updated my t470 to Catalina. All was working except for Bluetooth. I switch to acidanthera's brcm repo, and got bluetooth working OK. I had to use brcmpatchram2, brcmfirmwarerepo, and brcmbluetoothinjector. I just dumped these in /Library/Extensions, and BT works; no parameters required. Seems to have survived a couple of sleep/wake cycles, but will keep everyone posted as to the long term stability. We don't need to use brcmpatchram2 Link to comment Share on other sites More sharing options...

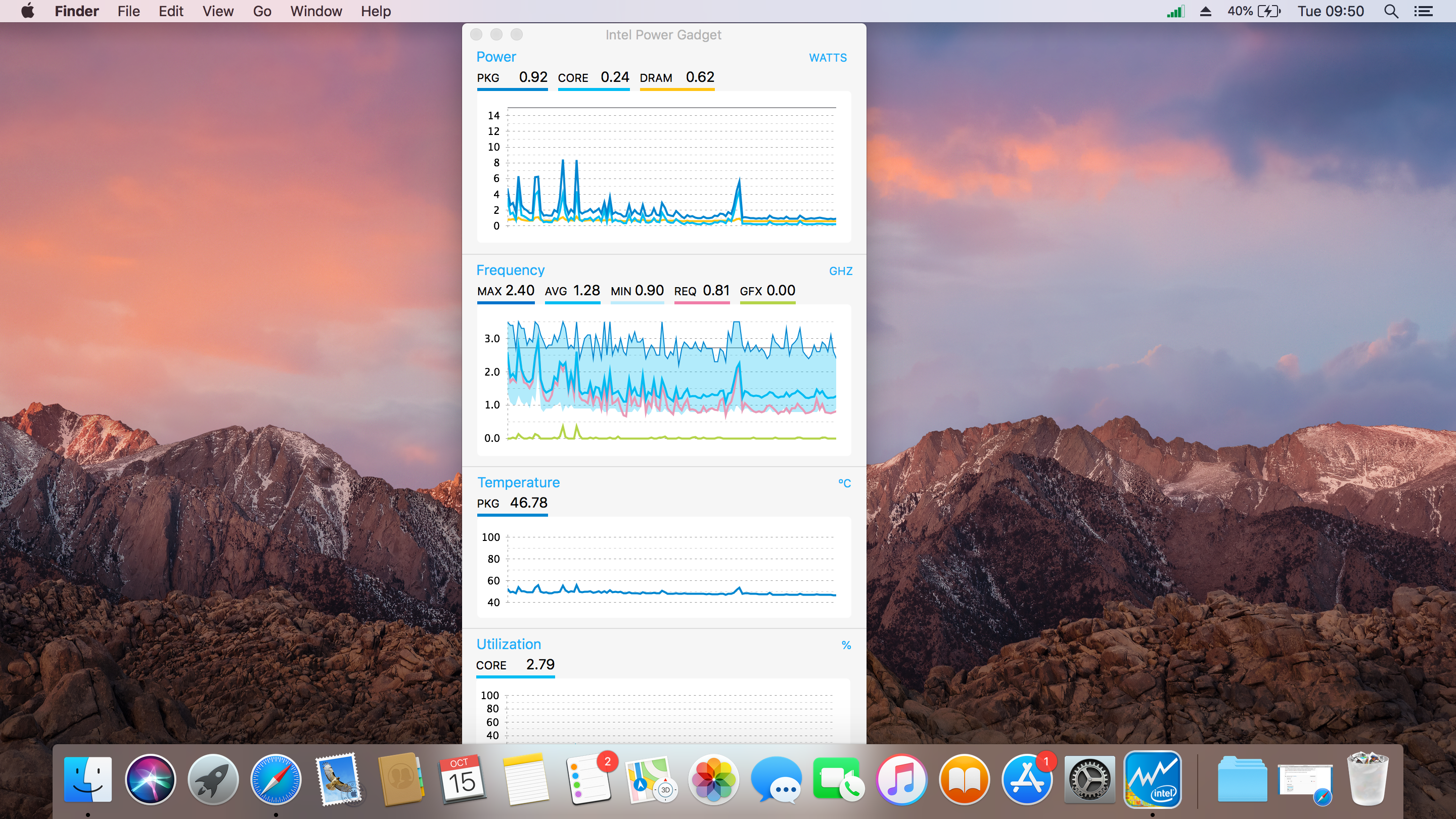

wriggles Posted October 15, 2019 Share Posted October 15, 2019 Hi all, I've got my T470 (i5 7300U, HD 620, 16GB, NVMe SSD, 1080P touchscreen) more or less working using truck's scripts plus the T470-specific files in his repository to patch my DSDT. However, a few things are still eluding me. - It seems I have not set up the display panel correctly: I have no brightness slider, and the keyboard brightness keys also do not work. The output of ioreg -x -p IOService -n PNLF -r and ioreg -x -p IOService -n AppleIntelPanelA -r are empty. - The touch screen also does not work, although it did work when I was installing OSX using an incorrect ig-platform-id (0x12345678). - Power management seems to be enabled but I'm not certain it is optimised: my 3+3 cell battery lasts no more than a couple of hours. I'm attaching a screenshot from Intel Power Gadget where the computer is basically idle. Does this look right? - Using truck's VoodooPS2 kext, the trackpoint is very jerky although other features work well. Using more recent versions from Rehabman, the middle button when used to scroll in a web browser, for example, will open tens of new tabs. Grateful for your help with the above, especially with the brightness and display panel setup. Matt EFI.zip Link to comment Share on other sites More sharing options...
Styxie Posted October 16, 2019 Share Posted October 16, 2019 Just pitching in with my freshly installed Catalina 10.15.0 T460: I got Wifi on a Dell DW1560 working with tlucks three kexts and the new AirportBrcmFixup.kext. Also, the SD card reader works with Sineteks kext (both attached to this post) Sinetek-rtsx.kext.zip Wifi and BTW DW1560 T460.zip 3 Link to comment Share on other sites More sharing options...
adaml75 Posted October 17, 2019 Share Posted October 17, 2019 Can anybody post his/her whole EFI which works with Catalina? It would be great help. @Styxie? Link to comment Share on other sites More sharing options...
Styxie Posted October 17, 2019 Share Posted October 17, 2019 Here you go! This is my non-touch FHD 16GB 256GB i5-6300u T460 on Catalina 10.15.0 with my own patched DSDT and SSDTs according to the scripts by tluck. No luck on getting HiDPI to work, as it doesn't work after waking from sleep, but this is something I hope get fixed as more people move to Catalina. 20191017 T460.zip 3 Link to comment Share on other sites More sharing options...
nijhawank Posted October 18, 2019 Share Posted October 18, 2019 It seems that AptioMemoryFix is not maintained and deprecated now. The new replacement EFI driver is OpenCore only. So the option with clover is to either use the last AptioMemoryFix released or I found a project https://github.com/ReddestDream/OcQuirks that aims to port the new driver for Clover. We are seeing a number of updates from Acidanthera for the various Hackintosh related stuff. Would it make sense to switch to OpenCore? Has any one tried converting the configuration from here to OpenCore? Link to comment Share on other sites More sharing options...
Styxie Posted October 18, 2019 Share Posted October 18, 2019 I would love to switch to OpenCore, it seems that that's the way going forward. Maybe like years ago when everyone used Chameleon and Clover was the new kid on the block, I think the same is happening now with OpenCore. Link to comment Share on other sites More sharing options...
adaml75 Posted October 18, 2019 Share Posted October 18, 2019 17 hours ago, Styxie said: Here you go! This is my non-touch FHD 16GB 256GB i5-6300u T460 on Catalina 10.15.0 with my own patched DSDT and SSDTs according to the scripts by tluck. No luck on getting HiDPI to work, as it doesn't work after waking from sleep, but this is something I hope get fixed as more people move to Catalina. 20191017 T460.zip Thank you! I'm still on High Sierra, HiDPI works nicely (although I have to switch it on after every restart). Link to comment Share on other sites More sharing options...
junaed.rx Posted October 21, 2019 Share Posted October 21, 2019 X86platformplugininject Not loading on catalina. Anyone know how can I fix this. Getting very bad p states Spoiler P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 18 (24) 28 ] iGPU P-States [ (6) ] CPU C3-Cores [ 1 2 3 ] CPU C7-Cores [ 0 1 2 3 ] CPU P-States [ 18 20 24 (27) 28 ] iGPU P-States [ (6) ] CPU C3-Cores [ 0 1 2 3 ] CPU P-States [ 18 20 24 (26) 27 28 ] iGPU P-States [ (6) ] CPU P-States [ 18 20 24 (25) 26 27 28 ] iGPU P-States [ (6) ] CPU P-States [ 18 20 24 (25) 26 27 28 ] iGPU P-States [ 6 ] CPU P-States [ 18 20 (23) 24 25 26 27 28 ] iGPU P-States [ 6 ] CPU P-States [ (13) 18 20 23 24 25 26 27 28 ] iGPU P-States [ 6 ] Link to comment Share on other sites More sharing options...
nijhawank Posted October 22, 2019 Share Posted October 22, 2019 On 10/21/2019 at 9:41 AM, junaed.rx said: X86platformplugininject Not loading on catalina. Anyone know how can I fix this. Getting very bad p states Reveal hidden contents P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 18 (24) 28 ] iGPU P-States [ (6) ] CPU C3-Cores [ 1 2 3 ] CPU C7-Cores [ 0 1 2 3 ] CPU P-States [ 18 20 24 (27) 28 ] iGPU P-States [ (6) ] CPU C3-Cores [ 0 1 2 3 ] CPU P-States [ 18 20 24 (26) 27 28 ] iGPU P-States [ (6) ] CPU P-States [ 18 20 24 (25) 26 27 28 ] iGPU P-States [ (6) ] CPU P-States [ 18 20 24 (25) 26 27 28 ] iGPU P-States [ 6 ] CPU P-States [ 18 20 (23) 24 25 26 27 28 ] iGPU P-States [ 6 ] CPU P-States [ (13) 18 20 23 24 25 26 27 28 ] iGPU P-States [ 6 ] i haven’t checked x86platformplugininject on Catalina but so can’t comment if it’s a general problem or something with your setup but try this https://olarila.com/forum/viewtopic.php?p=71532#p71532 This is basically doing the same thing in a newer way which is cpufriend. Link to comment Share on other sites More sharing options...
junaed.rx Posted October 22, 2019 Share Posted October 22, 2019 5 hours ago, nijhawank said: i haven’t checked x86platformplugininject on Catalina but so can’t comment if it’s a general problem or something with your setup but try this https://olarila.com/forum/viewtopic.php?p=71532#p71532 This is basically doing the same thing in a newer way which is cpufriend. Thanks for the suggestion, but I already tried that method with a new problem. I get restart from wake from sleep. So I am trying to revert back to the old solution. Link to comment Share on other sites More sharing options...
nijhawank Posted October 22, 2019 Share Posted October 22, 2019 (edited) 7 minutes ago, junaed.rx said: Thanks for the suggestion, but I already tried that method with a new problem. I get restart from wake from sleep. So I am trying to revert back to the old solution. Can you tell me the command that you used to print p/c states in your problem description above. I will check what does it say on my Hackintosh (which is still on 10.14.3). Edited October 22, 2019 by nijhawank Link to comment Share on other sites More sharing options...
junaed.rx Posted October 22, 2019 Share Posted October 22, 2019 1 minute ago, nijhawank said: Can you tell me the command that you used to print p/c states in your problem description above. I will check what does it say on my Hackintosh. I used hackintool >> tools >> get appleintelinfo (which loads piker's appleintelinfo kext to get p states). Also "sudo kextstat | grep -y plugininject" doesn't show the plugin loded. Also I can see on ioreg that on frequency vector default value is loaded not injected value from tlucks x86platformplugininject. Link to comment Share on other sites More sharing options...
Styxie Posted October 23, 2019 Share Posted October 23, 2019 I'm getting these P and C states (see below). I was getting similar states as @junaed.rx when I had X86PlatformPluginInjector only in Clover/kexts/other. I transferred X86PlatformPluginInjector.kext to /Library/Extensions by using Hackintool and by compiling my own DSDT and SSDTs by using the script that tluck thankfully included (see first post). ssdtPrgen by PikerAlpha is not needed to achieve these states. CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency...... : 4 ( 400 MHz) Maximum non-Turbo Ratio/Frequency....... : 25 (2500 MHz) Maximum Turbo Ratio/Frequency........... : 30 (3000 MHz) IGPU Info: ------------------------------------------ IGPU Current Frequency.................. : 0 MHz IGPU Minimum Frequency.................. : 300 MHz IGPU Maximum Non-Turbo Frequency........ : 300 MHz IGPU Maximum Turbo Frequency............ : 1000 MHz IGPU Maximum limit...................... : No Limit P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (4) 20 28 ] iGPU P-States [ ] CPU C3-Cores [ 0 1 2 3 ] CPU C7-Cores [ 0 1 2 3 ] CPU P-States [ (4) 18 20 28 ] iGPU P-States [ ] CPU P-States [ (4) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 (5) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 5 (17) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 (27) 28 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 27 28 (29) ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 27 28 (29) ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 (26) 27 28 29 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 26 27 (28) 29 ] iGPU P-States [ (6) ] CPU P-States [ 4 5 17 18 20 22 26 27 (28) 29 ] iGPU P-States [ 6 ] CPU P-States [ 4 5 (7) 17 18 20 22 26 27 28 29 ] iGPU P-States [ 6 ] Link to comment Share on other sites More sharing options...
junaed.rx Posted October 23, 2019 Share Posted October 23, 2019 1 hour ago, Styxie said: I'm getting these P and C states (see below). I was getting similar states as @junaed.rx when I had X86PlatformPluginInjector only in Clover/kexts/other. I transferred X86PlatformPluginInjector.kext to /Library/Extensions by using Hackintool and by compiling my own DSDT and SSDTs by using the script that tluck thankfully included (see first post). ssdtPrgen by PikerAlpha is not needed to achieve these states. CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency...... : 4 ( 400 MHz) Maximum non-Turbo Ratio/Frequency....... : 25 (2500 MHz) Maximum Turbo Ratio/Frequency........... : 30 (3000 MHz) IGPU Info: ------------------------------------------ IGPU Current Frequency.................. : 0 MHz IGPU Minimum Frequency.................. : 300 MHz IGPU Maximum Non-Turbo Frequency........ : 300 MHz IGPU Maximum Turbo Frequency............ : 1000 MHz IGPU Maximum limit...................... : No Limit P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (4) 20 28 ] iGPU P-States [ ] CPU C3-Cores [ 0 1 2 3 ] CPU C7-Cores [ 0 1 2 3 ] CPU P-States [ (4) 18 20 28 ] iGPU P-States [ ] CPU P-States [ (4) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 (5) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 5 (17) 18 20 28 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 (27) 28 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 27 28 (29) ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 27 28 (29) ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 (26) 27 28 29 ] iGPU P-States [ ] CPU P-States [ 4 5 17 18 20 22 26 27 (28) 29 ] iGPU P-States [ (6) ] CPU P-States [ 4 5 17 18 20 22 26 27 (28) 29 ] iGPU P-States [ 6 ] CPU P-States [ 4 5 (7) 17 18 20 22 26 27 28 29 ] iGPU P-States [ 6 ] Thanks @Styxie, I will try that, I only had x86platformplugininject on c/k/o before. Link to comment Share on other sites More sharing options...
nijhawank Posted October 23, 2019 Share Posted October 23, 2019 AppleLPC is not required on a SkyLake+ system and causes EFICheck to happen. I did the following to disable it on my hackintosh... 1. Removed SSDT-LPC-T460.aml from the ACPI/patched directory 2. Patched DSDT with an additional patch https://github.com/syscl/XPS9350-macOS/blob/master/DSDT/patches/syscl_PPMCnPMCR.txt 3. Added EFICheckDisabler kext linked in the thread. 1 Link to comment Share on other sites More sharing options...
