R9 Nano

Picasso · June 12, 2017

Hi, someone has a rom for Asus 390X Strix in Sierra?

Thanks

Matthew82 · June 12, 2017

Hi, someone has a rom for Asus 390X Strix in Sierra?

Thanks

https://www.techpowerup.com/vgabios/183551/asus-r9390x-8192-151110

schot · June 12, 2017

I am a noob i know, but is it possible to do a vbios patch in clover? It is there.....

For my RX580
0210DF67 replace with 0210D567

Or will this not work?

EDIT: No it won't... tried it...

Picasso · June 12, 2017

https://www.techpowerup.com/vgabios/183551/asus-r9390x-8192-151110

Thank you @Mathew82

Should I flash my GPU with this ROM in order to work in Sierra?

Matthew82 · June 13, 2017

Thank you @Mathew82

Should I flash my GPU with this ROM in order to work in Sierra?

http://www.insanelymac.com/forum/topic/313977-r9-nano/?p=2333976

Picasso · June 13, 2017

Succes AMD Asus 390X Strix on Sierra 10.12.5.

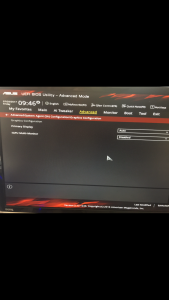

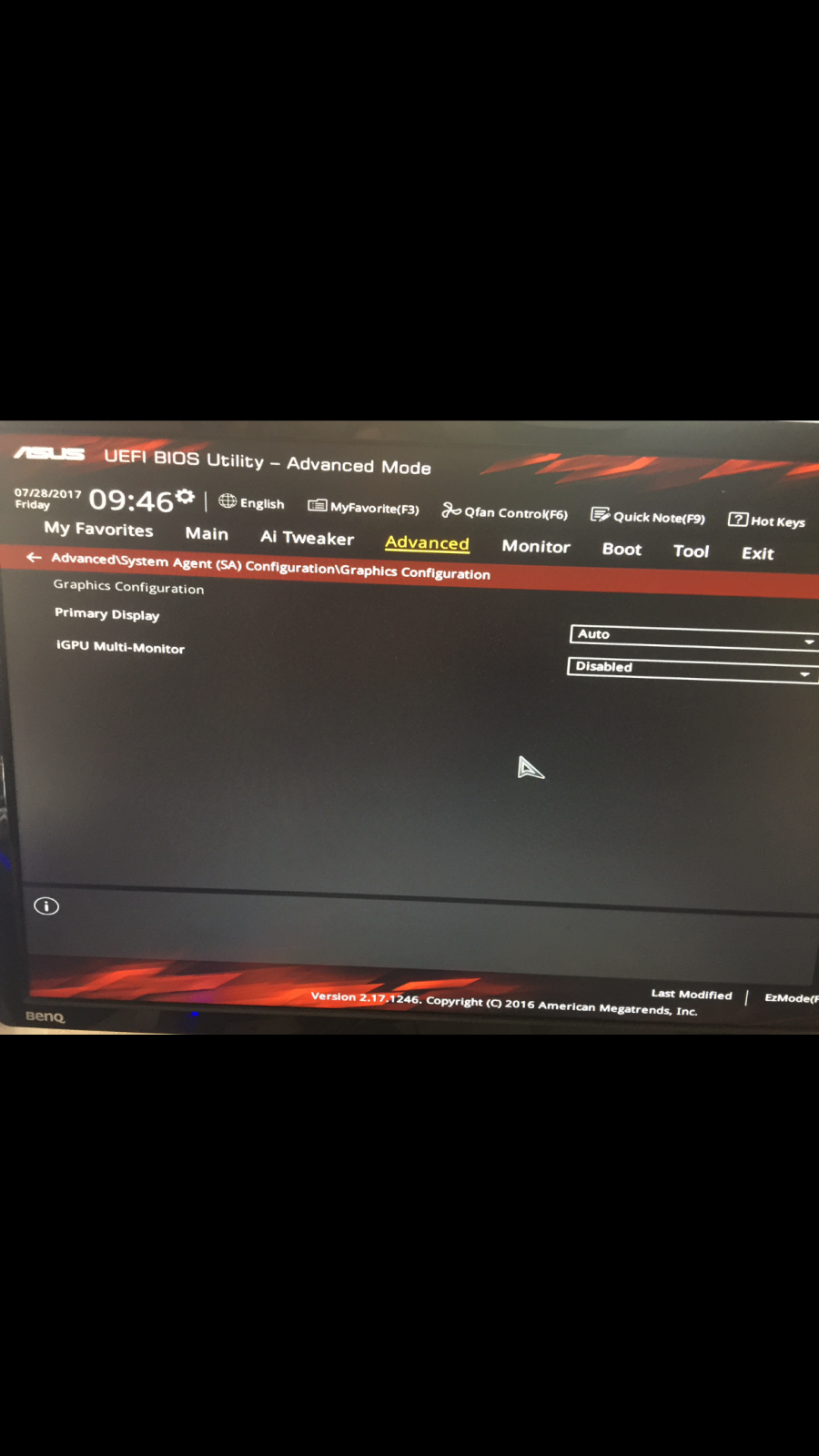

My configuration is Inject Intel and let IGPU as primary. No patches. Sleep works!

I decided this card because FCPX (Open CL) is my principal use and color in Davinci Resolve sometimes. I tried RX 480 but was ver problematic in each update and run slowly for my work.

At the moment I don´t see any GPU faster for work in FCPX.

Specs important for me over 480/580x:

- Bus 512 Bits

- 6,026 GFLOPS

- 188.3 GTexel/s

- 2816 Stream Processor

- Bandwith 384 GB/s

- Computes Units 44

- GDDR5 8192 MB

Important:

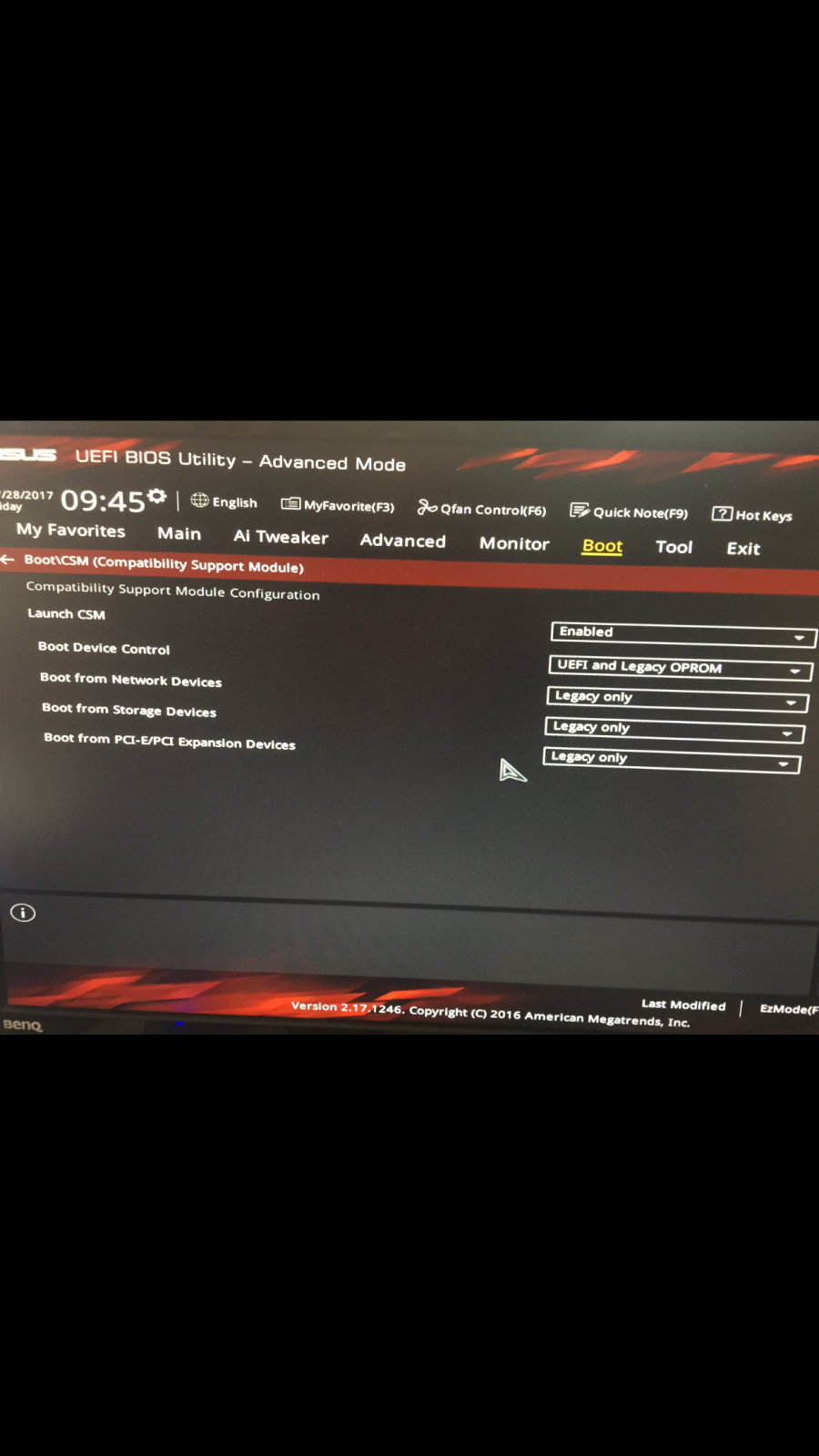

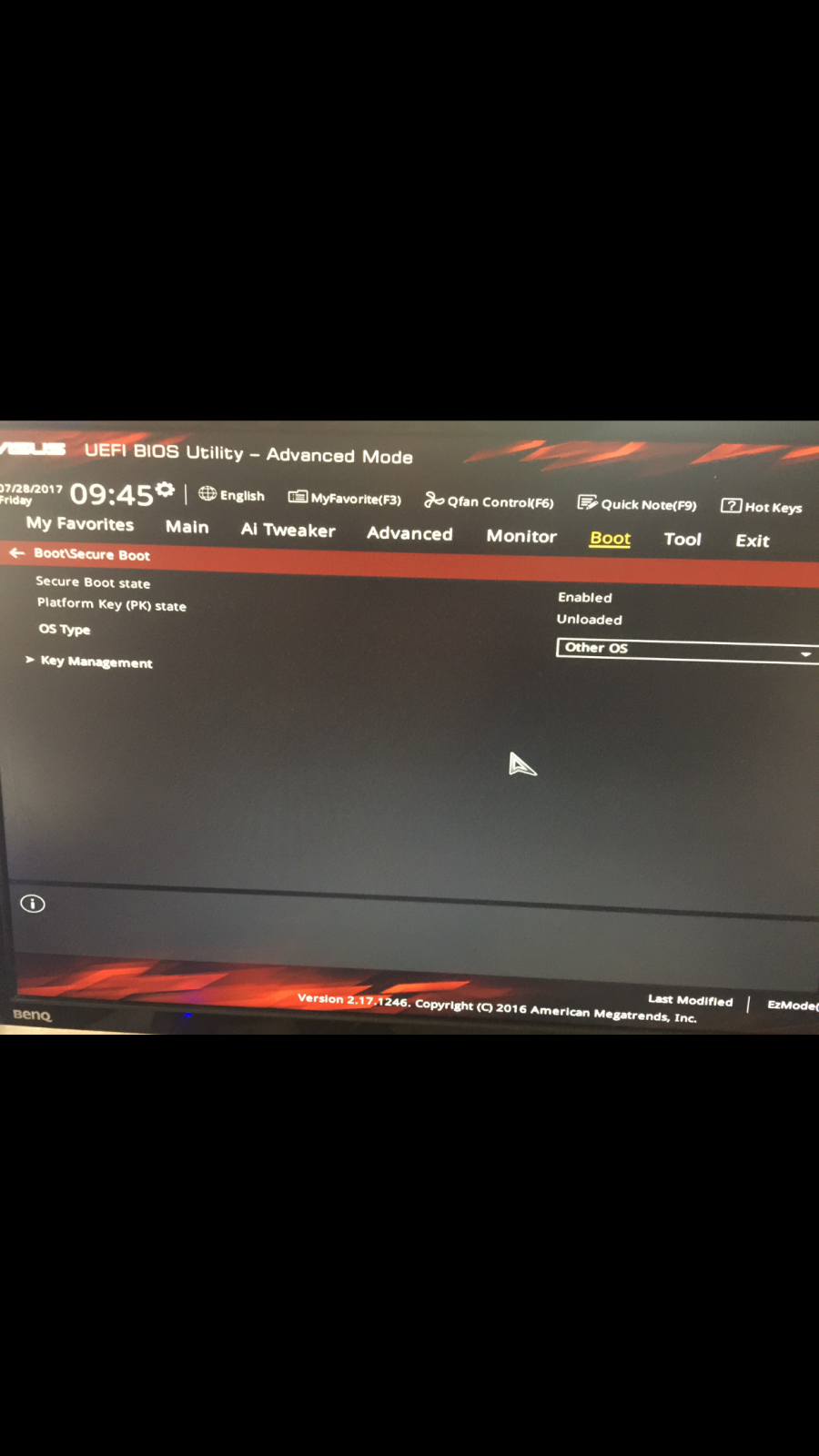

- Mobo Maximus VIII need to disable CSM compatibility in order to boot only with IGPU and no auto recognize the GPU.

- Fake ID 0x67b01002 - Clover

- Fix display 0100 - Clover

- Inject Intel - Clover

Thanks to @Slice for NO INJECT Ati , @Matthew82, for links and info, @maldon and always @Rampagedev for all my systems.

I let some test attached:

Bruce FCPX: 11 Seg.

Davinci Candle Test:

66 blur Nodes: 7 fps

30 BN:14

18 BN: 24

9 BN: 24

okrasit · June 13, 2017

The quote was just to get your attention

Being about the only nano / fury guy around...

I've got 10.13 beta working, everything except graphics acceleration. Was pretty easy really and now no nvme patches.

There's native support for fury / nano in it, but for some reason the X4500HW kext isn't loading. The AMD9500 kext is loading fine.

I'm not clever with this sort of stuff.

Have you tried it out yet?

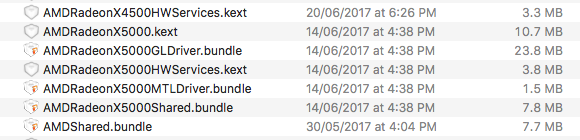

So, I finally got the new Sierra installed. The X4500HWLibs kext isn't what we need to get Fiji running. It's something else...

I guess the Baffin way will work, I'm just testing it.

surfinchina · June 14, 2017

So, I finally got the new Sierra installed. The X4500HWLibs kext isn't what we need to get Fiji running. It's something else...

I guess the Baffin way will work, I'm just testing it.

I'm not great at this, but the baffin way crashed it, so I deleted the X4500HWlibs which made it work again,

So the X4100 kext is now loading after adding 73001002, but still no acceleration.

edit: 4200 the same.

I need someone less useless than me lol.

okrasit · June 14, 2017

I'm not great at this, but the baffin way crashed it, so I deleted the X4500HWlibs which made it work again,

So the X4100 kext is now loading after adding 73001002, but still no acceleration.

edit: 4200 the same.

I need someone less useless than me lol.

Screen Shot 2017-06-14 at 5.43.05 PM.png

Yes, it seems Apple has added some checks to make our lives harder. They don't like us running their {censored} with premium hardware?

So, the drivers "load" but don't actually do anything...

Anyway, I need to download virtual box & windows & idapro to get this going. It's going to take some time!

The probe method behaviour has changed...

Does anyone have RX480 running on High Sierra? I need some help! Do "ioreg -l | grep AMDRadeonX" for me!!

Edited June 14, 2017 by okrasit

Matthew82 · June 16, 2017

Yes, it seems Apple has added some checks to make our lives harder. They don't like us running their {censored} with premium hardware?

So, the drivers "load" but don't actually do anything...

Anyway, I need to download virtual box & windows & idapro to get this going. It's going to take some time!

The probe method behaviour has changed...

Does anyone have RX480 running on High Sierra? I need some help! Do "ioreg -l | grep AMDRadeonX" for me!!

From rx 480

grep AMDRadeonX
  |   "IOKitDiagnostics" = {"Container allocation"=10424332,"Instance allocation"=18206768,"Pageable allocation"=1671860224,"Classes"={"AtiEnableCrtcInterface_V1"=1,"AppleRTCUserClient"=0,"AppleHDATDMAmpTAS5764L"=0,"IO80211RangingManager"=1,"AppleDisplay"=3,"IOSharedInterruptController"=7,"IOUSBHubDevice"=0,"AMDRadeonX4250_AMDSIAtomicBlitManager"=1,"IOUSBMassStorageCBIDriverNub"=0,"IOAppleLabelScheme"=0,"AppleUSB20HubExpressCardPort"=0,"AppleFWOHCI_MultiIsochReceiver"=1,"AMDRadeonX4250_AMDVISAMU"=1,"CCLogPipe"=4,"AppleBacklightDisplay"=0,"IOAccelCommandBufferPool2"=0,"AppleFWOHCI_SendDCL"=7680,"IOConfigEntry"=13,"Edid"=20,"AppleFWOHCI_DCLProgram_U"=0,"com_apple_driver_pm_cstate_reporter"=0,"IOTimeSyncTimeLineFilterIIR"=0,"IOUSBControllerListElement"=0,"IOBufferCopyEngineTestFirmware"=0,"AtiDac2OutputControl_V1_V1"=1,"IOReportLegend"=4,"IONotifier"=4,"AppleSMC"=1,"IOTimeSyncTimeLineFilter128"=0,"AppleFWOHCI_KPF"=0,"AtiGetEngineClock_V1_V1"=1,"AtiTvPanelInfo"=0,"AppleHDAEngineUserClient"=0,"AppleUSBXHCILPTHB"=0,"IOUserEthernetResource"=1,"IOBluetoothMemoryBlock"=0,"DpcdInfo"=10,"AppleOSXWatchdogClient"=1,"OSOrderedSet"=393,"AMDRadeonX4250_IAMDHWSemaphore"=1,"IOThunderboltDeficitCommandQueue"=1,"AMDRadeonX4250_AMDCISAMUGPCOMRing"=1,"IOPCIMessagedInterruptController"=1,"IOBluetoothHCIPacketLogUserClient"=0,"BaffinRegisterService"=1,"IODVDFabService"=1,"BaffinScalerCoeff"=1,"AppleHDAWidgetFactory"=0,"AppleThunderboltNHIMemoryBlock"=29,"IOInterruptEventSource"=165,"AppleUSBDevice"=18,"IOFWInterface"=1,"AtiUpstreamDataInterrupt"=6,"IOThunderboltI2CCommandQueue"=0,"AtiUpstreamStatusInterrupt"=6,"IO80211Interface"=1,"AppleUSBXHCIPort"=2,"IODMAEventSource"=0,"IOThunderboltConfigWriteQuadletCommand"=0,"AtiAsicInit_V2_1"=0,"IOAHCIPollerInterface"=1,"IOAGPDevice"=0,"AtiMccsInterrupt"=6,"AppleGPUWrangler"=1,"IOThunderboltXDPropertiesImmediateValue"=3,"AppleHDAWidgetCS8409"=0,"AppleEFINVRAM"=1,"AtiFbCompressionManager"=0,"AppleHDAMikeyInternalFactory"=0,"IOAccelDisplayPipeTransaction2"=3,"ARegisterService"=1,"AMDRadeonX4250_AMDAccelDevice"=24,"AtiSetPixelClock_V1_V5"=0,"IOSubMemoryDescriptor"=25,"AMDRadeonX4250_AMDHWDisplay"=1,"AppleUSB30XHCITypeCPort"=0,"com_apple_driver_AppleUSBStorageCoexistentDriver"=1,"IOAccelSharedUserClient2"=1,"AtiEncoderControl_V1_V4"=0,"AMDRadeonX4250_AMDAccelCommandQueue"=13,"AppleUSBDescriptorCache"=17,"IODVDServices"=0,"AppleSATAExpressPort"=0,"IOTimeSyncSnapshotService"=0,"IOFireWireControllerAux"=1,"EventElementCollection"=0,"DspFuncStereoToMono"=0,"IOAccelFenceMachine"=1,"IOAccelerator"=1,"AppleHDATDMAmpSSM3515"=0,"AMDRadeonX4250_AMDDPPStatusInterface"=1,"IOInterruptController"=6,"AppleUSBXHCISPTLP"=0,"IOBufferCopyDMACommand"=0,"IOTimeSyncTimeLineFilter"=0,"AppleUSBHostRequestCompleter"=21,"IOSlaveProcessorRelay"=0,"AtiAsicInit_V1_2"=1,"IOFWController"=1,"AppleFDEKeyStore"=1,"AMDRadeonX4250_IAMDSMLCTT"=1,"AMDRadeonX4250_IAMDSMLSAMU"=1,"IOFWUserVectorCommand"=0,"IOConfigDirectory"=2,"IOThunderboltStatistics"=1,"AppleUSBXHCILPTH"=1,"SaffireAudioEngine"=1,"AtiFirmwareInfoInterface_V1"=1,"AppleUSB20KeyboardHub"=1,"hv_vmx_vm_t"=0,"AtiComponentPanelInfo"=0,"AMDRadeonX4250_AMDDPPTestSetWriteBufferMsg"=0,"ATIConnector"=5,"IOSerialDriverSync"=1,"AMDRadeonX4250_IAMDHWAlignManager"=1,"com_apple_filesystems_hfs"=1,"VI_CHDCP"=5,"AppleHDAWidgetCS4206"=0,"IORS232SerialStreamSync"=1,"AppleSSEInterface"=1,"AGPMController"=1,"IOOutputQueue"=1,"DspFuncSum"=0,"IOUSBHostIOSource"=1,"AppleUSBHub"=2,"IOBluetoothObject"=2,"IOFWAsyncStreamReceiver"=0,"BaffinHdcpAuthSuccessInterrupt"=6,"AppleAPFSContainer"=1,"BaffinCpEndOfPipeInterrupt"=3,"IOThunderboltTransmitQueue"=1,"IOBufferCopyEngineTest"=0,"_IOServiceNotifier"=366,"LogManager"=1,"IOPolledFilePollers"=0,"BaffinHwCursor"=6,"IOFWWorkLoop"=1,"AppleGPUWrangler_GPU"=1,"AppleUSBXHCISPT"=0,"IOPCI2PCIBridge"=22,"AMDRadeonX4250_AMDBltMgr"=1,"AMDRadeonX4250_AMDDPPGetStatusMsg"=0,"AtiReGammaGenerator"=1,"IOBluetoothMemoryBlockQueue"=1,"IOFWAddressSpace"=2,"IOPolledInterface"=6,"IOHIPointing"=0,"IO80211InterfaceMonitor"=3,"AppleThunderboltNHI"=1,"AppleUSBXHCITransferRing"=38,"IOBluetoothL2CAPMemoryBlock"=0,"IOACPIPlatformExpert"=1,"AppleIntelMCE_InterruptController"=1,"AppleHDAPathControl"=12,"AppleUSBEHCIIsochronousEndpoint"=0,"AppleHDATDMSinkDevice"=0,"IOFWUserCompareSwapCommand"=0,"PMHaltWorker"=0,"IOAHCIPortMultiplier"=0,"AtiConnectionChangeInterrupt"=6,"IOKitDiagnosticsClient"=0,"AtiAnalogPanelInfo"=5,"AMDRadeonX4250_AMDAccelStatistics"=1,"IOTimeSyncTimeLineFilterIIR128"=0,"KRActionCommandPool"=0,"IOFWIsochChannel"=4,"AppleAHCISerialATAPITimer"=1,"IOGraphicsAccelerator2"=1,"AtiEncoderControl_V1_5"=0,"AppleUSBHostMergeProperties"=1,"CCPipeUserClient"=0,"IOCommandGate"=1176,"AppleUSBXHCIRequestPool"=4,"DspFuncPreGain"=0,"AppleAHCIPortPolledAdapter"=6,"IOBlockStorageDevice"=5,"AppleThunderboltNHIReceiveRingManager"=1,"IOAHCIPort"=1,"DspParameter"=28,"AppleUSBEHCIiTD"=0,"IOPCIConfigurator"=1,"IONDRV"=0,"IOBluetoothSerialClient"=1,"AtiFirmwareInfoInterface_V2_V3_1"=0,"AppleFWOHCI_AsyncTransmitRequest"=1,"com_apple_driver_pm_flex_reporter"=0,"AMDRadeonX4250_AMDCIKSAMU"=1,"IOFramebuffer"=2,"Dont_Steal_Mac_OS_X"=1,"IOFireWireLocalNodeAux"=1,"IOPanicPlatform"=0,"myframebuffer_driver"=1,"AtiBandwidthManager"=1,"AMDRadeonX4250_AMDVIDisplay"=1,"IOFireWireController"=1,"AppleHDAWidgetGK10X"=0,"CodecCommanderProbeInit"=0,"IOFramebufferI2CInterface"=5,"IODVDFabClient"=0,"BNBMouseDevice"=0,"IOAudioEngineEntry"=0,"AMDRadeonX4250_AMDAccelDisplayPipe"=5,"AIDLoggerUserClient"=0,"IOMbufBigMemoryCursor"=0,"ATIPanel"=5,"IOBluetoothSerialManager"=1,"hv_vm_t"=0,"AtiFbInterruptCallback"=49,"IOAccelShared2"=1,"AppleBroadcomBluetoothHostController"=1,"IOUSBMassStorageDriverUFIStorageServices"=0,"IOAudioTimeIntervalFilter"=0,"AppleBusController"=0,"KernelRelayHost"=0,"AppleFWOHCI_SkipCycleDCL"=0,"AGPMHeuristic1"=0,"AMDRadeonX4250_AMDAccelSAMUContext"=1,"IOThunderboltXDPropertiesLeafText"=2,"IOHIKeyboard"=0,"BaffinHdcpRiRequestInterrupt"=6,"AppleUSB20InternalHub"=0,"IOFWAsyncStreamReceivePort"=0,"IODisplayConnect"=3,"IOHistogramReporter"=3,"AGDCPluginDisplayMetrics"=1,"AtiSpreadSpectrumInfoInterface_V1_1"=0,"OSMetaClass"=0,"IODTNVRAM"=1,"AppleHDATDM_Codec"=0,"IOThunderboltReceiveQueue"=1,"AtiSetDceClock_V1_V2_1"=1,"AMDRadeonX4250_AMDDPTChannel"=6,"AppleFWOHCI_IsocXmitHelperPort"=0,"AMDRadeonX4250_AMDUVDVI"=1,"IOUSBNub"=2,"IOAccelDisplayPipe2"=1,"AppleMultitouchEventDriverV2Wrapper"=0,"IOSCSIMultimediaCommandsDevice"=1,"AppleUSBHostResources"=1,"IOThunderboltSwitchType3"=0,"EFIData"=102,"IOAccelDrawable2"=1,"AMDRadeonX4250_AMDVIUVDRing"=1,"IOAccelDisplayMachine2"=1,"AMDRadeonX4250_AMDDMAHWEngine"=1,"IOCDMediaBSDClient"=0,"AtiLinkedList"=114,"IOFireWireDeviceAux"=1,"IO80211String"=0,"IOBacklightDisplay"=0,"AtiGetMemoryClock_V2_V1"=0,"AppleHDATDMBusManagerCS8409"=0,"AMDRadeonX4250_AMDUVDCIK"=1,"AppleVTD"=0,"IOBufferCopyEngineTestMapper"=0,"IORegistryPlane"=8,"AtiSelectCrtcSource_V2_3"=0,"AMDRadeonX4250_AMDVIPM4ComputeChannel"=1,"Stopwatch"=8,"AppleHDADriverUserClient"=0,"IOUSBInterfaceUserClient"=0,"IOThunderboltNHIReceiveRing"=1,"IOCommand"=300,"IOBluetoothInactivityTimerEventSource"=1,"AppleUSBXHCIStream"=0,"IOUSBMassStorageUFIDevice"=0,"IOBreaker"=0,"IOServicePM"=344,"IOFWIsochPort"=2,"IOAccelSysMemory"=1,"IOHIDKeyboard"=0,"AtiUserClient"=0,"IOAccelCLContext2"=0,"IOUSBMassStorageUASDriverCommand"=0,"IOMbufNaturalMemoryCursor"=3,"AppleHDAHDMI_DPDriver"=1,"AMDRadeonX4250_AMDHWSemaphoreMemMgr"=1,"AppleUSBInterface"=21,"AppleACPIEventPoller"=1,"AMDRadeonX4250_AMDDecAppWriteBufferMsg"=0,"AppleICH8AHCI"=0,"AppleUSBXHCIRequest"=71,"AMDRadeonX4250_AMDSIGLContext"=2,"STUCWorkLoopLock"=1,"IOGraphicsWorkLoop"=3,"AMDRadeonX4250_AMDCISAMURBIRing"=1,"usbscsistor"=2,"DspFunc2WayCrossover"=0,"IOPCIDiagnosticsClient"=0,"IOBluetoothDeviceUserClient"=1,"IOFilterInterruptEventSource"=14,"AMDRadeonX4250_AMDVCEHWChannel"=1,"IOAudioClientBufferSet"=0,"AMDRadeonX4250_AMDHWRing"=8,"AppleMultitouchHIDService"=0,"IOSurfaceDeviceCache"=147,"AMDRadeonX4250_AMDAccelTraceStream"=7,"IOBluetoothHostControllerTransport"=1,"IOUSBInterfaceUserClientV3"=0,"IOAudioLevelControl"=268,"IOThunderboltConfigWriteCommand"=1,"AppleUSBXHCICommandRing"=3,"com_apple_driver_pm_ltr_reporter"=1,"AppleHDAWidgetSTAC9220"=0,"AMDRadeonX4250_AMDCIVCELLQChannel"=0,"IOFWPHYPacketListener"=0,"IOFWAsyncPHYCommand"=0,"IOTimeSyncService"=0,"AppleSEPCommand"=0,"IO80211QueueDescriptor"=4,"AtiPowerPlayTableInterface_V1_7"=1,"IOStorage"=4,"AppleCredentialManager"=1,"AppleLPC"=1,"IOThunderboltUserObjectExporter"=0,"AppleFWOHCI_AsyncReceiveRequest"=1,"IOCDBlockStorageDevice"=1,"AMDRadeonX4250_AMDCPAppInterface"=2,"IOAccelerationUserClient"=1,"AppleHDAPath"=10,"AtiDisplayPortEventInterrupt"=6,"IOUSBMassStorageUFIDriverNub"=0,"IOHIDEventServiceFastPathUserClient"=0,"IOThunderboltConfigXDomainPathSetupRequestCommand"=0,"BroadcomBluetoothHostController"=1,"AppleHDAWidgetATI_RS710"=0,"IOSlaveProcessor"=0,"DigitizerTransducer"=0,"AppleMCCSControlGibraltar"=0,"AtiPowerPlayInfoInterface_V2_V8"=0,"_IOOpenServiceIterator"=0,"IOReporter"=3,"AMDRadeonX4250_AMDHWSemaphorePool"=1,"AtiDeviceControl"=1,"IOAHCISerialATAPI"=1,"DspFunc2To4Splitter"=0,"AppleUSBXHCIARRequestPool"=0,"com_apple_driver_pm_msr_limits_reporter"=0,"BaffinUvdLowLatencyInterrupt"=1,"AppleUSBXHCIPipe"=38,"IOMultiMemoryDescriptor"=1,"AppleXsanScheme"=0,"AGDCPlugin"=1,"AMDRadeonX4250_AMDCIVCEHWEngine"=1,"IOFWPhysicalAddressSpace"=0,"AppleUSBHostControllerIsochEndpoint"=0,"AMDRadeonX4250_AMDVIUVDHWEngine"=1,"IO80211Peer"=1,"AppleUSBEHCIExpressCardPort"=0,"AtiHdcpService"=2,"IOFWCommand"=2,"IO80211PeerManager"=1,"AMDRadeonX4250_IAMDHWDisplay"=1,"AtiAppServices"=5,"AppleACPIPlatformExpert"=1,"AppleSEPTesting"=0,"AMDRadeonX4250_AMDDPPCloseInstanceMsg"=0,"AppleAHCIEventSource"=12,"AMDRadeonX4250_AMDCISAMURBIChannel"=1,"AppleUSBEHCISplitIsochronousRequest"=5,"BaffinVerticalBlankInterrupt"=6,"AtiGetEngineClockInterface_V2"=0,"AMDRadeonX4250_AMDVIComputeRing"=4,"IONetworkController"=2,"AppleUSBHostRequest"=4,"IOPMRequestQueue"=2,"IOFireWireUnitInfo"=0,"PMTraceWorker"=1,"AppleUSBHostDeviceIdler"=17,"AppleHDAWidgetAD1988"=37,"AppleFWOHCI_IsocXmitHelper"=0,"AppleANS2Controller"=0,"IOFWUserLocalIsochPort"=0,"AHCISMARTUserClient"=1,"MemoryAllocator"=1,"AppleGraphicsDeviceControl"=3,"AMDRadeonX4250_AMDAccel2DContext"=5,"BaffinBiosDigitalConnection"=7,"IOPowerConnection"=342,"IOAccelDisplayPipePostCSCGammaVID"=0,"AppleUSBEHCIPCI"=1,"AppleUSBEHCIIsochronousRequestPool"=2,"IOThunderboltControlPath"=1,"IOSCSIPrimaryCommandsDevice"=2,"BaffinVceTrapInterrupt"=1,"AppleUSBHostBusCurrentClient"=77,"IODisplayParameterHandler"=2,"AppleUSBXHCIWPT"=0,"IOMbufMemoryCursor"=1,"IODataQueue"=1,"IOFWDCLPool"=1,"AppleMobileFileIntegrityUserClient"=0,"AtiPllAssigner"=1,"IOFWUserCommand"=0,"IOAccelSharedNamespace2"=15,"X86PlatformPlugin"=1,"IOUFIStorageServices"=0,"AMDRadeonX4250_AMDVISAMURBIChannel"=1,"IOSurfaceSendRight"=0,"AppleThunderboltNHIType1"=0,"BroadcomBluetoothHostControllerUSBTransport"=1,"IOAccelVideoContext2"=0,"IONDRVFramebuffer"=0,"AppleFDEKeyStoreUserClient"=0,"IOFireWireLocalNode"=1,"AMDRadeonX4250_IAMDSMLInterface"=1,"AppleFWOHCI_DescriptorPool"=5,"AppleUSBHostPacketFilterService"=1,"IOThunderboltLinkController"=0,"CCPipe"=2,"IOUSBMassStorageInterfaceNub"=3,"IOFireWireBus"=1,"AppleACPICPUInterruptController"=1,"AppleHDAFunctionGroupCS8409"=0,"IOFWLocalIsochPort"=4,"AtiBiosParser2"=0,"AtiSmuInfoInterface_V2"=0,"IOFWSimplePhysicalAddressSpace"=0,"AppleUSBEHCIQueueHeadPool"=1,"AtiDac2EncoderControl_V1_V1"=0,"AppleBusPowerController"=0,"IOFireWireNubAux"=3,"AtiBlankCrtc_V1_V1"=1,"AMDRadeonX4250_AMDCIVCELLQRing"=0,"AppleUSBHostControllerIsochListElement"=0,"AMDRadeonX4250_AMDVIsDMAEngine"=2,"IOFWUserPHYCommand"=0,"IOSlowAdaptiveClockingManager"=1,"AtiTransmitterControl_V1_V5"=0,"AtiGetEngineClockInterface_V1"=1,"FakeSMCPlugin"=3,"IntelMausi"=1,"IOSKMemoryArray"=40,"AtiFbInterrupt"=7,"AMDRadeonX4250_IAMDHWRing"=1,"AMDRadeonX4250_AMDDPPTestOpenInstanceMsg"=0,"IODMACommand"=351,"AMDRadeonX4250_AMDDecAppInterface"=0,"hv_vcpu_t"=0,"DspFuncSplitBand"=0,"BaffinVerticalUpdateInterrupt"=6,"IOTimerEventSource"=543,"AppleUSBXHCIFL1100"=0,"AirPort_BrcmNIC_InputQueue"=1,"DspFuncDRC"=0,"BaffinInterruptManager"=1,"IOPMCompletionQueue"=1,"IOCDMedia"=0,"SaffireAudioEngineUserClient"=1,"AppleHDATDM_CS42L83"=0,"AtiTransmitterControl_V1_6"=0,"AppleThunderboltGenericHAL"=1,"IOUSBLowLatencyCommandLegacy"=0,"IOBluetoothRFCOMMMemoryBlock"=0,"AppleSEPUserClient"=0,"AMDRadeonX4250_IAMDCommandBufferPool"=1,"IODCLProgram"=1,"AMDRadeonX4250_AMDVIHWGart"=1,"IOUSBWorkLoop"=3,"IOAHCIDevice"=7,"IOConfigDirectoryIterator"=0,"AtiUpstreamMessageParserV1"=0,"AtiSetDceClockInterface_V1"=1,"AppleMultitouchHIDEventDriver"=1,"IOThunderboltSwitch"=0,"IO80211ActionFrameDescriptor"=0,"AppleHIDKeyboardEventDriver"=1,"AMDRadeonX4250_AMDVIVCEChannel"=0,"AppleUSBHostBusCurrentAllocator"=74,"AppleAHCISerialATAPIWorkLoopLock"=1,"AMDRadeonX4250_AMDPM4CommandsUtility"=1,"AppleHDAController"=2,"IOUSBControllerIsochListElement"=0,"IOFence"=0,"AMDRadeonX4250_AMDStatisticsManager"=1,"AtiHdcpProxy"=5,"IOThunderboltDispatchCallback"=1,"IOFWSkipCycleDCL"=0,"IOSlaveRelayCommand"=0,"AMDRadeonX4250_AMDVCE3v4LLQChannel"=1,"AudioAUUCDriver"=6,"IO80211FlowQueueLegacy"=0,"IOHIDEventSystemQueue"=0,"CSRBluetoothHostController"=0,"IOSurface"=159,"IOHDIXControllerUserClient"=0,"AGPMEventSource"=1,"BaffinDisplayPortUtilities"=6,"AtiTimingsList"=62,"DspFuncStereoEnhancer"=0,"AppleMultitouchTimestampSync"=0,"AppleBusPowerControllerUSB"=0,"IOMbufLittleMemoryCursor"=0,"AtiFirmwareInfoInterface_V1_4"=0,"PMAssertionsTracker"=1,"ApplePlatformEnablerUserClient"=0,"Lilu"=1,"IOBigMemoryCursor"=0,"IOAudioEngineUserClient"=71,"AppleNVMeRequestPool"=1,"BrcmPatchRAM2"=2,"IOUSBDevice"=1,"IOFWQEventSource"=1,"AMDRadeonX4250_AMDAccelChannel"=19,"IOThunderboltXDPropertiesDirectory"=1,"IOAccelFIFOChannel2"=1,"IOAudioDevice"=4,"IOAudioControlUserClient"=84,"IOFWDelayCommand"=2,"IOUSBController"=1,"IOGeneralMemoryDescriptor"=568,"IOBluetoothHCIUserClient"=8,"AtiPackingConnectorAssigner"=1,"AppleRTC"=1,"IOThunderboltAbstractPath"=0,"AppleACPIEventController"=1,"AppleSEPIntelIOPNub"=0,"IOResources"=1,"AMDRadeonX4250_AMDSMLSAMU"=1,"AMDRadeonX4250_AMDHWVMM"=1,"AppleUSBEHCIRequest"=5,"IOHDIXHDDrive"=1,"AppleHDAWidgetATI_RS780"=1,"AppleSMBIOS"=1,"IOFireWireIRMAllocation"=0,"AppleHDATDMBusManager"=0,"BaffinVceTrapLowLatencyInterrupt"=1,"IOHIDElementPrivate"=368,"AtiDividerRange"=3,"IOThunderboltConfigReadQuadletCommand"=0,"IONetworkStack"=1,"IOHIDEventQueue"=0,"IOBlockStorageDriver"=17,"IOMemoryCursor"=2,"IONetworkData"=24,"IOUSBPortInterruptEventSource"=74,"AMDRadeonX4250_AMDAccelSharedUserClient"=15,"AppleMultitouchEventDriverWrapper"=1,"AtiPowerPlayTableInterface_V1_6"=0,"AppleHDAWidgetMCP79"=0,"AppleS1XController"=0,"AtiProcessAuxTransaction_V1_V2"=1,"IOBluetoothHostControllerUSBTransport"=1,"AppleHDAEngineOutputDP"=3,"ExpansionEdidBlock"=6,"AppleAPFSContainerScheme"=1,"AppleSMCFamily"=1,"IOHIDWorkLoop"=1,"AppleUSBHostBusCurrentPool"=0,"AppleUSBXHCIIsochronousRequestPool"=3,"AMDRadeonX4250_AMDDPPTestInitMsg"=0,"AppleMultitouchEventServiceWrapper"=0,"IOUserIterator"=16,"IOThunderboltConfigXDomainLinkChangeRequestCommand"=0,"AppleUSBXHCIInterrupterMSI"=9,"AtiDac1OutputControl_V1_V1"=0,"NCT677xSensors"=1,"IORegistryIterator"=12,"AppleHDAFunctionGroupALC885"=0,"AppleFWOHCI_DMAManager"=1,"IOEthernetInterface"=2,"IOAccelGPURestartReport2"=0,"AtiFbStub"=5,"AppleALC"=1,"CCLogPipeUserClient"=0,"DspFunc6ChOutput"=0,"IOAccelMemory"=2,"AtiSetPixelClock_V1_7"=0,"IO80211ServiceRequestDescriptor"=2,"BaffinBiosAnalogConnection"=0,"IOBufferCopySubmissionQueue"=0,"IOBluetoothSerialClientSerialStreamSync"=1,"AtiDynamicPllAssigner"=0,"AtiDac1EncoderControl_V1_V1"=0,"RSNSupplicant"=1,"BaffinDiagLedProgrammerV1"=0,"IOThunderboltConfigErrorCommand"=0,"IOFireWireMagicMatchingNub"=0,"AppleAHCIPolledAdapter"=3,"AppleMCCSControlFamily"=1,"AtiObjectInfoTableInterface_V2"=0,"IOFWUserReadCommand"=0,"IOPMWorkQueue"=1,"ATINoConnection"=5,"OSCollection"=5,"IOAudioTimerEvent"=0,"AtiFirmwareInfoInterface_V2_2"=1,"AppleUSBInterfaceIterator"=0,"IOBluetoothRFCOMMConnection"=0,"EupDSP"=0,"IONVMeControllerPolledAdapter"=1,"DspFuncBeam2"=0,"IODTPlatformExpert"=1,"AppleHDAFunctionGroup_1002AAA0"=1,"com_apple_driver_pm_cpu_reporter"=0,"AppleUSBLegacyRoot"=1,"IOUserNotification"=2,"AppleHDAFunctionGroupATI_RS780"=1,"BaffinSDmaTrapInterrupt"=2,"AppleHDADriver"=2,"com_apple_driver_pm_pch_reporter"=1,"IOUSBMassStorageUFISubclass"=0,"AMDRadeonX4250_IAMDStatisticsManager"=1,"AppleFWOHCI_PM"=1,"IOKitDiagnostics"=1,"IOUSBHostDevice"=17,"AMDRadeonX4250_AMDCIVCEChannel"=0,"AppleEmbeddedKeyboard"=1,"AppleFWOHCI_CycleTimeRequest"=0,"AtiCompositor"=0,"AppleACPIInterruptLink"=0,"AMDRadeonX4250_AMDVCE3v4HWEngine"=1,"AtiDacEncoderControlInterface_V1"=0,"AppleHDAFunctionGroupExternalControlFactory"=0,"AppleHDAFunctionGroupMCP79"=0,"IOThunderboltConfigXDomainUUIDRequestCommand"=0,"BaffinHwI2cProxy"=1,"AppleUSBDiagnostics"=0,"IOTimeSyncClockManagerUserClient"=0,"AppleHDAFunctionGroup"=2,"AMDRadeonX4250_AMDDecAppTestTokenMsg"=0,"AMDRadeonX4250_AMDVCE3v4"=1,"AtiSelectCrtcSource_V1_V3"=1,"AppleUSBRequestCompleter"=1,"KDIURL"=0,"IOEthernetController"=2,"AppleFWOHCI_AsyncTransmit"=2,"AMDRadeonX4250_VendorGart"=1,"BaffinTimingGenerator"=6,"IOPMPowerSourceList"=0,"AMDRadeonX4250_AMDHWMemory"=1,"IOFWAsyncStreamCommand"=0,"AIDQueueEventSourceWorkItem"=0,"DspFunc2Dot2Crossover"=0,"AppleFWOHCI_AsyncTransmitResponse"=1,"AMDRadeonX4250_AMDSIVideoContext"=0,"AtiEnableSpreadSpectrumOnPll_V3"=1,"AppleHDAFunctionGroupExternalControl"=1,"CodecCommanderResidency"=1,"IOCompactDiscServices"=0,"AppleHDAWidgetATI_RS730"=0,"AppleHDATDMBusManagerCS4208"=0,"AppleFWOHCI_AsyncReceiveResponse"=1,"AtiFirmwareInfoInterface_V2_1"=0,"IOAccelMemoryInfoUserClient"=0,"IOHDACodecFunction"=2,"AMDRadeonX4250_AMDAccelSysMemory"=1171,"SoundflowerEngine"=1,"DDCProxy"=1,"IOBluetoothL2CAPChannelUserClient"=1,"AMDRadeonX4250_AMDTPTManager"=0,"CCDataPipeBlob"=0,"com_intel_driver_EnergyDriver"=1,"AppleHDAWidgetGT216"=0,"IOSortableConfigurationDescriptor"=0,"AppleUSBEHCIqTDPool"=1,"AppleAHCIWatchdogTimer"=6,"IOAudioTimeIntervalFilterIIR"=0,"AtiHdcp2Lib"=5,"IOFWSyncer"=0,"IOThunderboltConfigXDomainResponseCommand"=6,"AppleMultitouchTimestampSyncUC"=0,"IOUSBMassStorageCBIDriver"=0,"AppleFWOHCI_ReceiveDCL_U"=0,"IOHIDevice"=0,"IOBluetoothSCOMemoryDescriptorRetainer"=2,"IOAccelGLContext2"=1,"CCLogStream"=5,"IOMapper"=0,"AppleMCCSParameterHandler"=6,"AppleUSBEHCIDMACommand"=20,"AMDRadeonX4250_AMDPM4HWChannel"=2,"AtiSetPixelClock_V1_V6"=0,"AGPMHeuristic3"=0,"AtiUpstreamMessageParser"=1,"AppleACPIPCI"=2,"AppleHDAWidgetALC885"=0,"IOThunderboltTimerCommandQueue"=1,"AppleHDANode"=2,"IOSerialATARequestFIS"=410,"AppleUSBBusPowerClient"=0,"AuxChannelProxy"=1,"IOFBController"=2,"IOFireWireLink"=1,"IOApplePartitionScheme"=0,"IOThunderboltFamilyUserClient"=0,"AMDRadeonX4250_AMDVCE3v4Channel"=2,"AppleMCCSControlCello"=0,"DspFuncAudioMeter"=0,"AppleThunderboltNHITransmitRing"=12,"IOAHCIBlockStorageDevice"=7,"AMDRadeonX4250_AMDHWEngine"=5,"AppleNVMeRequest"=255,"IOThunderboltConfigCMOverrideCommand"=0,"AtiObjectInfoTableInterface_V1"=1,"IOThunderboltXDPropertiesEntry"=6,"IO80211PeerExtendedStats"=0,"AMDRadeonX4250_AMDAccelSegmentResourceList"=0,"AMDRadeonX4250_AMDSMLCPMsg"=0,"IOPlatformDevice"=4,"IOHIDEventSystemUserClient"=1,"com_intel_driver_EnergyDriverClient"=0,"AppleUSBHostCompositeDevice"=4,"AppleUSBHubPort"=2,"IOUSBInterface"=1,"com_apple_driver_pmtelemetry"=1,"AppleACPILid"=0,"DspFuncGain"=1,"AMDRadeonX4250_AMDDPPTestCloseSessionMsg"=0,"AMDRadeonX4250_AMDSMLAIInterface"=1,"AppleAHCIWorkLoop"=12,"BaffinGuiIdleInterrupt"=1,"AtiGetMemoryClock_V1_V1"=1,"AppleMCCSControlModule"=6,"AppleHDATDMDeviceFactory"=0,"ATIDigitalConnection"=1,"AMDRadeonX4250_AMDHWSemaphore"=8192,"AtiDisplayEngineClock"=1,"AIDReporters"=0,"AMDRadeonX4250_AMDAccelTask"=16,"IOThunderboltPortMicro"=0,"IONetworkStackUserClient"=1,"IOSlaveEndpoint"=0,"AppleUSBHostResourcesClient"=1,"AppleHDAPathSet"=10,"AtiSetDceClock_V2_1"=0,"com_apple_BootCache"=1,"AppleHDA8086_9D70Controller"=0,"AppleFWOHCI"=1,"IOThunderboltDispatchContext"=2,"IOMemoryDescriptor"=3,"DspFuncThermalSpeakerProtection"=0,"IOThunderboltConfigCompareSwapCommand"=0,"IOAccelDeviceShmem"=48,"IOHIDParamUserClient"=1,"AIDReporterSimple"=0,"CCFaultReporter"=0,"AppleHDATDM_CS42L81"=0,"AtiFbInterruptReferenceCallback"=0,"AppleUSB30Hub"=4,"IOSlaveProcessorUSBHostRelay"=0,"AMDRadeonX4250_AMDVISAMUEngine"=1,"IOHIDPointingEventDevice"=0,"AppleUSBXHCITDPool"=3,"IOTimeSyncIntervalFilter"=0,"AppleGPUWranglerClient"=8,"IO80211P2PInterface"=1,"AMDRadeonX4250_AMDLinkedList"=1,"AppleUSBMergeNub"=1,"IOHIDDeviceShim"=0,"IOHIDDevice"=2,"AtiNvramParserV2"=0,"com_apple_driver_pm_cpu_mbox"=0,"AppleUSB20InternalIntelHubClient"=0,"IO80211AWDLPeer"=0,"AMDRadeonX4250_AMDCISAMUGPCOMChannel"=1,"IOBDBlockStorageDriver"=1,"AtiPowerPlayTableInterface_V1_5"=0,"IOUSBHostStream"=0,"AppleBusControllerFactory"=0,"AppleFWOHCI_PM_PPC"=0,"IOUSBInterfaceIterator"=0,"IOThunderboltConfigPrepareToSleepCommand"=0,"IOWorkQueue"=8,"AMDRadeonX4250_AMDVIVCE"=0,"AppleBusPowerControllerSMC"=0,"IOBluetoothL2CAPSupervisoryFrameMemoryBlock"=0,"IOFWSimpleContiguousPhysicalAddressSpace"=0,"IOSerialStreamSync"=1,"AppleHDATDMAmpMAX98706"=0,"AppleUSBHostDMABufferMemoryDescriptor"=58,"com_cycling74_driver_SoundflowerDevice"=1,"AMDRadeonX4250_AMDDecAppGetMsgBuffMsg"=0,"AppleEFIRuntime"=1,"AppleHDAFunctionGroupGT216"=0,"IO80211Controller"=1,"DspFuncBuzzKill"=0,"IOThunderboltXDLocalPropertiesCache"=1,"AMDRadeonX4250_AMDVISAMUGPCOMChannel"=1,"AppleUpstreamUserClientDriver"=6,"AMDRadeonX4250_AMDVIHWMemory"=1,"AppleUSBXHCIIsochronousTransferRing"=0,"AIDUserClient"=0,"AGPMHeuristic"=0,"AMDRadeonX4250_AMDUVD6v3"=1,"PMSettingHandle"=3,"IOAccelChannel2"=1,"AppleHDAFunctionGroupCS4208"=0,"AppleHDAFunctionGroup_80862807"=0,"AMDRadeonX4250_IAMDHWHandler"=1,"AppleUSBXHCIEndpoint"=38,"AppleAHCIDiskDriver"=6,"AppleAHCIDiskPolledInterface"=6,"IOBootFramebuffer"=0,"IOUSBMassStorageDriverRequestTimer"=0,"IOSharedDataQueue"=5,"IOConditionLock"=0,"IOPlatformPluginFamilyPriv"=1,"AtiAsicInitInterface_V2"=0,"IOServiceUserNotification"=239,"AMDRadeonX4250_IAMDStatisticsGroup"=1,"AppleACPIPlatformUserClient"=0,"AtiTimingGenerator"=1,"IOBluetoothRFCOMMChannel"=0,"AMDRadeonX4250_AMDFijiPM4Channel"=1,"IOPlatformExpertDevice"=1,"AtiFbInterruptCallbackInterface"=1,"IOFWRingBufferQ"=0,"IOSlaveMemoryBuffer"=0,"AMDRadeonX4250_IAMDHWGart"=1,"IOSCSIHierarchicalLogicalUnit"=0,"AppleKeyStoreUserClient"=12,"AppleAHCI"=3,"AppleHDAFunctionGroupCS4206"=0,"_IOServiceInterestNotifier"=381,"AppleNVMeBuffer"=5,"AMDRadeonX4250_AMDCPEvent"=16,"AMDRadeonX4250_AMDSMLCTT"=1,"AppleUSBEHCIQueueHead"=42,"AppleVTDDeviceMapper"=0,"IOAccelDevice2"=1,"AMDRadeonX4250_AMDUVD6v3EncChannel"=2,"AppleUSBXHCILPTCommandRing"=1,"AppleNVMeController"=0,"AppleFWOHCI_DCLProgram"=4,"AppleUSBNetworkingCommandPool"=0,"IONetworkMedium"=14,"AMDRadeonX4250_AMDUVD6v3EncLLQChannel"=1,"PMSettingObject"=3,"AMDRadeonX4250_AMDVCE3v4LLQRing"=1,"IOAccelBlockFencePort2"=18,"AMDRadeonX4250_AMDSPUHWEngine"=1,"AtiDacOutputControlInterface_V1"=1,"AppleSSEUserClient"=0,"AppleACPIACAdapter"=0,"IOThunderboltIECSCommand"=0,"IOUSBControllerV3"=1,"IOUSBDeviceUserClient"=0,"AMDRadeonX4250_AMDHWChannel"=5,"AMDRadeonX4250_AMDSMLVIInterface"=0,"CCIOReporterLogStream"=1,"IOAccelMemoryMap"=1,"AppleACPIEC"=1,"CCIOReporterHub"=2,"IOThunderboltCommandGate"=3,"AtiDceInfoInterface_V2"=0,"AtiScaler"=0,"IOHIKeyboardMapper"=0,"IOUSBHostHIDDevice"=2,"IOTimeSyncIntervalFilterIIR"=0,"IOTimeSyncIntervalFilter128"=0,"AppleHDATDMDevice"=0,"IOPMRequest"=0,"AMDRadeonX4250_AMDPPTestInterface"=1,"IOFWReadQuadCommand"=4,"AMDRadeonX4250_AMDAccelEventMachine"=1,"AppleAPFSMedia"=1,"AppleSCSISubsystemGlobals"=1,"IOUSBControllerIsochEndpoint"=0,"IOBluetoothRFCOMMConnectionUserClient"=0,"IOAccelTask"=1,"IOUserClient"=32,"IOI2CInterfaceUserClient"=0,"LogManagerDevice"=3,"AppleMCCSUserClient"=0,"IOAccelDisplayPipePreCSCLinearizationVID"=9,"IOService"=178,"IOThunderboltConfigXDomainROMReadRequestCommand"=0,"IODVDBlockStorageDriver"=1,"FakeSMCSensor"=47,"AtiSpreadSpectrumInfoInterface_V1"=1,"AppleHVClient"=0,"IOBluetoothL2CAPInformationFrameMemoryBlock"=0,"AMDRadeonX4250_AMDDPPTestProcessMsg"=0,"AMDRadeonX4250_AMDCISAMUEngine"=1,"CCFaultReport"=0,"IOUSBControllerV2"=1,"AMDRadeonX4250_AMDDecAppGenTokenMsg"=0,"AppleAHCIPort"=12,"IOThunderboltConfigXDomainCommand"=1,"AIDSerialLogger"=0,"hv_vmx_vcpu_t"=0,"IOBluetoothLocalUtilityEventSource"=0,"IOAHCIDiskQueueManager"=1,"IOTimeSyncClockMapping"=0,"AtiPackingConnectorAssignerLegacy"=0,"AMDRadeonX4250_AMDEllesmereHardware"=1,"AIDInterface"=0,"AMDRadeonX4250_AMDFijiPM4ComputeChannel"=4,"BaffinSharedAnalogConnection"=0,"IOUSBIsocCommand"=0,"AppleXsanDriver"=0,"IOHDACodecDeviceUserClient"=0,"IOThunderboltNumber"=2,"IOAccelEventMachine2"=1,"AtiUpstreamMessageParserV2"=5,"BNBDevice"=1,"AGPMHeuristic0"=0,"AtiSetDceClockInterface_V2"=0,"myframebuffer_fbuffer"=1,"AMDRadeonX4250_AMDStatisticsGroup"=1,"IOThunderboltDispatchQueue"=4,"AtiPowerPlayUserClient"=0,"AppleSMBusControllerMCP"=0,"IOThunderboltData"=0,"DPTrainingSettingsCalculator"=6,"IOMedia"=39,"AMDRadeonX4250_AMDHWAlignManager"=1,"AMDRadeonX4250_AMDDMAHWChannel"=1,"IOTimeSyncClockManager"=1,"IODisplayWrangler"=1,"AppleUSB20HubPort"=29,"AppleUSBXHCIStreamingEndpoint"=0,"IOServiceMessageUserNotification"=381,"AIDQueueEventSource"=0,"IOFWAddressSpaceAux"=2,"AppleUSBRootHubDevice"=3,"IOThunderboltSwitchType1"=0,"IOThunderboltNub"=1,"IO80211FlowQueue"=0,"DspFuncVolume_3ch"=0,"IOThunderboltFrameList"=17,"IOUSBUserClientLegacy"=0,"IOReportUserClient"=3,"FakeSMCKeyStore"=1,"IOHIDEventService"=2,"AMDRadeonX4250_AMDDecAppReleaseInstanceMsg"=0,"AtiPowerPlayCallbackContext"=0,"IOTimeSyncNotifier"=0,"AtiCommandTableBaseClass"=19,"AppleUSBHostIORequestPool"=40,"ATIController"=1,"IODMAController"=0,"IOBlockStorageServices"=7,"AMDRadeonX4250_AMDVIPM4Engine"=1,"DspFuncClientGainAdjust"=0,"IOThunderboltXDomainService"=0,"IOBluetoothGamepadHIDDriver"=0,"AtiEnableSpreadSpectrumInterface_V1"=1,"AtiPanelInfo"=3,"AMD9500ControllerWrangler"=1,"AppleHDAFunctionGroupAD1988"=1,"IOSCSIProtocolInterface"=2,"AMDRadeonX4250_AMDUVD6v3DecRing"=1,"IOAccelEventMachineFast2"=1,"IOThunderboltConfigXDomainPathTeardownRequestCommand"=0,"AppleHDACodec"=1,"AppleUSBXHCIDevice"=16,"IOAudioEngine"=4,"hv_vmx_space_t"=0,"IOAccelContext2"=2,"IOPMPowerSource"=0,"GPUSensors"=1,"AppleAPICInterruptController"=2,"AppleMultitouchDeviceUserClient"=1,"IOFireWireUserClient"=0,"AppleACPICPU"=12,"IOSlaveFirmware"=0,"AMDRadeonX4250_IAMDHWEngine"=1,"AppleUSBHostDARTDMACommand"=0,"BaffinThermalAlertInterrupt"=1,"AppleThunderboltNHIType2"=1,"IOI2CInterface"=1,"AtiGetSmuClockInfo_V3_1"=0,"IOFWUserPseudoAddressSpace"=0,"IOAccelVidMemory"=1,"IOAccelResource2"=1,"AppleUSBXHCIInterrupter"=1,"IO80211VirtualInterfaceNamer"=1,"AtiSmuInfoInterface_V2_V3_1"=0,"SCSITask"=0,"BaffinThermalTriggerInterrupt"=1,"IOAHCIPortInterface"=1,"IOThunderboltUserProtocolListener"=0,"AtiLineBuffer"=1,"IOThunderboltControlPathListener"=1,"FakeSMCKeyStoreUserClient"=1,"AppleHDAEngine"=2,"IOThunderboltProtocolListener"=0,"AMDRadeonX4250_IAMDSMLPSP"=0,"AMDRadeonX4250_AMDUVD6v3DecChannel"=1,"AtiDiagLedProgrammer"=0,"DspFuncControlFreak"=0,"AppleSEPIntelIOP"=0,"R800_CHDCP"=0,"AMDRadeonX4250_AMDVIVMM"=1,"IORootParent"=1,"SaffireIsocPort"=4,"IOWatchDogTimer"=2,"AMDRadeonX4250_AMDSetModeMsg"=0,"AtiSelectCrtcSourceInterface_V2"=0,"IOFWAsyncStreamListener"=0,"SMCWatchDogTimer"=1,"AtiLinkedListItem"=1,"IOCPUInterruptController"=1,"AMDRadeonX4250_AMDAccelDisplayMachine"=1,"AppleUSBEHCI"=1,"BaffinMcilInterrupt"=10,"AtiDigitalPanelInfo"=5,"BaffinThermalInterrupt"=1,"AtiScalerInterface"=1,"IOUSBPipeV2"=0,"AppleHDAFunctionGroupALC262"=0,"DspFuncXTC"=0,"org_voodoo_driver_VoodooTSCSync"=1,"AppleHDAFunctionGroupAD1984"=0,"DspFunc2Dot1Crossover"=0,"AppleAPFSUserClient"=0,"AppleHDAHardwareConfigDriverLoader"=0,"AtiFirmwareInfoInterface_V2"=0,"AppleAHCIRequestTimer"=6,"AtiSpreadSpectrumInfoInterface_V2_1"=0,"AppleOSXWatchdog"=1,"IOFireWireDuplicateGUIDList"=1,"AppleHDAWidget_80862805"=0,"BaffinCriticalTemperatureInterrupt"=1,"AppleAHCIDiskQueueManager"=6,"LPCSensors"=1,"IOPMinformeeList"=344,"AppleHDATDMAmpTAS5758L"=0,"IOAHCIBlockStorageDriver"=1,"mDNSHandoff"=0,"IOBufferCopyEngineTestUserClient"=0,"AtiGetSmuClockInfoInterface_V2"=0,"OSSymbol"=8847,"KernelRelay"=0,"AMDRadeonX4250_AMDAccelSurface"=5,"AppleHDAFunctionGroup_80862805"=0,"IOFWReadCommand"=0,"AMDRadeonX4250_AMDVISAMUGPCOMRing"=1,"IOAudioToggleControl"=22,"IONaturalMemoryCursor"=5,"IOAudioStream"=6,"AppleECSMBusController"=0,"AtiAsicInit_V1_1"=0,"AMDRadeonX4250_AMDVISAMURBIRing"=1,"AMDRadeonX4250_AMDCommandBufferPool"=35,"AIDReporterState"=0,"IOBasicOutputQueue"=2,"AppleUSBEHCITTInfo"=0,"X86PlatformShim"=1,"IOPacketQueue"=1,"AMDRadeonX4250_AMDVIVMContext"=15,"DspFuncVolume"=2,"IOSerialBSDClient"=1,"IOFramebufferParameterHandler"=6,"AppleHDAFunctionGroupWM8800"=0,"DspFuncVirtualization"=0,"IOBluetoothSerialClientModemStreamSync"=0,"DspPatchPoint"=8,"IOKDP"=0,"CCDataStream"=2,"AppleFWOHCI_IOMemoryBlock32"=5,"W836xxSensors"=0,"DspFuncUserClient"=0,"IO80211WorkLoop"=1,"BaffinHdmiConnection"=4,"IO80211VirtualInterface"=1,"AppleBusControllerCS8409"=0,"HDCPDDCAuxHandler"=10,"CHDCP"=1,"DspFuncBeamFormer"=0,"IOFramebufferSharedUserClient"=3,"AppleUSBEHCIPort"=2,"IOAudioSelectorControl"=10,"AppleHDAEngineInput"=2,"AMDRadeonX4250_AMDSMLPSP"=0,"IOThunderboltConfigXDomainRequestCommand"=0,"AtiAdjustDisplayPll_V3"=1,"IOThunderboltConfigXDomainLinkStatusRequestCommand"=0,"AppleUSBEHCIIsochronousRequest"=6,"com_apple_driver_pm_msr_reporter"=1,"BrcmFirmwareStore"=1,"AppleUSBNetworkingHostCommandPool"=0,"IOHIDEventServiceUserClient"=3,"IOTimeSyncMachAbsoluteNanoseconds"=0,"BaffinSharedDigitalConnection"=1,"AtiNvramParserInterface"=1,"IOAccelBlockFence"=0,"IOThunderboltXDPropertiesLeafData"=0,"AMDRadeonX4250_AMDVCE3v4Ring"=2,"IT87xxSensors"=0,"AtiGpioPinLutInterface_V1"=1,"IOFireWireDevice"=1,"AppleHDACodecGeneric"=2,"AppleNVMeTranslationSMARTUserClient"=0,"AMDRadeonX4250_AMDVIVCEHWEngine"=1,"AppleHDAWidget_10DE0014"=0,"IOHIDClientData"=3,"IOThunderboltI2CCommand"=0,"IOFWReceiveDCL"=1,"RadeonSensors"=1,"AppleHDAWidget"=2,"AtiTransmitterControlInterface_V1"=1,"AtiBiosParser1"=1,"AtiTransmitterControlInterface_V2"=0,"IODVDMedia"=0,"IOHIDEventDriver"=3,"AtiProcessAuxTransaction_V1_2"=0,"AMDRadeonX4250_IAMDSMLVCE"=1,"AMDRadeonX4250_AMDVIsDMARing"=2,"BaffinGuiBusyInterrupt"=1,"AMDRadeonX4250_AMDUVDInterruptEventSource"=0,"IOBufferCopyEventSource"=0,"AMDRadeonX4250_AMDAccelUVDContext"=0,"AppleHDAWidgetWM8800"=0,"AMDRadeonX4250_AMDSamuDPPStatusInterface"=1,"BaffinHpdRxInterrupt"=6,"IOThunderboltXDomainLink"=0,"CryptoBufferDescriptor"=16,"IOThunderboltSwitchLC"=0,"AtiBlankCrtcInterface_V1"=1,"AppleThunderboltHAL"=1,"IOBluetoothDataQueue"=1,"IOFireWireUnitAux"=1,"BaffinThermalHighToLowInterrupt"=1,"IOFWDCL"=2,"AIDCircularBuffer"=0,"AppleHDAFunctionGroupATI_Broadway"=0,"AppleUSBNetworkingCommand"=0,"OSSerialize"=1,"AtiEnableCrtcInterface_V2"=0,"AMDRadeonX4250_AMDHWChannelStatsGroup"=14,"AppleUSBXHCIParkingCommandRing"=1,"AppleSMBusControllerUserClient"=0,"AppleSMBusDevice"=0,"AtiSclCoeff"=1,"IOThunderboltConfigReadCommand"=1,"com_apple_filesystems_hfs_encodings"=1,"IOBDMedia"=0,"AppleUSB30XHCICardReaderPort"=0,"IOAudioPort"=0,"AppleUSBXHCIAR"=0,"IOFilterScheme"=0,"AppleHDAFunctionGroupMCP89"=0,"IOBDMediaBSDClient"=0,"AppleUSB20Hub"=8,"IOFireWirePowerManager"=1,"IOHDIXHDDriveNub"=1,"AppleHDAEngineOutput"=4,"IOBufferCopyCommandQueue"=0,"IOMachPort"=1281,"IOThunderboltWorkLoop"=1,"IOHIDPointingDevice"=0,"BaffinThermalLowToHighInterrupt"=1,"AppleUSBController"=3,"AppleUSB20InternalIntelHubPort"=0,"AMDFramebuffer"=5,"IOPartitionScheme"=3,"BluetoothMultitouchTransport"=1,"BaffinCpMe2EoPInterrupt"=4,"AppleGPUWrangler_GPUPostStartWorkItem"=0,"AppleFWOHCI_PM_x86"=1,"IOBluetoothRFCOMMChannelUserClient"=0,"IOFWAsyncCommand"=2,"ATIConnection"=2,"IOStateReporter"=42,"IOBootNDRV"=0,"AtiStaticPllAssigner"=1,"BaffinSpuTrapInterrupt"=1,"IONetworkInterface"=2,"AppleHDAWorkLoop"=2,"IOAccel2DContext2"=1,"IOFWPseudoAddressSpaceAux"=3,"IOPMPowerStateQueue"=1,"AMDRadeonX4250_AMDGraphicsAccelerator"=1,"IONVMeBlockStorageDevice"=1,"IOThunderboltXDomainPath"=0,"IOHIDEventServiceQueue"=4,"IOAccelSegmentResourceList"=0,"AIDUserClientLogger"=0,"AMDRadeonX4250_AMDSamuDPP22TestInterface"=1,"AppleHIDTransportIODataQueue"=0,"AppleUSBEHCISplitIsochronousRequestPool"=1,"IOSurfaceRoot"=1,"AppleUpstreamUserClient"=0,"AMDRadeonX4250_AMDSPUHWChannel"=2,"AppleNVMeSMARTUserClient"=0,"IOFireWireUserClientIniter"=4,"IORemoteConfigDirectory"=2,"IOHDAController"=1,"IOPlatformPluginDevice"=2,"IOFireWireMultiIsochReceiveListener"=0,"AirPort_BrcmNIC"=1,"IOThunderboltConfigXDomainROMChangedRequestCommand"=0,"BaffinDpAudioConnection"=6,"AppleHDAFunctionGroupExternalControl_GPIO"=0,"AppleUSBEHCISplitPeriodicEndpoint"=0,"AMDRadeonX4250_AMDVIGraphicsAccelerator"=1,"AtiEnableCrtc_V2_V1"=0,"IOCommandPool"=20,"HDCPAuxHandler"=2,"AppleUSB20InternalIntelHub"=0,"BaffinBandwidthManager"=1,"AMDRadeonX4250_AMDVIUVDChannel"=1,"DspFuncMozartCompressorDualBand"=0,"IOThunderboltNHI"=1,"IOSCSITargetDevice"=0,"IO80211ScanManager"=1,"AMDRadeonX4250_AMDSamuDecAppInterface"=0,"BaffinHdcpAuthFailInterrupt"=6,"AMDRadeonX4250_AMDHashTable"=0,"AtiSelectCrtcSourceInterface_V1"=1,"AtiLinkedListIterator"=1,"AppleS3XController"=0,"IOSurfaceRootUserClient"=15,"CCCapture"=0,"IO80211NetBootNub"=0,"AtiBlankCrtc_V2_V1"=0,"OSString"=12403,"IOBufferCopyEngine"=0,"IOHIDResource"=1,"IOFireWireUnit"=1,"IOThunderboltConfigMultiReadCommand"=0,"IO80211AWDLPeerManager"=1,"DspFuncLimiter"=0,"OSSet"=2543,"AppleGPUWrangler_MatchNotificationWorkItem"=0,"OSNumber"=19013,"IOHIDElement"=1,"IOHIDConsumer"=0,"APFSCryptoContext"=16,"AMDRadeonX4250_AMDCICLContext"=0,"BaffinCpMe1EoPInterrupt"=4,"AppleFWOHCI_DCLPool"=4,"com_actionsmicro_EZCastVAD"=1,"IOFWWriteCommand"=0,"IOThunderboltDictionary"=4,"AtiOfflinePanelInfo"=5,"BaffinSharedInterrupt"=19,"IOThunderboltFindCapabilityCommand"=0,"OSObject"=234,"IOThunderboltController"=1,"AMDRadeonX4250_AMDUpdateModeMsg"=0,"com_apple_AppleFSCompression_AppleFSCompressionTypeZlib"=1,"AMDRadeonX4250_AMDAccelShared"=15,"R800SharedHDCP"=0,"com_actionsmicro_EZCastVADEngine"=1,"AMDRadeonX4250_AMDPM4HWEngine"=1,"IO80211DriverCommandDescriptor"=0,"AirPort_BrcmNIC_Interface"=1,"GmaSensors"=0,"IODeblocker"=0,"AtiPowerPlayInfoInterface_V2"=0,"AMDRadeonX4250_AMDAccelCLContext"=0,"IOCDPartitionScheme"=0,"AMDRadeonX4250_AMDVIPM4CommandsUtility"=1,"IOSlaveRelayActionCommand"=0,"IOFWPhysicalAddressSpaceAux"=0,"IOBluetoothHostControllerUserClient"=0,"AtiSetPixelClock_V1_V7"=1,"AppleKeyStoreCommand"=1,"IOUSBBus"=1,"AtiGetMemoryClockInterface_V2"=0,"IOHDIXHDDriveOutKernelUserClient"=1,"AtiAtomFirmwareInterface"=1,"OSArray"=11305,"AtiEncoderControl_V1_V5"=1,"IOThunderboltString"=5,"com_apple_filesystems_apfs"=0,"IOSurfaceClient"=269,"IOHIDAsyncReportQueue"=0,"IORegistryEntry"=153,"BNBTrackpadDevice"=1,"IOUSBDeviceUserClientV2"=0,"IOAccelTraceStream2"=1,"FakeSMCKey"=82,"BaffinUvdGeneralPurposeInterrupt"=1,"AppleUSBEHCIRequestPool"=1,"AppleSATLSMARTUserClient"=0,"IOSCSIBlockCommandsDevice"=1,"IOThunderboltConfigResetCommand"=1,"IOBluetoothMemoryDescriptorRetainer"=0,"IOConfigurationDescriptorOrderedSet"=0,"AMDRadeonX4250_AMDDPPMsgBuffMsg"=0,"IOCatalogue"=1,"DspBuffer"=16,"DspFunc3ChOutput"=0,"AppleUSB20XHCITypeCPort"=0,"AtiSelectCrtcSource_V1_V2"=0,"OSDictionary"=16411,"DspFuncMultiBandCompressor"=0,"IOThunderboltPort"=1,"AMD9500Controller"=1,"IOMemoryMap"=1982,"AMDRadeonX4250_AMDVIVCELLQChannel"=0,"usbscsistorUserClient"=0,"AppleUSB30XHCIPort"=10,"IOHDACodecDriver"=2,"IOThunderboltConfigModifyQuadletCommand"=0,"IOSCSIMultipathedLogicalUnit"=0,"IOAccelNamespace"=17,"AppleNVMeWorkLoop"=1,"IOThunderboltNHITransmitRing"=1,"IOTimeSyncUserFilteredServiceUserClient"=0,"AppleThunderboltNHIReceiveRing"=12,"AppleUSBHostControllerListElement"=1,"DspFuncLoudness"=0,"IOThunderboltIECSNub"=0,"IOHDAStream"=8,"IOThunderboltPath"=0,"AMDRadeonX4250_AMDVIVCERing"=1,"AMDRadeonX4250_AMDVIPM4Channel"=1,"AppleUSBRequestPool"=4,"AtiTransmitterControl_V1_V6"=1,"AtiEnableCrtc_V1_V1"=1,"BaffinHotPlugInterrupt"=6,"IOEventSource"=17,"IOUSBCommand"=0,"AppleHDAFunctionGroupATI_RS730"=0,"AMDRadeonX4250_IAMDHWMemory"=1,"IO80211AWDLMulticastPeer"=1,"AtiGetMemoryClockInterface_V1"=1,"AMDRadeonX4250_IAMDSMLUVD"=1,"AMDRadeonX4250_IAMDHWInterface"=1,"OSSerializer"=170,"IOFWUserPHYPacketListener"=0,"IOLittleMemoryCursor"=0,"AppleHDAWidgetCS4208"=0,"AMDRadeonX4250_AMDVICommandsRing"=1,"AppleUSBEHCIPipe"=2,"IOTimeSyncUserClient"=0,"mDNSOffloadUserClient"=0,"AMDRadeonX4250_AMDInterruptEventSource"=5,"AIDReporter"=0,"IOPMrootDomain"=1,"IOFWWriteQuadCommand"=0,"IOSMBusRequest"=0,"AtiFbInterruptManager"=1,"IOSlaveMemory"=0,"AppleSMBusController"=0,"SaffireAudioStream"=4,"AtiHdcp1Lib"=0,"IOUSBMassStorageDriver"=3,"IOSCSIPeripheralDeviceType07"=0,"IOThunderboltConfigNotifyAckCommand"=0,"AppleSSE"=1,"AppleHDAMikeyInternalCS8409"=0,"R700_CHDCP"=0,"DspFuncCalibrationEQ"=0,"IOPMServiceInterestNotifier"=115,"AGPMHeuristic2"=0,"AppleFWOHCI_CallbackContainer"=5,"IOFireWireIRM"=1,"AMDRadeonX4250_AMDHWGart"=1,"IODisplay"=1,"AtiAtomBiosParser"=1,"AEdidBlock"=2,"DspFuncEQ"=1,"AppleFWOHCI_IRMSpace"=1,"IO80211QueueCall"=1,"DspFuncManager"=8,"IOAccelDisplayPipeUserClient2"=5,"IOFWUserAsyncStreamCommand"=0,"AppleUSBHostController"=2,"AppleGraphicsDeviceControlClient"=12,"AppleMCP79AHCI"=0,"AMDRadeonX4250_IAMDHWChannel"=2,"IOFWPseudoAddressSpace"=3,"IOAccelCommandQueue"=1,"IOUSBMassStorageUASDriver"=0,"IOSCSIProtocolServices"=4,"IOFWBusCommand"=1,"IOHDIXController"=1,"_IOServiceNullNotifier"=1,"AppleSEPControl"=0,"SaffireAudio"=1,"IOHIDResourceDeviceUserClient"=0,"IOUSBMassStorageDriverNub"=3,"AtiGetEngineClock_V2_V1"=0,"AppleHDAWidgetMCP89"=0,"AtiHwCursor"=1,"AppleCSRBluetoothHostController"=0,"IOHIDLibUserClient"=3,"IOBluetoothWorkLoop"=0,"AMDRadeonX4250_AMDVIsDMAChannel"=2,"IOThunderboltEEPROM"=0,"AppleAHCIWorkLoopLock"=7,"IOAccelRangeAllocator"=1,"AppleUSBDescriptor"=88,"IOThunderboltCallbackEventSource"=0,"AppleIntelMCEReporting"=1,"AppleUSBEHCIHubInfo"=1,"AMDRadeonX4250_AMDVCEHWEngine"=1,"AMDRadeonX4250_AMDSMLUVD"=1,"com_apple_driver_MaxTranserSizeOverrideDriver"=5,"AirPort_BrcmNIC_P2PInterface"=2,"IOSlowAdaptiveClockingDomain"=0,"IOCDBlockStorageDriver"=1,"AppleACPIPowerResource"=0,"AppleMultitouchHIDEventDriverV2"=0,"IOMediaBSDClient"=30,"IOBluetoothACLMemoryDescriptor"=0,"IOSCSIPeripheralDeviceType05"=1,"IO80211CommandQueue"=10,"IOHITablet"=0,"IOThunderboltArray"=3,"NvidiaGraphicsFixup"=1,"IOBluetoothHCIRequest"=0,"IOAccelMemoryAllocator2"=3,"AMDRadeonX4250_AMDBaffinPM4Engine"=1,"DspFuncDelay"=0,"AppleUSBXHCIIsochronousEndpoint"=0,"AtiTransactionCompleteInterrupt"=6,"AppleMCP89AHCIPort"=0,"IOThunderboltConfigPollQuadletCommand"=0,"IOLocalConfigDirectory"=3,"CPUSensors"=1,"IOSCSIPeripheralDeviceNub"=2,"AppleSEPCommandPool"=0,"AppleUSBRequest"=1,"BaffinVerticalLinkInterrupt"=0,"IOPlatformPluginFamily"=1,"AppleUSB20InternalSMSCHub"=0,"AppleGPUWrangler_WorkItem"=0,"IO80211PeerMonitor"=1,"IOUSBCommandPool"=0,"AtiAsicInitInterface_V1"=1,"IOUSBMassStorageDriverUFIDevice"=0,"IOUSBRootHubDevice"=0,"AppleHDAFunctionGroupExternalControl_VirtualGPO"=2,"GammaTable"=5,"IOBufferCopyEngineTestDummy"=1,"IOThunderboltSwitchI2CCommandQueue"=0,"FakeSMC"=1,"IOBluetoothHIDDriver"=1,"IOTimeSyncIntervalFilterIIR128"=0,"DspFuncNoiseCanceller"=1,"AppleHDAFunctionGroupSTAC9220"=0,"IOInterleavedMemoryDescriptor"=0,"IONDRVDevice"=0,"AMDRadeonX4250_AMDVIResource"=1091,"IOKernelDebugger"=0,"OSBoolean"=2,"IOHIDEventSource"=3,"BaffinVBiosEventInterrupt"=1,"AGPMClient"=0,"IOSlaveRelayCommandPool"=0,"OSData"=57164,"IOHIDInterface"=3,"IOAccelBufferMemoryDescriptorPool2"=0,"OSIterator"=3,"IOACPIPlatformDevice"=452,"AppleFWOHCI_ReceiveDCL"=3840,"IOFWUserObjectExporter"=1,"AppleHDAStream"=11,"DspFuncMultiBandDRC"=0,"DspFunc2To6Splitter"=0,"IOFramebufferUserClient"=6,"IOSimpleReporter"=137,"AtiPowerPlayTableInterface_V1"=1,"IOUserEthernetController"=0,"HDCPDPAuxHandler"=5,"IOThunderboltCommandQueue"=6,"TDMConfig"=0,"AMDRadeonX4250_IAMDHWVMContext"=1,"AIDLogger"=0,"HIDAlwaysNotifyingIODataQueue"=1,"ApplePlatformEnabler"=1,"BaffinVerticalSyncInterrupt"=6,"AppleHDAWidgetALC262"=0,"AppleSATAExpress"=0,"AppleGPUWrangler_BusyInterestWorkItem"=0,"DspFuncBiquad"=0,"AppleUSB30HubPort"=15,"AMDRadeonX4250_AMDAccelVidMemory"=2457,"IOHDIXCommandQueue"=2,"AppleSMBusControllerICH"=0,"AppleIntelSlowAdaptiveClockingManager"=1,"IOThunderboltConnectionManager"=1,"AppleUSBHostPort"=3,"IOThunderboltSwitchType2"=0,"AppleHDAFunctionGroupGK10X"=0,"AppleMCCSIOController"=12,"IOBDBlockStorageDevice"=1,"IOUSBHostInterface"=21,"IOThunderboltTimerCommand"=3,"AppleMCP89AHCI"=0,"IOBufferCopyEngineTestSubmissionQueue"=0,"AtiVBiosHelper"=1,"AMDRadeonX4250_AMDAccelMemoryMap"=3565,"AppleUSBHostDMACommand"=1,"AMDRadeonX4250_AMDSMLInterface"=1,"AppleUSBIORequest"=200,"_IOServiceJob"=0,"IOFWUserAsyncStreamListener"=0,"IOFireWireMultiIsochReceivePacket"=0,"BaffinFbCompressionManager"=0,"AppleUSBXHCIARIsochronousRequestPool"=0,"AppleACPIButton"=1,"IOBufferCopyEngineTestFirmwareChannel"=0,"_IOConfigThread"=0,"IOThunderboltCommand"=3,"AMDRadeonX4250_AMDHWVMContext"=1,"AppleHIDKeyboardEventDriverV2"=0,"AMDRadeonX4250_AMDVIVCELLQRing"=0,"RootDomainUserClient"=74,"DspFuncVolume_4ch"=0,"AudioAUUC"=0,"DspFuncFIRdirect"=0,"IOHIDEventRepairDriver"=0,"AMDRadeonX4250_AMDAtomicBlitManager"=1,"AppleUSBXHCIPCI"=3,"IOSlaveCPU"=0,"FakeSMCKeyHandler"=1,"AppleThunderboltNHIType3"=0,"DspFuncSplineLimiter"=0,"SMCPolledInterface"=1,"AppleUSB30GLHub"=1,"AtiProcessAuxTransactionInterface_V1"=1,"AppleMobileFileIntegrity"=1,"AppleUSBHostLegacyClient"=17,"AppleUSBXHCILPT"=1,"IOHIDUserClient"=1,"IOFireWireBusAux"=1,"IOFWUserIsochChannel"=0,"AppleFWOHCI_CycleTimeManager"=1,"AtiProcessAuxTransactionInterface_V2"=0,"AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"=1,"IOFWSendDCL"=1,"IOHIDSystem"=1,"IOHDIXCommand"=0,"IOSCSIPeripheralDeviceType00"=2,"DspFuncAutoGainControl"=0,"AtiEncoderControlInterface_V2"=0,"IOHIDPointing"=0,"SaffireUserClient"=0,"IOBluetoothL2CAPSignalChannel"=1,"AtiTableConnectorAssigner"=0,"DspFuncMozartCompressor"=0,"IOAccelSurface2"=1,"IOTimeSyncUserFilteredService"=0,"IOFWUserWriteCommand"=0,"AtomBiosProxy"=1,"AMDRadeonX4250_IAMDHWVMM"=1,"AppleCredentialManagerUserClient"=1,"AtiPackingConnectorAssignerDynamic"=0,"AppleIntelPchSeriesAHCIPort"=0,"AppleHDAFunctionGroupFactory"=0,"KernelRelayEndpoint"=0,"SCSITaskUserClientIniter"=2,"AppleHDAWidget_80862807"=0,"AppleXsanDevice"=0,"AHwI2cProxy"=1,"_IOFramebufferNotifier"=30,"CodecCommanderPowerHook"=1,"OSKext"=164,"AppleHV"=1,"F718xxSensors"=0,"AppleUSBEHCIsiTD"=0,"CCStream"=2,"IOGUIDPartitionScheme"=8,"AMDRadeonX4250_IAMDHWSemaphorePool"=1,"AppleHDAWidgetAD1984"=0,"IOSyncer"=0,"AppleHDAWidget_1002AAA0"=14,"AppleThunderboltNHITransmitRingManager"=1,"AHCIRequest"=361,"AppleSEPManager"=0,"IOSCSILogicalUnitNub"=8,"IOPCIEventSource"=0,"IOUSBHostPipe"=2,"IOCharacterDevice"=3,"IOBluetoothL2CAPChannel"=3,"CCDataSession"=0,"CodecCommanderClient"=0,"AppleHDAFunctionGroupATI_Park"=1,"AtiEncoderControlInterface_V1"=1,"IOAudioControl"=3,"AppleHDAFunctionGroupATI_RS710"=0,"AMDRadeonX4250_AMDHWHandler"=1,"DspFunc"=4,"com_apple_driver_AppleUSBStorageCoexistentBridge"=1,"IOBufferMemoryDescriptor"=1381,"AMDRadeonX4250_AMDUVDHWEngine"=1,"Saffire"=1,"CCDataPipeUserClient"=0,"AMDRadeonX4250_IAMDHWSemaphoreMemMgr"=1,"IO80211FlowQueueDatabase"=3,"IOHIDEvent"=0,"CCIOReporterDataStream"=1,"IOUSBNotification"=0,"IOSMBusController"=0,"ATIAnalogConnection"=0,"AppleNVMeRequestTimer"=1,"SCSITaskUserClient"=1,"IOUSBLog"=1,"AppleHDAMikeyInternal"=0,"BaffinAuxChannelProxy"=5,"AMDRadeonX4250_AMDDPPOpenInstanceMsg"=0,"IO80211AssociationJoinSnapshot"=1,"GeforceSensors"=0,"IOHDIXHDDriveOutKernel"=1,"OSCollectionIterator"=53,"AppleGraphicsDeviceControlPlugin"=1,"IOThunderboltTunnelDriver"=0,"IOReportHub"=1,"IOFireWireIP"=1,"IOThunderboltIECSCommandQueue"=0,"IOThunderboltConfigCommand"=4,"AppleHDAAudioSelectorControlDP"=3,"AppleUSBHubPolicyMaker"=3,"AtiDceInfoInterface_V2_V4_1"=0,"AMDRadeonX4250_AMDHardware"=1,"BaffinUvdTrapInterrupt"=2,"IOAccelSubmitter2"=2,"AppleUSBEHCICardReaderPort"=0,"IOBluetoothDevice"=1,"DspFunc4ChOutput"=0,"BaffinDisplayEngineClock"=1,"IOThunderboltTransmitCommand"=3,"IOBluetoothTimerEventSource"=0,"IOUSBInterfaceUserClientV2"=0,"SuperIODevice"=1,"IOPlatformExpert"=1,"IOFDiskPartitionScheme"=1,"IOAccelAllocationInfo"=0,"IOUSBMassStorageClass"=1,"DspFuncWithSharedMemory"=0,"DspFuncCrossover"=0,"AppleMultitouchHIDEventService"=0,"IOModemSerialStreamSync"=0,"IOBluetoothHostController"=1,"IOThunderboltSet"=7,"AMDRadeonX4250_AMDVICTT"=1,"AppleUSBXHCIIsochronousRequest"=15,"IODiskImageBlockStorageDeviceOutKernel"=1,"IO80211ControllerMonitor"=1,"AtiBlankCrtcInterface_V2"=0,"AtiNvramParserV1"=1,"AMDRadeonX4250_AMDCIVCERing"=0,"IOPMinformee"=390,"BaffinDisplayPortConnection"=1,"FakeSMCDevice"=1,"AppleAPFSVolumeBSDClient"=4,"DisplayPortUtilities"=1,"AppleUSBXHCIARIsochronousRequest"=0,"AGPM"=1,"AtiAdjustDisplayPllInterface_V1"=1,"AppleUSB20XHCIPort"=18,"AMDRadeonX4250_IAMDHWRegisters"=1,"IOFireWireROMCache"=1,"AppleMultitouchDevice"=1,"IO80211PacketDescriptor"=4096,"AMDRadeonX4250_AMDUVD6v3EncLLQRing"=1,"AtiGpuWrangler"=1,"AtiFbInterruptDeferredCallback"=0,"AMDRadeonX4250_AMDAccelVCEContext"=0,"AirPort_BrcmNIC_Timer"=58,"AIDService"=0,"IOSlaveRelayEndpoint"=0,"R700SharedHDCP"=0,"BaffinLineBuffer"=6,"BaffinDiagLedProgrammerV2"=0,"IOCPU"=1,"BaffinPowerPlayManager"=1,"CodecCommander"=1,"IOWorkLoop"=130,"AppleUSBEHCIiTDPool"=1,"IOFWUserPhysicalAddressSpace"=0,"IOGraphicsDevice"=1,"AppleHPET"=1,"CCDataPipe"=2,"AppleUSBEHCIsiTDPool"=1,"IOUSBHubPolicyMaker"=1,"AppleSMCClient"=2,"IOGatedOutputQueue"=17,"GTrace"=1,"IOUSBPipe"=0,"myframebuffer_client"=0,"IOHIDResourceQueue"=0,"AppleHDAControllerUserClient"=0,"IOPCIDevice"=105,"APowerPlayManager"=1,"AtiCommandGate"=0,"IODVDBlockStorageDevice"=1,"IONetworkUserClient"=0,"IOUserEthernetResourceUserClient"=0,"IOHIDUserDevice"=0,"IOTimeSyncFilteredService"=0,"IOAppleBluetoothHIDDriver"=1,"IOThunderboltPacketLoggerNub"=0,"IOFireWireIPDiagnostics"=1,"IOHITabletPointer"=0,"DspFuncChOutput"=0,"IOThunderboltAbstractMicro"=0,"IOHDACodecDevice"=2,"AppleHDAMikeyInternalCS4208"=0,"AppleAPFSVolume"=4,"IOFireWireNub"=3,"AppleFWOHCI_AsyncReceive"=2,"AMDRadeonX4250_AMDUVD6v3EncRing"=2,"AMDSupport"=1,"AMDRadeonX4250_AMDBaffinAlignManager"=1,"BaffinSharedController"=1,"AppleIntelPchSeriesAHCI"=0,"PrimaryEdidBlock"=6,"com_apple_driver_pm_reporter"=3,"AMDRadeonX4250_AMDUVD6v3HWEngine"=1,"AMDRadeonX4250_AMDAccelVideoContext"=0,"AMDRadeonX4250_AMDAccelResource"=1,"IOUSBMassStorageUFIDriver"=0,"AtiSetPixelClockInterface_V2"=0,"AMDRadeonX4250_IAMDPM4CommandsUtility"=1,"IOHIDKeyboardDevice"=0,"IOHIDProviderPropertyMerger"=0,"IOThunderboltXDDirectory"=0,"AppleKeyStore"=1,"IOThunderboltHopSet"=2,"IOThunderboltLocalNode"=1,"AppleHDAWidgetATI_Park"=1,"AtiConstantConnectorAssigner"=0,"AtiConnectorAssigner"=1,"AMDRadeonX4250_AMDSMLVCE"=1,"AMDRadeonX4250_AMDVIHardware"=1,"AMDRadeonX4250_AMDHWRegisters"=1,"IOThunderboltXDPropertiesCache"=1,"IOAudioTimeIntervalFilterFIR"=0,"AppleFWOHCI_KDP"=0,"AppleUSBPipe"=0,"IODVDMediaBSDClient"=0,"AppleUSBXHCIARRequest"=0,"AppleS3ELabController"=0,"AppleFWOHCI_CallbackEventSource"=11,"AppleUSBXHCI"=1,"IOUserEthernetInterface"=0,"AppleUSBXHCIPPT"=0,"IOBluetoothHCIController"=1,"AppleUSBEHCIPI7C9X440SL"=0,"AtiSpreadSpectrumInfoInterface_V3_1"=1,"IOThunderboltReceiveCommand"=16,"IOBDServices"=1,"AtiSetPixelClockInterface_V1"=1,"com_apple_AppleFSCompression_AppleFSCompressionTypeDataless"=1,"AMDRadeonX4250_AMDAccelCPContext"=1,"BrcmPatchRAMResidency"=1,"IOPCIBridge"=2,"IONVMeController"=1,"IOSKMemoryBuffer"=475,"IORangeAllocator"=17,"BaffinThrottleAcDcInterrupt"=1,"AGPMHeuristic4"=0,"AppleHDAFunctionGroup_10DE0014"=0,"AppleSEPEndpoint"=0,"AtiScalerEnhanced"=1,"IOHIDKeyboardEventDevice"=0,"AMDRadeonX4250_AMDUVDHWChannel"=2,"BaffinScaler"=6,"AMDRadeonX4250_IAMDAtomicBlitManager"=1,"AppleMCP79AHCIPort"=0,"IOAccelDisplayPipeGammaTable2"=3,"IOFWCompareAndSwapCommand"=5,"IOAccelStatistics2"=1},"IOMalloc allocation"=328768992}
    | |   |   | |   |   "IOAccelTypes" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR2A@2/IOPP/GFX1@0/AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   | |   |   "IOAccelTypes" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR2A@2/IOPP/GFX1@0/AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   | |   |   "IOAccelTypes" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR2A@2/IOPP/GFX1@0/AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   | |   |   "IOAccelTypes" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR2A@2/IOPP/GFX1@0/AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   | |   |   "IOAccelTypes" = "IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/BR2A@2/IOPP/GFX1@0/AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   | +-o AMDRadeonX4250_AMDEllesmereGraphicsAccelerator  <class AMDRadeonX4250_AMDEllesmereGraphicsAccelerator, id 0x100000a41, registered, matched, active, busy 0 (46 ms), retain 81>
    | |   |   |   |   "IOGLBundleName" = "AMDRadeonX4000GLDriver"
    | |   |   |   |   "IOOCDBundleName" = "AMDRadeonX4000GLDriver"
    | |   |   |   |   "CFBundleIdentifier" = "com.apple.kext.AMDRadeonX4250"
    | |   |   |   |   "IOClass" = "AMDRadeonX4250_AMDEllesmereGraphicsAccelerator"
    | |   |   |   +-o AMDRadeonX4250_AMDAccel2DContext  <class AMDRadeonX4250_AMDAccel2DContext, id 0x100000b01, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccel2DContext  <class AMDRadeonX4250_AMDAccel2DContext, id 0x100000b02, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccel2DContext  <class AMDRadeonX4250_AMDAccel2DContext, id 0x100000b03, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccel2DContext  <class AMDRadeonX4250_AMDAccel2DContext, id 0x100000b04, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccel2DContext  <class AMDRadeonX4250_AMDAccel2DContext, id 0x100000b05, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000b30, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000b31, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSurface  <class AMDRadeonX4250_AMDAccelSurface, id 0x100000b33, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSurface  <class AMDRadeonX4250_AMDAccelSurface, id 0x100000b34, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSurface  <class AMDRadeonX4250_AMDAccelSurface, id 0x100000b35, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSurface  <class AMDRadeonX4250_AMDAccelSurface, id 0x100000b36, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSurface  <class AMDRadeonX4250_AMDAccelSurface, id 0x100000b37, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000b39, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000b3a, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDSIGLContext  <class AMDRadeonX4250_AMDSIGLContext, id 0x100000b3b, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000bf1, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000bf2, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c6b, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000c6c, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c72, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c74, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000c75, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000c76, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c85, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c8f, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000c93, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cc8, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000cc9, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cca, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000ccb, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000ccc, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000ccd, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000cce, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000ccf, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000cd0, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cd4, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cd5, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000cd6, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000cd7, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cee, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000cf0, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDSIGLContext  <class AMDRadeonX4250_AMDSIGLContext, id 0x100000cf1, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cf8, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000cf9, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000cfa, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000cfb, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000d75, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000d76, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000d77, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000d78, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000d7e, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100000d7f, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100000d80, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000d81, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x100000da1, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100001342, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100001343, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x100001388, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x100001389, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x10000138a, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x1000013bc, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelDevice  <class AMDRadeonX4250_AMDAccelDevice, id 0x1000013bd, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelSharedUserClient  <class AMDRadeonX4250_AMDAccelSharedUserClient, id 0x1000013be, !registered, !matched, active, busy 0, retain 6>
    | |   |   |   +-o AMDRadeonX4250_AMDAccelCommandQueue  <class AMDRadeonX4250_AMDAccelCommandQueue, id 0x1000013bf, !registered, !matched, active, busy 0, retain 6>

surfinchina · June 23, 2017

Succes AMD Asus 390X Strix on Sierra 10.12.5.

My configuration is Inject Intel and let IGPU as primary. No patches. Sleep works!

I decided this card because FCPX (Open CL) is my principal use and color in Davinci Resolve sometimes. I tried RX 480 but was ver problematic in each update and run slowly for my work.

At the moment I don´t see any GPU faster for work in FCPX.

Specs important for me over 480/580x:

- Bus 512 Bits

- 6,026 GFLOPS

- 188.3 GTexel/s

- 2816 Stream Processor

- Bandwith 384 GB/s

- Computes Units 44

- GDDR5 8192 MB

Important:

- Mobo Maximus VIII need to disable CSM compatibility in order to boot only with IGPU and no auto recognize the GPU.

- Fake ID 0x67b01002 - Clover

- Fix display 0100 - Clover

- Inject Intel - Clover

Thanks to @Slice for NO INJECT Ati , @Matthew82, for links and info, @maldon and always @Rampagedev for all my systems.

I let some test attached:

Bruce FCPX: 11 Seg.

Davinci Candle Test:

66 blur Nodes: 7 fps

30 BN:14

18 BN: 24

9 BN: 24

Succes AMD Asus 390X Strix on Sierra 10.12.5.

Hi Picasso, I've been having overheating problems with my 390x. It's a Gigabyte. Super high fan noise! Is your's ok?

Picasso · June 23, 2017

@surfinchina

Yes. Perfect. In windows I have maximun of 79 degrees celsius with a Furmark Stress Test and 65 celisus Vrm1

Maybe you should change your paste and thermal pad. I don't think apple manage the GPU more intensive than windows.

I use FCPX and Davinci Resolve, 2K/4K DNG footage.

surfinchina · June 23, 2017

@surfinchina

Yes. Perfect. In windows I have maximun of 79 degrees celsius with a Furmark Stress Test and 65 celisus Vrm1

Maybe you should change your paste and thermal pad. I don't think apple manage the GPU more intensive than windows.

I use FCPX and Davinci Resolve, 2K/4K DNG footage.

I put it back in the other computer and it's running cool now. The helper card (7970) is hot - 50 at idle.

I'm a bit confused with the behaviour of gpus and helper cards in Sierra so I'll spend some time investigating.

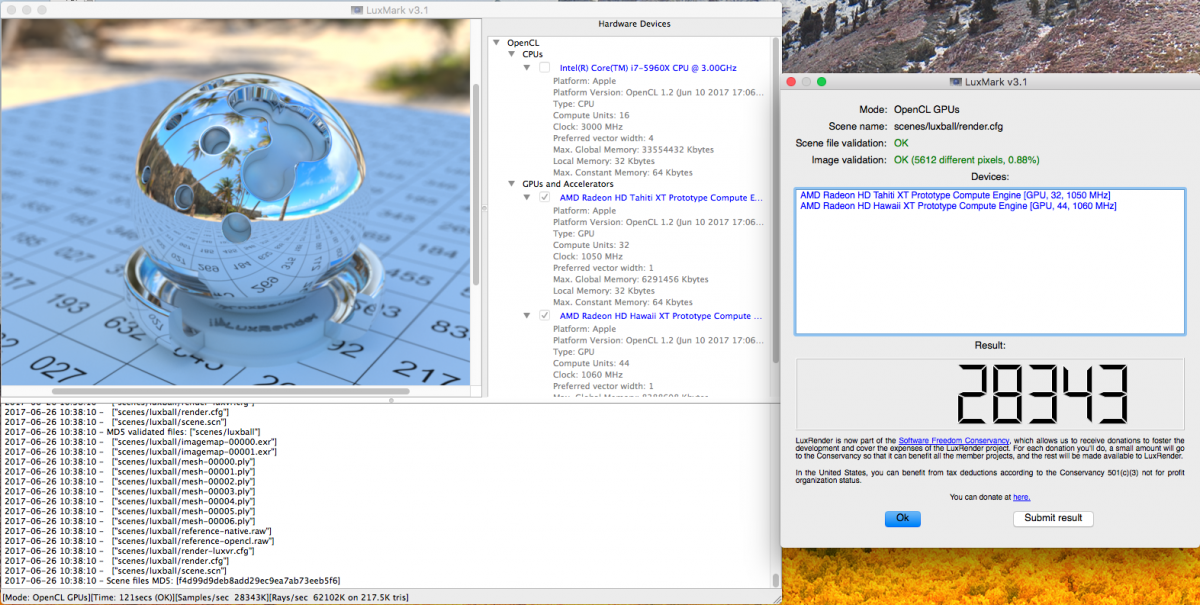

edit: the helper card hit 75deg with Luxmark. But both working together gave me almost 30,000

The other computer is the same - helper card is running hot. It seems to think it's the main card in some way.

Picasso · June 23, 2017

I was trying rx 480, 280X and 390X because mainly I use open cl. I tried 280x as helper and 390X in the second slot ( I have 2x8x Pci Line) and was problematic, glitches, and a lot of power consumption. I get best result in software with blind boot and 390X: sleep works, no glitches, etc. Maybe in test I get something like your score. But editing the thing works different in my case. Rx 480 works less than my 280x with 3GB. I hope AMD present something like a " 590" or a economical version of Vega.

By your system description, I think your Xeon is making the hard work.

I was thinking to use only Davinci Resolve and put a 1080 but clients wants faster works and FCPX is the best in this case. I don't use other software but FCPX is bringing the amd problem here.

surfinchina · June 25, 2017

I was trying rx 480, 280X and 390X because mainly I use open cl. I tried 280x as helper and 390X in the second slot ( I have 2x8x Pci Line) and was problematic, glitches, and a lot of power consumption. I get best result in software with blind boot and 390X: sleep works, no glitches, etc. Maybe in test I get something like your score. But editing the thing works different in my case. Rx 480 works less than my 280x with 3GB. I hope AMD present something like a " 590" or a economical version of Vega.

By your system description, I think your Xeon is making the hard work.

I was thinking to use only Davinci Resolve and put a 1080 but clients wants faster works and FCPX is the best in this case. I don't use other software but FCPX is bringing the amd problem here.

Most of my work is in the CPU, all of the rendering. The GPU is only for moving around the model, so it's not very important. But yesterday I changed the CPUs and now the R9 390x with 7970, with the 5960x is better and the xeon with Nano is for a backup system.

I think Apple has not made use of the speed of the R9 Nano or Fury very well and the 390x is faster.

Perhaps that will change because the new Mac Pros are coming out with either the fiji (nano / Fury) or the Vega cards. All with HBM memory.

Plus the X299, so I am saving for a new system

Maybe a vega card will solve all of your problems!

Picasso · June 25, 2017

@surfinchina

Bravissimo!

share Luxmark ball scene!

surfinchina · June 25, 2017

@surfinchina

Bravissimo!

share Luxmark ball scene!

Screenshot below is why the Fiji isn't working yet.

You can see the suite of kexts they've made for the vega cards and the fiji is missing quite a few!

TombaFI · July 28, 2017

Just awesome!

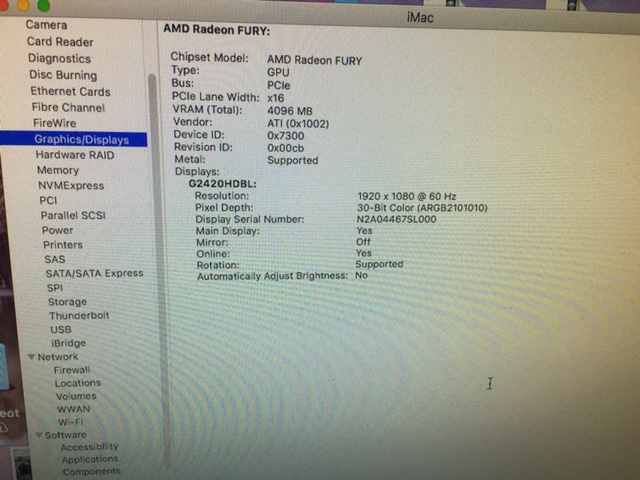

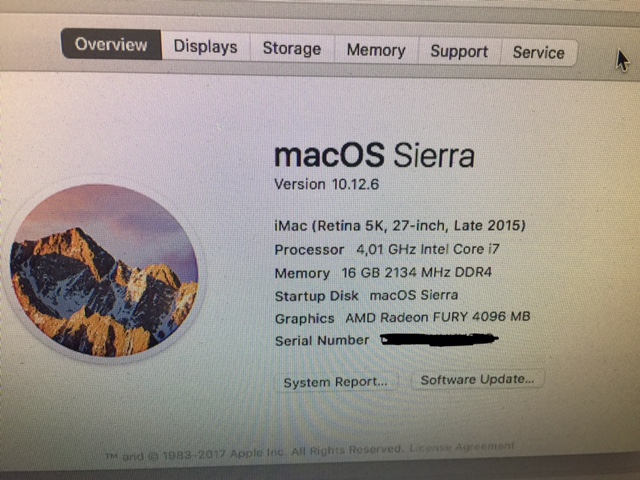

macOS Sierra 10.12.6 fully working Amd Fury! Without iGPU helper....No more black screen issue :yes:

Put WhateverGreen.kext and Lilu.kext (1.1.6) to EFI/Clover/Kext/Other folder, and you ready to GO!

Boot arguments -liludbg -raddbg -radbeta

Bios settings at my Asus B150I Pro: Advanced/Primary Dispaly= Auto and iGPU Multi-Monitor=Disable

I also tested sleep mode and fully working so far....

TombaFI · July 28, 2017

Absolutely fantastic!

Have made some 'stress' test with sleep mode and tested for some time now! And everything WORKS awesome after sleep mode although background apps than Logic Pro X, iMovie, GarageBand etc.. have been active! F Yeah

Big hand to Vandroiy2013 and vit9696

mcbeth303 · July 31, 2017

hummmmmm, i tried on 10.13 but no luck, Fury X gets recognized as Fury nano, but there is no acceleration.

used newest lilu and whatevergreen + the boot args you mentioned. Did i miss anything?

Picasso · July 31, 2017

Not working the kext on R9 cards.

MattsCreative · July 31, 2017

Not working the kext on R9 cards.

Boot 1 screen then plug in the second monitor my 290x works just not 3 screens

Picasso · July 31, 2017

Boot 1 screen then plug in the second monitor my 290x works just not 3 screens

Maybe I am doing something wrong.

But it´s better a boot black screen for the moment.

TombaFI · August 1, 2017

Maybe I am doing something wrong.

But it´s better a boot black screen for the moment.

Have you checked your MB bios settings?

Here is my, If you help with that?

Bios Asus B150I Pro

Trible boot HS (APFS), Sirra, Win10

Picasso · August 2, 2017

@TombaFI

Thank you. I set the same in bios.

I added lilu and whatever in clover, kext, other

I let the confyg.sys clean

and I rebuild the caché

No way. Maybe 390x is not ready in these kext.

R9 Nano

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
