[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

[adam_leve]

@MaLd0n

BR1B.H000



So, do I replace

_SB_.PCI0.BR3A



with _SB_>PCI0.BR1B.H000

everywhere ?







Edited May 23, 2018 by adamshahcatalys

[MaLd0n]

2 hours ago, adamshahcatalys said:

@MaLd0n

BR1B.H000



So, do I replace

_SB_.PCI0.BR3A



with _SB_>PCI0.BR1B.H000

everywhere ?







run my app and post files generated in ur desktop

RunMe.app

[adam_leve]

On 5/24/2018 at 5:41 AM, MaLd0n said:

run my app and post files generated in ur desktop

RunMe.app



Here you go !

Arif’s Mac Pro.zip

[MaLd0n]

6 hours ago, adamshahcatalys said:



Here you go !

Arif’s Mac Pro.zip

SEND ME A FULL DUMP

[nmano]

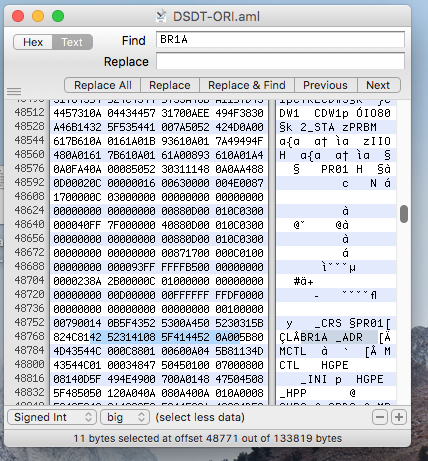

Disable Device/Change device ID BR1A for DSDT patch X299/X99 .



Comment-Change device ID BR1A._ADR0x00 to 0x01-X299-TB3 N.Mano

Find          42523141 085F4144 520A00

Replace     42523141 085F4144 520A01



Comment-Disable device/Change ID BR1A._ADR0x00010000 to BR1A._ADR0x00000000-X99-TB3 N.Mano

Find            42523141 085F4144 520C0000 01005B80

Replace       42523141 085F4144 520C0000 00005B80

[Balamut]

Sorry, whats that for?

[nmano]

4 hours ago, Balamut said:

Sorry, whats that for?

I have Thunderbolt 3 card.

My system not sleep well.I don't know how to disable THB.

If disable THB my guess work sleep.

This patched can change device address like apple.

Edited May 27, 2018 by nmano

[adam_leve]

On 5/25/2018 at 7:09 PM, MaLd0n said:

SEND ME A FULL DUMP



K. here is it. I had trouble using upload. So, GDrive

[MaLd0n]

2 hours ago, adamshahcatalys said:



K. here is it. I had trouble using upload. So, GDrive

DSDT.aml.zip

[nmano]

Clover DSDT patches I made this for Device BR1A with Thunderbolt

Method (_L01, 0, NotSerialized)  Thundertbolt  patch by N.Mano



BR1AH000 to BR1XUPSB



Find        42523141 48303030

Replace  42523158 55505342



BR1AH001 to BR1XUPSBDSB0



Find         42523141 48303031

Replace   42523158 55505342 44534230 4E484930



BR1AH002 to BR1XUPSBDSB0NHI0



Find             42523141 48303032

Replace         42523158 55505342 44534230 4E484930





BR1AH003 to BR1XUPSBDSB2



Find        4252314148303033

Replace   42523158 55505342 44534232





BR1AH004 to BR1XUPSBDSB2XHC3



Find           42523141 48303034

Replace       42523158 55505342 44534232 58484333

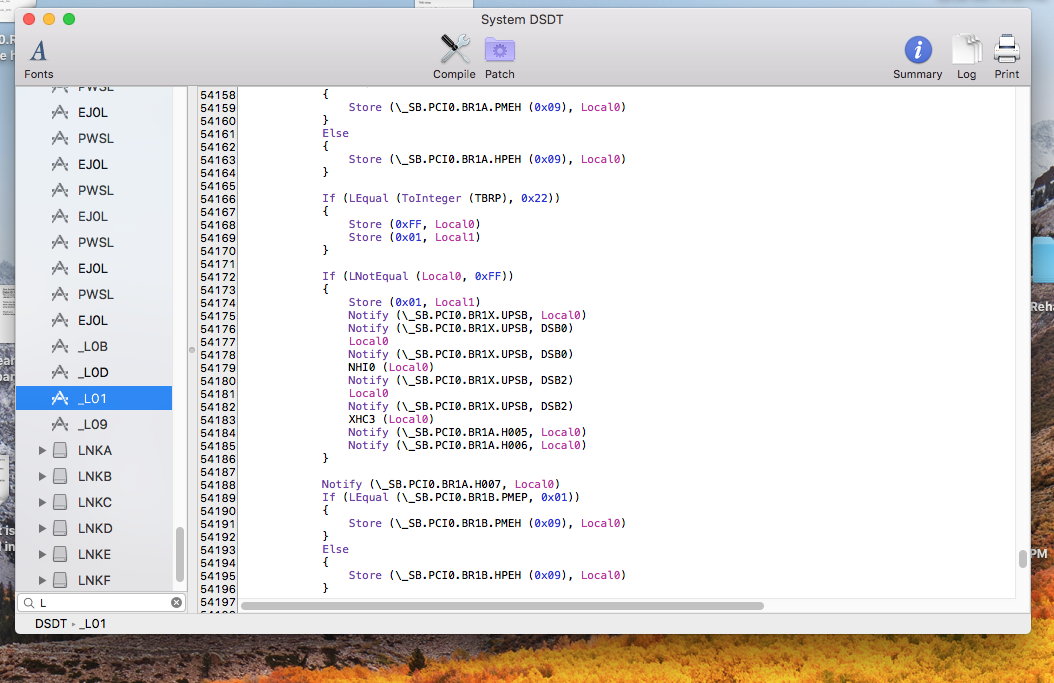

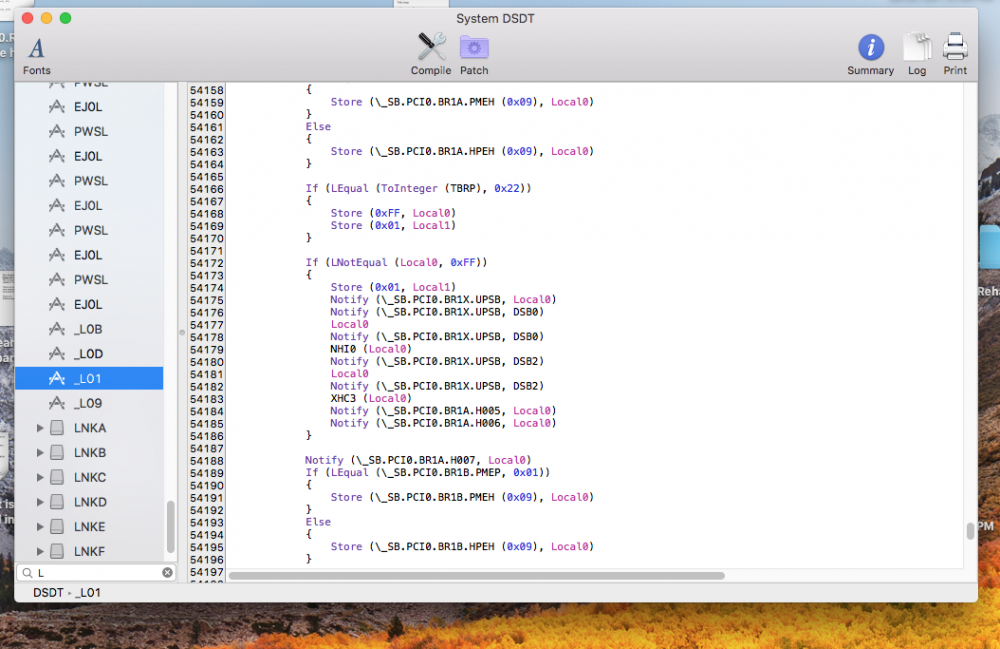

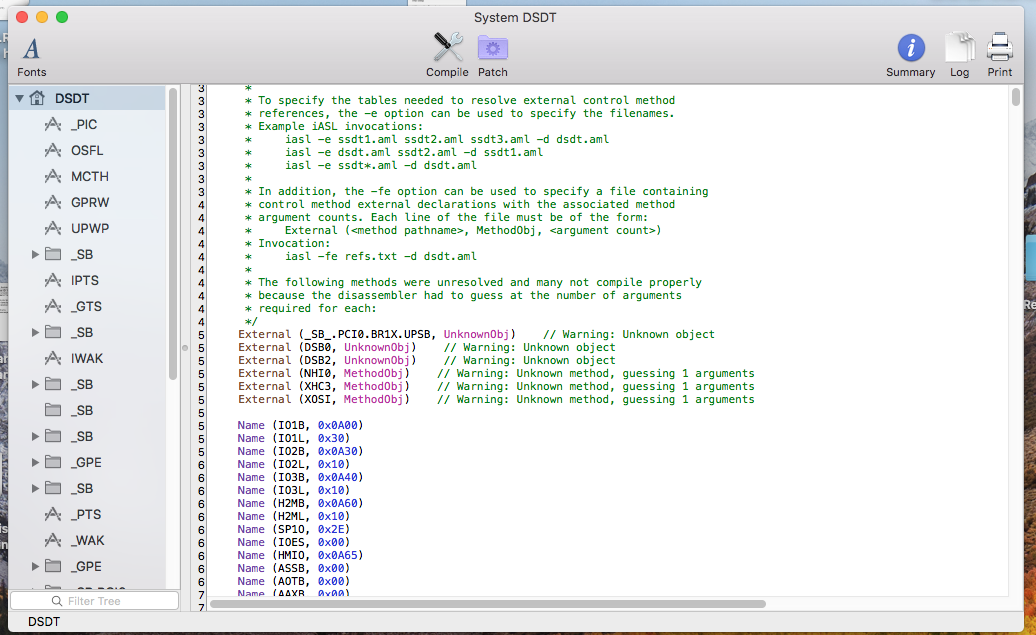

Look Image After This Patch Made Changes.

[nmano]

Hi All

I update clean patch.

This all in one clover dsdt patch for L01

For Thunderbolt card If BR1A or BR2A



Comment  BR1A BR1X THB patch for L01 BY N.Mano



Find





42523141 48303030 60865C2F 045F5342 5F504349 30425231 41483030 3160865C 2F045F53 425F5043 49304252 31414830 30326086 5C2F045F 53425F50 43493042 52314148 30303360 865C2F04 5F53425F 50434930 42523141 48303034 60865C2F 045F5342 5F504349 30425231 41483030 3560865C 2F045F53 425F5043 49304252 31414830 30366086 5C



Replace





42523158 55505342 60865C2F 055F5342 5F504349 30425231 58555053 42445342 3060865C 2F055F53 425F5043 49304252 31585550 53424453 42316086 5C2F055F 53425F50 43493042 52315855 50534244 53423260 865C2F05 5F53425F 50434930 42523158 55505342 44534233 60865C2F 055F5342 5F504349 30425231 58555053 42445342 3460862A 5C





Comment   BR2A BR2X THB patch for L01 By N.Mano



Find





42523241 48303030 60865C2F 045F5342 5F504349 30425232 41483030 3160865C 2F045F53 425F5043 49304252 32414830 30326086 5C2F045F 53425F50 43493042 52324148 30303360 865C2F04 5F53425F 50434930 42523241 48303034 60865C2F 045F5342 5F504349 30425232 41483030 3560865C 2F045F53 425F5043 49304252 32414830 30366086 5C



Replace



42523258 55505342 60865C2F 055F5342 5F504349 30425232 58555053 42445342 3060865C 2F055F53 425F5043 49304252 32585550 53424453 42316086 5C2F055F 53425F50 43493042 52325855 50534244 53423260 865C2F05 5F53425F 50434930 42523258 55505342 44534233 60865C2F 055F5342 5F504349 30425232 58555053 42445342 3460862A 5C

[rkelleyrtp1]

Sorry if this has been asked before, but can anyone recommend a rock-solid X99 board to use ?  I have a Gigabyte X99-UD4 (rev1) board and keep having issues with OSX like sleep, idle power, CPU turbo speeds, USB issues, etc.  I have similar issues running Ubuntu (Linux), so I think my board is starting to go bad.



I would like to install OSX 10.13 and use it as a daily driver with 2x 750TI video cards.   I  need a system that will support sleep/suspend, CPU turbo speeds, audio, and LAN out of the box with minimal tweaking.  I spent many days last time getting my last X99 board working; I would prefer to leverage someone's existing clover config if possible.



Thanks.



[MICKHAEL]

2 hours ago, rkelleyrtp1 said:

Sorry if this has been asked before, but can anyone recommend a rock-solid X99 board to use ?  I have a Gigabyte X99-UD4 (rev1) board and keep having issues with OSX like sleep, idle power, CPU turbo speeds, USB issues, etc.  I have similar issues running Ubuntu (Linux), so I think my board is starting to go bad.



I would like to install OSX 10.13 and use it as a daily driver with 2x 750TI video cards.   I  need a system that will support sleep/suspend, CPU turbo speeds, audio, and LAN out of the box with minimal tweaking.  I spent many days last time getting my last X99 board working; I would prefer to leverage someone's existing clover config if possible.



Thanks.



mine are rock solid.. I never thought that AsRock are so good

[bonecracker13]

Hey guys, super noob here.



My rig specs:
Asus X99 Deluxe

i7 6800K CPU

32Gb DDR4 2400 Corsair Vengeance LPX (2x16Gb)

Geforce GTX 1080

SSD + HDD

EVGA G3 750w gold PSU



I had prior success with High Sierra Hackintosh build on 200 Intel platform, but now i have X99 motherboard and things got frustrated. As far as i can get for now is Clover freezing at Apple Usb Host Resources followed by crash with crossed circle icon (It a usb 2.0 stick)
I've tried different kexts and Fake CPU IDs like 0x0306e4 & 0x0040670, 0x0040674, also UEFI drivers but problems persists...



Maybe anyone can help me out to get a working Clover EFI? I would really appreciate, i've attached the EFI I have for now, will be grateful for any suggestions !

EFI.rar

[MICKHAEL]

7 hours ago, bonecracker13 said:

Hey guys, super noob here.



My rig specs:
Asus X99 Deluxe

i7 6800K CPU

32Gb DDR4 2400 Corsair Vengeance LPX (2x16Gb)

Geforce GTX 1080

SSD + HDD

EVGA G3 750w gold PSU



I had prior success with High Sierra Hackintosh build on 200 Intel platform, but now i have X99 motherboard and things got frustrated. As far as i can get for now is Clover freezing at Apple Usb Host Resources followed by crash with crossed circle icon (It a usb 2.0 stick)
I've tried different kexts and Fake CPU IDs like 0x0306e4 & 0x0040670, 0x0040674, also UEFI drivers but problems persists...



Maybe anyone can help me out to get a working Clover EFI? I would really appreciate, i've attached the EFI I have for now, will be grateful for any suggestions !

EFI.rar

the right fake cpuid 0x0040674

check



[bonecracker13]

On 7/7/2018 at 3:17 AM, MICKHAEL said:

the right fake cpuid 0x0040674

check





Thanks Mickhael,

I'll try that tomorrow!

[bonecracker13]

On 7/7/2018 at 3:17 AM, MICKHAEL said:

the right fake cpuid 0x0040674

check





Thanks Mickhael,

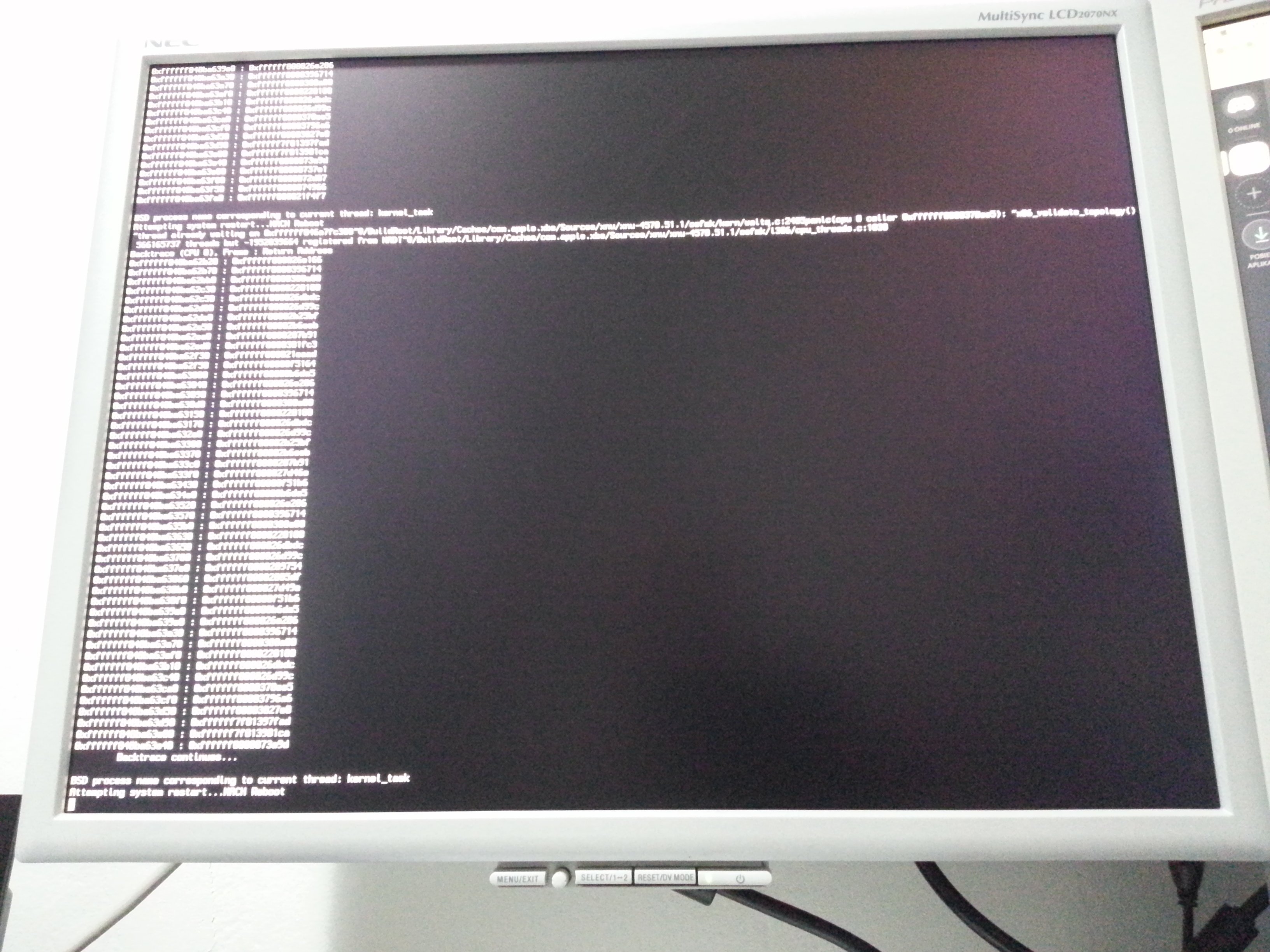

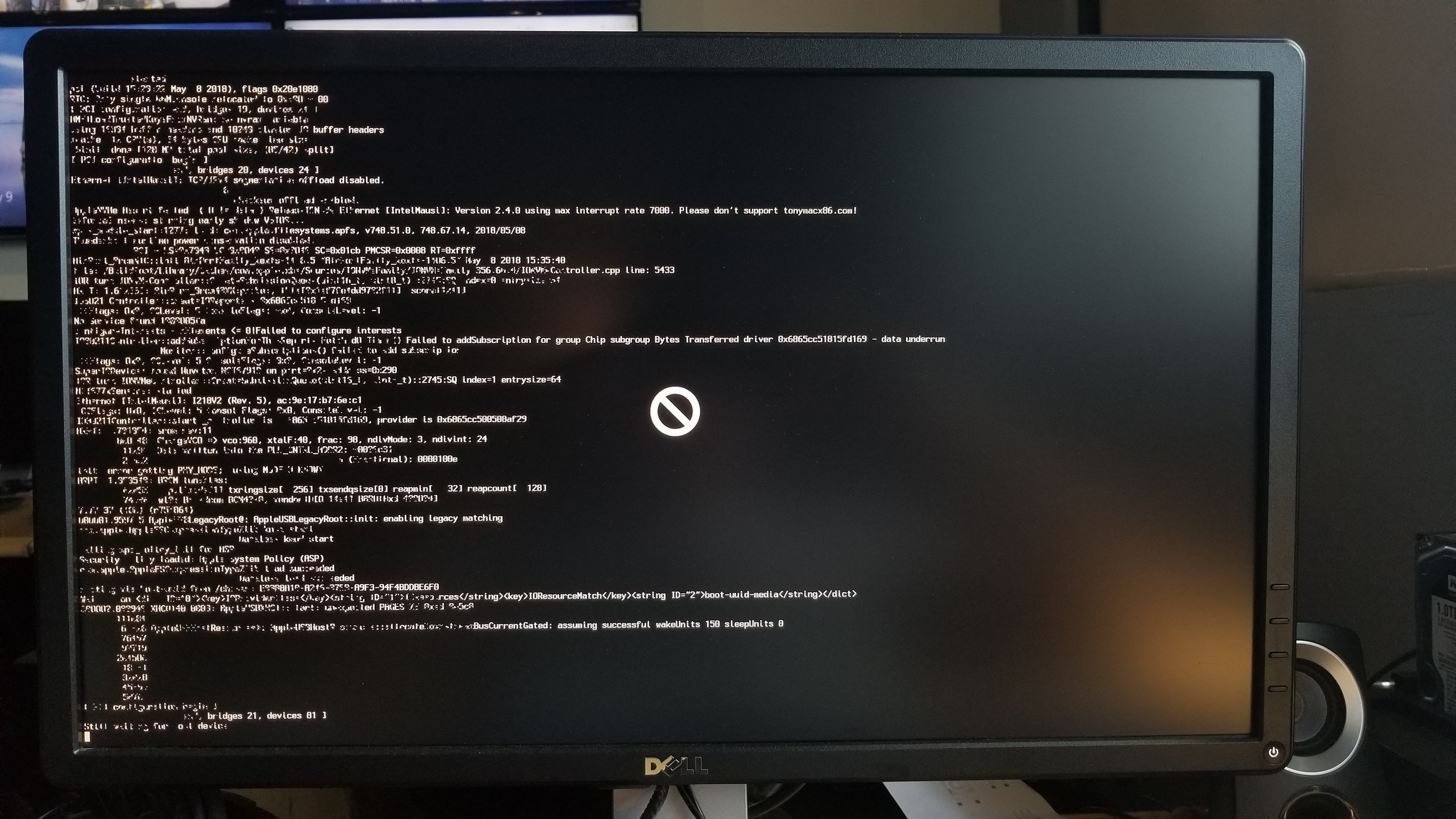

So I've tried your EFI settings from June 2018, it helped pass the CPUid but now stucks here, and after that just crashed with crossed circle icon

Is it possible that installed ThunderboltEX card causing it?



Any ideas how to overcome this? Thank you!

Edited July 9, 2018 by bonecracker13

[MICKHAEL]

2 hours ago, bonecracker13 said:



Thanks Mickhael,

So I've tried your EFI settings from June 2018, it helped pass the CPUid but now stucks here, and after that just crashed with crossed circle icon

Is it possible that installed ThunderboltEX card causing it?



Any ideas how to overcome this? Thank you!

welcome. we have almost and the same display)) well, you could try to detach that board and report hows going... crossed circle if I am remembered its about using wrong cupid...

[bonecracker13]

1 hour ago, MICKHAEL said:

welcome. we have almost and the same display)) well, you could try to detach that board and report hows going... crossed circle if I am remembered its about using wrong cupid...



I've used the CPUID from your EFI (0x040674), haven't changed it. Unfortunately removal of TB card didn't help :((









[bonecracker13]

2 hours ago, MICKHAEL said:

welcome. we have almost and the same display)) well, you could try to detach that board and report hows going... crossed circle if I am remembered its about using wrong cupid...

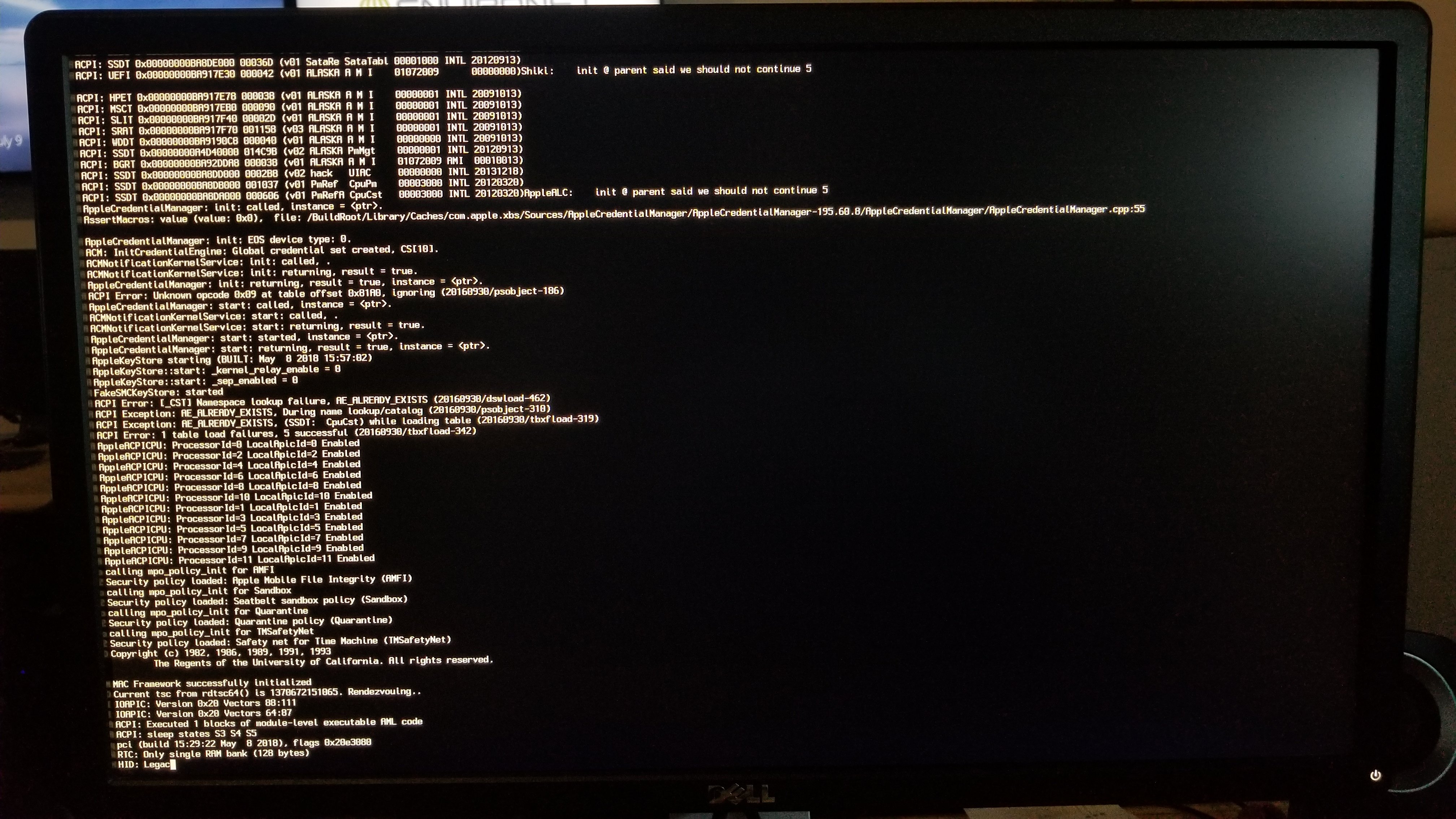

Ok so TB card wasn't an issue, i ran clover again with all available patches and got some improvement, getting to MAC framework successfully initialized,

and after that it's freezing at HID: Legacy



Any idea what's causing it?

[MICKHAEL]

22 minutes ago, bonecracker13 said:

Ok so TB card wasn't an issue, i ran clover again with all available patches and got some improvement, getting to MAC framework successfully initialized,

and after that it's freezing at HID: Legacy



Any idea what's causing it?

please check all UEFI settings... also try to boot with minimal kext and patches...

[ThomasMac]

On 10/24/2017 at 12:36 PM, Balamut said:

Off topic;



Been waiting for a while for this https://www.asus.com/Commercial-Servers-Workstations/WS-C621E-SAGE/overview/' class='bbc_url' title='External link' rel='nofollow external'> https://www.asus.com/Commercial-Servers-Workstations/WS-C621E-SAGE/overview/



Gonna be a beast, highly unlikely that the new Mac Pro that’s supposedly coming next year will have the lga3467 in it, even if it did the 64core limit will killing it for us, imaging dual 28 cores or 112 thread with 1tb of memory and 3x Vega or Titan X with u.2 raid 0.



Oh things I can do with it......



The dream machine. But hey I guess time to switch back to windows for that....



Hey!

I have a C621E and I am trying to install OS X. Can somebody help me?

MB: C612 E
CPU 2 x Xeon Silver
GPU: Radeon RX 580 Pulse
RAM: 73GB
HDD: 4 x SSD 256 on Asus Hyper M.2 X16 - 1 system drive, 3 RAID 0 drives per data.
Housing: Mac Pro :-) I did it myself. :-)

The computer starts on the settings: https://www.youtube.com/watch?v=NHBRgYlb6AQ

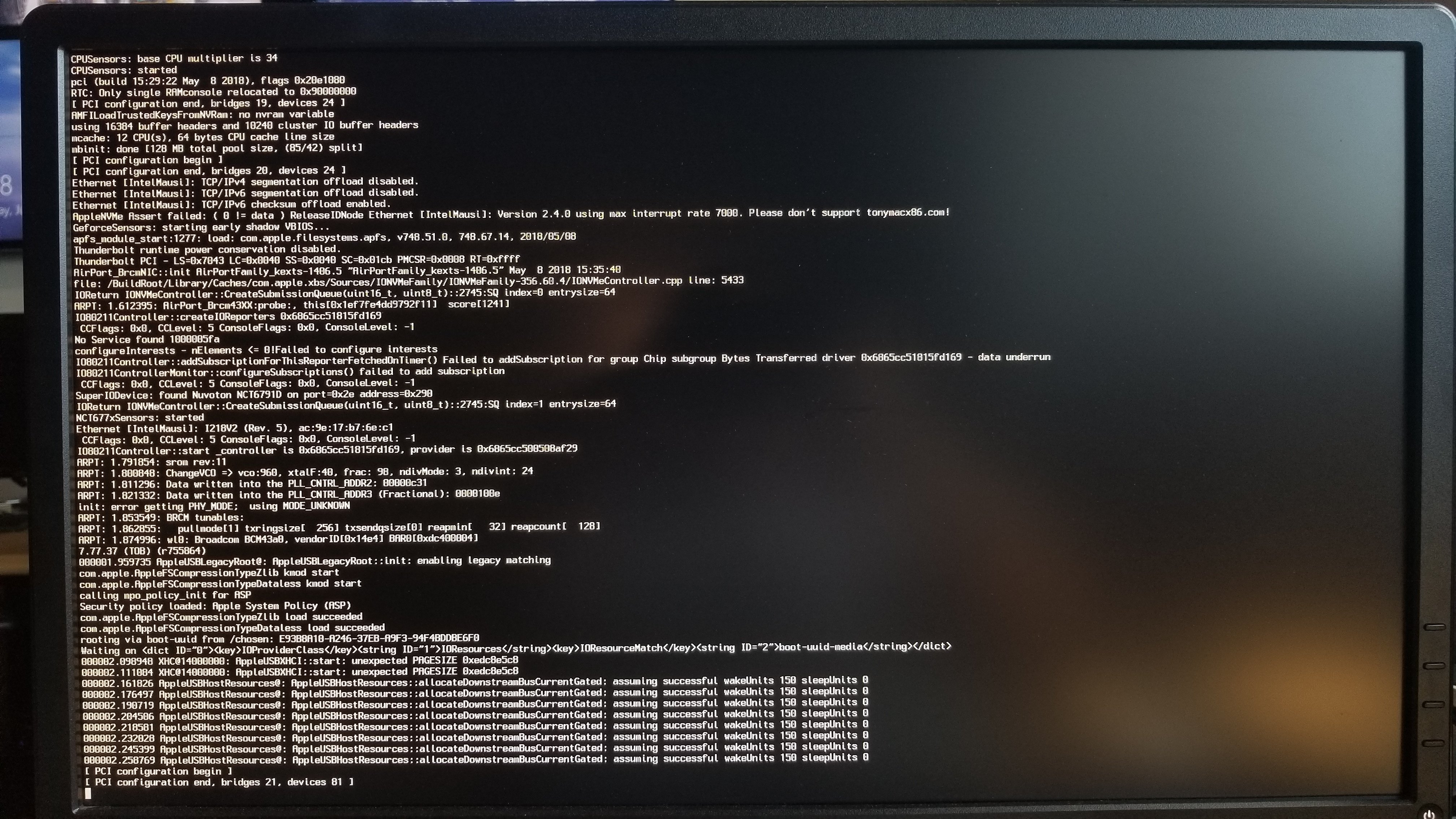

During the boot OS X freezes. :-(

What needs to be corrected, changed, added?

Thomas

config.plist

[MICKHAEL]

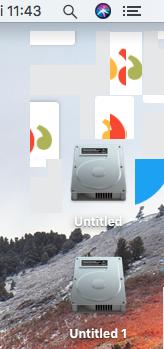

hello brave people ... after update from 10.13.5 to 10.13.6 all ok, first day, ... now I see some freeze, image are funny))

Nvidia drivers are old.. MacWebDriver 378.10.10.10.25.104... with new drivers for 10.13.6 I have black screen, connected over DVI, with DP black screen and with old drivers

some ideas are welcomed

Edited July 12, 2018 by MICKHAEL
update

[dyin]

This is really helpful for 10.13.6, but I already updated to 10.14.1 Mojave.

[Scath]

I have a Gigabyte x99 Ulta Gaming with gtx 1060 6gb gfx and 6800k i7. What am I to do? Nothing boots no matter what boot args I use or files i've tried
