MaLd0n
MaLd0n
Posted
Posted

Hi MaLd0n,

Could you give a look my ssd.aml and see if is alright because my cpu are running very hot, and I don t know why...

Thanks for your time

Cheers

send me files via PM

-full Clover folder
-tables
-one Ioreg too

just to avoid off topic here in x99 tread
Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

Hello everyone - With the generosity of @Mald0n, I have a stable build now with few nuisance. I am having trouble getting Power management for my CPU-i7-5820K.



My GB scores are less Single-Core Performance- 4606 Multi-Score Performance- 20402



Result -

$ sudo cat /tmp/AppleIntelInfo.dat
AppleIntelInfo.kext v2.9 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x581d7113313 (183 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_IA32_PLATFORM_ID.............(0x17)  : 0x8000000000000
------------------------------------------
 - Processor Flags...................... : 2

MSR_CORE_THREAD_COUNT............(0x35)  : 0x6000C
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x402
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0xE47190EC9
IA32_APERF.......................(0xE8)  : 0x22938C0220

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x265600002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x1800
------------------------------------------
 - Target performance State Value....... : 0x1800 (2400 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883E0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 62
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)
 - SpeedShift Technology Enable......... : 0 (disabled)
 - SpeedShift Interrupt Coordination.... : 0 (disabled)
 - SpeedShift Energy Efficient Perf..... : 0 (disabled)
 - SpeedShift Technology Setup for HWP.. : No (not setup for HWP)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222282828282828
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C05.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C06.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xCA36C
------------------------------------------
 - Total Energy Consumed................ : 50 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x369BDA83F
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x369BDA83F
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x98E0563F3

IA32_TSC_DEADLINE................(0x6E0) : 0x581DB01AF45

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 40 (4000 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 30 ]
CPU C6-Cores [ 0 2 4 6 8 11 ]
CPU P-States [ (12) 14 30 ]
CPU C6-Cores [ 0 2 4 6 8 10 11 ]
CPU P-States [ (12) 14 30 33 ]
CPU P-States [ (12) 14 16 30 33 ]
CPU C6-Cores [ 0 2 4 5 6 7 8 10 11 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 8 10 11 ]
CPU P-States [ (12) 13 14 16 30 33 ]
CPU P-States [ 12 13 14 16 (17) 30 33 ]
CPU P-States [ (12) 13 14 16 17 18 30 33 ]
CPU P-States [ (12) 13 14 16 17 18 21 30 33 ]

I am using Xcpm with Intel EIST (Pmdrvr kext).

CLOVER.zip

Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

run command many times

sudo cat /tmp/AppleIntelInfo.dat

and wait full load pstates etc



5820k in default settings is a 20k+, put in 4.0ghz



default settings is a 20k+ ?? How do I put in 4.0 ghz ? I have no experience in overclocking.



And you were right about running many times -

$ sudo cat /tmp/AppleIntelInfo.dat
Password:
AppleIntelInfo.kext v2.9 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xe14e7cc6379 (469 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_IA32_PLATFORM_ID.............(0x17)  : 0x8000000000000
------------------------------------------
 - Processor Flags...................... : 2

MSR_CORE_THREAD_COUNT............(0x35)  : 0x6000C
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x402
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x1001C403CB
IA32_APERF.......................(0xE8)  : 0x12F88C188F

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x264D00002800
------------------------------------------
 - Current Performance State Value...... : 0x2800 (4000 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2800
------------------------------------------
 - Target performance State Value....... : 0x2800 (4000 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883C0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 60
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)
 - SpeedShift Technology Enable......... : 0 (disabled)
 - SpeedShift Interrupt Coordination.... : 0 (disabled)
 - SpeedShift Energy Efficient Perf..... : 0 (disabled)
 - SpeedShift Technology Setup for HWP.. : No (not setup for HWP)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222282828282828
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C04.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C05.......... : 28 (4000 MHz)
 - Maximum Ratio Limit for C06.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xA1738
------------------------------------------
 - Total Energy Consumed................ : 40 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x306496EC
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x306496EC
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x73A22900

IA32_TSC_DEADLINE................(0x6E0) : 0xE14ECDFA6CF

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 40 (4000 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 32 40 ]
CPU C6-Cores [ 1 2 4 7 9 10 ]
CPU P-States [ 12 22 32 (33) 40 ]
CPU C6-Cores [ 1 2 4 6 7 8 9 10 ]
CPU P-States [ (12) 19 22 32 33 40 ]
CPU P-States [ (12) 19 22 24 32 33 40 ]
CPU C6-Cores [ 0 1 2 4 6 7 8 9 10 ]
CPU P-States [ 12 19 22 23 24 32 (33) 40 ]
CPU C6-Cores [ 0 1 2 4 6 7 8 9 10 11 ]
CPU P-States [ 12 19 20 22 23 24 32 (33) 40 ]
CPU P-States [ (12) 19 20 22 23 24 32 33 37 40 ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]
CPU P-States [ 12 19 20 22 23 24 26 32 (33) 37 40 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 19 20 21 22 23 24 26 32 (33) 37 40 ]
CPU P-States [ 12 19 20 21 22 23 24 26 32 33 (36) 37 40 ]
CPU P-States [ (12) 19 20 21 22 23 24 25 26 32 33 36 37 40 ]
CPU P-States [ 12 19 20 21 22 23 24 25 26 27 32 33 (36) 37 40 ]
CPU P-States [ 12 (17) 19 20 21 22 23 24 25 26 27 32 33 36 37 40 ]
CPU P-States [ 12 17 19 20 21 22 23 24 25 26 27 30 32 (33) 36 37 40 ]
CPU P-States [ (12) 17 19 20 21 22 23 24 25 26 27 30 32 33 35 36 37 40 ]
CPU P-States [ 12 (17) 19 20 21 22 23 24 25 26 27 29 30 32 33 35 36 37 40 ]
CPU P-States [ 12 17 19 20 21 22 23 24 25 26 27 29 30 32 33 35 36 37 (38) 40 ]
CPU P-States [ 12 17 19 20 21 22 23 24 25 26 27 29 30 32 33 35 (36) 37 38 39 40 ]
CPU P-States [ 12 (17) 19 20 21 22 23 24 25 26 27 29 30 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 17 19 20 21 22 23 24 25 26 27 29 30 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 17 19 20 21 22 23 24 25 26 27 28 29 30 32 (33) 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 (33) 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 (13) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

@Mald0n With ssrdt Patched SSDT and without it, I can't see a difference, should I remove SSDT ?

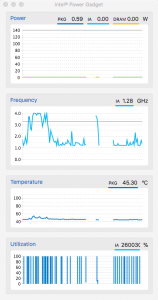

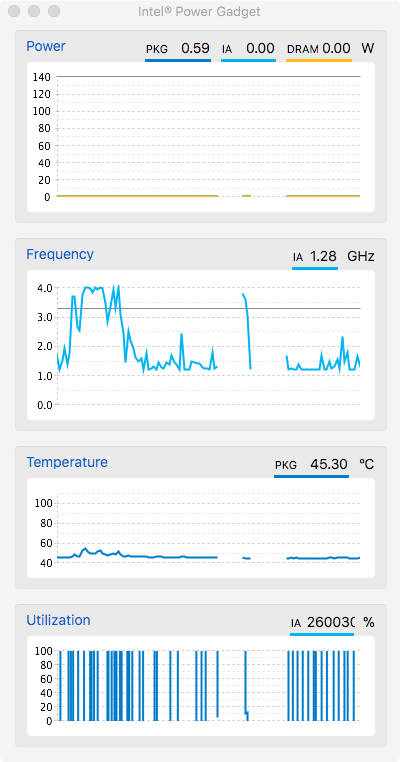

And, something strange with Intel Power Gadget - I meant the Utilization percentage

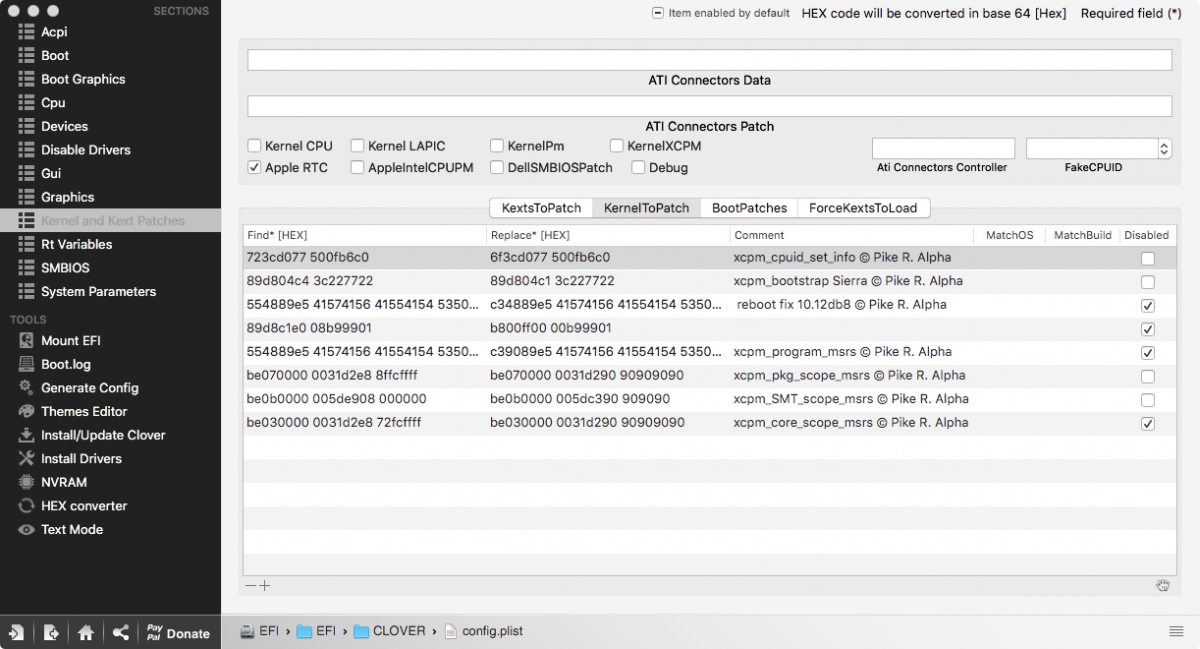

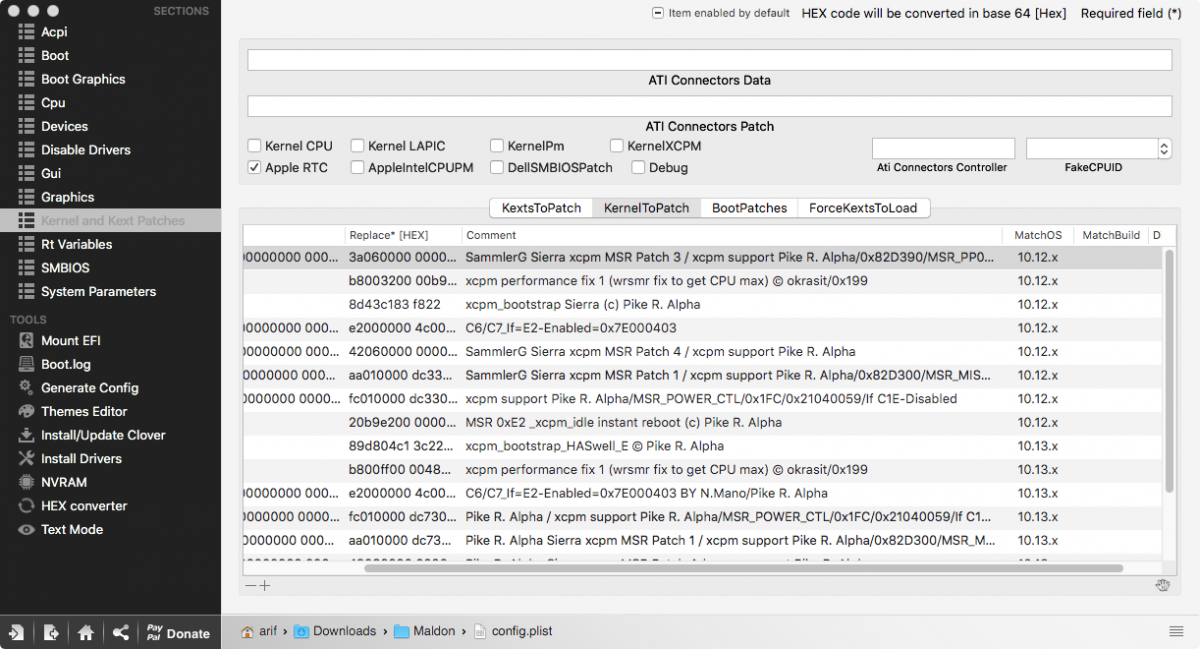

K,C-3 is back now, "xcpm_program_msrs" and "xcpm_core_scope_msrs" KernelToPatch entries seem to disable C3 states!

$ sudo cat /tmp/AppleIntelInfo.dat
AppleIntelInfo.kext v2.9 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x107e32419194 (549 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
- Family............................... : 6
- Stepping............................. : 2
- Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_IA32_PLATFORM_ID.............(0x17) : 0x8000000000000
------------------------------------------
- Processor Flags...................... : 2

MSR_CORE_THREAD_COUNT............(0x35) : 0x6000C
------------------------------------------
- Core Count........................... : 6
- Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE) : 0x20080C3BF3812100
------------------------------------------
- Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
- Ratio Limit for Turbo Mode........... : 1 (programmable)
- TDP Limit for Turbo Mode............. : 1 (programmable)
- Low Power Mode Support............... : 1 (LPM supported)
- Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
- Maximum Efficiency Ratio............. : 12
- Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x1E000005
------------------------------------------
- I/O MWAIT Redirection Enable......... : 0 (not enabled)
- CFG Lock............................. : 0 (MSR not locked)
- C3 State Auto Demotion............... : 1 (enabled)
- C1 State Auto Demotion............... : 1 (enabled)
- C3 State Undemotion.................. : 1 (enabled)
- C1 State Undemotion.................. : 1 (enabled)
- Package C-State Auto Demotion........ : 0 (disabled/unsupported)
- Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414
------------------------------------------
- LVL_2 Base Address................... : 0x414
- C-state Range........................ : 1 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.......................(0xE7) : 0xBF66270E5
IA32_APERF.......................(0xE8) : 0xBC8D66AAC

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x223E00002100
------------------------------------------
- Current Performance State Value...... : 0x2100 (3300 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2800
------------------------------------------
- Target performance State Value....... : 0x2800 (4000 MHz)
- Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88420000
------------------------------------------
- Thermal Status....................... : 0
- Thermal Log.......................... : 0
- PROCHOT # or FORCEPR# event.......... : 0
- PROCHOT # or FORCEPR# log............ : 0
- Critical Temperature Status.......... : 0
- Critical Temperature log............. : 0
- Thermal Threshold #1 Status.......... : 0
- Thermal Threshold #1 log............. : 0
- Thermal Threshold #2 Status.......... : 0
- Thermal Threshold #2 log............. : 0
- Power Limitation Status.............. : 0
- Power Limitation log................. : 0
- Current Limit Status................. : 0
- Current Limit log.................... : 0
- Cross Domain Limit Status............ : 0
- Cross Domain Limit log............... : 0
- Digital Readout...................... : 66
- Resolution in Degrees Celsius........ : 1
- Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
- Fast-Strings......................... : 1 (enabled)
- FOPCODE compatibility mode Enable.... : 0
- Automatic Thermal Control Circuit.... : 1 (enabled)
- Split-lock Disable................... : 0
- Performance Monitoring............... : 1 (available)
- Bus Lock On Cache Line Splits Disable : 0
- Hardware prefetch Disable............ : 0
- Processor Event Based Sampling....... : 0 (PEBS supported)
- GV1/2 legacy Enable.................. : 0
- Enhanced Intel SpeedStep Technology.. : 1 (enabled)
- MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
- Adjacent sector prefetch Disable..... : 0
- CFG Lock............................. : 0 (MSR not locked)
- xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
- Turbo Attenuation Units.............. : 0
- Temperature Target................... : 105
- TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
- EIST Hardware Coordination........... : 0 (hardware coordination enabled)
- Energy/Performance Bias support...... : 1
- Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
- Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)
- SpeedShift Technology Enable......... : 0 (disabled)
- SpeedShift Interrupt Coordination.... : 0 (disabled)
- SpeedShift Energy Efficient Perf..... : 0 (disabled)
- SpeedShift Technology Setup for HWP.. : No (not setup for HWP)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222282828282828
------------------------------------------
- Maximum Ratio Limit for C01.......... : 28 (4000 MHz)
- Maximum Ratio Limit for C02.......... : 28 (4000 MHz)
- Maximum Ratio Limit for C03.......... : 28 (4000 MHz)
- Maximum Ratio Limit for C04.......... : 28 (4000 MHz)
- Maximum Ratio Limit for C05.......... : 28 (4000 MHz)
- Maximum Ratio Limit for C06.......... : 28 (4000 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5
------------------------------------------
- Power Policy Preference...............: 5 (balanced performance and energy saving)

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
- Bi-Directional Processor Hot..........: 1 (enabled)
- C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
- Power Units.......................... : 3 (1/8 Watt)
- Energy Status Units.................. : 14 (61 micro-Joules)
- Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
- Package Power Limit #1............... : 4095 Watt
- Enable Power Limit #1................ : 1 (enabled)
- Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
- Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
- Package Power Limit #2............... : 4095 Watt
- Enable Power Limit #2................ : 1 (enabled)
- Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
- Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
- Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x8613E
------------------------------------------
- Total Energy Consumed................ : 33 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x11D63D1B5
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x55198B
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x11D63D1B5
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x55198B
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x31DC9FD66

IA32_TSC_DEADLINE................(0x6E0) : 0x107E38F4A637

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 40 (4000 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 24 28 ]
CPU C3-Cores [ 1 2 4 6 8 10 ]
CPU C6-Cores [ 0 3 4 6 8 10 ]
CPU P-States [ (12) 15 24 28 ]
CPU C3-Cores [ 0 1 2 4 6 8 10 ]
CPU P-States [ (12) 15 24 28 33 ]
CPU C3-Cores [ 0 1 2 4 6 7 8 10 11 ]
CPU C6-Cores [ 0 2 3 4 6 8 10 ]
CPU P-States [ (12) 15 17 24 28 33 ]
CPU P-States [ (12) 14 15 17 24 28 33 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 8 10 ]
CPU P-States [ (12) 14 15 17 24 28 32 33 ]
CPU P-States [ (12) 14 15 17 20 24 28 32 33 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 ]
CPU P-States [ 12 14 15 (17) 18 20 24 28 32 33 ]
CPU C3-Cores [ 0 1 2 4 6 7 8 9 10 11 ]
CPU C3-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ]
CPU P-States [ (12) 14 15 17 18 19 20 24 28 32 33 ]
CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 (33) 35 ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 33 35 (40) ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 33 35 37 (40) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 33 35 36 37 (40) ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 33 35 (36) 37 39 40 ]
CPU P-States [ 12 14 15 17 18 19 20 24 28 32 33 35 36 37 38 39 (40) ]
CPU P-States [ (12) 14 15 17 18 19 20 24 28 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 15 (16) 17 18 19 20 24 28 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 24 28 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 15 16 17 18 19 20 24 28 29 30 31 32 (33) 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 23 24 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 15 16 17 18 19 20 23 24 27 28 29 30 31 32 (33) 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 15 16 17 18 19 20 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]

Yes, looks good

Pmdrvr.kext broke sleep in many mobos



Even after removing PMdrvr.kext, I can't enable Sleep to work. Even the $ log show --style syslog | fgrep "Wake reason" is not giving me any clue, what is causing the wake-up



2018-01-20 18:05:47.377329+0530 localhost kernel[0]: (AppleACPIPlatform) Wake reason: ?
2018-01-20 18:05:47.377330+0530 localhost kernel[0]: (AppleACPIPlatform) Wake reason: ?


Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

btw, i dont use MacPro Smbios, i use iMac14 or iMac16

Enjoy!



Single-Core Score 24191   Multi-Core Score 4720



Using your kernel patches from the Clover folder, I have better performance, it scales up quickly in demand but still no sleep  :( .  I patched my USB ports too with proper power properties like real mac by injecting only active ports, so no more need of port limit patch

CPU P-States [ 38 (40) ]
CPU C3-Cores [ 0 9 11 ]
CPU C6-Cores [ 0 2 4 6 9 10 ]
CPU P-States [ 30 38 (40) ]
CPU C3-Cores [ 0 1 9 10 11 ]
CPU C6-Cores [ 0 2 3 4 5 6 7 9 10 11 ]
CPU P-States [ (12) 27 30 38 40 ]
CPU C3-Cores [ 0 1 8 9 10 11 ]
CPU P-States [ 12 27 29 30 38 (40) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 27 29 30 33 38 40 ]
CPU P-States [ 12 27 29 30 33 36 38 (40) ]
CPU P-States [ 12 27 29 30 33 36 38 39 (40) ]
CPU P-States [ (12) 27 29 30 33 35 36 38 39 40 ]
CPU P-States [ 12 27 29 30 33 35 36 37 38 39 (40) ]
CPU P-States [ 12 27 29 30 32 33 35 36 37 38 39 (40) ]
CPU C3-Cores [ 0 1 6 8 9 10 11 ]
CPU C3-Cores [ 0 1 6 7 8 9 10 11 ]
CPU P-States [ (12) 27 29 30 31 32 33 35 36 37 38 39 40 ]
CPU P-States [ (12) 23 27 29 30 31 32 33 35 36 37 38 39 40 ]
CPU P-States [ (12) 23 25 27 29 30 31 32 33 35 36 37 38 39 40 ]
CPU P-States [ (12) 23 25 27 28 29 30 31 32 33 35 36 37 38 39 40 ]
CPU P-States [ 12 23 25 27 28 29 30 31 32 33 34 35 36 37 38 39 (40) ]
CPU P-States [ (12) 23 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ 12 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 (40) ]
CPU C3-Cores [ 0 1 3 6 7 8 9 10 11 ]
CPU C3-Cores [ 0 1 2 3 6 7 8 9 10 11 ]
CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ 12 16 22 23 24 25 26 27 28 29 30 31 32 (33) 34 35 36 37 38 39 40 ]
CPU P-States [ 12 14 16 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 (40) ]
CPU P-States [ (12) 14 16 18 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]
CPU P-States [ (12) 14 16 18 19 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 ]

Log for assertions -anyone who has success rates in Asus X99-Pro i7-5820K board, Please share how you did it ?



And @MaLd0n which board do you have and your BIOS config please ? Maybe, it will help me narrow down the choices where to look for the Sleep fixes.

  • Like 1
Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted (edited)

run in terminal

kextstat

paste result herem use codebox



now u have a c3,c6

$ kextstat
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
    1  113 0xffffff7f80c00000 0x9e30     0x9e30     com.apple.kpi.bsd (17.4.0) 0CF188C3-F3FB-4FFF-8CF1-F83927ECEA70
    2   12 0xffffff7f8126f000 0x3990     0x3990     com.apple.kpi.dsep (17.4.0) F9AAEB44-3DB0-4913-837B-0CCDD96237ED
    3  150 0xffffff7f80c29000 0x21160    0x21160    com.apple.kpi.iokit (17.4.0) 2457C686-F73C-4B25-BDA8-FF8370404836
    4  158 0xffffff7f80c0a000 0xd360     0xd360     com.apple.kpi.libkern (17.4.0) C26198ED-8E53-4A8A-99E5-13E88A1ECA4A
    5  133 0xffffff7f80c18000 0x3f30     0x3f30     com.apple.kpi.mach (17.4.0) BB0461D0-6403-457C-A497-FC54C684F9AB
    6   74 0xffffff7f80c1c000 0xcc70     0xcc70     com.apple.kpi.private (17.4.0) 47D3D28E-D896-4CE5-A350-4ED9BCC93D80
    7   95 0xffffff7f80c8e000 0x5ea0     0x5ea0     com.apple.kpi.unsupported (17.4.0) 20ED6D95-E54B-4969-AD7D-B271F9816A0E
    8    1 0xffffff7f80d3e000 0x10000    0x10000    com.apple.kec.Libm (1) 45DD5F54-77FD-356C-94EB-41114B65027E <4>
    9    8 0xffffff7f814b0000 0xaf000    0xaf000    com.apple.kec.corecrypto (1.0) 72366D6A-230C-3A33-B2AE-FE567E2FE8F4 <7 6 5 4 3 1>
   10    0 0xffffff7f82891000 0xf000     0xf000     com.apple.kec.pthread (1) 71C5BFFF-88C9-3420-8F52-029FAFF0866D <7 6 5 4 1>
   11   34 0xffffff7f80d1f000 0x9000     0x9000     com.apple.iokit.IOACPIFamily (1.4) 8794C760-FDD9-3664-ADED-4A9BBEC6E517 <7 6 4 3>
   12   44 0xffffff7f80c94000 0x35000    0x35000    com.apple.iokit.IOPCIFamily (2.9) 8E6C654E-4A8F-3C6B-BBFE-BA8A68C9C146 <7 6 5 4 3>
   13   11 0xffffff7f81304000 0x1d000    0x1d000    com.apple.driver.AppleSMC (3.1.9) 259F0A4B-0AAB-30F3-8896-629A102CBD70 <12 11 7 6 5 4 3 1>
   14    1 0xffffff7f828b1000 0x7000     0x7000     com.apple.driver.AppleSMCRTC (1.0) 3F01C7A4-754F-39DD-A872-B4FAF0442276 <13 11 5 4 3 1>
   15    2 0xffffff7f8294c000 0x9c000    0x9c000    com.apple.driver.AppleACPIPlatform (6.1) 1804645B-B360-305E-B1BE-916F5E3E1CC4 <14 13 12 11 7 6 5 4 3 1>
   16    0 0xffffff7f80d28000 0x12000    0x12000    org.netkas.driver.FakeSMC (1765) 9EEC6103-EEBA-34B3-B9AF-8FE333C43E90 <11 7 5 4 3 1>
   17    0 0xffffff7f81018000 0x4000     0x4000     com.rehabman.driver.USBInjectAll (0.5.17) 99003E98-4591-37FA-9885-3B51950B765C <12 11 4 3>
   18    7 0xffffff7f81169000 0x30000    0x30000    com.apple.iokit.IONetworkingFamily (3.4) 17D64D9A-AE76-391D-8C42-6DBC6686333B <7 6 5 4 3 1>
   19    0 0xffffff7f811a0000 0x25000    0x25000    com.apple.iokit.IOTimeSyncFamily (650.5) 85317551-767F-37F9-BF5B-C007BE3589E4 <18 5 4 3 1>
   20    2 0xffffff7f8193f000 0x7000     0x7000     com.apple.iokit.IOReportFamily (31) D2F2FBDF-4EE4-38BA-99F5-B699F886F413 <5 4 3>
   21    2 0xffffff7f82d10000 0x19000    0x19000    as.vit9696.Lilu (1.2.1) 556769C6-DA78-33EB-977F-C39420638467 <7 5 4 3 2 1>
   22    0 0xffffff7f82d29000 0x7000     0x7000     as.lvs1974.NvidiaGraphicsFixup (1.2.1) B191B66C-7FBD-3ADF-BE62-8F39E06A9583 <21 7 5 4 3 2 1>
   23    3 0xffffff7f82b22000 0x7000     0x7000     com.apple.driver.IOSlaveProcessor (1) 582BDE04-9EB3-3A87-8842-4FF06D1F72C6 <4 3>
   24    2 0xffffff7f82d4f000 0x17000    0x17000    com.apple.driver.AppleSEPManager (1.0.1) 4F20B878-CEEC-346F-B6AC-56290648E925 <23 12 9 7 6 5 4 3 1>
   25    1 0xffffff7f81323000 0x8000     0x8000     com.apple.driver.AppleBusPowerController (1.0) 58E0BB1C-1D50-37DE-973E-3842F948F62D <13 11 6 5 4 3>
   26    8 0xffffff7f8132b000 0x8000     0x8000     com.apple.driver.usb.AppleUSBCommon (1.0) E768F6C8-F7ED-3AA5-AB26-03284841965E <5 4 3 1>
   27   18 0xffffff7f81333000 0x78000    0x78000    com.apple.iokit.IOUSBHostFamily (1.2) 8398A8CC-6560-38E5-B061-C4EEB6B2E1D9 <26 25 7 6 5 4 3 1>
   28    3 0xffffff7f82500000 0x1b000    0x1b000    com.apple.driver.KernelRelayHost (1) 5DBBF482-00CB-3F8E-B761-D61970A500E6 <27 5 4 3>
   29    1 0xffffff7f82d7b000 0x28000    0x28000    com.apple.driver.AppleCredentialManager (1.0) 1479F942-4C56-3195-B765-C62EA5FE9DEB <28 24 23 9 7 6 5 4 3 1>
   30    9 0xffffff7f80f78000 0x28000    0x28000    com.apple.iokit.IOStorageFamily (2.1) B0FCE898-1542-34C0-B845-46FAE81DD9E6 <7 6 5 4 3 1>
   31    3 0xffffff7f80c4b000 0x2b000    0x2b000    com.apple.iokit.IOSCSIArchitectureModelFamily (404.30.2) 4734E6C9-B881-32C8-BE1F-4D9848A52895 <6 5 4 3 1>
   32    1 0xffffff7f828b8000 0x19000    0x19000    com.apple.iokit.IOSCSIBlockCommandsDevice (404.30.2) 34091931-8856-37D2-B4BB-82F28AC66162 <31 30 6 5 4 3 1>
   33    1 0xffffff7f828d5000 0x2d000    0x2d000    com.apple.iokit.IOUSBMassStorageDriver (140.30.1) D637900C-51D8-3D19-A411-207232CC9DA0 <31 30 27 6 5 4 3 1>
   34    5 0xffffff7f81565000 0x15000    0x15000    com.apple.driver.AppleMobileFileIntegrity (1.0.5) 498548AE-30A0-36C6-92F7-1714D01C0A98 <9 7 6 5 4 3 2 1>
   35    1 0xffffff7f82909000 0x12000    0x12000    com.apple.driver.AppleUSBTDM (439.30.4) D6A615EB-FA55-38B0-9230-BD55C923EC21 <34 33 32 31 30 27 7 6 5 4 3 1>
   36    0 0xffffff7f82da3000 0x62000    0x62000    com.apple.driver.AppleKeyStore (2) F9E67296-79D4-3925-B16E-A3BD5E438589 <35 34 29 28 24 23 9 7 6 5 4 3 1>
   37    2 0xffffff7f81895000 0xc000     0xc000     com.apple.driver.AppleEffaceableStorage (1.0) 6B49B846-2852-3D7C-BD45-E70DC2684A8E <7 5 4 3 1>
   38    0 0xffffff7f82e2e000 0xc000     0xc000     com.apple.driver.AppleFDEKeyStore (28.30) 691E35C5-E9F8-33D8-8492-9731EC9D2A6D <37 9 7 6 5 4 3 1>
   39    0 0xffffff7f82fbe000 0xbf000    0xbf000    as.vit9696.AppleALC (1.2.1) 8F814EF4-A74D-3289-BB62-FCD1016E5AE9 <21 7 5 4 3 2 1>
   40    0 0xffffff7f83386000 0x19000    0x19000    com.apple.driver.DiskImages (480.30.2) 9BB8A861-8A7F-3131-91FB-0DF9A85F82BD <30 7 6 5 4 3 1>
   41    1 0xffffff7f81786000 0xf000     0xf000     com.apple.iokit.IOBufferCopyEngineFamily (1) D0BAE372-A202-3E58-8824-C9E4EFBFA592 <5 4 3 1>
   42    0 0xffffff7f8377f000 0x8000     0x8000     com.apple.IOBufferCopyEngineTest (1) 5112BD44-7F02-394F-AE66-3A84DFD7C685 <41 5 4 3 1>
   43    2 0xffffff7f8157a000 0x5000     0x5000     com.apple.kext.AppleMatch (1.0.0d1) 2D2996CA-A15E-39E6-9D6B-2BE6DF131972 <4 1>
   44    1 0xffffff7f8157f000 0x20000    0x20000    com.apple.security.sandbox (300.0) CEE6703B-6E38-317F-AE6B-94867EBF294F <43 34 30 7 6 5 4 3 2 1>
   45    0 0xffffff7f81935000 0x9000     0x9000     com.apple.security.quarantine (3) 80C4548A-999E-3F96-85B0-6C6F95A542A7 <44 43 7 6 5 4 2 1>
   46    0 0xffffff7f83383000 0x2000     0x2000     com.apple.security.TMSafetyNet (8) 5B78C369-AA3C-326F-8AE3-C200955DD9A7 <7 6 5 4 2 1>
   47    0 0xffffff7f83452000 0x8000     0x8000     com.apple.nke.applicationfirewall (183) CBC1954F-5BBE-3FD5-B1BD-24E999226FEF <7 6 5 4 3 1>
   48    0 0xffffff7f81165000 0x2000     0x2000     org.voodoo.driver.VoodooTSCSync (1.1) 0547D0AD-C9FE-3D5A-9CD7-6B90E6BC0335 <7 4 3>
   49    0 0xffffff7f836fd000 0x3000     0x3000     com.apple.driver.AppleAPIC (1.7) 9E5B1713-854A-32DC-89E7-E1765F4B3AE3 <12 4 3>
   50    0 0xffffff7f82d33000 0x4000     0x4000     com.apple.driver.AppleSMBIOS (2.1) 93D205A0-CB89-3661-9164-52C412DF576C <7 4 3>
   51    4 0xffffff7f81273000 0x7b000    0x7b000    com.apple.iokit.IOHIDFamily (2.0.0) 56274755-65D2-3435-99D5-63101C02DFDF <7 6 5 4 3 2 1>
   52    0 0xffffff7f829fb000 0x4000     0x4000     com.apple.driver.AppleACPIButtons (6.1) A55AABE7-4260-3F97-9B8C-A5EEE2C03492 <51 20 15 11 7 6 5 4 3 1>
   53    0 0xffffff7f824e7000 0x8000     0x8000     com.apple.driver.AppleRTC (2.0) 3FB7DA57-3262-3F2F-9246-4E9268A45AB7 <11 5 4 3 1>
   54    0 0xffffff7f8312b000 0x3000     0x3000     com.apple.driver.AppleHPET (1.8) 53185B91-044A-3437-BCB4-DA18945A2BB9 <11 7 5 4 3>
   55    2 0xffffff7f82550000 0x4000     0x4000     com.apple.iokit.IOSMBusFamily (1.1) 9CFF73D8-2872-3FC0-AEE5-334587EAA4D0 <5 4 3>
   56    0 0xffffff7f829f1000 0x7000     0x7000     com.apple.driver.AppleACPIEC (6.1) 2E0E359E-2AAF-376D-99B4-C15C867DF6AC <55 15 11 5 4 3>
   57    2 0xffffff7f813de000 0x5000     0x5000     com.apple.driver.AppleEFIRuntime (2.1) CB8CE325-E9F9-3CA5-95A6-85B9E3FFBD22 <7 6 5 4 3>
   58    1 0xffffff7f8177e000 0x4000     0x4000     com.apple.driver.AppleUSBHostMergeProperties (1.2) 254A23BD-6DFD-3607-AE9C-F825FFD9F05C <4 3 1>
   59    1 0xffffff7f813e3000 0xb000     0xb000     com.apple.driver.AppleEFINVRAM (2.1) 79C21A42-B04F-314F-BA88-F221F3D54094 <57 7 6 5 4 3 2 1>
   60    3 0xffffff7f813ee000 0x9b000    0x9b000    com.apple.iokit.IOUSBFamily (900.4.1) FD04D3BC-D376-36FD-924C-DD5DF51B0509 <27 26 12 7 5 4 3 1>
   61    0 0xffffff7f817d5000 0x5000     0x5000     com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 293D812A-27AB-341C-B704-DE0E2C445C8D <27 26 7 6 5 4 3 1>
   62    1 0xffffff7f814a8000 0x8000     0x8000     com.apple.filesystems.hfs.encodings.kext (1) F1862033-F96A-398C-8231-DC48CC990567 <7 6 5 4 3 1>
   63    0 0xffffff7f8161d000 0x6000     0x6000     com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 74D56B1D-588B-3942-981D-434D5B400A71 <6 4 3 2 1>
   64    0 0xffffff7f82375000 0xd000     0xd000     com.apple.BootCache (40) 205A2C43-6E4A-36A3-B4A5-5BDEE72B9669 <7 6 5 4 3 1>
   65    0 0xffffff7f82d0c000 0x3000     0x3000     com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C810A07E-C979-3392-A954-188EB0216C1A <7 6 4 3 2 1>
   66    0 0xffffff7f83130000 0x67000    0x67000    com.apple.filesystems.hfs.kext (407.30.1) CB6AC89F-23BE-30A4-9E90-5121A184925A <62 7 6 5 4 3 1>
   67    0 0xffffff7f81161000 0x2000     0x2000     com.apple.driver.AppleFileSystemDriver (3.0.1) F280BF47-2533-395A-985C-3E2B303C0BA3 <30 4 3>
   68    2 0xffffff7f82abf000 0x1a000    0x1a000    com.apple.iokit.IOAHCIFamily (288) F3AC999A-975D-3D01-82D4-8ACCB4A885B1 <5 4 3 1>
   69    0 0xffffff7f83360000 0x14000    0x14000    com.apple.driver.AppleAHCIPort (329) 652FD118-63AE-38F4-860F-13FBEC2FF9E5 <68 12 5 4 3 1>
   70    0 0xffffff7f82cc9000 0xb000     0xb000     com.apple.driver.AppleIntelLpssGspi (3.0.60) 854D578D-319F-366B-AFC3-1852408DBDFB <12 11 7 5 4 3>
   71    0 0xffffff7f82f6e000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.3.0) D9DF6A81-92A3-397D-A804-B7E32924C20C <18 12 5 4 3 1>
   72    1 0xffffff7f816c0000 0x4c000    0x4c000    com.apple.driver.usb.AppleUSBXHCI (1.2) 06528516-1239-36A8-B80A-F8C6A0B3D6D7 <27 26 11 7 6 5 4 3 1>
   73    0 0xffffff7f817da000 0x2f000    0x2f000    com.apple.driver.usb.AppleUSBXHCIPCI (1.2) D992A7B6-AB27-3B55-AB5A-3BC40659566C <72 27 26 12 11 7 6 5 4 3 1>
   74    2 0xffffff7f81a60000 0x29000    0x29000    com.apple.driver.corecapture (1.0.4) F0C23182-01CA-3C3D-BA00-A39C4BED75AE <7 6 5 4 3 1>
   75    1 0xffffff7f81a92000 0x7000     0x7000     com.apple.driver.mDNSOffloadUserClient (1.0.1b8) EE7B82F9-F4B1-39F5-9CE8-02661C018C68 <18 4 3 1>
   76    1 0xffffff7f81a99000 0xf4000    0xf4000    com.apple.iokit.IO80211Family (1200.12.2) DBDAB567-E27E-3387-8FA8-AA5ACC6DA48E <74 34 18 9 7 6 5 4 3 1>
   77    0 0xffffff7f81b98000 0x58c000   0x58c000   com.apple.driver.AirPort.Brcm4360 (1220.18.1a2) DFDB5DB0-0336-32A0-8B3A-23B538C9AE60 <76 75 74 18 12 7 6 5 4 3 1>
   78    0 0xffffff7f824df000 0x8000     0x8000     org.rehabman.driver.FakePCIID (1.3.9) BC738576-B800-3E7F-992D-3851C67CCAA9 <12 7 5 4 3 1>
   79    0 0xffffff7f82ae9000 0x27000    0x27000    com.apple.iokit.IOAHCIBlockStorage (301.40.2) 99AA0F7B-4E72-36CE-934B-CB04FE5E1281 <68 30 6 5 4 3 1>
   80    0 0xffffff7f82d45000 0xa000     0xa000     com.apple.driver.AppleXsanScheme (3) 79D5E92F-789E-3C37-BE0E-7D1EAD697DD9 <30 5 4 3 1>
   81    1 0xffffff7f81955000 0xdd000    0xdd000    com.apple.filesystems.apfs (748.41.3) BAFB89B8-4B5E-30FC-B2E1-B84FE072A49C <37 30 9 7 6 5 4 3 1>
   82    1 0xffffff7f813b3000 0x8000     0x8000     com.apple.driver.usb.AppleUSBHostCompositeDevice (1.2) 15DAD7E1-1CF1-37B1-BB28-C9C5F966C2D0 <27 26 6 5 4 3 1>
   83    1 0xffffff7f81625000 0x8000     0x8000     com.apple.driver.usb.networking (5.0.0) AF394B0D-0B97-39E8-9681-5A2B25034DBE <27 6 5 4 3 1>
   84    0 0xffffff7f8162d000 0x9000     0x9000     com.apple.driver.usb.cdc (5.0.0) 80790690-0611-322D-A653-43F96BE3D57A <83 82 27 5 4 3 1>
   85    0 0xffffff7f813bb000 0xc000     0xc000     com.apple.driver.usb.IOUSBHostHIDDevice (1.2) 9956C56D-1D7E-3420-B76F-28ACA025AD84 <51 27 26 5 4 3 1>
   86    0 0xffffff7f81712000 0x35000    0x35000    com.apple.driver.usb.AppleUSBHub (1.2) 0AA13806-9E42-3E1C-A06A-D8E69631F372 <27 26 11 5 4 3 1>
   87   18 0xffffff7f8159f000 0x47000    0x47000    com.apple.iokit.IOGraphicsFamily (517.22) 2AEA02BF-2A38-3674-A187-E5F610FD65B7 <12 7 5 4 3 1>
   88    2 0xffffff7f82554000 0xf000     0xf000     com.apple.driver.AppleSMBusController (1.0.18d1) 42F7ACFC-82B8-3A3C-9C1D-B2EEBDE3680B <55 12 11 5 4 3>
   89    0 0xffffff7f830e2000 0x10000    0x10000    com.apple.driver.AppleMCCSControl (1.5.3) B67DD3A1-E616-3B32-A6FC-4E37F56493E9 <88 87 13 12 11 7 5 4 3 1>
   90    1 0xffffff7f815f3000 0x5000     0x5000     com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) CBE56568-AC91-3F56-A06E-9A29D6F70BDA <7 6 5 4 3 1>
   91    0 0xffffff7f83082000 0x2000     0x2000     com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 7DFBC6BB-39A0-3639-9683-99472E9AAC69 <90 4 3>
   92    0 0xffffff7f81061000 0x3000     0x3000     com.nvidia.NVDAStartupWeb (10.2.9) CAF7B23B-E1BD-35BD-BC8E-354AEE7AD9A4 <12 4 3>
   93    0 0xffffff7f82b2b000 0x3000     0x3000     com.apple.driver.AppleFIVRDriver (4.1.0) 6ADAEBCE-4DF7-3ABF-B129-FC6AD28753B3 <4 3>
   94    0 0xffffff7f824f2000 0x8000     0x8000     com.apple.driver.AppleIntelMCEReporter (107) D49F95B5-996F-38F7-9849-687BE65DC617 <7 6 5 4 3>
   95    0 0xffffff7f82f1c000 0x4000     0x4000     com.apple.driver.AppleOSXWatchdog (1) B75FD221-4329-3690-9A46-45266FEE8B7B <12 7 6 5 4 3 1>
   96    7 0xffffff7f82a03000 0xa000     0xa000     com.apple.driver.IOPlatformPluginFamily (6.0.0d8) 122FC50D-8A9C-37D8-9528-A38F45906EA9 <11 7 6 5 4 3>
   97    1 0xffffff7f82a3d000 0x17000    0x17000    com.apple.driver.X86PlatformPlugin (1.0.0) 72A2953B-57EA-3F24-971E-8E5E6ED9EC3B <96 60 27 13 11 7 6 5 4 3 1>
   98    0 0xffffff7f83776000 0x6000     0x6000     com.apple.driver.AppleSMCLMU (211) 8CD5D253-5FB2-33B7-A2FE-9BB15D95ED1D <87 13 5 4 3>
   99    7 0xffffff7f818a1000 0xb000     0xb000     com.apple.AppleGraphicsDeviceControl (3.16.21) F8503E88-24EF-3DBA-A4D6-FA1CE4C47427 <87 12 7 6 5 4 3 1>
  100    1 0xffffff7f8219f000 0x1a000    0x1a000    com.apple.iokit.IOSurface (209.2.2) AE58720D-7079-388F-AD95-FD2366F98F8D <7 6 5 4 3 1>
  101    2 0xffffff7f821bb000 0x96000    0x96000    com.apple.iokit.IOAcceleratorFamily2 (376.6) 5F8F39B4-41AB-3263-9867-D0FAF9BBD2AE <100 87 34 12 7 6 5 4 3 1>
  102    0 0xffffff7f82261000 0xf8000    0xf8000    com.apple.driver.AppleIntelFramebufferCapri (10.3.0) AA778A4F-E8E5-34F6-97E0-47C2D288CBCD <101 99 87 12 11 7 6 5 4 3 1>
  103    4 0xffffff7f830c1000 0xe000     0xe000     com.apple.iokit.IOSerialFamily (11) 6FE74518-ECD9-32D6-88BE-8F5BCAC911D4 <7 6 5 4 3 1>
  104    1 0xffffff7f831b0000 0x2c000    0x2c000    com.apple.iokit.IOSkywalkFamily (1) 111FFA04-7E95-3267-BB02-F53E2A0A3822 <18 6 5 4 3 1>
  105    2 0xffffff7f831e4000 0x2f000    0x2f000    com.apple.driver.AppleOnboardSerial (1.0) 52C66BAC-2769-3556-9FF7-17826CFCF77D <104 103 7 5 4 3 1>
  106    1 0xffffff7f83217000 0x4000     0x4000     com.apple.driver.AppleIntelLpssUARTCommon (3.0.60) 808A7DA1-87F9-38A4-A8E3-A2B8CA1D7913 <105 103 12 11 7 5 4 3 1>
  107    0 0xffffff7f8321b000 0x3000     0x3000     com.apple.driver.AppleIntelLpssUARTv0 (3.0.60) 0948FCDA-8917-3B6A-8740-D9634CD26EF4 <106 105 103 12 11 7 5 4 3 1>
  108    0 0xffffff7f80f71000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 7FE9AF4A-A8C2-3099-A956-971DDC86A467 <7 5 4 3>
  109    0 0xffffff7f83706000 0x3000     0x3000     com.apple.nvidia.NVDAStartup (10.2.8) C950F1C2-8619-3966-BAE8-0541B895C0D4 <12 4 3>
  110    1 0xffffff7f813cc000 0x6000     0x6000     com.no-one.BrcmFirmwareStore (2.2.3) 269DD7F0-B54C-33F8-B560-F3125E86FBFA <5 4 3>
  111    0 0xffffff7f813d2000 0x6000     0x6000     com.no-one.BrcmPatchRAM2 (2.2.3) 8AEBE114-3033-3344-A28A-711392315DAD <110 27 5 4 3 1>
  112    1 0xffffff7f82a12000 0x12000    0x12000    com.apple.driver.IOPlatformPluginLegacy (1.0.0) 3B3C9B1B-7EB1-3B18-BE6D-AE26F772A194 <96 11 7 6 5 4 3>
  113    0 0xffffff7f82a26000 0x10000    0x10000    com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) 4742C2FF-BFB2-3AF6-8F6C-2CBC6A048D11 <112 96 13 12 11 7 6 5 4 3>
  114    0 0xffffff7f82d30000 0x3000     0x3000     com.apple.driver.AppleSMBusPCI (1.0.14d1) 60757613-A302-3BB0-B68B-653306645108 <12 5 4 3>
  115    6 0xffffff7f818cf000 0x10000    0x10000    com.apple.iokit.IONDRVSupport (517.22) 5672A7EF-44E8-3897-90DE-DAF4C1488143 <87 12 7 5 4 3>
  116    2 0xffffff7f818df000 0x5000     0x5000     com.apple.driver.AppleBacklightExpert (1.1.0) 0EF5445E-D379-3470-8006-E5D35E61A5B9 <115 87 13 12 5 4 3>
  117    0 0xffffff7f8331b000 0x5000     0x5000     com.apple.driver.AppleBacklight (170.10.2) 876BC025-F6D1-3445-BC47-67899C2839B2 <116 115 87 12 5 4 3>
  118    2 0xffffff7f80d4e000 0xab000    0xab000    com.apple.vecLib.kext (1.2.0) 25E40952-8944-3C02-8224-C5E9C174B065 <8 6 5 4 3>
  119    6 0xffffff7f80df9000 0x3f000    0x3f000    com.apple.iokit.IOAudioFamily (206.5) 2F090399-C028-3F14-AE4F-BF49A3D602E5 <118 5 4 3 1>
  120    2 0xffffff7f8251e000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (280.12) 26C4B27D-C27B-3948-9C65-597E631291B6 <5 4 3 1>
  121    1 0xffffff7f8252d000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (280.12) 55162F3D-B7E9-315C-A7E1-C5C4C02F03EC <120 119 87 12 7 6 5 4 3 1>
  122    0 0xffffff7f82a0d000 0x3000     0x3000     com.apple.driver.AppleLPC (3.1) 7C24E741-BD4A-3917-83AC-E956A03ADC20 <96 12 5 4 3>
  123    0 0xffffff7f818ec000 0xd000     0xd000     com.apple.AppleGPUWrangler (3.16.2) 89B254B4-4DC8-3765-B48D-1BC2C52A1980 <99 87 12 7 6 5 4 3 1>
  124    0 0xffffff7f818e4000 0x5000     0x5000     com.apple.driver.AGDCBacklightControl (3.16.2) 1C8FA9EF-777E-320C-9416-F96578CF26A8 <116 99 87 11 7 5 4 3 1>
  125    0 0xffffff7f8321e000 0x5000     0x5000     com.apple.Dont_Steal_Mac_OS_X (7.0.0) 6F899B4B-5B97-3559-85B1-7798E34AE7EE <13 9 7 4 3 1>
  126    0 0xffffff7f8155f000 0x3000     0x3000     com.apple.driver.eficheck (1) A356A074-17E4-3021-A2E9-E9AB52B98BC8 <57 12 4 3 1>
  127    0 0xffffff7f830fd000 0xf000     0xf000     com.apple.driver.pmtelemetry (1) 9160DD41-35A5-37B5-A7F5-58D8863FAECA <7 6 5 4 3>
  128    3 0xffffff7f82b96000 0xe8000    0xe8000    com.apple.iokit.IOBluetoothFamily (6.0.2f2) 00685C76-3326-3C98-A546-362BB6CAD692 <27 20 11 7 6 5 4 3 1>
  129    0 0xffffff7f830d2000 0xa000     0xa000     com.apple.iokit.IOBluetoothSerialManager (6.0.2f2) 4C11533D-E844-3ED1-912C-2D2AFCEAF3FF <103 7 5 4 3 1>
  130    0 0xffffff7f82f9c000 0x8000     0x8000     org.tw.CodecCommander (2.6.3) 6032938E-4161-35BC-9507-DE73BFA6ABB3 <119 12 11 4 3 1>
  131    0 0xffffff7f82e05000 0xb000     0xb000     com.apple.driver.AppleSSE (1.0) 35601682-1BB0-3E6D-967E-521915409D0C <28 7 5 4 3 1>
  132    0 0xffffff7f82d39000 0x6000     0x6000     com.apple.iokit.IOUserEthernet (1.0.1) E3D78FE7-50D1-39D3-A58E-61CE8E37874F <18 6 5 4 3 1>
  133    0 0xffffff7f82b7f000 0x9000     0x9000     com.apple.driver.AppleHV (1) 1B4F136C-9465-379A-8D80-878A4AA2AF87 <7 6 5 4 3 1>
  134    0 0xffffff7f80e40000 0x5000     0x5000     com.Cycling74.driver.Soundflower (2) 2D779840-7439-31E5-8A66-D786C3F47B75 <119 5 4 3>
  135    0 0xffffff7f818ae000 0x3000     0x3000     com.apple.AGDCPluginDisplayMetrics (3.16.2) 7596D694-05CE-3939-8AB4-4F87E1051D1A <99 7 6 5 4 3 1>
  136    1 0xffffff7f818b3000 0x3000     0x3000     com.apple.driver.AppleGraphicsControl (3.16.21) 2EB9A384-439B-3BDC-927C-34E390CB0E59 <7 5 4 3 1>
  137    0 0xffffff7f818b6000 0x14000    0x14000    com.apple.driver.AppleGraphicsDevicePolicy (3.16.21) E36B1411-4D3E-37DC-A3D0-CA8882B8E3B4 <136 99 87 12 11 7 6 5 4 3 1>
  138    0 0xffffff7f83323000 0x5000     0x5000     com.apple.driver.AudioAUUC (1.70) 38FDD1A6-092D-32F0-AF4C-A30D1DC1D738 <119 87 12 11 7 5 4 3 1>
  139    1 0xffffff7f8258a000 0x13000    0x13000    com.apple.kext.OSvKernDSPLib (526) C618CB87-7AA5-3DAE-9399-1CC9D9447F06 <5 4>
  140    1 0xffffff7f8259d000 0x143000   0x143000   com.apple.driver.DspFuncLib (280.12) 5CFA635F-C9CC-3F92-9D62-6479D8CC4382 <139 119 118 59 6 5 4 3 1>
  141    0 0xffffff7f826eb000 0xb7000    0xb7000    com.apple.driver.AppleHDA (280.12) 7FC2BABA-4D4F-34FC-93E2-3E3244DEB73D <140 121 120 119 115 87 6 5 4 3 1>
  142    0 0xffffff7f82566000 0x16000    0x16000    com.apple.driver.AppleMikeyDriver (280.12) 109EDDB5-9B8A-39BD-B87F-6806EDA1832C <88 11 5 4 3 1>
  143    0 0xffffff7f8254c000 0x2000     0x2000     com.apple.driver.AppleHDAHardwareConfigDriver (280.12) 2D6BB587-0D94-3E6D-AFBE-A4A03F37A6A9 <4 3>
  144    0 0xffffff7f8378e000 0x5000     0x5000     com.apple.driver.AppleIntelPCHPMC (2.0.1) 9427576F-C478-329C-94DC-6CCC70E86AA1 <96 13 12 11 4 3>
  145    1 0xffffff7f82a54000 0x7000     0x7000     com.apple.driver.X86PlatformShim (1.0.0) A3D9B3B0-81BF-3303-B75B-0E545399CC96 <97 96 13 7 4 3>
  146    0 0xffffff7f82f90000 0x4000     0x4000     com.apple.driver.ApplePlatformEnabler (2.7.0d0) 97EF1457-0154-3395-B680-F6D499EE8EB8 <7 5 4 3>
  147    0 0xffffff7f82e3a000 0x19000    0x19000    com.apple.driver.AGPM (110.23.30) 87C1EF35-F7A2-3DEF-B666-88E94DBA5EDF <115 99 96 87 12 6 5 4 3>
  148    2 0xffffff7f83793000 0x679000   0x679000   com.nvidia.web.NVDAResmanWeb (10.2.9) E35AC379-BD40-3EBC-A094-F7C3AB0A3652 <115 99 87 12 7 5 4 3 1>
  149    0 0xffffff7f83e0c000 0x1a4000   0x1a4000   com.nvidia.web.NVDAGM100HalWeb (10.2.9) 21621DC1-93E3-31BA-B075-D0667F88D5C5 <148 12 4 3>
  150    0 0xffffff7f83702000 0x2000     0x2000     com.apple.driver.AppleMikeyHIDDriver (131) 4A5EC6E6-A5D4-3399-849C-9ED5672AD1BB <51 7 4 3 1>
  151    0 0xffffff7f83fb0000 0xa7000    0xa7000    com.nvidia.web.GeForceWeb (10.2.9) ADA4C6CE-B381-3147-8060-16B4681FDC78 <148 115 101 87 12 7 5 4 3 1>
  152    0 0xffffff7f82e1f000 0x5000     0x5000     com.apple.driver.AppleUpstreamUserClient (3.6.4) 994E78AE-AAD1-3435-8002-E906AF0416FE <87 12 11 7 5 4 3 1>
  153    2 0xffffff7f83086000 0xb000     0xb000     com.apple.iokit.IOBluetoothHostControllerTransport (6.0.2f2) BE46BAA4-F7CA-3F4E-B329-057E23906CAF <128 27 12 11 7 6 5 4 3 1>
  154    1 0xffffff7f83091000 0x20000    0x20000    com.apple.iokit.IOBluetoothHostControllerUSBTransport (6.0.2f2) 3DEC1217-34A9-3710-BE0B-CFEF2D0AF014 <153 128 27 12 11 7 6 5 4 3 1>
  155    0 0xffffff7f830b1000 0xc000     0xc000     com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport (6.0.2f2) 9D6878E6-64B0-3468-82E0-51F811E3EFA1 <154 153 128 27 12 11 7 6 5 4 3>
  156    3 0xffffff7f83717000 0x5b000    0x5b000    com.apple.filesystems.ntfs (3.13) 99A7334B-4404-3F00-89B2-8D79C0976D27 <7 6 5 4 1>
  157    3 0xffffff7f84057000 0x63000    0x63000    org.virtualbox.kext.VBoxDrv (5.2.6) C32CCC8B-7E44-3974-BEC0-9C1FA570690D <7 5 4 3 1>
  158    0 0xffffff7f840ba000 0x16000    0x16000    com.intel.kext.intelhaxm (6.1.1) 86D6923C-EFE8-32E3-89BE-95C6A5EC5611 <7 5 4 3 1>
  159    1 0xffffff7f82fae000 0x5000     0x5000     com.apple.kext.triggers (1.0) 00226670-5F9E-31BC-B59C-A0B2FE6D7797 <7 6 5 4 3 1>
  160    0 0xffffff7f82fb3000 0x9000     0x9000     com.apple.filesystems.autofs (3.0) 1F7A2090-68A9-3215-8E5B-2F73A2279027 <159 7 6 5 4 3 2 1>
  161    1 0xffffff7f8288e000 0x3000     0x3000     com.apple.iokit.IOUSBUserClient (900.4.1) 7664391E-4BF5-3A9E-8244-EE84B8AA91FB <60 58 7 5 4 3 1>
  162    0 0xffffff7f840d0000 0x8000     0x8000     org.virtualbox.kext.VBoxUSB (5.2.6) A60E8437-734A-3C07-8488-5885145AEE0C <161 157 60 7 5 4 3 1>
  163    0 0xffffff7f840d8000 0x5000     0x5000     org.virtualbox.kext.VBoxNetFlt (5.2.6) 552BD757-0D66-3F90-9A20-C6C7881F4A2F <157 7 5 4 3 1>
  164    0 0xffffff7f840dd000 0x6000     0x6000     org.virtualbox.kext.VBoxNetAdp (5.2.6) 8B8163C1-1125-36B8-AC6A-1AA38506938D <157 5 4 1>
  165    0 0xffffff7f840e3000 0x7000     0x7000     org.pqrs.driver.Karabiner.VirtualHIDDevice.v041100 (4.11.0) E1649988-9411-3099-82B6-131B2B52A2DE <51 5 4 3 1

And you know what, I have a Corsair H100i Liquid Cooler and it is known to cause Sleep issue but I have disabled this internal usb by patching SSDT and removing the port which was at HS11 for me and surprisingly, it is still not working for me.



Update: I removed the Corsair usb header from motherboard to check but still no sleep.

Edited by adamshahcatalys
Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

@MalD0n I figured it out, it was waking up from USB. To test, I removed all the devices and put it to Sleep and hallelujah !!!



Coming back to permanent fix it for , how to disable Wake from USB, by editing DSDT ? something like removing

Method (_PRW)

in DSDT ?



But doing so, I will have to wake it up from Power button only ? Is it what we have to compromise being on Hackintosh ?



Can't there be a harmony here ?

Link to comment
Share on other sites
adam_leve
adam_leve
Posted
Posted

@Mald0n, can you share your Geekbench Score ? I am a little obsessed with @nmano benchmark's multicore score. And, I am starting to think that my xnu is not working as expected.



Any user with 5820K processor are encouraged to share their Geekbench score.

  • Like 1
Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
