[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

nmano · July 26, 2017

X99 Mac osx 10.13

First of all you'll need to have Install macOS 10.13 Beta.app in your Applications folder.

Then, you'll need to right click it and then go to Show Package Contents/Contents/Shared Support and from there mount InstallESD.dmg.

Once mounted there you'll find Packages folder and inside Core.pkg.

Double click Core.pkg and this will install macOS to desired partition, SSD or HDD.

Once done, mount BaseSystem.dmg and then copy System/Library/CoreServices/boot.efi and paste it to the same location System/Library/CoreServices/boot.efi on the installed drive.

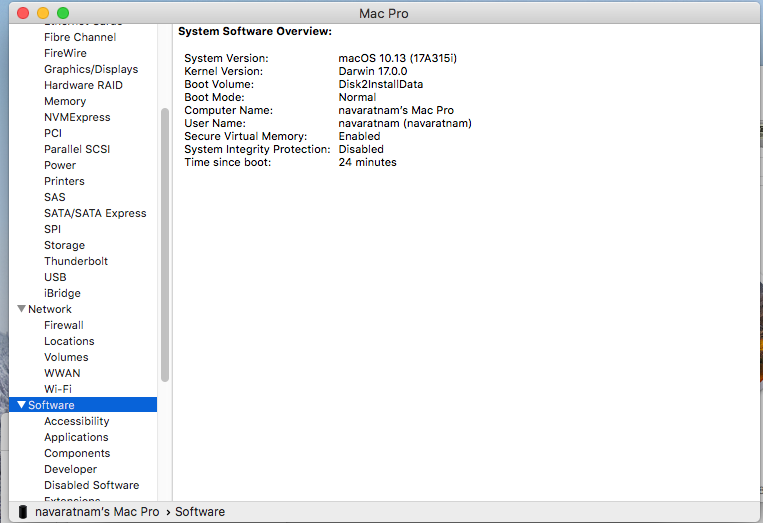

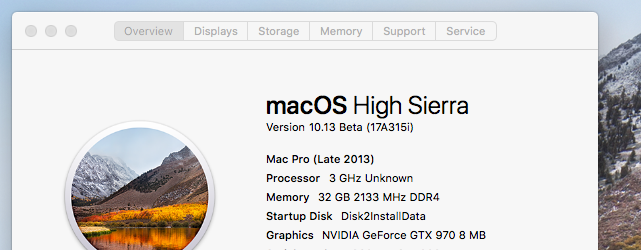

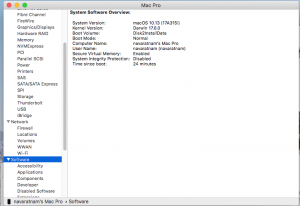

Boot it with your existing Clover and in few seconds you'll reach desktop screen.

Thank you. Clover team and Apple ALC and others naveedamad,

Loloflat6 · July 26, 2017

I need some advice about a minimum config for X99 Xeon for my future build ( i post here for a short off topic) :

I saw those components wich seems be a good start :

- ASROCK X99M Extreme4

- Intel Xeon E5-2603V3 - Procesor 6 cores 1.6 GHz - 15 Mo - LGA2011-v3

- G.SKILL - Ripjaws V Series 64 Go 4 x 16 Go DDR4 - 2133 MHz

- WESTERN DIGITAL - WD Black SSD PCIe NVMe 512 Go

Can you help me about graphic card may work OOB ?

Other sugestions are welcome

maxx7650 · July 27, 2017

"

Questions about a minimum config for my X99 Xeon build ( prehaps off topic) :

- ASROCK X99M Extreme4

- Intel Xeon E5-2603V3 - Procesor 6 cores 1.6 GHz - 15 Mo - LGA2011-v3

- G.SKILL - Ripjaws V Series 64 Go 4 x 16 Go DDR4 - 2133 MHz

- WESTERN DIGITAL - WD Black SSD PCIe NVMe 512 Go

Can you help me about graphic card may work OOB ?

Other sugestions are welcome ;)"

Nvidia GT- 610 works oN Yosemite and El Capitan but it does not work on Sierra, Nvidia GT-710 works on Sierra out of the box

thenightflyer · July 27, 2017

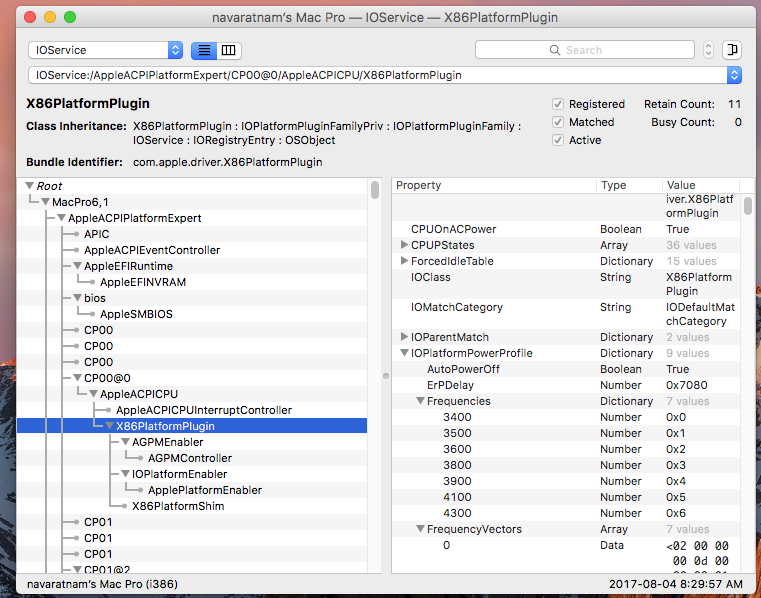

XCPM 10.12 and 10.13 for Haswell-E

XCPM 10.12 and 10.13.zip

My friend....the file attached is empty

nmano · July 27, 2017

try now

I apologize for missing file.

nmano · July 27, 2017

Last login: Thu Jul 27 14:38:58 on console
navaratnams-Pro:~ navaratnam$ sudo chown -R root:wheel /Users/navaratnam/Desktop/AppleIntelInfo.kext
Password:
navaratnams-Pro:~ navaratnam$ sudo chmod -R 755 /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo kextload /Users/navaratnam/Desktop/AppleIntelInfo.kext
navaratnams-Pro:~ navaratnam$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xe512306e128e (8395 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0x1E
------------------------------------------
 - Core Count........................... : 8
 - Thread Count......................... : 16

MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3811E00
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x7E000403
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 1 (enabled)
 - C1 State Auto Demotion............... : 1 (enabled)
 - C3 State Undemotion.................. : 1 (enabled)
 - C1 State Undemotion.................. : 1 (enabled)
 - Package C-State Auto Demotion........ : 1 (enabled)
 - Package C-State Undemotion........... : 1 (enabled)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2308028639
IA32_APERF.......................(0xE8)  : 0x26137394DB

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x280400000C00
------------------------------------------
 - Current Performance State Value...... : 0xC00 (1200 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00
------------------------------------------
 - Target performance State Value....... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x883C0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 60
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 89
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C02.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C03.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C04.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C05.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C06.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C07.......... : 2B (4300 MHz)
 - Maximum Ratio Limit for C08.......... : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1
------------------------------------------
 - Power Policy Preference...............: 1 (highest performance)

MSR_POWER_CTL....................(0x1FC) : 0x21040059
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 0 (disabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82
------------------------------------------
 - Package Power Limit #1............... : 3408 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 0 (disabled)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4090 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x628157E
------------------------------------------
 - Total Energy Consumed................ : 6304 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0
------------------------------------------
 - Power Limit.......................... : 4090 Watt
 - Enable Power Limit................... : 1 (enabled)
 - Clamping Limitation.................. : 0 (disabled)
 - Time Window for Power Limit.......... : 10 (10240 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1F5349EC84
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x1FB600C
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x8157003B82

IA32_TSC_DEADLINE................(0x6E0) : 0xE5123B05752C

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz)
Maximum Turbo Ratio/Frequency............: 43 (4300 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 35 ]
CPU C3-Cores [ 0 4 6 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 10 12 14 ]
CPU P-States [ (12) 23 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 ]
CPU C6-Cores [ 0 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 23 32 35 ]
CPU C3-Cores [ 0 1 4 6 8 9 11 14 15 ]
CPU P-States [ 12 23 26 32 35 (43) ]
CPU C3-Cores [ 0 1 4 6 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 26 32 35 43 ]
CPU P-States [ (12) 20 23 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 26 32 35 39 43 ]
CPU C3-Cores [ 0 1 4 6 7 8 9 10 11 14 15 ]
CPU P-States [ 12 20 23 24 (25) 26 32 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 ]
CPU P-States [ (12) 20 23 24 25 26 27 32 34 35 39 43 ]
CPU C6-Cores [ 0 1 2 4 6 8 9 10 12 14 15 ]
CPU C3-Cores [ 0 1 4 5 6 7 8 9 10 11 14 15 ]
CPU P-States [ (12) 20 23 24 25 26 27 31 32 34 35 39 43 ]
CPU P-States [ (12) 20 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ 12 18 20 (21) 23 24 25 26 27 28 31 32 34 35 39 43 ]
CPU P-States [ (12) 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
CPU P-States [ (12) 16 18 20 21 22 23 24 25 26 27 28 30 31 32 34 35 39 43 ]
navaratnams-Pro:~ navaratnam$

XCPM 10.12 and 10.13 for Haswell-E update

Bios settings

C1E: Disabled

C6/C7: Enabled

EIST-Enabled

XCPM 10.12 and 10.13 update.zip

nmano · July 29, 2017

Can I know how to fix unknown CPU

I try with clover type 2561 not work

nmano · July 30, 2017

Unknown CPU Fixed

About this Mac unknown cpu error fixed.

Thius patched worked Haswell-E CPU and Broadwell CPU

1-Enable in config xcpm_bootstrap_Broadwell or Haswell

2-Enable in config xcpm_cpuid_set_infoBroadwell or Haswell

3-FakeCPUID is Broadwell 0x040674

4.CPU Type is Broadwell 0x0a02

5-FakeCPUID is Haswell 0x0306F2

6.CPU Type is Haswell 0x0a01

XCPM Brodwell and Haswell.zip

Tito95 · July 31, 2017

Guys:

Really will appreciate help on my Build. After 4 days fighting to Install sierra on my Mackintosh I found this post. My system is currently running "El Capitan" with and old GT Nvidia card from a MacPro 1.1. I have a brand new EVGA GeForce1050 Ti that I am trying to add to the system that require Sierra at the minimum. So far I tried all kind if Guidelines and could not get the USB installer pas the initial stage (Apple Logo Freeze) or Continuous reboot loop. My Hardware is as follow:

I have the following hardware:

ASRock X99E-itx/ac using a Intel 6800K

RAM Corsair 16 GB * 2 Sticks (revenge led 32GB total)

SSD Samsung 266 NVE Install

EVGA GeForce 1050 Ti 4 GB

Custom Water cooling system

After all recommended settings in BIOS, I tried boot, but unfortunately without success.

What's wrong?

Could you please help me with right setup and just desperate?

Thanks!

I am attaching My IoReg and also my 2 EFI Folders (HD El Capital and USB Sierra)

Eltito51.zip

geeti · July 31, 2017

Hi nmano,

Is there any different with configuring Xeon E5 v4, on Sierra?

I'm using a E5-2648L v4, with the configs from your guide, but it seems the CPU power management is not engaged.

Although in ioreg, the pm are loaded, but the CPU freq/power stay at max. The AppleIntelInfo shows only one p-state(max).

Thanks!

Unknown CPU Fixed

About this Mac unknown cpu error fixed.

Thius patched worked Haswell-E CPU and Broadwell CPU

1-Enable in config xcpm_bootstrap_Broadwell or Haswell

2-Enable in config xcpm_cpuid_set_infoBroadwell or Haswell

3-FakeCPUID is Broadwell 0x040674

4.CPU Type is Broadwell 0x0a02

5-FakeCPUID is Haswell 0x0306F2

6.CPU Type is Haswell 0x0a01

XCPM Brodwell and Haswell.zip

geeti · July 31, 2017

Updated the original post. It's on Sierra.

Will look at this thread.

Thanks

Hi

take a look to this thread (it is xeon V4 related)

http://www.insanelymac.com/forum/topic/316516-macos-sierra-on-broadwell-eep-not-a-guide-but-maybe-a-working-in-progress/page-1

you have also specify whic osx version you are using

geeti · August 1, 2017

I was using the configs you provided for 12.6, but still got machdep.xcpm.mode: 0.

Does the SSDT matter? Because ssdtprgen.sh does not support my CPU, I added those value manually to generate this ssdt.

Also, I saw the long thread you had with pikeralpha on github. You also had the xcpm.mode=0 with your 2699.

Did you figure it out in the end?

Hi

take a look to this thread (it is xeon V4 related)

http://www.insanelymac.com/forum/topic/316516-macos-sierra-on-broadwell-eep-not-a-guide-but-maybe-a-working-in-progress/page-1

you have also specify whic osx version you are using

geeti · August 1, 2017

Still not...

Could you enlighten me how you would do?

Thanks!

Yes
Try to use frequencyvector script from pikeralpha github
You can use 14.1 or 17.1 frequency vector
Then you will have xcpm=1

mfc88 · August 2, 2017

Guys:

Really will appreciate help on my Build. After 4 days fighting to Install sierra on my Mackintosh I found this post. My system is currently running "El Capitan" with and old GT Nvidia card from a MacPro 1.1. I have a brand new EVGA GeForce1050 Ti that I am trying to add to the system that require Sierra at the minimum. So far I tried all kind if Guidelines and could not get the USB installer pas the initial stage (Apple Logo Freeze) or Continuous reboot loop. My Hardware is as follow:

I have the following hardware:

ASRock X99E-itx/ac using a Intel 6800K

RAM Corsair 16 GB * 2 Sticks (revenge led 32GB total)

SSD Samsung 266 NVE Install

EVGA GeForce 1050 Ti 4 GB

Custom Water cooling system

After all recommended settings in BIOS, I tried boot, but unfortunately without success.

What's wrong?

Could you please help me with right setup and just desperate?

Thanks!

I am attaching My IoReg and also my 2 EFI Folders (HD El Capital and USB Sierra)

Sorry bud, but my knowledge of this OS stops at 10.12.3. I'm no longer using it due to its overall instability. I suggest that if you're not going to use or plan on using Mac OS specific software, and you don't want Windows, then look into Linux. It's what I've been running for several months now and it's been perfect my needs. If you are going to use Mac OS software, then either stick with El Capitan or else you'll be on your own and expect months of learning, understanding, researching and tinkering to get Sierra to work (no guarantees of stability). This community is a great place for learning/sharing if you do decide to try Sierra; but, if that sounds like too much work, then look into a VMware solution (it'll be stable, but expect slower performance due to hardware/software limitations).

Fergarth · August 3, 2017

Hi Fabio. I apologize for not being the most suitable place for this subject. But can you once again help me with the new bios... already tried as you said, but it does not work for me!
Thank you!

X99-PRO-USB31-ASUS-3701.zip

Fergarth · August 3, 2017

No problem here

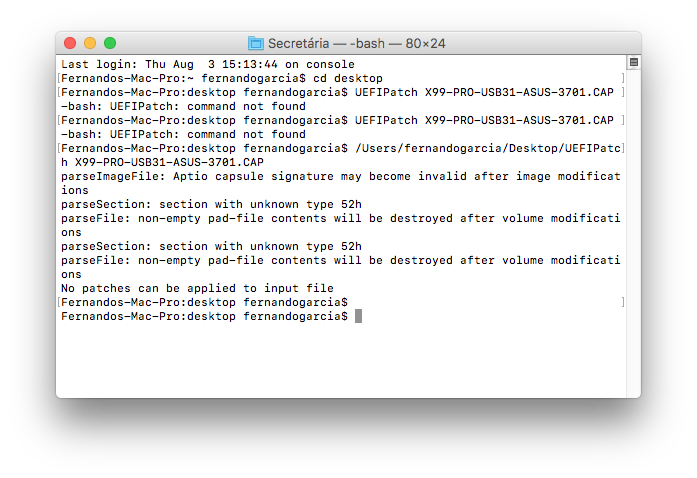

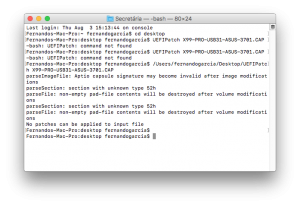

Hi have included also UEFIpatch and txt used to do it

Thank you friend! I'm finishing a backup and then I'll test! ?

nmano · August 4, 2017

I edit freqVectors 3400 to 4300

X86PlatformPlugin.kext/Contents/Resources/

Replace: /System/Library/Extensions/IOPlatformPluginFamily.kext/Contents/PlugIns//Resources

The target plist (example: Mac-F60DEB81FF30ACF6.plist for the MacPro6,1) is selected based on the used board-id.

Try Pike R. Alpha /freqVectorsEdit.sh then replace this file.

Thanks pike.

Mac-F60DEB81FF30ACF6.plist.zip

nmano · August 5, 2017

Could you explain better what this modify plist can do?

This below I mean...

Thank you

<key>Frequencies</key>
		<dict>
			<key>3400</key>
			<integer>0</integer>
			<key>3500</key>
			<integer>1</integer>
			<key>3600</key>
			<integer>2</integer>
			<key>3800</key>
			<integer>3</integer>
			<key>3900</key>
			<integer>4</integer>
			<key>4100</key>
			<integer>5</integer>
			<key>4300</key>
			<integer>6</integer>
		</dict>

Apple FrequencyVectors only supported Frequencies High is 4100

Still they don’t support FrequencyVectors 4300

My system I overclock to 4300

Thats why we need edit.

nmano · August 5, 2017

10.12.6 miner update XCPM for MSR_POWER_CTL

OLD

FC010000 DC330000 00000000 00000000 00001000 00000000 1A000400

NEW

FC010000 DC330000 00000000 00000000 00000000 00000000 1A000400

If C1E-Disabled

Find

FC010000 DC330000 00000000 00000000 00000000 00000000 1A000400

Replace

FC010000 DC330000 00000000 00000000 00000000 00000000 59000421

geeti · August 6, 2017

Thanks for your help!

I meant I did the frequencyvectors script, replacing macpro6,1 with imac17,1 or imac14,1. But same result... no xcpm...

I started to thinking what did I do wrong with my installation. I've been using hackintosh for 5 years and installed over 5 machines.

This is the first server system I've been using.

The motherboard is C612(Supermicro x10sra), with a Intel Xeon E5-2648L v4.

Is this similar to your system?

If you have time, could you please take a look at my clover configs? There are multiple config, but the one I'm using is config_test.plist.

Please note I disabled all the kerneltopatch except "xpcm performance fix 1".(I've tried enabled all those patches).

Also attached the appleintelinfo output.

Even I updated the freqVector(tried different models), I still got this from kernel log:

2017-08-05 23:20:44.675184-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.675466-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.675468-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.683935-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendStepper - Stepper dictionary from plist is NULL!

2017-08-05 23:20:44.683938-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendStepper - Stepper dictionary from plist is NULL!

2017-08-05 23:20:44.684205-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper

2017-08-05 23:20:44.684207-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper

Find on pikeralpha github frequencyvevtors.sh script
Download it
Run terminal window and drag & drop script on it
Follow instructions and choose 14.1 or 17.1 in list you should see as option
Till process end you have to reboot
Now you should have xcpm=1 if you do not have other problem in your sierra installation
Link
https://github.com/Piker-Alpha/freqVectorsEdit.sh

Please forgive my dumb questions..

how to tell c1e-disabled?

10.12.6 miner update XCPM for MSR_POWER_CTL

OLD

FC010000 DC330000 00000000 00000000 00001000 00000000 1A000400

NEW

FC010000 DC330000 00000000 00000000 00000000 00000000 1A000400

If C1E-Disabled

Find

FC010000 DC330000 00000000 00000000 00000000 00000000 1A000400

Replace

FC010000 DC330000 00000000 00000000 00000000 00000000 59000421

CLOVER.zip

appleintelinfo.rtf

geeti · August 7, 2017

Hi Fabiosum,

Unfortunately the config you provided didn't work out either.. thanks anyway!

I was thinking about SSDT and freqvectors.

After running the freqVectorsEdit.sh, I noticed the Mac-[boardid].plist don't have the stepcontextdict any more. But according to some google search, piker said sending stepper requires the stepcontextdict. However, from the update log of freqVectorsEdit, I found Piker intentionally removed the stepcontextdict since one version... I'm just confused..

The second thing is, the ssdtPrGen doesn't support my CPU(e5-2648L v4). I added the parameter in "user defined.cfg". Will this generate a functional ssdt?

Hi geeti,

In my opinion you are doing something wrong

first of all try to have only one config.plist in your clover folder and named config.plist

In my and others users testing many configs there could create some problems

Then try to run from terminal this command and put here its output:

kextstat

I try to attach a clover folder for you bu I don't know well all your system config , you should add it in your signature to help people helping

With some clover version if I had multiple config in clover folder I had strange mixing data config beahviour

Your system could not start only with performance fix as the only kernel patch

Then you have to verify if you have installed nullcpupm kext in your installation (I don't know how you did it)

and other things

If you have a solid backup you can try clover folder I attached here in few minutes from now!

Maybe you have an AMD gfx so I have not touched some parts

I have also deleted fakecpuid that it is not needed if you have some kernel patches set in your config

verify if you have nullcpuPM kext installed in S/L/E or in L/E

if you have, delete it and rebuild cache/permissions with kext utility

nmano · August 7, 2017

Hi Sygey02

Your DSDT its ready now test and report.

Gigabyte X99 Ultra Gaming -CF

Gigabyte X99 Ultra Gaming -CF.zip

Sygey02 · August 7, 2017

Hi Sygey02

Your DSDT its ready now test and report.

Gigabyte X99 Ultra Gaming -CF

Hi nmano! tank you! I well test and reply back!

nmano · August 7, 2017

Thanks for your help!

I meant I did the frequencyvectors script, replacing macpro6,1 with imac17,1 or imac14,1. But same result... no xcpm...

I started to thinking what did I do wrong with my installation. I've been using hackintosh for 5 years and installed over 5 machines.

This is the first server system I've been using.

The motherboard is C612(Supermicro x10sra), with a Intel Xeon E5-2648L v4.

Is this similar to your system?

If you have time, could you please take a look at my clover configs? There are multiple config, but the one I'm using is config_test.plist.

Please note I disabled all the kerneltopatch except "xpcm performance fix 1".(I've tried enabled all those patches).

Also attached the appleintelinfo output.

Even I updated the freqVector(tried different models), I still got this from kernel log:

2017-08-05 23:20:44.675184-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.675466-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.675468-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendPStates - Success!

2017-08-05 23:20:44.683935-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendStepper - Stepper dictionary from plist is NULL!

2017-08-05 23:20:44.683938-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::sendStepper - Stepper dictionary from plist is NULL!

2017-08-05 23:20:44.684205-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper

2017-08-05 23:20:44.684207-0400 0x822 Default 0x0 0 kernel: (IOPlatformPluginFamily) X86PlatformShim::start - Failed to send stepper

Please forgive my dumb questions..

how to tell c1e-disabled?

10.12.6

Just change your Frequencies in IOPlatformPowerProfile

I have 4300

test and report.

10.12.6.zip

nmano · August 8, 2017

Unfortunately it gives me this error .. and reboots!

I wel try some other settings in plist!

test with X99_Injector USB 3.kext

remove if any dsdt patches in config.plist have.

X99_Injector USB 3.kext.zip

[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites
