Balamut
Balamut
Posted
Posted

Bad luck

can be recover application and copy again



I just gonna keep trying and trying until maybe one day I'll get it to work, whats pisses me off more then anything that I know the CPU works, just not with me.....

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

X99 DSDT Help request files

1-ORI DSDT

2-ioreg

3-Motherboard name and bios version

4-Graphics and  sound card model names

5-HDEF layout ID

  • Like 1
Link to comment
Share on other sites
Balamut
Balamut
Posted
Posted

As promised:



Hardware

Motherboard: Z10PE-D16 WS

BIOS: 3305 MSR 0xE2 Patched/Unlocked (Let me know if you need the CAP file)

CPU: Dual Xeon E5-2696 v4

GPU: Dual Asus Styx 980 (Will be replaced by Titan X when system is up)

Memory: 8 out 16 Sticks of 16GB total 128GB ECC

HDEF: Not sure about HDEF layout ID but it's ALC1150



PCIE slots used

PCIE16_1 and PCIE16_3 - GPUs

PCIE16_5 WIFI, Apples Original.





Motherboard notes: Integrated ASpeed AST2400 video and Lan Management are physically disabled trough jumper on the board.



IOReg: I've only managed to get IOJones ioreg data out since even though OS is somewhat installed nothing really works on it, ioregistry explorer, any variation, just simply keep saying that the application is corrupt, I can't even access the terminal to try to do something manually.





Attachments

Bios Screenshot: Screengrabs.zip

Original DSDT: DSDT.aml.zip

Full ACPI Dump from Clover: origin.zip

Clover Preboot Log: preboot.log.zip

IOJones ioreg file: Balamut’s Mac Pro.zip

System Profiler Full dump done manually from the install USB: profile.txt.zip



In regards of core limitations I found this:



2679 v4 @ 64 cores

http://browser.primatelabs.com/geekbench3/7383667







Thanks a lot guys.



Link to comment
Share on other sites
thenightflyer
thenightflyer
Posted
Posted

X99 DSDT Help request files

1-ORI DSDT

2-ioreg

3-Motherboard name and bios version

4-Graphics and  sound card model names

5-HDEF layout ID

@nmano

Sorry here are files...

1) origin zip attached

2) tnf ioreg attched

3) my MB is Asus X99 Deluxe u3.1 bios 3301

4) Graphic card EVGA GeForce GTX 980 Ti Hybrid Gaming - audio card is the one embedded with the mainboard Realtek ALC 1150

5) HDEF layout id <01 00 00 00>

Thanks in advance for your help and patience

origin.zip

tnf_ioreg.zip

Link to comment
Share on other sites
alexlub
alexlub
Posted
Posted
Hello! At the moment I'm working on Mac OS 10.9.5.
My system
Asus x99-a
Intel 5820k
Gtx 760
I want to install Sierra. But it turns out to install only flag nv-disable.
After installing the video card in the box About this system: Nvidia chip model 5mb.
I understand the card does not start. Installing the web drivers did not help.
Installing via clover.
Help. What am I doing wrong?

Link to comment
Share on other sites
giacomoleopardo
giacomoleopardo
Posted
Posted

May I ask which drivers do you have in EFI/Clover/Drivers64 folder? If I warm boot, I get stuck on memory allocation, but a cold boot takes me through. I have the OsxAptioFixDrv-2000.efi

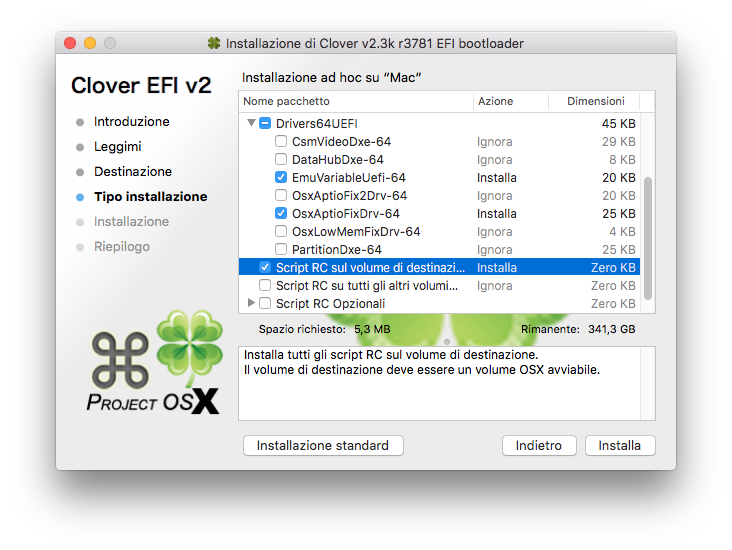

On Asus X99-A and X99-A II I had success with original Clover OsxAptioFixDrv-64.efi (not OsxAptioFixDrv2-64.efi) and Test2-2016.efi. In Clover Install I also needed to select EmuVariableUefi-64.efi and Install RC Script on target Volume option.


Attached my drivers64UEFI folder

System Hardware

- X99-A (and previously X99-A II)

- Latest Uefi Patched Bios (code Rush credits)

- Intel i7 6900K

- nVidia GTX 980 Ti

- Both El Capitan 10.11.6 and macOS Sierra 10.12.0



I've noticed that with X99-A II I need to give Clover about 15 seconds of time out before getting into OS X



CREDITS to Nick Woodhams

@Balamut

Your bios is clearly different from "gaming and consumer " boards as I remembered

You miss to show CPU Advanced PM tuning

IF you find Enhanced intel speedstep technology you can try to disable it

In USB section many X99 guides advice to enable also EHCI hand off and set IntelXhci from auto to enabled

Then , In AI Overclock Tuner try to change to manual and see with parameters you could modify



You say also that you see only 32 Gb of 128 Gb

It seems that only one cpu is feed, are you sure you have ram in correct way? you should see 64 gb without any clover injection

But maybe all of these advice are not relevant for your problem if you have on this rig a solid microsoft windows working setup



Edit

if you want try to boot with the attached files

without any modify and then modifying in clover only fakecpuid from the existed to 306E0 before was 40674

Fabio, does your mobo need VoodooTSCSync.kext for sleep/wake up? Cause my X99-A doesn't do that without it.

drivers64UEFI.zip

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

On Asus X99-A and X99-A II I had success with original Clover OsxAptioFixDrv-64.efi (not OsxAptioFixDrv2-64.efi) and Test2-2016.efi. In Clover Install I also needed to select EmuVariableUefi-64.efi and Install RC Script on target Volume option.



I confirm

I have X99-A with 5820K



Here my EFI



Last login: Sun Oct 2 13:03:51 on console

Mac-Pro-de-Fljagd:~ fljagd$ bdmesg

0:100 0:100 MemLog inited, TSC freq: 3300000160

0:100 0:000

0:100 0:000 Now is 2.10.2016, 11:3:31 (GMT)

0:100 0:000 Starting Clover revision: 3781 on American Megatrends EFI

0:100 0:000 Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE5 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 13 | OS: 10.12 | XCODE: 8.0]

0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) @C87CAE98

0:100 0:000 SelfDirPath = \EFI\BOOT

0:102 0:002 === [ Get Smbios ] ========================================

0:103 0:000 Total Memory Slots Count = 8

0:103 0:000 Type 17 Index = 0

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 1

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 2

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 3

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 4

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 5

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 6

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 7

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Boot status=0

0:103 0:000 Running on: 'All Series' with board 'X99-A'

0:103 0:000 === [ GetCPUProperties ] ==================================

0:103 0:000 CPU Vendor = 756E6547 Model=306F2

0:103 0:000 got cores from CPUID_1 = 0

0:103 0:000 The CPU supported turbo

0:103 0:000 BrandString = Intel® Core i7-5820K CPU @ 3.30GHz

0:103 0:000 MSR 0xE2 before patch 00008400

0:103 0:000 MSR 0xE2 is locked, PM patches will be turned on

0:103 0:000 MSR 0xE4 00010414

0:103 0:000 MSR 0xCE 20080C3B_F3812100

0:103 0:000 MSR 0x1B0 00000000

0:103 0:000 FSBFrequency=100MHz DMIvalue=100000kHz

0:103 0:000 Corrected FSBFrequency=100MHz

0:103 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2

0:103 0:000 Family/ExtFamily: 0x6/0x0

0:103 0:000 MaxDiv/MinDiv: 33.0/12

0:103 0:000 Turbo: 43/43/43/43

0:103 0:000 Features: 0xBFEBFBFF

0:103 0:000 Threads: 12

0:103 0:000 Cores: 6

0:103 0:000 FSB: 100 MHz

0:103 0:000 CPU: 3300 MHz

0:103 0:000 TSC: 3300 MHz

0:103 0:000 PIS: 400 MHz

0:103 0:000 === [ GetDevices ] ========================================

0:103 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400

0:103 0:000 PCI (00|01:00.00) : 1002 679A class=030000

0:103 0:000 - GFX: Model=AMD Radeon HD 7950/8950/R9 280 (ATI/AMD)

0:103 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300

0:103 0:000 - HDMI Audio:

0:103 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400

0:103 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400

0:103 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000

0:103 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000

0:103 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000

0:103 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000

0:103 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020

0:103 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100

0:103 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601

0:103 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500

0:103 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000

0:103 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601

0:103 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330

0:103 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000

0:103 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000

0:103 0:000 - LAN: 0 Vendor=Intel

0:103 0:000 PCI (00|00:1A.00) : 8086 8D2D class=0C0320

0:103 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300

0:103 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400

0:103 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400

0:103 0:000 PCI (00|05:00.00) : 1B21 1142 class=0C0330

0:103 0:000 PCI (00|00:1D.00) : 8086 8D26 class=0C0320

0:103 0:000 === [ GetDefaultSettings ] ================================

0:103 0:000 Clover load options size = 0 bytes

0:105 0:001 , Status=Success

0:105 0:000 EFI\CLOVER\config.plist loaded: Success

0:105 0:000 === [ GetListOfThemes ] ===================================

0:107 0:002 - [00]: CrispyOSX

0:109 0:001 === [ Found config plists ] ===============================

0:109 0:000 - config.plist

0:110 0:001 === [ GetEarlyUserSettings ] ==============================

0:110 0:000 timeout set to 5

0:110 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:125 0:014 KextsToPatch: 3 requested

0:131 0:006 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: MatchOS: 10.11.x :: BinPatch :: data len: 7

0:161 0:029 - [01]: IOAHCIBlockStorage (Trim) :: MatchOS: 10.11.x,10.12.x :: BinPatch :: data len: 11

0:191 0:030 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: MatchOS: 10.12.x :: BinPatch :: data len: 7

0:224 0:033 KernelToPatch: 6 requested

0:230 0:005 - [00]: NoLabel :: MatchOS: 10.11.x :: data len: 9

0:254 0:023 - [01]: NoLabel :: MatchOS: 10.11.x :: data len: 6

0:278 0:024 - [02]: NoLabel :: MatchOS: 10.12.x :: data len: 9

0:302 0:023 - [03]: NoLabel :: MatchOS: 10.11.x :: data len: 28

0:326 0:023 - [04]: NoLabel :: MatchOS: 10.12.x :: data len: 6

0:350 0:023 - [05]: NoLabel :: MatchOS: 10.12.x :: data len: 28

0:377 0:027 Default theme: CrispyOSX

0:383 0:005 Hiding entries with string BOOTX64.EFI

0:389 0:006 Hiding entries with string windows

0:395 0:005 Hiding entries with string Recovery

0:401 0:005 === [ LoadDrivers ] =======================================

0:648 0:246 Loading DataHubDxe-64.efi status=Success

0:667 0:019 Loading EmuVariableUefi-64.efi status=Success

0:685 0:018 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success

0:713 0:027 Loading FSInject-64.efi status=Success

0:731 0:018 Loading HFSPlus.efi status=Success

0:749 0:018 - driver needs connecting

0:755 0:005 Loading OsxAptioFixDrv-64.efi status=Success

0:773 0:018 Loading OsxFatBinaryDrv-64.efi status=Success

0:792 0:018 1 drivers needs connecting ...

0:798 0:006 PlatformDriverOverrideProtocol not found. Installing ... Success

0:810 0:011 HFS+ driver loaded

0:816 0:005 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

1:054 0:238 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

1:094 0:040 === [ InitScreen ] ========================================

1:346 0:251 SetScreenResolution: 1920x1080 - already set

1:358 0:011 Console modes reported: 4, available modes:

1:364 0:005 - [01]: 80x25 (current mode)

1:370 0:005 - [02]: 80x50

1:376 0:005 - [03]: 100x31

1:385 0:009 - [04]: 240x56

1:391 0:005 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

1:398 0:006 === [ GetMacAddress ] =====================================

1:631 0:233 MAC address of LAN #0= 30:5A:3A:57:61:82:

1:679 0:047 === [ ScanSPD ] ===========================================

1:949 0:270 SMBus device : 8086 8D22 class=0C0500 status=Success

1:955 0:005 SMBus CmdReg: 0x1

1:961 0:005 Scanning SMBus [8086:8D22], mmio: 0xFBF3C004, ioport: 0x580, hostc: 0x1

1:971 0:009 Slots to scan [8]...

1:978 0:007 === [ GetAcpiTablesList ] =================================

2:188 0:210 Get Acpi Tables List from RSDT:

2:200 0:011 - [00]: FACP A M I len=132

2:206 0:005 - [01]: APIC A M I len=256

2:212 0:005 - [02]: FPDT A M I len=68

2:218 0:006 - [03]: FIDT A M I len=156

2:224 0:005 - [04]: MCFG A M I len=60

2:230 0:005 - [05]: ASF! HCG len=160

2:236 0:006 - [06]: SSDT SataTabl len=877

2:245 0:009 - [07]: UEFI A M I len=66

2:251 0:006 - [08]: HPET A M I len=56

2:257 0:005 - [09]: MSCT A M I len=144

2:263 0:006 - [10]: SLIT A M I len=45

2:269 0:005 - [11]: SRAT A M I len=4440

2:275 0:005 - [12]: WDDT A M I len=64

2:281 0:005 - [13]: SSDT PmMgt len=85085

2:287 0:005 - [14]: VFCT A M I len=65668

2:293 0:005 - [15]: BGRT A M I len=56

2:299 0:005 Calibrated TSC frequency =3300000160 =3300MHz

2:305 0:006 === [ GetUserSettings ] ===================================

2:530 0:224 USB FixOwnership: yes

2:536 0:005 Dropping 3 tables:

2:542 0:005 - [00]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)

2:644 0:101 - set table: 54445353, 74734930757043 to drop: no

2:656 0:011 - [01]: Drop table signature="DMAR" (52414D44)

2:703 0:047 - set table: 52414D44, 0 to drop: no

2:715 0:011 - [02]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)

2:809 0:093 - set table: 54445353, 6D50757043 to drop: no

2:821 0:011 - final DSDT Fix mask=90400000

2:827 0:005 EnableC6: yes

2:833 0:005 Using smbios.plist at path: EFI\CLOVER\smbios.plist, Status=Not Found

2:845 0:012 === [ ScanVolumes ] =======================================

3:090 0:245 Found 17 volumes with blockIO

3:096 0:006 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)

3:111 0:014 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)

3:128 0:017 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)

3:140 0:012 Found optical drive

3:146 0:005 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,00960645-06CE-4E0A-B82C-747B390637C8,0x800,0x100000)

3:158 0:012 Result of bootcode detection: bootable unknown (legacy)

3:164 0:006 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,6CC56453-A3D4-4AAC-871A-914E80991FB0,0x100800,0xBEC0800)

3:180 0:015 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,3AB5D446-EF8B-47DC-B1A7-73B1E3FA80F1,0xBFC1000,0x1FD3800)

3:193 0:012 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,E306BFEC-2CD4-47F2-B260-BC8AF4736067,0x28,0x64000)

3:205 0:012 Result of bootcode detection: bootable unknown (legacy)

3:212 0:007 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,A9DD86F4-69CE-4B54-86A3-9A2D95BBD68A,0x64028,0xDDFAC40)

3:228 0:015 - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,27798B1C-2997-452F-A8F6-31FC9B5A44BD,0xDE5EC68,0x135F20)

3:241 0:012 hiding this volume

3:247 0:005 - [09]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)

3:259 0:012 - [10]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)

3:272 0:012 - [11]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000)

3:284 0:012 Result of bootcode detection: bootable unknown (legacy)

3:314 0:029 - [12]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8)

3:327 0:012 - [13]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468)

3:339 0:012 - [14]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

3:352 0:012 Result of bootcode detection: bootable unknown (legacy)

3:361 0:009 This is SelfVolume !!

3:367 0:006 - [15]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)

3:380 0:012 - [16]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20)

3:393 0:012 hiding this volume

3:402 0:009 Loading nvram.plist from Vol 'El Capitan' - loaded, size=5427

3:419 0:017 === [ PutNvramPlistToRtVars ] =============================

3:605 0:186 Skipping EmuVariableUefiPresent

3:611 0:005 Skipping OsxAptioFixDrv-RelocBase

3:617 0:006 === [ InitTheme ] =========================================

3:875 0:257 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX)

3:881 0:005 theme CrispyOSX defined in NVRAM found and theme.plist parsed

3:887 0:006 OS main and drive as badge

3:895 0:007 Choosing theme CrispyOSX

3:901 0:005 after NVRAM boot-args=npci=0x2000 -alcoff

3:910 0:009 === [ ScanLoader ] ========================================

4:161 0:251 - [03]: 'EFI'

4:179 0:017 - [06]: 'EFI'

4:195 0:016 - [07]: 'Sierra'

4:210 0:015 AddLoaderEntry for Volume Name=Sierra

4:218 0:007 Check if volume Is Hibernated:

4:224 0:006 Check sleep image 'by signature':

4:233 0:008 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found

4:239 0:006 using default sleep image name = \private\var\vm\sleepimage

4:250 0:011 Reading first 512 bytes of sleepimage ...

4:257 0:006 OurBlockIoRead: Lba=16FD5D8, Offset=2DFABB000 (BlockSize=512)

4:263 0:005 sig lion: 0

4:269 0:005 sig snow: 0

4:275 0:006 no valid sleep image offset was found

4:281 0:005 Reading completed -> Success

4:287 0:006 sleepimage offset could not be acquired

4:293 0:005 hibernated: no - sign

4:299 0:006 [!] Icon 17 (icons\vol_internal_hfs.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:313 0:013 - [08]: 'Recovery HD', hidden

4:325 0:012 - [11]: 'EFI'

4:357 0:031 AddLoaderEntry for Volume Name=EFI

4:363 0:006 [!] Icon 19 (icons\vol_internal_ext3.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:371 0:008 - [12]: 'Stockage'

4:388 0:016 - [13]: 'Time Machine'

4:405 0:017 - [14]: 'EFI'

4:421 0:016 - [15]: 'El Capitan'

4:436 0:015 AddLoaderEntry for Volume Name=El Capitan

4:446 0:009 Check if volume Is Hibernated:

4:455 0:009 Check sleep image 'by signature':

4:466 0:011 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success

4:472 0:006 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'

4:480 0:007 Reading first 512 bytes of sleepimage ...

4:487 0:006 OurBlockIoRead: Lba=13624048, Offset=26C4809000 (BlockSize=512)

4:493 0:006 sig lion: 0

4:499 0:005 sig snow: 0

4:508 0:009 no valid sleep image offset was found

4:514 0:006 Reading completed -> Success

4:520 0:005 sleepimage offset could not be acquired

4:526 0:005 hibernated: no - sign

4:537 0:010 - [16]: 'Recovery HD', hidden

4:549 0:012 === [ AddCustomLegacy ] ===================================

4:772 0:222 Scanning legacy ...

4:778 0:005 0: 'Whole Disc Boot' (legacy) not legacy

4:790 0:011 1: 'Whole Disc Boot' (legacy) not legacy

4:802 0:011 2: 'Whole Disc Boot' (legacy) not legacy

4:817 0:015 3: 'EFI' (legacy) not legacy

4:829 0:011 4: 'Legacy HD2' (legacy) not legacy

4:841 0:011 5: 'Legacy HD3' (legacy) not legacy

4:853 0:011 6: 'EFI' (legacy) not legacy

4:865 0:011 7: 'Sierra' (legacy) not legacy

4:877 0:011 8: 'Recovery HD' (legacy) not legacy

4:889 0:011 9: 'Whole Disc Boot' (legacy) not legacy

4:901 0:011 10: 'Whole Disc Boot' (legacy) not legacy

4:913 0:011 11: 'EFI' (legacy) not legacy

4:925 0:012 12: 'Stockage' (legacy) not legacy

4:940 0:015 13: 'Time Machine' (legacy) not legacy

4:952 0:011 14: 'EFI' (legacy) not legacy

4:964 0:011 15: 'El Capitan' (legacy) not legacy

4:976 0:012 16: 'Recovery HD' (legacy) not legacy

4:988 0:012 === [ AddCustomTool ] =====================================

5:222 0:234 found tool \EFI\CLOVER\tools\Shell64U.efi

5:228 0:006 Checking EFI partition Volume 3 for Clover

5:234 0:005 Checking EFI partition Volume 6 for Clover

5:240 0:005 Checking EFI partition Volume 11 for Clover

5:250 0:009 Checking EFI partition Volume 14 for Clover

5:256 0:005 Found Clover

5:262 0:006 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:280 0:018 === [ FindDefaultEntry ] ==================================

5:496 0:215 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

5:536 0:040 === [ GetEfiBootDeviceFromNvram ] =========================

5:701 0:165 Default boot entry not found

5:707 0:005 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:725 0:017 DefaultIndex=-1 and MainMenu.EntryCount=9

5:981 0:255 Found Mouse device:

5:989 0:007 GUI ready

7:199 1:209 BootOption of the entry is empty

7:210 0:011 === [ StartLoader ] =======================================

7:455 0:245 Finally: Bus=100000kHz CPU=3300MHz

7:461 0:005 Loading boot.efi status=Success

7:495 0:034 GetOSVersion: 10.12 (16A323)

7:507 0:011 CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM

7:513 0:005 Filtering KextPatches:

7:519 0:005 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:531 0:011 - [01]: IOAHCIBlockStorage (Trim) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x,10.12.x | MatchBuild: All] ==> allowed

7:546 0:015 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:558 0:011 Filtering KernelPatches:

7:564 0:005 - [00]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:576 0:011 - [01]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:588 0:011 - [02]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:600 0:011 - [03]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:615 0:015 - [04]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:627 0:011 - [05]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:639 0:011 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

7:680 0:040 === [ PatchSmbios ] =======================================

7:929 0:248 insert table 9 for dev 0:0

7:935 0:005 insert table 9 for dev 0:1

7:941 0:005 insert table 9 for dev 19:0

7:947 0:006 Trusting SMBIOS...

7:953 0:005 Detected alternating SMBIOS channel banks

7:959 0:005 Channels: 4

7:965 0:005 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23

8:121 0:155 partNum=F4-3000C15-4GRR

8:127 0:005 SMBIOS Type 17 Index = 0 => 0 0:

8:133 0:005 DIMM1 2133MHz 4096MB

8:139 0:005 partNum=F4-3000C15-4GRR

8:148 0:009 SMBIOS Type 17 Index = 1 => 1 2:

8:154 0:005 DIMM2 2133MHz 4096MB

8:160 0:005 partNum=F4-3000C15-4GRR

8:166 0:005 SMBIOS Type 17 Index = 2 => 2 4:

8:172 0:005 DIMM3 2133MHz 4096MB

8:178 0:005 partNum=F4-3000C15-4GRR

8:184 0:005 SMBIOS Type 17 Index = 3 => 3 6:

8:190 0:005 DIMM4 2133MHz 4096MB

8:196 0:005 SMBIOS Type 17 Index = 4 => 4 1:

8:202 0:005 DIMM5 EMPTY

8:208 0:005 SMBIOS Type 17 Index = 5 => 5 3:

8:214 0:005 DIMM6 EMPTY

8:223 0:009 SMBIOS Type 17 Index = 6 => 6 5:

8:229 0:005 DIMM7 EMPTY

8:235 0:005 SMBIOS Type 17 Index = 7 => 7 7:

8:241 0:006 DIMM8 EMPTY

8:247 0:005 mTotalSystemMemory = 16384

8:253 0:005 NumberOfMemoryDevices = 8

8:259 0:005 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000

8:265 0:005 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000

8:271 0:005 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000

8:277 0:005 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000

8:283 0:005 Table 131 is present, CPUType=10

8:292 0:009 Change to: 507

8:298 0:005 === [ PatchACPI ] =========================================

8:555 0:257 RSDT 0xCB39D028

8:561 0:006 FADT from RSDT: 0xCB39D148

8:567 0:005 XSDT 0xCB39D098

8:573 0:006 FADT from XSDT: 0xCB3D33A0

8:579 0:005 Xsdt reallocation done

8:585 0:005 old FADT length=10C

8:591 0:006 Found OperationRegion(PSYS, SystemMemory, CC5E4000, ...)

8:597 0:006 Found OperationRegion(HPTC, SystemMemory, FED1F404, ...)

8:603 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:613 0:009 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:619 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:625 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:631 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:637 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:643 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:648 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:658 0:009 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:664 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:670 0:006 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:676 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:682 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:688 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:694 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:703 0:009 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:709 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:715 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:721 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:727 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:733 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:739 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:748 0:009 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:754 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:760 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:766 0:006 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:772 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:778 0:006 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:784 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:793 0:009 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:799 0:006 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:805 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:811 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:817 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:823 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:829 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:838 0:009 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:844 0:006 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:850 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:856 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:862 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:868 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:874 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:884 0:009 Found OperationRegion(RAMW, SystemMemory, CC5D3018, ...)

8:890 0:006 Found OperationRegion(RAMX, SystemMemory, CC5F2D98, ...)

8:896 0:006 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)

8:902 0:005 Found OperationRegion(CRBD, SystemMemory, FED40000, ...)

8:908 0:005 Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)

8:914 0:005 Found OperationRegion(TBNV, SystemMemory, FFFF0000, ...)

8:920 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:929 0:009 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:935 0:005 Unable to determine address for OperationRegion(MMMM, SystemMemory, ...) skipping

8:941 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:947 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:953 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:959 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:968 0:009 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:974 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:980 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:986 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:992 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:001 0:009 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:007 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:013 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:019 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:025 0:005 DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml

9:037 0:012 Apply DsdtFixMask=0x90400000 new way

9:044 0:006 drop _DSM mask=0x0000

9:050 0:006 === [ FixBiosDsdt ] =======================================

9:295 0:244 VideoCard devID=0x679A1002

9:301 0:005 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0

9:307 0:006 USBADR[0] = 0x140000 and PCIe = 0xFFFE

9:313 0:006 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE

9:346 0:033 Audio HDA (addr:0x1B0000) setting specified layout-id=1 (0x1)

9:352 0:006 USBADR[2] = 0x1C0004 and PCIe = 0x0

9:362 0:009 USBADR[3] = 0x1D0000 and PCIe = 0xFFFE

9:367 0:005 first CPU found at 2A5B offset 2A5F

9:373 0:005 device candidate at 29C7

9:379 0:005 device inserted in acpi_cpu_score SCK0

9:385 0:005 score candidate at 27F4

9:391 0:005 score inserted in acpi_cpu_score _SB_SCK0

9:397 0:005 Found ACPI CPU: CP00 | CP01 | CP02 | CP03 | CP04 | CP05 | CP06 | CP07 | CP08 | CP09 | CP0A | CP0B | CP0C | CP0D | CP0E | CP0F | CP10 | CP11 | CP12 | CP13 | CP14 | CP15 | CP16 | CP17 | CP18 | CP19 | CP1A | CP1B | CP1C | CP1D | CP1E | CP1F , within the score: _SB_SCK0

9:599 0:201 Found PCIROOTUID = 0

9:605 0:005 deleting device CRT_

9:612 0:006 deleting device DVI_

9:618 0:006 deleting device SPKR

9:624 0:006 deleting device ECP_

9:631 0:006 deleting device LPT_

9:637 0:006 deleting device FDC0

9:644 0:006 deleting device ECP1

9:650 0:006 deleting device LPT1

9:657 0:006 OperationRegion (PSYS...) corrected to addr=0xCC5E4000

9:663 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:672 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:678 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:684 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:690 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:696 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:702 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:708 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:717 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:723 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:729 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:735 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:741 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:747 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:753 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:762 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:768 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:774 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:780 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:786 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:792 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:798 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:804 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:813 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:819 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:825 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:831 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:837 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:843 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:849 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:858 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:864 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:870 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:876 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:882 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:888 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:894 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:904 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:910 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:916 0:006 indirect name=RAMB

9:922 0:005 OperationRegion (RAMW...) corrected to addr=0xCC5D3018

9:928 0:006 indirect name=RAMS

9:934 0:005 OperationRegion (RAMX...) corrected to addr=0xCC5F2D98

9:940 0:005 indirect name=TPMM

9:946 0:005 indirect name=FTPM

9:952 0:006 === [ ACPIDropTables ] ====================================

10:179 0:227 === [ PatchAllSSDT ] ======================================

10:422 0:242 Patch table: SSDT SataTabl

10:428 0:005 SSDT len = 0x36D

10:434 0:005 Patch table: SSDT PmMgt

10:440 0:005 SSDT len = 0x14C5D

10:446 0:006 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0

10:452 0:005 Xsdt has tables count=16

10:458 0:005 corrected XSDT length=164

10:464 0:005 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12

10:470 0:005 Maximum control=0x21

10:476 0:005 Turbo control=0x2B

10:482 0:005 P-States: min 0xC, max 0x2B

10:491 0:009 SSDT with CPU P-States generated successfully

10:497 0:006 SSDT with CPU C-States generated successfully

10:503 0:006 === [ RestSetupOSX ] ======================================

10:743 0:239 Framebuffer @0xD0000000 MMIO @0xFBE00000 I/O Port @0x0000E000 ROM Addr @0xFBE40000

10:749 0:005 ATI card POSTed,

10:761 0:012 Set VRAM for Cedar+ =3072Mb

10:767 0:005 ATI: get_vram_size returned 0xC0000000

10:773 0:006 ATI Radeon EVERGREEN family

10:782 0:009 Users config name Aji

10:788 0:006 (AtiPorts) Nr of ports set to: 5

10:794 0:006 ATI Tahiti AMD Radeon HD 7950/8950/R9 280 3072MB (Aji) [1002:679A] (subsys [174B:E208]):: PciRoot(0x0)\Pci(0x3,0x0)\Pci(0x0,0x0)

10:800 0:006 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => setting specified layout-id=1 (0x1)

10:812 0:012 stringlength = 6698

10:818 0:006 CurrentMode: Width=1920 Height=1080

10:824 0:005 Beginning FSInjection

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

10:834 0:009 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other

10:847 0:013 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12

10:855 0:008 Extra kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext

10:863 0:007 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext

10:869 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext

10:875 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext

10:884 0:009 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext

10:893 0:008 Extra kext: EFI\CLOVER\kexts\10.12\USB_Injector.kext

10:898 0:005 Extra kext: EFI\CLOVER\kexts\10.12\Shiki.kext

10:906 0:008 Extra kext: EFI\CLOVER\kexts\10.12\IntelMausiEthernet.kext

10:915 0:008 Extra kext: EFI\CLOVER\kexts\10.12\VoodooHDA.kext

10:925 0:009 Extra kext: EFI\CLOVER\kexts\10.12\AppleHDADisabler.kext

10:935 0:009 Custom boot is disabled



Mac-Pro-de-Fljagd:~ fljagd$





EFI.zip

  • Like 1
Link to comment
Share on other sites
giacomoleopardo
giacomoleopardo
Posted
Posted

I confirm

I have X99-A with 5820K



Here my EFI



Last login: Sun Oct 2 13:03:51 on console

Mac-Pro-de-Fljagd:~ fljagd$ bdmesg

0:100 0:100 MemLog inited, TSC freq: 3300000160

0:100 0:000

0:100 0:000 Now is 2.10.2016, 11:3:31 (GMT)

0:100 0:000 Starting Clover revision: 3781 on American Megatrends EFI

0:100 0:000 Build with: [Args: -x64 -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -t XCODE5 | -D NO_GRUB_DRIVERS_EMBEDDED -D CHECK_FLAGS -D USE_LOW_EBDA -a X64 -b RELEASE -t XCODE5 -n 13 | OS: 10.12 | XCODE: 8.0]

0:100 0:000 SelfDevicePath=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000) @C87CAE98

0:100 0:000 SelfDirPath = \EFI\BOOT

0:102 0:002 === [ Get Smbios ] ========================================

0:103 0:000 Total Memory Slots Count = 8

0:103 0:000 Type 17 Index = 0

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 1

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 2

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 3

0:103 0:000 SmbiosTable.Type17->Speed = 2133MHz

0:103 0:000 SmbiosTable.Type17->Size = 4096MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2

0:103 0:000 SmbiosTable.Type17->Vendor = G-Skill

0:103 0:000 SmbiosTable.Type17->SerialNumber = 00000000

0:103 0:000 SmbiosTable.Type17->PartNumber = F4-3000C15-4GRR

0:103 0:000 Type 17 Index = 4

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 5

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 6

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Type 17 Index = 7

0:103 0:000 Ignoring insane frequency value 0MHz

0:103 0:000 SmbiosTable.Type17->Speed = 0MHz

0:103 0:000 SmbiosTable.Type17->Size = 0MB

0:103 0:000 SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2

0:103 0:000 SmbiosTable.Type17->Vendor =

0:103 0:000 SmbiosTable.Type17->SerialNumber =

0:103 0:000 SmbiosTable.Type17->PartNumber =

0:103 0:000 Boot status=0

0:103 0:000 Running on: 'All Series' with board 'X99-A'

0:103 0:000 === [ GetCPUProperties ] ==================================

0:103 0:000 CPU Vendor = 756E6547 Model=306F2

0:103 0:000 got cores from CPUID_1 = 0

0:103 0:000 The CPU supported turbo

0:103 0:000 BrandString = Intel® Core i7-5820K CPU @ 3.30GHz

0:103 0:000 MSR 0xE2 before patch 00008400

0:103 0:000 MSR 0xE2 is locked, PM patches will be turned on

0:103 0:000 MSR 0xE4 00010414

0:103 0:000 MSR 0xCE 20080C3B_F3812100

0:103 0:000 MSR 0x1B0 00000000

0:103 0:000 FSBFrequency=100MHz DMIvalue=100000kHz

0:103 0:000 Corrected FSBFrequency=100MHz

0:103 0:000 Vendor/Model/Stepping: 0x756E6547/0x3F/0x2

0:103 0:000 Family/ExtFamily: 0x6/0x0

0:103 0:000 MaxDiv/MinDiv: 33.0/12

0:103 0:000 Turbo: 43/43/43/43

0:103 0:000 Features: 0xBFEBFBFF

0:103 0:000 Threads: 12

0:103 0:000 Cores: 6

0:103 0:000 FSB: 100 MHz

0:103 0:000 CPU: 3300 MHz

0:103 0:000 TSC: 3300 MHz

0:103 0:000 PIS: 400 MHz

0:103 0:000 === [ GetDevices ] ========================================

0:103 0:000 PCI (00|00:03.00) : 8086 2F08 class=060400

0:103 0:000 PCI (00|01:00.00) : 1002 679A class=030000

0:103 0:000 - GFX: Model=AMD Radeon HD 7950/8950/R9 280 (ATI/AMD)

0:103 0:000 PCI (00|01:00.01) : 1002 AAA0 class=040300

0:103 0:000 - HDMI Audio:

0:103 0:000 PCI (00|00:01.00) : 8086 2F02 class=060400

0:103 0:000 PCI (00|00:01.01) : 8086 2F03 class=060400

0:103 0:000 PCI (00|00:00.00) : 8086 2F00 class=060000

0:103 0:000 PCI (00|00:05.00) : 8086 2F28 class=088000

0:103 0:000 PCI (00|00:05.01) : 8086 2F29 class=088000

0:103 0:000 PCI (00|00:05.02) : 8086 2F2A class=088000

0:103 0:000 PCI (00|00:05.04) : 8086 2F2C class=080020

0:103 0:000 PCI (00|00:05.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:1F.00) : 8086 8D47 class=060100

0:103 0:000 PCI (00|00:1F.02) : 8086 8D02 class=010601

0:103 0:000 PCI (00|00:1F.03) : 8086 8D22 class=0C0500

0:103 0:000 PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:11.00) : 8086 8D7C class=FF0000

0:103 0:000 PCI (00|00:11.04) : 8086 8D62 class=010601

0:103 0:000 PCI (00|00:14.00) : 8086 8D31 class=0C0330

0:103 0:000 PCI (00|00:16.00) : 8086 8D3A class=078000

0:103 0:000 PCI (00|00:16.01) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.02) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:16.03) : FFFF FFFF class=FFFFFF

0:103 0:000 PCI (00|00:19.00) : 8086 15A1 class=020000

0:103 0:000 - LAN: 0 Vendor=Intel

0:103 0:000 PCI (00|00:1A.00) : 8086 8D2D class=0C0320

0:103 0:000 PCI (00|00:1B.00) : 8086 8D20 class=040300

0:103 0:000 PCI (00|00:1C.00) : 8086 8D10 class=060400

0:103 0:000 PCI (00|00:1C.04) : 8086 8D18 class=060400

0:103 0:000 PCI (00|05:00.00) : 1B21 1142 class=0C0330

0:103 0:000 PCI (00|00:1D.00) : 8086 8D26 class=0C0320

0:103 0:000 === [ GetDefaultSettings ] ================================

0:103 0:000 Clover load options size = 0 bytes

0:105 0:001 , Status=Success

0:105 0:000 EFI\CLOVER\config.plist loaded: Success

0:105 0:000 === [ GetListOfThemes ] ===================================

0:107 0:002 - [00]: CrispyOSX

0:109 0:001 === [ Found config plists ] ===============================

0:109 0:000 - config.plist

0:110 0:001 === [ GetEarlyUserSettings ] ==============================

0:110 0:000 timeout set to 5

0:110 0:000 Custom boot CUSTOM_BOOT_DISABLED (0x0)

0:125 0:014 KextsToPatch: 3 requested

0:131 0:006 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: MatchOS: 10.11.x :: BinPatch :: data len: 7

0:161 0:029 - [01]: IOAHCIBlockStorage (Trim) :: MatchOS: 10.11.x,10.12.x :: BinPatch :: data len: 11

0:191 0:030 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: MatchOS: 10.12.x :: BinPatch :: data len: 7

0:224 0:033 KernelToPatch: 6 requested

0:230 0:005 - [00]: NoLabel :: MatchOS: 10.11.x :: data len: 9

0:254 0:023 - [01]: NoLabel :: MatchOS: 10.11.x :: data len: 6

0:278 0:024 - [02]: NoLabel :: MatchOS: 10.12.x :: data len: 9

0:302 0:023 - [03]: NoLabel :: MatchOS: 10.11.x :: data len: 28

0:326 0:023 - [04]: NoLabel :: MatchOS: 10.12.x :: data len: 6

0:350 0:023 - [05]: NoLabel :: MatchOS: 10.12.x :: data len: 28

0:377 0:027 Default theme: CrispyOSX

0:383 0:005 Hiding entries with string BOOTX64.EFI

0:389 0:006 Hiding entries with string windows

0:395 0:005 Hiding entries with string Recovery

0:401 0:005 === [ LoadDrivers ] =======================================

0:648 0:246 Loading DataHubDxe-64.efi status=Success

0:667 0:019 Loading EmuVariableUefi-64.efi status=Success

0:685 0:018 EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success

0:713 0:027 Loading FSInject-64.efi status=Success

0:731 0:018 Loading HFSPlus.efi status=Success

0:749 0:018 - driver needs connecting

0:755 0:005 Loading OsxAptioFixDrv-64.efi status=Success

0:773 0:018 Loading OsxFatBinaryDrv-64.efi status=Success

0:792 0:018 1 drivers needs connecting ...

0:798 0:006 PlatformDriverOverrideProtocol not found. Installing ... Success

0:810 0:011 HFS+ driver loaded

0:816 0:005 Searching for invalid DiskIo BY_DRIVER connects: not found, all ok

1:054 0:238 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

1:094 0:040 === [ InitScreen ] ========================================

1:346 0:251 SetScreenResolution: 1920x1080 - already set

1:358 0:011 Console modes reported: 4, available modes:

1:364 0:005 - [01]: 80x25 (current mode)

1:370 0:005 - [02]: 80x50

1:376 0:005 - [03]: 100x31

1:385 0:009 - [04]: 240x56

1:391 0:005 reinit: self device path=PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

1:398 0:006 === [ GetMacAddress ] =====================================

1:631 0:233 MAC address of LAN #0= 30:5A:3A:57:61:82:

1:679 0:047 === [ ScanSPD ] ===========================================

1:949 0:270 SMBus device : 8086 8D22 class=0C0500 status=Success

1:955 0:005 SMBus CmdReg: 0x1

1:961 0:005 Scanning SMBus [8086:8D22], mmio: 0xFBF3C004, ioport: 0x580, hostc: 0x1

1:971 0:009 Slots to scan [8]...

1:978 0:007 === [ GetAcpiTablesList ] =================================

2:188 0:210 Get Acpi Tables List from RSDT:

2:200 0:011 - [00]: FACP A M I len=132

2:206 0:005 - [01]: APIC A M I len=256

2:212 0:005 - [02]: FPDT A M I len=68

2:218 0:006 - [03]: FIDT A M I len=156

2:224 0:005 - [04]: MCFG A M I len=60

2:230 0:005 - [05]: ASF! HCG len=160

2:236 0:006 - [06]: SSDT SataTabl len=877

2:245 0:009 - [07]: UEFI A M I len=66

2:251 0:006 - [08]: HPET A M I len=56

2:257 0:005 - [09]: MSCT A M I len=144

2:263 0:006 - [10]: SLIT A M I len=45

2:269 0:005 - [11]: SRAT A M I len=4440

2:275 0:005 - [12]: WDDT A M I len=64

2:281 0:005 - [13]: SSDT PmMgt len=85085

2:287 0:005 - [14]: VFCT A M I len=65668

2:293 0:005 - [15]: BGRT A M I len=56

2:299 0:005 Calibrated TSC frequency =3300000160 =3300MHz

2:305 0:006 === [ GetUserSettings ] ===================================

2:530 0:224 USB FixOwnership: yes

2:536 0:005 Dropping 3 tables:

2:542 0:005 - [00]: Drop table signature="SSDT" (54445353) table-id="Cpu0Ist" (0074734930757043)

2:644 0:101 - set table: 54445353, 74734930757043 to drop: no

2:656 0:011 - [01]: Drop table signature="DMAR" (52414D44)

2:703 0:047 - set table: 52414D44, 0 to drop: no

2:715 0:011 - [02]: Drop table signature="SSDT" (54445353) table-id="CpuPm" (0000006D50757043)

2:809 0:093 - set table: 54445353, 6D50757043 to drop: no

2:821 0:011 - final DSDT Fix mask=90400000

2:827 0:005 EnableC6: yes

2:833 0:005 Using smbios.plist at path: EFI\CLOVER\smbios.plist, Status=Not Found

2:845 0:012 === [ ScanVolumes ] =======================================

3:090 0:245 Found 17 volumes with blockIO

3:096 0:006 - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)

3:111 0:014 - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)

3:128 0:017 - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x4,0xFFFF,0x0)

3:140 0:012 Found optical drive

3:146 0:005 - [03]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,00960645-06CE-4E0A-B82C-747B390637C8,0x800,0x100000)

3:158 0:012 Result of bootcode detection: bootable unknown (legacy)

3:164 0:006 - [04]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,6CC56453-A3D4-4AAC-871A-914E80991FB0,0x100800,0xBEC0800)

3:180 0:015 - [05]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,3AB5D446-EF8B-47DC-B1A7-73B1E3FA80F1,0xBFC1000,0x1FD3800)

3:193 0:012 - [06]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,E306BFEC-2CD4-47F2-B260-BC8AF4736067,0x28,0x64000)

3:205 0:012 Result of bootcode detection: bootable unknown (legacy)

3:212 0:007 - [07]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,A9DD86F4-69CE-4B54-86A3-9A2D95BBD68A,0x64028,0xDDFAC40)

3:228 0:015 - [08]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,27798B1C-2997-452F-A8F6-31FC9B5A44BD,0xDE5EC68,0x135F20)

3:241 0:012 hiding this volume

3:247 0:005 - [09]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)

3:259 0:012 - [10]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)

3:272 0:012 - [11]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(1,GPT,B1650157-FE7D-492F-AC4C-7B333B79F801,0x28,0x64000)

3:284 0:012 Result of bootcode detection: bootable unknown (legacy)

3:314 0:029 - [12]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(2,GPT,9128246A-7393-40AC-BB96-75465F7DE11D,0x64028,0xA30723F8)

3:327 0:012 - [13]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x2,0xFFFF,0x0)\HD(3,GPT,63C4321E-4CF1-4831-93BC-0B8AC34F5751,0xA3116420,0x45CB2468)

3:339 0:012 - [14]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(1,GPT,0A2A3BFE-C3AC-4090-A736-7453B3238CE2,0x28,0x64000)

3:352 0:012 Result of bootcode detection: bootable unknown (legacy)

3:361 0:009 This is SelfVolume !!

3:367 0:006 - [15]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(2,GPT,F9EB2C88-4756-4B60-B231-6CDC92DABA9E,0x64028,0x1BD8A540)

3:380 0:012 - [16]: Volume: PciRoot(0x0)\Pci(0x11,0x4)\Sata(0x3,0xFFFF,0x0)\HD(3,GPT,69789CCA-F8B6-4C40-AE30-89A595B6863B,0x1BDEE568,0x135F20)

3:393 0:012 hiding this volume

3:402 0:009 Loading nvram.plist from Vol 'El Capitan' - loaded, size=5427

3:419 0:017 === [ PutNvramPlistToRtVars ] =============================

3:605 0:186 Skipping EmuVariableUefiPresent

3:611 0:005 Skipping OsxAptioFixDrv-RelocBase

3:617 0:006 === [ InitTheme ] =========================================

3:875 0:257 Using theme 'CrispyOSX' (EFI\CLOVER\themes\CrispyOSX)

3:881 0:005 theme CrispyOSX defined in NVRAM found and theme.plist parsed

3:887 0:006 OS main and drive as badge

3:895 0:007 Choosing theme CrispyOSX

3:901 0:005 after NVRAM boot-args=npci=0x2000 -alcoff

3:910 0:009 === [ ScanLoader ] ========================================

4:161 0:251 - [03]: 'EFI'

4:179 0:017 - [06]: 'EFI'

4:195 0:016 - [07]: 'Sierra'

4:210 0:015 AddLoaderEntry for Volume Name=Sierra

4:218 0:007 Check if volume Is Hibernated:

4:224 0:006 Check sleep image 'by signature':

4:233 0:008 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Not Found

4:239 0:006 using default sleep image name = \private\var\vm\sleepimage

4:250 0:011 Reading first 512 bytes of sleepimage ...

4:257 0:006 OurBlockIoRead: Lba=16FD5D8, Offset=2DFABB000 (BlockSize=512)

4:263 0:005 sig lion: 0

4:269 0:005 sig snow: 0

4:275 0:006 no valid sleep image offset was found

4:281 0:005 Reading completed -> Success

4:287 0:006 sleepimage offset could not be acquired

4:293 0:005 hibernated: no - sign

4:299 0:006 [!] Icon 17 (icons\vol_internal_hfs.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:313 0:013 - [08]: 'Recovery HD', hidden

4:325 0:012 - [11]: 'EFI'

4:357 0:031 AddLoaderEntry for Volume Name=EFI

4:363 0:006 [!] Icon 19 (icons\vol_internal_ext3.icns) not found (path: EFI\CLOVER\themes\CrispyOSX)

4:371 0:008 - [12]: 'Stockage'

4:388 0:016 - [13]: 'Time Machine'

4:405 0:017 - [14]: 'EFI'

4:421 0:016 - [15]: 'El Capitan'

4:436 0:015 AddLoaderEntry for Volume Name=El Capitan

4:446 0:009 Check if volume Is Hibernated:

4:455 0:009 Check sleep image 'by signature':

4:466 0:011 read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success

4:472 0:006 SleepImage name from pref: ImageVolume = 'El Capitan', ImageName = '\private\var\vm\sleepimage'

4:480 0:007 Reading first 512 bytes of sleepimage ...

4:487 0:006 OurBlockIoRead: Lba=13624048, Offset=26C4809000 (BlockSize=512)

4:493 0:006 sig lion: 0

4:499 0:005 sig snow: 0

4:508 0:009 no valid sleep image offset was found

4:514 0:006 Reading completed -> Success

4:520 0:005 sleepimage offset could not be acquired

4:526 0:005 hibernated: no - sign

4:537 0:010 - [16]: 'Recovery HD', hidden

4:549 0:012 === [ AddCustomLegacy ] ===================================

4:772 0:222 Scanning legacy ...

4:778 0:005 0: 'Whole Disc Boot' (legacy) not legacy

4:790 0:011 1: 'Whole Disc Boot' (legacy) not legacy

4:802 0:011 2: 'Whole Disc Boot' (legacy) not legacy

4:817 0:015 3: 'EFI' (legacy) not legacy

4:829 0:011 4: 'Legacy HD2' (legacy) not legacy

4:841 0:011 5: 'Legacy HD3' (legacy) not legacy

4:853 0:011 6: 'EFI' (legacy) not legacy

4:865 0:011 7: 'Sierra' (legacy) not legacy

4:877 0:011 8: 'Recovery HD' (legacy) not legacy

4:889 0:011 9: 'Whole Disc Boot' (legacy) not legacy

4:901 0:011 10: 'Whole Disc Boot' (legacy) not legacy

4:913 0:011 11: 'EFI' (legacy) not legacy

4:925 0:012 12: 'Stockage' (legacy) not legacy

4:940 0:015 13: 'Time Machine' (legacy) not legacy

4:952 0:011 14: 'EFI' (legacy) not legacy

4:964 0:011 15: 'El Capitan' (legacy) not legacy

4:976 0:012 16: 'Recovery HD' (legacy) not legacy

4:988 0:012 === [ AddCustomTool ] =====================================

5:222 0:234 found tool \EFI\CLOVER\tools\Shell64U.efi

5:228 0:006 Checking EFI partition Volume 3 for Clover

5:234 0:005 Checking EFI partition Volume 6 for Clover

5:240 0:005 Checking EFI partition Volume 11 for Clover

5:250 0:009 Checking EFI partition Volume 14 for Clover

5:256 0:005 Found Clover

5:262 0:006 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:280 0:018 === [ FindDefaultEntry ] ==================================

5:496 0:215 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

5:536 0:040 === [ GetEfiBootDeviceFromNvram ] =========================

5:701 0:165 Default boot entry not found

5:707 0:005 EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored

5:725 0:017 DefaultIndex=-1 and MainMenu.EntryCount=9

5:981 0:255 Found Mouse device:

5:989 0:007 GUI ready

7:199 1:209 BootOption of the entry is empty

7:210 0:011 === [ StartLoader ] =======================================

7:455 0:245 Finally: Bus=100000kHz CPU=3300MHz

7:461 0:005 Loading boot.efi status=Success

7:495 0:034 GetOSVersion: 10.12 (16A323)

7:507 0:011 CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS | CSR_ALLOW_TASK_FOR_PID | CSR_ALLOW_UNRESTRICTED_DTRACE | CSR_ALLOW_UNRESTRICTED_NVRAM

7:513 0:005 Filtering KextPatches:

7:519 0:005 - [00]: AppleUSBXHCIPCI (usb 3 limit 10.11) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:531 0:011 - [01]: IOAHCIBlockStorage (Trim) :: BinPatch :: [OS: 10.12 | MatchOS: 10.11.x,10.12.x | MatchBuild: All] ==> allowed

7:546 0:015 - [02]: AppleUSBXHCIPCI (usb 3 limit 10.12) :: BinPatch :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:558 0:011 Filtering KernelPatches:

7:564 0:005 - [00]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:576 0:011 - [01]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:588 0:011 - [02]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:600 0:011 - [03]: NoLabel :: [OS: 10.12 | MatchOS: 10.11.x | MatchBuild: All] ==> not allowed

7:615 0:015 - [04]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:627 0:011 - [05]: NoLabel :: [OS: 10.12 | MatchOS: 10.12.x | MatchBuild: All] ==> allowed

7:639 0:011 EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success

7:680 0:040 === [ PatchSmbios ] =======================================

7:929 0:248 insert table 9 for dev 0:0

7:935 0:005 insert table 9 for dev 0:1

7:941 0:005 insert table 9 for dev 19:0

7:947 0:006 Trusting SMBIOS...

7:953 0:005 Detected alternating SMBIOS channel banks

7:959 0:005 Channels: 4

7:965 0:005 Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23

8:121 0:155 partNum=F4-3000C15-4GRR

8:127 0:005 SMBIOS Type 17 Index = 0 => 0 0:

8:133 0:005 DIMM1 2133MHz 4096MB

8:139 0:005 partNum=F4-3000C15-4GRR

8:148 0:009 SMBIOS Type 17 Index = 1 => 1 2:

8:154 0:005 DIMM2 2133MHz 4096MB

8:160 0:005 partNum=F4-3000C15-4GRR

8:166 0:005 SMBIOS Type 17 Index = 2 => 2 4:

8:172 0:005 DIMM3 2133MHz 4096MB

8:178 0:005 partNum=F4-3000C15-4GRR

8:184 0:005 SMBIOS Type 17 Index = 3 => 3 6:

8:190 0:005 DIMM4 2133MHz 4096MB

8:196 0:005 SMBIOS Type 17 Index = 4 => 4 1:

8:202 0:005 DIMM5 EMPTY

8:208 0:005 SMBIOS Type 17 Index = 5 => 5 3:

8:214 0:005 DIMM6 EMPTY

8:223 0:009 SMBIOS Type 17 Index = 6 => 6 5:

8:229 0:005 DIMM7 EMPTY

8:235 0:005 SMBIOS Type 17 Index = 7 => 7 7:

8:241 0:006 DIMM8 EMPTY

8:247 0:005 mTotalSystemMemory = 16384

8:253 0:005 NumberOfMemoryDevices = 8

8:259 0:005 Type20[0]->End = 0x3FFFFF, Type17[0] = 0x1000

8:265 0:005 Type20[1]->End = 0x7FFFFF, Type17[1] = 0x3000

8:271 0:005 Type20[2]->End = 0xBFFFFF, Type17[2] = 0x6000

8:277 0:005 Type20[3]->End = 0xFFFFFF, Type17[3] = 0xA000

8:283 0:005 Table 131 is present, CPUType=10

8:292 0:009 Change to: 507

8:298 0:005 === [ PatchACPI ] =========================================

8:555 0:257 RSDT 0xCB39D028

8:561 0:006 FADT from RSDT: 0xCB39D148

8:567 0:005 XSDT 0xCB39D098

8:573 0:006 FADT from XSDT: 0xCB3D33A0

8:579 0:005 Xsdt reallocation done

8:585 0:005 old FADT length=10C

8:591 0:006 Found OperationRegion(PSYS, SystemMemory, CC5E4000, ...)

8:597 0:006 Found OperationRegion(HPTC, SystemMemory, FED1F404, ...)

8:603 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:613 0:009 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:619 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:625 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:631 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:637 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:643 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:648 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:658 0:009 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:664 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:670 0:006 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:676 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:682 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:688 0:006 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:694 0:005 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:703 0:009 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:709 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:715 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:721 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:727 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:733 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:739 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:748 0:009 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:754 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:760 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:766 0:006 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:772 0:005 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:778 0:006 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:784 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:793 0:009 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:799 0:006 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:805 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:811 0:005 Found OperationRegion(MCTL, SystemMemory, E001B188, ...)

8:817 0:005 Found OperationRegion(MCTL, SystemMemory, E0000188, ...)

8:823 0:005 Found OperationRegion(MCTL, SystemMemory, E0008188, ...)

8:829 0:005 Found OperationRegion(MCTL, SystemMemory, E0009188, ...)

8:838 0:009 Found OperationRegion(MCTL, SystemMemory, E0010188, ...)

8:844 0:006 Found OperationRegion(MCTL, SystemMemory, E0011188, ...)

8:850 0:005 Found OperationRegion(MCTL, SystemMemory, E0012188, ...)

8:856 0:005 Found OperationRegion(MCTL, SystemMemory, E0013188, ...)

8:862 0:005 Found OperationRegion(MCTL, SystemMemory, E0018188, ...)

8:868 0:005 Found OperationRegion(MCTL, SystemMemory, E0019188, ...)

8:874 0:005 Found OperationRegion(MCTL, SystemMemory, E001A188, ...)

8:884 0:009 Found OperationRegion(RAMW, SystemMemory, CC5D3018, ...)

8:890 0:006 Found OperationRegion(RAMX, SystemMemory, CC5F2D98, ...)

8:896 0:006 Found OperationRegion(TMMB, SystemMemory, FED40000, ...)

8:902 0:005 Found OperationRegion(CRBD, SystemMemory, FED40000, ...)

8:908 0:005 Found OperationRegion(TPMR, SystemMemory, FFFFFFFF, ...)

8:914 0:005 Found OperationRegion(TBNV, SystemMemory, FFFF0000, ...)

8:920 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:929 0:009 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:935 0:005 Unable to determine address for OperationRegion(MMMM, SystemMemory, ...) skipping

8:941 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:947 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:953 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:959 0:005 Unable to determine address for OperationRegion(PXVD, SystemMemory, ...) skipping

8:968 0:009 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:974 0:005 Unable to determine address for OperationRegion(RP_X, SystemMemory, ...) skipping

8:980 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:986 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

8:992 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:001 0:009 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:007 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:013 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:019 0:005 Unable to determine address for OperationRegion(PCFG, SystemMemory, ...) skipping

9:025 0:005 DSDT found in Clover volume OEM folder: EFI\CLOVER\ACPI\patched\DSDT.aml

9:037 0:012 Apply DsdtFixMask=0x90400000 new way

9:044 0:006 drop _DSM mask=0x0000

9:050 0:006 === [ FixBiosDsdt ] =======================================

9:295 0:244 VideoCard devID=0x679A1002

9:301 0:005 DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0

9:307 0:006 USBADR[0] = 0x140000 and PCIe = 0xFFFE

9:313 0:006 USBADR[1] = 0x1A0000 and PCIe = 0xFFFE

9:346 0:033 Audio HDA (addr:0x1B0000) setting specified layout-id=1 (0x1)

9:352 0:006 USBADR[2] = 0x1C0004 and PCIe = 0x0

9:362 0:009 USBADR[3] = 0x1D0000 and PCIe = 0xFFFE

9:367 0:005 first CPU found at 2A5B offset 2A5F

9:373 0:005 device candidate at 29C7

9:379 0:005 device inserted in acpi_cpu_score SCK0

9:385 0:005 score candidate at 27F4

9:391 0:005 score inserted in acpi_cpu_score _SB_SCK0

9:397 0:005 Found ACPI CPU: CP00 | CP01 | CP02 | CP03 | CP04 | CP05 | CP06 | CP07 | CP08 | CP09 | CP0A | CP0B | CP0C | CP0D | CP0E | CP0F | CP10 | CP11 | CP12 | CP13 | CP14 | CP15 | CP16 | CP17 | CP18 | CP19 | CP1A | CP1B | CP1C | CP1D | CP1E | CP1F , within the score: _SB_SCK0

9:599 0:201 Found PCIROOTUID = 0

9:605 0:005 deleting device CRT_

9:612 0:006 deleting device DVI_

9:618 0:006 deleting device SPKR

9:624 0:006 deleting device ECP_

9:631 0:006 deleting device LPT_

9:637 0:006 deleting device FDC0

9:644 0:006 deleting device ECP1

9:650 0:006 deleting device LPT1

9:657 0:006 OperationRegion (PSYS...) corrected to addr=0xCC5E4000

9:663 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:672 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:678 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:684 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:690 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:696 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:702 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:708 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:717 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:723 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:729 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:735 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:741 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:747 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:753 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:762 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:768 0:006 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:774 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:780 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:786 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:792 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:798 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:804 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:813 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:819 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:825 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:831 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:837 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:843 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:849 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:858 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:864 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:870 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:876 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:882 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:888 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:894 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:904 0:009 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:910 0:005 OperationRegion (MCTL...) corrected to addr=0xE001A188

9:916 0:006 indirect name=RAMB

9:922 0:005 OperationRegion (RAMW...) corrected to addr=0xCC5D3018

9:928 0:006 indirect name=RAMS

9:934 0:005 OperationRegion (RAMX...) corrected to addr=0xCC5F2D98

9:940 0:005 indirect name=TPMM

9:946 0:005 indirect name=FTPM

9:952 0:006 === [ ACPIDropTables ] ====================================

10:179 0:227 === [ PatchAllSSDT ] ======================================

10:422 0:242 Patch table: SSDT SataTabl

10:428 0:005 SSDT len = 0x36D

10:434 0:005 Patch table: SSDT PmMgt

10:440 0:005 SSDT len = 0x14C5D

10:446 0:006 Drop tables from Xsdt, SIGN=XXXX TableID= Length=0

10:452 0:005 Xsdt has tables count=16

10:458 0:005 corrected XSDT length=164

10:464 0:005 CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12

10:470 0:005 Maximum control=0x21

10:476 0:005 Turbo control=0x2B

10:482 0:005 P-States: min 0xC, max 0x2B

10:491 0:009 SSDT with CPU P-States generated successfully

10:497 0:006 SSDT with CPU C-States generated successfully

10:503 0:006 === [ RestSetupOSX ] ======================================

10:743 0:239 Framebuffer @0xD0000000 MMIO @0xFBE00000 I/O Port @0x0000E000 ROM Addr @0xFBE40000

10:749 0:005 ATI card POSTed,

10:761 0:012 Set VRAM for Cedar+ =3072Mb

10:767 0:005 ATI: get_vram_size returned 0xC0000000

10:773 0:006 ATI Radeon EVERGREEN family

10:782 0:009 Users config name Aji

10:788 0:006 (AtiPorts) Nr of ports set to: 5

10:794 0:006 ATI Tahiti AMD Radeon HD 7950/8950/R9 280 3072MB (Aji) [1002:679A] (subsys [174B:E208]):: PciRoot(0x0)\Pci(0x3,0x0)\Pci(0x0,0x0)

10:800 0:006 HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => setting specified layout-id=1 (0x1)

10:812 0:012 stringlength = 6698

10:818 0:006 CurrentMode: Width=1920 Height=1080

10:824 0:005 Beginning FSInjection

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: C8748A98

10:834 0:009 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other

10:847 0:013 Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12

10:855 0:008 Extra kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext

10:863 0:007 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_ACPISensors.kext

10:869 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_CPUSensors.kext

10:875 0:005 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_GPUSensors.kext

10:884 0:009 Extra PlugIn kext: EFI\CLOVER\kexts\10.12\FakeSMC.kext\Contents\PlugIns\FakeSMC_LPCSensors.kext

10:893 0:008 Extra kext: EFI\CLOVER\kexts\10.12\USB_Injector.kext

10:898 0:005 Extra kext: EFI\CLOVER\kexts\10.12\Shiki.kext

10:906 0:008 Extra kext: EFI\CLOVER\kexts\10.12\IntelMausiEthernet.kext

10:915 0:008 Extra kext: EFI\CLOVER\kexts\10.12\VoodooHDA.kext

10:925 0:009 Extra kext: EFI\CLOVER\kexts\10.12\AppleHDADisabler.kext

10:935 0:009 Custom boot is disabled



Mac-Pro-de-Fljagd:~ fljagd$





I'm sorry, I don't get it: you mean you tried the Test2-2016.efi file and you're confirming working on your rig?

Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

I'm sorry, I don't get it: you mean you tried the Test2-2016.efi file and you're confirming working on your rig?

not just for Asus X99-A there is no need



 Hello! At the moment I'm working on Mac OS 10.9.5.

My system

Asus x99-a

Intel 5820k

Gtx 760

I want to install Sierra. But it turns out to install only flag nv-disable.

After installing the video card in the box About this system: Nvidia chip model 5mb.

I understand the card does not start. Installing the web drivers did not help.

Installing via clover.

Help. What am I doing wrong?





put in config.plist Boot Args : nvda-drv=1

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

Thank you nmano

How to achieve point 1?

Then sorry for this other noob questtion

A correct DSDT help only to have right names for pherifericals I have on my rig?



Edit found some ways to exctract original dsdt



Points 1 & 2 attached



3) Asus Rampage V Extreme Bios 3402 (MSR 0xE2 unlocked)

4) Zotac Titan X ArcticStorm 12 Gb (audio integrated on motherboard)

5) I don't know, now I can use or voodoo kext or applehda for audio



Thank you

Hi Fabiosun

# ASUS X99 Rampage V Extreme

#Test and feedback

Asus Rampage V Extreme.zip

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

As promised:



Hardware

Motherboard: Z10PE-D16 WS

BIOS: 3305 MSR 0xE2 Patched/Unlocked (Let me know if you need the CAP file)

CPU: Dual Xeon E5-2696 v4

GPU: Dual Asus Styx 980 (Will be replaced by Titan X when system is up)

Memory: 8 out 16 Sticks of 16GB total 128GB ECC

HDEF: Not sure about HDEF layout ID but it's ALC1150



PCIE slots used

PCIE16_1 and PCIE16_3 - GPUs

PCIE16_5 WIFI, Apples Original.





Motherboard notes: Integrated ASpeed AST2400 video and Lan Management are physically disabled trough jumper on the board.



IOReg: I've only managed to get IOJones ioreg data out since even though OS is somewhat installed nothing really works on it, ioregistry explorer, any variation, just simply keep saying that the application is corrupt, I can't even access the terminal to try to do something manually.





Attachments

Bios Screenshot: attachicon.gifScreengrabs.zip

Original DSDT: attachicon.gifDSDT.aml.zip

Full ACPI Dump from Clover: attachicon.giforigin.zip

Clover Preboot Log: attachicon.gifpreboot.log.zip

IOJones ioreg file: attachicon.gifBalamut’s Mac Pro.zip

System Profiler Full dump done manually from the install USB: attachicon.gifprofile.txt.zip



In regards of core limitations I found this:



2679 v4 @ 64 cores

http://browser.primatelabs.com/geekbench3/7383667







Thanks a lot guys.



Hi Balamut

#Z10PE-D16 WS(Socket 2011-3 for Intel Xeon processor E5-2600 v4)

#With Dual graphic

#test and feedback

Z10PE-D16 WS.zip

  • Like 2
Link to comment
Share on other sites
alexlub
alexlub
Posted
Posted

yes

It will not help. I already wrote above, it was doing with the flag. There is another problem. Perhaps it is necessary to SMBIOS plmenyat a Mac pro 6.1 on a Mac pro 5.1? I did download a OsxAptioFixDrv2-64.efi driver. Maybe that's the problem? I have the system removed. Have to re-set all. Maybe try a way through #####?



Link to comment
Share on other sites
alexlub
alexlub
Posted
Posted

I have nothing against XTOnyX86x, but the install is not terrible

If you have a problem with, ask him

Just I wanted to put the sierra. But Mavericks two years I have been working. Newly recently began to fail Logic and Safari.

None of the normal guide for installation on x99 chipset I have not seen. I will wait. But I want to say that the problem with the video card in the Sierra system is not just me.

Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

@nmano

Sorry here are files...

1) origin zip attached

2) tnf ioreg attched

3) my MB is Asus X99 Deluxe u3.1 bios 3301

4) Graphic card EVGA GeForce GTX 980 Ti Hybrid Gaming - audio card is the one embedded with the mainboard Realtek ALC 1150

5) HDEF layout id <01 00 00 00>

Thanks in advance for your help and patience

Hi thenightflyer

#Test and feedback

#ASUS X99 Deluxe



Asus X99 Deluxe.zip

  • Like 4
Link to comment
Share on other sites
Fljagd
Fljagd
Posted
Posted

Just I wanted to put the sierra. But Mavericks two years I have been working. Newly recently began to fail Logic and Safari.

None of the normal guide for installation on x99 chipset I have not seen. I will wait. But I want to say that the problem with the video card in the Sierra system is not just me.

If you want to install Sierra,

In French, it's very simple (video) => here

You have my complete EFI

Only remove DSDT

For the GTX 760 not need web drivers normally it is native

  • Like 1
Link to comment
Share on other sites
nmano
nmano
Posted
  • Author
Posted

XCPM 10.12 Haswell-E

Last login: Sat Oct  1 21:29:38 on console
manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext
Password:
manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext
Password:
manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext
manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat

AppleIntelInfo.kext v1.7 Copyright © 2012-2016 Pike R. Alpha. All rights reserved

Settings:
------------------------------------
logMSRs............................: 1
logIGPU............................: 0
logCStates.........................: 1
logIPGStyle........................: 1
InitialTSC.........................: 0x21717d8a4d0c (1225 MHz)
MWAIT C-States.....................: 8480

Processor Brandstring..................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz

Processor Signature................... : 0x306F2
----------------------------------------
 - Family............................. : 6
 - Stepping........................... : 2
 - Model.............................. : 0x3F (63)

Model Specific Registers (MSRs)
---------------------------------------

MSR_CORE_THREAD_COUNT..........(0x35)  : 0x80010
----------------------------------------
 - Core Count......................... : 8
 - Thread Count....................... : 16

MSR_PLATFORM_INFO..............(0xCE)  : 0x80C3BF3811E00
----------------------------------------
 - Maximum Non-Turbo Ratio............ : 30
 - Ratio Limit for Turbo Mode......... : 1 (programmable)
 - TDP Limit for Turbo Mode........... : 1 (programmable)
 - Low Power Mode Support............. : 1 (LPM supported)
 - Number of ConfigTDP Levels......... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio........... : 12
 - Minimum Operating Ratio............ : 8

MSR_PMG_CST_CONFIG_CONTROL.....(0xE2)  : 0x3
----------------------------------------
 - I/O MWAIT Redirection Enable....... : 0 (not enabled)
 - CFG Lock........................... : 0 (MSR not locked)
 - C3 State Auto Demotion............. : 0 (disabled/unsupported)
 - C1 State Auto Demotion............. : 0 (disabled/unsupported)
 - C3 State Undemotion................ : 0 (disabled/unsupported)
 - C1 State Undemotion................ : 0 (disabled/unsupported)
 - Package C-State Auto Demotion...... : 0 (disabled/unsupported)
 - Package C-State Undemotion......... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE........(0xE4)  : 0x0
----------------------------------------
 - LVL_2 Base Address................. : 0x0
 - C-state Range...................... : 0 (C-States not included, I/O MWAIT redirection not enabled)

IA32_MPERF.....................(0xE7)  : 0x3A69185FE5
IA32_APERF.....................(0xE8)  : 0x4DC8D8DD29

MSR_FLEX_RATIO.................(0x194) : 0xE0000
----------------------------------------

MSR_IA32_PERF_STATUS...........(0x198) : 0x280F00002B00
----------------------------------------
 - Current Performance State Value.... : 0x2B00 (4300 MHz)

MSR_IA32_PERF_CONTROL..........(0x199) : 0xFF00
----------------------------------------
 - Target performance State Value..... : 0xFF00 (25500 MHz)
 - Intel Dynamic Acceleration......... : 0 (IDA engaged)

IA32_CLOCK_MODULATION..........(0x19A) : 0x0
IA32_THERM_STATUS..............(0x19C) : 0x883A0000

IA32_MISC_ENABLES..............(0x1A0) : 0x850081
----------------------------------------
 - Fast-Strings....................... : 1 (enabled)
 - Automatic Thermal Control Circuit.. : 0 (disabled)
 - Performance Monitoring............. : 1 (available)
 - Enhanced Intel SpeedStep Technology : 1 (enabled)

MSR_MISC_PWR_MGMT..............(0x1AA) : 0x0
----------------------------------------
 - EIST Hardware Coordination......... : 0 (enabled)

MSR_TURBO_RATIO_LIMIT..........(0x1AD) : 0x2B2B2B2B2B2B2B2B
----------------------------------------
 - Maximum Ratio Limit for C01........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C02........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C03........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C04........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C05........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C06........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C07........ : 2B (4300 MHz)
 - Maximum Ratio Limit for C08........ : 2B (4300 MHz)

IA32_ENERGY_PERF_BIAS..........(0x1B0) : 0x0
----------------------------------------
 - Power Policy Preference.............: 0 (highest performance)

MSR_POWER_CTL..................(0x1FC) : 0x21040059
----------------------------------------

MSR_RAPL_POWER_UNIT............(0x606) : 0xA0E03
----------------------------------------
 - Power Units........................ : 3 (1/8 Watt)
 - Energy Status Units................ : 14 (61 micro-Joules)
 - Time Units ........................ : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT............(0x610) : 0x7FFD00014EA82
----------------------------------------
 - Package Power Limit #1............. : 3408 Watt
 - Enable Power Limit #1.............. : 1 (enabled)
 - Package Clamping Limitation #1..... : 0 (disabled)
 - Time Window for Power Limit #1..... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............. : 4090 Watt
 - Enable Power Limit #2.............. : 1 (enabled)
 - Package Clamping Limitation #2..... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2..... : 3 (20 milli-Seconds)
 - Lock............................... : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS..........(0x611) : 0x4EFF1F81
----------------------------------------
 - Total Energy Consumed.............. : 80892 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO.............(0x614) : 0x1280460
----------------------------------------
 - Thermal Spec Power................. : 140 Watt
 - Minimum Power...................... : 0
 - Maximum Power...................... : 0
 - Maximum Time Window................ : 0

MSR_PP0_POWER_LIMIT............(0x638) : 0x14FFD0
----------------------------------------
 - Power Limit........................ : 4090 Watt
 - Enable Power Limit................. : 1 (enabled)
 - Clamping Limitation................ : 0 (disabled)
 - Time Window for Power Limit........ : 10 (10240 milli-Seconds)
 - Lock............................... : 0 (MSR not locked)

MSR_PP0_ENERGY_STATUS..........(0x639) : 0x0
----------------------------------------
 - Total Energy Consumed.............. : 0 Joules (Watt = Joules / seconds)

MSR_TURBO_ACTIVATION_RATIO.....(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL.........(0x648) : 0x1E
MSR_CONFIG_TDP_LEVEL1..........(0x649) : 0x940000001B0460
MSR_CONFIG_TDP_LEVEL2..........(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL.........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.....(0x64c) : 0x0
MSR_PKGC6_IRTL.................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY...........(0x60d) : 0x9AE6266143E
MSR_PKG_C6_RESIDENCY...........(0x3f9) : 0xC5F87BB4EC6
IA32_TSC_DEADLINE..............(0x6E0) : 0x21718085B9F6

CPU Ratio Info:
----------------------------------------
CPU Maximum Efficiency Ratio...........: 1200 MHz
CPU Maximum non-Turbo Frequency........: 3000 MHz
CPU Maximum Turbo Frequency............: 4300 MHz
CPU P-States [ 32 (43) ]
CPU C6-Cores [ 0 2 4 6 8 10 12 14 ]
CPU P-States [ 30 32 (43) ]
CPU P-States [ (12) 29 30 32 43 ]
CPU P-States [ 12 29 30 32 34 (43) ]
CPU P-States [ 12 29 30 32 33 34 (43) ]
CPU P-States [ (12) 27 29 30 32 33 34 43 ]
CPU C6-Cores [ 0 2 4 6 7 8 10 12 14 ]
CPU P-States [ 12 26 27 29 30 32 33 34 (43) ]
CPU P-States [ 12 26 27 28 29 30 32 33 34 (43) ]
CPU P-States [ 12 24 26 27 28 29 30 32 33 34 (43) ]
CPU P-States [ (12) 24 26 27 28 29 30 32 33 34 35 43 ]
CPU C6-Cores [ 0 2 3 4 6 7 8 10 12 14 ]
CPU P-States [ (12) 24 26 27 28 29 30 31 32 33 34 35 43 ]
CPU P-States [ 12 24 26 27 28 29 30 31 32 33 34 35 39 (43) ]
CPU C6-Cores [ 0 2 3 4 6 7 8 10 12 14 15 ]
CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 12 14 15 ]
CPU P-States [ (12) 24 26 27 28 29 30 31 32 33 34 35 37 39 43 ]
manoranjans-Pro:~ manoranjan$

config.plist.zip

  • Like 3
Link to comment
Share on other sites
alexlub
alexlub
Posted
Posted

If you want to install Sierra,

In French, it's very simple (video) => here

You have my complete EFI

Only remove DSDT

For the GTX 760 not need web drivers normally it is native



just have not ustonavlivat nothing) I also know that, Nvidia gtx 760 is supported by Apple. And I do not expect that the card is not defined. Perhaps this was due to the fact that the installation of Sierra nv_disable I did with the flag? But the download does not start without this flag. You also need to check the performance of Sierra. Why am I still on the Mavericks. The fact that two years ago the Yosemite with the x99 system. So performance Yosemite lost to the Mavericks. I will probyvat your methods. another very important question. After installing the system whether you want to be loaded without the cache? I did not do it.

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
