[Guide] Mac OSX 10.12 and 10.13 with X99 Broadwell-E family and Haswell-E family

[Fergarth]

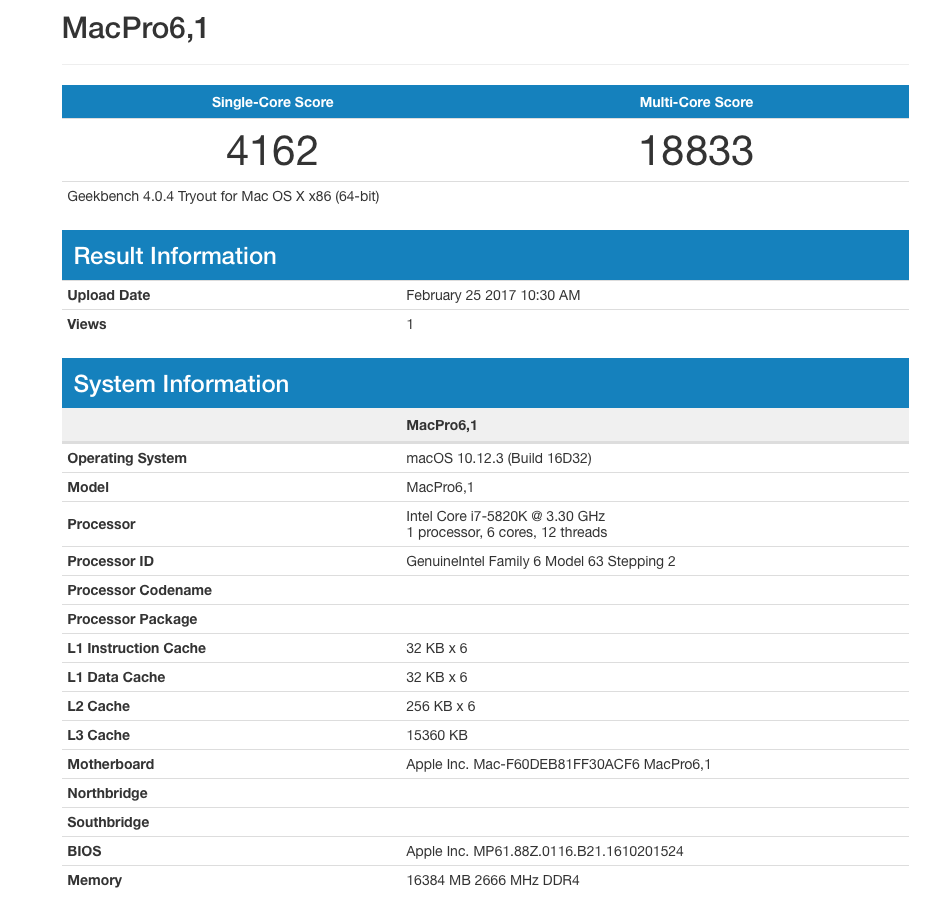

Can you do me a favor and run a Geekbench 4.04 test. I'm curious if you're getting full CPU PM.

Hi mcf, I was also curious, but roughly midway through the test, the Geekbench 4 stops running and exit. I think it has to do with being in 12.4 still without NV graphical acceleration, because in normal situations never did this.

[Balamut]

As I suspected, it was the missing XCPM patch (without it, not stable). No more popping/freezing. Also, switched over to AppleHDA dummy kext.

Which one was it?

[mfc88]

Hi mcf, I was also curious, but roughly midway through the test, the Geekbench 4 stops running and exit. I think it has to do with being in 12.4 still without NV graphical acceleration, because in normal situations never did this.

Damn... that sucks. Hoping to get conclusive evidence...



Which one was it?

http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-61?do=findComment&comment=2372052





On a positive note, I figured out why I was getting micro-stuttering. Turns out the Logitech Performance MX Mouse is a pile of...



The receiver is garbage and intermittently (10-15 seconds) drops the wireless connection while the software spams the console with HID Tickles. Swapped to an old Microsoft Mouse and no more stuttering. Can't believe I put up with the micro-stuttering since 2015!

[PMheart]

@mfc88



It seems that you don't unlock your BIOS like @Fergarth did, do you?

[mfc88]

@mfc88



It seems that you don't unlock your BIOS like @Fergarth did, do you?

Unlocked MSR via BIOS flash. AppleIntelInfo confirms MSR E2 is unlocked: http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-60?do=findComment&comment=2371610



My guess is that the patch stabilizes my CPU by eliminating states.

[PMheart]

Patched MSR via BIOS flash. AppleIntelInfo confirms MSR E2 is unlocked: http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-60?do=findComment&comment=2371610

If you have unlocked it, then that's weird.



According to this post, I saw that you had NOP out the call of _xcpm_core_scope_msrs, which means that your MSR 0xe2 got locked.



Do you also enable KernelPm in config.plist ?

[mfc88]

If you have unlocked it, then that's weird.



According to this post, I saw that you had NOP out the call of _xcpm_core_scope_msrs, which means that your MSR 0xe2 got locked.



Do you also enable KernelPm in config.plist ?

No. I could try it though...

[PMheart]

No. I could try it though...

I really appreciate your patience !



You may try to enable KernelPm, then disable that patch... But in this case I don't think you have unlocked your BIOS fully... (Because you still need to disable _xcpm_core_scope_msrs)

[mfc88]

I really appreciate your patience !



You may try to enable KernelPm, then disable that patch... But in this case I don't think you have unlocked your BIOS fully... (Because you still need to disable _xcpm_core_scope_msrs[/size]

Should I add AsusAICPUPM as well?

[PMheart]

Should I add AsusAICPUPM as well?

No, you will never have need for it.

[mfc88]

No

All right.... testing.... XCPM patch w/ KernelPM patch in config.plist. Will report if pop and crash occurs.

[PMheart]

All right.... testing.... XCPM patch w/ KernelPM patch in config.plist. Will report if pop and crash occurs.

Waiting for it... LOL



BTW. Which XCPM related patches are you currently using?

[mfc88]

Waiting for it... LOL



BTW. Which XCPM related patches are you currently using?

First code box: http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-60?do=findComment&comment=2371641 (see Notes "N")



Initial report: Not good... still missing states and performance state is set to 3700ghz (should be 1200)... (disabled XCPM patch BE0200000031D2E86CFCFFFF, added KernelPM to config.plist)

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xa4d0c9b54d6c (5177 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8052C91A00
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812300
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x5EB71DF0D
IA32_APERF.......................(0xE8)  : 0x5E6BA7A74

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x23D100002500
------------------------------------------
 - Current Performance State Value...... : 0x2500 (3700 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xC00
------------------------------------------
 - Target performance State Value....... : 0xC00 (1200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x884F0800
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 1
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 79
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000DF8460
------------------------------------------
 - Package Power Limit #1............... : 140 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 111 (327680 milli-Seconds)
 - Package Power Limit #2............... : 168 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x159B671
------------------------------------------
 - Total Energy Consumed................ : 1382 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0xA4D0CEDA12CF

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 29 37 ]
CPU C6-Cores [ 0 2 4 6 10 ]
CPU P-States [ (12) 23 29 37 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 23 29 33 37 ]
CPU P-States [ (12) 21 23 29 33 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 21 23 29 31 33 37 ]

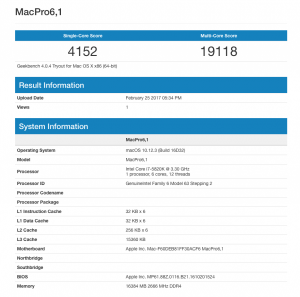

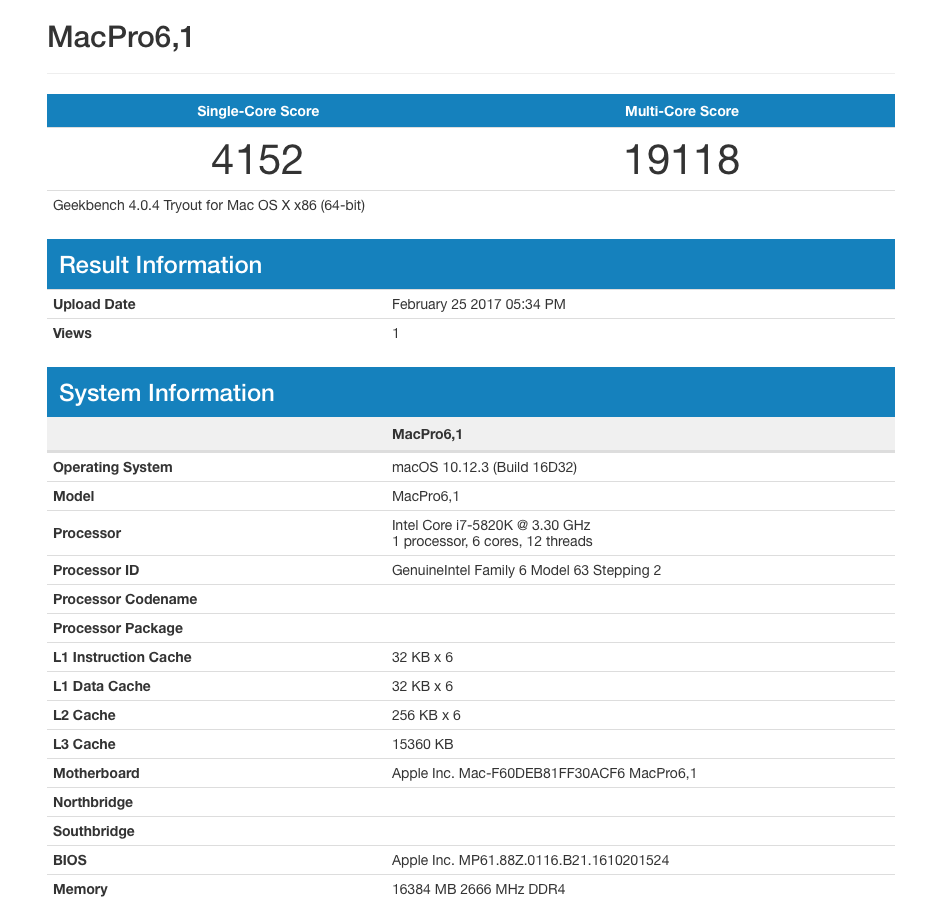

Performance wise, no difference (which is good):

[PMheart]

First code box: http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/page-60?do=findComment&comment=2371641 (see Notes "N")



Initial report: Not good... still missing states and performance state is set to 3700ghz (should be 1200)... (disabled XCPM patch BE0200000031D2E86CFCFFFF, added KernelPM to config.plist)

AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved
enableHWP................................: 0

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0xa4d0c9b54d6c (5177 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8052C91A00
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812300
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x5EB71DF0D
IA32_APERF.......................(0xE8)  : 0x5E6BA7A74

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x23D100002500
------------------------------------------
 - Current Performance State Value...... : 0x2500 (3700 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0xC00
------------------------------------------
 - Target performance State Value....... : 0xC00 (1200 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x884F0800
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 1
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 79
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000DF8460
------------------------------------------
 - Package Power Limit #1............... : 140 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 111 (327680 milli-Seconds)
 - Package Power Limit #2............... : 168 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0x159B671
------------------------------------------
 - Total Energy Consumed................ : 1382 Joules (Watt = Joules / seconds)

MSR_PKG_POWER_INFO...............(0x614) : 0x1280460
------------------------------------------
 - Thermal Spec Power................... : 140 Watt
 - Minimum Power........................ : 0
 - Maximum Power........................ : 0
 - Maximum Time Window.................. : 0

MSR_PP0_POWER_LIMIT..............(0x638) : 0x0

MSR_PP0_ENERGY_STATUS............(0x639) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0xA4D0CEDA12CF

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 29 37 ]
CPU C6-Cores [ 0 2 4 6 10 ]
CPU P-States [ (12) 23 29 37 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 23 29 33 37 ]
CPU P-States [ (12) 21 23 29 33 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 21 23 29 31 33 37 ]

Performance wise, no difference (which is good):



Oops. For now disable KernelPm and re-enable that patch. Will dig further on this but... Not now.   I think it's time to get some sleep...   (Yup. IMO I may be old and no more passions to do anything...)



BTW. I think you should take care of your RAM detection, which appears to be 0 MHz... (Check SMBIOS sec)

And you can also update your MacPro6,1's SMBios info if you'd like to.

[Fljagd]

Hello,
For my part everything is operational
The only difference is the CPU, for the 5930K, use voodootscsync

I gave my original bios, it is not unlocked

DarwinDumper_3.0.2_25.02_11.32.28_MacPro6,1_AMI_X64_4012_Sierra_16D32_fljagd.zip

[mfc88]

Hello,

For my part everything is operational

The only difference is the CPU, for the 5930K, use voodootscsync

I gave my original bios, it is not unlocked

Please provide XCPM patch information (which patches you're using in your config.plist, if any) and an AppleIntelInfo dump.

[Fljagd]

Please provide XCPM patch information (which patches you're using in your config.plist, if any) and an AppleIntelInfo dump.

http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/?p=2361635

[mfc88]

http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/?p=2361635

Same ones I'm using.



AppleIntelInfo dump? Use Pike's newest version (2.4).



Also, are you using AGDPFix?

[Fljagd]

Same ones I'm using.



AppleIntelInfo dump? Use Pike's newest version (2.4).



I can not fix the permissions, damn it!

Last login: Sat Feb 25 18:03:24 on ttys001
Mac-Pro-de-Fljagd:~ fljagd$ sudo kextload /Users/fljagd/Desktop/AppleIntelInfo.kext
Password:
/Users/fljagd/Desktop/AppleIntelInfo.kext failed to load - (libkern/kext) authentication failure (file ownership/permissions); check the system/kernel logs for errors or try kextutil(8).



Also, are you using AGDPFix?

No

[mfc88]

I can not fix the permissions, damn it!

Load by doing this...

sudo -s

Then...

chown -R 0:0 ~/Desktop/AppleIntelInfo.kext
chmod -R 755 ~/Desktop/AppleIntelInfo.kext
kextload ~/Desktop/AppleIntelInfo.kext



Run this command:

cat /tmp/AppleIntelInfo.dat

[Fljagd]

thank

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x6526881dc8d8 (3370 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz

Processor Signature..................... : 0x306F2
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 2
 - Model................................ : 0x3F (63)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8048E0A100
------------------------------------------
 - Core Count........................... : 6
 - Thread Count......................... : 12

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF3812100
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 1 (MSR locked until next reset)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x2C50B5E227
IA32_APERF.......................(0xE8)  : 0x2E50DAC7F1

MSR_FLEX_RATIO...................(0x194) : 0xE0000
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x229D00002400
------------------------------------------
 - Current Performance State Value...... : 0x2400 (3600 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2B00
------------------------------------------
 - Target performance State Value....... : 0x2B00 (4300 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x884A0000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 74
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x840089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 0 (disabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x690A00
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 105
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222242424242424
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C02.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C03.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C04.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C05.......... : 24 (3600 MHz)
 - Maximum Ratio Limit for C06.......... : 24 (3600 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF80015FFF8
------------------------------------------
 - Package Power Limit #1............... : 4095 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 4095 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xC04BCA
------------------------------------------
 - Total Energy Consumed................ : 769 Joules (Watt = Joules / seconds)

MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21
MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460
MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000
MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0
MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0
MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0

IA32_TSC_DEADLINE................(0x6E0) : 0x65268C0DFF02

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 31 36 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 30 31 36 ]
CPU P-States [ 12 19 30 31 (36) ]
CPU C6-Cores [ 0 2 3 4 6 8 10 ]
CPU P-States [ 12 19 26 30 31 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 8 9 10 ]
CPU P-States [ 12 19 26 30 31 34 (36) ]
CPU P-States [ 12 19 26 30 31 33 34 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 8 9 10 11 ]
CPU P-States [ (12) 19 21 26 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 24 26 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 22 24 26 30 31 33 34 36 ]
CPU P-States [ 12 19 21 22 24 26 28 30 31 33 34 (36) ]
CPU P-States [ (12) 19 21 22 24 26 28 29 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 22 24 26 27 28 29 30 31 33 34 36 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 19 21 22 23 24 26 27 28 29 30 31 33 34 36 ]
CPU P-States [ 12 19 21 22 23 24 26 27 28 29 30 31 32 33 34 (36) ]
CPU P-States [ (12) 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ (12) 17 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ (12) 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ 12 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (36) ]
bash-3.2#

best

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)
Maximum Turbo Ratio/Frequency............: 36 (3600 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ (12) 31 36 ]
CPU C6-Cores [ 0 2 4 6 8 10 ]
CPU P-States [ (12) 30 31 36 ]
CPU P-States [ 12 19 30 31 (36) ]
CPU C6-Cores [ 0 2 3 4 6 8 10 ]
CPU P-States [ 12 19 26 30 31 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 8 9 10 ]
CPU P-States [ 12 19 26 30 31 34 (36) ]
CPU P-States [ 12 19 26 30 31 33 34 (36) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 8 9 10 11 ]
CPU P-States [ (12) 19 21 26 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 24 26 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 22 24 26 30 31 33 34 36 ]
CPU P-States [ 12 19 21 22 24 26 28 30 31 33 34 (36) ]
CPU P-States [ (12) 19 21 22 24 26 28 29 30 31 33 34 36 ]
CPU P-States [ (12) 19 21 22 24 26 27 28 29 30 31 33 34 36 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ]
CPU P-States [ (12) 19 21 22 23 24 26 27 28 29 30 31 33 34 36 ]
CPU P-States [ 12 19 21 22 23 24 26 27 28 29 30 31 32 33 34 (36) ]
CPU P-States [ (12) 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ (12) 17 19 20 21 22 23 24 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ (12) 17 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ 12 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (36) ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 36 ]
CPU P-States [ (12) 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ]
bash-3.2#

[mfc88]

As I expected, missing C-State residency.

[Fljagd]

As I expected, missing C-State residency.

Yes, but basically my pc is stable

No untimely reboot

And a profesional exploitation without any worries

  Result: it's perfect

[thenightflyer]

As I expected, missing C-State residency.

They are missing here too...but after 10.12.3 update. I remember until 10.12.2 with same patches i use now they were enabled.

AppleIntelInfo.kext v2.4 Copyright © 2012-2017 Pike R. Alpha. All rights reserved.

Settings:
------------------------------------------
logMSRs..................................: 1
logIGPU..................................: 0
logCStates...............................: 1
logIPGStyle..............................: 1
InitialTSC...............................: 0x196f05cd0a38 (1271 MHz)
MWAIT C-States...........................: 8480

Processor Brandstring....................: Intel(R) Xeon(R) CPU E5-2696 v4 @ 2.20GHz

Processor Signature..................... : 0x406F1
------------------------------------------
 - Family............................... : 6
 - Stepping............................. : 1
 - Model................................ : 0x4F (79)

Model Specific Registers (MSRs)
------------------------------------------

MSR_CORE_THREAD_COUNT............(0x35)  : 0x0
------------------------------------------
 - Core Count........................... : 22
 - Thread Count......................... : 44

MSR_PLATFORM_INFO................(0xCE)  : 0x20080C3BF2811600
------------------------------------------
 - Maximum Non-Turbo Ratio.............. : 0x16 (2200 MHz)
 - Ratio Limit for Turbo Mode........... : 1 (programmable)
 - TDP Limit for Turbo Mode............. : 1 (programmable)
 - Low Power Mode Support............... : 1 (LPM supported)
 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)
 - Maximum Efficiency Ratio............. : 12
 - Minimum Operating Ratio.............. : 8

MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x402
------------------------------------------
 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)
 - CFG Lock............................. : 0 (MSR not locked)
 - C3 State Auto Demotion............... : 0 (disabled/unsupported)
 - C1 State Auto Demotion............... : 0 (disabled/unsupported)
 - C3 State Undemotion.................. : 0 (disabled/unsupported)
 - C1 State Undemotion.................. : 0 (disabled/unsupported)
 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)
 - Package C-State Undemotion........... : 0 (disabled/unsupported)

MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414
------------------------------------------
 - LVL_2 Base Address................... : 0x414
 - C-state Range........................ : 1 (C6 is the max C-State to include)

IA32_MPERF.......................(0xE7)  : 0x4600E3167AB
IA32_APERF.......................(0xE8)  : 0x5B13F0F8A65
MSR_0x150........................(0x150) : 0x1F00000000

MSR_FLEX_RATIO...................(0x194) : 0x0
------------------------------------------

MSR_IA32_PERF_STATUS.............(0x198) : 0x261200002500
------------------------------------------
 - Current Performance State Value...... : 0x2500 (3700 MHz)

MSR_IA32_PERF_CONTROL............(0x199) : 0x2500
------------------------------------------
 - Target performance State Value....... : 0x2500 (3700 MHz)
 - Intel Dynamic Acceleration........... : 0 (IDA engaged)

IA32_CLOCK_MODULATION............(0x19A) : 0x0

IA32_THERM_INTERRUPT.............(0x19B) : 0x0

IA32_THERM_STATUS................(0x19C) : 0x88490000
------------------------------------------
 - Thermal Status....................... : 0
 - Thermal Log.......................... : 0
 - PROCHOT # or FORCEPR# event.......... : 0
 - PROCHOT # or FORCEPR# log............ : 0
 - Critical Temperature Status.......... : 0
 - Critical Temperature log............. : 0
 - Thermal Threshold #1 Status.......... : 0
 - Thermal Threshold #1 log............. : 0
 - Thermal Threshold #2 Status.......... : 0
 - Thermal Threshold #2 log............. : 0
 - Power Limitation Status.............. : 0
 - Power Limitation log................. : 0
 - Current Limit Status................. : 0
 - Current Limit log.................... : 0
 - Cross Domain Limit Status............ : 0
 - Cross Domain Limit log............... : 0
 - Digital Readout...................... : 73
 - Resolution in Degrees Celsius........ : 1
 - Reading Valid........................ : 1 (valid)

MSR_THERM2_CTL...................(0x19D) : 0x0

IA32_MISC_ENABLES................(0x1A0) : 0x850089
------------------------------------------
 - Fast-Strings......................... : 1 (enabled)
 - FOPCODE compatibility mode Enable.... : 0
 - Automatic Thermal Control Circuit.... : 1 (enabled)
 - Split-lock Disable................... : 0
 - Performance Monitoring............... : 1 (available)
 - Bus Lock On Cache Line Splits Disable : 0
 - Hardware prefetch Disable............ : 0
 - Processor Event Based Sampling....... : 0 (PEBS supported)
 - GV1/2 legacy Enable.................. : 0
 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)
 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)
 - Adjacent sector prefetch Disable..... : 0
 - CFG Lock............................. : 0 (MSR not locked)
 - xTPR Message Disable................. : 1 (disabled)

MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x640200
------------------------------------------
 - Turbo Attenuation Units.............. : 0
 - Temperature Target................... : 100
 - TCC Activation Offset................ : 0

MSR_MISC_PWR_MGMT................(0x1AA) : 0x402000
------------------------------------------
 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)
 - Energy/Performance Bias support...... : 1
 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)
 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)

MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2525252525252525
------------------------------------------
 - Maximum Ratio Limit for C01.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C02.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C03.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C04.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C05.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C06.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C07.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C08.......... : 25 (3700 MHz)

MSR_TURBO_RATIO_LIMIT1...........(0x1AE) : 0x1C1C1C1C1C1C2525
------------------------------------------
 - Maximum Ratio Limit for C09.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C10.......... : 25 (3700 MHz)
 - Maximum Ratio Limit for C11.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C12.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C13.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C14.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C15.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C16.......... : 1C (2800 MHz)

MSR_TURBO_RATIO_LIMIT2...........(0x1AF) : 0x1C1C1C1C1C1C1C1C
------------------------------------------
 - Maximum Ratio Limit for C17.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C18.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C19.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C20.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C21.......... : 1C (2800 MHz)
 - Maximum Ratio Limit for C22.......... : 1C (2800 MHz)

IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0

MSR_POWER_CTL....................(0x1FC) : 0x2904005B
------------------------------------------
 - Bi-Directional Processor Hot..........: 1 (enabled)
 - C1E Enable............................: 1 (enabled)

MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03
------------------------------------------
 - Power Units.......................... : 3 (1/8 Watt)
 - Energy Status Units.................. : 14 (61 micro-Joules)
 - Time Units .......................... : 10 (976.6 micro-Seconds)

MSR_PKG_POWER_LIMIT..............(0x610) : 0x785A0001584B0
------------------------------------------
 - Package Power Limit #1............... : 150 Watt
 - Enable Power Limit #1................ : 1 (enabled)
 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)
 - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds)
 - Package Power Limit #2............... : 180 Watt
 - Enable Power Limit #2................ : 1 (enabled)
 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)
 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)
 - Lock................................. : 0 (MSR not locked)

MSR_PKG_ENERGY_STATUS............(0x611) : 0xEB05CB7
------------------------------------------
 - Total Energy Consumed................ : 15041 Joules (Watt = Joules / seconds)

MSR_PKGC3_IRTL...................(0x60a) : 0x0
MSR_PKGC6_IRTL...................(0x60b) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x37730808906
MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0
MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x377308880D6
MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x667E544DD2C

IA32_TSC_DEADLINE................(0x6E0) : 0x196F1828A890

CPU Ratio Info:
------------------------------------------
Base Clock Frequency (BLCK)............. : 100 MHz
Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)
Maximum non-Turbo Ratio/Frequency........: 22 (2200 MHz)
Maximum Turbo Ratio/Frequency............: 37 (3700 MHz)
P-State ratio * 100 = Frequency in MHz
------------------------------------------
CPU P-States [ 29 33 (37) ]
CPU C6-Cores [ 1 2 3 4 5 6 8 11 13 14 16 18 21 22 24 27 28 30 ]
CPU P-States [ (12) 28 29 33 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 12 13 14 16 18 21 22 24 25 26 27 28 30 ]
CPU P-States [ (12) 28 29 30 33 37 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 18 21 22 24 25 26 27 28 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ 12 26 28 29 30 33 (37) ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 ]
CPU P-States [ 12 26 28 29 30 33 (34) 37 ]
CPU P-States [ (12) 26 27 28 29 30 33 34 37 ]
CPU P-States [ 12 25 26 27 28 29 30 33 34 (35) 37 ]
CPU P-States [ (12) 25 26 27 28 29 30 31 33 34 35 37 ]

[mfc88]

Oops. For now disable KernelPm and re-enable that patch. Will dig further on this but... Not now.   I think it's time to get some sleep...   (Yup. IMO I may be old and no more passions to do anything...)



BTW. I think you should take care of your RAM detection, which appears to be 0 MHz... (Check SMBIOS sec)

And you can also update your MacPro6,1's SMBios info if you'd like to.

Using your AppleHDA dummy kext and every time I restart my computer, my selected audio device is reset to "Headphones".
