Так что я не знаю , ваша материнская плата

в принципе необходимо активировать режим турбо (может быть CPU TJMax для вас)

Enable C6

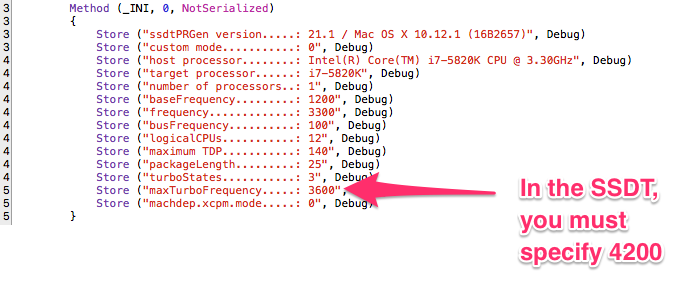

В SSDT, необходимо указать 4200

i changed to 4200 SSDT

Appleintelinfo:

Last login: Wed Nov 16 18:35:26 on ttys000

Alexeys-Mac-Pro:~ brawl$ sudo -s

Password:

Sorry, try again.

Password:

Sorry, try again.

Password:

bash-3.2# chown -R 0:0 ~/Desktop/AppleIntelInfo.kext

bash-3.2# chmod -R 755 ~/Desktop/AppleIntelInfo.kext

bash-3.2# kextload ~/Desktop/AppleIntelInfo.kext

bash-3.2# cat /tmp/AppleIntelInfo.dat



AppleIntelInfo.kext v2.0 Copyright © 2012-2016 Pike R. Alpha. All rights reserved

enableHWP................................: 0



Settings:

------------------------------------------

logMSRs..................................: 1

logIGPU..................................: 0

logCStates...............................: 1

logIPGStyle..............................: 1



Warning: Clover hw.busfrequency error detected : 17d78400

InitialTSC...............................: 0x55dc5cd9a48 (178 MHz)

MWAIT C-States...........................: 8480



Processor Brandstring....................: Intel® Core i7-5820K CPU @ 3.30GHz



Processor Signature..................... : 0x306F2

------------------------------------------

 - Family............................... : 6

 - Stepping............................. : 2

 - Model................................ : 0x3F (63)



Model Specific Registers (MSRs)

------------------------------------------



MSR_CORE_THREAD_COUNT............(0x35)  : 0xFFFFFF8043A60200

------------------------------------------

 - Core Count........................... : 6

 - Thread Count......................... : 12



MSR_PLATFORM_INFO................(0xCE)  : 0x80C3BF3812100

------------------------------------------

 - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz)

 - Ratio Limit for Turbo Mode........... : 1 (programmable)

 - TDP Limit for Turbo Mode............. : 1 (programmable)

 - Low Power Mode Support............... : 1 (LPM supported)

 - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available)

 - Maximum Efficiency Ratio............. : 12

 - Minimum Operating Ratio.............. : 8



MSR_PMG_CST_CONFIG_CONTROL.......(0xE2)  : 0x8400

------------------------------------------

 - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT)

 - CFG Lock............................. : 1 (MSR locked until next reset)

 - C3 State Auto Demotion............... : 0 (disabled/unsupported)

 - C1 State Auto Demotion............... : 0 (disabled/unsupported)

 - C3 State Undemotion.................. : 0 (disabled/unsupported)

 - C1 State Undemotion.................. : 0 (disabled/unsupported)

 - Package C-State Auto Demotion........ : 0 (disabled/unsupported)

 - Package C-State Undemotion........... : 0 (disabled/unsupported)



MSR_PMG_IO_CAPTURE_BASE..........(0xE4)  : 0x10414

------------------------------------------

 - LVL_2 Base Address................... : 0x414

 - C-state Range........................ : 1 (C6 is the max C-State to include)



IA32_MPERF.......................(0xE7)  : 0x2F53C3474EA

IA32_APERF.......................(0xE8)  : 0x2F5220A4B5E



MSR_FLEX_RATIO...................(0x194) : 0xE0000

------------------------------------------



MSR_IA32_PERF_STATUS.............(0x198) : 0x1F3400002100

------------------------------------------

 - Current Performance State Value...... : 0x2100 (3300 MHz)



MSR_IA32_PERF_CONTROL............(0x199) : 0x2100

------------------------------------------

 - Target performance State Value....... : 0x2100 (3300 MHz)

 - Intel Dynamic Acceleration........... : 0 (IDA engaged)



IA32_CLOCK_MODULATION............(0x19A) : 0x0



IA32_THERM_INTERRUPT.............(0x19B) : 0x0



IA32_THERM_STATUS................(0x19C) : 0x88280000

------------------------------------------

 - Thermal Status....................... : 0

 - Thermal Log.......................... : 0

 - PROCHOT # or FORCEPR# event.......... : 0

 - PROCHOT # or FORCEPR# log............ : 0

 - Critical Temperature Status.......... : 0

 - Critical Temperature log............. : 0

 - Thermal Threshold #1 Status.......... : 0

 - Thermal Threshold #1 log............. : 0

 - Thermal Threshold #2 Status.......... : 0

 - Thermal Threshold #2 log............. : 0

 - Power Limitation Status.............. : 0

 - Power Limitation log................. : 0

 - Current Limit Status................. : 0

 - Current Limit log.................... : 0

 - Cross Domain Limit Status............ : 0

 - Cross Domain Limit log............... : 0

 - Digital Readout...................... : 40

 - Resolution in Degrees Celsius........ : 1

 - Reading Valid........................ : 1 (valid)



MSR_THERM2_CTL...................(0x19D) : 0x0



IA32_MISC_ENABLES................(0x1A0) : 0x850089

------------------------------------------

 - Fast-Strings......................... : 1 (enabled)

 - FOPCODE compatibility mode Enable.... : 0

 - Automatic Thermal Control Circuit.... : 1 (enabled)

 - Split-lock Disable................... : 0

 - Performance Monitoring............... : 1 (available)

 - Bus Lock On Cache Line Splits Disable : 0

 - Hardware prefetch Disable............ : 0

 - Processor Event Based Sampling....... : 0 (PEBS supported)

 - GV1/2 legacy Enable.................. : 0

 - Enhanced Intel SpeedStep Technology.. : 1 (enabled)

 - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported)

 - Adjacent sector prefetch Disable..... : 0

 - CFG Lock............................. : 0 (MSR not locked)

 - xTPR Message Disable................. : 1 (disabled)



MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5A0A00

------------------------------------------

 - Turbo Attenuation Units.............. : 0

 - Temperature Target................... : 90

 - TCC Activation Offset................ : 0



MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000

------------------------------------------

 - EIST Hardware Coordination........... : 0 (hardware coordination enabled)

 - Energy/Performance Bias support...... : 1

 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software)

 - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores)



MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x22222A2A2A2A2A2A

------------------------------------------

 - Maximum Ratio Limit for C01.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C02.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C03.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C04.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C05.......... : 2A (4200 MHz)

 - Maximum Ratio Limit for C06.......... : 2A (4200 MHz)



IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x0



MSR_POWER_CTL....................(0x1FC) : 0x29040059

------------------------------------------

 - Bi-Directional Processor Hot..........: 1 (enabled)

 - C1E Enable............................: 0 (disabled)



MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03

------------------------------------------

 - Power Units.......................... : 3 (1/8 Watt)

 - Energy Status Units.................. : 14 (61 micro-Joules)

 - Time Units .......................... : 10 (976.6 micro-Seconds)



MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFF8001BFFF8

------------------------------------------

 - Package Power Limit #1............... : 4095 Watt

 - Enable Power Limit #1................ : 1 (enabled)

 - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1)

 - Time Window for Power Limit #1....... : 13 (20480 milli-Seconds)

 - Package Power Limit #2............... : 4095 Watt

 - Enable Power Limit #2................ : 1 (enabled)

 - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2)

 - Time Window for Power Limit #2....... : 3 (20 milli-Seconds)

 - Lock................................. : 0 (MSR not locked)



MSR_PKG_ENERGY_STATUS............(0x611) : 0x506B6D0B

------------------------------------------

 - Total Energy Consumed................ : 82349 Joules (Watt = Joules / seconds)



MSR_PKG_POWER_INFO...............(0x614) : 0x1780460

------------------------------------------

 - Thermal Spec Power................... : 140 Watt

 - Minimum Power........................ : 0

 - Maximum Power........................ : 0

 - Maximum Time Window.................. : 0



MSR_PP0_POWER_LIMIT..............(0x638) : 0x0



MSR_PP0_ENERGY_STATUS............(0x639) : 0x0



MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0



MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21

MSR_CONFIG_TDP_LEVEL1............(0x649) : 0xBC0000001E0460

MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0xBC000000000000

MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0

MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0

MSR_PKGC6_IRTL...................(0x60b) : 0x0

MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x0

MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x0



IA32_TSC_DEADLINE................(0x6E0) : 0x55DCD642B15



CPU Ratio Info:

------------------------------------------

Base Clock Frequency (BLCK)............. : 100 MHz

Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz)

Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz)

Maximum Turbo Ratio/Frequency............: 42 (4200 MHz)

P-State ratio * 100 = Frequency in MHz

------------------------------------------

CPU P-States [ 33 (42) ]

bash-3.2#

привет Hubilay

кажется, у вас есть плохой 10.12 Kext папку, вы установили другой Kext в S / L / E? т.е. fakesmc и другие?

Hi

fake smc and others on System/Library/Extensions

Link to comment
Share on other sites

not voodootscsync

In your bios you put 4200 for all cores

w8



your ssdt is correct for me, but from a your previous message it seems you are using nullcpupowermanagement and in your efi/clover config are not present any kernel patch

maybe you should try to read from start and not to use nullcpupm, in that case you have to apply some kernel patches you find here

i no use nullcpu, such extensions I have are only in EFI

besides with nulltspu it works for me speedstep

Link to comment
Share on other sites

wait?? :-=)

@Hubilay

can you run from terminal this command?

kextstat



and post the results here

Last login: Wed Nov 16 19:05:42 on console

Alexeys-Mac-Pro:~ brawl$ kextstat

Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>

    1   79 0xffffff7f80a46000 0x9d30     0x9d30     com.apple.kpi.bsd (16.1.0) 1BF8BE38-F500-40F5-B265-043F5CDE39B9

    2   10 0xffffff7f80e05000 0x3940     0x3940     com.apple.kpi.dsep (16.1.0) 7018F6B2-971E-4C9B-A4E5-A8C051EE91C3

    3  100 0xffffff7f80a04000 0x21040    0x21040    com.apple.kpi.iokit (16.1.0) 1A48E9B6-F4D0-4F61-BC4E-0566D95BA536

    4  106 0xffffff7f80a26000 0xd200     0xd200     com.apple.kpi.libkern (16.1.0) FCD6B6C7-05E8-42DE-BA4B-CED0CC3FA977

    5   92 0xffffff7f80a00000 0x3dd0     0x3dd0     com.apple.kpi.mach (16.1.0) 49BA8EBA-4184-49A8-83AA-728CAD07E8BE

    6   51 0xffffff7f80a34000 0xba10     0xba10     com.apple.kpi.private (16.1.0) 27B10EE3-B293-4C15-9CAE-30E703D3EBE1

    7   69 0xffffff7f80a40000 0x5890     0x5890     com.apple.kpi.unsupported (16.1.0) 976AE2B1-2A52-4684-9857-91374408C70F

    8    5 0xffffff7f80e0c000 0xa7000    0xa7000    com.apple.kec.corecrypto (1.0) 809FEC94-017C-307A-B099-A01EFF5485FB <7 6 5 4 3 1>

    9    0 0xffffff7f80ef7000 0xf000     0xf000     com.apple.kec.pthread (1) 36567317-B854-3157-ABF3-CEAD0A3770BB <7 6 5 4 1>

   10    1 0xffffff7f8145f000 0xb000     0xb000     com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4>

   11   18 0xffffff7f8146a000 0x9000     0x9000     com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3>

   12   19 0xffffff7f80b32000 0x34000    0x34000    com.apple.iokit.IOPCIFamily (2.9) A55C1363-A09F-3755-9BD3-526A7A2C3B5B <7 6 5 4 3>

   13    1 0xffffff7f82ae1000 0x60000    0x60000    com.apple.driver.AppleACPIPlatform (5.0) 249D7BA8-3FD5-3207-A482-0605CB898037 <12 11 7 6 5 4 3 1>

   14    1 0xffffff7f8171c000 0xb000     0xb000     com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1>

   15    2 0xffffff7f81b14000 0x7000     0x7000     com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3>

   16    8 0xffffff7f80a50000 0x27000    0x27000    com.apple.iokit.IOStorageFamily (2.1) 510A2AD8-C127-34AA-A984-95A82C6AC1DA <7 6 5 4 3 1>

   17    0 0xffffff7f81bd4000 0x19000    0x19000    com.apple.driver.DiskImages (444.20.3) 05A729EF-20B8-3254-8F13-42DF42E0544B <16 7 6 5 4 3 1>

   18    2 0xffffff7f81e2a000 0xb000     0xb000     org.netkas.FakeSMC (3.4.1) ECE4F326-3D57-3670-82F0-4EA31C371CD1 <11 7 5 4 3>

   19    0 0xffffff7f81e37000 0x6000     0x6000     org.slice.IntelCPUMonitor (1.2.0) 43846BAE-D770-31A6-B52B-7176A2DA3ECE <18 7 5 4 3>

   20    0 0xffffff7f81e3f000 0x3000     0x3000     org.slice.HWInfo (1.0.1) 1C36E311-B17C-34E5-A65B-34E7F3DC65C2 <18 7 4 3>

   21    1 0xffffff7f81473000 0xd000     0xd000     com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3>

   22   12 0xffffff7f81480000 0x69000    0x69000    com.apple.iokit.IOUSBHostFamily (1.1) 39E90AC4-0FCA-3CBD-80B2-3CBCD82940DC <21 7 6 5 4 3 1>

   23    3 0xffffff7f814f1000 0x11000    0x11000    com.apple.driver.KernelRelayHost (1) 3B58E6F0-DE92-3289-9D3B-3BF12208585F <22 5 4 3>

   24    1 0xffffff7f8255f000 0x24000    0x24000    com.apple.driver.AppleCredentialManager (1.0) 54677B39-44B3-3AAA-BBEC-D78D0B5CC1A7 <23 8 7 6 5 4 3 1>

   25    2 0xffffff7f80eb3000 0x16000    0x16000    com.apple.driver.AppleMobileFileIntegrity (1.0.5) 0EFA4D2C-2271-3C43-B777-17D05716144A <8 7 6 5 4 3 2 1>

   26    0 0xffffff7f82583000 0x47000    0x47000    com.apple.driver.AppleKeyStore (2) 75515493-6D25-39F7-8F0B-B08B505CAB74 <25 24 23 8 7 6 5 4 3 1>

   27    0 0xffffff7f82650000 0x2b000    0x2b000    com.apple.driver.AppleIntelCPUPowerManagement (219.0.0) 67442A80-F177-33D5-86D9-E8005CF8C07F <7 6 5 4 3 1>

   28    0 0xffffff7f829de000 0xc1000    0xc1000    as.vit9696.AppleALC (1.0.17) E1F82918-216E-389A-A096-BDDF4F27A8CC <7 5 4 3 2 1>

   29    0 0xffffff7f82bdf000 0x34000    0x34000    as.vit9696.Shiki (1.9.0) C344CC85-371F-38E3-B9E7-083B78B9B69A <7 5 4 3 2 1>

   30    0 0xffffff7f80e09000 0x2000     0x2000     com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1>

   31    2 0xffffff7f80ec9000 0x5000     0x5000     com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1>

   32    1 0xffffff7f80ece000 0x1f000    0x1f000    com.apple.security.sandbox (300.0) 32039FC4-CA9B-3B74-B326-A2BF5CFE45E1 <31 25 16 7 6 5 4 3 2 1>

   33    0 0xffffff7f80eed000 0x9000     0x9000     com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <32 31 7 6 5 4 2 1>

   34    0 0xffffff7f82bd5000 0x8000     0x8000     com.apple.nke.applicationfirewall (172) 2A0DC0EF-655C-3D4B-93FD-3AED72BEBBDC <7 6 5 4 3 1>

   35    0 0xffffff7f829d9000 0x3000     0x3000     com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3>

   36    0 0xffffff7f8247b000 0x4000     0x4000     com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3>

   37    0 0xffffff7f824a8000 0x8000     0x8000     com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1>

   38    1 0xffffff7f81b8b000 0x5000     0x5000     com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3>

   39    0 0xffffff7f826c7000 0x3000     0x3000     com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3>

   40    2 0xffffff7f81727000 0x79000    0x79000    com.apple.iokit.IOHIDFamily (2.0.0) 1A48D920-280E-36FA-8D48-49B79A5656E6 <14 7 6 5 4 3 2 1>

   41    0 0xffffff7f82b51000 0x4000     0x4000     com.apple.driver.AppleACPIButtons (5.0) 4D5E51D6-8A6B-3B6A-A8F2-472D56C9D0C3 <40 15 13 11 7 6 5 4 3 1>

   42    1 0xffffff7f81b90000 0xb000     0xb000     com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <38 7 6 5 4 3 2 1>

   43    0 0xffffff7f8264b000 0x3000     0x3000     com.apple.driver.AppleIntelCPUPowerManagementClient (219.0.0) B802638B-251C-3602-BA8C-001F87228765 <7 6 5 4 3 1>

   44    2 0xffffff7f8165c000 0x9a000    0x9a000    com.apple.iokit.IOUSBFamily (900.4.1) 365596E4-A771-3427-B576-DB02D03FAEFE <22 12 7 5 4 3 1>

   45    0 0xffffff7f81904000 0x5000     0x5000     com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 9888F9CD-B7EE-3A9D-8530-6FA4C167B26C <22 7 6 5 4 3 1>

   46    2 0xffffff7f815e8000 0x2d000    0x2d000    com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1>

   47    1 0xffffff7f81e43000 0x7000     0x7000     com.apple.filesystems.hfs.encodings.kext (1) 68A8D6C1-CDCA-371C-970B-325BF2E7ECAB <7 6 5 4 3 1>

   48    0 0xffffff7f81e4a000 0x69000    0x69000    com.apple.filesystems.hfs.kext (366.1.1) 6C6C4A98-1534-3C52-B006-00FBC479233E <47 7 6 5 4 3 1>

   49    0 0xffffff7f82141000 0xa000     0xa000     com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1>

   50    0 0xffffff7f829b2000 0x6000     0x6000     com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1>

   51    0 0xffffff7f829ba000 0x3000     0x3000     com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1>

   52    3 0xffffff7f81dbd000 0x1a000    0x1a000    com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1>

   53    0 0xffffff7f82ab4000 0x1e000    0x1e000    com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <52 12 5 4 3 1>

   54    1 0xffffff7f817c0000 0x40000    0x40000    com.apple.driver.usb.AppleUSBXHCI (1.1) E5F9850E-A1A1-305F-854D-48B46C08B2EC <22 11 7 5 4 3 1>

   55    0 0xffffff7f81806000 0x29000    0x29000    com.apple.driver.usb.AppleUSBXHCIPCI (1.1) B4287428-23D9-3547-93B5-2FEB73A02EA6 <54 22 12 11 7 5 4 3 1>

   56    0 0xffffff7f81e10000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.2.0) 3A6046E0-A8B1-32C2-9532-1EBF16AEB28B <46 12 5 4 3 1>

   59    1 0xffffff7f8183a000 0x3d000    0x3d000    com.apple.driver.usb.AppleUSBEHCI (1.1) BF6EF9A2-F090-3094-B3FA-F34351D946CF <22 11 7 5 4 3 1>

   60    0 0xffffff7f81919000 0xe000     0xe000     com.apple.driver.usb.AppleUSBEHCIPCI (1.1) 4FCE62CA-0477-34A2-9564-86F807CDBD4D <59 22 12 11 7 5 4 3 1>

   61    1 0xffffff7f81909000 0x4000     0x4000     com.apple.driver.AppleUSBHostMergeProperties (1.1) 01547475-6C58-324B-B81D-F74389BB00FF <4 3 1>

   62    0 0xffffff7f81951000 0x3000     0x3000     com.apple.driver.AppleUSBMergeNub (900.4.1) 0F857BDF-849D-3619-8E32-29A69FBBD23C <61 44 4 3 1>

   64    0 0xffffff7f81de7000 0x1c000    0x1c000    com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <52 16 6 5 4 3 1>

   65    3 0xffffff7f80aef000 0x2b000    0x2b000    com.apple.iokit.IOSCSIArchitectureModelFamily (394) 0E35A335-5605-36FB-991C-D0D38F4FA4E7 <6 5 4 3 1>

   66    0 0xffffff7f81dda000 0xd000     0xd000     com.apple.iokit.IOAHCISerialATAPI (266) 681FA1E2-E3DE-3FEB-ACA7-16FC2B9078A6 <65 52 5 4 3 1>

   68    0 0xffffff7f81ac0000 0x7000     0x7000     com.apple.iokit.SCSITaskUserClient (394) 4A92621E-97C8-3AB4-8E25-C540967F573C <65 16 5 4 3 1>

   69    3 0xffffff7f81acb000 0xe000     0xe000     com.apple.iokit.IOCDStorageFamily (1.8) 9EEF7CF2-673C-3743-84DD-D3B3D5E61DDB <16 5 4 3 1>

   70    2 0xffffff7f81adc000 0xb000     0xb000     com.apple.iokit.IODVDStorageFamily (1.8) 9BC77405-09A3-3398-AE63-98894C42E288 <69 16 5 4 3 1>

   71    1 0xffffff7f81aea000 0x9000     0x9000     com.apple.iokit.IOBDStorageFamily (1.8) EE071733-F836-360B-958B-440E2CCF81E1 <70 69 16 5 4 3 1>

   72    0 0xffffff7f81af6000 0x1a000    0x1a000    com.apple.iokit.IOSCSIMultimediaCommandsDevice (394) 315023CC-5BBD-3C98-947C-56D52D1C50F6 <71 70 69 65 16 6 5 4 3 1>

   73    0 0xffffff7f818ce000 0x2e000    0x2e000    com.apple.driver.usb.AppleUSBHub (1.1) F7BC6869-E4BA-3291-B7EA-BF28A0ABEF4A <22 11 5 4 3 1>

   74    0 0xffffff7f8190d000 0x8000     0x8000     com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 30502C8D-F4B2-345F-B8F0-F8C54CAD7F46 <22 5 4 3 1>

   75    0 0xffffff7f82275000 0x8000     0x8000     com.apple.driver.usb.networking (5.0.0) 74394A72-1E87-363E-8CFD-182BD8C9362E <22 5 4 3 1>

   77    0 0xffffff7f817b5000 0xb000     0xb000     com.apple.driver.usb.IOUSBHostHIDDevice (1.1) 0548123A-013B-3C74-86A8-33DF73E9CBBB <40 22 5 4 3 1>

   78    0 0xffffff7f825d5000 0x8000     0x8000     com.apple.driver.AppleIntelMCEReporter (107) 30B0E402-294F-332A-8386-F05E3EE170D9 <7 6 5 4 3>

   80    3 0xffffff7f81b1b000 0xa000     0xa000     com.apple.driver.IOPlatformPluginFamily (6.0.0d8) 087648A2-8A44-3095-AEC7-44A872A46205 <11 7 6 5 4 3>

   81    4 0xffffff7f81b25000 0x19000    0x19000    com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1>

   82    1 0xffffff7f81b40000 0x17000    0x17000    com.apple.driver.X86PlatformPlugin (1.0.0) 44ECEA73-E414-3112-BAB4-7AB6D666800C <81 80 44 22 11 7 6 5 4 3 1>

   84    1 0xffffff7f81aa4000 0x5000     0x5000     com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) F026208D-CC0C-3599-B303-9196904A584E <7 6 5 4 3 1>

   85    0 0xffffff7f825d1000 0x2000     0x2000     com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <84 4 3>

   86    0 0xffffff7f80c12000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 4E0262A2-B79C-3386-8824-C106A5DFAF94 <7 5 4 3>

   87    1 0xffffff7f81aaf000 0xe000     0xe000     com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1>

   91    2 0xffffff7f8215d000 0x95000    0x95000    com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3>

   92    4 0xffffff7f821f2000 0x30000    0x30000    com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <91 5 4 3 1>

   93    2 0xffffff7f826e2000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (278.23) 0EDC3DD9-62F9-3704-BECF-5A7BC7E9AACE <5 4 3 1>

   94   10 0xffffff7f80f20000 0x3b000    0x3b000    com.apple.iokit.IOGraphicsFamily (2.4.1) D01B501C-E5B8-36AC-930C-978C205EFEFF <12 7 5 4 3 1>

   95    1 0xffffff7f826f5000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (278.23) F9C803EC-B4ED-3FDA-91FB-2AD433B2E8E4 <94 93 92 12 7 6 5 4 3 1>

   98    4 0xffffff7f80f67000 0x10000    0x10000    com.apple.iokit.IONDRVSupport (2.4.1) 52948BC8-6521-359A-981F-FE33E5F8C721 <94 12 7 5 4 3>

   99    0 0xffffff7f82683000 0xa000     0xa000     com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1>

  100    0 0xffffff7f82507000 0x4000     0x4000     com.apple.driver.AppleOSXWatchdog (1) 757A8B72-2A1A-32BA-99EC-6D802DE6E91F <12 7 6 5 4 3 1>

  102    0 0xffffff7f8246e000 0xa000     0xa000     com.apple.driver.AppleSSE (1.0) 907BB577-46DF-3C86-9034-758B61AD054D <23 7 5 4 3 1>

  103    0 0xffffff7f8203f000 0x5000     0x5000     com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <81 8 7 4 3 1>

  104    0 0xffffff7f81c77000 0xe0000    0xe0000    com.apple.iokit.IOBluetoothFamily (5.0.1f7) 794ACDDD-2B46-3BF0-94E9-4FD7C109A427 <15 7 5 4 3 1>

  105    0 0xffffff7f81c63000 0xa000     0xa000     com.apple.iokit.IOBluetoothSerialManager (5.0.1f7) 6F68B8CF-6543-328E-AF57-DD250412CF02 <87 7 5 4 3 1>

  106    0 0xffffff7f81a87000 0x17000    0x17000    com.apple.iokit.IOSurface (153.1) D3B2D208-487C-3166-9F7D-D6159AABC428 <7 6 5 4 3 1>

  107    0 0xffffff7f8161c000 0x6000     0x6000     com.apple.iokit.IOUserEthernet (1.0.1) 5EE448BD-95EC-35AD-B7FC-A1237E4BB346 <46 6 5 4 3 1>

  108    0 0xffffff7f80f06000 0xf000     0xf000     com.apple.driver.pmtelemetry (1) F46D019B-17FF-3CD5-A093-0894B81C1404 <7 6 5 4 3>

  109    2 0xffffff7f80f77000 0xa000     0xa000     com.apple.AppleGraphicsDeviceControl (3.13.74) BC16864D-447E-3F3C-BA1A-280868E043BB <7 6 5 4 3 1>

  110    2 0xffffff7f80f83000 0x2f2000   0x2f2000   com.apple.nvidia.driver.NVDAResman (10.1.2) 5DD89348-73FE-38C1-87A2-FE664001CBAA <109 98 94 12 7 5 4 3 1>

  111    0 0xffffff7f81285000 0x1b3000   0x1b3000   com.apple.nvidia.driver.NVDAGK100Hal (10.1.2) D5475C72-21B8-356C-A904-78CD5AAEBA45 <110 12 4 3>

  112    1 0xffffff7f81eba000 0x91000    0x91000    com.apple.iokit.IOAcceleratorFamily2 (288.15) 51C08EBC-F91D-34E3-90CC-8F3D3011F8B2 <94 12 7 6 5 4 3 1>

  113    0 0xffffff7f81f5a000 0xa4000    0xa4000    com.apple.GeForce (10.1.2) C8C382F8-7A67-39E9-BFF5-46FF935420BC <112 110 98 94 12 7 5 4 3 1>

  114    1 0xffffff7f81aa0000 0x4000     0x4000     com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3>

  115    1 0xffffff7f82514000 0xe000     0xe000     com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <114 12 11 5 4 3>

  116    0 0xffffff7f82525000 0xe000     0xe000     com.apple.driver.AppleMCCSControl (1.2.13) 102DD5D9-2DD5-3BCB-B5C0-BE08E1049CD6 <115 94 81 12 11 7 5 4 3 1>

  117    1 0xffffff7f82712000 0x13000    0x13000    com.apple.kext.OSvKernDSPLib (525) D0421B4D-7B97-3102-BC42-3684344DB5E6 <5 4>

  118    1 0xffffff7f82725000 0x147000   0x147000   com.apple.driver.DspFuncLib (278.23) CFAFA572-84F4-3C73-ABAC-60C39CB1B4C3 <117 92 91 42 6 5 4 3 1>

  119    0 0xffffff7f82877000 0xb4000    0xb4000    com.apple.driver.AppleHDA (278.23) 9EA11FCA-ED90-3218-AE7A-6AE8D58B8F3D <118 98 95 94 93 92 6 5 4 3 1>

  120    0 0xffffff7f822de000 0x5000     0x5000     com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <94 12 11 7 5 4 3 1>

  122    1 0xffffff7f8214d000 0x5000     0x5000     com.apple.kext.triggers (1.0) 4E564246-8804-3673-B440-606AD360A3BB <7 6 5 4 3 1>

  123    0 0xffffff7f82152000 0x9000     0x9000     com.apple.filesystems.autofs (3.0) AA36D92F-D92B-3102-BAE3-F86A0A298143 <122 7 6 5 4 3 1>

  124    1 0xffffff7f81b57000 0x7000     0x7000     com.apple.driver.X86PlatformShim (1.0.0) 25B103A5-64AA-3452-BEFA-B43436A7C973 <82 81 80 7 4 3>

  125    0 0xffffff7f82500000 0x4000     0x4000     com.apple.driver.ApplePlatformEnabler (2.7.0d0) 25DBF68E-B669-3367-A517-BA27C9567D74 <7 5 4 3>

  126    0 0xffffff7f8297e000 0x18000    0x18000    com.apple.driver.AGPM (110.23.11) D5FD05CB-B5FC-3E21-8095-CE33268156B5 <109 98 94 80 12 6 5 4 3>

  129    0 0xffffff7f8222a000 0x5000     0x5000     com.apple.driver.AudioAUUC (1.70) DA1CA792-7C22-3F41-B64E-4E01C8679031 <94 92 12 11 7 5 4 3 1>



Alexeys-Mac-Pro:~ brawl$



ouououououhhhh!!!!!  :blowup:  :hysterical:

:yes:  :rofl:



not voodootscsync

In your bios you put 4200 for all cores



my no such option in my bios

https://1drv.ms/v/s!ArLPkmcocLJiqHGYVS8CoqXVLar_

Link to comment
Share on other sites

@Hubilay



I don't understand why you have this :

com.apple.driver.AppleIntelCPUPowerManagement (219.0.0) 67442A80-F177-33D5-86D9-E8005CF8C07F <7 6 5 4 3 1>



and then I don't know what Shiki.kext does

I do not understand too

shiki - iTunes DRM playback

By the way, if you put the last version of the BIOS, where there was no support broadwell-e, flies kernel panic

Link to comment
Share on other sites



it seems from your list that you are using XCPM..but you have also applecpupowermanagemnet in use...

fabios-Mac-Pro:~ fabio$ kextstat
Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>
    1   85 0xffffff7f80a46000 0x9d30     0x9d30     com.apple.kpi.bsd (16.1.0) 1BF8BE38-F500-40F5-B265-043F5CDE39B9
    2    8 0xffffff7f80e05000 0x3940     0x3940     com.apple.kpi.dsep (16.1.0) 7018F6B2-971E-4C9B-A4E5-A8C051EE91C3
    3  107 0xffffff7f80a04000 0x21040    0x21040    com.apple.kpi.iokit (16.1.0) 1A48E9B6-F4D0-4F61-BC4E-0566D95BA536
    4  115 0xffffff7f80a26000 0xd200     0xd200     com.apple.kpi.libkern (16.1.0) FCD6B6C7-05E8-42DE-BA4B-CED0CC3FA977
    5   99 0xffffff7f80a00000 0x3dd0     0x3dd0     com.apple.kpi.mach (16.1.0) 49BA8EBA-4184-49A8-83AA-728CAD07E8BE
    6   58 0xffffff7f80a34000 0xba10     0xba10     com.apple.kpi.private (16.1.0) 27B10EE3-B293-4C15-9CAE-30E703D3EBE1
    7   69 0xffffff7f80a40000 0x5890     0x5890     com.apple.kpi.unsupported (16.1.0) 976AE2B1-2A52-4684-9857-91374408C70F
    8    6 0xffffff7f80e0c000 0xa7000    0xa7000    com.apple.kec.corecrypto (1.0) 809FEC94-017C-307A-B099-A01EFF5485FB <7 6 5 4 3 1>
    9    0 0xffffff7f80ef7000 0xf000     0xf000     com.apple.kec.pthread (1) 36567317-B854-3157-ABF3-CEAD0A3770BB <7 6 5 4 1>
   10    1 0xffffff7f815f2000 0xb000     0xb000     com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4>
   11   21 0xffffff7f815fd000 0x9000     0x9000     com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3>
   12   25 0xffffff7f80b32000 0x34000    0x34000    com.apple.iokit.IOPCIFamily (2.9) A55C1363-A09F-3755-9BD3-526A7A2C3B5B <7 6 5 4 3>
   13    2 0xffffff7f8352a000 0x60000    0x60000    com.apple.driver.AppleACPIPlatform (5.0) 249D7BA8-3FD5-3207-A482-0605CB898037 <12 11 7 6 5 4 3 1>
   14    1 0xffffff7f818af000 0xb000     0xb000     com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1>
   15    2 0xffffff7f81ca7000 0x7000     0x7000     com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3>
   16   10 0xffffff7f80a50000 0x27000    0x27000    com.apple.iokit.IOStorageFamily (2.1) 510A2AD8-C127-34AA-A984-95A82C6AC1DA <7 6 5 4 3 1>
   17    0 0xffffff7f81d67000 0x19000    0x19000    com.apple.driver.DiskImages (444.20.3) 05A729EF-20B8-3254-8F13-42DF42E0544B <16 7 6 5 4 3 1>
   18    1 0xffffff7f81606000 0xd000     0xd000     com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3>
   19   15 0xffffff7f81613000 0x69000    0x69000    com.apple.iokit.IOUSBHostFamily (1.1) 39E90AC4-0FCA-3CBD-80B2-3CBCD82940DC <18 7 6 5 4 3 1>
   20    3 0xffffff7f81684000 0x11000    0x11000    com.apple.driver.KernelRelayHost (1) 3B58E6F0-DE92-3289-9D3B-3BF12208585F <19 5 4 3>
   21    1 0xffffff7f83082000 0x24000    0x24000    com.apple.driver.AppleCredentialManager (1.0) 54677B39-44B3-3AAA-BBEC-D78D0B5CC1A7 <20 8 7 6 5 4 3 1>
   22    3 0xffffff7f80eb3000 0x16000    0x16000    com.apple.driver.AppleMobileFileIntegrity (1.0.5) 0EFA4D2C-2271-3C43-B777-17D05716144A <8 7 6 5 4 3 2 1>
   23    0 0xffffff7f830a6000 0x47000    0x47000    com.apple.driver.AppleKeyStore (2) 75515493-6D25-39F7-8F0B-B08B505CAB74 <22 21 20 8 7 6 5 4 3 1>
   24    2 0xffffff7f82c7b000 0x95000    0x95000    com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3>
   25    5 0xffffff7f82d10000 0x30000    0x30000    com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <24 5 4 3 1>
   26    0 0xffffff7f83628000 0x8000     0x8000     org.tw.CodecCommander (2.6.2) BF7D0E86-F32B-367A-B9DD-C745D9F6B03B <25 12 11 4 3 1>
   27    0 0xffffff7f83637000 0x11000    0x11000    org.netkas.driver.FakeSMC (1707) 72772B6B-84BC-3EC7-A053-FD8B95505F76 <11 7 5 4 3 1>
   28    0 0xffffff7f80e09000 0x2000     0x2000     com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1>
   29    2 0xffffff7f80ec9000 0x5000     0x5000     com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1>
   30    1 0xffffff7f80ece000 0x1f000    0x1f000    com.apple.security.sandbox (300.0) 32039FC4-CA9B-3B74-B326-A2BF5CFE45E1 <29 22 16 7 6 5 4 3 2 1>
   31    0 0xffffff7f80eed000 0x9000     0x9000     com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <30 29 7 6 5 4 2 1>
   32    0 0xffffff7f8361e000 0x8000     0x8000     com.apple.nke.applicationfirewall (172) 2A0DC0EF-655C-3D4B-93FD-3AED72BEBBDC <7 6 5 4 3 1>
   33    0 0xffffff7f83648000 0x2000     0x2000     org.voodoo.driver.VoodooTSCSync (1.1) 0547D0AD-C9FE-3D5A-9CD7-6B90E6BC0335 <7 4 3>
   34    0 0xffffff7f834f8000 0x3000     0x3000     com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3>
   35    0 0xffffff7f82faa000 0x4000     0x4000     com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3>
   36    0 0xffffff7f82fd7000 0x8000     0x8000     com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1>
   37    0 0xffffff7f831ea000 0x3000     0x3000     com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3>
   38    1 0xffffff7f81d1e000 0x5000     0x5000     com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3>
   39    2 0xffffff7f818ba000 0x79000    0x79000    com.apple.iokit.IOHIDFamily (2.0.0) 1A48D920-280E-36FA-8D48-49B79A5656E6 <14 7 6 5 4 3 2 1>
   40    0 0xffffff7f8359a000 0x4000     0x4000     com.apple.driver.AppleACPIButtons (5.0) 4D5E51D6-8A6B-3B6A-A8F2-472D56C9D0C3 <39 15 13 11 7 6 5 4 3 1>
   41    2 0xffffff7f81c33000 0x4000     0x4000     com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3>
   42    0 0xffffff7f83590000 0x7000     0x7000     com.apple.driver.AppleACPIEC (5.0) BC227AE1-3CD5-3938-9C8C-009F1A966FBE <41 13 11 5 4 3>
   43    1 0xffffff7f81d23000 0xb000     0xb000     com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <38 7 6 5 4 3 2 1>
   44    0 0xffffff7f81a9c000 0x4000     0x4000     com.apple.driver.AppleUSBHostMergeProperties (1.1) 01547475-6C58-324B-B81D-F74389BB00FF <4 3 1>
   45    1 0xffffff7f817ef000 0x9a000    0x9a000    com.apple.iokit.IOUSBFamily (900.4.1) 365596E4-A771-3427-B576-DB02D03FAEFE <19 12 7 5 4 3 1>
   46    0 0xffffff7f81a97000 0x5000     0x5000     com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 9888F9CD-B7EE-3A9D-8530-6FA4C167B26C <19 7 6 5 4 3 1>
   47    3 0xffffff7f81f8a000 0x1a000    0x1a000    com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1>
   48    0 0xffffff7f834fd000 0x1e000    0x1e000    com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <47 12 5 4 3 1>
   49    1 0xffffff7f81953000 0x40000    0x40000    com.apple.driver.usb.AppleUSBXHCI (1.1) E5F9850E-A1A1-305F-854D-48B46C08B2EC <19 11 7 5 4 3 1>
   50    0 0xffffff7f81999000 0x29000    0x29000    com.apple.driver.usb.AppleUSBXHCIPCI (1.1) B4287428-23D9-3547-93B5-2FEB73A02EA6 <49 19 12 11 7 5 4 3 1>
   51    5 0xffffff7f8177b000 0x2d000    0x2d000    com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1>
   52    0 0xffffff7f8364c000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.1.0) D65691B8-4EB1-3B22-B1B5-5CA5C566935E <51 12 5 4 3 1>
   55    2 0xffffff7f81fdd000 0x29000    0x29000    com.apple.driver.corecapture (1.0.4) A9DCF53D-2E9D-3323-913B-35A40D735F44 <7 6 5 4 3 1>
   56    1 0xffffff7f8200f000 0x8000     0x8000     com.apple.driver.mDNSOffloadUserClient (1.0.1b8) DFE569DA-088F-3773-95A7-1C98F4E80CEF <51 4 3 1>
   57    1 0xffffff7f82017000 0xe6000    0xe6000    com.apple.iokit.IO80211Family (1200.12.2) 4B50E6E6-0F92-30E2-AFC5-2F67FE8B09D4 <55 51 22 8 7 6 5 4 3 1>
   58    0 0xffffff7f82107000 0x7c0000   0x7c0000   com.apple.driver.AirPort.Brcm4360 (1110.4.1a8) 83E28ECB-4EDE-37A3-8CDB-558E0346453E <57 56 55 51 12 7 6 5 4 3 1>
   60    1 0xffffff7f8294c000 0x7000     0x7000     com.apple.filesystems.hfs.encodings.kext (1) 68A8D6C1-CDCA-371C-970B-325BF2E7ECAB <7 6 5 4 3 1>
   61    0 0xffffff7f82953000 0x69000    0x69000    com.apple.filesystems.hfs.kext (366.1.1) 6C6C4A98-1534-3C52-B006-00FBC479233E <60 7 6 5 4 3 1>
   62    0 0xffffff7f82c5f000 0xa000     0xa000     com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1>
   63    0 0xffffff7f834d1000 0x6000     0x6000     com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1>
   64    5 0xffffff7f80aef000 0x2b000    0x2b000    com.apple.iokit.IOSCSIArchitectureModelFamily (394) 0E35A335-5605-36FB-991C-D0D38F4FA4E7 <6 5 4 3 1>
   65    0 0xffffff7f81fa7000 0xd000     0xd000     com.apple.iokit.IOAHCISerialATAPI (266) 681FA1E2-E3DE-3FEB-ACA7-16FC2B9078A6 <64 47 5 4 3 1>
   66    0 0xffffff7f834d9000 0x3000     0x3000     com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1>
   67    0 0xffffff7f81fb4000 0x1c000    0x1c000    com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <47 16 6 5 4 3 1>
   70    0 0xffffff7f81c53000 0x7000     0x7000     com.apple.iokit.SCSITaskUserClient (394) 4A92621E-97C8-3AB4-8E25-C540967F573C <64 16 5 4 3 1>
   71    3 0xffffff7f81c5e000 0xe000     0xe000     com.apple.iokit.IOCDStorageFamily (1.8) 9EEF7CF2-673C-3743-84DD-D3B3D5E61DDB <16 5 4 3 1>
   72    2 0xffffff7f81c6f000 0xb000     0xb000     com.apple.iokit.IODVDStorageFamily (1.8) 9BC77405-09A3-3398-AE63-98894C42E288 <71 16 5 4 3 1>
   73    1 0xffffff7f81c7d000 0x9000     0x9000     com.apple.iokit.IOBDStorageFamily (1.8) EE071733-F836-360B-958B-440E2CCF81E1 <72 71 16 5 4 3 1>
   74    0 0xffffff7f81c89000 0x1a000    0x1a000    com.apple.iokit.IOSCSIMultimediaCommandsDevice (394) 315023CC-5BBD-3C98-947C-56D52D1C50F6 <73 72 71 64 16 6 5 4 3 1>
   76    0 0xffffff7f81a61000 0x2e000    0x2e000    com.apple.driver.usb.AppleUSBHub (1.1) F7BC6869-E4BA-3291-B7EA-BF28A0ABEF4A <19 11 5 4 3 1>
   77    0 0xffffff7f81aa0000 0x8000     0x8000     com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 30502C8D-F4B2-345F-B8F0-F8C54CAD7F46 <19 5 4 3 1>
   78    0 0xffffff7f82d93000 0x8000     0x8000     com.apple.driver.usb.networking (5.0.0) 74394A72-1E87-363E-8CFD-182BD8C9362E <19 5 4 3 1>
   80    0 0xffffff7f81948000 0xb000     0xb000     com.apple.driver.usb.IOUSBHostHIDDevice (1.1) 0548123A-013B-3C74-86A8-33DF73E9CBBB <39 19 5 4 3 1>
   81    1 0xffffff7f83630000 0x5000     0x5000     com.no-one.BrcmFirmwareStore (2.2.3) 269DD7F0-B54C-33F8-B560-F3125E86FBFA <5 4 3>
   82    0 0xffffff7f83660000 0x6000     0x6000     com.no-one.BrcmPatchRAM2 (2.2.3) 8AEBE114-3033-3344-A28A-711392315DAD <81 19 5 4 3 1>
   83    0 0xffffff7f817bb000 0x2d000    0x2d000    com.apple.iokit.IOUSBMassStorageDriver (131.1.1) 91153C74-5D56-340F-B268-C883F80E0EA8 <64 19 16 6 5 4 3 1>
   84    0 0xffffff7f81698000 0x19000    0x19000    com.apple.iokit.IOSCSIBlockCommandsDevice (394) 7D111DA4-D66E-309D-BDB6-6C7465180C66 <64 16 6 5 4 3 1>
   86    0 0xffffff7f830f8000 0x8000     0x8000     com.apple.driver.AppleIntelMCEReporter (107) 30B0E402-294F-332A-8386-F05E3EE170D9 <7 6 5 4 3>
   87    4 0xffffff7f81cae000 0xa000     0xa000     com.apple.driver.IOPlatformPluginFamily (6.0.0d8) 087648A2-8A44-3095-AEC7-44A872A46205 <11 7 6 5 4 3>
   88    4 0xffffff7f81cb8000 0x19000    0x19000    com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1>
   89    1 0xffffff7f81cd3000 0x17000    0x17000    com.apple.driver.X86PlatformPlugin (1.0.0) 44ECEA73-E414-3112-BAB4-7AB6D666800C <88 87 45 19 11 7 6 5 4 3 1>
   92    1 0xffffff7f81c37000 0x5000     0x5000     com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) F026208D-CC0C-3599-B303-9196904A584E <7 6 5 4 3 1>
   93    0 0xffffff7f830f4000 0x2000     0x2000     com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <92 4 3>
   94    0 0xffffff7f80c12000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 6EC99BBD-0CA2-3CA6-B252-DE46782936C3 <7 5 4 3>
   96    1 0xffffff7f81c42000 0xe000     0xe000     com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1>
  100    0 0xffffff7f8307d000 0x3000     0x3000     com.apple.driver.AppleLPC (3.1) F51595F0-F9B1-3B85-A1C3-F984DAD4107E <87 12 5 4 3>
  101    2 0xffffff7f83205000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (278.23) 0EDC3DD9-62F9-3704-BECF-5A7BC7E9AACE <5 4 3 1>
  102   10 0xffffff7f80f24000 0x3b000    0x3b000    com.apple.iokit.IOGraphicsFamily (2.4.1) D01B501C-E5B8-36AC-930C-978C205EFEFF <12 7 5 4 3 1>
  103    1 0xffffff7f83218000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (278.23) F9C803EC-B4ED-3FDA-91FB-2AD433B2E8E4 <102 101 25 12 7 6 5 4 3 1>
  105    0 0xffffff7f831a6000 0xa000     0xa000     com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1>
  106    4 0xffffff7f80f6b000 0x10000    0x10000    com.apple.iokit.IONDRVSupport (2.4.1) 52948BC8-6521-359A-981F-FE33E5F8C721 <102 12 7 5 4 3>
  107    0 0xffffff7f83036000 0x4000     0x4000     com.apple.driver.AppleOSXWatchdog (1) 757A8B72-2A1A-32BA-99EC-6D802DE6E91F <12 7 6 5 4 3 1>
  108    0 0xffffff7f82f96000 0x3000     0x3000     com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3>
  109    0 0xffffff7f82f8c000 0xa000     0xa000     com.apple.driver.AppleSSE (1.0) 907BB577-46DF-3C86-9034-758B61AD054D <20 7 5 4 3 1>
  110    0 0xffffff7f82b5a000 0x5000     0x5000     com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <88 8 7 4 3 1>
  111    3 0xffffff7f81e0a000 0xe0000    0xe0000    com.apple.iokit.IOBluetoothFamily (5.0.1f7) 794ACDDD-2B46-3BF0-94E9-4FD7C109A427 <15 7 5 4 3 1>
  112    2 0xffffff7f80f7b000 0x7000     0x7000     com.apple.AppleGraphicsDeviceControl (3.12.8) 81C2784E-285A-38A7-A16E-515DCB816E0A <7 6 5 4 3 1>
  113    2 0xffffff7f80f82000 0x32a000   0x32a000   com.nvidia.web.NVDAResmanWeb (10.1.3) CFAACEF2-B37A-3F9E-AE5A-E1374E88F81D <112 106 102 12 7 5 4 3 1>
  114    0 0xffffff7f812be000 0x2a6000   0x2a6000   com.nvidia.web.NVDAGM100HalWeb (10.1.3) BEBAB721-B71D-3E29-8FE6-85C8215911B1 <113 12 4 3>
  115    1 0xffffff7f829c3000 0x91000    0x91000    com.apple.iokit.IOAcceleratorFamily2 (288.15) 51C08EBC-F91D-34E3-90CC-8F3D3011F8B2 <102 12 7 6 5 4 3 1>
  116    0 0xffffff7f82a63000 0xa2000    0xa2000    com.nvidia.web.GeForceWeb (10.1.3) 7577D72D-2377-358A-9DED-E2D1796DA18C <115 113 106 102 12 7 5 4 3 1>
  117    0 0xffffff7f81df6000 0xa000     0xa000     com.apple.iokit.IOBluetoothSerialManager (5.0.1f7) 6F68B8CF-6543-328E-AF57-DD250412CF02 <96 7 5 4 3 1>
  118    1 0xffffff7f82f99000 0xe000     0xe000     com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <41 12 11 5 4 3>
  119    0 0xffffff7f81c1a000 0x17000    0x17000    com.apple.iokit.IOSurface (153.1) D3B2D208-487C-3166-9F7D-D6159AABC428 <7 6 5 4 3 1>
  120    0 0xffffff7f83043000 0xe000     0xe000     com.apple.driver.AppleMCCSControl (1.2.13) 102DD5D9-2DD5-3BCB-B5C0-BE08E1049CD6 <118 102 88 12 11 7 5 4 3 1>
  121    0 0xffffff7f82dfc000 0x5000     0x5000     com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <102 12 11 7 5 4 3 1>
  122    0 0xffffff7f817af000 0x6000     0x6000     com.apple.iokit.IOUserEthernet (1.0.1) 5EE448BD-95EC-35AD-B7FC-A1237E4BB346 <51 6 5 4 3 1>
  123    0 0xffffff7f80f06000 0xf000     0xf000     com.apple.driver.pmtelemetry (1) F46D019B-17FF-3CD5-A093-0894B81C1404 <7 6 5 4 3>
  124    1 0xffffff7f81cea000 0x7000     0x7000     com.apple.driver.X86PlatformShim (1.0.0) 25B103A5-64AA-3452-BEFA-B43436A7C973 <89 88 87 7 4 3>
  125    0 0xffffff7f8302f000 0x4000     0x4000     com.apple.driver.ApplePlatformEnabler (2.7.0d0) 25DBF68E-B669-3367-A517-BA27C9567D74 <7 5 4 3>
  126    0 0xffffff7f834a1000 0x18000    0x18000    com.apple.driver.AGPM (110.23.11) D5FD05CB-B5FC-3E21-8095-CE33268156B5 <112 106 102 87 12 6 5 4 3>
  127    1 0xffffff7f83235000 0x13000    0x13000    com.apple.kext.OSvKernDSPLib (525) D0421B4D-7B97-3102-BC42-3684344DB5E6 <5 4>
  128    1 0xffffff7f83248000 0x147000   0x147000   com.apple.driver.DspFuncLib (278.23) CFAFA572-84F4-3C73-ABAC-60C39CB1B4C3 <127 43 25 24 6 5 4 3 1>
  129    0 0xffffff7f8339a000 0xb4000    0xb4000    com.apple.driver.AppleHDA (278.23) 9EA11FCA-ED90-3218-AE7A-6AE8D58B8F3D <128 106 103 102 101 25 6 5 4 3 1>
  131    4 0xffffff7f81580000 0x5d000    0x5d000    com.apple.filesystems.ntfs (3.13) 7F9965A6-151A-3A43-8BC4-1F365D846BC9 <7 6 5 4 1>
  132    2 0xffffff7f81efe000 0xb000     0xb000     com.apple.iokit.IOBluetoothHostControllerTransport (5.0.1f7) 11441623-57F0-3309-9194-ACCA55E80D86 <111 19 12 11 7 6 5 4 3 1>
  133    1 0xffffff7f81f09000 0x23000    0x23000    com.apple.iokit.IOBluetoothHostControllerUSBTransport (5.0.1f7) 4D685D10-DBB0-37B7-B2E9-E0C878FD22A9 <132 111 19 12 11 7 6 5 4 3 1>
  134    0 0xffffff7f81f2c000 0x8000     0x8000     com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport (5.0.1f7) 3B511DE7-A2C2-3A04-AB7A-F0469573DD45 <133 132 111 19 12 11 7 6 5 4 3>
  135    1 0xffffff7f82c6b000 0x5000     0x5000     com.apple.kext.triggers (1.0) 4E564246-8804-3673-B440-606AD360A3BB <7 6 5 4 3 1>
  136    0 0xffffff7f82c70000 0x9000     0x9000     com.apple.filesystems.autofs (3.0) AA36D92F-D92B-3102-BAE3-F86A0A298143 <135 7 6 5 4 3 1>
  137    0 0xffffff7f82b60000 0x2000     0x2000     com.nvidia.CUDA (1.1.0) DD792765-CA28-395A-8593-D6837F05C4FF <4 1>
  140    0 0xffffff7f82d48000 0x5000     0x5000     com.apple.driver.AudioAUUC (1.70) DA1CA792-7C22-3F41-B64E-4E01C8679031 <102 25 12 11 7 5 4 3 1>

as it fixed a?

Link to comment
Share on other sites

if you have a backup try to boot with this config

you have also to solve turbo mode in bios

i booted with this config

EIST OFF (and of course turbo off)





Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>

    1   81 0xffffff7f80a46000 0x9d30     0x9d30     com.apple.kpi.bsd (16.1.0) 1BF8BE38-F500-40F5-B265-043F5CDE39B9

    2    9 0xffffff7f80e05000 0x3940     0x3940     com.apple.kpi.dsep (16.1.0) 7018F6B2-971E-4C9B-A4E5-A8C051EE91C3

    3  111 0xffffff7f80a04000 0x21040    0x21040    com.apple.kpi.iokit (16.1.0) 1A48E9B6-F4D0-4F61-BC4E-0566D95BA536

    4  116 0xffffff7f80a26000 0xd200     0xd200     com.apple.kpi.libkern (16.1.0) FCD6B6C7-05E8-42DE-BA4B-CED0CC3FA977

    5   99 0xffffff7f80a00000 0x3dd0     0x3dd0     com.apple.kpi.mach (16.1.0) 49BA8EBA-4184-49A8-83AA-728CAD07E8BE

    6   52 0xffffff7f80a34000 0xba10     0xba10     com.apple.kpi.private (16.1.0) 27B10EE3-B293-4C15-9CAE-30E703D3EBE1

    7   75 0xffffff7f80a40000 0x5890     0x5890     com.apple.kpi.unsupported (16.1.0) 976AE2B1-2A52-4684-9857-91374408C70F

    8    5 0xffffff7f80e0c000 0xa7000    0xa7000    com.apple.kec.corecrypto (1.0) 809FEC94-017C-307A-B099-A01EFF5485FB <7 6 5 4 3 1>

    9    0 0xffffff7f80ef7000 0xf000     0xf000     com.apple.kec.pthread (1) 36567317-B854-3157-ABF3-CEAD0A3770BB <7 6 5 4 1>

   10    1 0xffffff7f8145f000 0xb000     0xb000     com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4>

   11   25 0xffffff7f8146a000 0x9000     0x9000     com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3>

   12   27 0xffffff7f80b32000 0x34000    0x34000    com.apple.iokit.IOPCIFamily (2.9) A55C1363-A09F-3755-9BD3-526A7A2C3B5B <7 6 5 4 3>

   13    1 0xffffff7f82ae1000 0x60000    0x60000    com.apple.driver.AppleACPIPlatform (5.0) 249D7BA8-3FD5-3207-A482-0605CB898037 <12 11 7 6 5 4 3 1>

   14    1 0xffffff7f8171c000 0xb000     0xb000     com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1>

   15    2 0xffffff7f81b14000 0x7000     0x7000     com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3>

   16   10 0xffffff7f80a50000 0x27000    0x27000    com.apple.iokit.IOStorageFamily (2.1) 510A2AD8-C127-34AA-A984-95A82C6AC1DA <7 6 5 4 3 1>

   17    0 0xffffff7f81bd4000 0x19000    0x19000    com.apple.driver.DiskImages (444.20.3) 05A729EF-20B8-3254-8F13-42DF42E0544B <16 7 6 5 4 3 1>

   18    2 0xffffff7f81e2a000 0xb000     0xb000     org.netkas.FakeSMC (3.4.1) ECE4F326-3D57-3670-82F0-4EA31C371CD1 <11 7 5 4 3>

   19    0 0xffffff7f81e37000 0x6000     0x6000     org.slice.IntelCPUMonitor (1.2.0) 43846BAE-D770-31A6-B52B-7176A2DA3ECE <18 7 5 4 3>

   20    0 0xffffff7f81e3f000 0x3000     0x3000     org.slice.HWInfo (1.0.1) 1C36E311-B17C-34E5-A65B-34E7F3DC65C2 <18 7 4 3>

   21    1 0xffffff7f81473000 0xd000     0xd000     com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3>

   22   13 0xffffff7f81480000 0x69000    0x69000    com.apple.iokit.IOUSBHostFamily (1.1) 39E90AC4-0FCA-3CBD-80B2-3CBCD82940DC <21 7 6 5 4 3 1>

   23    3 0xffffff7f814f1000 0x11000    0x11000    com.apple.driver.KernelRelayHost (1) 3B58E6F0-DE92-3289-9D3B-3BF12208585F <22 5 4 3>

   24    1 0xffffff7f8255f000 0x24000    0x24000    com.apple.driver.AppleCredentialManager (1.0) 54677B39-44B3-3AAA-BBEC-D78D0B5CC1A7 <23 8 7 6 5 4 3 1>

   25    2 0xffffff7f80eb3000 0x16000    0x16000    com.apple.driver.AppleMobileFileIntegrity (1.0.5) 0EFA4D2C-2271-3C43-B777-17D05716144A <8 7 6 5 4 3 2 1>

   26    0 0xffffff7f82583000 0x47000    0x47000    com.apple.driver.AppleKeyStore (2) 75515493-6D25-39F7-8F0B-B08B505CAB74 <25 24 23 8 7 6 5 4 3 1>

   27    0 0xffffff7f82650000 0x2b000    0x2b000    com.apple.driver.AppleIntelCPUPowerManagement (219.0.0) 67442A80-F177-33D5-86D9-E8005CF8C07F <7 6 5 4 3 1>

   28    0 0xffffff7f829de000 0xc1000    0xc1000    as.vit9696.AppleALC (1.0.17) E1F82918-216E-389A-A096-BDDF4F27A8CC <7 5 4 3 2 1>

   29    0 0xffffff7f80e09000 0x2000     0x2000     com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1>

   30    2 0xffffff7f80ec9000 0x5000     0x5000     com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1>

   31    1 0xffffff7f80ece000 0x1f000    0x1f000    com.apple.security.sandbox (300.0) 32039FC4-CA9B-3B74-B326-A2BF5CFE45E1 <30 25 16 7 6 5 4 3 2 1>

   32    0 0xffffff7f80eed000 0x9000     0x9000     com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <31 30 7 6 5 4 2 1>

   33    0 0xffffff7f82bd5000 0x8000     0x8000     com.apple.nke.applicationfirewall (172) 2A0DC0EF-655C-3D4B-93FD-3AED72BEBBDC <7 6 5 4 3 1>

   34    0 0xffffff7f829d9000 0x3000     0x3000     com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3>

   35    0 0xffffff7f8247b000 0x4000     0x4000     com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3>

   36    0 0xffffff7f824a8000 0x8000     0x8000     com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1>

   37    1 0xffffff7f81b8b000 0x5000     0x5000     com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3>

   38    0 0xffffff7f826c7000 0x3000     0x3000     com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3>

   39    2 0xffffff7f81727000 0x79000    0x79000    com.apple.iokit.IOHIDFamily (2.0.0) 1A48D920-280E-36FA-8D48-49B79A5656E6 <14 7 6 5 4 3 2 1>

   40    0 0xffffff7f82b51000 0x4000     0x4000     com.apple.driver.AppleACPIButtons (5.0) 4D5E51D6-8A6B-3B6A-A8F2-472D56C9D0C3 <39 15 13 11 7 6 5 4 3 1>

   41    0 0xffffff7f81b90000 0xb000     0xb000     com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <37 7 6 5 4 3 2 1>

   42    0 0xffffff7f8264b000 0x3000     0x3000     com.apple.driver.AppleIntelCPUPowerManagementClient (219.0.0) B802638B-251C-3602-BA8C-001F87228765 <7 6 5 4 3 1>

   43    2 0xffffff7f8165c000 0x9a000    0x9a000    com.apple.iokit.IOUSBFamily (900.4.1) 365596E4-A771-3427-B576-DB02D03FAEFE <22 12 7 5 4 3 1>

   44    0 0xffffff7f81904000 0x5000     0x5000     com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 9888F9CD-B7EE-3A9D-8530-6FA4C167B26C <22 7 6 5 4 3 1>

   45    2 0xffffff7f815e8000 0x2d000    0x2d000    com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1>

   46    1 0xffffff7f81e43000 0x7000     0x7000     com.apple.filesystems.hfs.encodings.kext (1) 68A8D6C1-CDCA-371C-970B-325BF2E7ECAB <7 6 5 4 3 1>

   47    0 0xffffff7f81e4a000 0x69000    0x69000    com.apple.filesystems.hfs.kext (366.1.1) 6C6C4A98-1534-3C52-B006-00FBC479233E <46 7 6 5 4 3 1>

   48    0 0xffffff7f82141000 0xa000     0xa000     com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1>

   49    0 0xffffff7f829b2000 0x6000     0x6000     com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1>

   50    0 0xffffff7f829ba000 0x3000     0x3000     com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1>

   51    3 0xffffff7f81dbd000 0x1a000    0x1a000    com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1>

   52    0 0xffffff7f82ab4000 0x1e000    0x1e000    com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <51 12 5 4 3 1>

   53    1 0xffffff7f817c0000 0x40000    0x40000    com.apple.driver.usb.AppleUSBXHCI (1.1) E5F9850E-A1A1-305F-854D-48B46C08B2EC <22 11 7 5 4 3 1>

   54    0 0xffffff7f81806000 0x29000    0x29000    com.apple.driver.usb.AppleUSBXHCIPCI (1.1) B4287428-23D9-3547-93B5-2FEB73A02EA6 <53 22 12 11 7 5 4 3 1>

   55    0 0xffffff7f81e10000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.2.0) 3A6046E0-A8B1-32C2-9532-1EBF16AEB28B <45 12 5 4 3 1>

   56    0 0xffffff7f82604000 0xb000     0xb000     com.apple.driver.AppleIntelLpssGspi (3.0.60) ABECB00A-0FCD-36ED-A385-AF09E20FFAB9 <12 11 7 5 4 3>

   57    0 0xffffff7f829c3000 0x2000     0x2000     com.apple.driver.AppleFileSystemDriver (3.0.1) 527DF605-93C5-38CD-B8DB-408E5F88AEAD <16 4 3>

   58    0 0xffffff7f82625000 0xa000     0xa000     com.apple.driver.AppleIntelLpssI2C (3.0.60) 3D476876-69CA-32E5-A23B-8F961DBA06F8 <12 11 7 5 4 3>

   59    1 0xffffff7f8183a000 0x3d000    0x3d000    com.apple.driver.usb.AppleUSBEHCI (1.1) BF6EF9A2-F090-3094-B3FA-F34351D946CF <22 11 7 5 4 3 1>

   60    0 0xffffff7f81919000 0xe000     0xe000     com.apple.driver.usb.AppleUSBEHCIPCI (1.1) 4FCE62CA-0477-34A2-9564-86F807CDBD4D <59 22 12 11 7 5 4 3 1>

   61    1 0xffffff7f81909000 0x4000     0x4000     com.apple.driver.AppleUSBHostMergeProperties (1.1) 01547475-6C58-324B-B81D-F74389BB00FF <4 3 1>

   62    0 0xffffff7f81951000 0x3000     0x3000     com.apple.driver.AppleUSBMergeNub (900.4.1) 0F857BDF-849D-3619-8E32-29A69FBBD23C <61 43 4 3 1>

   63    0 0xffffff7f81de7000 0x1c000    0x1c000    com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <51 16 6 5 4 3 1>

   64    3 0xffffff7f80aef000 0x2b000    0x2b000    com.apple.iokit.IOSCSIArchitectureModelFamily (394) 0E35A335-5605-36FB-991C-D0D38F4FA4E7 <6 5 4 3 1>

   65    0 0xffffff7f81dda000 0xd000     0xd000     com.apple.iokit.IOAHCISerialATAPI (266) 681FA1E2-E3DE-3FEB-ACA7-16FC2B9078A6 <64 51 5 4 3 1>

   66    0 0xffffff7f82232000 0xa000     0xa000     com.apple.driver.AppleXsanScheme (3) CE9B9375-DE2D-396A-9AB5-088FF26F081B <16 5 4 3 1>

   67    0 0xffffff7f81ac0000 0x7000     0x7000     com.apple.iokit.SCSITaskUserClient (394) 4A92621E-97C8-3AB4-8E25-C540967F573C <64 16 5 4 3 1>

   68    3 0xffffff7f81acb000 0xe000     0xe000     com.apple.iokit.IOCDStorageFamily (1.8) 9EEF7CF2-673C-3743-84DD-D3B3D5E61DDB <16 5 4 3 1>

   69    2 0xffffff7f81adc000 0xb000     0xb000     com.apple.iokit.IODVDStorageFamily (1.8) 9BC77405-09A3-3398-AE63-98894C42E288 <68 16 5 4 3 1>

   70    1 0xffffff7f81aea000 0x9000     0x9000     com.apple.iokit.IOBDStorageFamily (1.8) EE071733-F836-360B-958B-440E2CCF81E1 <69 68 16 5 4 3 1>

   71    0 0xffffff7f81af6000 0x1a000    0x1a000    com.apple.iokit.IOSCSIMultimediaCommandsDevice (394) 315023CC-5BBD-3C98-947C-56D52D1C50F6 <70 69 68 64 16 6 5 4 3 1>

   72    0 0xffffff7f818ce000 0x2e000    0x2e000    com.apple.driver.usb.AppleUSBHub (1.1) F7BC6869-E4BA-3291-B7EA-BF28A0ABEF4A <22 11 5 4 3 1>

   73    1 0xffffff7f8190d000 0x8000     0x8000     com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 30502C8D-F4B2-345F-B8F0-F8C54CAD7F46 <22 5 4 3 1>

   74    1 0xffffff7f82275000 0x8000     0x8000     com.apple.driver.usb.networking (5.0.0) 74394A72-1E87-363E-8CFD-182BD8C9362E <22 5 4 3 1>

   75    0 0xffffff7f8227d000 0x9000     0x9000     com.apple.driver.usb.cdc (5.0.0) 6CB80B6B-9071-38ED-9A4B-635ABF20A429 <74 73 22 5 4 3 1>

   76    0 0xffffff7f817b5000 0xb000     0xb000     com.apple.driver.usb.IOUSBHostHIDDevice (1.1) 0548123A-013B-3C74-86A8-33DF73E9CBBB <39 22 5 4 3 1>

   77    0 0xffffff7f829be000 0x3000     0x3000     com.apple.driver.AppleFIVRDriver (4.1.0) 4A860C53-8DCA-33AE-9410-5DE2209AF1E8 <4 3>

   78    1 0xffffff7f81aa4000 0x5000     0x5000     com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) F026208D-CC0C-3599-B303-9196904A584E <7 6 5 4 3 1>

   79    0 0xffffff7f825d1000 0x2000     0x2000     com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <78 4 3>

   80    0 0xffffff7f80f1c000 0x3000     0x3000     com.apple.nvidia.NVDAStartup (10.1.2) 636515FB-F82D-360E-9535-6F40436455AC <12 4 3>

   81    5 0xffffff7f81b1b000 0xa000     0xa000     com.apple.driver.IOPlatformPluginFamily (6.0.0d8) 087648A2-8A44-3095-AEC7-44A872A46205 <11 7 6 5 4 3>

   82    5 0xffffff7f81b25000 0x19000    0x19000    com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1>

   83    1 0xffffff7f81b40000 0x17000    0x17000    com.apple.driver.X86PlatformPlugin (1.0.0) 44ECEA73-E414-3112-BAB4-7AB6D666800C <82 81 43 22 11 7 6 5 4 3 1>

   84    0 0xffffff7f825d5000 0x8000     0x8000     com.apple.driver.AppleIntelMCEReporter (107) 30B0E402-294F-332A-8386-F05E3EE170D9 <7 6 5 4 3>

   85    3 0xffffff7f81aaf000 0xe000     0xe000     com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1>

   86    2 0xffffff7f825e3000 0x8000     0x8000     com.apple.driver.AppleIntelLpssDmac (3.0.60) A0D2AA1D-83FB-37CB-A15D-87F65B37D32B <12 11 5 4 3>

   87    1 0xffffff7f825eb000 0x13000    0x13000    com.apple.driver.AppleIntelLpssUARTCommon (3.0.60) 1C0B46F2-A31B-3573-87E6-5B59843EF917 <86 85 12 11 7 5 4 3 1>

   88    0 0xffffff7f82600000 0x4000     0x4000     com.apple.driver.AppleIntelLpssUARTv1 (3.0.60) 41738372-E263-32DE-8FDA-737D2A7128D8 <87 86 85 12 11 7 5 4 3 1>

   89    0 0xffffff7f80c12000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 4E0262A2-B79C-3386-8824-C106A5DFAF94 <7 5 4 3>

   90    1 0xffffff7f8215d000 0x95000    0x95000    com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3>

   91    1 0xffffff7f821f2000 0x30000    0x30000    com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <90 5 4 3 1>

   92    1 0xffffff7f826e2000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (278.23) 0EDC3DD9-62F9-3704-BECF-5A7BC7E9AACE <5 4 3 1>

   93    9 0xffffff7f80f20000 0x3b000    0x3b000    com.apple.iokit.IOGraphicsFamily (2.4.1) D01B501C-E5B8-36AC-930C-978C205EFEFF <12 7 5 4 3 1>

   94    0 0xffffff7f826f5000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (278.23) F9C803EC-B4ED-3FDA-91FB-2AD433B2E8E4 <93 92 91 12 7 6 5 4 3 1>

   95    3 0xffffff7f80f67000 0x10000    0x10000    com.apple.iokit.IONDRVSupport (2.4.1) 52948BC8-6521-359A-981F-FE33E5F8C721 <93 12 7 5 4 3>

   96    1 0xffffff7f81b60000 0x12000    0x12000    com.apple.driver.IOPlatformPluginLegacy (1.0.0) 9156271B-C61E-3B40-B5B6-102369F12A8B <81 11 7 6 5 4 3>

   97    0 0xffffff7f81b74000 0x10000    0x10000    com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) 7224B682-B40F-3A4A-BCA0-82727D251ECB <96 82 81 12 11 7 6 5 4 3>

   98    0 0xffffff7f82478000 0x3000     0x3000     com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3>

   99    0 0xffffff7f82683000 0xa000     0xa000     com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1>

  100    0 0xffffff7f82507000 0x4000     0x4000     com.apple.driver.AppleOSXWatchdog (1) 757A8B72-2A1A-32BA-99EC-6D802DE6E91F <12 7 6 5 4 3 1>

  101    0 0xffffff7f8246e000 0xa000     0xa000     com.apple.driver.AppleSSE (1.0) 907BB577-46DF-3C86-9034-758B61AD054D <23 7 5 4 3 1>

  102    0 0xffffff7f8203f000 0x5000     0x5000     com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <82 8 7 4 3 1>

  103    0 0xffffff7f81c77000 0xe0000    0xe0000    com.apple.iokit.IOBluetoothFamily (5.0.1f7) 794ACDDD-2B46-3BF0-94E9-4FD7C109A427 <15 7 5 4 3 1>

  104    0 0xffffff7f81c63000 0xa000     0xa000     com.apple.iokit.IOBluetoothSerialManager (5.0.1f7) 6F68B8CF-6543-328E-AF57-DD250412CF02 <85 7 5 4 3 1>

  105    0 0xffffff7f81a87000 0x17000    0x17000    com.apple.iokit.IOSurface (153.1) D3B2D208-487C-3166-9F7D-D6159AABC428 <7 6 5 4 3 1>

  106    0 0xffffff7f8161c000 0x6000     0x6000     com.apple.iokit.IOUserEthernet (1.0.1) 5EE448BD-95EC-35AD-B7FC-A1237E4BB346 <45 6 5 4 3 1>

  107    0 0xffffff7f80f06000 0xf000     0xf000     com.apple.driver.pmtelemetry (1) F46D019B-17FF-3CD5-A093-0894B81C1404 <7 6 5 4 3>

  108    3 0xffffff7f80f77000 0xa000     0xa000     com.apple.AppleGraphicsDeviceControl (3.13.74) BC16864D-447E-3F3C-BA1A-280868E043BB <7 6 5 4 3 1>

  109    2 0xffffff7f80f83000 0x2f2000   0x2f2000   com.apple.nvidia.driver.NVDAResman (10.1.2) 5DD89348-73FE-38C1-87A2-FE664001CBAA <108 95 93 12 7 5 4 3 1>

  110    0 0xffffff7f81285000 0x1b3000   0x1b3000   com.apple.nvidia.driver.NVDAGK100Hal (10.1.2) D5475C72-21B8-356C-A904-78CD5AAEBA45 <109 12 4 3>

  111    1 0xffffff7f81eba000 0x91000    0x91000    com.apple.iokit.IOAcceleratorFamily2 (288.15) 51C08EBC-F91D-34E3-90CC-8F3D3011F8B2 <93 12 7 6 5 4 3 1>

  112    0 0xffffff7f81f5a000 0xa4000    0xa4000    com.apple.GeForce (10.1.2) C8C382F8-7A67-39E9-BFF5-46FF935420BC <111 109 95 93 12 7 5 4 3 1>

  113    1 0xffffff7f81aa0000 0x4000     0x4000     com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3>

  114    1 0xffffff7f82514000 0xe000     0xe000     com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <113 12 11 5 4 3>

  115    0 0xffffff7f82525000 0xe000     0xe000     com.apple.driver.AppleMCCSControl (1.2.13) 102DD5D9-2DD5-3BCB-B5C0-BE08E1049CD6 <114 93 82 12 11 7 5 4 3 1>

  116    0 0xffffff7f822de000 0x5000     0x5000     com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <93 12 11 7 5 4 3 1>

  117    1 0xffffff7f8214d000 0x5000     0x5000     com.apple.kext.triggers (1.0) 4E564246-8804-3673-B440-606AD360A3BB <7 6 5 4 3 1>

  118    0 0xffffff7f82152000 0x9000     0x9000     com.apple.filesystems.autofs (3.0) AA36D92F-D92B-3102-BAE3-F86A0A298143 <117 7 6 5 4 3 1>

  119    1 0xffffff7f81b57000 0x7000     0x7000     com.apple.driver.X86PlatformShim (1.0.0) 25B103A5-64AA-3452-BEFA-B43436A7C973 <83 82 81 7 4 3>

  120    0 0xffffff7f82500000 0x4000     0x4000     com.apple.driver.ApplePlatformEnabler (2.7.0d0) 25DBF68E-B669-3367-A517-BA27C9567D74 <7 5 4 3>

  121    0 0xffffff7f8297e000 0x18000    0x18000    com.apple.driver.AGPM (110.23.11) D5FD05CB-B5FC-3E21-8095-CE33268156B5 <108 95 93 81 12 6 5 4 3>

  122    1 0xffffff7f8299f000 0x3000     0x3000     com.apple.driver.AppleGraphicsControl (3.13.74) 19D93391-DAD9-3A7B-BB38-B3673AC90588 <7 5 4 3 1>



  123    0 0xffffff7f829a2000 0xb000     0xb000     com.apple.driver.AppleGraphicsDevicePolicy (3.13.74) D25D47B3-EB1B-3EC4-B775-A2D5154FC02B <122 108 93 12 11 7 6 5 4 3 1>









EIST ON / TURBO ON:





Index Refs Address            Size       Wired      Name (Version) UUID <Linked Against>

    1   81 0xffffff7f80a46000 0x9d30     0x9d30     com.apple.kpi.bsd (16.1.0) 1BF8BE38-F500-40F5-B265-043F5CDE39B9

    2    9 0xffffff7f80e05000 0x3940     0x3940     com.apple.kpi.dsep (16.1.0) 7018F6B2-971E-4C9B-A4E5-A8C051EE91C3

    3  111 0xffffff7f80a04000 0x21040    0x21040    com.apple.kpi.iokit (16.1.0) 1A48E9B6-F4D0-4F61-BC4E-0566D95BA536

    4  116 0xffffff7f80a26000 0xd200     0xd200     com.apple.kpi.libkern (16.1.0) FCD6B6C7-05E8-42DE-BA4B-CED0CC3FA977

    5   99 0xffffff7f80a00000 0x3dd0     0x3dd0     com.apple.kpi.mach (16.1.0) 49BA8EBA-4184-49A8-83AA-728CAD07E8BE

    6   52 0xffffff7f80a34000 0xba10     0xba10     com.apple.kpi.private (16.1.0) 27B10EE3-B293-4C15-9CAE-30E703D3EBE1

    7   75 0xffffff7f80a40000 0x5890     0x5890     com.apple.kpi.unsupported (16.1.0) 976AE2B1-2A52-4684-9857-91374408C70F

    8    5 0xffffff7f80e0c000 0xa7000    0xa7000    com.apple.kec.corecrypto (1.0) 809FEC94-017C-307A-B099-A01EFF5485FB <7 6 5 4 3 1>

    9    0 0xffffff7f80ef7000 0xf000     0xf000     com.apple.kec.pthread (1) 36567317-B854-3157-ABF3-CEAD0A3770BB <7 6 5 4 1>

   10    1 0xffffff7f8145f000 0xb000     0xb000     com.apple.kec.Libm (1) 51D82C5F-0248-334D-ADC6-5861BBB83C97 <4>

   11   25 0xffffff7f8146a000 0x9000     0x9000     com.apple.iokit.IOACPIFamily (1.4) 4F7FB6AD-2498-3F71-827C-ED7AA4BF2511 <7 6 4 3>

   12   27 0xffffff7f80b32000 0x34000    0x34000    com.apple.iokit.IOPCIFamily (2.9) A55C1363-A09F-3755-9BD3-526A7A2C3B5B <7 6 5 4 3>

   13    1 0xffffff7f82ae1000 0x60000    0x60000    com.apple.driver.AppleACPIPlatform (5.0) 249D7BA8-3FD5-3207-A482-0605CB898037 <12 11 7 6 5 4 3 1>

   14    1 0xffffff7f8171c000 0xb000     0xb000     com.apple.driver.AppleFDEKeyStore (28.30) EA5D0966-E8EA-337A-98EB-195806E8F723 <8 7 6 5 4 3 1>

   15    2 0xffffff7f81b14000 0x7000     0x7000     com.apple.iokit.IOReportFamily (31) B14DC3D3-7250-3DA3-BF50-C666EBEDAF4C <5 4 3>

   16   10 0xffffff7f80a50000 0x27000    0x27000    com.apple.iokit.IOStorageFamily (2.1) 510A2AD8-C127-34AA-A984-95A82C6AC1DA <7 6 5 4 3 1>

   17    0 0xffffff7f81bd4000 0x19000    0x19000    com.apple.driver.DiskImages (444.20.3) 05A729EF-20B8-3254-8F13-42DF42E0544B <16 7 6 5 4 3 1>

   18    2 0xffffff7f81e2a000 0xb000     0xb000     org.netkas.FakeSMC (3.4.1) ECE4F326-3D57-3670-82F0-4EA31C371CD1 <11 7 5 4 3>

   19    0 0xffffff7f81e37000 0x6000     0x6000     org.slice.IntelCPUMonitor (1.2.0) 43846BAE-D770-31A6-B52B-7176A2DA3ECE <18 7 5 4 3>

   20    0 0xffffff7f81e3f000 0x3000     0x3000     org.slice.HWInfo (1.0.1) 1C36E311-B17C-34E5-A65B-34E7F3DC65C2 <18 7 4 3>

   21    1 0xffffff7f81473000 0xd000     0xd000     com.apple.driver.AppleBusPowerController (1.0) DB526B45-1A45-3A81-A0C1-57F826CADEDF <11 5 4 3>

   22   13 0xffffff7f81480000 0x69000    0x69000    com.apple.iokit.IOUSBHostFamily (1.1) 39E90AC4-0FCA-3CBD-80B2-3CBCD82940DC <21 7 6 5 4 3 1>

   23    3 0xffffff7f814f1000 0x11000    0x11000    com.apple.driver.KernelRelayHost (1) 3B58E6F0-DE92-3289-9D3B-3BF12208585F <22 5 4 3>

   24    1 0xffffff7f8255f000 0x24000    0x24000    com.apple.driver.AppleCredentialManager (1.0) 54677B39-44B3-3AAA-BBEC-D78D0B5CC1A7 <23 8 7 6 5 4 3 1>

   25    2 0xffffff7f80eb3000 0x16000    0x16000    com.apple.driver.AppleMobileFileIntegrity (1.0.5) 0EFA4D2C-2271-3C43-B777-17D05716144A <8 7 6 5 4 3 2 1>

   26    0 0xffffff7f82583000 0x47000    0x47000    com.apple.driver.AppleKeyStore (2) 75515493-6D25-39F7-8F0B-B08B505CAB74 <25 24 23 8 7 6 5 4 3 1>

   27    0 0xffffff7f82650000 0x2b000    0x2b000    com.apple.driver.AppleIntelCPUPowerManagement (219.0.0) 67442A80-F177-33D5-86D9-E8005CF8C07F <7 6 5 4 3 1>

   28    0 0xffffff7f829de000 0xc1000    0xc1000    as.vit9696.AppleALC (1.0.17) E1F82918-216E-389A-A096-BDDF4F27A8CC <7 5 4 3 2 1>

   29    0 0xffffff7f80e09000 0x2000     0x2000     com.apple.security.TMSafetyNet (8) 1CB512A3-24BD-344A-BFB4-44A61F27AB03 <7 6 5 4 2 1>

   30    2 0xffffff7f80ec9000 0x5000     0x5000     com.apple.kext.AppleMatch (1.0.0d1) 3B280DAB-903F-33DC-8110-525A1154B11E <4 1>

   31    1 0xffffff7f80ece000 0x1f000    0x1f000    com.apple.security.sandbox (300.0) 32039FC4-CA9B-3B74-B326-A2BF5CFE45E1 <30 25 16 7 6 5 4 3 2 1>

   32    0 0xffffff7f80eed000 0x9000     0x9000     com.apple.security.quarantine (3) EC92F0F9-694E-3E22-8B2C-4A071D20C6BA <31 30 7 6 5 4 2 1>

   33    0 0xffffff7f82bd5000 0x8000     0x8000     com.apple.nke.applicationfirewall (172) 2A0DC0EF-655C-3D4B-93FD-3AED72BEBBDC <7 6 5 4 3 1>

   34    0 0xffffff7f829d9000 0x3000     0x3000     com.apple.driver.AppleAPIC (1.7) BC2E6D01-BCBB-3525-BF38-BF99C3F1EC46 <4 3>

   35    0 0xffffff7f8247b000 0x4000     0x4000     com.apple.driver.AppleSMBIOS (2.1) 9BB02681-4B47-3592-AD62-71FB0BF56965 <7 4 3>

   36    0 0xffffff7f824a8000 0x8000     0x8000     com.apple.driver.AppleRTC (2.0) 3FD1BCF4-8AFC-3CE6-A36E-26410544AD14 <11 5 4 3 1>

   37    1 0xffffff7f81b8b000 0x5000     0x5000     com.apple.driver.AppleEFIRuntime (2.0) 6B7A5B9A-C313-3F7F-B6E2-60EE54593BC8 <7 6 5 4 3>

   38    0 0xffffff7f826c7000 0x3000     0x3000     com.apple.driver.AppleHPET (1.8) 2CFB49B8-4CC2-320B-9C6E-99646DFD8571 <11 7 5 4 3>

   39    2 0xffffff7f81727000 0x79000    0x79000    com.apple.iokit.IOHIDFamily (2.0.0) 1A48D920-280E-36FA-8D48-49B79A5656E6 <14 7 6 5 4 3 2 1>

   40    0 0xffffff7f82b51000 0x4000     0x4000     com.apple.driver.AppleACPIButtons (5.0) 4D5E51D6-8A6B-3B6A-A8F2-472D56C9D0C3 <39 15 13 11 7 6 5 4 3 1>

   41    0 0xffffff7f81b90000 0xb000     0xb000     com.apple.driver.AppleEFINVRAM (2.1) 6F4404D6-8625-35CA-AEB6-6ECD7B64FA52 <37 7 6 5 4 3 2 1>

   42    0 0xffffff7f8264b000 0x3000     0x3000     com.apple.driver.AppleIntelCPUPowerManagementClient (219.0.0) B802638B-251C-3602-BA8C-001F87228765 <7 6 5 4 3 1>

   43    2 0xffffff7f8165c000 0x9a000    0x9a000    com.apple.iokit.IOUSBFamily (900.4.1) 365596E4-A771-3427-B576-DB02D03FAEFE <22 12 7 5 4 3 1>

   44    0 0xffffff7f81904000 0x5000     0x5000     com.apple.driver.usb.AppleUSBHostPacketFilter (1.0) 9888F9CD-B7EE-3A9D-8530-6FA4C167B26C <22 7 6 5 4 3 1>

   45    2 0xffffff7f815e8000 0x2d000    0x2d000    com.apple.iokit.IONetworkingFamily (3.2) 6326DB88-5330-3F0C-91F6-D478AB5E7503 <7 6 5 4 3 1>

   46    1 0xffffff7f81e43000 0x7000     0x7000     com.apple.filesystems.hfs.encodings.kext (1) 68A8D6C1-CDCA-371C-970B-325BF2E7ECAB <7 6 5 4 3 1>

   47    0 0xffffff7f81e4a000 0x69000    0x69000    com.apple.filesystems.hfs.kext (366.1.1) 6C6C4A98-1534-3C52-B006-00FBC479233E <46 7 6 5 4 3 1>

   48    0 0xffffff7f82141000 0xa000     0xa000     com.apple.BootCache (40) C38789F4-9226-303C-99BE-3B8EAF8EC5C2 <7 6 5 4 3 1>

   49    0 0xffffff7f829b2000 0x6000     0x6000     com.apple.AppleFSCompression.AppleFSCompressionTypeZlib (1.0.0) 9B32DDE9-151F-31A1-90E9-3CEB2C7BE27C <6 4 3 2 1>

   50    0 0xffffff7f829ba000 0x3000     0x3000     com.apple.AppleFSCompression.AppleFSCompressionTypeDataless (1.0.0d1) C6F882D7-C35C-3963-A2FA-10033FF40107 <7 6 4 3 2 1>

   51    0 0xffffff7f829c3000 0x2000     0x2000     com.apple.driver.AppleFileSystemDriver (3.0.1) 527DF605-93C5-38CD-B8DB-408E5F88AEAD <16 4 3>

   52    3 0xffffff7f81dbd000 0x1a000    0x1a000    com.apple.iokit.IOAHCIFamily (288) 5C275B66-A173-3D92-853A-44FC35D45FFC <5 4 3 1>

   53    0 0xffffff7f82ab4000 0x1e000    0x1e000    com.apple.driver.AppleAHCIPort (326) BE72151C-73BE-35B7-8C31-74F49E4C5E98 <52 12 5 4 3 1>

   54    1 0xffffff7f817c0000 0x40000    0x40000    com.apple.driver.usb.AppleUSBXHCI (1.1) E5F9850E-A1A1-305F-854D-48B46C08B2EC <22 11 7 5 4 3 1>

   55    0 0xffffff7f81806000 0x29000    0x29000    com.apple.driver.usb.AppleUSBXHCIPCI (1.1) B4287428-23D9-3547-93B5-2FEB73A02EA6 <54 22 12 11 7 5 4 3 1>

   56    0 0xffffff7f81e10000 0x14000    0x14000    com.insanelymac.IntelMausiEthernet (2.2.0) 3A6046E0-A8B1-32C2-9532-1EBF16AEB28B <45 12 5 4 3 1>

   57    0 0xffffff7f82604000 0xb000     0xb000     com.apple.driver.AppleIntelLpssGspi (3.0.60) ABECB00A-0FCD-36ED-A385-AF09E20FFAB9 <12 11 7 5 4 3>

   58    0 0xffffff7f82625000 0xa000     0xa000     com.apple.driver.AppleIntelLpssI2C (3.0.60) 3D476876-69CA-32E5-A23B-8F961DBA06F8 <12 11 7 5 4 3>

   59    1 0xffffff7f8183a000 0x3d000    0x3d000    com.apple.driver.usb.AppleUSBEHCI (1.1) BF6EF9A2-F090-3094-B3FA-F34351D946CF <22 11 7 5 4 3 1>

   60    0 0xffffff7f81919000 0xe000     0xe000     com.apple.driver.usb.AppleUSBEHCIPCI (1.1) 4FCE62CA-0477-34A2-9564-86F807CDBD4D <59 22 12 11 7 5 4 3 1>

   61    1 0xffffff7f81909000 0x4000     0x4000     com.apple.driver.AppleUSBHostMergeProperties (1.1) 01547475-6C58-324B-B81D-F74389BB00FF <4 3 1>

   62    0 0xffffff7f81951000 0x3000     0x3000     com.apple.driver.AppleUSBMergeNub (900.4.1) 0F857BDF-849D-3619-8E32-29A69FBBD23C <61 43 4 3 1>

   63    0 0xffffff7f81de7000 0x1c000    0x1c000    com.apple.iokit.IOAHCIBlockStorage (295.20.1) C449634B-8121-3BFB-972D-966847C4321F <52 16 6 5 4 3 1>

   64    3 0xffffff7f80aef000 0x2b000    0x2b000    com.apple.iokit.IOSCSIArchitectureModelFamily (394) 0E35A335-5605-36FB-991C-D0D38F4FA4E7 <6 5 4 3 1>

   65    0 0xffffff7f81dda000 0xd000     0xd000     com.apple.iokit.IOAHCISerialATAPI (266) 681FA1E2-E3DE-3FEB-ACA7-16FC2B9078A6 <64 52 5 4 3 1>

   66    0 0xffffff7f82232000 0xa000     0xa000     com.apple.driver.AppleXsanScheme (3) CE9B9375-DE2D-396A-9AB5-088FF26F081B <16 5 4 3 1>

   67    0 0xffffff7f81ac0000 0x7000     0x7000     com.apple.iokit.SCSITaskUserClient (394) 4A92621E-97C8-3AB4-8E25-C540967F573C <64 16 5 4 3 1>

   68    3 0xffffff7f81acb000 0xe000     0xe000     com.apple.iokit.IOCDStorageFamily (1.8) 9EEF7CF2-673C-3743-84DD-D3B3D5E61DDB <16 5 4 3 1>

   69    2 0xffffff7f81adc000 0xb000     0xb000     com.apple.iokit.IODVDStorageFamily (1.8) 9BC77405-09A3-3398-AE63-98894C42E288 <68 16 5 4 3 1>

   70    1 0xffffff7f81aea000 0x9000     0x9000     com.apple.iokit.IOBDStorageFamily (1.8) EE071733-F836-360B-958B-440E2CCF81E1 <69 68 16 5 4 3 1>

   71    0 0xffffff7f81af6000 0x1a000    0x1a000    com.apple.iokit.IOSCSIMultimediaCommandsDevice (394) 315023CC-5BBD-3C98-947C-56D52D1C50F6 <70 69 68 64 16 6 5 4 3 1>

   72    0 0xffffff7f818ce000 0x2e000    0x2e000    com.apple.driver.usb.AppleUSBHub (1.1) F7BC6869-E4BA-3291-B7EA-BF28A0ABEF4A <22 11 5 4 3 1>

   73    1 0xffffff7f8190d000 0x8000     0x8000     com.apple.driver.usb.AppleUSBHostCompositeDevice (1.1) 30502C8D-F4B2-345F-B8F0-F8C54CAD7F46 <22 5 4 3 1>

   74    1 0xffffff7f82275000 0x8000     0x8000     com.apple.driver.usb.networking (5.0.0) 74394A72-1E87-363E-8CFD-182BD8C9362E <22 5 4 3 1>

   75    0 0xffffff7f8227d000 0x9000     0x9000     com.apple.driver.usb.cdc (5.0.0) 6CB80B6B-9071-38ED-9A4B-635ABF20A429 <74 73 22 5 4 3 1>

   76    0 0xffffff7f817b5000 0xb000     0xb000     com.apple.driver.usb.IOUSBHostHIDDevice (1.1) 0548123A-013B-3C74-86A8-33DF73E9CBBB <39 22 5 4 3 1>

   77    0 0xffffff7f825d5000 0x8000     0x8000     com.apple.driver.AppleIntelMCEReporter (107) 30B0E402-294F-332A-8386-F05E3EE170D9 <7 6 5 4 3>

   78    0 0xffffff7f829be000 0x3000     0x3000     com.apple.driver.AppleFIVRDriver (4.1.0) 4A860C53-8DCA-33AE-9410-5DE2209AF1E8 <4 3>

   79    1 0xffffff7f81aa4000 0x5000     0x5000     com.apple.iokit.IOSlowAdaptiveClockingFamily (1.0.0) F026208D-CC0C-3599-B303-9196904A584E <7 6 5 4 3 1>

   80    0 0xffffff7f825d1000 0x2000     0x2000     com.apple.driver.AppleIntelSlowAdaptiveClocking (4.0.0) 6FE984DD-A1FE-309E-83CF-B346989A6F17 <79 4 3>

   81    0 0xffffff7f80c12000 0x4000     0x4000     com.intel.driver.EnergyDriver (2.0) 4E0262A2-B79C-3386-8824-C106A5DFAF94 <7 5 4 3>

   82    0 0xffffff7f80f1c000 0x3000     0x3000     com.apple.nvidia.NVDAStartup (10.1.2) 636515FB-F82D-360E-9535-6F40436455AC <12 4 3>

   83    5 0xffffff7f81b25000 0x19000    0x19000    com.apple.driver.AppleSMC (3.1.9) 969D80B2-E714-3145-95B0-F61627E0EE4D <11 7 5 4 3 1>

   84    5 0xffffff7f81b1b000 0xa000     0xa000     com.apple.driver.IOPlatformPluginFamily (6.0.0d8) 087648A2-8A44-3095-AEC7-44A872A46205 <11 7 6 5 4 3>

   85    1 0xffffff7f81b40000 0x17000    0x17000    com.apple.driver.X86PlatformPlugin (1.0.0) 44ECEA73-E414-3112-BAB4-7AB6D666800C <84 83 43 22 11 7 6 5 4 3 1>

   86    1 0xffffff7f81b60000 0x12000    0x12000    com.apple.driver.IOPlatformPluginLegacy (1.0.0) 9156271B-C61E-3B40-B5B6-102369F12A8B <84 11 7 6 5 4 3>

   87    0 0xffffff7f81b74000 0x10000    0x10000    com.apple.driver.ACPI_SMC_PlatformPlugin (1.0.0) 7224B682-B40F-3A4A-BCA0-82727D251ECB <86 84 83 12 11 7 6 5 4 3>

   88    1 0xffffff7f8215d000 0x95000    0x95000    com.apple.vecLib.kext (1.2.0) C0ABF85C-CA30-3F02-9E1E-06F3BA5047A8 <10 6 5 4 3>

   89    1 0xffffff7f821f2000 0x30000    0x30000    com.apple.iokit.IOAudioFamily (205.11) 03A8E3F2-F30D-3D41-85E7-0B1C58034419 <88 5 4 3 1>

   90    1 0xffffff7f826e2000 0xc000     0xc000     com.apple.iokit.IOHDAFamily (278.23) 0EDC3DD9-62F9-3704-BECF-5A7BC7E9AACE <5 4 3 1>

   91    9 0xffffff7f80f20000 0x3b000    0x3b000    com.apple.iokit.IOGraphicsFamily (2.4.1) D01B501C-E5B8-36AC-930C-978C205EFEFF <12 7 5 4 3 1>

   92    0 0xffffff7f826f5000 0x1d000    0x1d000    com.apple.driver.AppleHDAController (278.23) F9C803EC-B4ED-3FDA-91FB-2AD433B2E8E4 <91 90 89 12 7 6 5 4 3 1>

   93    3 0xffffff7f81aaf000 0xe000     0xe000     com.apple.iokit.IOSerialFamily (11) B36990F3-B873-31BB-8A1B-5615A3277382 <7 6 5 4 3 1>

   94    2 0xffffff7f825e3000 0x8000     0x8000     com.apple.driver.AppleIntelLpssDmac (3.0.60) A0D2AA1D-83FB-37CB-A15D-87F65B37D32B <12 11 5 4 3>

   95    1 0xffffff7f825eb000 0x13000    0x13000    com.apple.driver.AppleIntelLpssUARTCommon (3.0.60) 1C0B46F2-A31B-3573-87E6-5B59843EF917 <94 93 12 11 7 5 4 3 1>

   96    0 0xffffff7f82600000 0x4000     0x4000     com.apple.driver.AppleIntelLpssUARTv1 (3.0.60) 41738372-E263-32DE-8FDA-737D2A7128D8 <95 94 93 12 11 7 5 4 3 1>

   97    0 0xffffff7f82683000 0xa000     0xa000     com.apple.driver.AppleHV (1) 39AC9B9B-7B20-322F-82F0-044B3CC08D43 <7 6 5 4 3 1>

   98    3 0xffffff7f80f67000 0x10000    0x10000    com.apple.iokit.IONDRVSupport (2.4.1) 52948BC8-6521-359A-981F-FE33E5F8C721 <91 12 7 5 4 3>

   99    0 0xffffff7f82507000 0x4000     0x4000     com.apple.driver.AppleOSXWatchdog (1) 757A8B72-2A1A-32BA-99EC-6D802DE6E91F <12 7 6 5 4 3 1>

  100    0 0xffffff7f8246e000 0xa000     0xa000     com.apple.driver.AppleSSE (1.0) 907BB577-46DF-3C86-9034-758B61AD054D <23 7 5 4 3 1>

  101    0 0xffffff7f8203f000 0x5000     0x5000     com.apple.Dont_Steal_Mac_OS_X (7.0.0) B97F871A-44FD-3EA4-BC46-8FD682118C79 <83 8 7 4 3 1>

  102    0 0xffffff7f81c77000 0xe0000    0xe0000    com.apple.iokit.IOBluetoothFamily (5.0.1f7) 794ACDDD-2B46-3BF0-94E9-4FD7C109A427 <15 7 5 4 3 1>

  103    0 0xffffff7f82478000 0x3000     0x3000     com.apple.driver.AppleSMBusPCI (1.0.14d1) F5516FB7-82C6-3E74-98E7-80EDCA074BC2 <12 5 4 3>

  104    0 0xffffff7f81c63000 0xa000     0xa000     com.apple.iokit.IOBluetoothSerialManager (5.0.1f7) 6F68B8CF-6543-328E-AF57-DD250412CF02 <93 7 5 4 3 1>

  105    0 0xffffff7f81a87000 0x17000    0x17000    com.apple.iokit.IOSurface (153.1) D3B2D208-487C-3166-9F7D-D6159AABC428 <7 6 5 4 3 1>

  106    0 0xffffff7f8161c000 0x6000     0x6000     com.apple.iokit.IOUserEthernet (1.0.1) 5EE448BD-95EC-35AD-B7FC-A1237E4BB346 <45 6 5 4 3 1>

  107    0 0xffffff7f80f06000 0xf000     0xf000     com.apple.driver.pmtelemetry (1) F46D019B-17FF-3CD5-A093-0894B81C1404 <7 6 5 4 3>

  108    3 0xffffff7f80f77000 0xa000     0xa000     com.apple.AppleGraphicsDeviceControl (3.13.74) BC16864D-447E-3F3C-BA1A-280868E043BB <7 6 5 4 3 1>

  109    2 0xffffff7f80f83000 0x2f2000   0x2f2000   com.apple.nvidia.driver.NVDAResman (10.1.2) 5DD89348-73FE-38C1-87A2-FE664001CBAA <108 98 91 12 7 5 4 3 1>

  110    0 0xffffff7f81285000 0x1b3000   0x1b3000   com.apple.nvidia.driver.NVDAGK100Hal (10.1.2) D5475C72-21B8-356C-A904-78CD5AAEBA45 <109 12 4 3>

  111    1 0xffffff7f81eba000 0x91000    0x91000    com.apple.iokit.IOAcceleratorFamily2 (288.15) 51C08EBC-F91D-34E3-90CC-8F3D3011F8B2 <91 12 7 6 5 4 3 1>

  112    0 0xffffff7f81f5a000 0xa4000    0xa4000    com.apple.GeForce (10.1.2) C8C382F8-7A67-39E9-BFF5-46FF935420BC <111 109 98 91 12 7 5 4 3 1>

  113    1 0xffffff7f81aa0000 0x4000     0x4000     com.apple.iokit.IOSMBusFamily (1.1) 185F0EBF-0262-3370-BD47-8FE4C8AA726E <5 4 3>

  114    1 0xffffff7f82514000 0xe000     0xe000     com.apple.driver.AppleSMBusController (1.0.14d1) 4DAA381E-3690-3E94-8025-DFB34F714094 <113 12 11 5 4 3>

  115    0 0xffffff7f82525000 0xe000     0xe000     com.apple.driver.AppleMCCSControl (1.2.13) 102DD5D9-2DD5-3BCB-B5C0-BE08E1049CD6 <114 91 83 12 11 7 5 4 3 1>

  116    0 0xffffff7f822de000 0x5000     0x5000     com.apple.driver.AppleUpstreamUserClient (3.6.4) F39509A4-191C-35DA-B7D9-08F95E5AB8BC <91 12 11 7 5 4 3 1>

  117    1 0xffffff7f8214d000 0x5000     0x5000     com.apple.kext.triggers (1.0) 4E564246-8804-3673-B440-606AD360A3BB <7 6 5 4 3 1>

  118    0 0xffffff7f82152000 0x9000     0x9000     com.apple.filesystems.autofs (3.0) AA36D92F-D92B-3102-BAE3-F86A0A298143 <117 7 6 5 4 3 1>

  119    1 0xffffff7f81b57000 0x7000     0x7000     com.apple.driver.X86PlatformShim (1.0.0) 25B103A5-64AA-3452-BEFA-B43436A7C973 <85 84 83 7 4 3>

  120    0 0xffffff7f8297e000 0x18000    0x18000    com.apple.driver.AGPM (110.23.11) D5FD05CB-B5FC-3E21-8095-CE33268156B5 <108 98 91 84 12 6 5 4 3>

  121    0 0xffffff7f82500000 0x4000     0x4000     com.apple.driver.ApplePlatformEnabler (2.7.0d0) 25DBF68E-B669-3367-A517-BA27C9567D74 <7 5 4 3>

  122    1 0xffffff7f8299f000 0x3000     0x3000     com.apple.driver.AppleGraphicsControl (3.13.74) 19D93391-DAD9-3A7B-BB38-B3673AC90588 <7 5 4 3 1>

  123    0 0xffffff7f829a2000 0xb000     0xb000     com.apple.driver.AppleGraphicsDevicePolicy (3.13.74) D25D47B3-EB1B-3EC4-B775-A2D5154FC02B <122 108 91 12 11 7 6 5 4 3 1>





Edited by Allan
Spoiler tag added
Link to comment
Share on other sites

@hubilay

not necessary to put always kextstat output

you have to generate a new ssdt because your actual one has not turbo set as you want (@4200 I mean)

Also you have to set to 1 xcpm always in your ssdt

then, you could try my second config.plist with three patches active

no work........ eist on/off, anyway

new generated ssdt - https://1drv.ms/u/s!ArLPkmcocLJiqHJEVCfeJPJ6qMKX

Probably have to write on the forum EVGA so they added functionality

Link to comment
Share on other sites

this ssdt is good

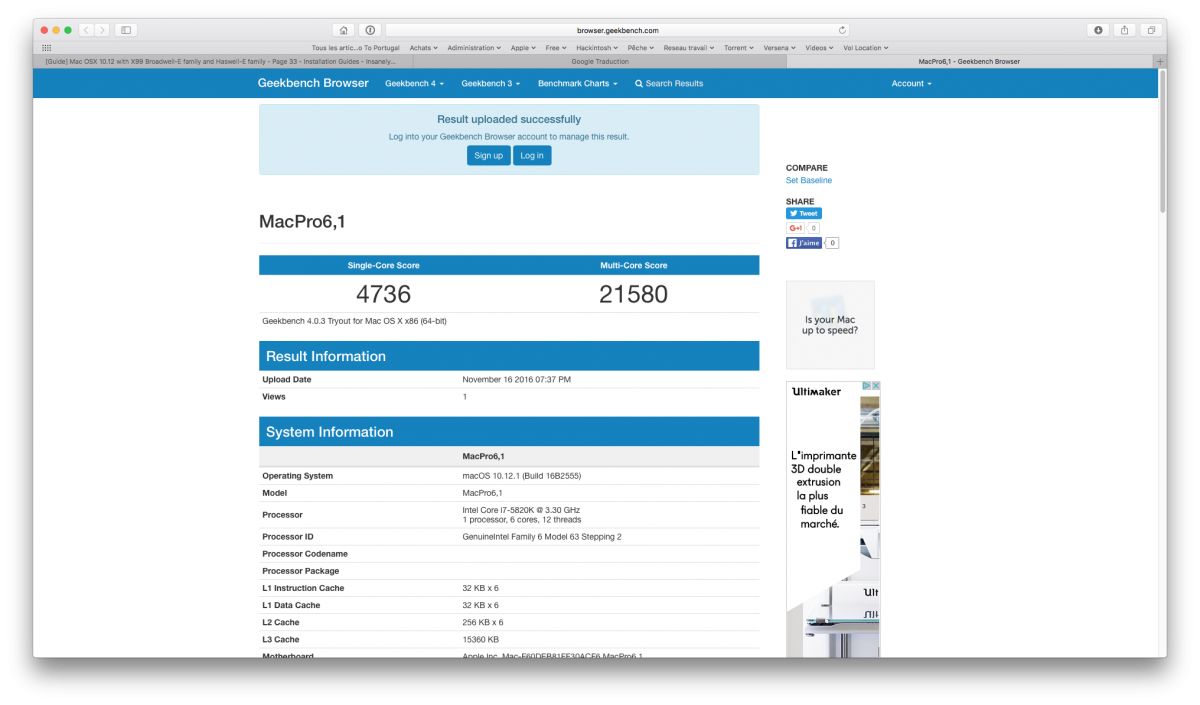

try it with this config a do a test with Geekbench or similar



config.plist 2.zip



if it is not working I don't know why..



in this condition you should not have anymore applecpuintelpowermanagement listed in kextstat

have you also used frequency vector.sh always from piker alpha GitHub?

you could also try to start without ssdt and test it

but maybe all of this is unrelated




nullcpu = 3800 single, 16700 multi








with windows 1282








Yes i used last version frequency vector.sh for mac pro 6.1

Link to comment
Share on other sites

I flashed the old version of the BIOS (without support broadwell-e) and received the following:

https://1drv.ms/v/s!ArLPkmcocLJiqHOvpvBr3HkpieF8



yes, a little differences it is normal..no too much as I see here

but in windows you are at x48... with turbo



in my case difference from OS X and windows is about 10% less in osx


You have to choose iMac 14.2 or similar when script ask for a choice..also you can try iMac 17.1)

with this choice you will add some fv that original MacPro6.1 does not have

i go test this

--------------

no work

Link to comment
Share on other sites

It is obvious that the problem of lack of functionality in the BIOS, I will not torture you or not will yourself until the corrected version of the BIOS.

Thanks for the help guys! :)

Yes , I think

Good luck for the future


Link to comment
Share on other sites

It is obvious that the problem of lack of functionality in the BIOS, I will not torture you or not will yourself until the corrected version of the BIOS.

Thanks for the help guys! :)

Don't take it personal but I'd dump that POS motherboard. I have one in the closet, it hasn't worked well with any bios version or any version of OSX. I haven't put it in the driveway and run over it yet as I keep it as a reminder to not buy any EVGA board for OSX. (OK for a Windoze box but nothing exceptional).



@thenightflyer: enabling "Cpu Halt Enabler" is the least of his problems...  :hysterical:

Link to comment
Share on other sites

Don't take it personal but I'd dump that POS motherboard. I have one in the closet, it hasn't worked well with any bios version or any version of OSX. I haven't put it in the driveway and run over it yet as I keep it as a reminder to not buy any EVGA board for OSX. (OK for a Windoze box but nothing exceptional).



@thenightflyer: enabling "Cpu Halt Enabler" is the least of his problems...  :hysterical:

Infact my question was not related with his problems but was my curiosity...and i don't know why i'm loosing time to answer to that comment you wrote that as usual is not helpful to his problem!

Link to comment
Share on other sites

 Share

×
×
  • Create New...
