SammlerG Posted October 23, 2016 Share Posted October 23, 2016 Hi Fergarth I can speak for my self and I would like to say I am not a developer but a simple user who tries to apply some guru's findings- In this thread (also in mine) we are experimenting with difference experience and with some variations the findings of pikeralpha (his blog is a great place for inspirations) Some of us maybe understand before others his not simple way to help not experienced users (sorry pike if you are reading those words :-) :-) ) Thanks to Pike now we have also a hackintosh working with platform and CPU two steps beyond original Macs So... we have to be happy Maybe we have also to pay more attention to use all we read in "correct" way Forum like IM are here also for this task! @nmano sorry nmano you have disabled in bios EIST and have you this? - Enhanced Intel SpeedStep Technology.. : 1 (enabled) this means it is enabled Yes it´s a problem with Gigabyte BIOS, you can disable EIST in Bios but msr 0x1A0 bit 16 is set false. So EIST keeps enabled. Same here with Gigabyte board. See here: http://www.insanelymac.com/forum/topic/313296-guide-mac-osx-1012-with-x99-broadwell-e-family-and-haswell-e-family/?p=2303763 AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x10493a4ec1a (31 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF80583EA600 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x1555F8B722 IA32_APERF.......................(0xE8) : 0x1ADCE52333 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x2B0900002E00 ------------------------------------------ - Current Performance State Value...... : 0x2E00 (4600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2E00 ------------------------------------------ - Target performance State Value....... : 0x2E00 (4600 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88450000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2E2E ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2E (4600 MHz) - Maximum Ratio Limit for C02.......... : 2E (4600 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x2560086 ------------------------------------------ - Total Energy Consumed................ : 2392 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x527593BFA3 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x1E68A9C MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x360E57F078 IA32_TSC_DEADLINE................(0x6E0) : 0x104970B4FFE CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 46 (4600 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 39 46 ] CPU C3-Cores [ 1 3 4 6 10 ] CPU C6-Cores [ 0 2 4 6 8 10 ] CPU P-States [ (12) 30 39 46 ] CPU C3-Cores [ 1 2 3 4 6 7 10 ] CPU P-States [ 12 25 30 39 (46) ] CPU C3-Cores [ 1 2 3 4 6 7 10 11 ] CPU P-States [ 12 22 25 30 39 (46) ] CPU C3-Cores [ 1 2 3 4 5 6 7 10 11 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 10 11 ] CPU P-States [ (12) 22 25 27 30 39 46 ] CPU P-States [ (12) 22 25 26 27 30 39 46 ] CPU C6-Cores [ 0 2 4 6 8 10 11 ] CPU P-States [ (12) 21 22 25 26 27 30 39 46 ] CPU P-States [ (12) 21 22 25 26 27 28 30 39 46 ] CPU P-States [ 12 21 22 25 26 27 28 30 32 (35) 39 46 ] CPU C6-Cores [ 0 1 2 4 6 8 10 11 ] CPU P-States [ (12) 21 22 25 26 27 28 29 30 32 35 39 46 ] CPU C6-Cores [ 0 1 2 4 6 8 9 10 11 ] CPU P-States [ 12 21 22 25 26 27 28 29 30 32 35 39 41 (46) ] CPU P-States [ (12) 21 22 25 26 27 28 29 30 32 35 39 41 45 46 ] CPU P-States [ 12 21 22 24 25 26 27 28 29 30 32 35 39 41 45 (46) ] CPU C6-Cores [ 0 1 2 4 6 7 8 9 10 11 ] CPU P-States [ 12 21 22 24 25 26 27 28 29 30 31 32 35 39 41 45 (46) ] CPU P-States [ 12 21 22 24 25 26 27 28 29 30 31 32 35 38 39 41 45 (46) ] CPU P-States [ (12) 21 22 24 25 26 27 28 29 30 31 32 33 35 38 39 41 45 46 ] CPU P-States [ (12) 21 22 24 25 26 27 28 29 30 31 32 33 34 35 38 39 41 45 46 ] CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 38 39 41 45 (46) ] CPU C6-Cores [ 0 1 2 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 38 39 40 41 45 (46) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 39 40 41 45 46 ] CPU P-States [ 12 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 45 (46) ] CPU P-States [ (12) 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 45 46 ] CPU P-States [ 12 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 45 (46) ] CPU P-States [ (12) 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 45 46 ] CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 45 (46) ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 ] CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) ] 1 Link to comment Share on other sites More sharing options...
SammlerG Posted October 23, 2016 Share Posted October 23, 2016 it makes no difference. EIST enabled or disabled in BIOS. Same results. I have to disable msr 0x199. This msr is false programmed from xcpm. Reading out msr 199/198 in Windows shows changing values from lowest to highest multiplier, with xcpm we get there only 3 states. Min, max. and base multiplier. For me from 0xC0, 0x23 and 0x2E. In Windows it changes from 0xC0 to 0x2E and 0xFF, with all steps between. Reading out msr 199 with xcpm shows no changing values, only msr 198 shows the 3 different. So we have do disable msr 199 and write high multiplier (0xFF) manually ti it. This is what the Brumbaer patch does. With this patch xcpm writes every time the highest multiplier 0xFF to register, when wrmsr 0x199 is called. You can test it and change the patch: 89D8C1E008B99901 -> B8002E0000B99901 this ist original patch, it writes 0xFF to most 0x199. change to B800230000B99901 it writes 0X23 (3500 MHz) to msr 0x199. You get max. 35 multiplier change to B800C00000B99901 and you get turtle power of 1200 MHz max And when i boot without Brumbaer patch, i get lower P-States, but never permanent max. multiplier under load. The old xcpm problem. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x94bd7359252 (292 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8059C2D000 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xD313F5582 IA32_APERF.......................(0xE8) : 0xCF7C34E9E MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x28F600002300 ------------------------------------------ - Current Performance State Value...... : 0x2300 (3500 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2E00 ------------------------------------------ - Target performance State Value....... : 0x2E00 (4600 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x883F0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2E2E ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2E (4600 MHz) - Maximum Ratio Limit for C02.......... : 2E (4600 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0xB3C4B2 ------------------------------------------ - Total Energy Consumed................ : 719 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1F3A20D38 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x144767826 IA32_TSC_DEADLINE................(0x6E0) : 0x94BDAF23B80 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 46 (4600 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (35) 39 46 ] CPU C3-Cores [ 1 2 4 6 8 10 ] CPU C6-Cores [ 0 2 5 8 10 ] CPU P-States [ 33 (35) 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 8 10 ] CPU C6-Cores [ 0 2 4 5 7 8 9 10 ] CPU P-States [ (12) 30 33 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 8 10 11 ] CPU C6-Cores [ 0 2 4 5 6 7 8 9 10 ] CPU P-States [ (12) 22 30 33 35 39 46 ] CPU P-States [ (12) 22 24 30 33 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 10 11 ] CPU P-States [ (12) 22 24 30 33 34 35 39 46 ] CPU P-States [ 12 21 22 24 30 33 34 (35) 39 46 ] CPU C6-Cores [ 0 1 2 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 21 22 24 25 30 33 34 35 39 46 ] CPU P-States [ (12) 21 22 24 25 27 30 33 34 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 21 22 24 25 27 30 33 34 35 36 39 (46) ] CPU P-States [ (12) 21 22 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 18 21 22 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 18 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 16 18 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 16 18 19 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 38 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 33 34 35 36 37 38 39 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 (35) 36 37 38 39 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 43 (46) ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 42 43 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 42 43 45 (46) ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 (35) 36 37 38 39 40 42 43 45 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 40 42 43 44 45 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 42 43 44 45 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 37 38 39 40 41 42 43 44 45 46 ] Some people think is´t a problem with the bigger cache of the Xeon/i7 extreme CPUs, apple never used them and so xcpm can´t program C-States for the uncore part correct. But i see more switch tables in the xcpm assembler code, maybe there are more tests for CPU model in the code, and we (credit to Pike R. Alpha) just find/patched 2 of them. Xcpm bootstrap and CPU_ID set. Without the source code, you need a genius to read and understand the assembler code. 2 Link to comment Share on other sites More sharing options...
SammlerG Posted October 23, 2016 Share Posted October 23, 2016 if i set max. multi to 46 in bios, and set 0x23 to the patch, the max. CPU frequency is 3500 MHz in Benchmark. So it runs only at stock speed. When you put 0x25 there, yes you get max. 3700 Mhz. I test 0x2E and 2F (with one core overclock to 47 and 5 cores to 46 in Bios) i get better states and stable good performance before i got only a min. state of 25, now i got 15 AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x3413096de97 (102 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF804DCE4200 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xB95978AC5 IA32_APERF.......................(0xE8) : 0xEC9513E4D MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x29AF00002E00 ------------------------------------------ - Current Performance State Value...... : 0x2E00 (4600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2F00 ------------------------------------------ - Target performance State Value....... : 0x2F00 (4700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x883E0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2F2F ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2F (4700 MHz) - Maximum Ratio Limit for C02.......... : 2F (4700 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0xB86CC0 ------------------------------------------ - Total Energy Consumed................ : 737 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x3FE111532 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x295EB1AC1 IA32_TSC_DEADLINE................(0x6E0) : 0x34133F57E0F CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 47 (4700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 40 46 ] CPU C3-Cores [ 0 1 9 10 11 ] CPU C6-Cores [ 0 1 2 4 5 7 9 11 ] CPU P-States [ 12 40 45 46 (47) ] CPU C3-Cores [ 0 1 8 9 10 11 ] CPU C6-Cores [ 0 1 2 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 31 40 45 46 47 ] CPU P-States [ 12 31 40 41 45 46 (47) ] CPU P-States [ 12 31 39 40 41 45 46 (47) ] CPU P-States [ (12) 26 31 39 40 41 45 46 47 ] CPU P-States [ (12) 26 27 31 39 40 41 45 46 47 ] CPU P-States [ (12) 26 27 31 33 39 40 41 45 46 47 ] CPU P-States [ (12) 21 26 27 31 33 39 40 41 45 46 47 ] CPU P-States [ (12) 21 26 27 29 31 33 39 40 41 45 46 47 ] CPU P-States [ 12 21 26 27 29 30 31 33 39 40 41 45 46 (47) ] CPU P-States [ (12) 21 26 27 28 29 30 31 33 39 40 41 45 46 47 ] CPU P-States [ (12) 21 22 26 27 28 29 30 31 33 39 40 41 45 46 47 ] CPU P-States [ 12 21 22 26 27 28 29 30 31 32 33 39 40 41 45 46 (47) ] CPU P-States [ (12) 21 22 26 27 28 29 30 31 32 33 34 39 40 41 45 46 47 ] CPU P-States [ 12 21 22 26 27 28 29 30 31 32 33 34 (35) 39 40 41 45 46 47 ] CPU P-States [ (12) 19 21 22 26 27 28 29 30 31 32 33 34 35 39 40 41 45 46 47 ] CPU P-States [ (12) 19 21 22 26 27 28 29 30 31 32 33 34 35 37 39 40 41 45 46 47 ] CPU P-States [ 12 19 21 22 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 45 46 (47) ] CPU P-States [ 12 19 21 22 24 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 45 46 (47) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 45 46 (47) ] CPU P-States [ 12 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 45 46 (47) ] CPU P-States [ 12 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 44 45 (46) 47 ] CPU P-States [ 12 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 39 40 41 42 44 45 46 (47) ] CPU P-States [ 12 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 (47) ] CPU P-States [ 12 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) 47 ] CPU P-States [ 12 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 37 38 39 40 41 42 43 44 45 46 47 ] CPU C3-Cores [ 0 1 6 8 9 10 11 ] CPU C3-Cores [ 0 1 6 7 8 9 10 11 ] CPU P-States [ (12) 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 ] CPU P-States [ 12 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 (47) ] CPU P-States [ 12 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 (47) ] and i don´t know how to write this in english... with EIST enabled and no patches applied, the performance is getting better with every step of a lower max. multi., a lower max. CPU frequency. When you run a stock speed, 1200, 3500 and 3600 max, EIST ist working nearly perfect, for me. Sometimes If you overclock, set max. to 43 or 46, the problems become more, the steps between base and max. are to big, msr 199 ist not correct set, and EIST throttles your CPU, it never gets the correct msr 199 settings. And sorry, 0xC0 was not correct, it is 0xC. (1200). 2 Link to comment Share on other sites More sharing options...
ekwipt Posted October 23, 2016 Share Posted October 23, 2016 yes, Thermal Monitor can be disabled. Now i´m testing I/0 MWAIT redirection enabled you can also test msr 0xE2 patching with this E20000004C00000000000000000000000F040000000000000500001E -> E20000004C00000000000000000000000F040000000000000304007E this upped my score by a bit and now have MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) thnaks SammlerG 1 Link to comment Share on other sites More sharing options...
nmano Posted October 23, 2016 Author Share Posted October 23, 2016 I test If I remove patch 1 EIST is Disabled. MSR_MISC_PWR_MGMT................(0x1AA) : 0x1 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted) Last login: Sun Oct 23 03:21:39 on ttys000 manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x2ae6c59a788 (98 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8059230500 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3811E00 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xFFE93E03D IA32_APERF.......................(0xE8) : 0x16011CDA0B MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x27F500002B00 ------------------------------------------ - Current Performance State Value...... : 0x2B00 (4300 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0xFF00 ------------------------------------------ - Target performance State Value....... : 0xFF00 (25500 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88380000 IA32_MISC_ENABLES................(0x1A0) : 0x850081 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 0 (disabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 89 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x1 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2B (4300 MHz) - Maximum Ratio Limit for C02.......... : 2B (4300 MHz) - Maximum Ratio Limit for C03.......... : 2B (4300 MHz) - Maximum Ratio Limit for C04.......... : 2B (4300 MHz) - Maximum Ratio Limit for C05.......... : 2B (4300 MHz) - Maximum Ratio Limit for C06.......... : 2B (4300 MHz) - Maximum Ratio Limit for C07.......... : 2B (4300 MHz) - Maximum Ratio Limit for C08.......... : 2B (4300 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x549E4D6 ------------------------------------------ - Total Energy Consumed................ : 5415 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x500E38B43C MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x3396C48 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x65053B22B0 IA32_TSC_DEADLINE................(0x6E0) : 0x2AE6F70F1EA CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz) Maximum Turbo Ratio/Frequency............: 43 (4300 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 37 (43) ] CPU C3-Cores [ 1 2 4 6 10 12 14 ] CPU C6-Cores [ 0 2 4 6 8 10 13 14 ] CPU P-States [ 26 37 (43) ] CPU C6-Cores [ 0 2 4 5 6 8 10 12 13 14 ] CPU P-States [ 26 37 42 (43) ] CPU C3-Cores [ 1 2 4 6 10 12 14 15 ] CPU P-States [ (12) 26 35 37 42 43 ] CPU C3-Cores [ 0 1 2 4 6 7 10 12 14 15 ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 12 13 14 ] CPU P-States [ 12 26 28 35 37 42 (43) ] CPU P-States [ (12) 26 28 31 35 37 42 43 ] CPU P-States [ 12 26 28 31 32 35 37 42 (43) ] CPU P-States [ 12 26 28 31 32 33 35 37 42 (43) ] CPU P-States [ (12) 26 28 29 31 32 33 35 37 42 43 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 12 13 14 ] CPU P-States [ (12) 26 28 29 31 32 33 34 35 37 42 43 ] CPU P-States [ 12 26 28 29 30 31 32 33 34 35 37 42 (43) ] CPU P-States [ 12 26 28 29 30 31 32 33 34 35 37 41 42 (43) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 ] CPU C3-Cores [ 0 1 2 4 5 6 7 10 12 14 15 ] CPU P-States [ (12) 25 26 28 29 30 31 32 33 34 35 37 41 42 43 ] CPU P-States [ (12) 25 26 27 28 29 30 31 32 33 34 35 37 41 42 43 ] manoranjans-Pro:~ manoranjan$ Try in bios setting K OC-Enabled 1 Link to comment Share on other sites More sharing options...
nmano Posted October 23, 2016 Author Share Posted October 23, 2016 it makes no difference. EIST enabled or disabled in BIOS. Same results. I have to disable msr 0x199. This msr is false programmed from xcpm. Reading out msr 199/198 in Windows shows changing values from lowest to highest multiplier, with xcpm we get there only 3 states. Min, max. and base multiplier. For me from 0xC0, 0x23 and 0x2E. In Windows it changes from 0xC0 to 0x2E and 0xFF, with all steps between. Reading out msr 199 with xcpm shows no changing values, only msr 198 shows the 3 different. So we have do disable msr 199 and write high multiplier (0xFF) manually ti it. This is what the Brumbaer patch does. With this patch xcpm writes every time the highest multiplier 0xFF to register, when wrmsr 0x199 is called. You can test it and change the patch: 89D8C1E008B99901 -> B8002E0000B99901 this ist original patch, it writes 0xFF to most 0x199. change to B800230000B99901 it writes 0X23 (3500 MHz) to msr 0x199. You get max. 35 multiplier change to B800C00000B99901 and you get turtle power of 1200 MHz max And when i boot without Brumbaer patch, i get lower P-States, but never permanent max. multiplier under load. The old xcpm problem. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x94bd7359252 (292 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8059C2D000 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xD313F5582 IA32_APERF.......................(0xE8) : 0xCF7C34E9E MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x28F600002300 ------------------------------------------ - Current Performance State Value...... : 0x2300 (3500 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2E00 ------------------------------------------ - Target performance State Value....... : 0x2E00 (4600 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x883F0000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2E2E ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2E (4600 MHz) - Maximum Ratio Limit for C02.......... : 2E (4600 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0xB3C4B2 ------------------------------------------ - Total Energy Consumed................ : 719 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1F3A20D38 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x144767826 IA32_TSC_DEADLINE................(0x6E0) : 0x94BDAF23B80 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 46 (4600 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (35) 39 46 ] CPU C3-Cores [ 1 2 4 6 8 10 ] CPU C6-Cores [ 0 2 5 8 10 ] CPU P-States [ 33 (35) 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 8 10 ] CPU C6-Cores [ 0 2 4 5 7 8 9 10 ] CPU P-States [ (12) 30 33 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 8 10 11 ] CPU C6-Cores [ 0 2 4 5 6 7 8 9 10 ] CPU P-States [ (12) 22 30 33 35 39 46 ] CPU P-States [ (12) 22 24 30 33 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 10 11 ] CPU P-States [ (12) 22 24 30 33 34 35 39 46 ] CPU P-States [ 12 21 22 24 30 33 34 (35) 39 46 ] CPU C6-Cores [ 0 1 2 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 21 22 24 25 30 33 34 35 39 46 ] CPU P-States [ (12) 21 22 24 25 27 30 33 34 35 39 46 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 21 22 24 25 27 30 33 34 35 36 39 (46) ] CPU P-States [ (12) 21 22 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 18 21 22 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 18 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 16 18 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 16 18 19 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 39 46 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 33 34 35 36 37 38 39 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 33 34 35 36 37 38 39 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 (35) 36 37 38 39 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 43 (46) ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 42 43 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 42 43 45 (46) ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 (35) 36 37 38 39 40 42 43 45 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 36 37 38 39 40 42 43 44 45 46 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 42 43 44 45 46 ] CPU P-States [ 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 (35) 36 37 38 39 40 41 42 43 44 45 46 ] Some people think is´t a problem with the bigger cache of the Xeon/i7 extreme CPUs, apple never used them and so xcpm can´t program C-States for the uncore part correct. But i see more switch tables in the xcpm assembler code, maybe there are more tests for CPU model in the code, and we (credit to Pike R. Alpha) just find/patched 2 of them. Xcpm bootstrap and CPU_ID set. Without the source code, you need a genius to read and understand the assembler code. IF I change 2C get 4400 MHz MSR_IA32_PERF_CONTROL............(0x199) : 0x2C00 Last login: Sun Oct 23 12:28:00 on ttys000 manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0xa8687b1ffe (24 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805AC74900 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3811E00 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x2C44A79666 IA32_APERF.......................(0xE8) : 0x628FB3D6EE MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x27F500002B00 ------------------------------------------ - Current Performance State Value...... : 0x2B00 (4300 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2C00 ------------------------------------------ - Target performance State Value....... : 0x2C00 (4400 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88340000 IA32_MISC_ENABLES................(0x1A0) : 0x850081 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 0 (disabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 89 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x1 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2B (4300 MHz) - Maximum Ratio Limit for C02.......... : 2B (4300 MHz) - Maximum Ratio Limit for C03.......... : 2B (4300 MHz) - Maximum Ratio Limit for C04.......... : 2B (4300 MHz) - Maximum Ratio Limit for C05.......... : 2B (4300 MHz) - Maximum Ratio Limit for C06.......... : 2B (4300 MHz) - Maximum Ratio Limit for C07.......... : 2B (4300 MHz) - Maximum Ratio Limit for C08.......... : 2B (4300 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x6F0F9B6 ------------------------------------------ - Total Energy Consumed................ : 7107 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1C4BA763F6 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x1CEBBB0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x1E48CA11AE IA32_TSC_DEADLINE................(0x6E0) : 0xA86BEDE397 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz) Maximum Turbo Ratio/Frequency............: 43 (4300 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 39 (43) ] CPU C3-Cores [ 1 2 4 10 12 14 ] CPU C6-Cores [ 0 2 4 6 8 10 12 14 ] CPU P-States [ 27 39 (43) ] CPU C3-Cores [ 1 2 4 5 10 12 14 ] CPU C6-Cores [ 0 2 4 6 8 10 12 13 14 ] CPU P-States [ 27 32 39 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 8 10 12 13 14 ] CPU C3-Cores [ 1 2 4 5 10 12 14 15 ] CPU P-States [ 27 32 33 39 (43) ] CPU P-States [ 27 31 32 33 39 (43) ] CPU P-States [ 27 28 31 32 33 39 (43) ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 10 12 13 14 ] CPU P-States [ 27 28 29 31 32 33 39 (43) ] CPU P-States [ 27 28 29 30 31 32 33 39 (43) ] CPU P-States [ (12) 27 28 29 30 31 32 33 39 43 ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 12 13 14 ] CPU C3-Cores [ 0 1 2 4 5 10 11 12 14 15 ] CPU C6-Cores [ 0 2 3 4 5 6 7 8 9 10 11 12 13 14 ] CPU P-States [ (12) 27 28 29 30 31 32 33 35 39 43 ] CPU P-States [ 12 27 28 29 30 31 32 33 35 36 39 (43) ] CPU P-States [ (12) 23 27 28 29 30 31 32 33 35 36 39 43 ] CPU C3-Cores [ 0 1 2 3 4 5 10 11 12 14 15 ] CPU C3-Cores [ 0 1 2 3 4 5 10 11 12 13 14 15 ] manoranjans-Pro:~ manoranjan$ Link to comment Share on other sites More sharing options...

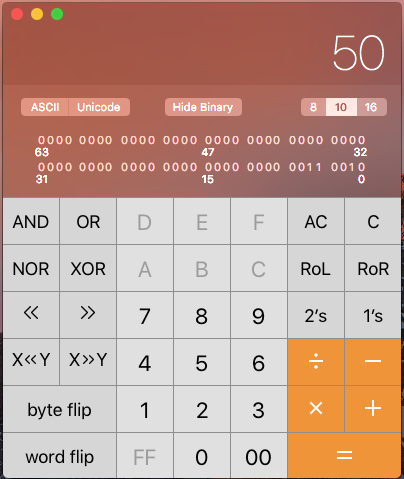

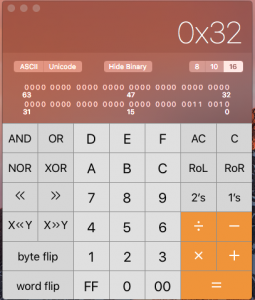

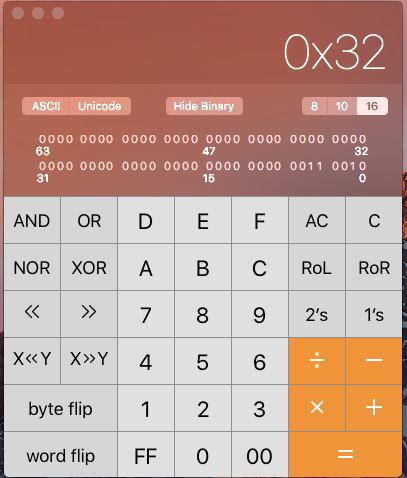

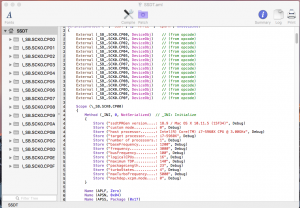

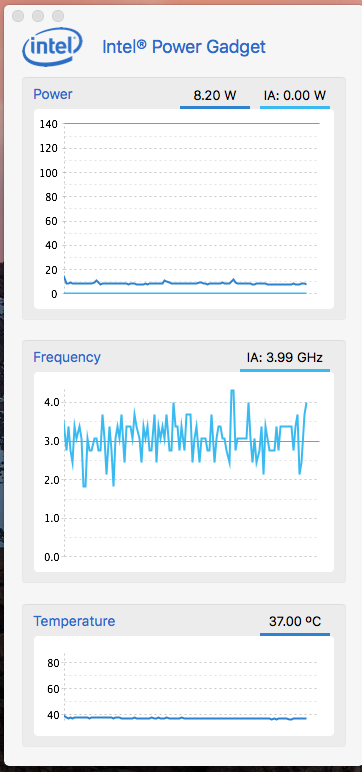

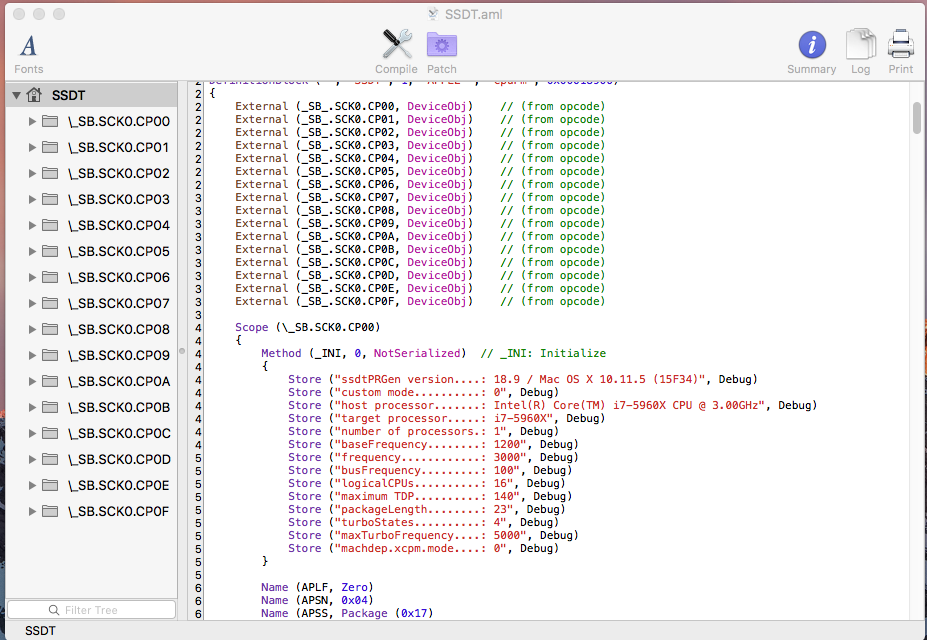

nmano Posted October 24, 2016 Author Share Posted October 24, 2016 I overclock 4300MHz But I adjust to 5000MHz in SSDT and 0x199 Now I change 32 get 50(5000MHz) Finally, intel power gadget frequency line goes up. Thanks SamuelG & Fabiosun. 89D8C1E0 08B99901 B8003200 00B99901 Last login: Mon Oct 24 00:54:55 on console manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x771635c7eae (272 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805D773B00 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3811E00 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xFF3491580 IA32_APERF.......................(0xE8) : 0x15FF61DE6A MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x280400002B00 ------------------------------------------ - Current Performance State Value...... : 0x2B00 (4300 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x3200 ------------------------------------------ - Target performance State Value....... : 0x3200 (5000 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88370000 IA32_MISC_ENABLES................(0x1A0) : 0x850081 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 0 (disabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 89 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x1 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 0 (thermal interrupt not rerouted) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2B2B2B2B2B2B2B2B ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2B (4300 MHz) - Maximum Ratio Limit for C02.......... : 2B (4300 MHz) - Maximum Ratio Limit for C03.......... : 2B (4300 MHz) - Maximum Ratio Limit for C04.......... : 2B (4300 MHz) - Maximum Ratio Limit for C05.......... : 2B (4300 MHz) - Maximum Ratio Limit for C06.......... : 2B (4300 MHz) - Maximum Ratio Limit for C07.......... : 2B (4300 MHz) - Maximum Ratio Limit for C08.......... : 2B (4300 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x502F450 ------------------------------------------ - Total Energy Consumed................ : 5131 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x49193A2A84 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x3F01B0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x5979FF212A IA32_TSC_DEADLINE................(0x6E0) : 0x77166811978 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz) Maximum Turbo Ratio/Frequency............: 43 (4300 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 38 (43) ] CPU C3-Cores [ 1 2 4 6 14 ] CPU C6-Cores [ 0 3 4 6 9 10 12 14 ] CPU P-States [ (12) 29 38 43 ] CPU C6-Cores [ 0 3 4 6 8 9 10 12 14 ] CPU P-States [ 12 29 38 41 (43) ] CPU C3-Cores [ 0 1 2 4 5 6 14 ] CPU C6-Cores [ 0 3 4 6 8 9 10 11 12 14 ] CPU P-States [ 12 29 36 38 41 (43) ] CPU C3-Cores [ 0 1 2 4 5 6 7 14 15 ] CPU C6-Cores [ 0 2 3 4 6 8 9 10 11 12 13 14 ] CPU P-States [ 12 29 33 36 38 41 (43) ] CPU P-States [ 12 26 29 33 36 38 41 (43) ] CPU P-States [ (12) 26 29 30 33 36 38 41 43 ] CPU P-States [ (12) 26 29 30 31 33 36 38 41 43 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 14 15 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 ] CPU P-States [ (12) 26 29 30 31 32 33 36 38 41 43 ] CPU P-States [ (12) 26 29 30 31 32 33 34 36 38 41 43 ] CPU P-States [ 12 26 27 29 30 31 32 33 34 36 38 41 (43) ] CPU P-States [ 12 26 27 29 30 31 32 33 34 35 36 38 41 (43) ] CPU P-States [ 12 26 27 28 29 30 31 32 33 34 35 36 38 41 (43) ] CPU P-States [ 12 26 27 28 29 30 31 32 33 34 35 36 37 38 41 (43) ] manoranjans-Pro:~ manoranjan$ 3 Link to comment Share on other sites More sharing options...
nmano Posted October 24, 2016 Author Share Posted October 24, 2016 I thing Gigabyte board doesn't need MSR patch 2 0x1A0 bios take care that. Link to comment Share on other sites More sharing options...
SammlerG Posted October 24, 2016 Share Posted October 24, 2016 i tested complete stock, no overclock setting in Bios. Only msr 0x199 deactivated, 0xE2, 0x1AA, 0x3A06 and 0x4206 patch. Nearly perfect PM with drop to 12. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x27e455649c6 (78 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF804DEC7E00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xD7E649D34 IA32_APERF.......................(0xE8) : 0xD7185A9D8 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x211900002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88450000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x20BB9D0 ------------------------------------------ - Total Energy Consumed................ : 2094 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x9F16F4429 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x76F962906 IA32_TSC_DEADLINE................(0x6E0) : 0x27E48FA267E CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 30 36 ] CPU C3-Cores [ 1 2 4 11 ] CPU C6-Cores [ 0 2 4 6 9 11 ] CPU P-States [ (12) 25 30 36 ] CPU C3-Cores [ 1 2 4 5 11 ] CPU C6-Cores [ 0 2 3 4 6 7 8 9 10 11 ] CPU P-States [ (12) 25 30 31 36 ] CPU C3-Cores [ 0 1 2 4 5 10 11 ] CPU P-States [ (12) 25 27 30 31 36 ] CPU P-States [ (12) 25 26 27 30 31 36 ] CPU C3-Cores [ 0 1 2 3 4 5 10 11 ] CPU P-States [ (12) 22 25 26 27 30 31 36 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ] CPU P-States [ 12 22 23 25 26 27 30 31 36 (37) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 18 22 23 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 22 23 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 21 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 30 31 35 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 15 16 18 19 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 14 15 16 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ] CPU P-States [ (12) 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ] CPU P-States [ 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 (35) 36 37 ] CPU P-States [ (12) 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] Idle & Geekbench 3 running 3 Link to comment Share on other sites More sharing options...
thenightflyer Posted October 24, 2016 Share Posted October 24, 2016 i tested complete stock, no overclock setting in Bios. Only msr 0x199 deactivated, 0xE2, 0x1AA, 0x3A06 and 0x4206 patch. Nearly perfect PM with drop to 12. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x27e455649c6 (78 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF804DEC7E00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xD7E649D34 IA32_APERF.......................(0xE8) : 0xD7185A9D8 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x211900002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88450000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x20BB9D0 ------------------------------------------ - Total Energy Consumed................ : 2094 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x9F16F4429 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x76F962906 IA32_TSC_DEADLINE................(0x6E0) : 0x27E48FA267E CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 30 36 ] CPU C3-Cores [ 1 2 4 11 ] CPU C6-Cores [ 0 2 4 6 9 11 ] CPU P-States [ (12) 25 30 36 ] CPU C3-Cores [ 1 2 4 5 11 ] CPU C6-Cores [ 0 2 3 4 6 7 8 9 10 11 ] CPU P-States [ (12) 25 30 31 36 ] CPU C3-Cores [ 0 1 2 4 5 10 11 ] CPU P-States [ (12) 25 27 30 31 36 ] CPU P-States [ (12) 25 26 27 30 31 36 ] CPU C3-Cores [ 0 1 2 3 4 5 10 11 ] CPU P-States [ (12) 22 25 26 27 30 31 36 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ] CPU P-States [ 12 22 23 25 26 27 30 31 36 (37) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 18 22 23 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 22 23 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 18 19 21 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 30 31 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 30 31 35 36 37 ] CPU P-States [ (12) 15 18 19 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 15 16 18 19 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 14 15 16 18 19 20 21 22 23 24 25 26 27 29 30 31 35 36 37 ] CPU P-States [ (12) 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ] CPU P-States [ (12) 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 36 37 ] CPU P-States [ 12 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 33 (35) 36 37 ] CPU P-States [ (12) 13 14 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] Idle & Geekbench 3 running What patches did you enabled\disabled? Link to comment Share on other sites More sharing options...
ekwipt Posted October 24, 2016 Share Posted October 24, 2016 SammlerG could I please get your configure.plist And are you using SSDT? And do you need to run Frequencyvectors.sh as per Piker Alpha GitHub? 2 Link to comment Share on other sites More sharing options...
SammlerG Posted October 24, 2016 Share Posted October 24, 2016 All cores reach C3 State, but it´s more efficient to use C6 direct. So CPU uses direct C6 in idle when auto demotion is enabled. Today working with this settings.... and it shows that all core uses C3 and C6. No crash or reboot with Gigabyte board. At this time i use 2 configs, 1 complete stock, and 1 overclocked. Both without problems. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x430f39f9a3f (131 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805AB34800 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x4D279D352B IA32_APERF.......................(0xE8) : 0x4D1D544983 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x218300002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88460000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x16C3BFD9 ------------------------------------------ - Total Energy Consumed................ : 23310 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1992E8EC088 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x100545A MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x11FB351BAB6 IA32_TSC_DEADLINE................(0x6E0) : 0x430F733D0D1 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 31 36 ] CPU C3-Cores [ 1 2 5 6 8 10 ] CPU C6-Cores [ 0 2 5 7 9 10 ] CPU P-States [ (12) 30 31 36 ] CPU C3-Cores [ 1 2 4 5 6 8 10 ] CPU C6-Cores [ 0 1 2 4 5 7 8 9 10 11 ] CPU C3-Cores [ 0 1 2 4 5 6 8 10 ] CPU P-States [ 12 30 31 32 36 (37) ] CPU C3-Cores [ 0 1 2 4 5 6 8 10 11 ] CPU C6-Cores [ 0 1 2 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 30 31 32 35 36 (37) ] CPU P-States [ (12) 30 31 32 33 35 36 37 ] CPU C3-Cores [ 0 1 2 4 5 6 8 9 10 11 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU C3-Cores [ 0 1 2 3 4 5 6 8 9 10 11 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 27 29 30 31 32 33 34 35 36 37 ] CPU P-States [ 12 24 27 29 30 31 32 33 34 (35) 36 37 ] CPU P-States [ 12 22 24 27 29 30 31 32 33 34 35 36 (37) ] CPU P-States [ (12) 22 23 24 27 29 30 31 32 33 34 35 36 37 ] CPU P-States [ 12 22 23 24 27 28 29 30 31 32 33 34 (35) 36 37 ] CPU P-States [ (12) 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ 12 21 22 23 24 26 27 28 29 30 31 32 33 34 35 (36) 37 ] CPU P-States [ (12) 16 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ (12) 16 18 21 22 23 24 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ (12) 16 18 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ (12) 16 18 19 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ 12 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 (37) ] CPU P-States [ (12) 15 16 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ 12 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 (37) ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] 2 Link to comment Share on other sites More sharing options...
SammlerG Posted October 24, 2016 Share Posted October 24, 2016 here is the config for stock frequency Please remember: every board and every board/CPU combination seems to be different. This config.plist is for Gigabyte X99, i don´t test this config with ASUS AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x8efe586af0f (280 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8062BCFD00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x2B58AA7A56 IA32_APERF.......................(0xE8) : 0x2CA55FD3ED MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x215A00002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88440000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x10D16ABE ------------------------------------------ - Total Energy Consumed................ : 17221 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x329F058B3E MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x5A6DC4 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x5EB239CFFE IA32_TSC_DEADLINE................(0x6E0) : 0x8EFE7C2D124 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (35) 36 ] CPU C3-Cores [ 0 3 5 7 9 10 ] CPU C6-Cores [ 1 3 5 7 9 11 ] CPU P-States [ (12) 24 35 36 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 ] CPU C6-Cores [ 1 2 3 5 6 7 8 9 10 11 ] CPU P-States [ (12) 19 24 35 36 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 24 25 35 36 (37) ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 23 24 25 35 36 (37) ] CPU P-States [ (12) 19 20 23 24 25 35 36 37 ] CPU P-States [ (12) 19 20 23 24 25 27 35 36 37 ] CPU P-States [ (12) 18 19 20 23 24 25 27 35 36 37 ] CPU P-States [ 12 18 19 20 22 23 24 25 27 (35) 36 37 ] CPU P-States [ (12) 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 31 (35) 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 30 31 35 36 (37) ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 (36) 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] config.plist.zip 3 Link to comment Share on other sites More sharing options...
thenightflyer Posted October 24, 2016 Share Posted October 24, 2016 here is the config for stock frequency Please remember: every board and every board/CPU combination seems to be different. This config.plist is for Gigabyte X99, i don´t test this config with ASUS AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x8efe586af0f (280 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8062BCFD00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x2B58AA7A56 IA32_APERF.......................(0xE8) : 0x2CA55FD3ED MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x215A00002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88440000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x10D16ABE ------------------------------------------ - Total Energy Consumed................ : 17221 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x329F058B3E MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x5A6DC4 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x5EB239CFFE IA32_TSC_DEADLINE................(0x6E0) : 0x8EFE7C2D124 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (35) 36 ] CPU C3-Cores [ 0 3 5 7 9 10 ] CPU C6-Cores [ 1 3 5 7 9 11 ] CPU P-States [ (12) 24 35 36 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 ] CPU C6-Cores [ 1 2 3 5 6 7 8 9 10 11 ] CPU P-States [ (12) 19 24 35 36 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 24 25 35 36 (37) ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 23 24 25 35 36 (37) ] CPU P-States [ (12) 19 20 23 24 25 35 36 37 ] CPU P-States [ (12) 19 20 23 24 25 27 35 36 37 ] CPU P-States [ (12) 18 19 20 23 24 25 27 35 36 37 ] CPU P-States [ 12 18 19 20 22 23 24 25 27 (35) 36 37 ] CPU P-States [ (12) 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 31 (35) 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 30 31 35 36 (37) ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 (36) 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] Thanks for sharing. A question....just curiosity...why do you have nv_drv enabled in boot flag and you use nvidiaweb driver flag enabled too in System Parameters? Maybe it's requested by your 2 new graphics patches? Link to comment Share on other sites More sharing options...
Fergarth Posted October 24, 2016 Share Posted October 24, 2016 here is the config for stock frequency Please remember: every board and every board/CPU combination seems to be different. This config.plist is for Gigabyte X99, i don´t test this config with ASUS AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x8efe586af0f (280 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF8062BCFD00 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x2B58AA7A56 IA32_APERF.......................(0xE8) : 0x2CA55FD3ED MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x215A00002400 ------------------------------------------ - Current Performance State Value...... : 0x2400 (3600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88440000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2424242424242525 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 25 (3700 MHz) - Maximum Ratio Limit for C02.......... : 25 (3700 MHz) - Maximum Ratio Limit for C03.......... : 24 (3600 MHz) - Maximum Ratio Limit for C04.......... : 24 (3600 MHz) - Maximum Ratio Limit for C05.......... : 24 (3600 MHz) - Maximum Ratio Limit for C06.......... : 24 (3600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x68460001483A5 ------------------------------------------ - Package Power Limit #1............... : 116 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 140 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x10D16ABE ------------------------------------------ - Total Energy Consumed................ : 17221 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148460 ------------------------------------------ - Power Limit.......................... : 140 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x329F058B3E MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x5A6DC4 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x5EB239CFFE IA32_TSC_DEADLINE................(0x6E0) : 0x8EFE7C2D124 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 37 (3700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (35) 36 ] CPU C3-Cores [ 0 3 5 7 9 10 ] CPU C6-Cores [ 1 3 5 7 9 11 ] CPU P-States [ (12) 24 35 36 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 ] CPU C6-Cores [ 1 2 3 5 6 7 8 9 10 11 ] CPU P-States [ (12) 19 24 35 36 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 24 25 35 36 (37) ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 19 23 24 25 35 36 (37) ] CPU P-States [ (12) 19 20 23 24 25 35 36 37 ] CPU P-States [ (12) 19 20 23 24 25 27 35 36 37 ] CPU P-States [ (12) 18 19 20 23 24 25 27 35 36 37 ] CPU P-States [ 12 18 19 20 22 23 24 25 27 (35) 36 37 ] CPU P-States [ (12) 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 35 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 31 (35) 36 37 ] CPU P-States [ 12 14 18 19 20 22 23 24 25 26 27 30 31 35 36 (37) ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 35 36 37 ] CPU P-States [ 12 13 14 15 17 18 19 20 21 22 23 24 25 26 27 29 30 31 32 33 34 35 (36) 37 ] CPU P-States [ (12) 13 14 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 ] Thanks SammlerG for sharing, I will test asap in my Asus and report. But rather that instead of "This config.plist is for Gigabyte X99, i don´t test this config with ASUS" you had said, "This config.plist is for ASUS, i don´t test this config with Gigabyte X99" Link to comment Share on other sites More sharing options...
ekwipt Posted October 24, 2016 Share Posted October 24, 2016 I tried sammlerG new config with gigabyte X99 board as well, slightly slower scores than my old config, will test some more when I have time. Thanks for everyone's testing 2 Link to comment Share on other sites More sharing options...

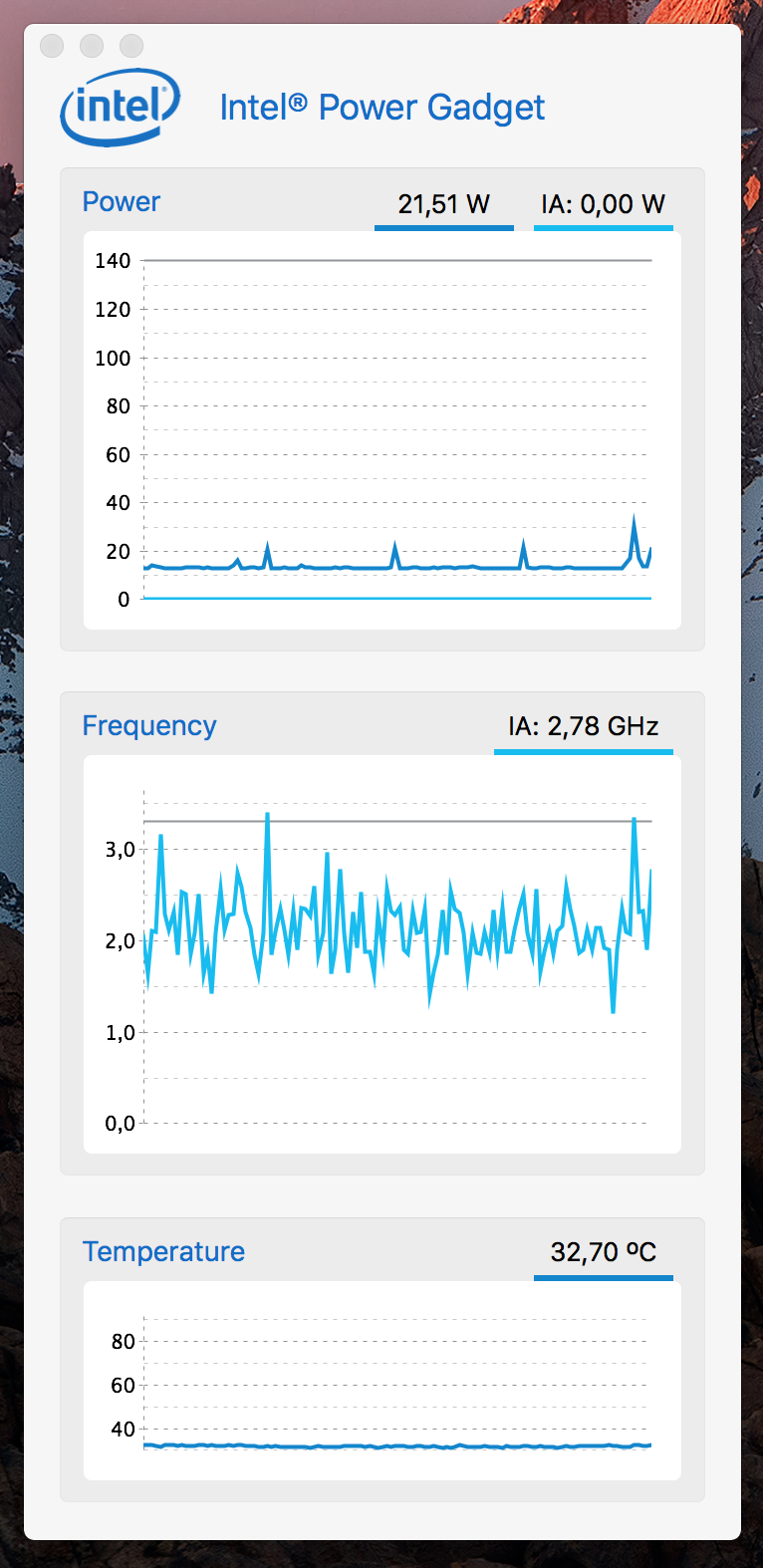

Fergarth Posted October 25, 2016 Share Posted October 25, 2016 Hi SammlerG I tested your plist and confirm that in my Asus also works well and the system appears stable. UEFI BIOS by default, without overclocking. EIST disabled. With SSDT for PM. But I like more your results. Tomorrow I will re-test but without SSDT. Thanks. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x9e24528809d (329 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel® Core i7-5820K CPU @ 3.30GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF80A1EF5300 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x20080C3BF3812100 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x21 (3300 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xC17BCE408 IA32_APERF.......................(0xE8) : 0xBD7CE3E8F MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x1FFF00002100 ------------------------------------------ - Current Performance State Value...... : 0x2100 (3300 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88440000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5E0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 94 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2222222222222424 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 24 (3600 MHz) - Maximum Ratio Limit for C02.......... : 24 (3600 MHz) - Maximum Ratio Limit for C03.......... : 22 (3400 MHz) - Maximum Ratio Limit for C04.......... : 22 (3400 MHz) - Maximum Ratio Limit for C05.......... : 22 (3400 MHz) - Maximum Ratio Limit for C06.......... : 22 (3400 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5 ------------------------------------------ - Power Policy Preference...............: 5 (balanced performance and energy saving) MSR_POWER_CTL....................(0x1FC) : 0x2904005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7854000158460 ------------------------------------------ - Package Power Limit #1............... : 140 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 168 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x335B449 ------------------------------------------ - Total Energy Consumed................ : 3286 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x0 MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x21 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001E0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x1878E7FA11 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x7619CD MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x12A9DEBA50 IA32_TSC_DEADLINE................(0x6E0) : 0x9E2491AB299 CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 33 (3300 MHz) Maximum Turbo Ratio/Frequency............: 36 (3600 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 28 33 (35) ] CPU C3-Cores [ 0 3 5 7 8 11 ] CPU C6-Cores [ 0 2 5 6 9 11 ] CPU P-States [ (12) 28 29 33 35 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 11 ] CPU C6-Cores [ 0 2 5 6 8 9 10 11 ] CPU P-States [ 12 28 29 32 33 (35) ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 26 28 29 32 33 35 (36) ] CPU P-States [ 12 26 28 29 32 33 (34) 35 36 ] CPU P-States [ (12) 26 28 29 31 32 33 34 35 36 ] CPU P-States [ (12) 26 28 29 30 31 32 33 34 35 36 ] CPU P-States [ 12 26 27 28 29 30 31 32 33 34 35 (36) ] CPU P-States [ (12) 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ (12) 24 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ (12) 22 24 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ (12) 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ (12) 18 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ (12) 18 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] CPU P-States [ 12 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) ] CPU P-States [ 12 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 (36) ] CPU P-States [ (12) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 ] bash-3.2# 2 Link to comment Share on other sites More sharing options...

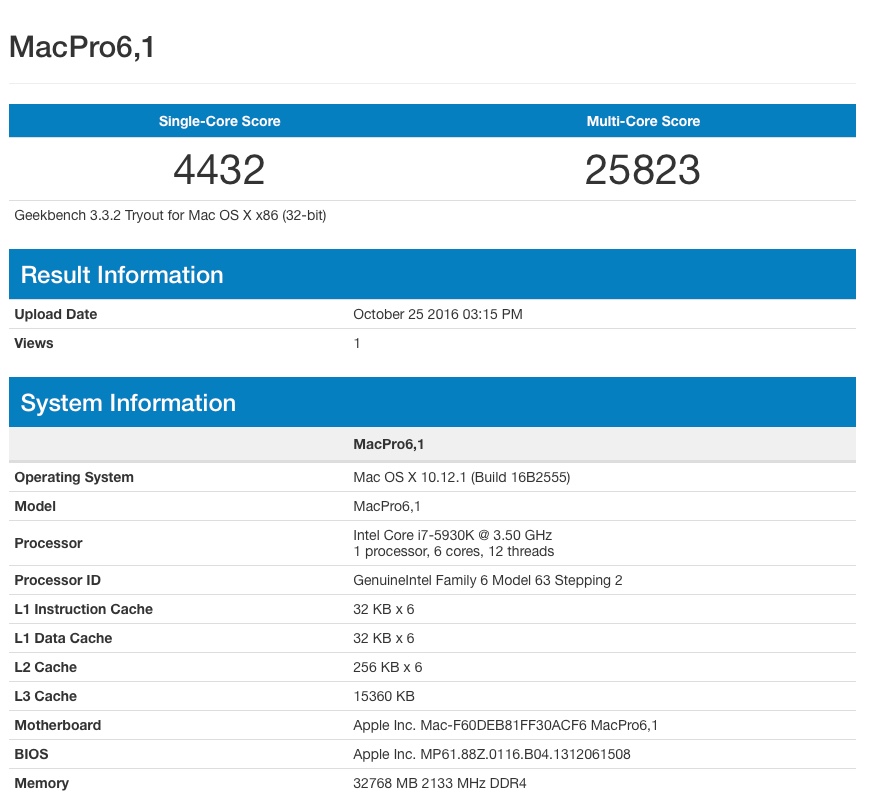

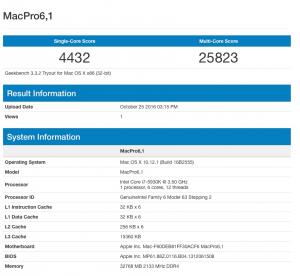

SammlerG Posted October 25, 2016 Share Posted October 25, 2016 Every Day i´m getting better results, did some new tests and now the board works fine with max. overclock to 4.7. Testing IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5 This ist after update to 10.12.1 AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x32a58fff522 (99 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF80694FC500 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x211B267DF8 IA32_APERF.......................(0xE8) : 0x2AC755C625 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x2A4500002E00 ------------------------------------------ - Current Performance State Value...... : 0x2E00 (4600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2F00 ------------------------------------------ - Target performance State Value....... : 0x2F00 (4700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88420000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2F2F ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2F (4700 MHz) - Maximum Ratio Limit for C02.......... : 2F (4700 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5 ------------------------------------------ - Power Policy Preference...............: 5 (balanced performance and energy saving) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x33193C7 ------------------------------------------ - Total Energy Consumed................ : 3270 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x62524E3559 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0xD0F598D3A9 IA32_TSC_DEADLINE................(0x6E0) : 0x32A5B224EEC CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 47 (4700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 40 46 (47) ] CPU C3-Cores [ 1 2 4 6 8 10 ] CPU C6-Cores [ 0 2 4 6 8 10 ] CPU P-States [ 31 40 46 (47) ] CPU P-States [ 24 31 40 46 (47) ] CPU C6-Cores [ 0 1 2 4 6 8 10 ] CPU P-States [ (12) 24 31 32 40 46 47 ] CPU C3-Cores [ 0 1 2 4 6 8 10 ] CPU C6-Cores [ 0 1 2 3 4 5 6 8 10 ] CPU P-States [ 12 24 31 32 40 45 46 (47) ] CPU C3-Cores [ 0 1 2 4 6 8 9 10 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 10 ] CPU P-States [ 12 24 29 31 32 40 45 46 (47) ] CPU P-States [ 12 24 29 31 32 33 (35) 40 45 46 47 ] CPU C3-Cores [ 0 1 2 3 4 6 8 9 10 11 ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 ] CPU P-States [ 12 24 29 30 31 32 33 35 40 45 46 (47) ] CPU P-States [ 12 24 29 30 31 32 33 34 (35) 40 45 46 47 ] CPU P-States [ 12 24 29 30 31 32 33 34 35 40 41 45 46 (47) ] CPU C3-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ] CPU P-States [ 12 24 28 29 30 31 32 33 34 35 40 41 45 46 (47) ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 22 24 28 29 30 31 32 33 34 35 40 41 45 46 (47) ] CPU P-States [ 12 22 24 27 28 29 30 31 32 33 34 35 40 41 45 46 (47) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 17 22 24 27 28 29 30 31 32 33 34 35 40 41 45 46 47 ] CPU P-States [ (12) 17 22 24 27 28 29 30 31 32 33 34 35 36 40 41 45 46 47 ] CPU P-States [ 12 17 22 24 26 27 28 29 30 31 32 33 34 35 36 40 41 45 46 (47) ] CPU P-States [ (12) 17 22 24 26 27 28 29 30 31 32 33 34 35 36 38 40 41 45 46 47 ] CPU P-States [ 12 17 22 24 26 27 28 29 30 31 32 33 34 35 36 38 40 41 43 45 46 (47) ] CPU P-States [ 12 17 22 24 25 26 27 28 29 30 31 32 33 34 35 36 38 40 41 43 45 46 (47) ] CPU P-States [ (12) 15 17 22 24 25 26 27 28 29 30 31 32 33 34 35 36 38 40 41 43 45 46 47 ] CPU P-States [ (12) 15 17 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 40 41 43 45 46 47 ] CPU P-States [ 12 15 17 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 38 40 41 42 43 45 46 (47) ] CPU P-States [ (12) 15 17 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 45 46 47 ] CPU P-States [ (12) 15 17 20 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 45 46 47 ] CPU P-States [ (12) 15 17 20 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ (12) 15 17 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ (12) 15 17 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ (12) 15 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ (12) 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ (12) 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 ] CPU P-States [ 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 (46) 47 ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 ] 3 Link to comment Share on other sites More sharing options...
ekwipt Posted October 25, 2016 Share Posted October 25, 2016 How to fix the package clamping limitation?? Link to comment Share on other sites More sharing options...

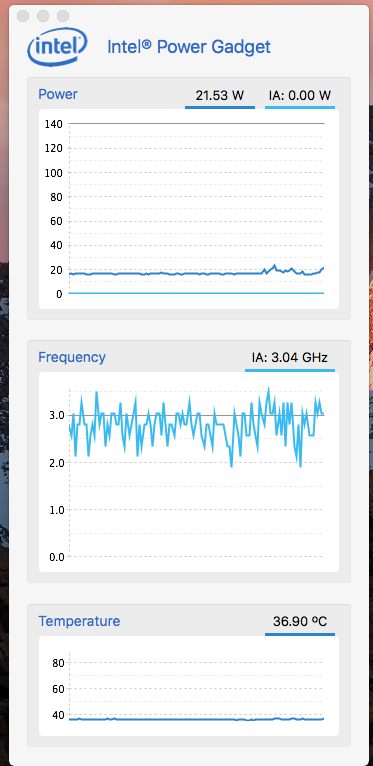

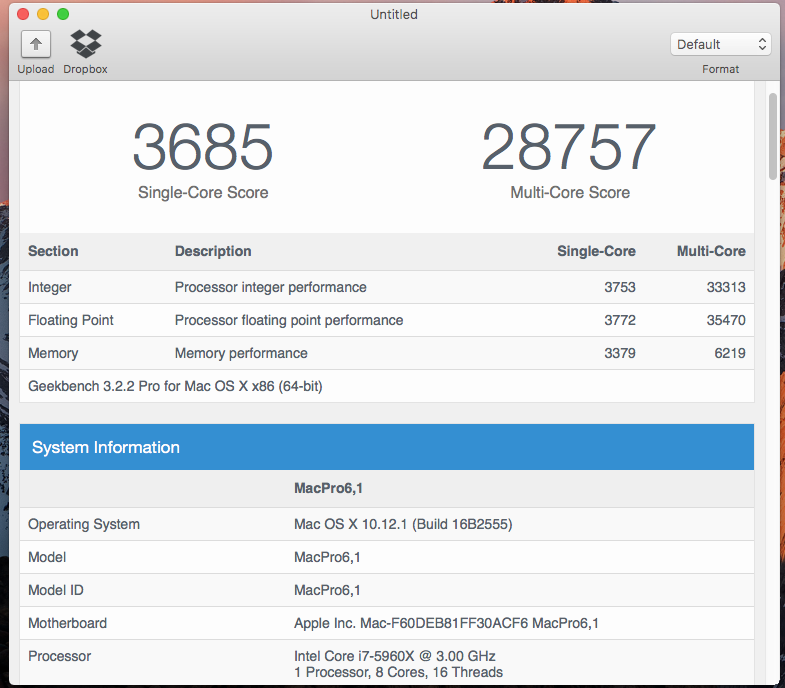

nmano Posted October 25, 2016 Author Share Posted October 25, 2016 I test 10.12.1 without overclock and without SSDT With samuvellG config Thank you G. Last login: Tue Oct 25 09:40:28 on console manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x1de9dae646c (68 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805C478B00 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3811E00 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xF897F949F IA32_APERF.......................(0xE8) : 0x118C94E551 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x1FD700002300 ------------------------------------------ - Current Performance State Value...... : 0x2300 (3500 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88390000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 89 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2323232323232323 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 23 (3500 MHz) - Maximum Ratio Limit for C02.......... : 23 (3500 MHz) - Maximum Ratio Limit for C03.......... : 23 (3500 MHz) - Maximum Ratio Limit for C04.......... : 23 (3500 MHz) - Maximum Ratio Limit for C05.......... : 23 (3500 MHz) - Maximum Ratio Limit for C06.......... : 23 (3500 MHz) - Maximum Ratio Limit for C07.......... : 23 (3500 MHz) - Maximum Ratio Limit for C08.......... : 23 (3500 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5 ------------------------------------------ - Power Policy Preference...............: 5 (balanced performance and energy saving) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x52B022E ------------------------------------------ - Total Energy Consumed................ : 5292 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x217452F5B8 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x57972 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x23BD2B4086 IA32_TSC_DEADLINE................(0x6E0) : 0x1DE9FC378BD CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz) Maximum Turbo Ratio/Frequency............: 35 (3500 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 31 (35) ] CPU C3-Cores [ 1 14 ] CPU C6-Cores [ 1 2 4 6 8 11 12 14 ] CPU P-States [ 22 31 (35) ] CPU C3-Cores [ 0 1 14 ] CPU C6-Cores [ 0 1 2 4 6 8 10 11 12 14 ] CPU P-States [ 22 24 31 (35) ] CPU P-States [ 22 24 26 31 (35) ] CPU C6-Cores [ 0 1 2 4 6 8 10 11 12 14 15 ] CPU P-States [ 22 24 26 31 33 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 12 14 15 ] CPU P-States [ 22 24 26 28 31 33 (35) ] CPU P-States [ 22 23 24 26 28 31 33 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 12 13 14 15 ] CPU P-States [ (12) 22 23 24 25 26 28 31 33 35 ] CPU P-States [ (12) 22 23 24 25 26 27 28 31 33 35 ] CPU P-States [ 12 22 23 24 25 26 27 28 31 33 34 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 11 12 13 14 15 ] CPU P-States [ (12) 22 23 24 25 26 27 28 30 31 33 34 35 ] CPU P-States [ 12 22 23 24 25 26 27 28 29 30 31 33 34 (35) ] CPU C3-Cores [ 0 1 14 15 ] manoranjans-Pro:~ manoranjan$ 3 Link to comment Share on other sites More sharing options...
SammlerG Posted October 25, 2016 Share Posted October 25, 2016 since update to 10.12.1 my CPU is working nice and smooth. Performance changed back to 1 and got all P-States with overclocked system. AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x5bd9524b9e1 (180 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5930K CPU @ 3.50GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805316E700 ------------------------------------------ - Core Count........................... : 6 - Thread Count......................... : 12 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3812300 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x23 (3500 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0x8E7B9117E IA32_APERF.......................(0xE8) : 0xA4813E75D MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x2AA300002E00 ------------------------------------------ - Current Performance State Value...... : 0x2E00 (4600 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2F00 ------------------------------------------ - Target performance State Value....... : 0x2F00 (4700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88420000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x5F0A00 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 95 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400000 ------------------------------------------ - EIST Hardware Coordination........... : 0 (hardware coordination enabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x24242E2E2E2E2F2F ------------------------------------------ - Maximum Ratio Limit for C01.......... : 2F (4700 MHz) - Maximum Ratio Limit for C02.......... : 2F (4700 MHz) - Maximum Ratio Limit for C03.......... : 2E (4600 MHz) - Maximum Ratio Limit for C04.......... : 2E (4600 MHz) - Maximum Ratio Limit for C05.......... : 2E (4600 MHz) - Maximum Ratio Limit for C06.......... : 2E (4600 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x1 ------------------------------------------ - Power Policy Preference...............: 1 (highest performance) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x6866800148556 ------------------------------------------ - Package Power Limit #1............... : 170 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 205 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 0 (disabled) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0xB23616 ------------------------------------------ - Total Energy Consumed................ : 712 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x148668 ------------------------------------------ - Power Limit.......................... : 205 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x23 MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x94000000200460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x86B96733C MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x0 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x106D638378 IA32_TSC_DEADLINE................(0x6E0) : 0x5BD976289AD CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 35 (3500 MHz) Maximum Turbo Ratio/Frequency............: 47 (4700 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ (12) 34 46 ] CPU C3-Cores [ 1 2 ] CPU C6-Cores [ 0 2 4 6 8 10 ] CPU P-States [ (12) 34 40 46 ] CPU C3-Cores [ 0 1 2 3 ] CPU C6-Cores [ 0 2 3 4 6 8 10 ] CPU P-States [ (12) 30 34 40 46 ] CPU C6-Cores [ 0 2 3 4 6 7 8 10 ] CPU P-States [ 12 30 34 40 46 (47) ] CPU P-States [ (12) 30 32 34 40 46 47 ] CPU P-States [ 12 28 30 32 34 40 46 (47) ] CPU P-States [ (12) 26 28 30 32 34 40 46 47 ] CPU C6-Cores [ 0 2 3 4 6 7 8 9 10 ] CPU P-States [ 12 22 26 28 30 32 34 40 46 (47) ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 ] CPU P-States [ (12) 22 24 26 28 30 32 34 40 46 47 ] CPU P-States [ (12) 20 22 24 26 28 30 32 34 40 46 47 ] CPU P-States [ (12) 20 22 24 26 28 30 32 34 39 40 46 47 ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 9 10 11 ] CPU P-States [ 12 20 22 24 26 28 30 32 34 35 39 40 46 (47) ] CPU P-States [ 12 20 22 24 26 28 30 31 32 34 35 39 40 46 (47) ] CPU P-States [ 12 20 21 22 24 26 28 30 31 32 34 35 39 40 46 (47) ] CPU P-States [ 12 20 21 22 24 26 28 30 31 32 34 35 38 39 40 46 (47) ] CPU P-States [ 12 20 21 22 24 26 28 30 31 32 33 34 35 38 39 40 46 (47) ] CPU P-States [ 12 18 20 21 22 24 26 28 30 31 32 33 34 (35) 38 39 40 46 47 ] CPU P-States [ (12) 18 20 21 22 24 25 26 28 30 31 32 33 34 35 38 39 40 46 47 ] CPU P-States [ (12) 18 20 21 22 23 24 25 26 28 30 31 32 33 34 35 38 39 40 46 47 ] CPU P-States [ 12 18 20 21 22 23 24 25 26 28 30 31 32 33 34 35 38 39 40 41 46 (47) ] CPU P-States [ 12 18 20 21 22 23 24 25 26 28 29 30 31 32 33 34 35 38 39 40 41 46 (47) ] CPU C6-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ 12 18 20 21 22 23 24 25 26 28 29 30 31 32 33 34 35 36 38 39 40 41 46 (47) ] CPU P-States [ 12 18 20 21 22 23 24 25 26 28 29 30 31 32 33 34 35 36 37 38 39 40 41 46 (47) ] CPU P-States [ 12 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 46 (47) ] CPU P-States [ 12 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 (46) 47 ] CPU P-States [ (12) 17 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 44 46 47 ] CPU P-States [ 12 17 18 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 46 (47) ] CPU P-States [ (12) 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 46 47 ] CPU P-States [ 12 14 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 46 (47) ] CPU P-States [ 12 14 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 44 45 46 (47) ] CPU P-States [ 12 14 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 (47) ] CPU C3-Cores [ 0 1 2 3 4 6 ] CPU C3-Cores [ 0 1 2 3 4 6 7 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 11 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 10 11 ] CPU C3-Cores [ 0 1 2 3 4 5 6 7 8 9 10 11 ] CPU P-States [ (12) 14 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 ] CPU P-States [ 12 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 (47) ] CPU P-States [ (12) 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 ] 3 Link to comment Share on other sites More sharing options...
Fergarth Posted October 25, 2016 Share Posted October 25, 2016 How to fix the package clamping limitation?? Hi ekwipt, How to fix I don´t know, but in my system appears to be ok. At least it is not "disabled". - Package Clamping Limitation #1....... : 1 (allow going below OS-requested P/T state during Time Window for Power Limit #1) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 168 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) Link to comment Share on other sites More sharing options...
Fergarth Posted October 26, 2016 Share Posted October 26, 2016 SammlerG I'm sorry to be bothering you, but since you published your plist, has you made some more changes in patches or are the same?Thank you in advance, greetings. 1 Link to comment Share on other sites More sharing options...
Balamut Posted October 27, 2016 Share Posted October 27, 2016 I test 10.12.1 without overclock and without SSDT With samuvellG config Thank you G. Last login: Tue Oct 25 09:40:28 on console manoranjans-Pro:~ manoranjan$ sudo chown -R root:wheel /Users/manoranjan/Desktop/AppleIntelInfo.kext Password: manoranjans-Pro:~ manoranjan$ sudo chmod -R 755 /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo kextload /Users/manoranjan/Desktop/AppleIntelInfo.kext manoranjans-Pro:~ manoranjan$ sudo cat /tmp/AppleIntelInfo.dat AppleIntelInfo.kext v1.8e Copyright © 2012-2016 Pike R. Alpha. All rights reserved Settings: ------------------------------------------ logMSRs..................................: 1 logIGPU..................................: 0 logCStates...............................: 1 logIPGStyle..............................: 1 InitialTSC...............................: 0x1de9dae646c (68 MHz) MWAIT C-States...........................: 8480 Processor Brandstring....................: Intel(R) Core(TM) i7-5960X CPU @ 3.00GHz Processor Signature..................... : 0x306F2 ------------------------------------------ - Family............................... : 6 - Stepping............................. : 2 - Model................................ : 0x3F (63) Model Specific Registers (MSRs) ------------------------------------------ MSR_CORE_THREAD_COUNT............(0x35) : 0xFFFFFF805C478B00 ------------------------------------------ - Core Count........................... : 8 - Thread Count......................... : 16 MSR_PLATFORM_INFO................(0xCE) : 0x80C3BF3811E00 ------------------------------------------ - Maximum Non-Turbo Ratio.............. : 0x1E (3000 MHz) - Ratio Limit for Turbo Mode........... : 1 (programmable) - TDP Limit for Turbo Mode............. : 1 (programmable) - Low Power Mode Support............... : 1 (LPM supported) - Number of ConfigTDP Levels........... : 1 (additional TDP level(s) available) - Maximum Efficiency Ratio............. : 12 - Minimum Operating Ratio.............. : 8 MSR_PMG_CST_CONFIG_CONTROL.......(0xE2) : 0x7E000403 ------------------------------------------ - I/O MWAIT Redirection Enable......... : 1 (enabled, IO read of MSR(0xE4) mapped to MWAIT) - CFG Lock............................. : 0 (MSR not locked) - C3 State Auto Demotion............... : 1 (enabled) - C1 State Auto Demotion............... : 1 (enabled) - C3 State Undemotion.................. : 1 (enabled) - C1 State Undemotion.................. : 1 (enabled) - Package C-State Auto Demotion........ : 1 (enabled) - Package C-State Undemotion........... : 1 (enabled) MSR_PMG_IO_CAPTURE_BASE..........(0xE4) : 0x10414 ------------------------------------------ - LVL_2 Base Address................... : 0x414 - C-state Range........................ : 1 (C6 is the max C-State to include) IA32_MPERF.......................(0xE7) : 0xF897F949F IA32_APERF.......................(0xE8) : 0x118C94E551 MSR_FLEX_RATIO...................(0x194) : 0xE0000 ------------------------------------------ MSR_IA32_PERF_STATUS.............(0x198) : 0x1FD700002300 ------------------------------------------ - Current Performance State Value...... : 0x2300 (3500 MHz) MSR_IA32_PERF_CONTROL............(0x199) : 0x2500 ------------------------------------------ - Target performance State Value....... : 0x2500 (3700 MHz) - Intel Dynamic Acceleration........... : 0 (IDA engaged) IA32_CLOCK_MODULATION............(0x19A) : 0x0 IA32_THERM_STATUS................(0x19C) : 0x88390000 IA32_MISC_ENABLES................(0x1A0) : 0x850089 ------------------------------------------ - Fast-Strings......................... : 1 (enabled) - Automatic Thermal Control Circuit.... : 1 (enabled) - Performance Monitoring............... : 1 (available) - Processor Event Based Sampling....... : 0 (PEBS supported) - Enhanced Intel SpeedStep Technology.. : 1 (enabled) - MONITOR FSM.......................... : 1 (MONITOR/MWAIT supported) - CFG Lock............................. : 0 (MSR not locked) MSR_TEMPERATURE_TARGET...........(0x1A2) : 0x591200 ------------------------------------------ - Turbo Attenuation Units.............. : 0 - Temperature Target................... : 89 - TCC Activation Offset................ : 0 MSR_MISC_PWR_MGMT................(0x1AA) : 0x400001 ------------------------------------------ - EIST Hardware Coordination........... : 1 (hardware coordination disabled) - Energy/Performance Bias support...... : 1 - Energy/Performance Bias.............. : 0 (disabled/MSR not visible to software) - Thermal Interrupt Coordination Enable : 1 (thermal interrupt routed to all cores) MSR_TURBO_RATIO_LIMIT............(0x1AD) : 0x2323232323232323 ------------------------------------------ - Maximum Ratio Limit for C01.......... : 23 (3500 MHz) - Maximum Ratio Limit for C02.......... : 23 (3500 MHz) - Maximum Ratio Limit for C03.......... : 23 (3500 MHz) - Maximum Ratio Limit for C04.......... : 23 (3500 MHz) - Maximum Ratio Limit for C05.......... : 23 (3500 MHz) - Maximum Ratio Limit for C06.......... : 23 (3500 MHz) - Maximum Ratio Limit for C07.......... : 23 (3500 MHz) - Maximum Ratio Limit for C08.......... : 23 (3500 MHz) IA32_ENERGY_PERF_BIAS............(0x1B0) : 0x5 ------------------------------------------ - Power Policy Preference...............: 5 (balanced performance and energy saving) MSR_POWER_CTL....................(0x1FC) : 0x2104005B ------------------------------------------ - C1E Enable............................: 1 (enabled) MSR_RAPL_POWER_UNIT..............(0x606) : 0xA0E03 ------------------------------------------ - Power Units.......................... : 3 (1/8 Watt) - Energy Status Units.................. : 14 (61 micro-Joules) - Time Units .......................... : 10 (976.6 micro-Seconds) MSR_PKG_POWER_LIMIT..............(0x610) : 0x7FFD00014EA82 ------------------------------------------ - Package Power Limit #1............... : 3408 Watt - Enable Power Limit #1................ : 1 (enabled) - Package Clamping Limitation #1....... : 0 (disabled) - Time Window for Power Limit #1....... : 10 (2560 milli-Seconds) - Package Power Limit #2............... : 4090 Watt - Enable Power Limit #2................ : 1 (enabled) - Package Clamping Limitation #2....... : 1 (allow going below OS-requested P/T state setting Time Window for Power Limit #2) - Time Window for Power Limit #2....... : 3 (20 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PKG_ENERGY_STATUS............(0x611) : 0x52B022E ------------------------------------------ - Total Energy Consumed................ : 5292 Joules (Watt = Joules / seconds) MSR_PKG_POWER_INFO...............(0x614) : 0x1280460 ------------------------------------------ - Thermal Spec Power................... : 140 Watt - Minimum Power........................ : 0 - Maximum Power........................ : 0 - Maximum Time Window.................. : 0 MSR_PP0_POWER_LIMIT..............(0x638) : 0x14FFD0 ------------------------------------------ - Power Limit.......................... : 4090 Watt - Enable Power Limit................... : 1 (enabled) - Clamping Limitation.................. : 0 (disabled) - Time Window for Power Limit.......... : 10 (10240 milli-Seconds) - Lock................................. : 0 (MSR not locked) MSR_PP0_ENERGY_STATUS............(0x639) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64C) : 0x0 MSR_CONFIG_TDP_NOMINAL...........(0x648) : 0x1E MSR_CONFIG_TDP_LEVEL1............(0x649) : 0x940000001B0460 MSR_CONFIG_TDP_LEVEL2............(0x64a) : 0x94000000000000 MSR_CONFIG_TDP_CONTROL...........(0x64b) : 0x0 MSR_TURBO_ACTIVATION_RATIO.......(0x64c) : 0x0 MSR_PKGC6_IRTL...................(0x60b) : 0x0 MSR_PKG_C2_RESIDENCY.............(0x60d) : 0x217452F5B8 MSR_PKG_C3_RESIDENCY.............(0x3f8) : 0x57972 MSR_PKG_C6_RESIDENCY.............(0x3f9) : 0x23BD2B4086 IA32_TSC_DEADLINE................(0x6E0) : 0x1DE9FC378BD CPU Ratio Info: ------------------------------------------ Base Clock Frequency (BLCK)............. : 100 MHz Maximum Efficiency Ratio/Frequency.......: 12 (1200 MHz) Maximum non-Turbo Ratio/Frequency........: 30 (3000 MHz) Maximum Turbo Ratio/Frequency............: 35 (3500 MHz) P-State ratio * 100 = Frequency in MHz ------------------------------------------ CPU P-States [ 31 (35) ] CPU C3-Cores [ 1 14 ] CPU C6-Cores [ 1 2 4 6 8 11 12 14 ] CPU P-States [ 22 31 (35) ] CPU C3-Cores [ 0 1 14 ] CPU C6-Cores [ 0 1 2 4 6 8 10 11 12 14 ] CPU P-States [ 22 24 31 (35) ] CPU P-States [ 22 24 26 31 (35) ] CPU C6-Cores [ 0 1 2 4 6 8 10 11 12 14 15 ] CPU P-States [ 22 24 26 31 33 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 12 14 15 ] CPU P-States [ 22 24 26 28 31 33 (35) ] CPU P-States [ 22 23 24 26 28 31 33 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 8 10 11 12 13 14 15 ] CPU P-States [ (12) 22 23 24 25 26 28 31 33 35 ] CPU P-States [ (12) 22 23 24 25 26 27 28 31 33 35 ] CPU P-States [ 12 22 23 24 25 26 27 28 31 33 34 (35) ] CPU C6-Cores [ 0 1 2 3 4 6 7 8 10 11 12 13 14 15 ] CPU P-States [ (12) 22 23 24 25 26 27 28 30 31 33 34 35 ] CPU P-States [ 12 22 23 24 25 26 27 28 29 30 31 33 34 (35) ] CPU C3-Cores [ 0 1 14 15 ] manoranjans-Pro:~ manoranjan$ Which config? Link to comment Share on other sites More sharing options...
thenightflyer Posted October 27, 2016 Share Posted October 27, 2016 Which config? Maybe he refers to the last config in post #416 Link to comment Share on other sites More sharing options...
