[FIX] macOS Sierra DP1 BCM94532Z WiFi

darkvoid

By darkvoid,
in LAN and Wireless

 Share
132 posts in this topic

Recommended Posts

sajmonella9
sajmonella9
Posted
Posted

I have to problem, i add keys in Clover Configuration , in 3 postion BCM , reload cache and prelikedkernel.. nothing change. What i do wrong? i have the same wifi card like on subject. And after update from 10.12 to 10.12.1 stopped working, before i use method from Lenovo y50-70 Guide (Rehhab...) And working great. but after update OS, stopped working i see this method here working on someone people but  how? i do the same. Put new HEX key (find / replace) but nothing happen . Help it's important for me.

Link to comment
Share on other sites
beBoss
beBoss
Posted
Posted

Finally found what I needed. But for all of you that have the same card as mine: Broadcom BCM4352, and after updating from 10.12 to 10.12.1 your WIFI stopped working just add these three patches to your config, and restart the computer:

			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 1</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QTnEdRs=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				QTnEZpA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 2</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QQ+3zTnBdQw=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				QQ+3zTnBZpA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 3</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g33EBHQG
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				g33EBGaQ
				</data>
			</dict>
  • Like 2
Link to comment
Share on other sites
krbuck
krbuck
Posted
Posted



Finally found what I needed. But for all of you that have the same card as mine: Broadcom BCM4352, and after updating from 10.12 to 10.12.1 your WIFI stopped working just add these three patches to your config, and restart the computer:

			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 1</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QTnEdRs=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				QTnEZpA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 2</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				QQ+3zTnBdQw=
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				QQ+3zTnBZpA=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>AirPortBrcm4360 - PCI Error 3</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g33EBHQG
				</data>
				<key>Name</key>
				<string>AirPortBrcm4360</string>
				<key>Replace</key>
				<data>
				g33EBGaQ
				</data>
			</dict>

This actually worked for me. Thanks beBoss!

Link to comment
Share on other sites
toleda
toleda
Posted
Posted

Finally found what I needed. But for all of you that have the same card as mine: Broadcom BCM4352, and after updating from 10.12 to 10.12.1 your WIFI stopped working

1. Not your work, credit: Neo.aka.Darkman/Post #15/http://www.insanelymac.com/forum/topic/316060-pre-release-macos-sierra-10121/?p=2281834

2. BCM4352: no PCI Error. Actual problem: Clover/config.plist/ACPI/DSDT/Fixes/FixAirport_4000/Yes stopped working.

3. Neo.aka.Darkman is using a fake AW-CE123H (4352) Device ID: 2154.

4. Remove Clover Airport injection.  Use kext (RehabMan) injection or ssdt/dsdt injection/add:

"compatible",
Buffer (0x0D)
{
    "pci14e4,43a0"
}

5. The only 4352 patch required is 5 GHz patch, Post #1.

  • Like 2
Link to comment
Share on other sites
beBoss
beBoss
Posted
Posted

1. Not your work, credit: Neo.aka.Darkman/Post #15/http://www.insanelymac.com/forum/topic/316060-pre-release-macos-sierra-10121/?p=2281834

2. BCM4352: no PCI Error. Actual problem: Clover/config.plist/ACPI/DSDT/Fixes/FixAirport_4000/Yes stopped working.

3. Neo.aka.Darkman is using a fake AW-CE123H (4352) Device ID: 2154.

4. Remove Clover Airport injection.  Use kext (RehabMan) injection or ssdt/dsdt injection/add:

"compatible",
Buffer (0x0D)
{
    "pci14e4,43a0"
}

5. The only 4352 patch required is 5 GHz patch, Post #1.



Did I say that is my work? Facepalm  :D

Link to comment
Share on other sites
colordeficiency
colordeficiency
Posted
Posted (edited)

1. Not your work, credit: Neo.aka.Darkman/Post #15/http://www.insanelymac.com/forum/topic/316060-pre-release-macos-sierra-10121/?p=2281834

2. BCM4352: no PCI Error. Actual problem: Clover/config.plist/ACPI/DSDT/Fixes/FixAirport_4000/Yes stopped working.

3. Neo.aka.Darkman is using a fake AW-CE123H (4352) Device ID: 2154.

4. Remove Clover Airport injection.  Use kext (RehabMan) injection or ssdt/dsdt injection/add:

"compatible",
Buffer (0x0D)
{
    "pci14e4,43a0"
}

5. The only 4352 patch required is 5 GHz patch, Post #1.



Before 10.12.1 I've used ReHabman kext inject and the 5GHz patch to get everything working but now it is not working. After looking at DPCIManager realise my device id is different.



Right now I have only FakePCIID_Broadcom_WiFi.kext only, I don't care about 5Ghz if the device is not even detected at all.

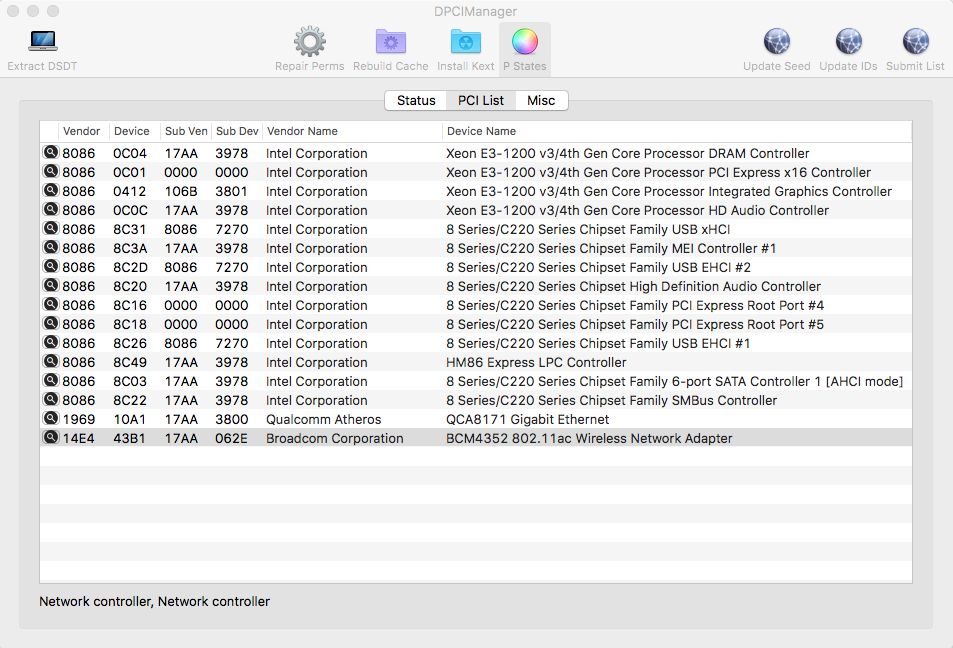

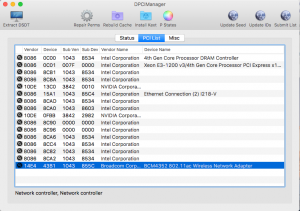

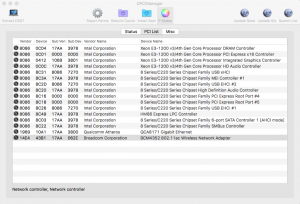

Vendor, Device, Sub Ven, Sub Dev, Vendor Name, Device Name

14E4, 43B1, 103C, 2154, Broadcom Corporation, BCM4352 802.11ac Wireless Network Adapter



EDIT:



Console is spaming this



com.apple.xpc.launchd[1] (com.apple.wifivelocityd): Service only ran for 0 seconds. Pushing respawn out by 10 seconds.

Edited by colordeficiency
Link to comment
Share on other sites
  • 4 months later...
Lacedaemon
Lacedaemon
Posted
Posted



On macOS Sierra DP1, when using a BMC94532Z NGFF WiFi card, AirportBrcm4360.kext no longer successfully loads.



This problem is caused by the driver not being able to initialize the fvco (frequency voltage controlled oscillator).



Apply the following patch in Clover to enable WiFi using the BCM94352Z:

Kext:    AirPortBrcm4360
Find:    81F952AA00007529
Replace: 81F952AA00006690

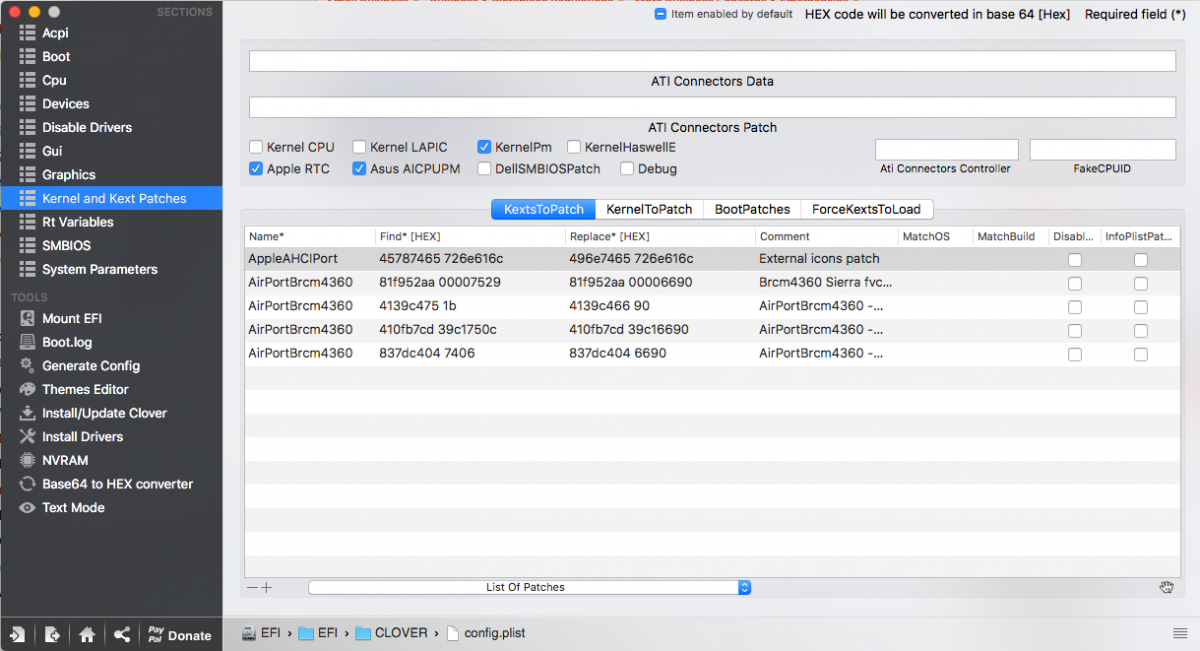

Through Clover config.plist:

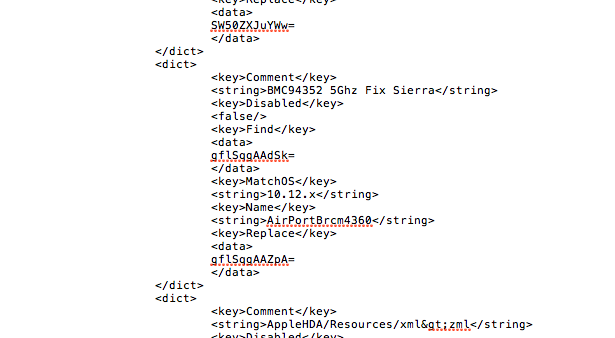

<dict>
	<key>Comment</key>
	<string>AirPortBrcm4360 - fcvo</string>
	<key>Disabled</key>
	<false/>
	<key>Find</key>
	<data>gflSqgAAdSk=</data>
	<key>Name</key>
	<string>AirPortBrcm4360</string>
	<key>Replace</key>
	<data>gflSqgAAZpA=</data>
</dict>

Thanks, this worked for my TP-Link Archer T6E AC1300 on macOS Sierra 10.12.3.

Link to comment
Share on other sites
  • 3 weeks later...
  • 2 weeks later...
chain_86
chain_86
Posted
Posted

Hi I have Sierra 10.12.4 and I can not start handoff to work, my system are recognize PIC card BCM94352Z on Lenovo Y5-70

and both work great, just I can not start handoff to work, and iMessage too.
can some one help ?



















Link to comment
Share on other sites
  • 3 weeks later...
hackaudio
hackaudio
Posted
Posted

Same card in Dell XPS 13 BCM94350ZAE/DW1820a [14e4:43a3].

Booting with verbose gives:



sudo dmesg | grep -i ARPT



ARPT: 2.706942: srom rev:11
ARPT: 2.739163: Over-riding wl_msg_level, found "wl_msg_level" arg, value[0x00000fff]
ARPT: 2.739170: Over-riding wl_msg_level2, found "wl_msg_level2" arg, value[0x00000fff]
ARPT: 2.743458: BRCM tunables:
ARPT: 2.743462:   pullmode[1] txringsize[  256] txsendqsize[1024] reapmin[   32] reapcount[  128]
ARPT: 2.745520: wl0: Broadcom BCM43ba, vendorID[0x14e4] BAR0[0xdc400004]
ARPT: 2.745687: wl0: powerStateWillChangeTo: PowerFlags 0xf000 new state 2 theDriver 0x56590bc9ff88b381
ARPT: 2.745732: D3 Exit Sanity : Verify PCIE
ARPT: 2.746089: D3 Exit Sanity : Verify Backplane errors
ARPT: 2.746151: D3 Exit Sanity : OL_CAP:1 M:0
ARPT: 2.746155: D3 Exit Sanity complete - Device is in good state
ARPT: 2.773715: Log system state... : reinit:6:-PCICfgRdFail-CfgReg:0x78
ARPT: 2.833306:
ARPT: 2.833312: Fatal Error - Initiate powercycle
ARPT: 2.838439: ai_core_reset: WARN1: resetstatus=0xffffffff
ARPT: 2.840716: ai_core_reset: WARN2: resetstatus=0xffffffff
ARPT: 2.841818: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.844111: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.846857: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.849419: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.852371: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.854616: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.856977: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.859958: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.862425: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.863567: ai_core_reset: Failed to take core 0x812 out of reset
ARPT: 2.863726: wlc_ltr_init: ltrspacing wr=0x1f4 rd=0xffffffff
ARPT: 2.863845: wlc_ltr_init: ltrhysteresiscnt wr=0xc0001 rd=0xffffffff
ARPT: 2.864007: wlc_ltr_init_reg: rd[0x844]=0xffffffff wr[0x844]=0x883c883c
ARPT: 2.864244: wlc_ltr_init_reg: rd[0x848]=0xffffffff wr[0x848]=0x88648864
ARPT: 2.864483: wlc_ltr_init_reg: rd[0x84c]=0xffffffff wr[0x84c]=0x90039003
ARPT: 2.864603: wl:wlc_ltr_hwset: orig ltr=3 new ltr=0 [0=>sleep, 2=>active]
ARPT: 2.864683: wl:wlc_ltr_hwset: Sending LTR message ltr=0 [0=>sleep, 2=>active]
ARPT: 2.865805: ai_core_reset: WARN1: resetstatus=0xffffffff
ARPT: 2.868098: ai_core_reset: WARN2: resetstatus=0xffffffff
ARPT: 2.869240: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.871494: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.873733: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.875945: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.878141: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.880353: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.882562: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.884870: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.887157: ai_core_reset: WARN3 resetstatus=0xffffffff
ARPT: 2.888370: ai_core_reset: Failed to take core 0x812 out of reset
ARPT: 2.888993: wlIoctl: wlc_ioctl called with cmd 118 returned error -26
ARPT: 2.889000: wl0: setAP: err setting ioctl WLC_SET_AP to 0, err -26 "Not Permitted"
ARPT: 2.889149: wl0: powerStateWillChangeTo: PowerFlags 0x0400 new state 1 theDriver 0x56590bc9ff88b381
ARPT: 2.889175: PowerState did not change to OFF : 2IOV_OL_TCPKEEPALIVE_CONN: no valid info
ARPT: 3.190307: wl0: wlc_iovar_op: wl_tcpkeepalive_conn BCME -23 (Unsupported)
ARPT: 3.190316: wlIovarOp: wlc_iovar_op called with cmd "wl_tcpkeepalive_conn" returned error -23
ARPT: 3.190338: AirPort_Brcm43xx::syncPowerState: WWEN[disabled]
ARPT: 3.190349: wlIoctl: wlc_ioctl called with cmd 118 returned error -26
ARPT: 3.190357: wl0: setAP: err setting ioctl WLC_SET_AP to 0, err -26 "Not Permitted"
ARPT: 3.190420: wl0: powerStateWillChangeTo: PowerFlags 0xf000 new state 2 theDriver 0x56590bc9ff88b381
ARPT: 3.190449: D3 Exit Sanity : Verify PCIE
ARPT: 3.190470: D3 Exit Sanity : Verify Backplane errors
ARPT: 3.190777: D3 Sanity : Backplane timeout detected
ARPT: 3.190783: wl0: fatal error, reinitializing, total count of reinit's[1], @'wlc_verify_d3_exit':56127
ARPT: 3.190790: Perform hard reset, skip core init
ARPT: 3.190797: AirPort_Brcm43xx::syncPowerState: Device in bad state after wakeup - err:-1
ARPT: 3.190853: Power Cycle Completed
ARPT: 3.190919: Log system state... : DriverState
ARPT: 3.192499: Fatal Error - Initiate powercycle
ARPT: 3.228157:
ARPT: 3.228165: Log system state... : DriverState
ARPT: 3.265353:
ARPT: 5.143371: WLAN adapter PCIE config space was not restored (stateNumber = 2)
ARPT: 5.153363: wl0: fatal error, reinitializing, total count of reinit's[2], @'wl_nocard_war':4312
ARPT: 5.174015: Perform hard reset, skip core init

Any ideas? Also tried with fake id via clover. nothing. Card show up but unable to power on.

Thank you

I'm still to figure this out.... If some experienced folk like @darkvoid @RehabMan @toleda can help, the problem of DW1820A may be solved.

I have all the hardware and skill to help debug.

Link to comment
Share on other sites
  • 3 weeks later...
sahib1989
sahib1989
Posted
Posted

I am using the same patch for handoff/hotspot that I use with El Capitan and it is working fine for me.




would you please upload your config.plist file for your efi folder, because i want to copy the section you are using to activate your dw1550(i am using the same card), normally i have to edit kext file manually after every update and thanks

Link to comment
Share on other sites
Ashanx
Ashanx
Posted
Posted

So I am currently running 10.12.5, however I installed the lasted Fakepciid package and once I did my bluetooth stopped working.  I have Brcmpatchram2 and the repo kext installed but still does not work.  Once I remove the FakePCIID_XHCIMUX kext it will work again, but then I only get one USB working.    If I install and older XHCIMUX kext, my bluetooth will work, but only one USB.  Its like I am stuck with having one or the other.  The other issue is that when my bluetooth is working.  I can turn on the feature to have my Apple Watch unlock the Mac, but when it attempts to unlock it will just spin and ask for the password.  I made sure that the handoff support is working, but doesn't actually seem to work.  I have a BCM94350 card installed.  My WIFI however works perfectly.  its just my bluetooth.   I would appreciate any help that you all can give.

Link to comment
Share on other sites
Carmelo Vazzana
Carmelo Vazzana
Posted
Posted



On macOS Sierra DP1, when using a BMC94532Z NGFF WiFi card, AirportBrcm4360.kext no longer successfully loads.



This problem is caused by the driver not being able to initialize the fvco (frequency voltage controlled oscillator).



Apply the following patch in Clover to enable WiFi using the BCM94352Z:

Kext:    AirPortBrcm4360
Find:    81F952AA00007529
Replace: 81F952AA00006690

Through Clover config.plist:

<dict>
	<key>Comment</key>
	<string>AirPortBrcm4360 - fcvo</string>
	<key>Disabled</key>
	<false/>
	<key>Find</key>
	<data>gflSqgAAdSk=</data>
	<key>Name</key>
	<string>AirPortBrcm4360</string>
	<key>Replace</key>
	<data>gflSqgAAZpA=</data>
</dict>



HI, good find, i've installed Sierra on an external FW800 drive in an old MBP 4,1 using a patch, but the Broadcom BCM4321 doesn't work, for any chance this patch works in a normal MBP?

Thanks, Carmelo.

Link to comment
Share on other sites
Da Pupster
Da Pupster
Posted
Posted

I've followed all the instructions for getting my Dell 1560 BCM94532Z card working, and it's not working...!



Attached are the last few lines of my boot log:



FSInjectionInstall ...

- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D1516D18
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: D1516D18
14:452  0:014  Use origin smbios table type 1 guid.
14:456  0:004    Force kext: System\Library\Extensions\IO80211Family.kext\Contents\PlugIns\AirPortBrcm4360.kext
15:635  1:178  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
15:674  0:038  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.12
15:697  0:023    Extra kext: EFI\CLOVER\kexts\10.12\BrcmFirmwareData.kext
15:753  0:055    Extra kext: EFI\CLOVER\kexts\10.12\BrcmPatchRAM2.kext
15:785  0:031    Extra kext: EFI\CLOVER\kexts\10.12\FakePCIID_Broadcom_WiFi.kext
15:791  0:006    Extra kext: EFI\CLOVER\kexts\10.12\FakePCIID.kext
15:800  0:008  Custom boot is disabled



=====

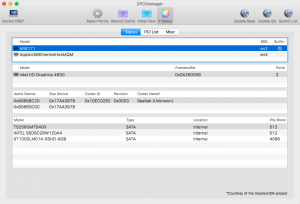

Attached as a file is a screenshot of the patches. It's just not loading!!! Ideas??


Link to comment
Share on other sites
tluck
tluck
Posted
Posted

@Da Pupster



what does the card/device look like to the system?

meaning did you add a FakeID or DSDT/SSDT to make the device look like a 4360?



if i run "dspci" to list my PCI devices: i see this for my 1560



04:00.0 Network controller [0280]: Broadcom Corporation BCM4360 802.11ac Wireless Network Adapter [14e4:43a0] (rev 03) (subsys 106b:0019)



and you may want to put those FakePCIID kexts on the HD in /Library/Extensions



BrcmFirmwareRepo.kext: Install to /Library/Extensions. This kext is much more memory efficient than BrcmFirmwareData.kext and is the preferred configuration.

BrcmFirmwareData.kext: Most appropriate for EFI/Clover/kexts. BrcmFirmwareRepo.kext, while much more memory efficient, cannot be injected as can BrcmFirmwareData.kext

Link to comment
Share on other sites
 Share
Go to topic listing
×
×
  • Create New...
