chris1111 Posted October 20, 2017 Share Posted October 20, 2017 Thanks... in addition to or in place of AppleIntel1000e? Replace by IntelMausie but if you have the AppleIntel1000e in Plugins of IonetorkingFamilly.kext delete the kext AppleIntel1000e IntelMausie work in Clover / kexts / 10.xx or Other not in Ionetworkingfamilly Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 Replace by IntelMausie but if you have the AppleIntel1000e in Plugins of IonetorkingFamilly.kext delete the kext AppleIntel1000e IntelMausie work in Clover / kexts / 10.xx or Other not in Ionetworkingfamilly So, I deleted AppleIntel100e from clover/kexts/10.12, and replaced it with IntelMausiEthernet. This resulted in no ethernet connection whatsoever. Restored AppleIntel1000e, and the internet is back, but with the same wake from sleep problem. Any other suggestions? Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 So, I deleted AppleIntel100e from clover/kexts/10.12, and replaced it with IntelMausiEthernet. This resulted in no ethernet connection whatsoever. Restored AppleIntel1000e, and the internet is back, but with the same wake from sleep problem. Any other suggestions? Go to S/L/E and copy IONetworkingFamily.kext to Clover 10.12 Copy AppleIntel100eI on ➦ ONetworkingFamily.kext / Contents / Plugins Delete AppleIntel100eI from 10.12 Try let my know Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 Go to S/L/E and copy IONetworkingFamily.kext to Clover 10.12 Copy AppleIntel100eI on ➦ ONetworkingFamily.kext / Contents / Plugins Delete AppleIntel100eI from 10.12 Try let my know Okay, but one question before I do: Do I delete IONetworkingFamily.kext from S/L/E after I've copied it to Clover/Kexts/10.12? Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 Okay, but one question before I do: Do I delete IONetworkingFamily.kext from S/L/E after I've copied it to Clover/Kexts/10.12? No Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 @billig66 Works ? Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 Okay, but one question before I do: Do I delete IONetworkingFamily.kext from S/L/E after I've copied it to Clover/Kexts/10.12? Okay, followed this procedure. I have internet, but the same problem on wake. Interestingly, when I put the machine to sleep using the Apple menu, I have ethernet when it wakes up. The problem occurs when the machine goes to sleep on its own. Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 Okay, followed this procedure. I have internet, but the same problem on wake. Interestingly, when I put the machine to sleep using the Apple menu, I have ethernet when it wakes up. The problem occurs when the machine goes to sleep on its own. Try more old IntelMausi maybe solved this ? If you try remove IONetworkingFamily.kext to Clover 10.12 Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 Try more old IntelMausi maybe solved this ? If you try remove IONetworkingFamily.kext to Clover 10.12 Okay, I think you've lost me. Right now, IONetworkingFamily.kext IS in Clover/kexts/10.12, with AppleIntel1000e in the plugins folder of IONetworking family.kext. Are you suggesting that I look for an older version of IntelMausiEthernet to try in place of AppleIntel1000e? Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 Okay, I think you've lost me. Right now, IONetworkingFamily.kext IS in Clover/kexts/10.12, with AppleIntel1000e in the plugins folder of IONetworking family.kext. Are you suggesting that I look for an older version of IntelMausiEthernet to try in place of AppleIntel1000e? To try in place Of ONetworkingFamily.kext in Clover/kexts/10.12, with AppleIntel1000e So remove Ionetwok and thats remove ApleIntelE1000 Replace by a old version of IntelMausie Sorry my english Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 To try in place Of ONetworkingFamily.kext in Clover/kexts/10.12, with AppleIntel1000e So remove Ionetwok and thats remove ApleIntelE1000 Replace by a old version of IntelMausie Sorry my english No worries. I greatly appreciate your efforts to help. Replaced with IntelMausiEthernet 1.0, 2.0, and 2.3.0. No internet with any of them. I've restored AppleIntel1000e, and now I have internet again. If you have any more ideas, please feel free to share... right now I'm just not letting the machine go to sleep. Link to comment Share on other sites More sharing options...
chris1111 Posted October 20, 2017 Share Posted October 20, 2017 No worries. I greatly appreciate your efforts to help. Replaced with IntelMausiEthernet 1.0, 2.0, and 2.3.0. No internet with any of them. I've restored AppleIntel1000e, and now I have internet again. If you have any more ideas, please feel free to share... right now I'm just not letting the machine go to sleep. Which AppleIntelE1000 you have? Link to comment Share on other sites More sharing options...
billg66 Posted October 20, 2017 Share Posted October 20, 2017 Which AppleIntelE1000 you have? It's dated 9/27/16. Link to comment Share on other sites More sharing options...
chris1111 Posted October 21, 2017 Share Posted October 21, 2017 It's dated 9/27/16. It's dated 9/27/16. Get info, see version Link to comment Share on other sites More sharing options...
billg66 Posted October 23, 2017 Share Posted October 23, 2017 Get info, see version Version 3.3.5. Link to comment Share on other sites More sharing options...
chris1111 Posted October 23, 2017 Share Posted October 23, 2017 Version 3.3.5. Try this one is V 3.3.6 Compilling Xcode 9.0 today AppleIntelE1000e.kext.zip Link to comment Share on other sites More sharing options...
billg66 Posted October 23, 2017 Share Posted October 23, 2017 Try this one is V 3.3.6 Compilling Xcode 9.0 today Thanks! Computer is running a big job right now, but I should be able to test in a couple of hours... I'll let you know! Thanks again! 1 Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted October 24, 2017 Share Posted October 24, 2017 @Chris1111: I'm running my optiplex 790 on UEFI straight from the EFI partition now (so no need to create a seperate partition to install Clover on). I don't know why, but as I said back then I couldn't navigate the EFI because it'd make the BIOS freeze and the GUI would get malformed. Also it wouldn't boot from BOOTX64. Apparently that has to do with the EFI partition itself, not sure why though. I reformatted the EFI partition and reinstalled Clover without luck: same freezing issue. Then I ran fsck_msdos a couple of times and now I'm able to boot BOOTX64 without any issues Link to comment Share on other sites More sharing options...

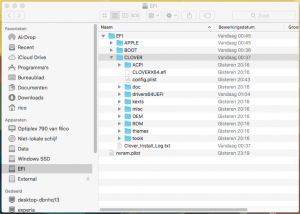

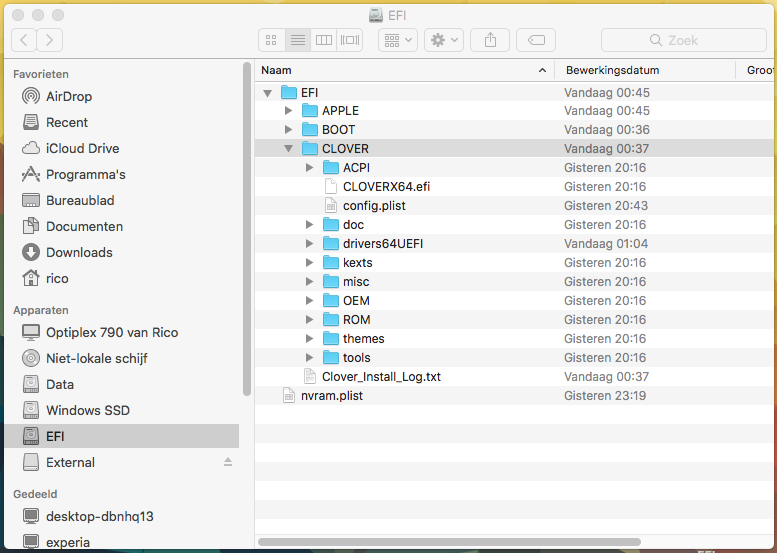

chris1111 Posted October 24, 2017 Share Posted October 24, 2017 @Chris1111: I'm running my optiplex 790 on UEFI straight from the EFI partition now (so no need to create a seperate partition to install Clover on). I don't know why, but as I said back then I couldn't navigate the EFI because it'd make the BIOS freeze and the GUI would get malformed. Also it wouldn't boot from BOOTX64. Apparently that has to do with the EFI partition itself, not sure why though. I reformatted the EFI partition and reinstalled Clover without luck: same freezing issue. Then I ran fsck_msdos a couple of times and now I'm able to boot BOOTX64 without any issues Schermafbeelding 2017-10-24 om 15.59.30.png do you have a background boot GUI to large compare to ESP Legacy ? Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted October 24, 2017 Share Posted October 24, 2017 do you have a background boot GUI to large compare to ESP Legacy ? The verbose text just before the Clover GUI comes up (like AFPS logs and such) are really large But other than that it's fine. Clover's GUI itself as well as the actual boot process is 1080p Used CsmVideoDxe to get rid of the APFS logs, so it's not really bothering to me Link to comment Share on other sites More sharing options...
chris1111 Posted October 25, 2017 Share Posted October 25, 2017 I have change a bit my Slot config in my Dell Optiplex 790 For people wants to Enable native wifi in a PCI Slot ; Yea Yea PCI Slot, not a PCIe Take a look to this Install half-height/low profile x1 PCI Express interface cards in a standard PCI expansion slot Buy here ➤ Strarthec.com Wireless Wifi Network Card PCI-E to PCI-E1X Desktop Adapter Convertor you will need to cut the Braket and redo two other holes lower to accommodate the low profile Buy here ➤ Wireless Wifi Network Card PCI Mini PCI Wifi Atheros AR5B93 Buy here ➤ Atheros AR5B93 Inside my PC Wifi Native in a PCI Slot Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted October 25, 2017 Share Posted October 25, 2017 I have change a bit my Slot config in my Dell Optiplex 790 For people wants to Enable native wifi in a PCI Slot ; Yea Yea PCI Slot, not a PCIe Take a look to this It's a nice solution for my Optiple 755 too, since that one only has 1 PCIe (graphicscard) and 1 PCI slot Link to comment Share on other sites More sharing options...
window Posted October 26, 2017 Share Posted October 26, 2017 I need help enabling my ORICO USB ADAPTER 4.0, chipset BCM20702A. Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted October 26, 2017 Share Posted October 26, 2017 I need help enabling my ORICO USB ADAPTER 4.0, chipset BCM20702A. Take a look at this: https://github.com/the-darkvoid/BrcmPatchRAM Especially Bluetoothinjector.kext Link to comment Share on other sites More sharing options...
window Posted October 26, 2017 Share Posted October 26, 2017 @ricoc9 thanks, I have read it but there are too many things I don't quite understand. I am worried i'll make a mistake or two. edit: Should I just put necessary kexts in Clover/kexts/Other? Link to comment Share on other sites More sharing options...
