MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 may be My Optiplex780 works but very well: Sierra: Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 RC-Script´s Install Clover in the ESP (optional) High Sierra: Install Clover in the ESP Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 RC-Script´s 1 Link to comment Share on other sites More sharing options...
polyzargone Posted September 23, 2017 Share Posted September 23, 2017 may be My Optiplex780 works but very well: Sierra: Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 RC-Script´s Install Clover in the ESP (optional) High Sierra: Install Clover in the ESP Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 RC-Script´s Sure! But none of the drivers in Drivers64UEFI are actually used ! The thing is that you have "Bootloader / Install boot0af in the MBR" so this is the boot file at the root of the ESP that do all the job . 1 Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 That's correct! For instance, if you put apfs.efi only in Drivers64UEFI, Clover won't see any APFS drives if you're using Legacy. This is why I rename the driver apfs-64.efi and put in Drivers64 Link to comment Share on other sites More sharing options...
polyzargone Posted September 23, 2017 Share Posted September 23, 2017 This is why I rename the driver apfs-64.efi and put in Drivers64 Even that is unnecessary . You can name it whatever you want it will load as long as it's in the correct place . As a test, I've renamed apfs.efi from /usr/standalone/i386/apfs.efi to /EFI/CLOVER/drivers64/test.efi and it just works! 1 Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 Even that is unnecessary . You can name it whatever you want it will load as long as it's in the correct place . As a test, I've renamed apfs.efi from /usr/standalone/i386/apfs.efi to /EFI/CLOVER/drivers64/test.efi and it just works! But the good name for Hackintosh is apfs-64.efi same with the Drivers HFSPlus.efi HFSPlus-64.efi Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 No, I'm not sure, but it works here without problems. apfs.efi in /EFI/CLOVER/drivers64/ works without problems 1 Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 No, I'm not sure, but it works here without problems. apfs.efi in /EFI/CLOVER/drivers64/ works without problems It is only rename for avoid confusion with the DriversUEFI Since the first Day High Sierra success Install Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 insanelyMac today totally slow with problems With you, too? @ricoc90 Can you please install VoodooHDA on the 755? Then make a VoodooDump with DarwinDumper / Audio! That would be nice. Except for you is nobody active and ready for 755. Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 23, 2017 Share Posted September 23, 2017 The forum has been slow for me since the past 2 weeks or so. Here's the dump. DarwinDumper_3.0.3_23.09_17.24.29_iMac10,1_Clover_X64_4200_Sierra_16G29_rico.zip A little info: VoodooHDA never really worked for me.The mic is always on which causes a huge static sound and a really loud high pitched peeping sound. When I turn iGain to 0 on output device (Headphone jack as well as line-out), the mic doesn't work at all anymore. Link to comment Share on other sites More sharing options...

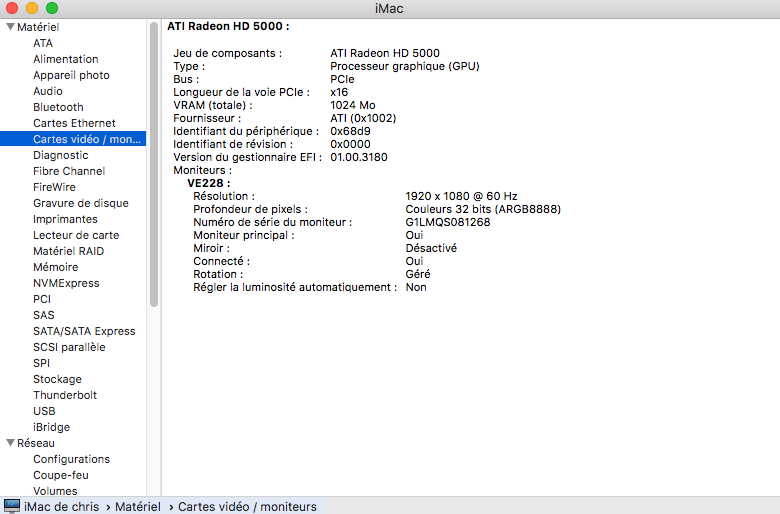

chris1111 Posted September 23, 2017 Share Posted September 23, 2017 For those who are interested I just bought a great little Graphics Card on KIJIJI Saphire Radeon 5570 For the modest sum of $ 45 This card is native any version of OS X from 10.6 to 10.13 on Delll Optiplex 790 Very Silent in addition, Working plug in play with my SSDT Patch I just put out my 5450 and put in the 5570 et Voila EDIT*** I have just made a test without SSDT patch with only Inject Ati and the card works natively NO Fake ID Clover Original Device ID is 0x68D9 Sleep and wake works natively and HDMI AppleALC EDIT *** I remove the <key>FBName</key> <string>Cedar</string> and now its show the exacte name EDIT*** but to have my two screens on my two GPU I have to add the FB and sacrificing the name Link to comment Share on other sites More sharing options...
MacPeet Posted September 24, 2017 Author Share Posted September 24, 2017 @ricoc90 Thank you very much Let's try again. delete VoodooHDA and Disnabler try with LayoutID 28 (1C): file deleted, not relevant anymore Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 24, 2017 Share Posted September 24, 2017 @MacPeet:V3: audio works on both ports, microphone doesn't work on both ports but the inputs are there V4: No audio and microphone inputs Link to comment Share on other sites More sharing options...
MacPeet Posted September 24, 2017 Author Share Posted September 24, 2017 damn it all! I do not understand. I keep searching. Link to comment Share on other sites More sharing options...
MacPeet Posted September 25, 2017 Author Share Posted September 25, 2017 try this (28 (1C)): trial__new_Codec_AppleALC.kext_Optiplex755_V5.zip Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 25, 2017 Share Posted September 25, 2017 Nope, the same. Audio works but microphone does not Link to comment Share on other sites More sharing options...
chris1111 Posted September 25, 2017 Share Posted September 25, 2017 macOS High Sierra Officiel is fine here Optiplex 790 Link to comment Share on other sites More sharing options...
nguyendj Posted September 26, 2017 Share Posted September 26, 2017 I Upgraded to HS successfully. audio grey again. I’m using flying method from El Capitan (applehda to s/l/e, realtekalc to Kexts/10.12). Any suggestions Sent from my iPhone using Tapatalk Link to comment Share on other sites More sharing options...
MacPeet Posted September 26, 2017 Author Share Posted September 26, 2017 @nguyendj please post your EFI folder! Link to comment Share on other sites More sharing options...

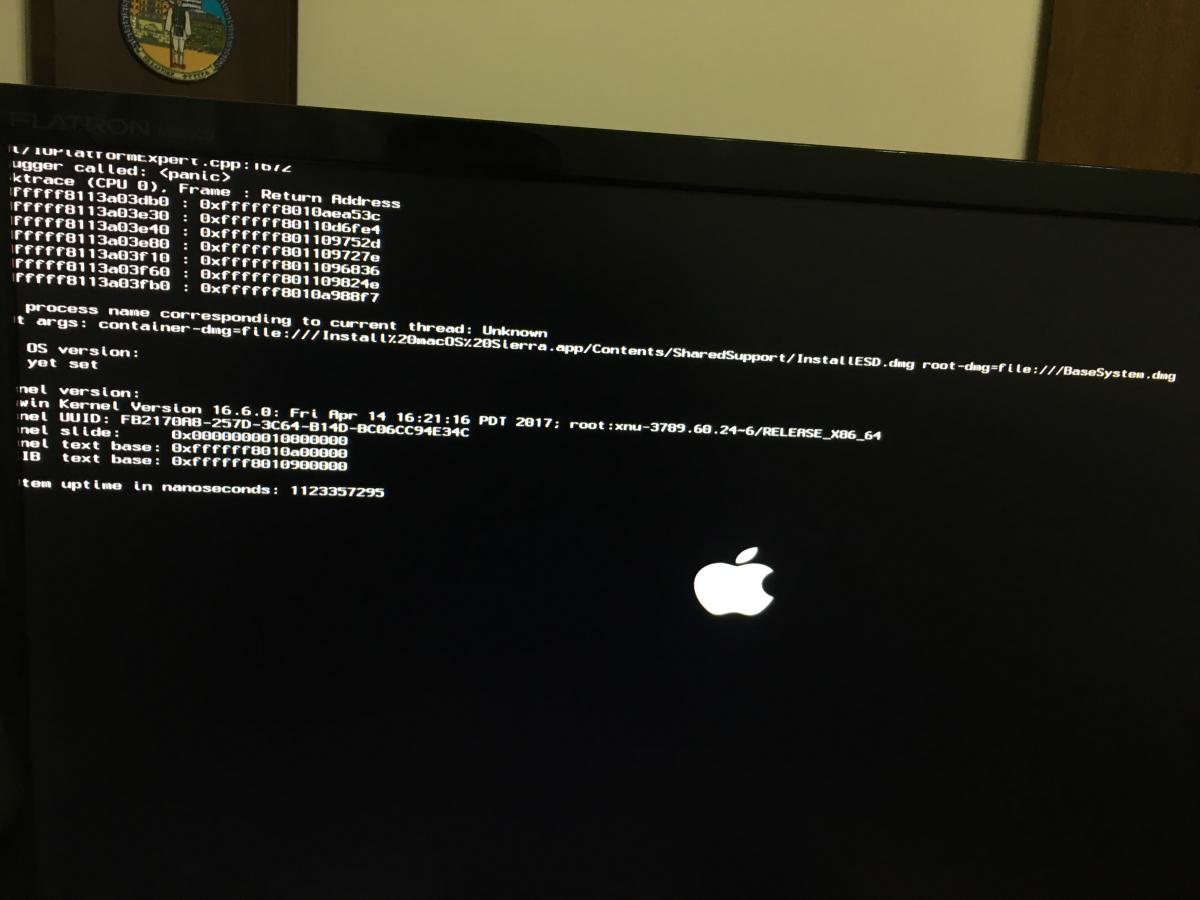

sakis6977 Posted September 26, 2017 Share Posted September 26, 2017 New error. I boot from usb and i see this error now. In clover i just install all drivers64 and rc on target. update: F***....... This error was without my config.plist and kext 10.12. If i put my config.plist and kext as the guide said i see the same error with red letters. What i'm doing wrong????? Please help.... Link to comment Share on other sites More sharing options...
nguyendj Posted September 27, 2017 Share Posted September 27, 2017 I Upgraded to HS successfully. audio grey again. I’m using flying method from El Capitan (applehda to s/l/e, realtekalc to Kexts/10.12). Any suggestions Sent from my iPhone using Tapatalk My mistake, Just created 10.13 folder in EFI/../kexts and copy all from 10.12 Link to comment Share on other sites More sharing options...
MacPeet Posted September 27, 2017 Author Share Posted September 27, 2017 @nguyendj audio works now? You can better switch to AppleALC method. If you need help, please contact me. @ sakis6977 Install Sierra or High Sierra? Link to comment Share on other sites More sharing options...
chris1111 Posted September 27, 2017 Share Posted September 27, 2017 Dell Optiplex 790 macOS High Sierra 10.13 (17A365) NVIDIA GeForce GT 1030 2 Go Works Link to comment Share on other sites More sharing options...
Deanor30 Posted September 27, 2017 Share Posted September 27, 2017 Hi folks, I have updated my dell760 sff to 10.13 but I cannot get my audio to work. For Sierra I used the Applealc.kext with the dsdt layout modified but the same dsdt and kext are not working in High Sierra. Can anyone advise any method that works. D. Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 27, 2017 Share Posted September 27, 2017 Hi folks, I have updated my dell760 sff to 10.13 but I cannot get my audio to work. For Sierra I used the Applealc.kext with the dsdt layout modified but the same dsdt and kext are not working in High Sierra. Can anyone advise any method that works. D. Two possibilities: You are using an older version of Lilu and/or AppleALC, in which case you need to boot with -lilubeta -alcbeta or update Lilu and AppleALC to the latest version (https://github.com/vit9696/Lilu -- https://github.com/vit9696/AppleALC Your kexts are in the folder 10.12 rather than 10.13 or Other Link to comment Share on other sites More sharing options...
lucsansag Posted September 27, 2017 Share Posted September 27, 2017 I have updated to 10.13 and everything seems to work but I don't have any audio. Also I installed Clover to the ESP as instructed, do I have to keep the EFI/CLOVER directory in the main OS partition? Link to comment Share on other sites More sharing options...
