Guest ricoc90 Posted September 21, 2017 Share Posted September 21, 2017 Yes i make new with this kext on 10.12 folder. The same error. after that i put in other folder and the same error again. What the f*** is wrong now? What Clover version are you using? Try updating to r4200. https://sourceforge.net/projects/cloverefiboot/ Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 21, 2017 Share Posted September 21, 2017 @MacPeet: internal Speaker (back green) => Works HP (front green) => Works internal Mic (front pink) => Doesn't work, no input LineIn (back blue) => Doesn't work, no input Link to comment Share on other sites More sharing options...
sakis6977 Posted September 22, 2017 Share Posted September 22, 2017 What Clover version are you using? Try updating to r4200. https://sourceforge.net/projects/cloverefiboot/ I have this one Clover_v2.4k_r4128 but i will try again with yours Link to comment Share on other sites More sharing options...
chris1111 Posted September 22, 2017 Share Posted September 22, 2017 Ok Dell Optiplex 790 Mac OS X Lion 10.7.5 ASUS Radeon HD 5450 1 Gig Intel HD 3000 The good news now its a both Display works and FULL Graphics acceleration on both Graphics Lion 10.7.5 its Amaging peace of software by Apple One of the best Ever made 1 Link to comment Share on other sites More sharing options...
Rocky12 Posted September 22, 2017 Share Posted September 22, 2017 best Ever 1 Link to comment Share on other sites More sharing options...
sakis6977 Posted September 22, 2017 Share Posted September 22, 2017 What Clover version are you using? Try updating to r4200. https://sourceforge.net/projects/cloverefiboot/ I try with new clover. The same error. I try with your config.plist. The same error again. I try with lily and nvidia kext. The same error. What i'm doing wrong? Here is my clover file without nvidia kext. Can you see anything wrong????? CLOVER.zip Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 22, 2017 Share Posted September 22, 2017 Honestly, I don't know. I remember some time ago you had the same issue when you'd put the DSDT from #1 into ACPI/Patched, right? Something makes Clover acting funny but I don't know what. Sorry. I'd ask in the Clover thread... Link to comment Share on other sites More sharing options...
sakis6977 Posted September 22, 2017 Share Posted September 22, 2017 Honestly, I don't know. I remember some time ago you had the same issue when you'd put the DSDT from #1 into ACPI/Patched, right? Something makes Clover acting funny but I don't know what. Sorry. I'd ask in the Clover thread... Yes with my old graphic card if i had the DSDT file it wasn't boot. If i was deleted i boot but with no full hd Link to comment Share on other sites More sharing options...
Quinzie XO Posted September 22, 2017 Share Posted September 22, 2017 I try with new clover. The same error. I try with your config.plist. The same error again. I try with lily and nvidia kext. The same error. What i'm doing wrong? Here is my clover file without nvidia kext. Can you see anything wrong????? He probably needs to change his CPU!! its a core2duo so he if he can even get to an i3 it would be good? Thoughts ? Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 22, 2017 Share Posted September 22, 2017 He probably needs to change his CPU!! its a core2duo so he if he can even get to an i3 it would be good? Thoughts ? An i3? On LGA775? That would be interesting Anyway, his CPU isn't the problem. What is, I honestly don't know. @sakis6977: You can also use SMBIOS imac13,1 or above to make the GT 710 work. Though, it's not the ideal SMBIOS for your setup and it's just a workaround, not a solution for the actual problem. I'd really ask for help with that in the Clover thread, because I really don't know what the issue is. Sorry Link to comment Share on other sites More sharing options...
chris1111 Posted September 22, 2017 Share Posted September 22, 2017 Yes with my old graphic card if i had the DSDT file it wasn't boot. If i was deleted i boot but with no full hd You are try Clover ESP install or Legacy ? Link to comment Share on other sites More sharing options...
sakis6977 Posted September 22, 2017 Share Posted September 22, 2017 An i3? On LGA775? That would be interesting Anyway, his CPU isn't the problem. What is, I honestly don't know. @sakis6977: You can also use SMBIOS imac13,1 or above to make the GT 710 work. Though, it's not the ideal SMBIOS for your setup and it's just a workaround, not a solution for the actual problem. I'd really ask for help with that in the Clover thread, because I really don't know what the issue is. Sorry Ok let me know if you have any news. I will try to change now to 13,1 update: not working again.... pffff the same error. You are try Clover ESP install or Legacy ? hmmmm how can i see this??? Link to comment Share on other sites More sharing options...
chris1111 Posted September 22, 2017 Share Posted September 22, 2017 hmmmm how can i see this??? Show me picture of the install Choice in Clover Link to comment Share on other sites More sharing options...

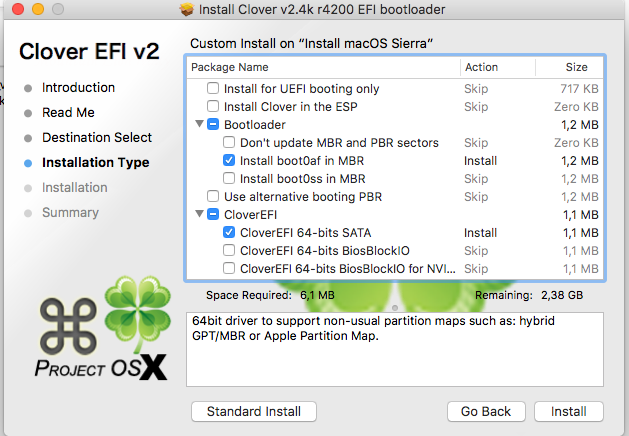

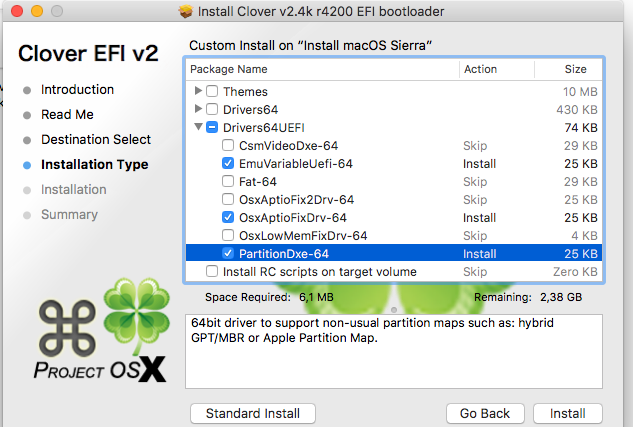

sakis6977 Posted September 23, 2017 Share Posted September 23, 2017 Show me picture of the install Choice in Clover I used this options only. If i try clover in the ESP what changes need to make to my bios? Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 @MacPeet: internal Speaker (back green) => Works HP (front green) => Works internal Mic (front pink) => Doesn't work, no input LineIn (back blue) => Doesn't work, no input try this (28 (1C)): file deleted, not relevant anymore Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 23, 2017 Share Posted September 23, 2017 try this (28 (1C)): trial__new_Codec_AppleALC.kext_Optiplex755_V2.zip The same: audio works on both ports, microphone doesn't work on both ports edit: Some progress on the LineIn port though; When I slap my microphone on my desk The input level raises a little Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 I used this options only. If i try clover in the ESP what changes need to make to my bios? If your select Clover Legacy like your picture you need select all Drivers64 Dont Select Drivers64UEFI its for UEFI Machine Link to comment Share on other sites More sharing options...
Guest ricoc90 Posted September 23, 2017 Share Posted September 23, 2017 If your select Clover Legacy like your picture you need select all Drivers64 Dont Select Drivers64UEFI its for UEFI Machine He probably followed this guide, as #1 step 3 and step 9 says: 3. Install Clover 3985 or later for Sierra-Support to your Install medium (Legacy-Method): Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 @ricoc90 Are the inputs visible? Did you have a version before the inputs worked ? At that time no beta testers were found. Link to comment Share on other sites More sharing options...

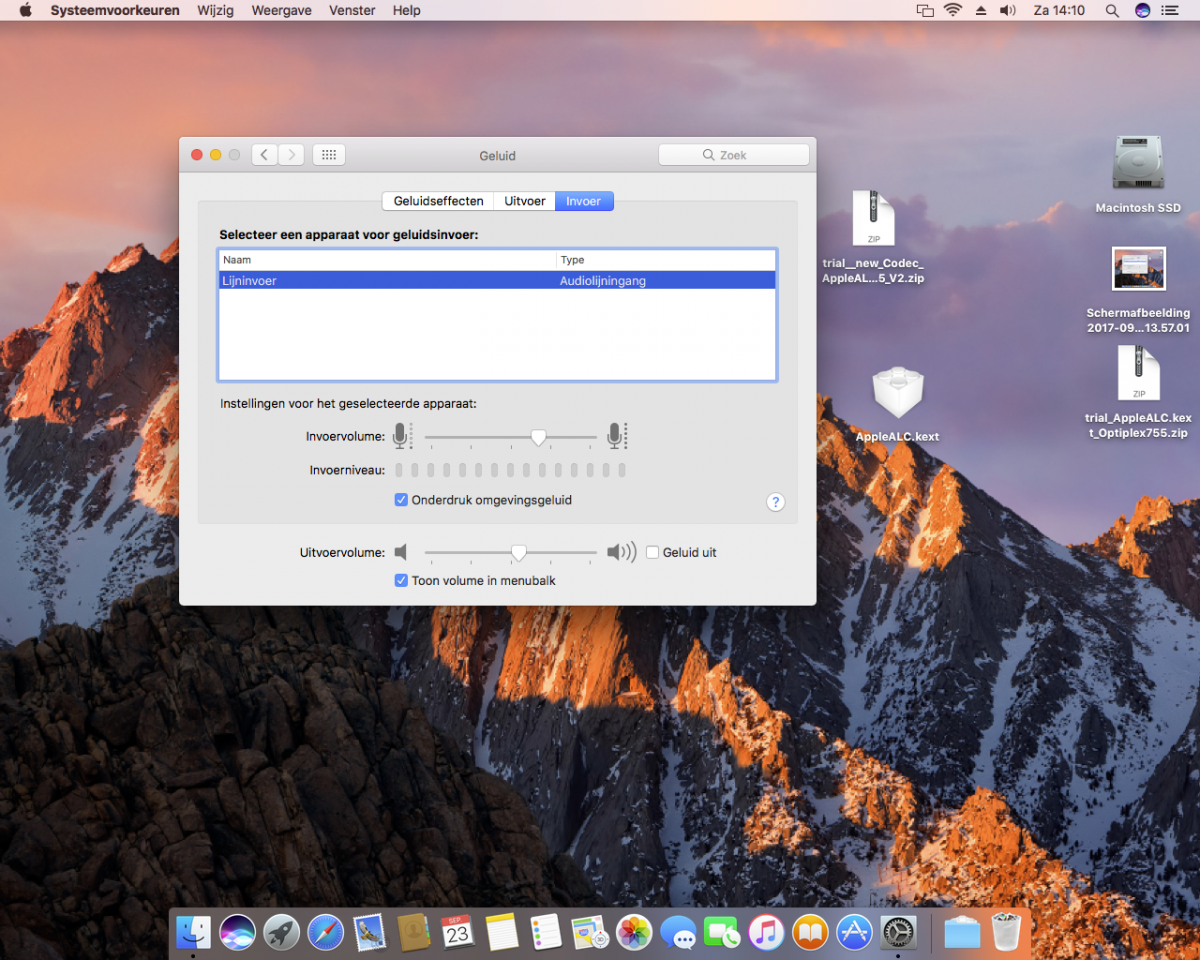

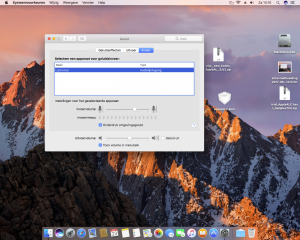

Guest ricoc90 Posted September 23, 2017 Share Posted September 23, 2017 @MacPeet: The ports are visible indeed. I never tried the mic ports on the 755 before, I'll try AppleALC from #1 again and report back Edit: with AppleALC from #1 only LineIn is visible, but not working. Mic port on the front obviously not working either: Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 for High Sierra and Optiplex780 (current version Clover): Install Clover in the ESP Bootloader / Install boot0af in the MBR CloverEFI / Clover-EFI 64Bit SATA Drivers64UEFI / EmuVariableUefi-64 Drivers64UEFI / OsxAptioFixDrv-64 Drivers64UEFI / PartitionDxe-64 RC-Script´s 1 Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 He probably followed this guide, as #1 step 3 and step 9 says: The Drivers64UEFI works only in UEFI Install Legacy is the Drivers64 UEFI drivers for Legacy are useless Working only if your select ESP anyway Legacy or ESP you have to select also the Divers64 This is my choice working for 10.6 ➤ 10.13 NOTE: In Drivers64 I have a choice apfs-64.efi ⬇︎ 1 Link to comment Share on other sites More sharing options...
MacPeet Posted September 23, 2017 Author Share Posted September 23, 2017 No, @ chris1111 Legacy Bios also uses Clover's Drivers64UEFI folder, for example the EmuVariableUefi-64 from Drivers64UEFI. Only the UEFI method is not used, only MBR. Only the apfs.efi must according to Drivers64. Link to comment Share on other sites More sharing options...
chris1111 Posted September 23, 2017 Share Posted September 23, 2017 No, @ chris1111 Legacy Bios also uses Clover's Drivers64UEFI folder, for example the EmuVariableUefi-64 from Drivers64UEFI. Only the UEFI method is not used, only MBR. Only the apfs.efi must according to Drivers64. Are you sure ? Read the Traduction for EmuvariableUEFI-64 Talk to Slice I think the EmuVariable is already Injected for Legacy install 1 Link to comment Share on other sites More sharing options...
polyzargone Posted September 23, 2017 Share Posted September 23, 2017 Talk to Slice I think the EmuVariable is already Inject in Legacy install That's correct! For instance, if you put apfs.efi only in Drivers64UEFI, Clover won't see any APFS drives if you're using Legacy. 1 Link to comment Share on other sites More sharing options...
