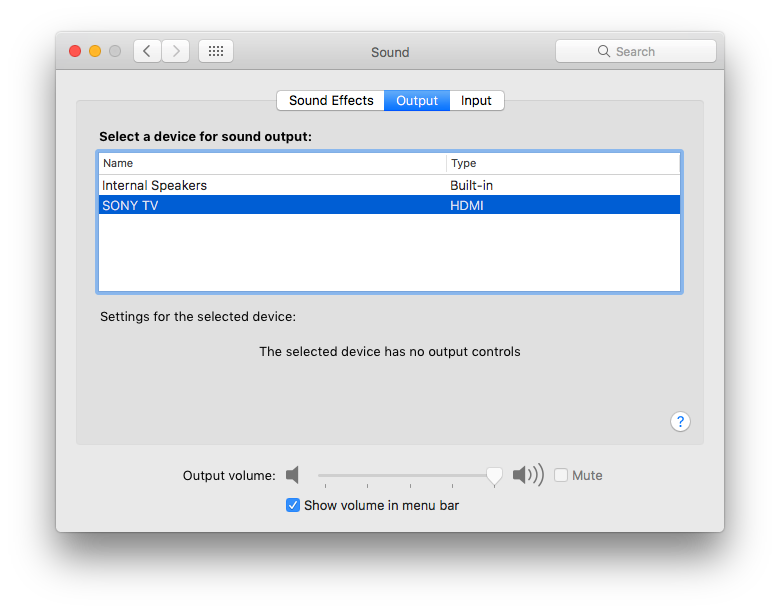

window Posted August 29, 2017 Share Posted August 29, 2017 don't see options but speakers are working on hdmi Link to comment Share on other sites More sharing options...
sakis6977 Posted August 29, 2017 Share Posted August 29, 2017 @sakis6977 Try with FakeID 0x68e01002 AND with FixDisplay_0100 @Shaheerahm You'll also need to edit the DSDT and change layout to 13 (OD) in device HDEF : Device (HDEF) { Name (_ADR, 0x001B0000) // _ADR: Address Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method { Store (Package (0x08) { "built-in", Buffer (One) { 0x00 }, "layout-id", Buffer (0x04) { 0x0D, 0x00, 0x00, 0x00 }, … And make sure there's nothing in Device > Audio > Inject in the config.plist. Where can i find this????? If you have also patch Radeon 5450 in DSDT, so remove the patch config.plist looks like this <key>FakeID</key> <dict> <key>ATI</key> <string>0x68E01002</string> Graphics <key>Graphics</key> <dict> <key>ATI</key> <true/> yes i already do this!!!! But not work. How can i post photo anyway? 1 Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 Where can i find this????? yes i already do this!!!! But not work. How can i post photo anyway? Use More replay Option and Upload image See here http://www.insanelymac.com/forum/topic/312656-guide-macos-sierra-1012-dell-optiplex-780-760-755-790-990/?p=2484500 Link to comment Share on other sites More sharing options...

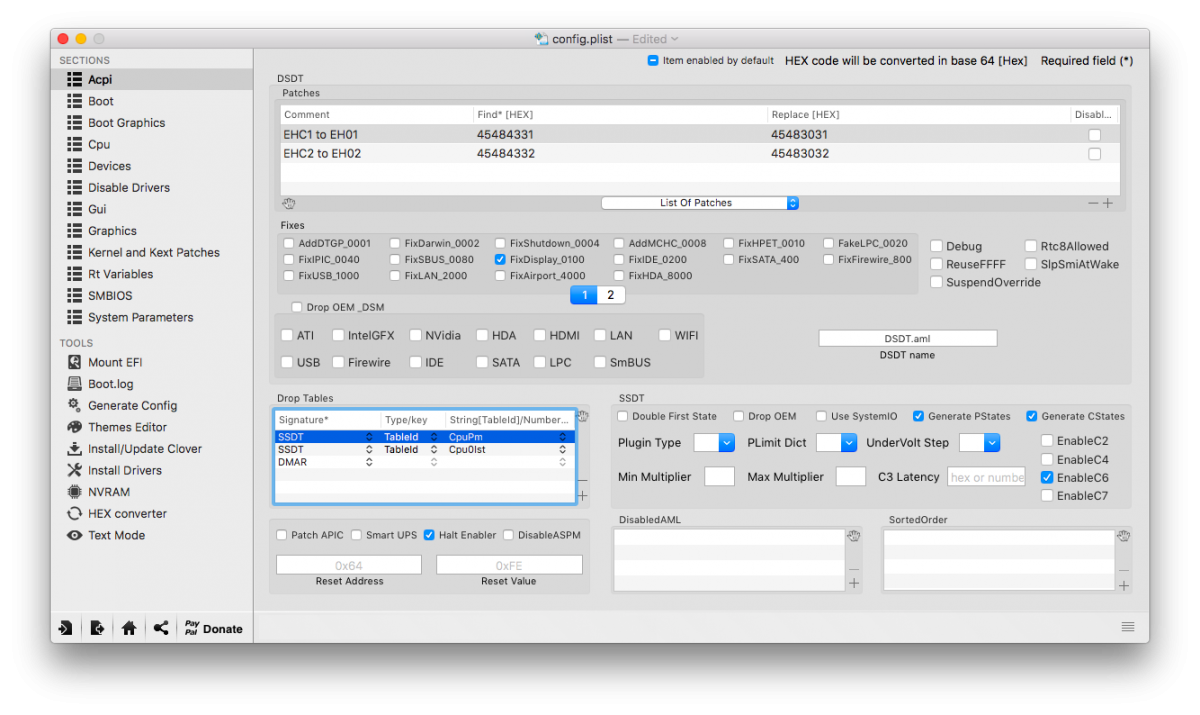

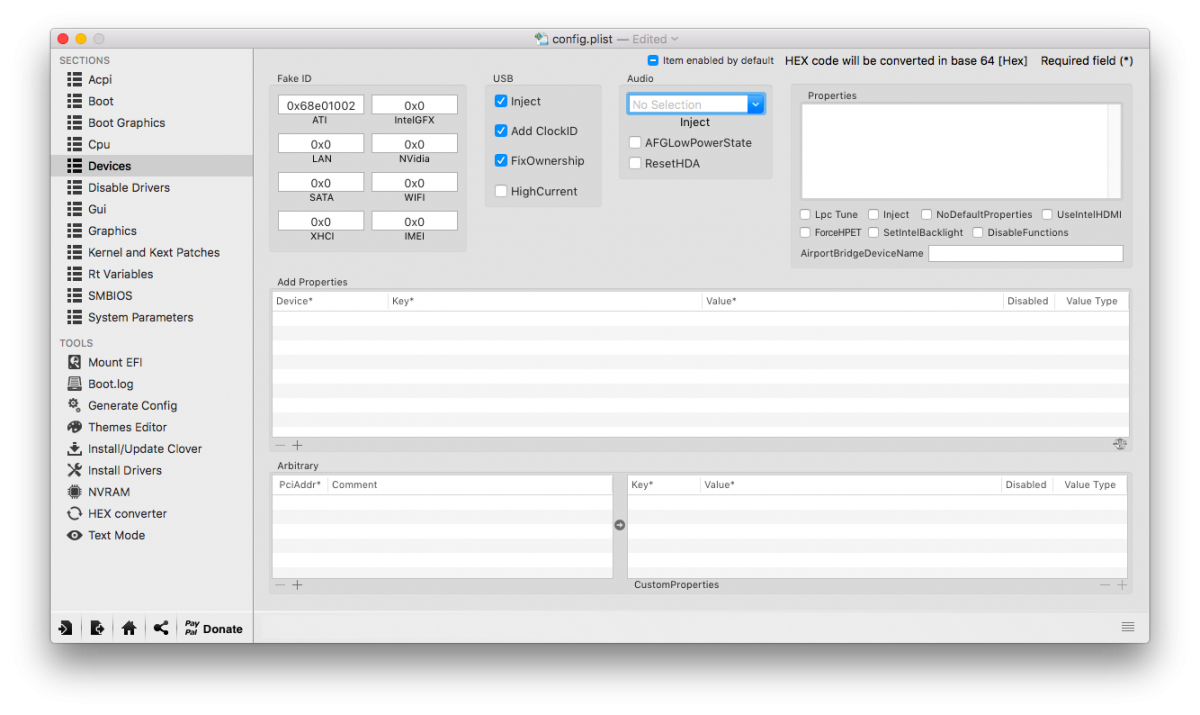

polyzargone Posted August 29, 2017 Share Posted August 29, 2017 Where can i find this????? ACPI & Devices as shown in screenshots. PS : Do not Inject ATI when using this! Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 ACPI & Devices as shown in screenshots. PS : Do not Inject ATI when using this! I always used Inject ATI with 5450 Fake ID clover Needs to disable patch ATI 5450 DSDT Link to comment Share on other sites More sharing options...

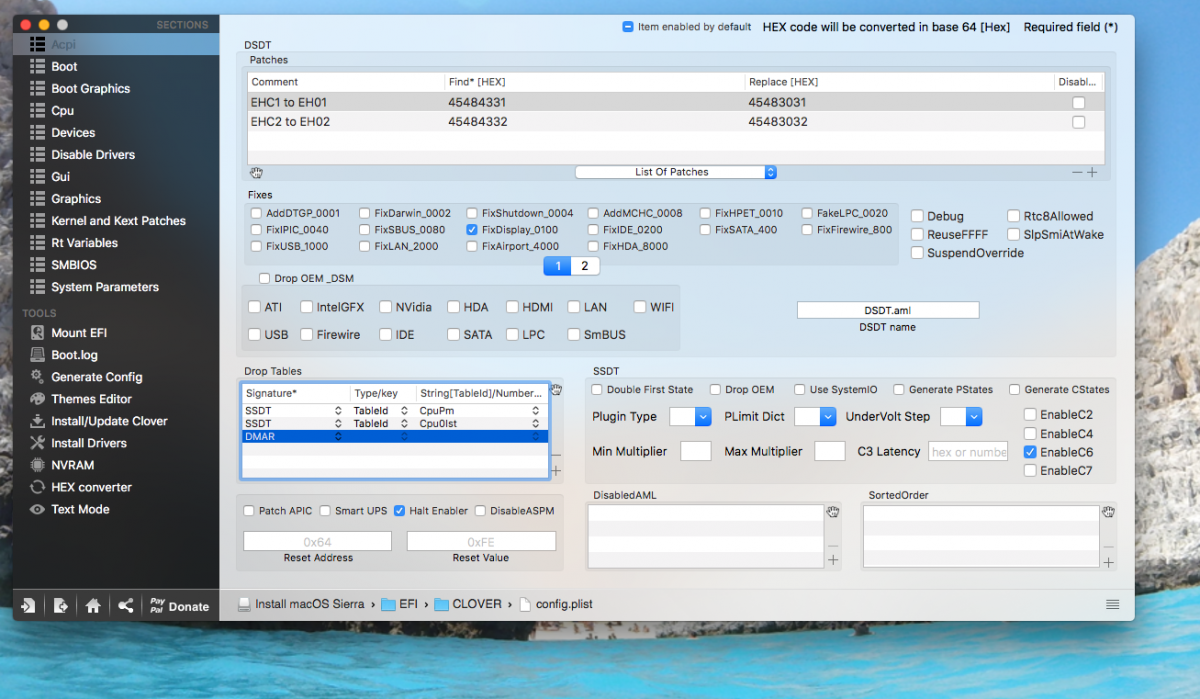

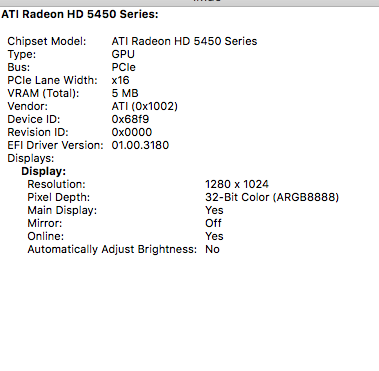

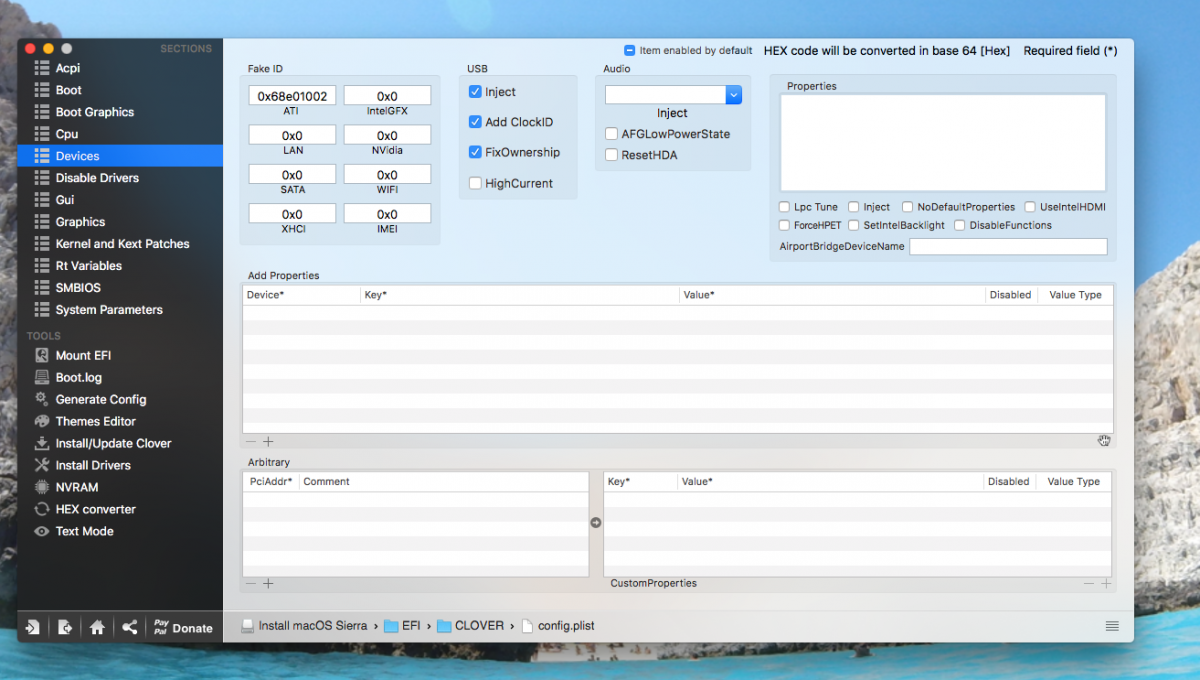

sakis6977 Posted August 29, 2017 Share Posted August 29, 2017 Ok im doing this but no... Nothing happend. still 1280x1024 and no sound... I always used Inject ATI with 5450 Fake ID clover Needs to disable patch ATI 5450 DSDT is it hepl this?? When i add the DSDT file they does not boot my system. If i deleted i boot normaly Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 Ok im doing this but no... Nothing happend. still 1280x1024 and no sound... is it hepl this?? When i add the DSDT file they does not boot my system. If i deleted i boot normaly Post your DSDT and config.plist here Link to comment Share on other sites More sharing options...

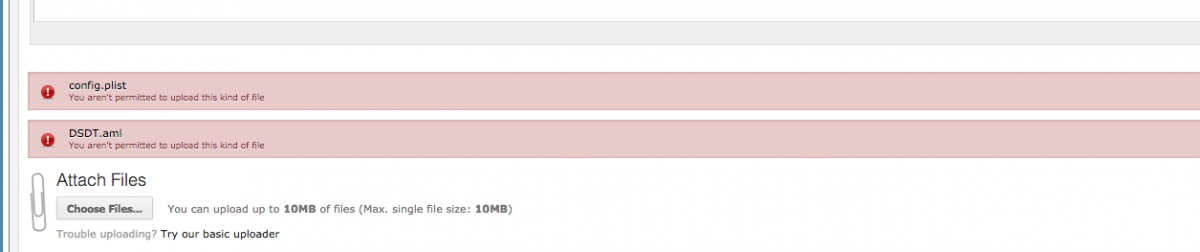

sakis6977 Posted August 29, 2017 Share Posted August 29, 2017 Post your DSDT and config.plist here I have no permission to upload this kind. I upload to dropbox https://www.dropbox.com/sh/scwh83tezyy1usf/AAC0yIGSMW5s4caaTZdDPWxVa?dl=0 Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 I have no permission to upload this kind. I upload to dropbox https://www.dropbox.com/sh/scwh83tezyy1usf/AAC0yIGSMW5s4caaTZdDPWxVa?dl=0 Ok try this config.plist NO DSDT If the graphics card works with this config, you can test the Generic DSDT in the first post config.plist.zip Link to comment Share on other sites More sharing options...
lucsansag Posted August 29, 2017 Share Posted August 29, 2017 Please post here EFI Post Install I tried enabling "FixShutdown" but it didn't work.Rebooting works fine though. EFI.zip Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 I tried enabling "FixShutdown" but it didn't work.Rebooting works fine though. Whats work and not work? Link to comment Share on other sites More sharing options...
lucsansag Posted August 29, 2017 Share Posted August 29, 2017 Whats work and not work? Apart from the network problem I described above, shutting down doesn't work, the HDD stops and there's no signal to the monitor but the fans keep running and LEDs are active.Restarting on the other hand does work. Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 Apart from the network problem I described above, shutting down doesn't work, the HDD stops and there's no signal to the monitor but the fans keep running and LEDs are active.Restarting on the other hand does work. Try this config.plist.zip Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 Try this Are you there ? Link to comment Share on other sites More sharing options...
sakis6977 Posted August 29, 2017 Share Posted August 29, 2017 Ok try this config.plist NO DSDT If the graphics card works with this config, you can test the Generic DSDT in the first post Nope.... Still the same... 1080x1024 and no sound! If i put the dsdt file again i dont boot. Link to comment Share on other sites More sharing options...
chris1111 Posted August 29, 2017 Share Posted August 29, 2017 Nope.... Still the same... 1080x1024 and no sound! If i put the dsdt file again i dont boot. are you on HDMI or DVI? Link to comment Share on other sites More sharing options...
sakis6977 Posted August 30, 2017 Share Posted August 30, 2017 are you on HDMI or DVI? hdmi to hdmi. Link to comment Share on other sites More sharing options...
polyzargone Posted August 30, 2017 Share Posted August 30, 2017 @sakis6977 Can you post an IOReg : IORegistryExplorer 2.1.zip Link to comment Share on other sites More sharing options...
sakis6977 Posted August 30, 2017 Share Posted August 30, 2017 @sakis6977 Can you post an IOReg : here it is! Sakis’s iMac.zip Link to comment Share on other sites More sharing options...
polyzargone Posted August 30, 2017 Share Posted August 30, 2017 @sakis6977 Test this please : CLOVER.zip Link to comment Share on other sites More sharing options...
sakis6977 Posted August 30, 2017 Share Posted August 30, 2017 @sakis6977 Test this please : Nope... It takes a loop with restart. When i see the apple logo it restart. If i delete the DSDT file it boot normaly but with 1280x1024 not Full HD Link to comment Share on other sites More sharing options...
chris1111 Posted August 30, 2017 Share Posted August 30, 2017 Nope... It takes a loop with restart. When i see the apple logo it restart. If i delete the DSDT file it boot normaly but with 1280x1024 not Full HD May be you need to change the Graphics card, some ATI Radeon HD 5450 not working correctly I suggestion to you the Geforce GT 710 Gigabyte 2 Gig working OOB Sierra and High Sierra No DSDT patch Link to comment Share on other sites More sharing options...
Jake Lo Posted August 31, 2017 Share Posted August 31, 2017 Nope... It takes a loop with restart. When i see the apple logo it restart. If i delete the DSDT file it boot normaly but with 1280x1024 not Full HD Use FBName = Shrike rather than Eulemur Link to comment Share on other sites More sharing options...
sakis6977 Posted August 31, 2017 Share Posted August 31, 2017 May be you need to change the Graphics card, some ATI Radeon HD 5450 not working correctly I suggestion to you the Geforce GT 710 Gigabyte 2 Gig working OOB Sierra and High Sierra No DSDT patch With this card may be worked? i have already this https://www.asus.com/Graphics-Cards/710-2-SL/ Use FBName = Shrike rather than Eulemur i will try and i will tell you Link to comment Share on other sites More sharing options...
chris1111 Posted August 31, 2017 Share Posted August 31, 2017 With this card may be worked? i have already this https://www.asus.com/Graphics-Cards/710-2-SL/ i will try and i will tell you Yes try the ASUS 710 may be work like the Gigabyte 710 Try Graphics = Nvidia / true or Nvidia / false Link to comment Share on other sites More sharing options...
