[Guide] macOS Sierra 10.12 - Dell Optiplex 780 (760) (755) (790) (990)


MacPeet
 Share

1,596 posts in this topic

Recommended Posts

That is awesome!  :shock:

How did you manage to do that?

Tonight I finish to complet the Program and I send you a link to download

Integrate Clover 4084 UEFI /ESP / Legacy

No changing config.plist no setting ; just create a 8 Gig USB and boot to the USB  :thumbsup_anim:  :lol:

  • Like 1
Link to comment
Share on other sites

Guest ricoc90

Tonight I finish to complet the Program and I send you a link to download

Integrate Clover 4084 UEFI /ESP / Legacy

No changing config.plist no setting ; just create a 8 Gig USB and boot to the USB  :thumbsup_anim:  :lol:

Nice I'll look forward to it  :drool:

Link to comment
Share on other sites

Guest ricoc90

Ok so, until now I did not get the HD 6450 to work...



With patched framebuffer I don't get a black screen, but no GUI is coming up either. It's just like I'm still in verbose mode. The same happens when I do not inject the card.



Weird thing is that at that point, I can't establish a remote connection but if I remove the AMD kexts (and thus being able to boot to desktop) I can.



---



Edit:



some progress.



I am able to boot to desktop in native resolution with my patched frame buffer:



 dp,hdmi,vga

00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 01 05 00 00 00 00 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00
to

hdmi,dvi-dl,vga

00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 10 00 02 04 00 00 00 00 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00


No Acceleration though...






--



I really wonder what exactly did change...

I am able to boot, I have native resolution, I am able to change the resolution. It's just that I don't have acceleration.

I tried to replace the 10.13 graphics kexts with the ones from 10.12.6, but that did not make any difference...

Link to comment
Share on other sites

Guest ricoc90

By the way: I am almost sure that the issue I have regarding to WebKit crashing is graphics related. I've had the HD 6450 in for a while and did not get any crashes whatsoever. I placed the GT 710 back et voila: it crashes  :hysterical:

Link to comment
Share on other sites

Only as info for the AMD problem:

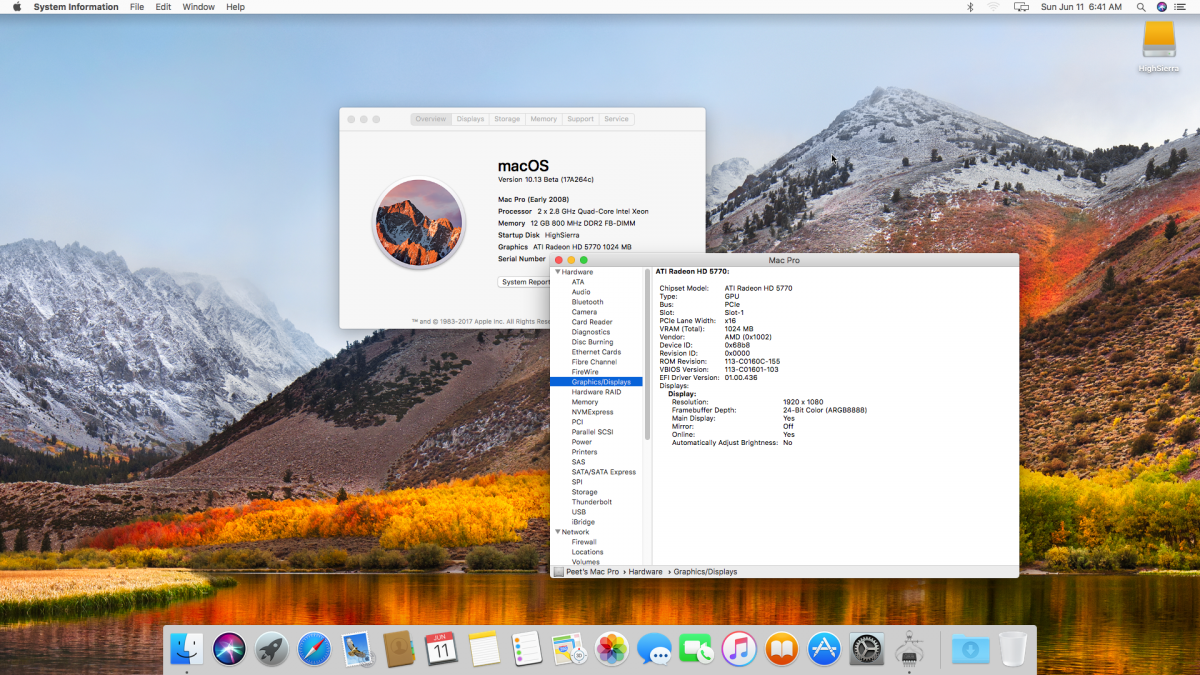

The problem is not just for Hackintosh. My real MacPro3,1 with real HD5770 also Blackscreen. Only works without kext and without QE/CI.
With Sierra everything works.
With High Sierra - Blackscreen.

I hope the next beta's works better.

  • Like 1
Link to comment
Share on other sites

Edit:



some progress.



I am able to boot to desktop in native resolution with my patched frame buffer:



 dp,hdmi,vga

00 04 00 00 04 03 00 00 00 01 00 00 00 00 00 00 12 04 01 05 00 00 00 00 00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00
to

hdmi,dvi-dl,vga

00 08 00 00 04 02 00 00 00 01 00 00 00 00 00 00 11 02 04 03 00 00 00 00 04 00 00 00 14 02 00 00 00 01 00 00 00 00 00 00 10 00 02 04 00 00 00 00 10 00 00 00 10 00 00 00 00 01 00 00 00 00 00 00 00 00 00 02 00 00 00 00


No Acceleration though...





What about Lotus?



Also, what says :





ioreg | grep AMD



@MacPeet



I didn't succeed to boot on HS with a Radeon HD 5450 either btw. Not an Optiplex but same problem.



@Chris1111



Your cards are all UEFI, are they?

Link to comment
Share on other sites

Guest ricoc90

What about Lotus?



Also, what says :

ioreg | grep AMD

In the past I only got success with Ipomoea. I will try Lotus (and other FBs) tonight  :yes:



All relevant kexts were loaded by the way

Link to comment
Share on other sites

@polyzargone

The idea UEFI is good, but my real HD5770 in the real MacPro3,1 also has EFI bios and does not work anymore.

I've already tried rollback from Sierra, does not work either.
The problem is probably in coredisplay.framework.
Link to comment
Share on other sites

Guest ricoc90

Meaning AMDRadeonX300.kext, right?

Yes. AMDRadeonX3000, AMD6000Controller, AMDSupport etc were loaded correctly (The card is not plugged in atm, so I can't show you  :P)

Link to comment
Share on other sites

The problem is probably in coredisplay.framework.



Yep, I think so. We must wait next DP2 I guess.



That said, I'm still trying to understand why it works for Chris1111 and fails for us :wacko:… It's non-sense to me !



Yes. AMDRadeonX3000, AMD6000Controller, AMDSupport etc were loaded correctly (The card is not plugged in atm, so I can't show you  :P)



Another non-sense :rolleyes:. Everythings works but actually, it doesn't :lol: !



Thxs anyway :).

Link to comment
Share on other sites

Guest ricoc90

High Sierra: maybe its time to say goodby for all socket 775 macs without igpus :bye:

Correct me if I'm wrong, but isn't the problem just with AMD cards?

Link to comment
Share on other sites

High Sierra: maybe its time to say goodby for all socket 775 macs without igpus :bye:



Not necessarily. Needs tests.



I'd rather say it's time to say goodbye to a lot of old AMD/NVIDIA cards :(.

Correct me if I'm wrong, but isn't the problem just with AMD cards?



Yep. I also think so.



Again, we need more tests…

Link to comment
Share on other sites



Correct me if I'm wrong, but isn't the problem just with AMD cards?



I dont think so -  It just such a feeling. But Apple is well-known for cut down old pigtails :whistle:



I would not be surprised if it will come so.

Link to comment
Share on other sites

Guest ricoc90

I dont think so -  It just such a feeling. But Apple is well-known for cut down old pigtails :whistle:



I would not be surprised if it will come so.

High Sierra supports the iMac 2009, Macbook 2009, Mac mini 2010 etc. All running on pretty old C2Ds.



Well, I'm looking for a Optiplex 790 or 990 to replace my NEC anyway  :P

Link to comment
Share on other sites



High Sierra supports the iMac 2009, Macbook 2009, Mac mini 2010 etc. All running on pretty old C2Ds.

Its not the final reuirements - Just a finger pointing in the direction at the moment. Maybe the final version is different.

Link to comment
Share on other sites

Are you sure the brand of the card as not in Impact ?

I try New Visiontek Radeon HD 6450  Blackscreen  :blush:



The card have EFI bios, I see in windows - GPUZ

Link to comment
Share on other sites
