AMD Polaris IDs on Sierra / High Sierra


Ciro82
 Share

871 posts in this topic

Recommended Posts

-------------------------AMD9515Controller.kext-------------------------

Exmoor (6) @ 0x103900
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Mazaruni (5) @ 0x103990
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Longavi (5) @ 0x103b00
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Baladi (6) @ 0x103c00
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

-------------------------AMD9520Controller.kext-------------------------

Exmoor (6) @ 0x1048c0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Elqui (5) @ 0x104950
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Caroni (5) @ 0x104ac0
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Florin (6) @ 0x104bb0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010421000000001000050500000000
000400000403000000010553000000002205040200000000
000400000403000000010661000000001204060600000000

Baladi (6) @ 0x104c40
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

Woot full RX 480/580 support in 10.13 in the AMD9520Controller.kext

  • Like 4
Link to comment
Share on other sites

-------------------------AMD9515Controller.kext-------------------------

Exmoor (6) @ 0x103900
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Mazaruni (5) @ 0x103990
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Longavi (5) @ 0x103b00
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Baladi (6) @ 0x103c00
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

-------------------------AMD9520Controller.kext-------------------------

Exmoor (6) @ 0x1048c0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Elqui (5) @ 0x104950
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Caroni (5) @ 0x104ac0
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Florin (6) @ 0x104bb0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010421000000001000050500000000
000400000403000000010553000000002205040200000000
000400000403000000010661000000001204060600000000

Baladi (6) @ 0x104c40
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

Woot full RX 480/580 support in 10.13 in the AMD9520Controller.kext





Anyway to copy over the kexts to Clover or SLE and work Sierra 10.12.5 ???

Link to comment
Share on other sites

-------------------------AMD9515Controller.kext-------------------------

Exmoor (6) @ 0x103900
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Mazaruni (5) @ 0x103990
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Longavi (5) @ 0x103b00
LVDS, DP, DP, DP, DP
020000000001000039050108000000002001010100000000
000400000001000000010243000000001000020200000000
000400000403000000010313000000002103030300000000
000400000403000000010453000000001102040400000000
000400000403000000010533000000001204050500000000

Baladi (6) @ 0x103c00
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

-------------------------AMD9520Controller.kext-------------------------

Exmoor (6) @ 0x1048c0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010151000000002205020400000000
020000000001000000010261010000001204010300000000
000400000403000000010343000000001102030100000000
000400000001000000010431000000002103050500000000
000400000403000000010523000000001000040200000000
000400000001000000010611000000002001050500000000

Elqui (5) @ 0x104950
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Caroni (5) @ 0x104ac0
LVDS, LVDS, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010413000000001204040200000000
000400000403000000010501000000001000050500000000

Florin (6) @ 0x104bb0
LVDS, LVDS, DP, DP, DP, DP
020000000001000000010141000000001102020400000000
020000000001000000010231010000002103010300000000
000400000403000000010313000000002001030100000000
000400000403000000010421000000001000050500000000
000400000403000000010553000000002205040200000000
000400000403000000010661000000001204060600000000

Baladi (6) @ 0x104c40
DP, DP, DP, DP, DP, DP
000400000403000000010300000000001204030300000000
000400000403000000010100000000001102010100000000
000400000403000000010200000000002103020200000000
000400000403000000010400000000002205040400000000
000400000403000000010500000000001000050500000000
000400000403000000010600000000002001060600000000

Woot full RX 480/580 support in 10.13 in the AMD9520Controller.kext





Good to know, finally Apple devs moved their ass from the chair... :D

  • Like 1
Link to comment
Share on other sites

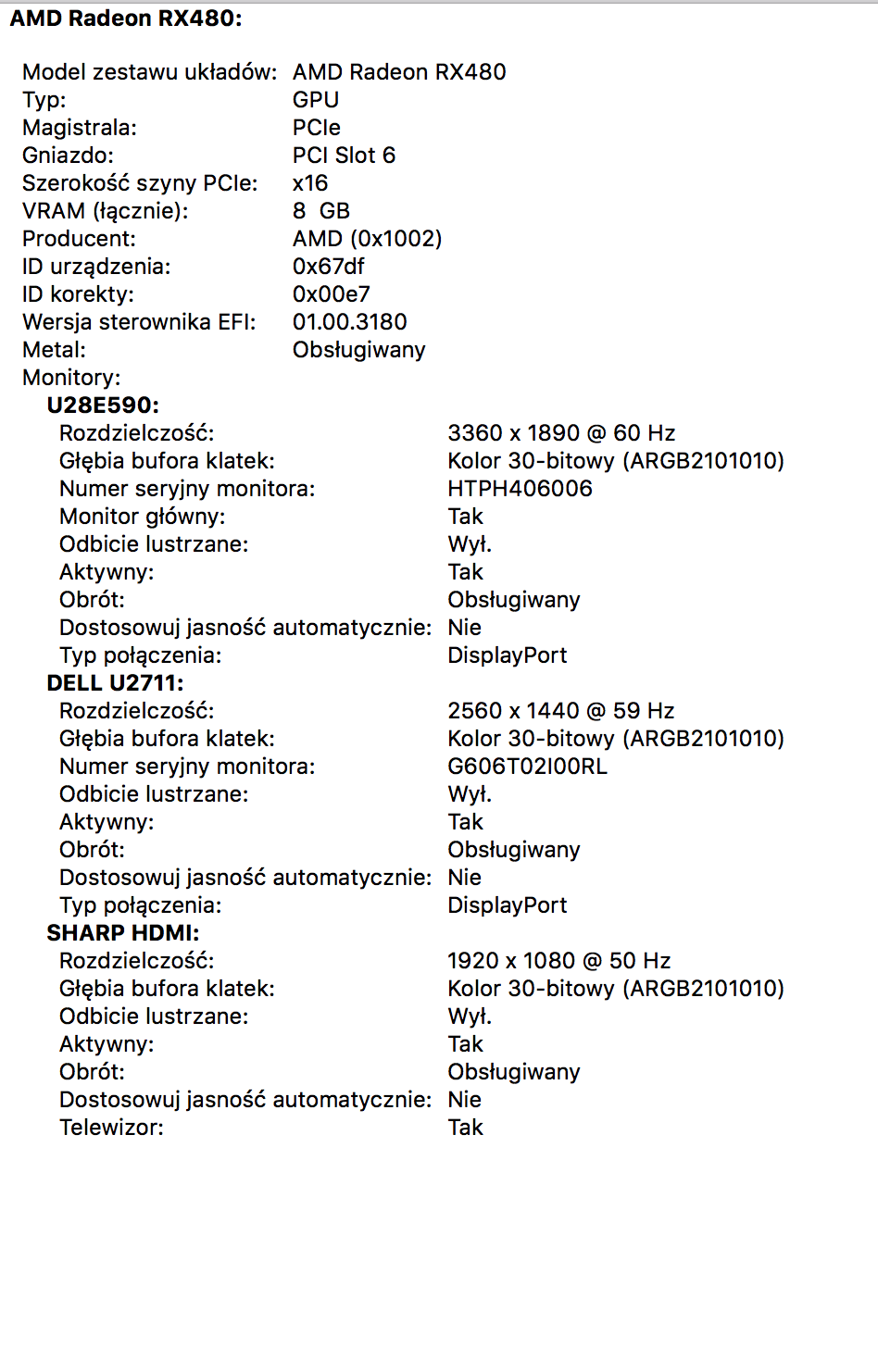

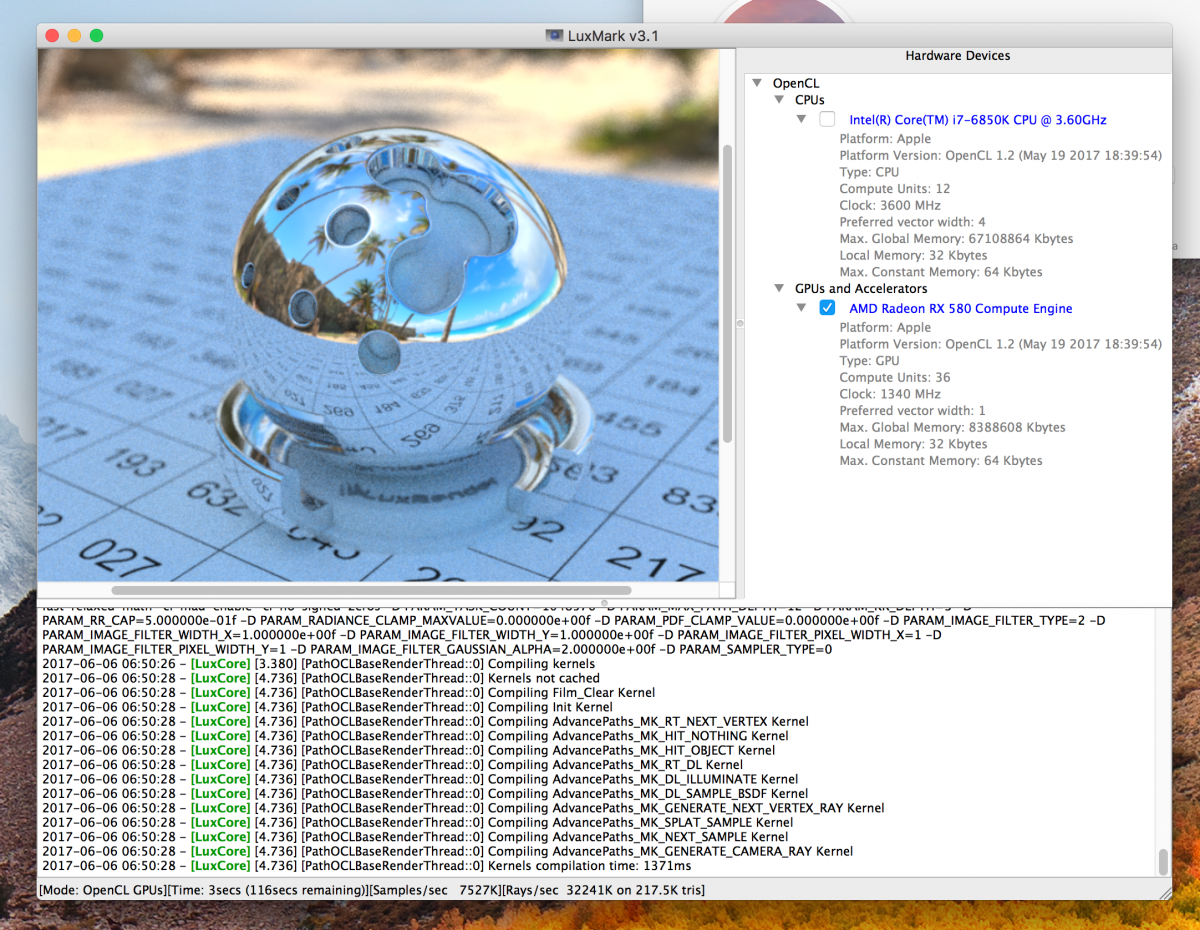

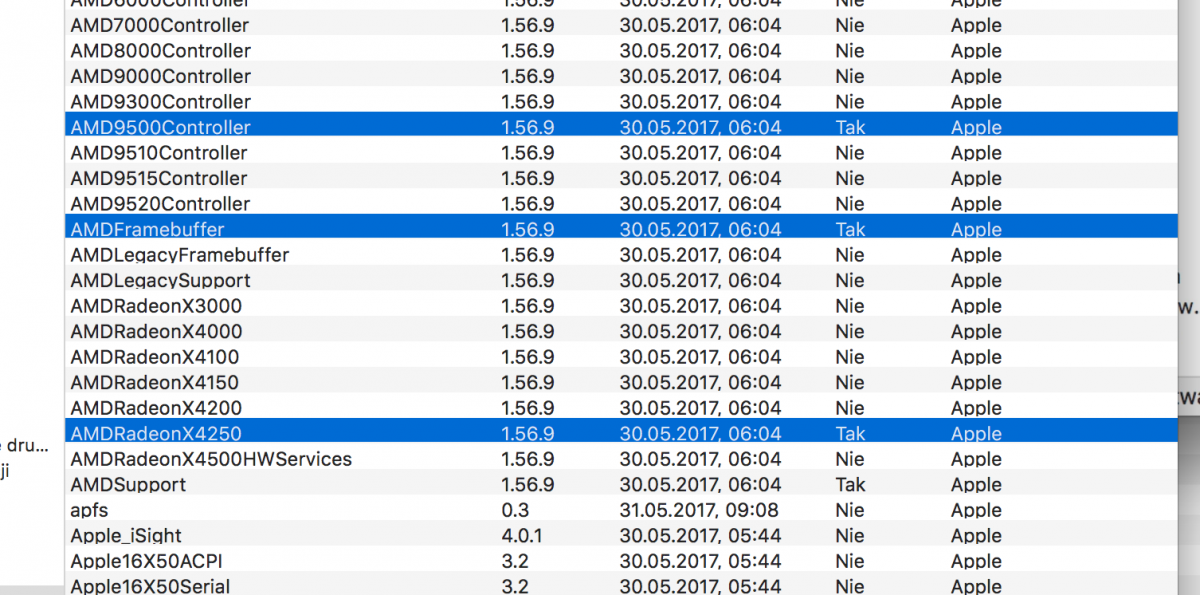

RX 480/580 working without any patch on 10.13  attachicon.gifZrzut ekranu 2017-06-06 o 06.50.30.png

Dear Matthew,



will you please be so kind and upload your VBIOS somewhere, cause my SAPPHIRE RX480 Nitro OC 8GB does NOT work with acceleration.

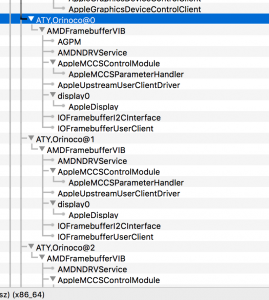

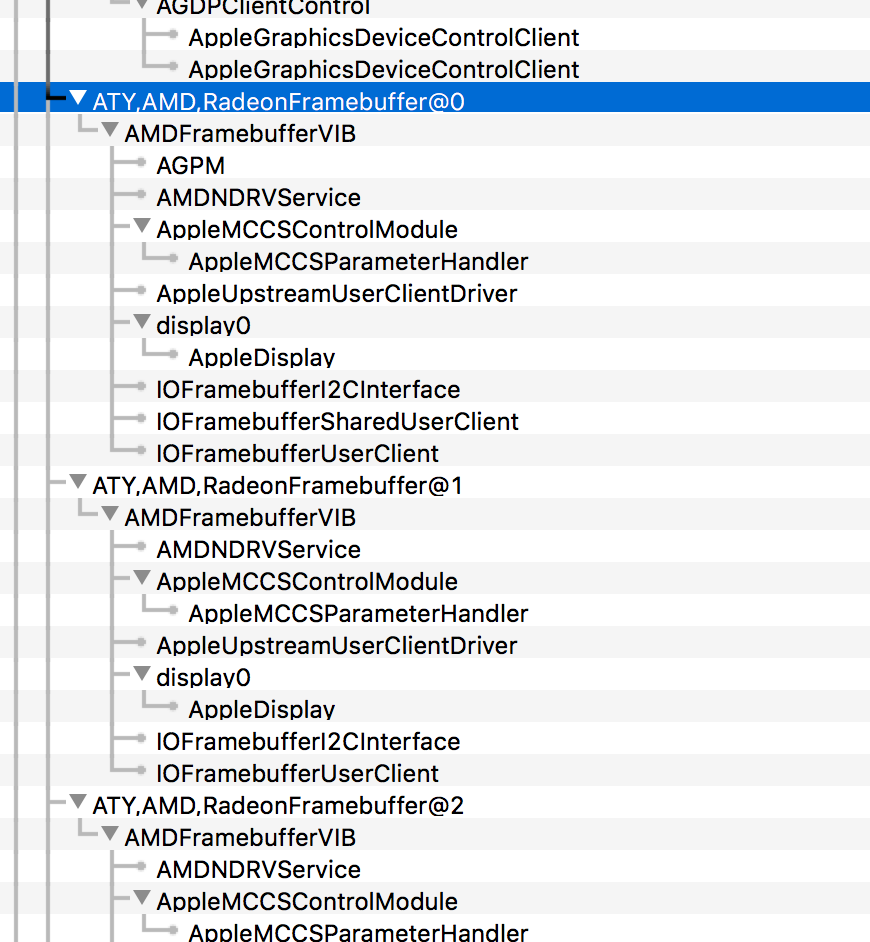

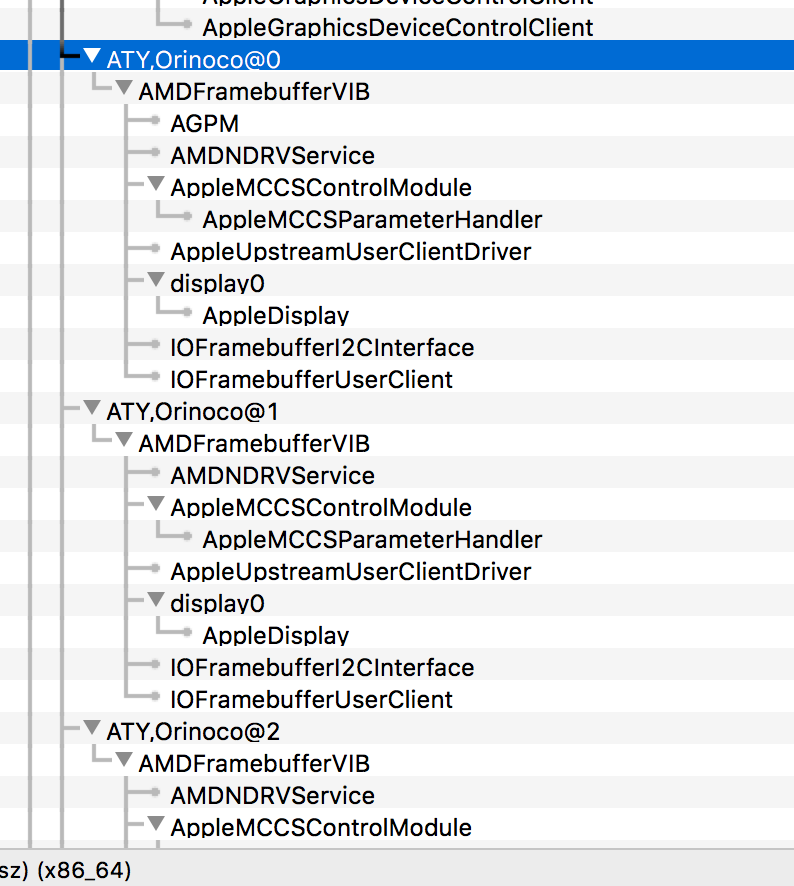

Also please be so kind and check, which framebuffer HIGH_SIERRA chossed for your card an which AMD9xxxController was used for it.



Thanx in advance.

Link to comment
Share on other sites

Dear Matthew,



will you please be so kind and upload your VBIOS somewhere, cause my SAPPHIRE RX480 Nitro OC 8GB does NOT work with acceleration.

Also please be so kind and check, which framebuffer HIGH_SIERRA chossed for your card an which AMD9xxxController was used for it.



Thanx in advance.



From Netkas forum:

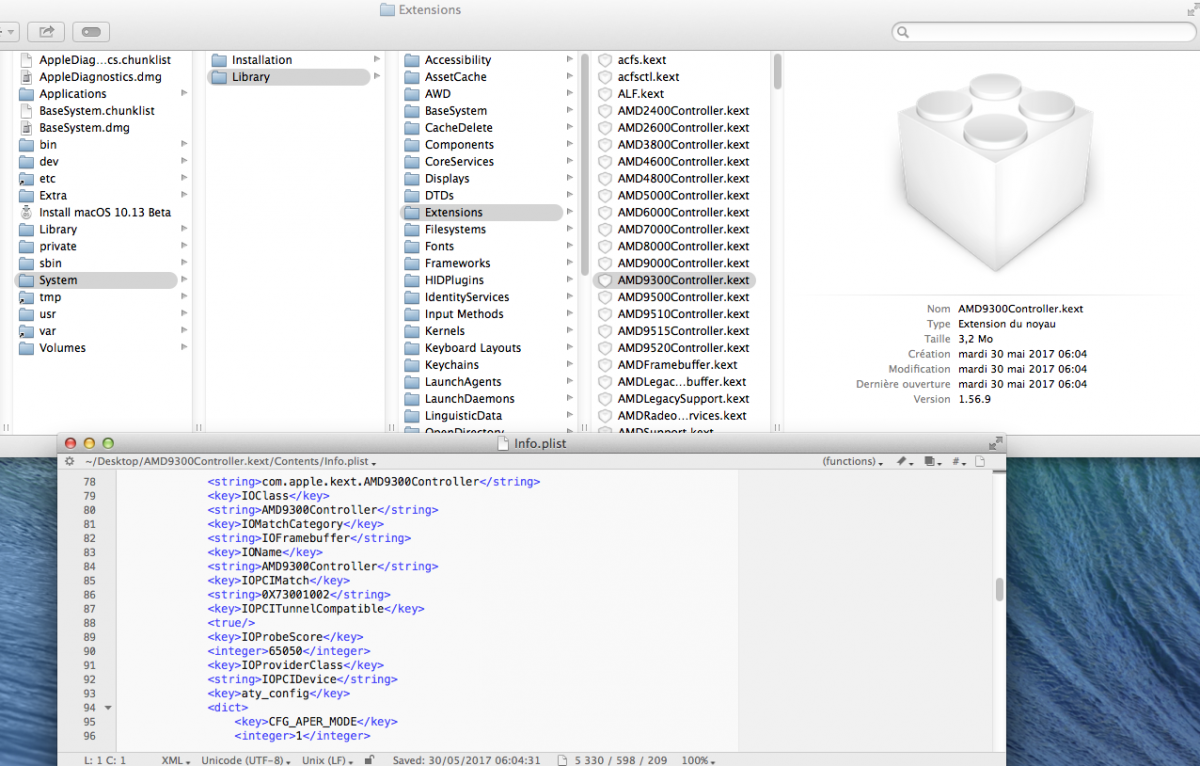

### AMD9520Controller.kext

* pci device: 67c0 - Ellesmere [Polaris10]

* pci device: 67df - Ellesmere [Radeon RX 470/480]

* pci device: 67e0 - Baffin [Polaris11]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ff - Baffin [Polaris11]



### AMD9300Controller.kext

* pci device: 7300 - Fiji [Radeon R9 FURY / NANO Series]



### AMD9510Controller.kext

* pci device: 67ef - Baffin [Radeon RX 460]



### AMD9515Controller.kext

* pci device: 67ef - Baffin [Radeon RX 460]



### AMD9500Controller.kext

* pci device: 67c0 - Ellesmere [Polaris10]

* pci device: 67c0 - Ellesmere [Polaris10]

* pci device: 67df - Ellesmere [Radeon RX 470/480]

* pci device: 67df - Ellesmere [Radeon RX 470/480]

* pci device: 67e0 - Baffin [Polaris11]

* pci device: 67e0 - Baffin [Polaris11]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ff - Baffin [Polaris11]

* pci device: 67ff - Baffin [Polaris11]



### AMDRadeonX4100.kext

* pci device: 67e0 - Baffin [Polaris11]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ff - Baffin [Polaris11]



### AMDRadeonX4500HWServices.kext

* pci device: 7300 - Fiji [Radeon R9 FURY / NANO Series]



### AMDRadeonX4150.kext

* pci device: 67e0 - Baffin [Polaris11]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ff - Baffin [Polaris11]



### AMDRadeonX4200.kext

* pci device: 67c0 - Ellesmere [Polaris10]

* pci device: 67df - Ellesmere [Radeon RX 470/480]

* pci device: 67ef - Baffin [Radeon RX 460]

* pci device: 67ff - Baffin [Polaris11]



### AMDRadeonX4250.kext

* pci device: 67df - Ellesmere [Radeon RX 470/480]





@fantomas1 thanks for the thread edits man ;)

Link to comment
Share on other sites

Dear Matthew,



will you please be so kind and upload your VBIOS somewhere, cause my SAPPHIRE RX480 Nitro OC 8GB does NOT work with acceleration.

Also please be so kind and check, which framebuffer HIGH_SIERRA chossed for your card an which AMD9xxxController was used for it.



Thanx in advance.

Rom from my RX 480 https://www.dropbox.com/s/sxoa0g0yn98ofo7/RX480Mac.ROM?dl=0



New Sierra loading standard framebuffer


Link to comment
Share on other sites

Something weird is going on here. Take a look at this Screenshot:






Something you should noticed: System Profiler shows 9 loaded AMD.kexts, while Kext Wizzard only shows 3 loaded AMD.kexts. Also see IORegExplorer that NO Accelleration ha been applied. And this is Screenshot of my AMD RX460 Nitro plugged into PCIe slot #1. Also it is only 8x lane wide. For me no way to get this 16x lanes wide.



I'm getting nuts here...

Link to comment
Share on other sites

Something weird is going on here. Take a look at this Screenshot:






Something you should noticed: System Profiler shows 9 loaded AMD.kexts, while Kext Wizzard only shows 3 loaded AMD.kexts. Also see IORegExplorer that NO Accelleration ha been applied. And this is Screenshot of my AMD RX460 Nitro plugged into PCIe slot #1. Also it is only 8x lane wide. For me no way to get this 16x lanes wide.



I'm getting nuts here...

Rx460 is pcie x8 man...




Link to comment
Share on other sites

Sorry Matthew, two more questions:



are you using your AMD RX as primary card ? I think for u it worx, because X99 boards don't have any IGPU, right?

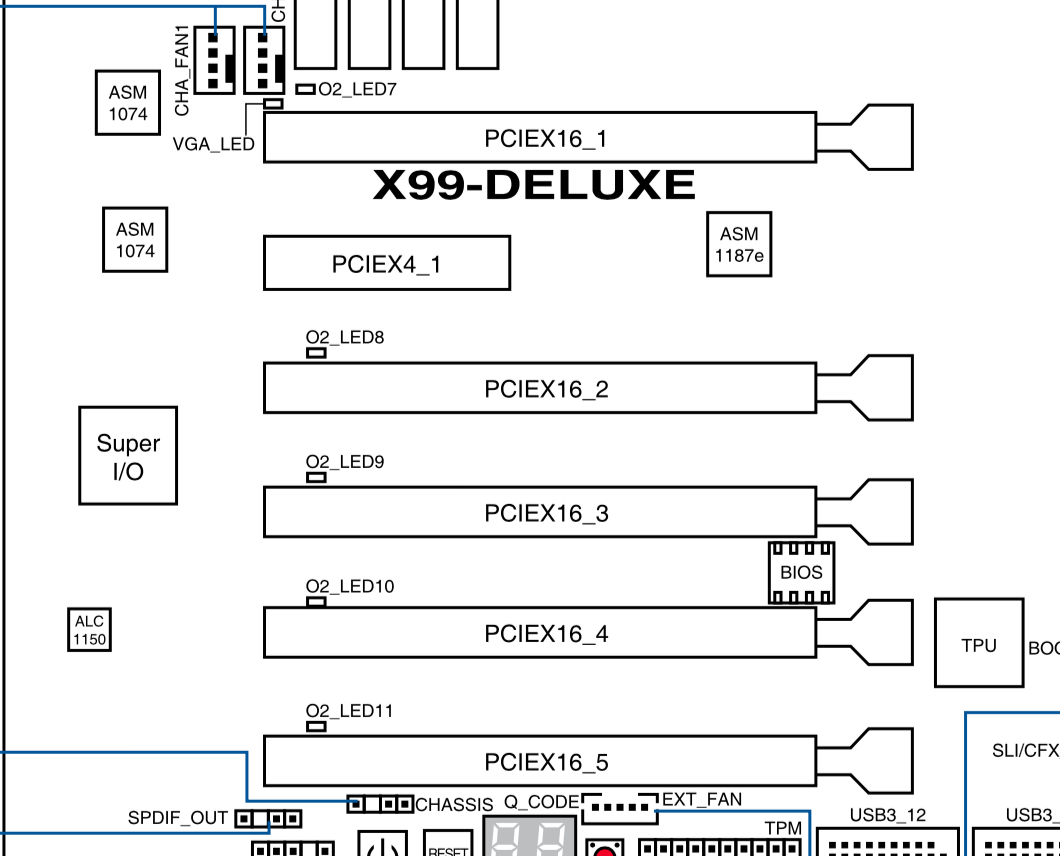

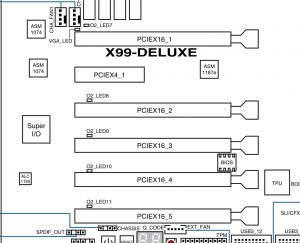

Right. But I have card connected to PCEX6_3 slot on 16_5 is Thunderbolt (only using for audio firewire interface) and on 16_2 I have USB 3.1 card.

First slot waiting for second RX :)


post-916820-0-21813700-1496843992_thumb.pngNow I'm testing new framebuffers "Orinoco" is working with every DP port without any patch. HDMI audio working to.



3 monitor on the same time






Guariba - all monitors and HDMI

Dayman - all monitors and no HDMI

Orinoco - all monitors and HDMI

Balladi - injection not work

OPM - only 1 DP monitor work but LuxMark score is highest

Link to comment
Share on other sites

 Share

×
×
  • Create New...
