parthacker Posted May 5, 2016 Share Posted May 5, 2016 I tried Installing El Capitan 10.11.4, 4 Times and 4 times i faced different types of problems(1) 1st time i install El Capitan 10.11.4 system stuck at this 3 lines... A) Apple Key Store : : handle User Client Command Gated : asking for Specific bag 248 (eff -248) Apple Key Store : sending lock change 1 for handle 1 C) Apple Key Store : sending lock change 0 for handle -248(2) 2nd time Fresh installation done, first time boot from hdd system stuck 10sec at white grey screen after system restarted(3) 3rd time fresh installation done, Os stuck at Welcome Screen And all buttons are disable (Like - Back & Continue)(4) Now 4th time installing first time boot from hdd using All types of boot flag : -v, -x -v, UseKernelCache=No, npci=0x3000, USBBusFix=Yes/No, GraphicsEnabler=Yes/No, USBLegacyOff=Yes/No ..........then hit enter system reading System/Library files after 1-2min my monitor showing no signal message but system is running and hdd led continue blinkingMy System Specification :AMD FX-6300 CPUAsus M5A78L-M/USB 3 Mother Board4GB DDR III RAMAsus Nvidia GeForce GT-610 2GB GPUWD 1TB HDD (Green Installing Windows 10) + Extra Hitachi 120Gb HDD (Installing Osx Yosemite 10.10.1 + Try to Install El Capitan 10.11.4)1366x768 Resolution MonitorUsing Boot Loader Enoch Chameleon Link to comment Share on other sites More sharing options...
Shaneee Posted May 5, 2016 Share Posted May 5, 2016 Did you copy the kernel to the HDD after the installation? Follow this tutorial to copy what is needed. http://www.insanelymac.com/forum/topic/312049-amd-post-install-preparation/ Once copied boot using the following bootflags, -v CsrActiveConfig=103 npci=0x3000 nv_disable=1 GraphicsEnabler=No Link to comment Share on other sites More sharing options...
spakk Posted May 5, 2016 Share Posted May 5, 2016 In addition to what wrote shaneee....Install this driver package and read what I have wrote about Asus motherboard in relation to mouse / keyboard problems. http://www.insanelymac.com/forum/files/file/521-usb-fix-for-el-capitan/ Link to comment Share on other sites More sharing options...
parthacker Posted May 6, 2016 Author Share Posted May 6, 2016 -v CsrActiveConfig=103 npci=0x3000 nv_disable=1 GraphicsEnabler=No this boot flag is working but now facing graphics related problem .default screen resolution 1024x768 apple menu logo not showing, folder color green, my graphics card asus geforce gt-610 2gb but now showing 3mb graphics chip what can i do next Link to comment Share on other sites More sharing options...
MilesP94 Posted May 6, 2016 Share Posted May 6, 2016 -v CsrActiveConfig=103 npci=0x3000 nv_disable=1 GraphicsEnabler=No this boot flag is working but now facing graphics related problem .default screen resolution 1024x768 apple menu logo not showing, folder color green, my graphics card asus geforce gt-610 2gb but now showing 3mb graphics chip what can i do next If you load into El Capitan download the Nvidia web drivers and add the flag nvda_drv=1 to your chameleon plist and restart, once restarted there should be an Nvidia icon in the top right, click that and select web drivers and then restart again this should hopefully fix your GFX card issues. Let me know how it goes. 1 Link to comment Share on other sites More sharing options...
parthacker Posted May 7, 2016 Author Share Posted May 7, 2016 i install Nvidia Web Driver Latest version But problem Not Solved My Nividia Graphics Card Not Detected or Without nv_disable=1 System Black Screen & Monitor Showing No Signal Link to comment Share on other sites More sharing options...
disableduser Posted October 2, 2019 Share Posted October 2, 2019 Add to boot flag: GraphicsEnabler=Yes PCIRootUID=1 PciRoot=1 Link to comment Share on other sites More sharing options...
amitmula Posted September 19, 2020 Share Posted September 19, 2020 On 5/5/2016 at 11:17 PM, spakk said: In addition to what wrote shaneee....Install this driver package and read what I have wrote about Asus motherboard in relation to mouse / keyboard problems. http://www.insanelymac.com/forum/files/file/521-usb-fix-for-el-capitan/ The path is no more accessible http://www.insanelymac.com/forum/files/file/521-usb-fix-for-el-capitan/ could you please provide a mirror ? Link to comment Share on other sites More sharing options...
spakk Posted September 22, 2020 Share Posted September 22, 2020 On 9/19/2020 at 9:52 PM, amitmula said: The path is no more accessible http://www.insanelymac.com/forum/files/file/521-usb-fix-for-el-capitan/ could you please provide a mirror ? For ASUS mainboard users it is necessary to install the AHCIPortInjector.kext. here are the desired USB driver packages. But I would prefer to test it first with the USB driver from XLNC "XLNCUSBFix.kext", otherwise if the USB slots have not been activated, then use the other USB driver packages. Shaneee's AMD USB Fix.zip Shaneee´s AMD USB Fix v3.zip USB Fix V4-for Sierra.zip USB-Fix El_Capitan.zip USB-Fix_El_Capitan_V3.zip XLNCUSBFix.kext.zip Link to comment Share on other sites More sharing options...

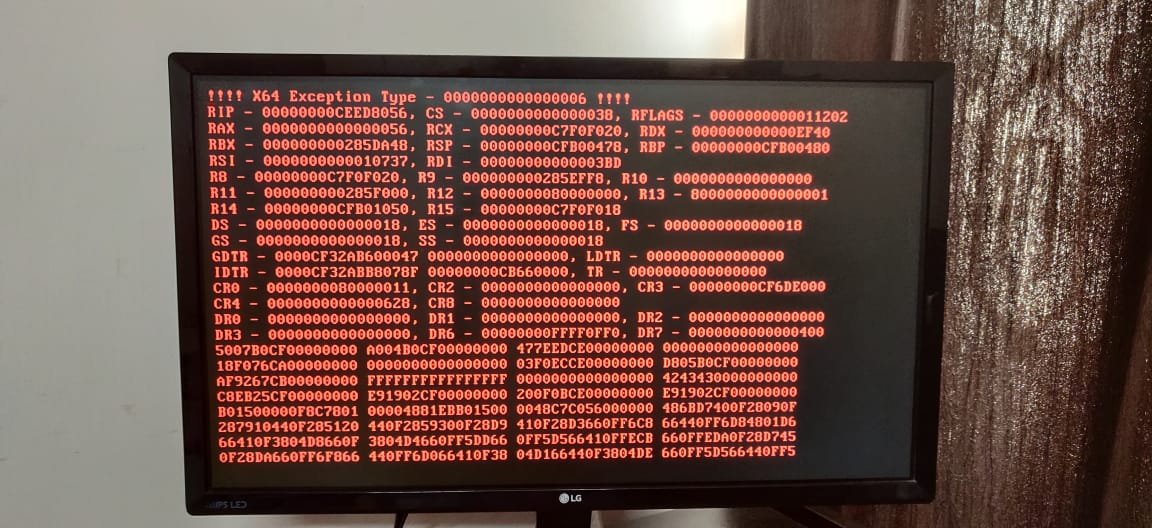

amitmula Posted September 23, 2020 Share Posted September 23, 2020 On 9/22/2020 at 3:43 PM, spakk said: For ASUS mainboard users it is necessary to install the AHCIPortInjector.kext. here are the desired USB driver packages. But I would prefer to test it first with the USB driver from XLNC "XLNCUSBFix.kext", otherwise if the USB slots have not been activated, then use the other USB driver packages. Shaneee's AMD USB Fix.zip Shaneee´s AMD USB Fix v3.zip USB Fix V4-for Sierra.zip USB-Fix El_Capitan.zip USB-Fix_El_Capitan_V3.zip XLNCUSBFix.kext.zip thanks @spakk XLNCUSBFix restored all my USB 2.0 ports, USB 3.0 is still not up. I can live with that for now. But what I am really struggling with is configuring Clover to boot my mac HDD(SSD) on which I have installed El Capitan(10.11.6). Here are my specs: M/B: GA-78LMT USB3 Rev 6 Proc: AMD Phenom II X4 965 AM3 Graphics: nVidia GT 710 2GB DDR3 I am using latest Clover release from https://github.com/CloverHackyColor/CloverBootloader/releases Attached is my clover config.plist, please have a look. I am seeing a screen with red texts. config.plist Link to comment Share on other sites More sharing options...
spakk Posted September 23, 2020 Share Posted September 23, 2020 1 hour ago, amitmula said: thanks @spakk XLNCUSBFix restored all my USB 2.0 ports, USB 3.0 is still not up. I can live with that for now. But what I am really struggling with is configuring Clover to boot my mac HDD(SSD) on which I have installed El Capitan(10.11.6). Here are my specs: M/B: GA-78LMT USB3 Rev 6 Proc: AMD Phenom II X4 965 AM3 Graphics: nVidia GT 710 2GB DDR3 I am using latest Clover release from https://github.com/CloverHackyColor/CloverBootloader/releases Attached is my clover config.plist, please have a look. I am seeing a screen with red texts. config.plist In order to be able to use the USB3.0 slot, you have to install the GenericUSBXHCI.kext driver in addition to the previous drivers. You can either download this driver here: https://bitbucket.org/RehabMan/os-x-generic-usb3/downloads/ or use one of the driver packages that I uploaded, which contains the GenericUSBXHCI.kext. For the "Clover on AMD X64 Exception Type Error" read this post: https://www.insanelymac.com/forum/topic/313527-clover-on-amd-x64-exception-type-error/ or read this post: https://amd-osx.com/forum/viewtopic.php?t=3985 and follow up on the suggestions or contact "Slice", he can tell you more Link to comment Share on other sites More sharing options...
spakk Posted September 23, 2020 Share Posted September 23, 2020 Edit: therefore, this can cause various problems. read the instructions from "Mike T" and change the BIOS settings. Furthermore, the overclocking of the CPU can also cause that, too. Link to comment Share on other sites More sharing options...
amitmula Posted September 24, 2020 Share Posted September 24, 2020 (edited) 21 hours ago, spakk said: Edit: therefore, this can cause various problems. read the instructions from "Mike T" and change the BIOS settings. Furthermore, the overclocking of the CPU can also cause that, too. thanks @spakk, GenericUSBXHCI.kext turned up the USB 3.0 ports. Wanted to know, if I have already placed the custom kexts like the above one in Clover's Extra folder in 10.11/other directory, do I still need to tick/check Fix USB in clover configurator ? Mine is a legacy BIOS (non-UEFI), so I am not sure if I can boot clover in UEFI mode. Also I tried some older Clover releases but they seem to get stuck at the _ or a black screen or the Apple logo (no verbose mode) Edited September 24, 2020 by amitmula Link to comment Share on other sites More sharing options...
spakk Posted September 24, 2020 Share Posted September 24, 2020 all drivers belong in the folder: EFI/Clover/Kexts/10.11 or in to: EFI /Clover/Kexts/other I hadn't had this error before, so I don't have the experience to give a well-founded answer. You have to contact "Slice" or "Shaneee" as mentioned above. Link to comment Share on other sites More sharing options...
amitmula Posted September 24, 2020 Share Posted September 24, 2020 18 minutes ago, spakk said: all drivers belong in the folder: EFI/Clover/Kexts/10.11 or in to: EFI /Clover/Kexts/other I hadn't had this error before, so I don't have the experience to give a well-founded answer. You have to contact "Slice" or "Shaneee" as mentioned above. ok any fix you know for the BIOS reset problem on el capitan ? Link to comment Share on other sites More sharing options...
spakk Posted September 24, 2020 Share Posted September 24, 2020 use Enoch bootloader, that is easier to configure on your older AMD system: https://www.insanelymac.com/forum/files/file/71-enoch/ 1) add the attached "Extra" folder to your main directory (root) 2) then install Enoch bootloader, 3) then add the "XLNCUSBFix" driver into Extra/Extensions 4) then add the AMD kernel (for older CPUs) to Extra folder and boot your system with it Extra.zip Link to comment Share on other sites More sharing options...
