Andres ZeroCross Posted March 29, 2020 Share Posted March 29, 2020 On 3/27/2020 at 11:00 PM, LunairsmAlpha said: i have problem with applealc on opencore as it doesnt work even with layout id that proven work under clover i use oc 0.5.6, applealc 1.4.7, macos mojave 10.14.5 my device is lenovo B40 | i3 5005U | Realtek ALC 235 i use layout id 3 --> mirone alc235 codec with resethda and afglowpowerstate enabled on clover this is my clover config https://1drv.ms/u/s!ApcQm0L9RYS5iro5qyhp4sbz6A6GAQ this is my oc config https://drive.google.com/file/d/127sfe3zahcnm-hBSJWXFYSHPf1zBCmhO/view?usp=drivesdk You need to add IRQFlag 0,8,11,15 to HPET then Delete IRQFlag from IPIC, RTC and TIMR in your DSDT Link to comment Share on other sites More sharing options...

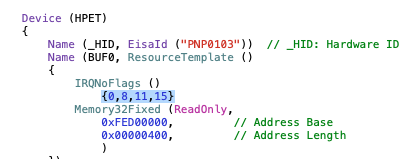

LunairsmAlpha Posted March 30, 2020 Share Posted March 30, 2020 18 hours ago, Andres ZeroCross said: You need to add IRQFlag 0,8,11,15 to HPET then Delete IRQFlag from IPIC, RTC and TIMR in your DSDT after using this solution, sometimes it works sometimes it doesnt Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted March 30, 2020 Share Posted March 30, 2020 4 hours ago, LunairsmAlpha said: after using this solution, sometimes it works sometimes it doesnt Then it mean caused by other. I have Broadwell notebook and there is no problem with audio,, IRQ Flags about HPET, IPIC, TIMR and RTC is important for Broadwell and below. Make sure you used latest Lilu.kext and AppleALC.kext Link to comment Share on other sites More sharing options...
LunairsmAlpha Posted March 30, 2020 Share Posted March 30, 2020 3 hours ago, Andres ZeroCross said: Then it mean caused by other. I have Broadwell notebook and there is no problem with audio,, IRQ Flags about HPET, IPIC, TIMR and RTC is important for Broadwell and below. Make sure you used latest Lilu.kext and AppleALC.kext can i ask ur oc config of that broadwell machine so i can identify the problem by comparing the configuration file? Link to comment Share on other sites More sharing options...
LunairsmAlpha Posted March 30, 2020 Share Posted March 30, 2020 On 3/29/2020 at 8:49 PM, Andres ZeroCross said: You need to add IRQFlag 0,8,11,15 to HPET then Delete IRQFlag from IPIC, RTC and TIMR in your DSDT somehow it fixed when i block Com.Driver.AppleHPET https://github.com/acidanthera/bugtracker/issues/422#issuecomment-523642854 as if there're another elegant solution please kindly reply Link to comment Share on other sites More sharing options...
ghost8282 Posted March 31, 2020 Share Posted March 31, 2020 (edited) Hi, I cannot compile the AppleALC master version, updated as of today, with Lilu master, updated as of today. XCode: 11.4 (11E146) Mac Os: 10.15.4 (19E266) Error: ResourceConverter: Invalid usage Program ended with exit code: 1 Let me know if you need more info. The same happens with Whatevergreen, same error. It seems related to this new XCode or mac os 10.15.4, reverting changes back to my last successful compilation doesn't fix the issue. UPDATE: reverting back to XCode 11.3.1, will update if it will fix UPDATE2: definetly a problem of the new XCode 11.4, DO NOT update, 11.3.1 works ok UPDATE3: you can use also the new Xcode 11.4, but you must download swift package 5.1.3 (swift-5.1-DEVELOPMENT-SNAPSHOT-2020-01-28-a-osx.pkg) 1-Install the swift package 2-Open Xcode --> Top menu --> Xcode --> Toolchains --> Swift 5.1 Snapshot 2020-01-28 (a) 3- Open terminal and run export TOOLCHAINS=swift Edited April 2, 2020 by ghost8282 Link to comment Share on other sites More sharing options...
maxo_91 Posted April 6, 2020 Share Posted April 6, 2020 Hi my codec is CX8200 I'm using layout id 23 and it's working fine for speaker and internal mic, but it doesn't work for external mic, I tried the ssdt-cx8200.aml which was reccomended before but it completely shuts down my whole audio and the input and output devices in sys prefs disappear. It used to work fin on high sierra so I know it's possible, but it's not working ok with mojave, can you help me with this pls? codec_dump.txt Link to comment Share on other sites More sharing options...
PabloLi Posted April 6, 2020 Share Posted April 6, 2020 Unfortunately non of the alcid given for my alc236 codec works ( no sound from headphones / DP monitor and internal speakers ) but codec is visible in the catalina and mojave and everything looks just fine. Also i did not manage to load any version of voodoohda ( from clover from sle or le ) it just does not load!! Also f8 button flom clover - no dump And HdaCodecDump start No audio devices were found (Not Found) The only way for me was linux - so dump attached but i do not know how to create my platform and layout from this dump. ( everywhere only tutorials for VooDoo+GetDumpXML - AppleHDA - but it s not my case) Please add new layout for alc236 AppleALC - Dell INSPIRON 2IN1 5590 I3-10110U Thank You codec.txt codec2.txt Link to comment Share on other sites More sharing options...

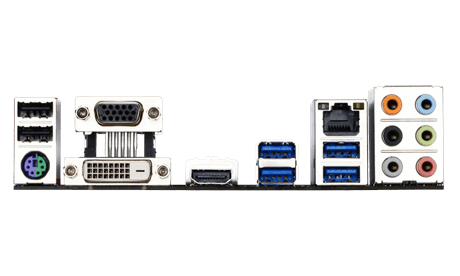

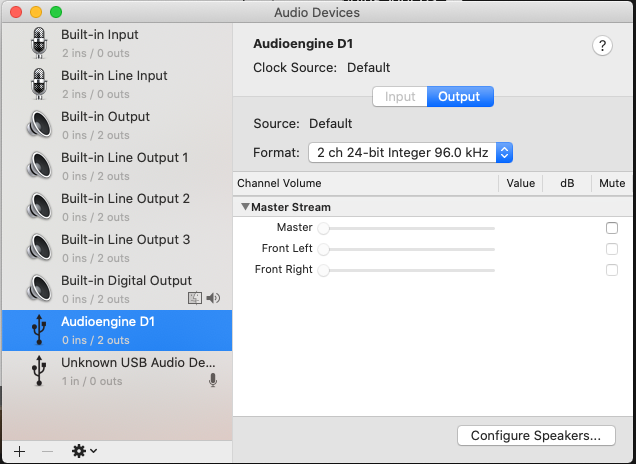

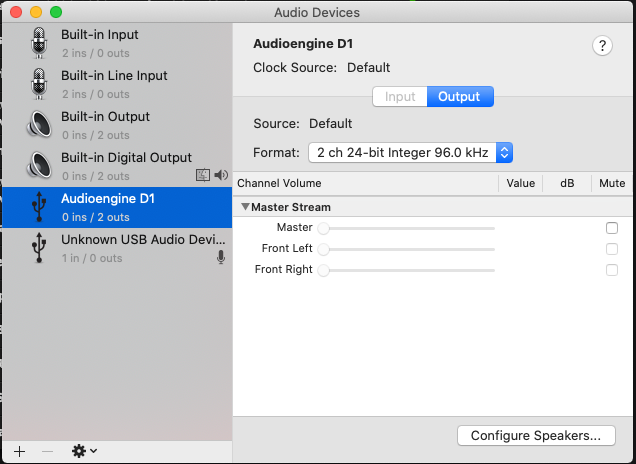

mengshi Posted April 7, 2020 Share Posted April 7, 2020 (edited) I need help in customizing AppleAlc based on (https://github.com/toleda/audio_ALC_guides/blob/master/Customization.pdf). I can get my PCI SPDIF to work under ALC887 layout ID 99 but then I lose the other jacks. My board has : Meaning if I use ALC887, layout ID 99, I don't see the above colored ports. I was hoping to customize a new layout based on layout ID 7 or 1 which can see the above ports but add SPDIF-2. I need more handholding regarding the steps below provider by Toleda: I have done: Install Xcode Install Github Desktop Clone Github - acidanthera/AppleALC Lilu is installed Stuck at steps to do AppleALC compile...... Thanks. Thanks. Edited April 7, 2020 by mengshi Link to comment Share on other sites More sharing options...
Matgen84 Posted April 7, 2020 Share Posted April 7, 2020 10 minutes ago, mengshi said: I need help in customizing AppleAlc based on (https://github.com/toleda/audio_ALC_guides/blob/master/Customization.pdf). I can get my PCI SPDIF to work under ALC887 layout ID 99 but then I lose the other jacks. My board has : Meaning if I use ALC887, layout ID 99, I don't see the above colored ports. I was hoping to customize a new layout based on layout ID 7 or 1 which can see the above ports but add SPDIF-2. I need more handholding regarding the steps below provider by Toleda: I have done: Install Xcode Install Github Desktop Clone Github - acidanthera/AppleALC Lilu is installed Stuck at steps to do AppleALC compile...... Thanks. Thanks. Take a look to Acidanthera/AppleALC Repo, the laster release is out To build AppleALC (Lilu plugin), You need Lilu debug kext (copy/paste) to AppleALC directory, before to build. Link to comment Share on other sites More sharing options...

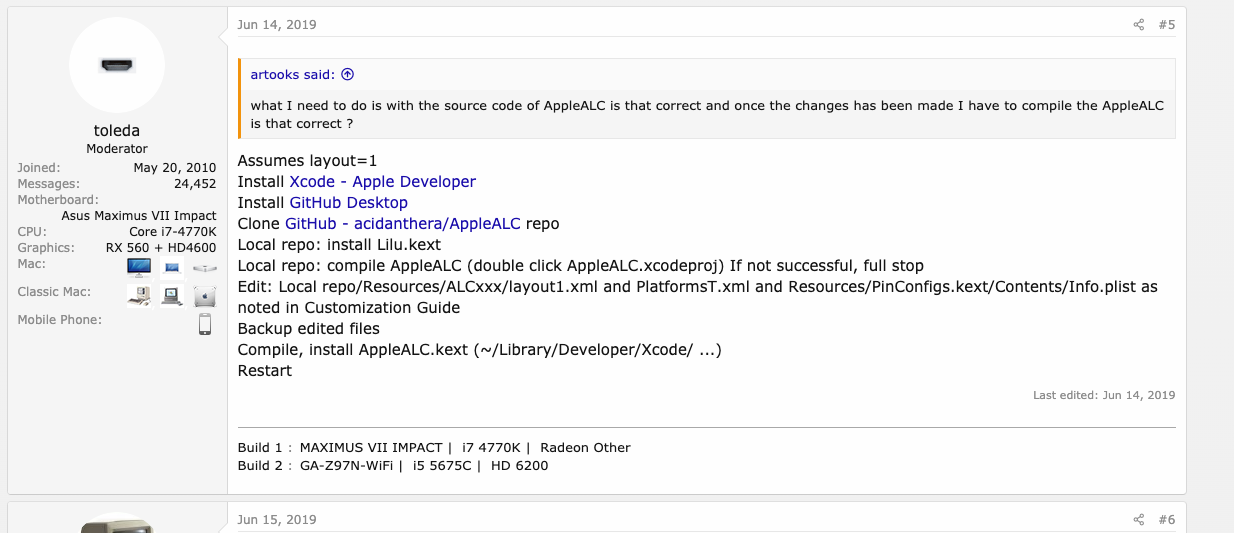

mengshi Posted April 7, 2020 Share Posted April 7, 2020 3 hours ago, Matgen84 said: Take a look to Acidanthera/AppleALC Repo, the laster release is out To build AppleALC (Lilu plugin), You need Lilu debug kext (copy/paste) to AppleALC directory, before to build. OK. Did that and AppleALC compiled susccessful from the cloned GitHub repo. Apparently I can use Pin Configurator to do the customization. Any hand holding for this here? I'm not sure what the steps are...... Thanks Link to comment Share on other sites More sharing options...
hackintosher77 Posted April 7, 2020 Share Posted April 7, 2020 Hi guys, I have the MSI z97 gaming 5 with ALC1150. I am using AppleALC and have audio working but no microphone. When I switch to VoodooHDA I get microphone working but no HDMI audio from my gfx card (RX570). I think the problem is some layout, but I've tried all the possible layouts (1,2,3,5,7,11) and still no mic. If anyone can point me in the right direction I'd appreciate it! Link to comment Share on other sites More sharing options...
PabloLi Posted April 7, 2020 Share Posted April 7, 2020 (edited) 1 hour ago, hackintosher77 said: If anyone can point me in the right direction I am not the one who can help you, but i am sure that you have to add dump from working Voodoo - so somebody could help you. (Link to russian resource https://www.applelife.ru/threads/applehda-zvuk-delaem-resursy-po-dampu-voodoohda.2719529/ just do not know where the english link) Actually if you lucky that script may fix your problem automatically 1) GetDumpXML >> Platforms.xmlcorrect2) LayoutN.xml - change codec id and number I am in same situation and waiting for help - but in my case i am not even able to make voodoo dump since voodooHDA does not load on my new notebook )) Edited April 7, 2020 by pakhan Link to comment Share on other sites More sharing options...
hackintosher77 Posted April 7, 2020 Share Posted April 7, 2020 You have audio but no microphone? Link to comment Share on other sites More sharing options...
PabloLi Posted April 7, 2020 Share Posted April 7, 2020 1 minute ago, hackintosher77 said: You have audio but no microphone? it doesn't matter that much what i have - manipulations always the same, anyway) But with you - it could be easy done since you may create GetDumpXML >> Platforms.xml from the working boot with voodooHDA ( appleHDA and appleALC disabled ) Link to comment Share on other sites More sharing options...
PabloLi Posted April 7, 2020 Share Posted April 7, 2020 The report is meant to contain: 1. Laptop model/Motherboard model - DELL INSPIRON 5590 2IN1 I3-10110U 2. Codec name Realtek ALC3204 Vendor Id: 0x10ec0236 3. Layout used with the info what works for you (ideally if you try them all) - tried all for alc 236 - no sound from any source but i can see sound icon and codec in the system 4. OS X versions you tried 10.14 and 10.15 5. Autogenerated Info.plist - attached I infoNOW.plist - made with Codec-Info-AppleALC V3.command if a boot with 13 layout but no sound Info.plist - made with PinConfigurator after VerbSanitize codec1.txt & codec2.txt - linux dump of ALC3204 and HDMI CODECS Please since VoodooHDA on my laptop refuses to start under any condition - help me to make it work with appleALC codec1.txt codec2.txt InfoNOW.plist Info.plist Link to comment Share on other sites More sharing options...
MacPeet Posted April 8, 2020 Share Posted April 8, 2020 On 4/7/2020 at 8:45 AM, mengshi said: I need help in customizing AppleAlc based on (https://github.com/toleda/audio_ALC_guides/blob/master/Customization.pdf). I can get my PCI SPDIF to work under ALC887 layout ID 99 but then I lose the other jacks. My board has : Meaning if I use ALC887, layout ID 99, I don't see the above colored ports. I was hoping to customize a new layout based on layout ID 7 or 1 which can see the above ports but add SPDIF-2. I need more handholding regarding the steps below provider by Toleda: I have done: Install Xcode Install Github Desktop Clone Github - acidanthera/AppleALC Lilu is installed Stuck at steps to do AppleALC compile...... Thanks. Thanks. Ok, SPDIF works with ID99. The colored connections work with which ID ¿¿¿ Solvable with new codec and new ID. Which computer is it at all ¿¿¿ They do not give any hardware info, no signature !!! A codec dump from a Linux Live version is always better. We can do more with that. Link to comment Share on other sites More sharing options...
mattcurtis Posted April 8, 2020 Share Posted April 8, 2020 (edited) Hi! I'm trying to get AppleALC 1.4.8 working on my CX20757 (layout-id = 3) in macOS Catalina 10.15.4. Whenever I try to use AppleALC at all via boot argument alcid=3 my boot hangs indefinitely right after the AppleALC kext is loaded, eventually rebooting after several minutes (I haven't timed it.) Removing alcid means boot continues successfully. Where should I start looking in order to fix this? EFI.zip (This is on Clover, BTW) EDIT: Solved thanks to /u/HackinDoge: I'm now using the DSDT Fixes FixHPET, FixIPIC, and FixRTC (tbh I may not need all of them, I'll have to test.) I narrowed it down to those three by checking out a config.plist someone else put together for the same machine as my own. Edited April 9, 2020 by mattcurtis Link to comment Share on other sites More sharing options...
tunglamvghy Posted April 9, 2020 Share Posted April 9, 2020 I'm facing up with this problem: I dual boot macOS 10.15.4 and Windows 10. After boot to Windows and then return to macOS, my audio isn't working anymore. After several reset, it works again. I'm using ASUS Vivobook S530UN boot with OpenCore Audio Codec: ALC256 Layout-id: 13 Link to comment Share on other sites More sharing options...
DarkindyRise Posted April 9, 2020 Share Posted April 9, 2020 48 minutes ago, tunglamvghy1210 said: I'm facing up with this problem: I dual boot macOS 10.15.4 and Windows 10. After boot to Windows and then return to macOS, my audio isn't working anymore. After several reset, it works again. I'm using ASUS Vivobook S530UN boot with OpenCore Audio Codec: ALC256 Layout-id: 13 Enable ResetHDA in Clover config.plist and retry (I'm guessing you're using Clover as you mentioned dual booting). Link to comment Share on other sites More sharing options...
tunglamvghy Posted April 9, 2020 Share Posted April 9, 2020 4 hours ago, DarkindyRise said: Enable ResetHDA in Clover config.plist and retry (I'm guessing you're using Clover as you mentioned dual booting). No. I'm using OpenCore. I switch to Windows using UEFI Boot Option. So how to ResetHDA on OpenCore? I see some posts show that Add Custom Command to CodecCommander kext to fix it? But I dont know how to fix ALC256 (in the post is ALC1150) Link to comment Share on other sites More sharing options...
fewtarius Posted April 9, 2020 Share Posted April 9, 2020 (edited) Howdy! I posted a while back and still haven't been able to resolve my problem so I thought I'd try again as this is the last mile of my 10th Gen Hackintosh laptop build. It's going to be a fairly long post, so I'll start with the TL;DR version which is that there is 400 series support in AppleALC and I can get my audio device to appear in macOS but I'm not getting any sound out of it. I've been working on a custom layout but have thus far been unsuccessful. I recognize that I won't have any mic support as the microphone array is Intel SST and that's completely fine. Now to the more detailed part. In Windows this is my device tree: The microphone array won't be supportable from what I've learned, but the speakers are connected to the Realtek Audio device, so there seems to be hope here. My codec is recognized on the 400 series bus as a Realtek ALC285. I've done a codec dump from the very latest beta of Ubuntu 20.04 to make sure I have the latest kernel bits, here's the output: Codec: Realtek ALC285 Address: 0 AFG Function Id: 0x1 (unsol 1) Vendor Id: 0x10ec0285 Subsystem Id: 0x17aa3818 Revision Id: 0x100002 No Modem Function Group found Default PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A State of AFG node 0x01: Power states: D0 D1 D2 D3 D3cold CLKSTOP EPSS Power: setting=D0, actual=D0 GPIO: io=3, o=0, i=0, unsolicited=1, wake=0 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Node 0x02 [Audio Output] wcaps 0x41d: Stereo Amp-Out Control: name="Speaker Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0 Amp-Out vals: [0x3c 0x3c] Converter: stream=1, channel=0 PCM: rates [0x40]: 48000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x03 [Audio Output] wcaps 0x41d: Stereo Amp-Out Control: name="Headphone Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x57, nsteps=0x57, stepsize=0x02, mute=0 Amp-Out vals: [0x3c 0x3c] Converter: stream=1, channel=0 PCM: rates [0x40]: 48000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x04 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x05 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x06 [Audio Output] wcaps 0x411: Stereo Converter: stream=0, channel=0 PCM: rates [0x40]: 48000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x07 [Audio Input] wcaps 0x10051b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1 Amp-In vals: [0x97 0x97] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x40]: 48000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x24 Node 0x08 [Audio Input] wcaps 0x10051b: Stereo Amp-In Control: name="Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Control: name="Capture Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1 Amp-In vals: [0x27 0x27] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x23 Node 0x09 [Audio Input] wcaps 0x10051b: Stereo Amp-In Amp-In caps: ofs=0x17, nsteps=0x3f, stepsize=0x02, mute=1 Amp-In vals: [0x97 0x97] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x560]: 44100 48000 96000 192000 bits [0xe]: 16 20 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x22 Node 0x0a [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0b [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0c [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0d [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0e [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x0f [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x10 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x11 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x12 [Pin Complex] wcaps 0x40040b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x40000000: [N/A] Line Out at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0x0, Sequence = 0x0 Pin-ctls: 0x00: Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x13 [Pin Complex] wcaps 0x40040b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000020: IN Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x14 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out Control: name="Speaker Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x00010014: OUT EAPD Detect EAPD 0x2: EAPD Pin Default 0x90170110: [Fixed] Speaker at Int N/A Conn = Analog, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x02 Node 0x15 [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x16 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0000001c: OUT HP Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x02* 0x03 Node 0x17 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x0000001c: OUT HP Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 3 0x02* 0x03 0x06 Node 0x18 [Pin Complex] wcaps 0x40048b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00000024: IN Detect Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x19 [Pin Complex] wcaps 0x40048b: Stereo Amp-In Control: name="Mic Boost Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00003724: IN Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x04a11040: [Jack] Mic at Ext Right Conn = 1/8, Color = Black DefAssociation = 0x4, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1a [Pin Complex] wcaps 0x40048b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00003724: IN Detect Vref caps: HIZ 50 GRD 80 100 Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: VREF_HIZ Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1b [Pin Complex] wcaps 0x40058f: Stereo Amp-In Amp-Out Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x27, mute=0 Amp-In vals: [0x00 0x00] Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x80 0x80] Pincap 0x00013734: IN OUT EAPD Detect Vref caps: HIZ 50 GRD 80 100 EAPD 0x2: EAPD Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: VREF_HIZ Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x02* 0x03 Node 0x1c [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x1d [Pin Complex] wcaps 0x400400: Mono Pincap 0x00000020: IN Pin Default 0x40600001: [N/A] Modem Line at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0x0, Sequence = 0x1 Pin-ctls: 0x20: IN Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1e [Pin Complex] wcaps 0x400501: Stereo Pincap 0x00000010: OUT Pin Default 0x411111f0: [N/A] Speaker at Ext Rear Conn = 1/8, Color = Black DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 1 0x06 Node 0x1f [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x20 [Vendor Defined Widget] wcaps 0xf00040: Mono Processing caps: benign=0, ncoeff=142 Node 0x21 [Pin Complex] wcaps 0x40058d: Stereo Amp-Out Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-Out vals: [0x00 0x00] Pincap 0x0001001c: OUT HP EAPD Detect EAPD 0x2: EAPD Pin Default 0x04211020: [Jack] HP Out at Ext Right Conn = 1/8, Color = Black DefAssociation = 0x2, Sequence = 0x0 Pin-ctls: 0xc0: OUT HP Unsolicited: tag=01, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x02 0x03* Node 0x22 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 5 0x19 0x1a 0x1b 0x1d 0x13 Node 0x23 [Audio Mixer] wcaps 0x20010b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x00, stepsize=0x00, mute=1 Amp-In vals: [0x00 0x00] [0x80 0x80] [0x80 0x80] [0x80 0x80] [0x80 0x80] Connection: 5 0x19 0x1a 0x1b 0x1d 0x12 Node 0x24 [Audio Selector] wcaps 0x300101: Stereo Connection: 3 0x12* 0x13 0x18 In going through the dump I can see that my internal audio is at 0x14 and the output device is 0x02, and my jack is 0x21 and 0x03. I'm using a copy of layout 21 which already has these node ids configured. Node IDs 20/2 and 33/3 When I pull my codec into Pin Configurator, I get quite a lot of information about the codec which is mostly not useful so I've removed everything that I don't need and sanitized the verbs with the built-in functionality. Default: Sanitized: I've exported the output to PinConfigs.kext creating layout 61, added the layout to ALC285/Info.plist, and the required Platforms61.xml and layout61.xml. AppleALC builds perfectly, and I can load it on macOS but like the other layouts I've tried, I still get no audio. Here's the debug log with it loading, it seems to be the same no matter what layout I choose. To me, it looks like it's starting up just fine. AppleALC debug log: Timestamp Thread Type Activity PID TTL 2020-04-09 13:30:42.680316-0700 0x73 Default 0x0 0 0 kernel: (kernel) AppleALC init: @ (DBG) AppleALC bootstrap DBG-148-2020-04-09 2020-04-09 13:30:55.410563-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData vendor-id has 8086 value 2020-04-09 13:30:55.410570-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData device-id has 2C8 value 2020-04-09 13:30:55.410576-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData revision-id has 0 value 2020-04-09 13:30:55.410582-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData alc-layout-id has 3D value 2020-04-09 13:30:55.410590-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found 2 audio controllers 2020-04-09 13:30:55.410596-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) validating 0 controller 8086:3E9B:2 2020-04-09 13:30:55.410601-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 0 mod 1002:AAC8 2020-04-09 13:30:55.410615-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 1 mod 1002:AAE8 2020-04-09 13:30:55.410631-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 2 mod 1002:AB08 2020-04-09 13:30:55.410636-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 3 mod 1022:1457 2020-04-09 13:30:55.410641-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 4 mod 1022:1487 2020-04-09 13:30:55.410646-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 5 mod 1022:15E3 2020-04-09 13:30:55.410651-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 6 mod 8086:C0C 2020-04-09 13:30:55.410656-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 7 mod 8086:F04 2020-04-09 13:30:55.410667-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 8 mod 8086:8CA0 2020-04-09 13:30:55.410672-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 9 mod 8086:8D20 2020-04-09 13:30:55.410677-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 10 mod 8086:8D21 2020-04-09 13:30:55.410682-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 11 mod 8086:9DC8 2020-04-09 13:30:55.410687-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 12 mod 8086:A171 2020-04-09 13:30:55.410692-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 13 mod 8086:A2F0 2020-04-09 13:30:55.410696-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 14 mod 8086:A1F0 2020-04-09 13:30:55.410705-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 15 mod 8086:A348 2020-04-09 13:30:55.410710-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 16 mod 10DE:E0F 2020-04-09 13:30:55.410715-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 17 mod 10DE:FB0 2020-04-09 13:30:55.410720-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 18 mod 10DE:FB8 2020-04-09 13:30:55.410724-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 19 mod 10DE:FB9 2020-04-09 13:30:55.410729-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 20 mod 10DE:FBA 2020-04-09 13:30:55.410734-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 21 mod 10DE:FBB 2020-04-09 13:30:55.410739-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 22 mod 10DE:FBC 2020-04-09 13:30:55.410744-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 23 mod 10DE:10EF 2020-04-09 13:30:55.410749-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 24 mod 10DE:10F0 2020-04-09 13:30:55.410753-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 25 mod 10DE:10F1 2020-04-09 13:30:55.410758-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 26 mod 8086:2C8 2020-04-09 13:30:55.410767-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) validating 1 controller 8086:2C8:0 2020-04-09 13:30:55.410772-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 0 mod 1002:AAC8 2020-04-09 13:30:55.410777-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 1 mod 1002:AAE8 2020-04-09 13:30:55.410782-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 2 mod 1002:AB08 2020-04-09 13:30:55.410787-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 3 mod 1022:1457 2020-04-09 13:30:55.410795-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 4 mod 1022:1487 2020-04-09 13:30:55.410800-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 5 mod 1022:15E3 2020-04-09 13:30:55.410805-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 6 mod 8086:C0C 2020-04-09 13:30:55.410810-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 7 mod 8086:F04 2020-04-09 13:30:55.410814-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 8 mod 8086:8CA0 2020-04-09 13:30:55.410819-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 9 mod 8086:8D20 2020-04-09 13:30:55.410827-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 10 mod 8086:8D21 2020-04-09 13:30:55.410832-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 11 mod 8086:9DC8 2020-04-09 13:30:55.410837-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 12 mod 8086:A171 2020-04-09 13:30:55.410842-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 13 mod 8086:A2F0 2020-04-09 13:30:55.410851-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 14 mod 8086:A1F0 2020-04-09 13:30:55.410857-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 15 mod 8086:A348 2020-04-09 13:30:55.410865-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 16 mod 10DE:E0F 2020-04-09 13:30:55.410870-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 17 mod 10DE:FB0 2020-04-09 13:30:55.410875-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 18 mod 10DE:FB8 2020-04-09 13:30:55.410879-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 19 mod 10DE:FB9 2020-04-09 13:30:55.410884-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 20 mod 10DE:FBA 2020-04-09 13:30:55.410889-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 21 mod 10DE:FBB 2020-04-09 13:30:55.410894-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 22 mod 10DE:FBC 2020-04-09 13:30:55.410899-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 23 mod 10DE:10EF 2020-04-09 13:30:55.410904-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 24 mod 10DE:10F0 2020-04-09 13:30:55.410909-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 25 mod 10DE:10F1 2020-04-09 13:30:55.410914-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing to 26 mod 8086:2C8 2020-04-09 13:30:55.410922-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found mod for 1 controller 2020-04-09 13:30:55.410927-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) missing ControllerModInfo for 0 controller 2020-04-09 13:30:55.410933-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) handling 1 controller 8086:2C8 with 2 patches 2020-04-09 13:30:55.413450-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) missing ControllerModInfo for 0 controller 2020-04-09 13:30:55.413457-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) handling 1 controller 8086:2C8 with 2 patches 2020-04-09 13:30:55.413464-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 0 for 11 kext (com.apple.driver.AppleHDAController) 2020-04-09 13:30:55.413471-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 0 for 11 kext (com.apple.driver.AppleHDAController) 2020-04-09 13:30:55.413746-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 1 for 11 kext (com.apple.driver.AppleHDAController) 2020-04-09 13:30:55.413753-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 1 for 11 kext (com.apple.driver.AppleHDAController) 2020-04-09 13:30:55.414371-0700 0x5a4 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData alc-delay was not found 2020-04-09 13:30:56.446009-0700 0x5b3 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) IOHDACodecDevice::executeVerb with parameters a1 = 0, a2 = 3840, a3 = 4 failed with result = e00002d6 2020-04-09 13:30:56.452045-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found analog codec IOHDACodecDevice 2020-04-09 13:30:56.452055-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) storing codec info for 10EC:285:100002 2020-04-09 13:30:56.452064-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ failed to find IOHDACodecVendorID, retrying 0 2020-04-09 13:30:56.452071-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found supported Realtek ALC285 codec revision 0x100002 2020-04-09 13:30:56.452078-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) missing ControllerModInfo for 0 controller 2020-04-09 13:30:56.452084-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) handling 1 controller 8086:2C8 with 2 patches 2020-04-09 13:30:56.452090-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) will route resource loading callbacks 2020-04-09 13:30:56.452096-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 0 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.452103-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 0 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.452532-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 1 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.452538-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 2 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.452544-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 2 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.457059-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 3 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.457065-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 3 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.457399-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 4 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.457406-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 4 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.458874-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 5 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.458881-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) applying patch 5 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.460394-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking patch 6 for 10 kext (com.apple.driver.AppleHDA) 2020-04-09 13:30:56.465036-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC iokit: @ (DBG) getOSData layout-id has 7 value 2020-04-09 13:30:56.465048-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) initializePinConfig AppleHDACodecGeneric received hda 0xFFFFFF804261E250, config 0xFFFFFF8042A1F3C0 config name AppleHDAHardwareConfigDriver apple layout 7 codec 10EC0285 layout 61 2020-04-09 13:30:56.465063-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) discovered HDAConfigDefault with 446 entries 2020-04-09 13:30:56.465209-0700 0x6f6 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) current config entry has boot 1, wake 1, reinit 1 2020-04-09 13:30:56.784725-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) layoutLoadCallback 2 0 1 15073 1 2020-04-09 13:30:56.784731-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) resource-request arrived layout 2020-04-09 13:30:56.784738-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking codec 10EC:285:100002 2020-04-09 13:30:56.784743-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) selecting from 5 files 2020-04-09 13:30:56.784748-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 0 layout B/3D 2020-04-09 13:30:56.784753-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 1 layout 15/3D 2020-04-09 13:30:56.784758-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 2 layout 1F/3D 2020-04-09 13:30:56.784762-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 3 layout 34/3D 2020-04-09 13:30:56.784767-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 4 layout 3D/3D 2020-04-09 13:30:56.784771-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found layout at 4 index 2020-04-09 13:30:56.784776-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) layoutLoadCallback done 2 0 1 1629 1 2020-04-09 13:30:56.808430-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) platformLoadCallback 3 0 1 14921 1 2020-04-09 13:30:56.808437-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) resource-request arrived platform 2020-04-09 13:30:56.808443-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) checking codec 10EC:285:100002 2020-04-09 13:30:56.808448-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) selecting from 5 files 2020-04-09 13:30:56.808453-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 0 layout B/3D 2020-04-09 13:30:56.808458-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 1 layout 15/3D 2020-04-09 13:30:56.808462-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 2 layout 1F/3D 2020-04-09 13:30:56.808467-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 3 layout 34/3D 2020-04-09 13:30:56.808471-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) comparing 4 layout 3D/3D 2020-04-09 13:30:56.808476-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) found platform at 4 index 2020-04-09 13:30:56.808491-0700 0x2b4 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) platformLoadCallback done 3 0 1 438 1 2020-04-09 13:30:59.137309-0700 0x1a9 Default 0x0 0 0 kernel: (kernel) AppleALC alc: @ (DBG) power change AppleHDADriver at AppleHDACodecGeneric from 1 to 2 in from pin 1 sleep 0 What's super interesting is that it appears as though it's working, volume up/down, mute appear to work. The internal speakers and headphones switch when I plug something in, but no audio. I'm sure this is just something silly that I've overlooked, but I can't for the life of me figure out what I'm doing wrong. I've tried OC and Clover with all of the IRQ fixes, etc but I'm completely at a loss with this one. Hopefully, someone will look at it, and see pretty quickly whatever it is that I'm doing wrong. Really would appreciate any help you folks can provide. Thank you all in advance, and sorry for the wall of text! Edited April 9, 2020 by fewtarius Link to comment Share on other sites More sharing options...
mengshi Posted April 10, 2020 Share Posted April 10, 2020 (edited) On 4/9/2020 at 12:11 AM, MacPeet said: Ok, SPDIF works with ID99. The colored connections work with which ID ¿¿¿ Solvable with new codec and new ID. Which computer is it at all ¿¿¿ They do not give any hardware info, no signature !!! A codec dump from a Linux Live version is always better. We can do more with that. Motherboard Gigabyte H97-HD3. Using ALC887, Layout ID = 7, I get: Lime Green (Rear) - is built in output - works. Lime green (front) also works and has autodetect. Grey - is built-in line out 1 - works Orange - is built-in line out 2 - works Black - is built-in line out 3 - works Built-in digital output - DOES NOT work. I do not have a Mic to test the input ports. I did not test built-in inout and line input. The above USB sound devices (Audioengine and audio - Logitech Webcam) - work. ===================== Using layout ID=99, I get: Built-in digital output now works. The built-in output works and is lime green. Front headphone works and autodetects. But I lost the other audioports. Thanks for all the help. Edited April 10, 2020 by mengshi Link to comment Share on other sites More sharing options...
dohun0310 Posted April 10, 2020 Share Posted April 10, 2020 The microphone on the ALC282 in the LG Notebook(15ND540) is not working. Can i help me plz?OSX : 10.15.4Layout : I all try HdaCodec#1 (Realtek ALC282).txt Link to comment Share on other sites More sharing options...
cucul Posted April 11, 2020 Share Posted April 11, 2020 On 12/8/2019 at 10:49 PM, Andres ZeroCross said: Use latest lilu.kext and plugin, update all of them to latest version and reboot again I figured out why the audio didn't work after the update. There was in the log something like: " localhost kernel[0]: (AppleSystemPolicy) <AppleSystemPolicy`AppleSystemPolicy::logExecutable(char const*, char const*, int)> log-executable mig callout failed 0x10000004 (path: /Library/Audio/Plug-Ins/HAL/InstantOn.driver/Contents/MacOS/InstantOn responsiblePath: /usr/sbin/coreaudiod isExecution: 0) " And I observed that coreaudiod was quarantined and after boot it wasn't launched. Once that I delete the old content from /Library/Audio/Plug-Ins/HAL/ and I reboot the audio panel and audio was present again. So, some of the old audio plugins were not "accepted" anymore by new MacOS policies. I mention that I currently run Catalina 10.15.4.1, Lilu 1.4.3, AppleALC 1.4.8. Link to comment Share on other sites More sharing options...
