16 minutes ago, Andres ZeroCross said:


Essayez d’arrêter d’abord, puis démarrez et branchez votre casque. Vérifiez si cela fonctionne ou pas. Nœud EAPD peut provoquer cette

KP now when i reboot.

Laptop reboot it self.

input and output jack don't work anytimes

Résultat de Terminal KP audio.zip

MacBook Pro.zip

Link to comment
Share on other sites

2 minutes ago, paulopina said:

KP now when i reboot.

Laptop reboot it self.

input and output jack don't work anytimes

Résultat de Terminal KP audio.zip

MacBook Pro.zip


KP is not related to your Audio,, your command "log show --predicate 'process == "kernel"' --last 30m" is to filter kernel log. THere is no kernel panic log in there. Your kernel panic is another issue

Link to comment
Share on other sites

3 hours ago, Andres ZeroCross said:


KP is not related to your Audio,, your command "log show --predicate 'process == "kernel"' --last 30m" is to filter kernel log. THere is no kernel panic log in there. Your kernel panic is another issue

I do not have more KP for the moment (first KP on this computer since the beginning). He repaired himself alone !!!!! I do not really know. I still have work to finalize all that.

But back on topic.
With the layout 21 and your "AppleALC.kext":
Internal speakers, internal microphone, output jack (headphones) and HDMI appear in the "System Preferences".
The input jack (microphone) never appears.
The internal speakers, internal microphone, HDMI work perfectly and are stable. At no time do I lose their functionality.
The output jack (headphone) gives no sound, the input jack (microphone) does not work and is not visible in "system preferences"

I tested layout 12 and your "AppleALC.kext".
All appear in "system preferences".
The internal speakers, internal microphone do not work.
The output jack (headphone), the input jack (microphone) and HDMI work. but take some time to react and get started when we plug them.

MacBook Pro L12.zip

MacBook Pro L21.zip

Link to comment
Share on other sites

4 hours ago, paulopina said:

I do not have more KP for the moment (first KP on this computer since the beginning). He repaired himself alone !!!!! I do not really know. I still have work to finalize all that.

But back on topic.
With the layout 21 and your "AppleALC.kext":
Internal speakers, internal microphone, output jack (headphones) and HDMI appear in the "System Preferences".
The input jack (microphone) never appears.
The internal speakers, internal microphone, HDMI work perfectly and are stable. At no time do I lose their functionality.
The output jack (headphone) gives no sound, the input jack (microphone) does not work and is not visible in "system preferences"

I tested layout 12 and your "AppleALC.kext".
All appear in "system preferences".
The internal speakers, internal microphone do not work.
The output jack (headphone), the input jack (microphone) and HDMI work. but take some time to react and get started when we plug them.

MacBook Pro L12.zip

MacBook Pro L21.zip



Use this... check your headphone again

AppleALC.kext.zip

4 hours ago, Trucker MK said:

Hi. Can someone please build this AppleALC.kext (source in attachment) for me?. I've made some modifications for the IDT92HD73C1X5 codec due to no sound on internal speakers, but I can't build the kext myself. Thanks.

AppleALC-1.3.4.zip

This,,

AppleALC.kext.zip

Link to comment
Share on other sites

28 minutes ago, Andres ZeroCross said:



Use this... check your headphone again

AppleALC.kext.zip

This,,

AppleALC.kext.zip

Thanks, I will report in a minute.



Edit. Still no sound on internal speakers, thanks anyway.

I won't bother anymore, but here are the Linux codec dump and VodooHDA's getdump if someone  wants to take a look. With layoutid 19 I have sound over headphones and working internal mic. There is a Internal speakers output device in System Preferences/Sound but no sound from the speakers.

I do have working internal speakers with VoodooHDA.

Archive.zip

Edited by Trucker MK
Link to comment
Share on other sites

1 hour ago, Trucker MK said:

Thanks, I will report in a minute.



Edit. Still no sound on internal speakers, thanks anyway.

I won't bother anymore, but here are the Linux codec dump and VodooHDA's getdump if someone  wants to take a look. With layoutid 19 I have sound over headphones and working internal mic. There is a Internal speakers output device in System Preferences/Sound but no sound from the speakers.

I do have working internal speakers with VoodooHDA.

Archive.zip

What's your PC / Notebook model???

Link to comment
Share on other sites

2 hours ago, Trucker MK said:

Thanks, I will report in a minute.



Edit. Still no sound on internal speakers, thanks anyway.

I won't bother anymore, but here are the Linux codec dump and VodooHDA's getdump if someone  wants to take a look. With layoutid 19 I have sound over headphones and working internal mic. There is a Internal speakers output device in System Preferences/Sound but no sound from the speakers.

I do have working internal speakers with VoodooHDA.

Archive.zip


use this,, use LayoutID = 21.

Post the result and upload your IOREG Output (use IORegistryExplorer.app)

AppleALC.kext.zip

Link to comment
Share on other sites

Hai @vandroiy2012
I make new resource for IDT 92HD73C1X5. @Trucker MK used it and Internal Speaker, Headphone and Internal Mic work properly. He used LayoutID=19 before and didn't work because different node ID at all
I set layoutID = 21.
Please check my pull request here https://github.com/acidanthera/AppleALC/pull/375

Here is the resources :


AppleALC.kext.zip

codec_dump.txt

codec_dump.txt.svg

Info.plist

layout21.xml

PinConfigs.kext.zip

Platforms21.xml

  • Like 1
Link to comment
Share on other sites

6 hours ago, Andres ZeroCross said:



Use this... check your headphone again

AppleALC.kext.zip

This,,

AppleALC.kext.zip

Same result !

With the layout 21 and your new "AppleALC.kext":
Internal speakers, internal microphone, output jack (headphones) and HDMI appear in the "System Preferences".
The input jack (microphone) never appears.
The internal speakers, internal microphone, HDMI work perfectly and are stable. At no time do I lose their functionality.
The output jack (headphone) gives no sound, the input jack (microphone) does not work and is not visible in "system preferences".



MacBook Pro.zip

Link to comment
Share on other sites

Hello everybody,



I hope someone can help me with my hardware.



1. Laptop HP Spectre 13-v130ng
2. CX8200
3. only layout-id 3 is available (Hackintool)
4. macOS 10.14.2

5. error_report.zip

Working: Audio-Out through internal speakers. Audio-In through internal microphone. Audio-Out through USB-C-to-HDMI or USB-C-to-DisplayPort adapters.

Not working: The Laptop has a "headset" (stereo out/mono in) audio-jack. "System settings > audio > output" only shows internal speakers. "System settings > audio > input" shows Line-In at "audio line-in port". Also audio is a bit too quiet.

In CodecLookup.plist I noticed AppleHDA8086_9D70Controller is listed, I do have 8086:9D71 Controller and wonder if that causes my problems.

This is not a productive machine so we could modify it as we have to and I would install Ubuntu / Windows if that's necessary or help further development.



Thank you very much! :)

Edited by an3k
Link to comment
Share on other sites

2 hours ago, an3k said:

Hello everybody,



I hope someone can help me with my hardware.



1. Laptop HP Spectre 13-v130ng
2. CX8200
3. only layout-id 3 is available (Hackintool)
4. macOS 10.14.2

5. error_report.zip

Working: Audio-Out through internal speakers. Audio-In through internal microphone. Audio-Out through USB-C-to-HDMI or USB-C-to-DisplayPort adapters.

Not working: The Laptop has a "headset" (stereo out/mono in) audio-jack. "System settings > audio > output" only shows internal speakers. "System settings > audio > input" shows Line-In at "audio line-in port". Also audio is a bit too quiet.

In CodecLookup.plist I noticed AppleHDA8086_9D70Controller is listed, I do have 8086:9D71 Controller and wonder if that causes my problems.

This is not a productive machine so we could modify it as we have to and I would install Ubuntu / Windows if that's necessary or help further development.



Thank you very much! :)



You need to upload your Codec_dump.txt from Live Linux

Link to comment
Share on other sites

20 hours ago, paulopina said:

Same result !

With the layout 21 and your new "AppleALC.kext":
Internal speakers, internal microphone, output jack (headphones) and HDMI appear in the "System Preferences".
The input jack (microphone) never appears.
The internal speakers, internal microphone, HDMI work perfectly and are stable. At no time do I lose their functionality.
The output jack (headphone) gives no sound, the input jack (microphone) does not work and is not visible in "system preferences".



MacBook Pro.zip

Try this..

AppleALC.kext.zip

14 hours ago, matgeo said:

Any change we could make it work ?

What's best layoutID for your codec now???

Link to comment
Share on other sites

2 hours ago, Andres ZeroCross said:

Try this..

AppleALC.kext.zip

What's best layoutID for your codec now???

It's almost perfect!

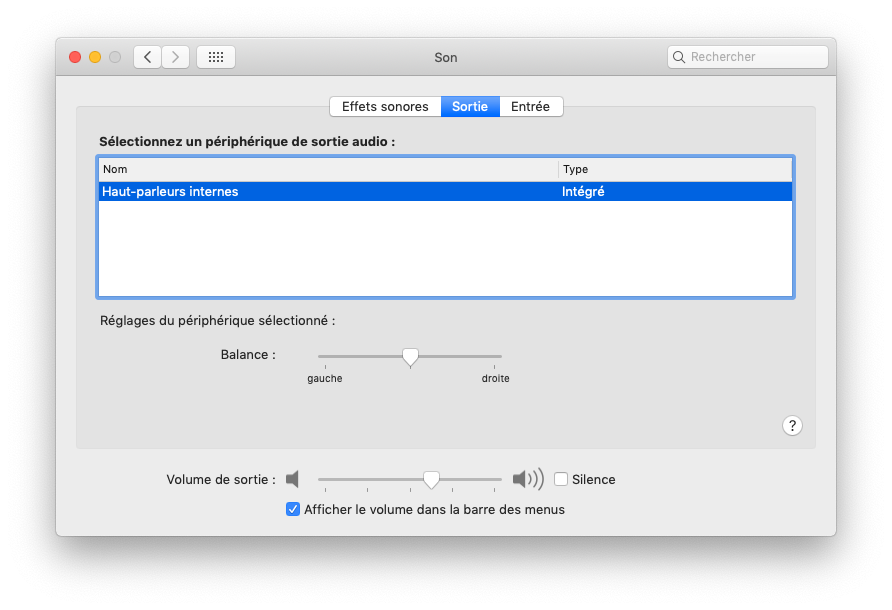

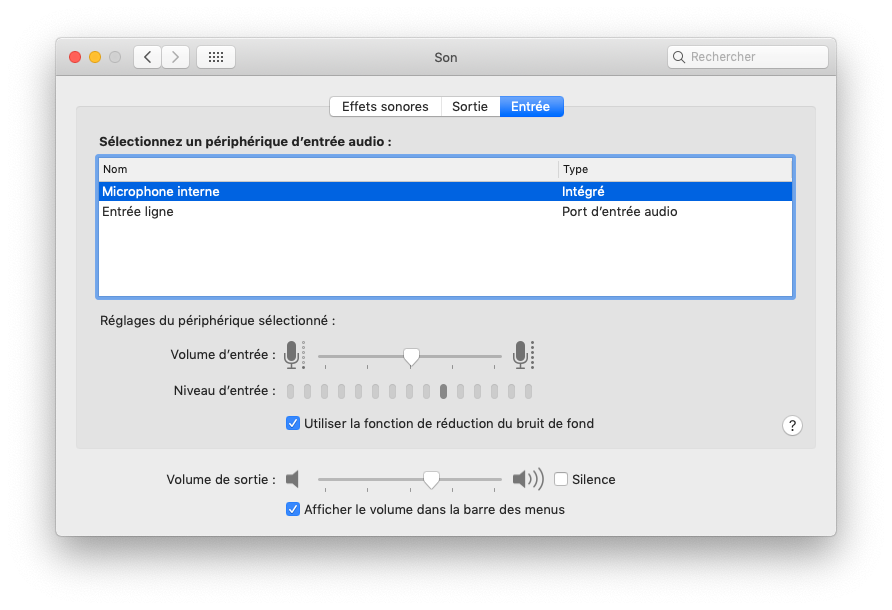

Internal speakers, internal microphone, input jack (microphone) appear in the "System Preferences".

Quote

2119451010_Capturedecran2019-01-19a11_05_04.png.9633e32f7483e4e65ac09da43e57f2ba.png248554078_Capturedecran2019-01-19a11_09_34.png.1ced1d22ba5b53641f1e520a9474f69f.png

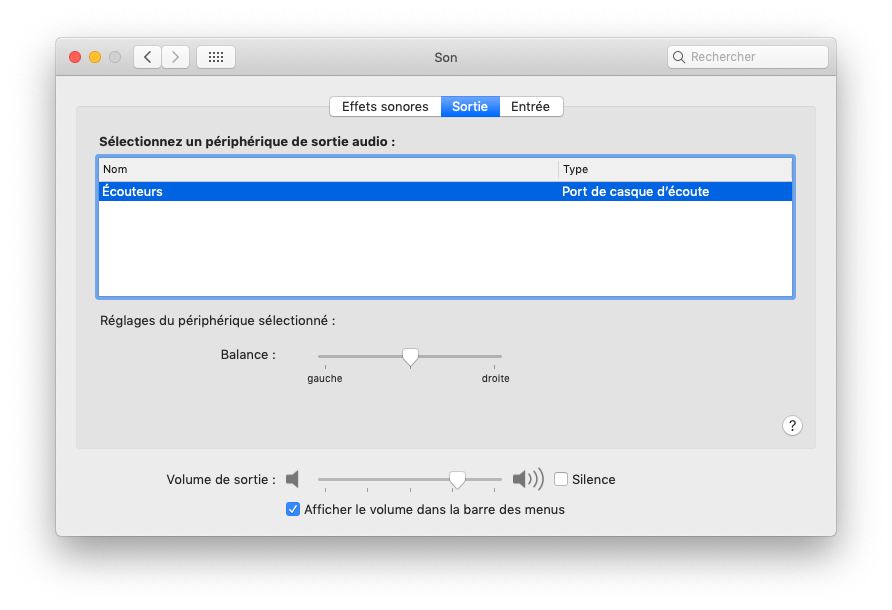

The output jack (headphone) appears only if I plug the jack but removed the speakers menu.

Quote

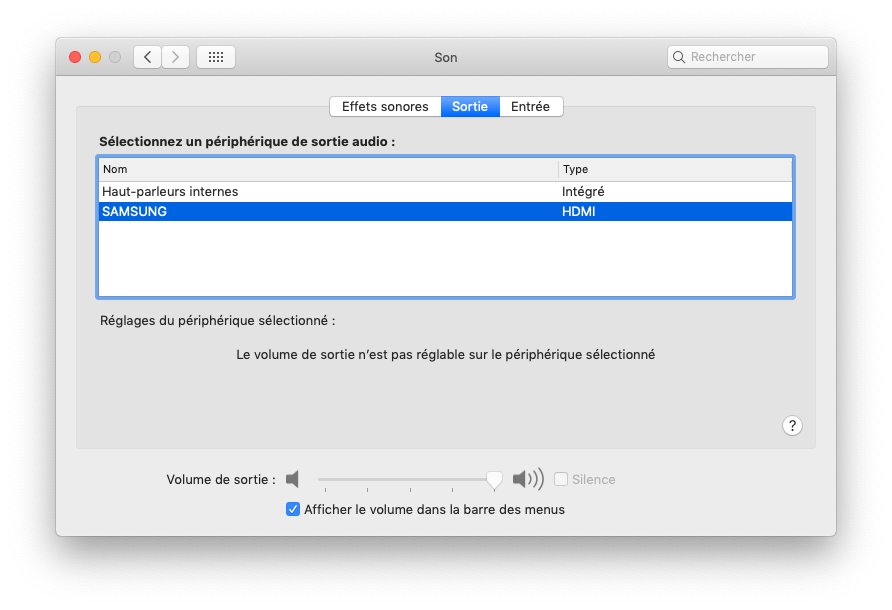

HDMI appears in "System Preferences" when I plug it in.

Quote


the internal microphone, the input jack (microphone) work and I can switch from one to the other.

The internal speakers work if no jack is connected.
The output jack (headphone) works.

Can not switch the audio between the outputs of the internal speakers or the output jack (headphone) since as soon as I plug a jack, the speakers disappear.



HDMI works perfectly and I can switch the audio to the internal speaker output or the output jack (headphone) if it is plugged.

MacBook Pro.zip

Link to comment
Share on other sites

the internal microphone, the input jack (microphone) work and I can switch from one to the other.
The internal speakers work if no jack is connected.
The output jack (headphone) works.
Can not switch the audio between the outputs of the internal speakers or the output jack (headphone) since as soon as I plug a jack, the speakers disappear.

HDMI works perfectly and I can switch the audio to the internal speaker output or the output jack (headphone) if it is plugged.
MacBook Pro.zip
Then it's should be.

Internal speaker and headphone MUST Switch, it's normal. Switch between internal speaker and headphone is normal.

All input and output are working good. I will add to resource of github

Sent from my Mi Note 2 using Tapatalk

Link to comment
Share on other sites

15 minutes ago, Andres ZeroCross said:

Then it's should be.

Internal speaker and headphone MUST Switch, it's normal. Switch between internal speaker and headphone is normal.

All input and output are working good. I will add to resource of github

Sent from my Mi Note 2 using Tapatalk


Uh, sorry!
As I am not sure to understand (English is not my native language)
So it is impossible to send the sound to the internal speakers if I have a jack connected?

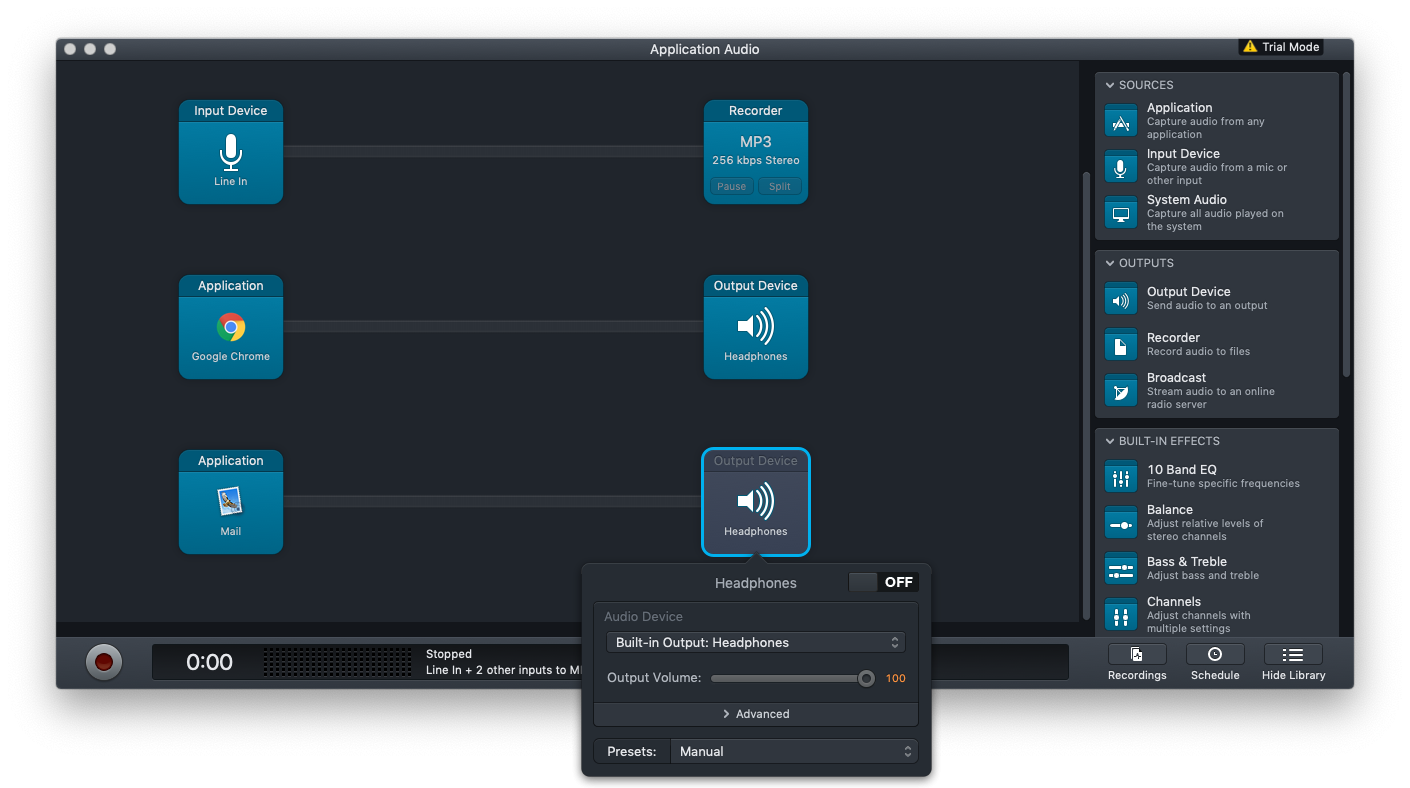

Because I wanted to use the application "Audio Hijack" to dispatcher the audio to wish.

Quote

1489436125_Capturedecran2019-01-19a11_55_59.thumb.png.9dd1457b94491d5f5823c4c949250550.png
