AppleALC — dynamic AppleHDA patching

[bronxteck]

same issue with clean install as i happen to have similar issue with HP elitedesk 800g1 according to HP it is Realtek 2-channel ALC221 codec using layout id 11. it stopped working in 10.13.4 i have not bothered to roll back applehda as i rather have it work with current one. at the moment it is running on VoodooHDA.

[toleda]

On 5/8/2018 at 1:37 PM, kaneske said:

Plugged Front Panel in back, and my Speakers in there now it say internal Speakers in Preferences and plays Sound, but only if I am plugged into Front, nothing to hear if I plug it in the rear Audio Port.

Apologies for the delay ion replying. Hardware problem, the front panel green connector is damaged.  Pin detect is correct until you plug something in. It sets and remains set when the something is removed.

[Cartier82]

Hi,



I am having troubles to get audio work through ALC883 (audio through HDMI works).



My specs:

GA-965P-S3 rev1

Audio Realtek ALC883

Audio device: 0x8086284B

Sub device: 0x1458A002

Codec ID: 0x10EC0883

Revision: 0x0002



layout: severals 1, 3, 5, 7, 9 (clover injection), actual 7



Kexts:

Lilu 1.2.3

applealc 1.2.6



boot.log with arguments -alcdbug -liludebug. Applealc no appear.

Quote

May 17 22:49:01 localhost kernel[0]: calling mpo_policy_init for Lilu
May 17 22:49:01 localhost kernel[0]: Security policy loaded: Lilu Kernel Extension 1.2.2 (Lilu)
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.driver.AppleIntelKBLGraphicsFramebuffer
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.driver.AppleIntelKBLGraphicsFramebuffer kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDRadeonX4100
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDRadeonX4100 kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDRadeonX4150
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDRadeonX4150 kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDRadeonX4200
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDRadeonX4200 kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDRadeonX4250
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDRadeonX4250 kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDRadeonX5000
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDRadeonX5000 kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDFramebuffer
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDFramebuffer kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDLegacyFramebuffer
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDLegacyFramebuffer kext file
May 17 22:49:01 localhost kernel[0]: Lilu: patcher @ failed to init MachInfo for com.apple.kext.AMDLegacySupport
May 17 22:49:01 localhost kernel[0]: Lilu:     api @ failed to load com.apple.kext.AMDLegacySupport kext file
May 17 22:49:05 localhost kernel[0]: Lilu: patcher @ lookup patching applied only 0 patches out of 2



HDEF dsdt:

Quote



            Device (HDEF)
            {
                Name (_ADR, 0x001B0000)
                Method (_DSM, 4, NotSerialized)
                {
                    If (LEqual (Arg2, Zero))
                    {
                        Return (Buffer (One)
                        {
                            0x03
                        })
                    }

                    Return (Package (0x10)
                    {
                        "AAPL,slot-name",
                        "Built In",
                        "name",
                        "Audio Controller",
                        "model",
                        Buffer (0x27)
                        {
                            "Apple High Definition Audio Controller"
                        },

                        "device_type",
                        Buffer (0x11)
                        {
                            "Audio Controller"
                        },

                        "layout-id",
                        Buffer (0x04)
                        {
                            0x01, 0x00, 0x00, 0x00
                        },

                        "MaximumBootBeepVolume",
                        Buffer (One)
                        {
                            0x01
                        },

                        "PinConfigurations",
                        Buffer (Zero) {},
                        "hda-gfx",
                        Buffer (0x0A)
                        {
                            "onboard-1"
                        }
                    })
                }
            }





Info.plist



Could anybody help me to meek it works?



Thanks in advance, regards.







[Andrey1970]

[MacPeet]

hello @vandroiy2012



No success with CleanInstall Release 10.13.4 and the AD1984A problem.
With rollback AppleHDA 10.13.3 everything works.
Without the rollback no success.





and…



I have a new codec.



ALC233 - LayoutID32 (20) for ASUS VIVOBOOK S301LA or compatible



Resources_new_for_ASUS_VIVOBOOK_S301LA_LayoutID32 .zip



can you please added the new codec?

many thanks

[Cartier82]

15 hours ago, Andrey1970 said:

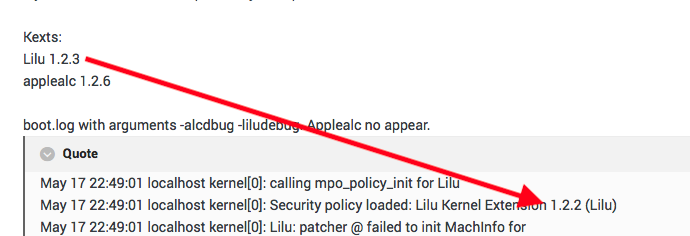

Thanks a lot, it solve the problem. For any reason I though they were in last version.



Regards,

[ksiw8]

my codec is Realtek ALC891 ，i use inject id 13 , the microphone isn't working . can anyone helps me?

the files is codec dump.

alc891.zip

[Justinian6]

I am having issues with my laptop that uses Realtek ALC898



1. Model == MSI GL62M 7REX

2. Realtek ALC898

3. Layout 13 (Mic works and switches properly between internal and when 'line in' is connected), no audio (Internal Speakers present but doesn't work)

I have tried other layouts, 7 has working audio both internal speakers and line in, but there is no switching. No mic on 7



4. Currently running High Sierra 10.13.4

5.Uploaded Info.plist

Info.plist

[Typhoon_Master]

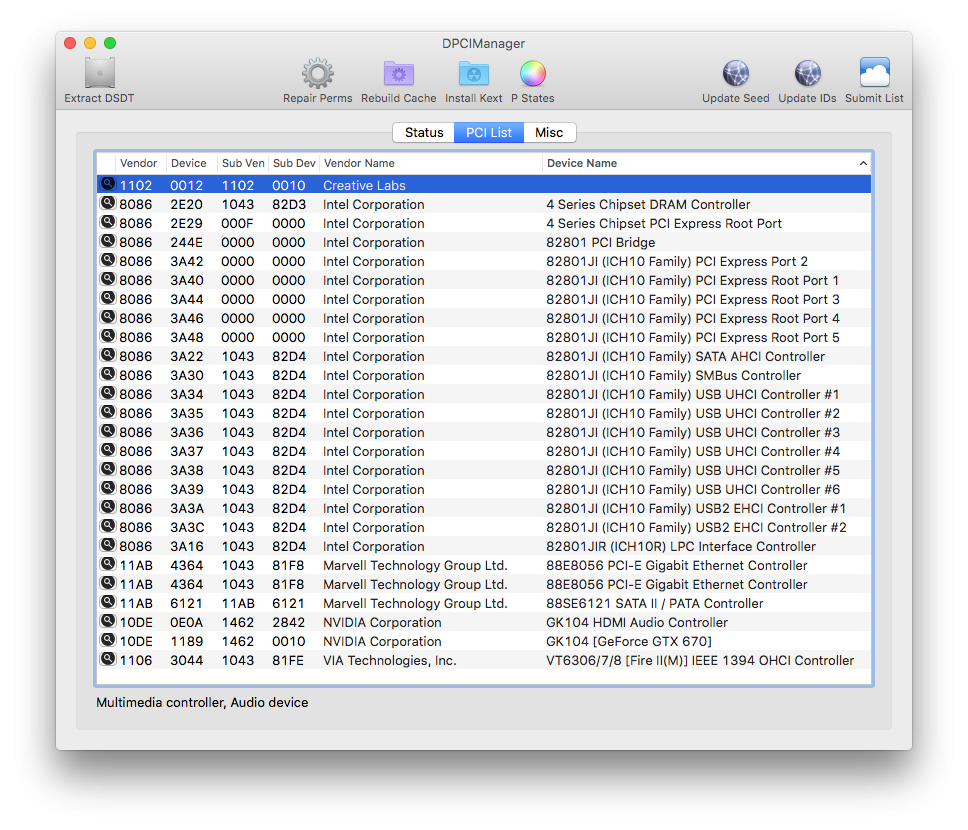

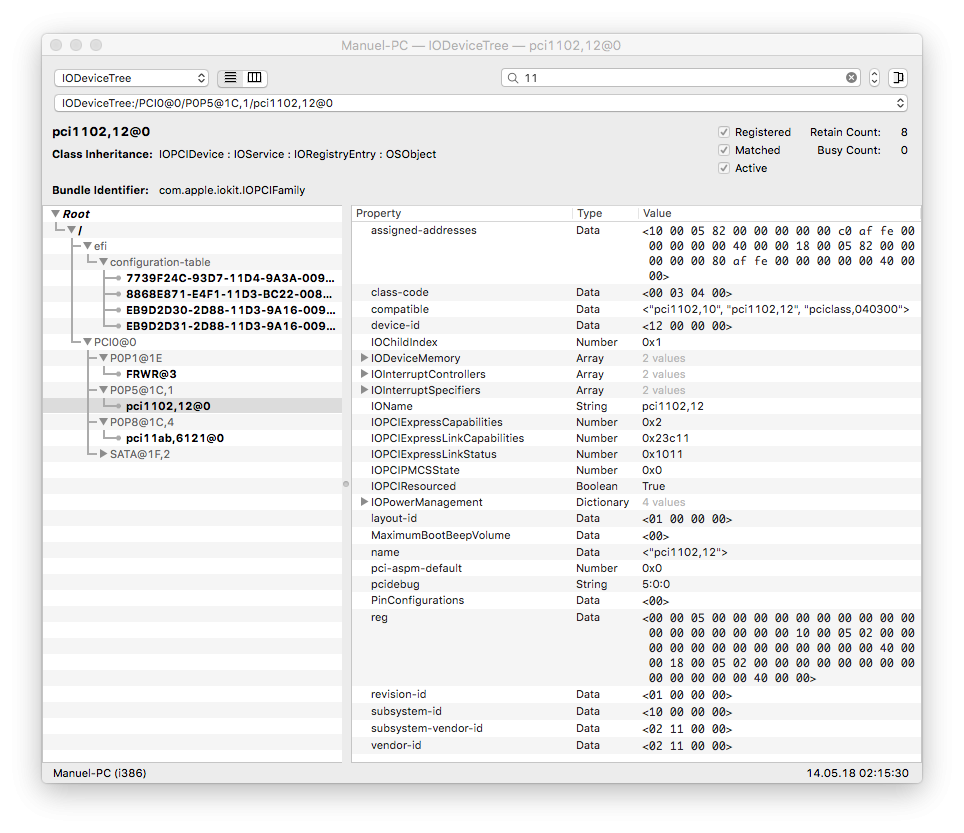

Is there a chance that a PCIe-Card with ACL898 can be run with this kext?

What i tried so far...





I) Normal installation

I installed AppleALC + Lilu in Clover and injected every LayoutIDs that are shown in the wiki, but it did not work out.



II) Modifying Plist

Then I tried to change the plist of the kext to match my card, but also without success.

<key>IOPCIPrimaryMatch</key>
<string>0x00121102</string>



III) Editing SourceCode and compiling myself

After seeing "unsupported hdef vendor" in the logs, thought i might change the sourcecode to disable the check for the intel-vendorID. This didn't work out either and the whole kext is too complex for me to understand since i am no experienced osx/c++ dev.

However at least i was successful in compiling the kext.

May 21 09:21:28 localhost kernel[0]: AppleALC:   audio @ (DBG) corrects analog audio for hdef at pci1102,12 with 1102:0012
May 21 09:21:28 localhost kernel[0]: AppleALC:   audio @ (DBG) unsupported hdef vendor
May 21 09:21:28 localhost kernel[0]: AppleALC:     alc @ (DBG) failed to find a suitable codec, we have nothing to do
May 21 09:21:28 localhost kernel[0]: AppleALC:     alc @ (DBG) missing ControllerModInfo for 0 controller
May 21 09:21:28 localhost kernel[0]: AppleALC:     alc @ (DBG) missing ControllerModInfo for 1 controller



Does anyone have an idea what i could do to make this work? Again the realtek-chip ACL898 should work with AppleALC, but i think it does not because of either is not declared as HDEF device for the system and/or because the kext does not check the pcie bus for devices.



Card is a Creative Sound Blaster Audigy FX.

Log and Codec-Dump is attached.



Regards

Typhoon



codec_dump.txt

appleALC_log.txt

Edited May 21, 2018 by Typhoon_Master

[crusher]

use Lilu.kext

Edited May 21, 2018 by crusher.

[Typhoon_Master]

39 minutes ago, crusher. said:

use Lilu.kext

Of course i used AppleALC + Lilu together. Sorry for not mentioning, i thought this is obvious. I edited it in the original post.

Edited May 21, 2018 by Typhoon_Master

[kaneske]

On 5/16/2018 at 6:06 PM, toleda said:

Apologies for the delay ion replying. Hardware problem, the front panel green connector is damaged.  Pin detect is correct until you plug something in. It sets and remains set when the something is removed.

So, changed whole case to an O11 same issue with nothing changed.



I think it is an Driver issue that it routes wrong...can you help me reassign Ports?



thanks!

[toleda]

3 hours ago, kaneske said:

So, changed whole case to an O11 same issue with nothing changed.

I think it is an Driver issue that it routes wrong...can you help me reassign Ports?

The headphone jack mutes motherboard green by design (Intel HD Audio spec/AppleHDA)

To separate front panel green from motherboard green, see Customization.pdf/Procedure 3. Manual Speaker and Headphone Selection or configure a Multi-Output device.

Edited May 26, 2018 by toleda

[mtuan293]

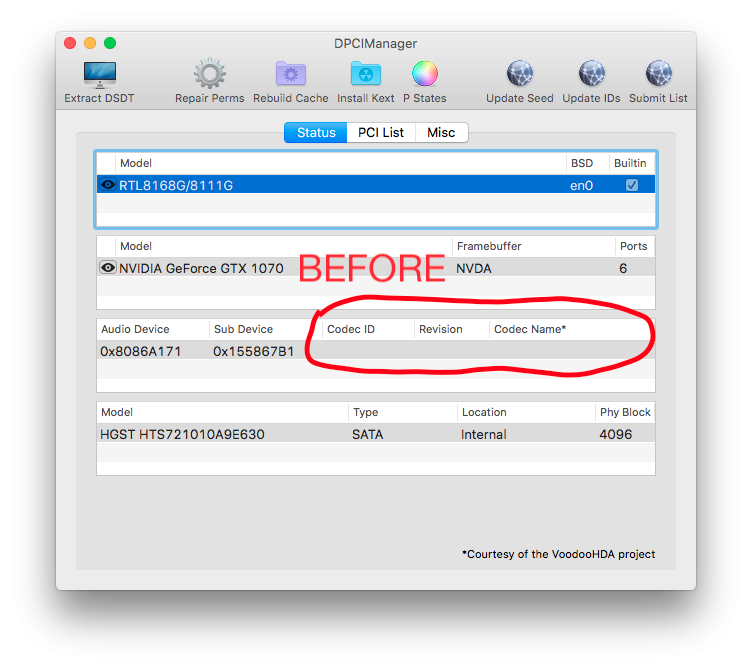

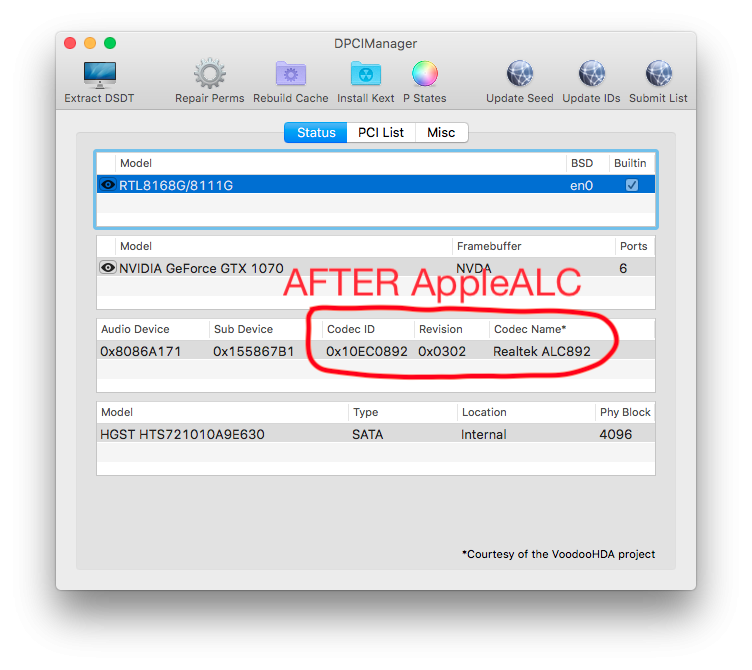

Wow thank you so much! I have been struggling for the past few days trying to figure out how to get my hackintosh speaking. This is incredible! The sound works right after I put the kexts in EFI/CLOVER and reboot.



I still have a little problem. The mic is present in System Prefs but it does not pick up anything. Tested with Siri and it didn't record my voice. However, I notice that before installing AppleALC, DPCIManager did not list anything under Codec ID, Codec Name, etc. and then after installing the kexts, it shows up as ALC892, which is the right audio chip for my Clevo PA70HS laptop. See attached screenshots below.

Any ideas how to get the microphone working?

1. Clevo PA70HS / Intel HM175
2. ALC892
3. Layout used with the info what works for you (ideally if you try them all) --> what does this mean?
4. 10.13.4 (17E199)
5. Attached Info.plist Info.plist



Edited May 27, 2018 by mtuan293

[SavageAUS]

Ok so I've had working audio with AppleALC and Lilu for quite some time but recently starting headphones on my laptop. When I plug in my headphones (Samsung gs7 headphones) it sounds like there is an echo and underwater. I believe I have alc3236 / alc233. I have tried all layouts and I either get the same result or no output. I can provide files needed later today just let me know what's needed. TIA



Edit; Seems this is a DSDT issue, on hold for now.



Sent from my SM-G930F using Tapatalk



Info.plist.zip









Edited May 29, 2018 by SavageAUS

[Reinekis]

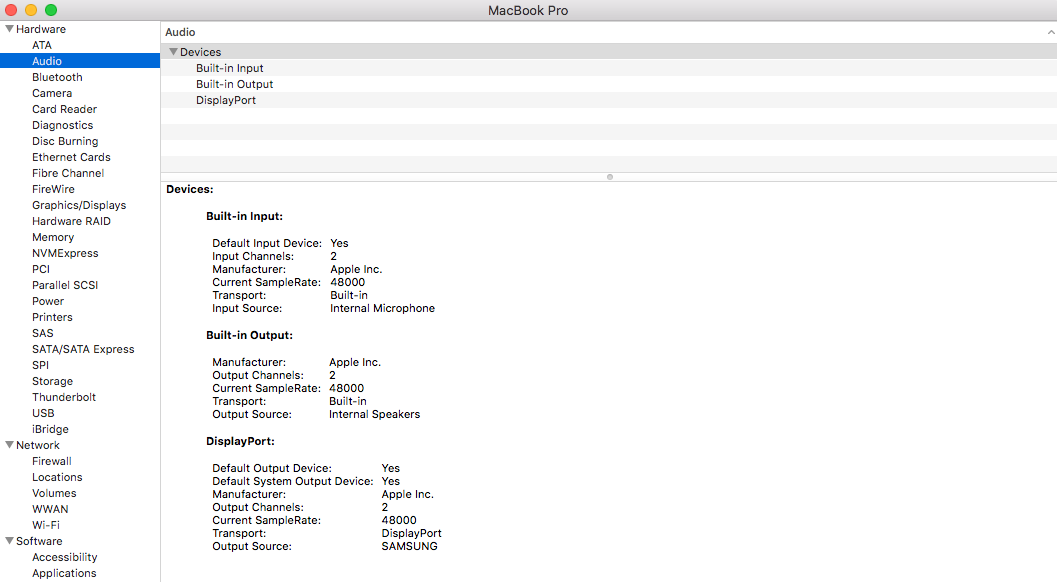

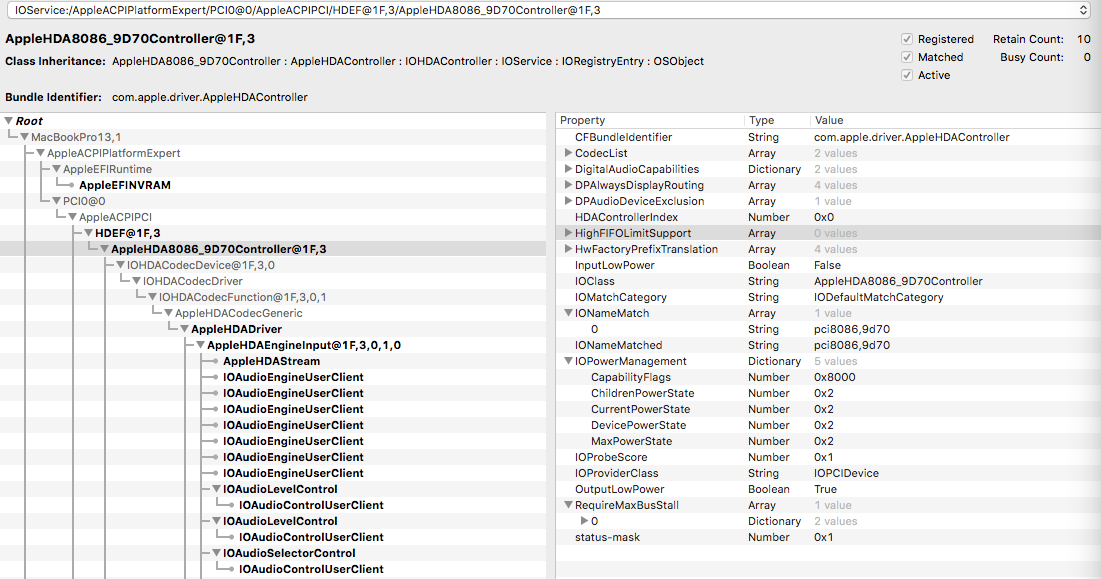

With new generation AppleALC-1.2.6 (that only works with Lilu.kext) and High Sierra I don't have Intel High Definition Audio any more though there is a sound as expected. I attach screenshots of 10.12.6 with older AppleALC.kext (also attached) and the ones of 10.13.4 with AppleALC.kext-1.2.6 Is this normal? And what potentially could be the cause?









AppleALC-working.kext.zip

Edited May 29, 2018 by Reinekis

[MacPeet]

Is normal.

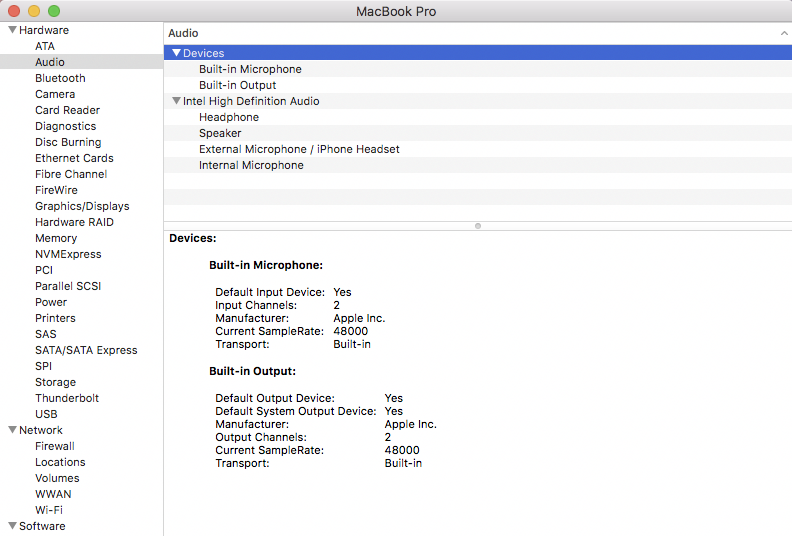

Intel High Definition Audio is no longer displayed in High Sierra, only the devices.
All good.

[iammask]

i am having alc290 layout-id 3 as configuration, previously speaker, mic, earphones all were working fine suddenly internal mic stopped working everything else just working fine.



piraterex’s MacBook Pro.ioreg.zip

Edited May 29, 2018 by iammask

[MacPeet]

@iammask



Zero info, no help!



Hardware? Software?
Which changes? CodecCommander new? AppleALC or Lilu new? Clover new?
Comparison before / after?



For example:
With Cloverversion and version of AppleALC / Lilu the internal mic worked very well.
Since version ... (?) Internal mic no longer works.



I do not understand such questions.

[iammask]

On 5/30/2018 at 6:04 PM, MacPeet said:

@iammask



Zero info, no help!



Hardware? Software?
Which changes? CodecCommander new? AppleALC or Lilu new? Clover new?
Comparison before / after?



For example:
With Cloverversion and version of AppleALC / Lilu the internal mic worked very well.
Since version ... (?) Internal mic no longer works.



I do not understand such questions.

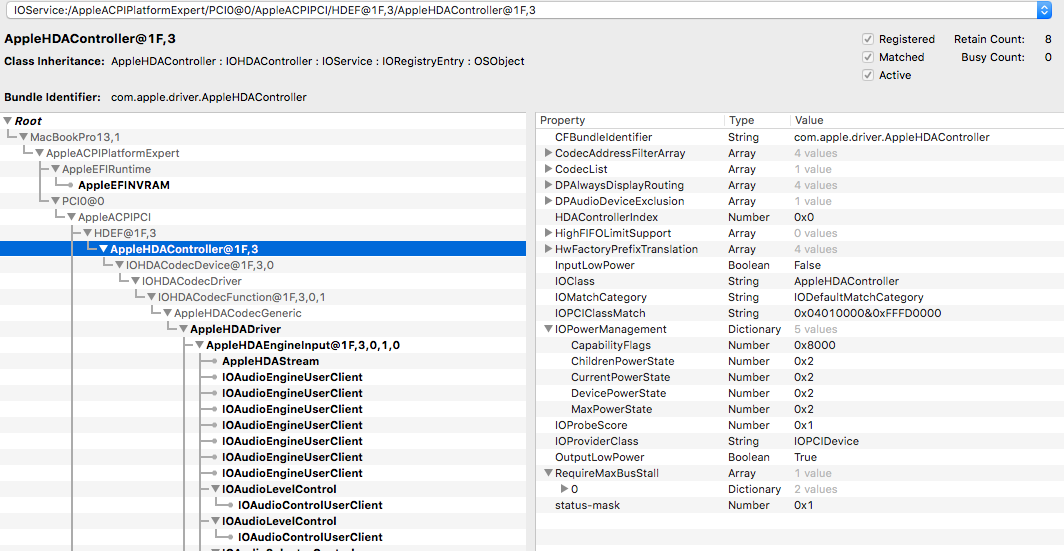

hp ab522tx

10.12.6

applealc and lilu

clover 4444

i don't know after which update it got like this.

in earphones,mic is working but internal mic is not working

[MacPeet]

Unfortunately, I do not know the cause.
Try all layout ID's for alc290.
3, 4 or 28

[iammask]

1 hour ago, MacPeet said:

Unfortunately, I do not know the cause.
Try all layout ID's for alc290.
3, 4 or 28

everything working except mic in layout 3

others nothing works

[MacPeet]

@iammask

boot with a linux live version and make a codec_dump
post the codec_dump here, then I can compare





hello @vandroiy2012

I have a new codec.

Resources_alc294_ID11.zip

ALC294 - LayoutID 11 (0B) for Lenovo M710Q or compatible

can you please added the new codec?

many thanks

Edited June 3, 2018 by MacPeet

[mauritzius]

I'm on a ThinkPad T470 (not "p") and I'm trying to get Sound working. Unfortunately, the layout for the T470p either does not apply or is not correctly loaded - I'm not sure. I enabled Audio-Injection with "47" in Clover and added an SSDT with HDEF values (is this actually necessary?) - attached.



I *think* the the layout for the T470p matches: Attached is my codec_dump.txt from Linux for comparison.



I also attached the boot log with -alcdbg switch. What makes me wonder is that lilu reports 0 patches applied?



Thank you for your help,

Regards

alcdbg.txt

codec_dump.txt

SSDT-HDEF-T470.dsl

[MacPeet]

@mauritzius



The SSDT-HDEF-T470.dsl is nonsense. Delete this!
LayoutID inject in DSDT/HDEF is normal or in Clover´s config.plist.
With DSDT the LayoutID in Hex 2F = 47 Dec (without FixHDA in Clover)
without DSDT, Inject in Clover must be in Dec 47 (with FixHDA in Clover)



try in config.plist with CloverConfigurator:



- Section ACPI Fixes set FixHDA
- Devices section Audio Inject 47 (or other ID's)
- Section SystemParameters Inject Kexts to "YES"
- latest releases from Lilu and AppleALC to EFI/Clover/kexts/other/



restart



Maybe also:
- Section ACPI DSDT patches "HDAU to HDEF"



restart
