waxfuzz Posted November 14, 2016 Share Posted November 14, 2016 Use AppleALC with layout 28, report back This doesn't help Link to comment Share on other sites More sharing options...
vusun123 Posted November 15, 2016 Share Posted November 15, 2016 This doesn't help As in ? I need specific reason in order to create a patch base on your laptop Link to comment Share on other sites More sharing options...
waxfuzz Posted November 15, 2016 Share Posted November 15, 2016 As in ? I need specific reason in order to create a patch base on your laptop Because Internal Mic doesn't work and External mic work once and then stop working if i unplug the cord. Link to comment Share on other sites More sharing options...
vusun123 Posted November 15, 2016 Share Posted November 15, 2016 Because Internal Mic doesn't work and External mic work once and then stop working if i unplug the cord. What laptop are you using ? Link to comment Share on other sites More sharing options...
waxfuzz Posted November 15, 2016 Share Posted November 15, 2016 What laptop are you using ? I am using an Asus R510VX. It is a Skylake i7 6700hq Link to comment Share on other sites More sharing options...
volc Posted November 17, 2016 Share Posted November 17, 2016 OK. In an hour upd. This codec is already present in AppleALC. It is ALC233, layout-id 3 283902515=0x10EC0233 If it didn't work i'll try to add your resources under another layout-id Layout-id 4 Report. AppleALC_236.kext.zip So, I had done the first one, and it didn't work. I also had done the latter one, it didn't work either. 1. Lenovo Ideapad 510s 2. 0x10EC0236 3. Done in layout-id 3 (for the first one), and 4 (for the latter one) 4. Sierra (12.1) 5. alc236.zip Is there any other solution? Thanks. Link to comment Share on other sites More sharing options...
failax Posted November 18, 2016 Share Posted November 18, 2016 I have ALC1200 realtek audio, what kext I must apply?Voodoo hda doesn't work. Link to comment Share on other sites More sharing options...

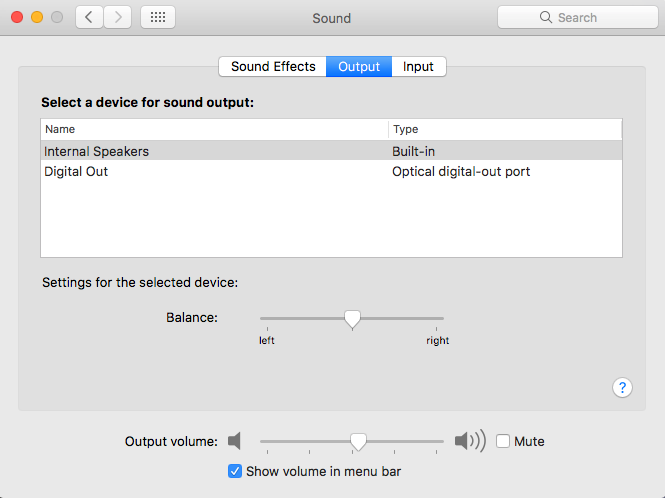

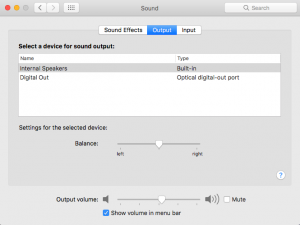

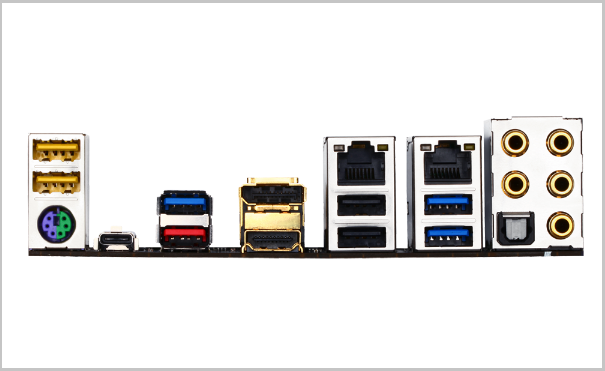

SavageAUS Posted November 18, 2016 Share Posted November 18, 2016 Should this work for hdmi audio? Its working for "internal speakers" and shows a digital output but no hdmi. I would like to enable hdmi audio. Link to comment Share on other sites More sharing options...
vandroiy2012 Posted November 18, 2016 Share Posted November 18, 2016 Should this work for hdmi audio? Its working for "internal speakers" and shows a digital output but no hdmi. YES. If you use supported ig-platform-id. Link to comment Share on other sites More sharing options...
SavageAUS Posted November 18, 2016 Share Posted November 18, 2016 YES. If you use supported ig-platform-id. Ok but please enlighten me on how i do that when i'm not using onboard graphics, i have a GTX960. Link to comment Share on other sites More sharing options...
vandroiy2012 Posted November 18, 2016 Share Posted November 18, 2016 Ok but please enlighten me on how i do that when i'm not using onboard graphics, i have a GTX960. Discrete graphics HDMI works OOB without AppleALC if you have correct DSDT/Clover patch. Your question is not relevant to the subject. 1 Link to comment Share on other sites More sharing options...
SavageAUS Posted November 18, 2016 Share Posted November 18, 2016 Discrete graphics HDMI works OOB without AppleALC if you have correct DSDT/Clover patch. Your question is not relevant to the subject. Ok thanks for the info, can you point me in the right direction? Edit: Never mind sorted it out. Link to comment Share on other sites More sharing options...
slvrbllt Posted November 20, 2016 Share Posted November 20, 2016 Hello, I have installed the latest version on AppleALC into Clover/kexts folder.My notebook has Skylake chipset and the audio codec is Conexant 20724. Audio is working fine but: 1) Volume Slider on menubar was not consistent with real volume level, fixed by replacing <6b707369 eb> with <63696d69 eb> on AppleHDA. Should be added to code, maybe? 2) Volume controls are working fine, but mute is grayed out... Any idea on how to fix it ? Thanks a lot for your great work. Cheers. Silver. Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 Hello,i have used AppleALC a long time but recent i found it sometimes cause kp in my laptop with ALC3266/298 and with distort on my headphone. Can our AppleALC combine EAPDFix to solve this distort with out EAPDFix.kext? My laptop is XPS 15 9550 with i7-6700HQ and installed macOS 10.12.1 Link to comment Share on other sites More sharing options...
Sherlocks Posted November 25, 2016 Share Posted November 25, 2016 Hello,i have used AppleALC a long time but recent i found it sometimes cause kp in my laptop with ALC3266/298 and with distort on my headphone. Can our AppleALC combine EAPDFix to solve this distort with out EAPDFix.kext? My laptop is XPS 15 9550 with i7-6700HQ and installed macOS 10.12.1 When get KP, did you see what is kext? AppleALC or EAPDFix. If there is EAPDFix KP, give me detail info(generate pattern, info.plist, codec dump). I wiill check and report EAPDFix developer 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 When get KP, did you see what is kext? AppleALC or EAPDFix. If there is EAPDFix KP, give me detail info(generate pattern, info.plist, codec dump). I wiill check and report EAPDFix developer 나의 LG-F410S 의 Tapatalk에서 보냄 kp shows AppleALC,not EAPDFix and I have delete EAPDFix but it sometimes cause kp 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
Sherlocks Posted November 25, 2016 Share Posted November 25, 2016 kp shows AppleALC,not EAPDFix and I have delete EAPDFix but it sometimes cause kp 从我的 iPhone 发送,使用 Tapatalk Okay. If you say detail generate pattern, AppleALC could be improved. Thanks. Have a nice day 나의 LG-F410S 의 Tapatalk에서 보냄 Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 Okay. If you say detail generate pattern, AppleALC could be improved. Thanks. Have a nice day 나의 LG-F410S 의 Tapatalk에서 보냄 Here is the kp pattern shows AppleALC caused. 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
vit9696 Posted November 25, 2016 Author Share Posted November 25, 2016 Please give the panic reports with keepsyms=1 in boot args next time. Check whether the panic reproduces with the last commit. 1 Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 Please give the panic reports with keepsyms=1 in boot args next time. Check whether the panic reproduces with the last commit. Hello,vit9696. Here is my kp picture using keepsyms=1 debug=0x100. This kp is more and more frequently and can't use macOS normally.So I hope can solve this kp. 从我的 iPhone 发送,使用 Tapatalk Link to comment Share on other sites More sharing options...
vit9696 Posted November 25, 2016 Author Share Posted November 25, 2016 Should have a workaround in 1.0.18 (latest commit), compile and update. 1 Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 one more things,here is my HP Pavilion g4 1000 series IDT AppleALC,with all files such as zlib and pinconfig and worked perfect on my laptop with IDT92HD81B1X5,work include speaker,headphone,IntMic,ExtMic,and all can change automatically when plugin and unplugin the headphone and mic. but i used layoutid=12 so i want to put this result into the AppleALC's github but don't know how. may you add this files to applealc's github with layoutid=12. AppleALC.zip Link to comment Share on other sites More sharing options...
vusun123 Posted November 25, 2016 Share Posted November 25, 2016 one more things,here is my HP Pavilion g4 1000 series IDT AppleALC,with all files such as zlib and pinconfig and worked perfect on my laptop with IDT92HD81B1X5,work include speaker,headphone,IntMic,ExtMic,and all can change automatically when plugin and unplugin the headphone and mic. but i used layoutid=12 so i want to put this result into the AppleALC's github but don't know how. may you add this files to applealc's github with layoutid=12. How about testing AppleALC's layout first ? 1 Link to comment Share on other sites More sharing options...
vandroiy2012 Posted November 25, 2016 Share Posted November 25, 2016 one more things,here is my HP Pavilion g4 1000 series IDT AppleALC,with all files such as zlib and pinconfig and worked perfect on my laptop with IDT92HD81B1X5,work include speaker,headphone,IntMic,ExtMic,and all can change automatically when plugin and unplugin the headphone and mic. but i used layoutid=12 so i want to put this result into the AppleALC's github but don't know how. may you add this files to applealc's github with layoutid=12. Layout-id 12 is busy in IDT92HD81B1X5. 1 Link to comment Share on other sites More sharing options...
gujiangjiang Posted November 25, 2016 Share Posted November 25, 2016 Layout-id 12 is busy in IDT92HD81B1X5. i know,so i dont now how to push this commit to applealc.but this applealc is perfect with no bug on my hp pavilion g4 laptop so i want to it can be commited to the applealc github. Link to comment Share on other sites More sharing options...
