AppleALC — dynamic AppleHDA patching


vit9696
5,390 posts in this topic

Recommended Posts

HI .after one years i come bak for more fixing mac os on gl553vd . I need help .

can anyone mix two id setting in applealc ?
id 15 microphone work very good. I test it . ( internal mic and headphone mic )

id 22 speaker work very good ( headphone and internal speakers)

mix id 15 and 22 for update id 16 .

id 16 made by macpeet for gl553vd but it need fixing .

{

Layout 22 ALC235 for Asus ROG GL553VD-FY380 (#448)

add some Chinese translate,and support FX53VD ALC235 with ID : 15 (#362)

}

and last day when i open the laptop i tooke this photo:

https://github.com/MohammadtaghiFarkhondekar/macOS-For-Asus-ROG-GL553VD/blob/master/img/ALC.jpg

On 3/30/2019 at 12:32 PM, MacPeet said:

hello @vandroiy2012



I have a new codec.



ALC235 - LayoutID 16 (10) for ASUS GL553VD



new_Resources_alc235.zip



can you please added the new codec?

many thanks

.

Edited by darkbluecode
Link to comment
Share on other sites

12 hours ago, darkbluecode said:

HI .after one years i come bak for more fixing mac os on gl553vd . I need help .

can anyone mix two id setting in applealc ?
id 15 microphone work very good. I test it . ( internal mic and headphone mic )

id 22 speaker work very good ( headphone and internal speakers)

mix id 15 and 22 for update id 16 .

id 16 made by macpeet for gl553vd but it need fixing .

{

Layout 22 ALC235 for Asus ROG GL553VD-FY380 (#448)

add some Chinese translate,and support FX53VD ALC235 with ID : 15 (#362)

}

and last day when i open the laptop i tooke this photo:

https://github.com/MohammadtaghiFarkhondekar/macOS-For-Asus-ROG-GL553VD/blob/master/img/ALC.jpg

.


I don't understand. What do you mean by "mix id 15 and 22 for update id 16"???

I have used layoutID 22 for GL553VD and working fine.

Link to comment
Share on other sites

1 hour ago, Andres ZeroCross said:


I don't understand. What do you mean by "mix id 15 and 22 for update id 16"???

I have used layoutID 22 for GL553VD and working fine.

Id 16 , 15 , 22 are made for gl553vd !

But I test all of them !with db machine .

In ID 22 just speakers working well ! 88db .

But microphones don't working! Just record 30db !

In ID 15 , speakers working but 78db !

But microphones work very well ! Microphones record 89db !

-------

Microphones = headphones microphones + laptop microphones

Speakers = headphones + laptop speakers

-----

ID 16 made by MacPeet for gl553vd last year , but all of IDs *15,16,22* can update !

 speakers code from 22 mix with microphones code from 15 !

Link to comment
Share on other sites

8 minutes ago, darkbluecode said:

Id 16 , 15 , 22 are made for gl553vd !

But I test all of them !with db machine .

In ID 22 just speakers working well ! 88db .

But microphones don't working! Just record 30db !

In ID 15 , speakers working but 78db !

But microphones work very well ! Microphones record 89db !

-------

Microphones = headphones microphones + laptop microphones

Speakers = headphones + laptop speakers

-----

ID 16 made by MacPeet for gl553vd last year , but all of IDs *15,16,22* can update !

 speakers code from 22 mix with microphones code from 15 !

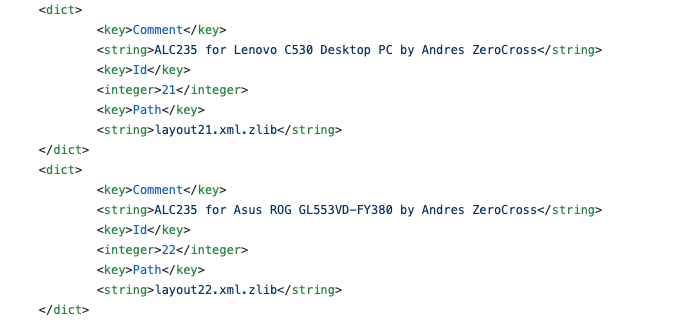

I still don't get, i made LayoutID 22 for GL553VD-FY380 and internal microphone here is working good. There are many model of GL553VD.

If your system working good with LayoutID 16 then use it.

Link to comment
Share on other sites

5 minutes ago, Andres ZeroCross said:


I still don't get, i made LayoutID 22 for GL553VD-FY380 and internal microphone here is working good. There are many model of GL553VD.

If your system working good with LayoutID 16 then use it.

In ID 16 speakers working but 70db and microphones 72db !

You can testing 22 and 15 IDs !

22 good as speakers

And 15 good as microphones

Can you make new ID with mixing 22 and 15 ?

Edited by darkbluecode
Link to comment
Share on other sites

3 minutes ago, darkbluecode said:

In ID 16 speakers working but 70db and microphones 72db !

You can testing 22 and 15 IDs !

22 good as speakers

And 15 good as microphones

Can you make new ID with mixing 22 and 15 ?


Honestly i didn't understand about "db check". How did you get DB check for each input / output?? What software did you use?

Link to comment
Share on other sites

Hello. I'm using laptop i5-10210u. (Jooyon Tech J7FC)

I get sound about ALC293 via AppleALC. It works good for Speaker, Headset, HDMI.

But no work for Mice. I tried all alc id, but mice not working. (I currently use alcid 11)

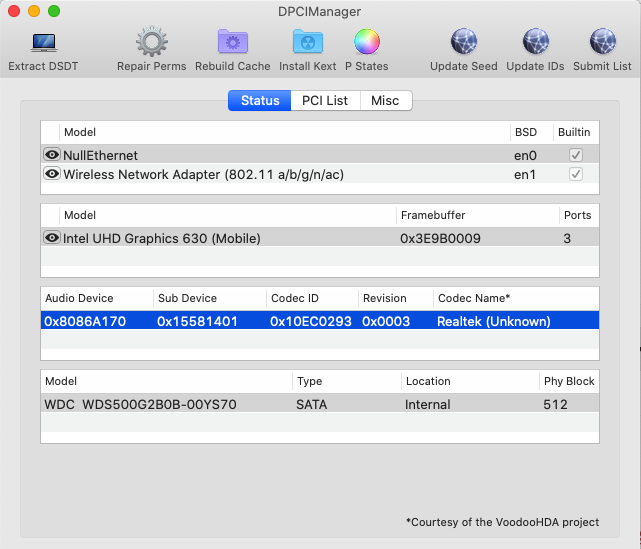

DPCIManager shows my codec "Unkown"



here are my codec, ioreg files.



plz help me.

codec_dump.txt

Humings-MBP.ioreg

Screen Shot 2020-03-10 at 9.43.37 PM.png

Edited by leezakka
Link to comment
Share on other sites

Hi, I'm using the latest AppleALC with layout id 23 (as suggested in AppleALC github) and it works fine for sound output but I don't have "Line in" in my sound input and only the internal micrphone works, whenever I plug in headphones with mic the headphones work ok but the mic is not getting recognized and it system preferences it says "internal microphone" with no other options. What can I do to enable the in line /external microphone?



1. Laptop model/Motherboard model -  HP probook 440 g5
2. Codec name - cx8200
3. Layout used with the info what works for you (ideally if you try them all) - 23
4. OS X versions you tried - 10.14.6

Edited by d.katrandviev
Link to comment
Share on other sites

Hello, I'm trying to use AppleALC (VodooHDA works, but I don't want to use this one, since the AppleALC give me better sound quality).



I tried both ways: using the Wiki of AppleALC GitHub, and the Olaria easy way of MaLd0n. Non works for me.

my codec: ALC3287 (ALC257, layout 11 or 18)

However, the AppleALC work for me when I use alcid=11 and fast boot:




Do you know how to fix this? Since I dual boot Catalina and High Sierra, it's a bit inconvenient for me to use fast boot. Thank you and good day.



Hardware:

OS: Catalina 10.15.3

CPU: Intel Core i7-8665U Processor (1.90GHz GHz 8MB)

GPU: NVIDIA Quadro P520 2 GB GDDR5/ intel UHD 620

RAM: 16.0GB PC4-19200 DDR4 Soldered 2400MHz

SSD/ HDD: 1TB SSD 970 EVO PLUS PCIe

Motherboard/Laptop model: Intel Coffee Lake-U/Y PCH rev. 30/ Thinkpad P53s

BIOS: Lenovo version 1.60 (12/30/2019)

Screen: 15.6 "FHD IPS AntiGlare LED Backlight 1920x1080

Ethernet Card: Intel I219-LM

Wifi/BT Card: Wireless Intel AC adapter 9560 2x2ac with BT5.0

Link to comment
Share on other sites

  • 2 weeks later...

Hi Guru,

I encounter an issue with my ALC256 sound card. I try with the lay_out id 57, 56 97, the applealc load and working, but no sound comes out from the internal speaker, and the jack.

Would you like to help me with this.

Many thanks in advance!

Belows is my laptop info:

Brand: Huawei Magicbook 2019

CPU: I5 10210 comet lake 1.6G

Audio card: ALC256 02c8  125D1261

IGPU:UHD620

DPU:MX250(disabled)

my system is Catalina 15.3

Here I attached my Codec_dump file, IOReg files,config plist file. and Hackintool screen, and HDA load screen ect.



Best Regards,

Alex

Codec dump.zip

Magicbook 2019 i5.IOReg Report.zip

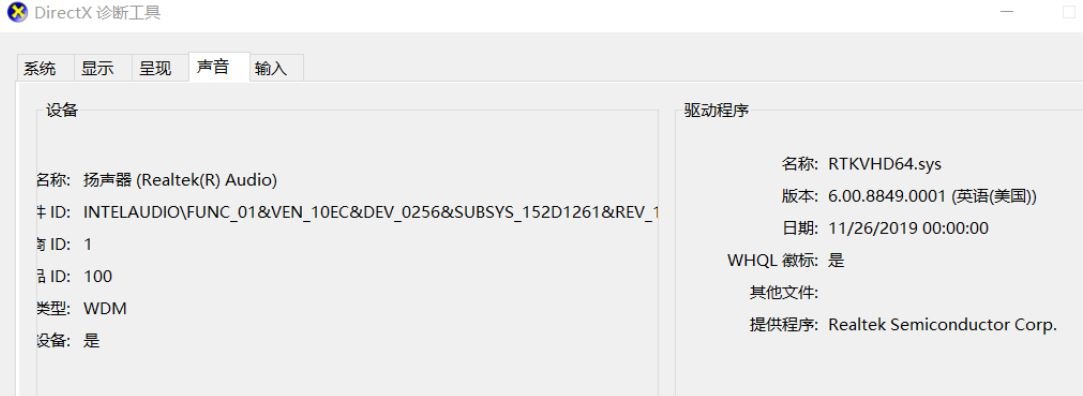

audio windows screen.JPG

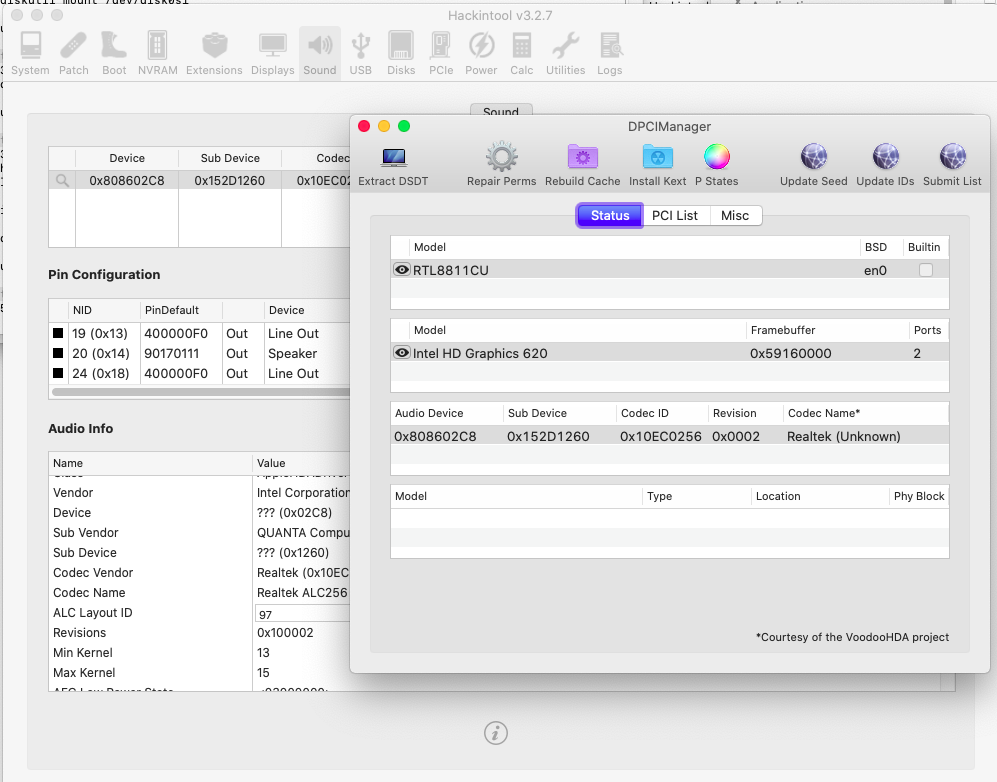

DPCIManager screen.png

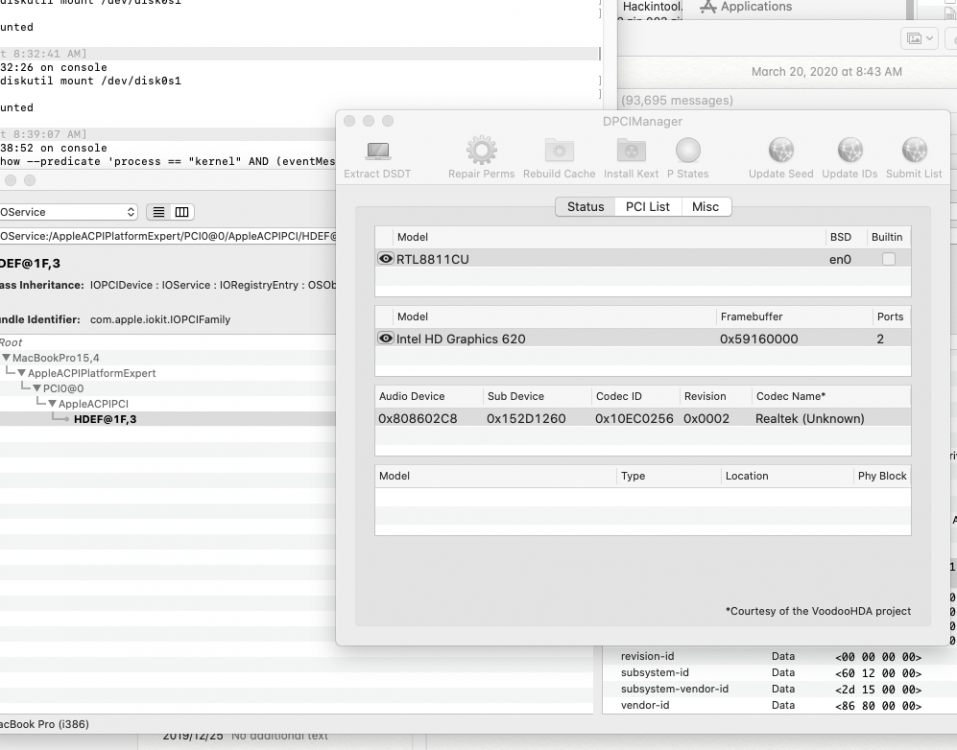

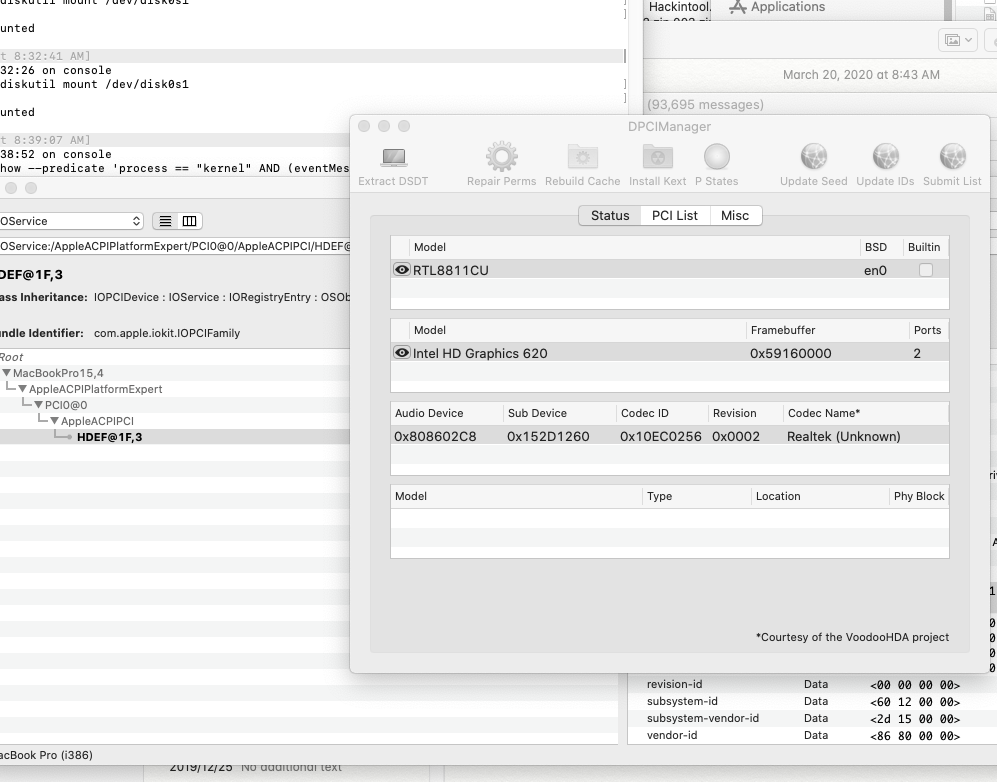

DPciManager screen2.png

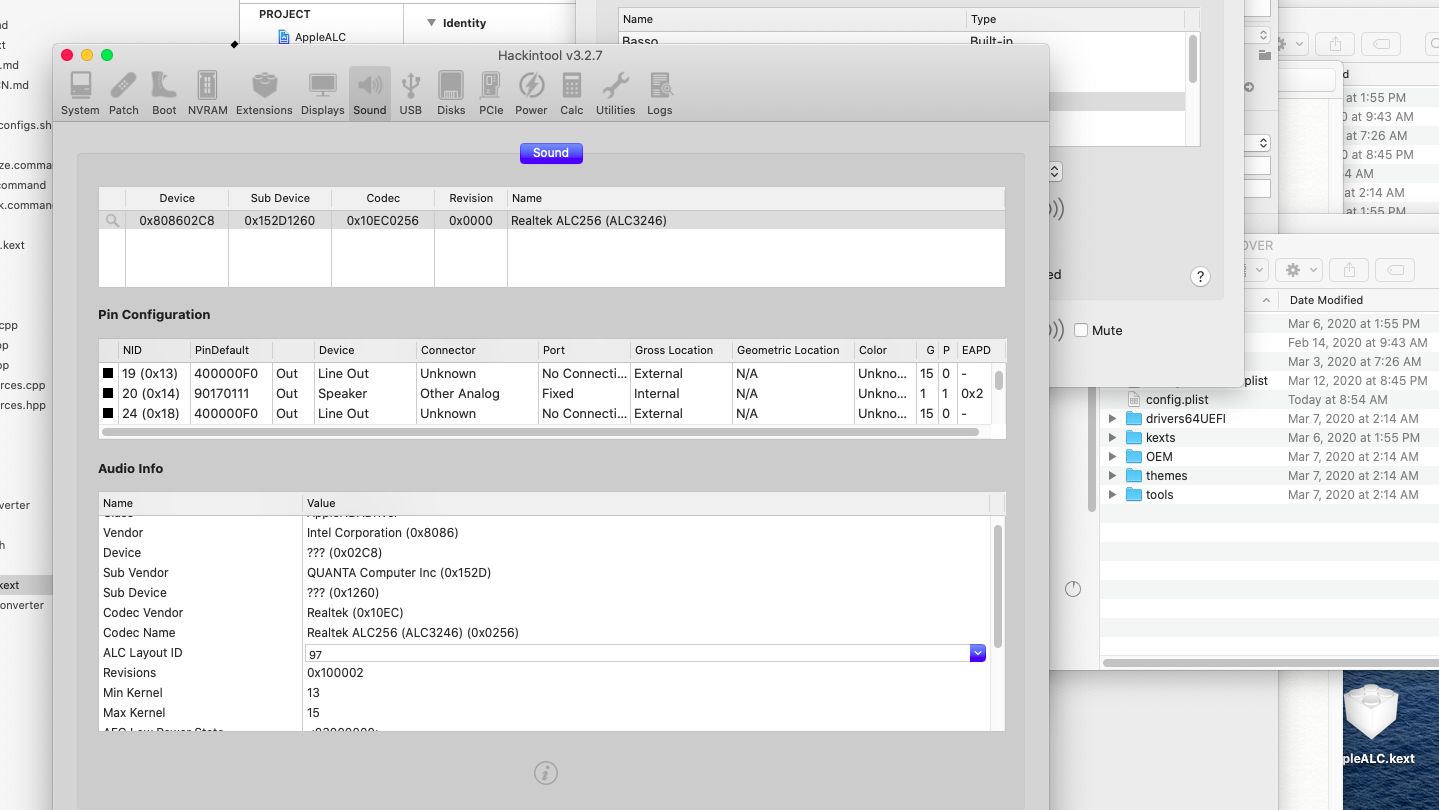

Hackintool audio.png

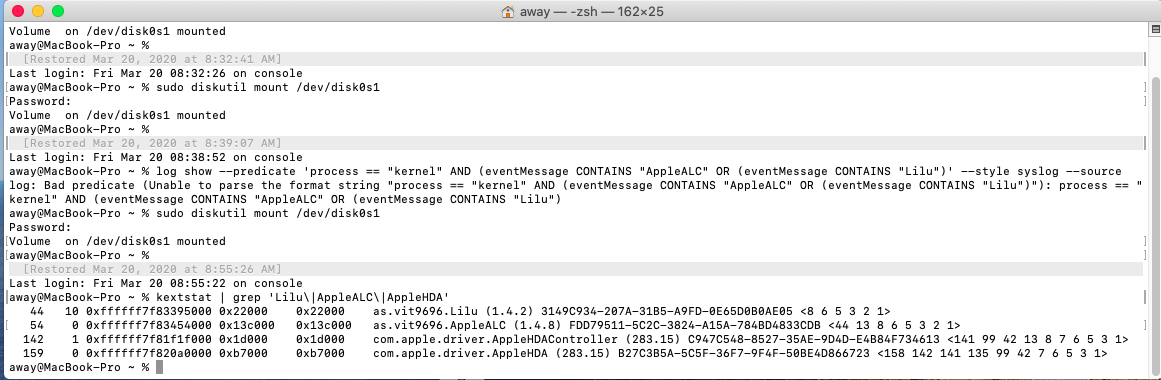

HDA Load Screen.png

config.zip

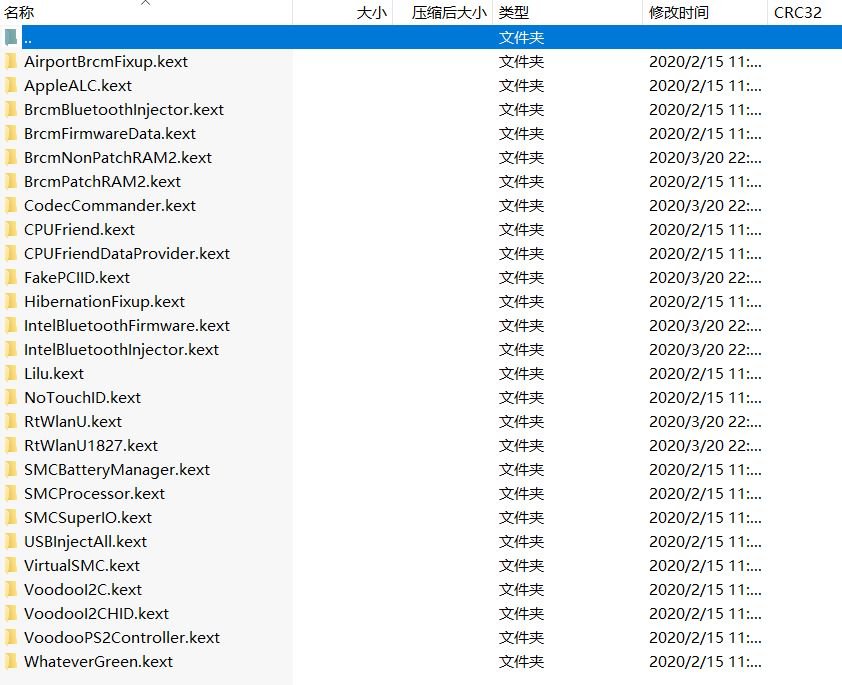

Kext list screen.JPG

Edited by Alex Leung
Link to comment
Share on other sites

20 minutes ago, Andrey1970 said:

I also try the other layout ids of ALC256, its the same problem, I try to comply an AppleALC for my laptop, should be my poor experience, although AppleALC work, but with the same result. So, I try to ask for help here.





Link to comment
Share on other sites

Hi everyone. I kindly ask you for advice regarding the following issue:



I'm running Catalina 10.15.4 and using AppleALC 1.4.7 to try and get audio working on a Toshiba L50-A-1D5 laptop (i7 Haswell, HD4600 igpu, full specs down below).

I'm using Clover 5107, with all added kexts in C/k/O. I have a clean AppleHDA kext and no custom kexts in /S/L/E or /L/E.

I use layout-id=3 for my IDT 92HD99BXX audio (injected as device property; also tried with alcid=x, DSDT patch, regular Clover Inject).

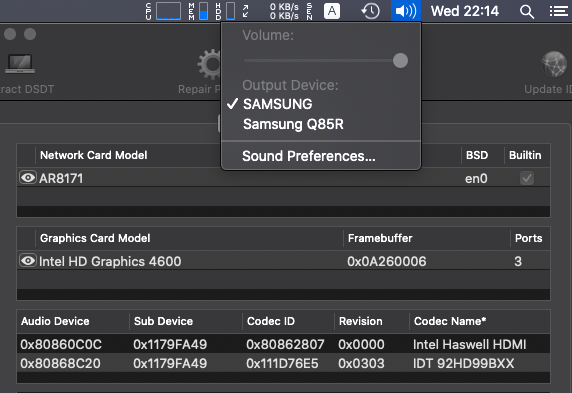

I can only get HDMI audio to work, as you can see from the attached picture. The internal speakers/audio jacks are not recognized.

Tried VoodooHDA and that makes them work, but the headphone audio is very low, so I want to do it properly with AppleALC.



DPCIManager shows two audio devices, one for HDMI and also the IDT one, which doesn't work.

IOREG shows the same two devices as HDAU (8086:0C0C) and HDEF (8086:8C20), respectively.



You have every possible log and diagnostic on my Github. Links below. I also store my full EFI there.

IOREG | DPCIManagerAppleALC_boot_log | Mac_System_Report | gfxutil_dump | codec-dump-card0-hdmi | codec-dump-card1-idt | pinconfigurator_idt_verbs | EFI/Clover



Cheers to anyone that can figure out the issue!


Edited by DarkindyRise
Link to comment
Share on other sites

i have problem with applealc on opencore as it doesnt work even with layout id that proven work under clover



i use oc 0.5.6, applealc 1.4.7, macos mojave 10.14.5



my device is lenovo B40 | i3 5005U | Realtek ALC 235



i use layout id 3 --> mirone alc235 codec with resethda and afglowpowerstate enabled on clover



this is my clover config

https://1drv.ms/u/s!ApcQm0L9RYS5iro5qyhp4sbz6A6GAQ



this is my oc config

https://drive.google.com/file/d/127sfe3zahcnm-hBSJWXFYSHPf1zBCmhO/view?usp=drivesdk



Link to comment
Share on other sites

31 minutes ago, Tasya Global said:

Please help..

My PC AIO Acer Veriton Z4640G  no sound. ALC269. all layout id has try but not successfully.

my dump codec from linux.



MacOS Mojave. Intel Core i3 7100, H110 chipset. Realtek ALC269.



codec_dump-0.txt


Try this with LayoutID = 22. Report for the result.

AppleALC.kext.zip
