tluck Posted May 3, 2019 Share Posted May 3, 2019 22 hours ago, bingo_jake said: anyone know what layout-id I should use with AppleALC for HD Audio, Realtek® ALC3245 codec on ThinkPad 460P ? so if ALC3245 is the same as ALC293 - then I recommend layout id 28 (0x1C) -- check out the guide/group supportr for Lenovo T460/T470 family of laptops in my signature. Link to comment Share on other sites More sharing options...
hide74 Posted May 4, 2019 Share Posted May 4, 2019 Hello, I could get sound on my hacintosh by this great solution. Recently, i've found an issue. On my HP EliteBook 2570p with IDT 92HD81B1X5 codec, sound output & input are working, but when I use line-in or external mic, internal playback sound is also captured. For example, when I record audio with an external mic and play a song by itunes, the recorded audio will include the sound played by itunes. I investigated some information about customization of AppleALC and tried to make any custom layout and platform files, but I could not resolve. During this work, I got a codec dump of my device and found that there is a audio mixer node which will control playback mic and line. So if I could modify that behavior, I might resolve my issue. Is there any method to do that? Or is there any other solution? The attached is my codec dump hp_codec#0.txt Link to comment Share on other sites More sharing options...
adrianmihai83 Posted May 10, 2019 Share Posted May 10, 2019 Hello, I am posting in this thread on toleda's recomandation, i am trying to fix non working sound on my hackintosh build. I have the following error in debug: 2019-04-24 10:10:46.523786+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 1. Device description: computer - Asus ET2323 All in One bios ver - 0604 processor - i5200u graphics - intel hd graphics 5500 2. Codec name - ALC887 | "IOHDACodecVendorID" = 0x10ec0887 3. No output devices found, tried Audio Inject 1, 2, 3, 99 with ResetHDA checked. 4. Tried on MacOs 10.14.3 and 10.14.4 5. Cannot download the requested utility as it is not available anymore, I attach here .ioreg, current config.plist together with the debug terminal output. Kind regards, Adrian Archive.zip Link to comment Share on other sites More sharing options...
Rodion2010 Posted May 11, 2019 Share Posted May 11, 2019 On 5/10/2019 at 12:01 PM, adrianmihai83 said: 3. No output devices found, tried Audio Inject 1, 2, 3, 99 with ResetHDA checked. Layout 3 is not injected in your ioreg 1 Link to comment Share on other sites More sharing options...
headkaze Posted May 11, 2019 Share Posted May 11, 2019 PinConfigurator has moved to GitHub 1 1 Link to comment Share on other sites More sharing options...
Evander Posted May 11, 2019 Share Posted May 11, 2019 (edited) I have this weird issue where the audio of the device switches to a single channel (left side or right) when I connect my headphones. Initially the sound will play clear and loud but then it switches (a click sound) to low quality single channel audio. I can hear the music but not the vocals (and vice versa). Reconnecting the headphones do not help. Also, I do not face this issue on my internal speaker and HDMI audio. Another thing that I noticed is that it tends to work fine when connected to the charger, but on battery it switches. I have attached a debug zip with some outputs. Please let me know if I need to attach any other files here. 1. Laptop model: Lenovo B40-70 (i3 - 4005U with 12GB DDR3 1600MHz RAM) 2. Codec: ALC 235 3. Currently using Layout Id: 28 (layout 3 gives me low audio output) 4. OS X version: Mojave 10.14.4 (Vanilla installation) 5. Autogenerated Info.plist made with the help of this utility. -> Unable to get this utility Edit: I found a fix for the issue. I had to use ALC Plug Fix. Edited May 12, 2019 by Evander Found a fix for my issue. Link to comment Share on other sites More sharing options...
speedyrazor Posted May 11, 2019 Share Posted May 11, 2019 (edited) Hi, I am using a Dell XPS 13 9333 laptop with Mojave 10.14.4, ALC688, Layout ID 3, I have good working audio via built in speakers but the headphones socket is not working correctly, when I plug headphones it I just get lots of noise and static, I can hear laptop sounds though the headphones, but with this added 'noise' and 'static'. I am using latest versions of Whatevergreen and Lilu. Any advise on how to get my headphone socket working please? UPDATE: Thanks to Hervé, my headphone socket now works perfectly. I removed AppleHDA_ALC668.kext, tried the alternative layout ID's and found that ID 27 was the winner. Edited May 12, 2019 by speedyrazor Resolved Link to comment Share on other sites More sharing options...
osamazhar Posted May 11, 2019 Share Posted May 11, 2019 On 4/27/2019 at 12:39 PM, osamazhar said: Hi, I am facing the same problem with Audio. Audio is not detected sometimes (actually com.apple.driver.AppleHDA and com.apple.driver.AppleHDAController are loaded all the times but not com.apple.driver.AppleHDAHardwareConfigDriver). While if I use AppleALC 1.3.4, audio comes all the times "on a successful boot". The problem with AppleALC 1.3.4 is that sometimes my boot hangs (I couldn't see any specific error in verbose mode) and then I have to force shutdown the laptop and boot OSX again. Sometimes it is booted in one go, and sometimes two go. Version above AppleALC 1.3.4 (that include all 1.3.5, 6 and 7) the system boots all the times but then audio is not detected sometimes. Currently I have AppleALC 1.3.4 and Lilu latest. I have built, AppleALC, AirportBrcmFixup and Whatevergreen from source using Lilu 1.3.5 (the latest one). I tried using Lilu official built, and tried building Lilu also from source. Same results. I attach herewith the debug files from my computer. Please help. debug_26817.zip Please help me. Link to comment Share on other sites More sharing options...
laelsirus Posted May 12, 2019 Share Posted May 12, 2019 (edited) Hi! I am using the Dell Latitude 5290 2-in-1 with the ALC225 / ALC3253 sound codec. I know that layouts 28, 30, and 33 are supported. Layout id 28 and 33 are normal speakers (noise mixed after a few minutes from boot), but headphones do not work, and layout id 30, headphones and speakers both work fine but electric noise is mixed in speakers as soon as boot. I would like to merge the speaker states of layout IDs 28 and 33 with the layout ID 30 headphone state and reduce the speaker noise, but I do not know what to do. Sleep/wake Audio status and Type C DP Audio out works fine. I would really appreciate if someone could help with this. Attached 'run me' report file that is layout ID 28, 30 via MegaCloud. https://mega.nz/#!a4ckXQKR!7u28NugiT3XoH_wG-1cqiEBa6OGtfthGBtzXM2n71xg https://mega.nz/#!u0FknCia!WQjq9TSDohPhu9Gujn1onEBWu-4iRnAEvVM46JHVwq0 Thank you. Edited May 12, 2019 by laelsirus Link to comment Share on other sites More sharing options...
adrianmihai83 Posted May 13, 2019 Share Posted May 13, 2019 On 5/11/2019 at 1:34 PM, Rodion2010 said: Layout 3 is not injected in your ioreg I feel like I should know how to fix this and posted here just for fun... The short answer is that if I knew the problem, I wouldn't have posted here. Thanks, Adrian Link to comment Share on other sites More sharing options...
Rodion2010 Posted May 13, 2019 Share Posted May 13, 2019 6 hours ago, adrianmihai83 said: I feel like I should know how to fix this and posted here just for fun... The short answer is that if I knew the problem, I wouldn't have posted here. Thanks, Adrian You need to check where your layout 3 had to be injected (boot args alc-id=3, ACPI, Device Properties, Clover Audio Inject) maybe you did something wrong. If not, try another option more, it is useful to re-read instructions https://github.com/acidanthera/AppleALC/wiki/Installation-and-usage before posting Link to comment Share on other sites More sharing options...
tunglamvghy Posted May 13, 2019 Share Posted May 13, 2019 Hi, I've installed Mac OSX 10.14.4 on my ASUS S530UN with ALC256. I'm using layout-id 21. The mic is working but the internal speaker isn't working. When I plug my headphone, it's working. Can you show me how to fix it? Link to comment Share on other sites More sharing options...
DoZe Posted May 14, 2019 Share Posted May 14, 2019 On 4/30/2019 at 5:19 AM, MacPeet said: @DoZe please make codec dump with LinuxLive (for example Ubuntu) Terminal command: cd ~/Desktop && mkdir CodecDump && for c in /proc/asound/card*/codec#*; do f="${c/\/*card/card}"; cat "$c" > CodecDump/${f//\//-}.txt; done && zip -r CodecDump.zip CodecDump Ouch….. Sorry just see that now ! As soon as i can , i provide you the Dump. Regards. Link to comment Share on other sites More sharing options...
adrianmihai83 Posted May 16, 2019 Share Posted May 16, 2019 (edited) On 5/13/2019 at 6:11 PM, Rodion2010 said: You need to check where your layout 3 had to be injected (boot args alc-id=3, ACPI, Device Properties, Clover Audio Inject) maybe you did something wrong. If not, try another option more, it is useful to re-read instructions https://github.com/acidanthera/AppleALC/wiki/Installation-and-usage before posting I have read that before posting but I don't know where to go from here. I have in Clover -> Devices -> Inject -3 and ResetHDA checked, tried also with boot arg, same result. Here is the current log: 2019-05-16 09:59:52.660950+0300 localhost kernel[0]: calling mpo_policy_init for Lilu 2019-05-16 09:59:52.660953+0300 localhost kernel[0]: Security policy loaded: Lilu Kernel Extension 1.3.5 DEBUG build (Lilu) 2019-05-16 09:59:57.430035+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ failed to obtain device info for analog controller (1) 2019-05-16 10:32:06.660278+0300 localhost kernel[0]: (Lilu) Lilu: config @ (DBG) version DBG-135-2019-03-21, args: disabled 0, debug 1, slow 0, decompress 1 2019-05-16 10:32:06.660283+0300 localhost kernel[0]: (Lilu) Lilu: config @ (DBG) initialising policy 2019-05-16 10:32:06.660287+0300 localhost kernel[0]: calling mpo_policy_init for Lilu 2019-05-16 10:32:06.660290+0300 localhost kernel[0]: Security policy loaded: Lilu Kernel Extension 1.3.5 DEBUG build (Lilu) 2019-05-16 10:32:06.660465+0300 localhost kernel[0]: (Lilu) Lilu: api @ (DBG) got load request from WhateverGreen (128) 2019-05-16 10:32:06.660781+0300 localhost kernel[0]: (Lilu) Lilu: api @ (DBG) got load request from AppleALC (137) 2019-05-16 10:32:06.660785+0300 localhost kernel[0]: (Lilu) AppleALC: init @ (DBG) AppleALC bootstrap DBG-137-2019-04-02 2019-05-16 10:32:07.404260+0300 localhost kernel[0]: (Lilu) Lilu: policy @ (DBG) init bsd 2019-05-16 10:32:07.472247+0300 localhost kernel[0]: (Lilu) Lilu: config @ (DBG) init via mac_cred_check_label_update_execve 2019-05-16 10:32:07.472254+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) OSPrelinkKextCount equals to 309 2019-05-16 10:32:07.472258+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) MachInfo asKernel 1 object constructed 2019-05-16 10:32:07.480091+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) readMachHeader for /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache 2019-05-16 10:32:07.480346+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) readMachHeader got magic BEBAFECA 2019-05-16 10:32:07.480562+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) readMachHeader got magic 706D6F63 2019-05-16 10:32:07.523650+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) decompressing 21436085 bytes (estimated 60665856 bytes) with 6E767A6C compression mode 2019-05-16 10:32:08.607807+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) readMachHeader got magic FEEDFACF 2019-05-16 10:32:08.607814+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found kernel mach-o header address at ffffff801e600000 2019-05-16 10:32:08.607818+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found executable at path: /System/Library/Caches/com.apple.kext.caches/Startup/kernelcache 2019-05-16 10:32:08.607824+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) header processing found TEXT 2019-05-16 10:32:08.607826+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) header processing found LINKEDIT 2019-05-16 10:32:08.607829+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) header processing found SYMTAB 2019-05-16 10:32:08.608274+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found kernel mach-o header address at ffffff801e600000 2019-05-16 10:32:08.608279+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0x1e400000 2019-05-16 10:32:08.608283+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) creating device info 2019-05-16 10:32:08.608299+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device chosen 2019-05-16 10:32:08.608303+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device efi 2019-05-16 10:32:08.608306+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device cpus 2019-05-16 10:32:08.608309+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device memory 2019-05-16 10:32:08.608312+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device rom 2019-05-16 10:32:08.608315+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device PCI0 2019-05-16 10:32:08.608317+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found PCI root PCI0 2019-05-16 10:32:08.608325+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608328+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608331+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device B0D4 0x0 0x0 2019-05-16 10:32:08.608334+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608337+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608340+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG0 0x0 0x0 2019-05-16 10:32:08.608342+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608345+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608348+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG1 0x0 0x0 2019-05-16 10:32:08.608351+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608354+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608357+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG2 0x0 0x0 2019-05-16 10:32:08.608359+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608362+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608365+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP01 0x0 0x0 2019-05-16 10:32:08.608368+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608371+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608374+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP02 0x0 0x0 2019-05-16 10:32:08.608376+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608379+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608382+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP05 0x0 0x0 2019-05-16 10:32:08.608385+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608387+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608390+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP06 0x0 0x0 2019-05-16 10:32:08.608393+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608396+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608399+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP07 0x0 0x0 2019-05-16 10:32:08.608402+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608405+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608408+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP08 0x0 0x0 2019-05-16 10:32:08.608411+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608414+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608417+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PDRC 0x0 0x0 2019-05-16 10:32:08.608420+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608423+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608426+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device GLAN 0x0 0x0 2019-05-16 10:32:08.608428+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608431+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608434+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device EHC2 0x0 0x0 2019-05-16 10:32:08.608437+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608440+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608443+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device SAT1 0x0 0x0 2019-05-16 10:32:08.608445+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608448+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608451+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device SBUS 0x0 0x0 2019-05-16 10:32:08.608454+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:08.608457+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:08.608460+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device CIR 0x0 0x0 2019-05-16 10:32:08.608463+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608467+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 60000 value 2019-05-16 10:32:08.608470+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device pci8086,1604 0x8086 0x60000 2019-05-16 10:32:08.608474+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608477+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 30000 value 2019-05-16 10:32:08.608480+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device IGPU 0x8086 0x30000 2019-05-16 10:32:08.608483+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IGPU device IGPU 2019-05-16 10:32:08.608488+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608491+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 40300 value 2019-05-16 10:32:08.608494+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device B0D3 0x8086 0x40300 2019-05-16 10:32:08.608497+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found HDAU device B0D3 2019-05-16 10:32:08.608500+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608503+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has C0330 value 2019-05-16 10:32:08.608506+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device XHC 0x8086 0xc0330 2019-05-16 10:32:08.608509+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608512+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 78000 value 2019-05-16 10:32:08.608515+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device pci8086,9cba 0x8086 0x78000 2019-05-16 10:32:08.608518+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IMEI device pci8086,9cba 2019-05-16 10:32:08.608521+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:08.608524+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 40300 value 2019-05-16 10:32:08.608528+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device HDEF 0x8086 0x40300 2019-05-16 10:32:11.379304+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) caught /System/Library/PrivateFrameworks/SkyLight.framework/Versions/A/Resources/WindowServer performing injection 2019-05-16 10:32:11.379315+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) requesting delayed patch 0xFFFFFF803878B100 2019-05-16 10:32:11.379349+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) firing hook from task_set_main_thread_qos 0xFFFFFF803878B100 2019-05-16 10:32:11.379370+0300 localhost kernel[0]: Lilu: user @ (DBG) firing hook from task_set_main_thread_qos 0xFFFFFF803878B100 Backtrace 0xffffff80008b682d 0xffffff80009bb0ed 0xffffff800035d2a6 0x0 0x0 0x0 0x0 2019-05-16 10:32:11.379378+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) patch for /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox in 7FFF37502000 7FFF3785F000 2019-05-16 10:32:11.379388+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) 1/1 found BF 69 6D 72 2019-05-16 10:32:11.379392+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found request for W^X switch-off 7 2019-05-16 10:32:11.379414+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) obtained write permssions 2019-05-16 10:32:11.379435+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) restored write permssions 2019-05-16 10:32:11.379440+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) done reading patches for 4F92C 2019-05-16 10:32:11.379447+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) patch for /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox in 7FFF37502000 7FFF3785F000 2019-05-16 10:32:11.379455+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) 1/1 found BF 69 6D 72 2019-05-16 10:32:11.379460+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found request for W^X switch-off 7 2019-05-16 10:32:11.379465+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) obtained write permssions 2019-05-16 10:32:11.379472+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) restored write permssions 2019-05-16 10:32:11.379476+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) done reading patches for 4F981 2019-05-16 10:32:11.379484+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) patch for /System/Library/Frameworks/CoreDisplay.framework/Versions/A/CoreDisplay in 7FFF2B504000 7FFF2B5EC000 2019-05-16 10:32:11.379493+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) 1/1 found BB 1 0 0 2019-05-16 10:32:11.379496+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found request for W^X switch-off 7 2019-05-16 10:32:11.379509+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) obtained write permssions 2019-05-16 10:32:11.379518+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) restored write permssions 2019-05-16 10:32:11.379521+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) done reading patches for 17E07 2019-05-16 10:32:11.467828+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.467836+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) processing already loaded kexts by iterating over 97 summaries 2019-05-16 10:32:11.467854+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) discovered the right kext com.apple.iokit.IOGraphicsFamily at 0xFFFFFF7F9FC88000, invoking handler 2019-05-16 10:32:11.467864+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7f9fc88000 2019-05-16 10:32:11.467876+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found symbol __ZL16gIOFBVerboseBoot at 0xffffff7f9fcc0d73 (non-aslr 0x38d73) 2019-05-16 10:32:11.467901+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found symbol __ZN13IOFramebuffer6initFBEv at 0xffffff7f9fca16c8 (non-aslr 0x196c8) 2019-05-16 10:32:11.467912+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7F9FCA16C8 to 0xFFFFFF7F9FCA16C8 diff 0xFFFFFFFFFFAC7F63 argument FFAC7F63 2019-05-16 10:32:11.467933+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7F9F6F124A to 0xFFFFFF7F9F6F124A diff 0x00000000005B047F argument 5B047F 2019-05-16 10:32:11.467944+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) wrapped __ZN13IOFramebuffer6initFBEv 2019-05-16 10:32:11.467953+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) discovered the right kext com.apple.driver.AppleBacklight at 0xFFFFFF7FA160C000, invoking handler 2019-05-16 10:32:11.467961+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7fa160c000 2019-05-16 10:32:11.467967+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) getRunningPosition 0xffffff7fa160c000 of memory 20480 size 2019-05-16 10:32:11.468068+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FCE1000 and its name is com.apple.iokit.IOSlowAdaptiveClockingFamily 2019-05-16 10:32:11.469040+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.469047+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA12F7000 and its name is com.apple.driver.AppleIntelSlowAdaptiveClocking 2019-05-16 10:32:11.470001+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.470008+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FFD3000 and its name is com.apple.AppleGraphicsDeviceControl 2019-05-16 10:32:11.470799+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.470806+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0018000 and its name is com.apple.AppleGPUWrangler 2019-05-16 10:32:11.477208+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.477217+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA150F000 and its name is com.apple.Dont_Steal_Mac_OS_X 2019-05-16 10:32:11.478147+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.478153+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1458000 and its name is com.apple.driver.pmtelemetry 2019-05-16 10:32:11.479068+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.479075+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1418000 and its name is com.apple.iokit.IOBluetoothSerialManager 2019-05-16 10:32:11.479977+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.479983+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA09B5000 and its name is com.apple.iokit.IOSurface 2019-05-16 10:32:11.480826+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.480832+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA115E000 and its name is com.apple.driver.AppleSSE 2019-05-16 10:32:11.483312+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.483319+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1069000 and its name is com.apple.iokit.IOUserEthernet 2019-05-16 10:32:11.484558+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.484565+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0FE8000 and its name is com.apple.driver.AppleHV 2019-05-16 10:32:11.485436+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.485443+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1060000 and its name is com.apple.driver.AppleSMBusPCI 2019-05-16 10:32:11.486238+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.486243+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D1F000 and its name is com.apple.driver.IOPlatformPluginFamily 2019-05-16 10:32:11.486900+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.486905+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D29000 and its name is com.apple.driver.AppleLPC 2019-05-16 10:32:11.487978+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.487984+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA12DB000 and its name is org.hwsensors.driver.LPCSensors 2019-05-16 10:32:11.488861+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.488869+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1453000 and its name is org.hwsensors.driver.SMMSensors 2019-05-16 10:32:11.489739+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.489747+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA127A000 and its name is com.apple.driver.AppleOSXWatchdog 2019-05-16 10:32:11.490593+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.490600+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA12FB000 and its name is com.apple.iokit.IOBluetoothHostControllerTransport 2019-05-16 10:32:11.491360+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.491366+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA13E8000 and its name is com.apple.iokit.IOBluetoothHostControllerUSBTransport 2019-05-16 10:32:11.492752+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.492757+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA09D9000 and its name is com.apple.iokit.IOAcceleratorFamily2 2019-05-16 10:32:11.493619+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.493624+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0A8E000 and its name is com.apple.driver.AppleIntelBDWGraphicsFramebuffer 2019-05-16 10:32:11.493629+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) caught the right kext at 0xFFFFFF7FA0A8E000, invoking handler 2019-05-16 10:32:11.493634+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7fa0a8e000 2019-05-16 10:32:11.493651+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found symbol _gPlatformInformationList at 0xffffff7fa0b46360 (non-aslr 0xb8360) 2019-05-16 10:32:11.493664+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found symbol __ZN22AppleIntelFBController16getOSInformationEv at 0xffffff7fa0ab107a (non-aslr 0x2307a) 2019-05-16 10:32:11.493671+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7FA0AB107A to 0xFFFFFF7FA0AB107A diff 0xFFFFFFFFFECB1651 argument FECB1651 2019-05-16 10:32:11.493677+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7F9F6F125D to 0xFFFFFF7F9F6F125D diff 0x00000000013BFE1D argument 13BFE1D 2019-05-16 10:32:11.493684+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) wrapped __ZN22AppleIntelFBController16getOSInformationEv 2019-05-16 10:32:11.494646+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.494651+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0F8B000 and its name is com.apple.driver.AppleFIVRDriver 2019-05-16 10:32:11.495457+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.495462+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0343000 and its name is com.apple.iokit.IOSkywalkFamily 2019-05-16 10:32:11.496081+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.496085+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0378000 and its name is com.apple.iokit.IOEthernetAVBController 2019-05-16 10:32:11.496733+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.496737+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA037F000 and its name is com.apple.plugin.IOgPTPPlugin 2019-05-16 10:32:11.497554+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.497558+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0437000 and its name is com.apple.iokit.IOAVBFamily 2019-05-16 10:32:11.498869+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.498876+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D59000 and its name is com.apple.driver.X86PlatformPlugin 2019-05-16 10:32:11.500058+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.500067+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D2E000 and its name is com.apple.driver.IOPlatformPluginLegacy 2019-05-16 10:32:11.501083+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.501089+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D42000 and its name is com.apple.driver.ACPI_SMC_PlatformPlugin 2019-05-16 10:32:11.502488+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.502497+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA05ED000 and its name is com.apple.iokit.IOHDAFamily 2019-05-16 10:32:11.503730+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.503736+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA05FC000 and its name is com.apple.driver.AppleHDAController 2019-05-16 10:32:11.503741+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) caught the right kext at 0xFFFFFF7FA05FC000, invoking handler 2019-05-16 10:32:11.503747+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7fa05fc000 2019-05-16 10:32:11.503762+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) creating device info 2019-05-16 10:32:11.503771+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device chosen 2019-05-16 10:32:11.503775+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device efi 2019-05-16 10:32:11.503778+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device cpus 2019-05-16 10:32:11.503781+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device memory 2019-05-16 10:32:11.503784+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device rom 2019-05-16 10:32:11.503787+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device PCI0 2019-05-16 10:32:11.503790+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found PCI root PCI0 2019-05-16 10:32:11.503797+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503800+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503804+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device B0D4 0x0 0x0 2019-05-16 10:32:11.503807+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503810+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503813+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG0 0x0 0x0 2019-05-16 10:32:11.503816+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503819+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503823+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG1 0x0 0x0 2019-05-16 10:32:11.503826+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503829+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503832+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PEG2 0x0 0x0 2019-05-16 10:32:11.503835+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503838+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503841+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP01 0x0 0x0 2019-05-16 10:32:11.503844+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503847+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503850+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP02 0x0 0x0 2019-05-16 10:32:11.503853+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503863+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503867+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP05 0x0 0x0 2019-05-16 10:32:11.503872+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503877+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503882+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP06 0x0 0x0 2019-05-16 10:32:11.503886+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503892+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503896+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP07 0x0 0x0 2019-05-16 10:32:11.503902+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503906+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503911+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP08 0x0 0x0 2019-05-16 10:32:11.503917+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503922+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503927+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device PDRC 0x0 0x0 2019-05-16 10:32:11.503933+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503938+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503944+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device GLAN 0x0 0x0 2019-05-16 10:32:11.503948+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503953+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503959+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device EHC2 0x0 0x0 2019-05-16 10:32:11.503965+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503970+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503975+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device SAT1 0x0 0x0 2019-05-16 10:32:11.503980+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.503985+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.503991+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device SBUS 0x0 0x0 2019-05-16 10:32:11.503996+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504004+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code was not found 2019-05-16 10:32:11.504011+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device CIR 0x0 0x0 2019-05-16 10:32:11.504018+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504024+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 60000 value 2019-05-16 10:32:11.504029+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device pci8086,1604 0x8086 0x60000 2019-05-16 10:32:11.504036+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504040+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 30000 value 2019-05-16 10:32:11.504046+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device IGPU 0x8086 0x30000 2019-05-16 10:32:11.504050+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IGPU device IGPU 2019-05-16 10:32:11.504057+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504063+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 40300 value 2019-05-16 10:32:11.504068+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device HDAU 0x8086 0x40300 2019-05-16 10:32:11.504073+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found HDAU device HDAU 2019-05-16 10:32:11.504078+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504083+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has C0330 value 2019-05-16 10:32:11.504089+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device XHC 0x8086 0xc0330 2019-05-16 10:32:11.504095+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504101+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 78000 value 2019-05-16 10:32:11.504106+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device IMEI 0x8086 0x78000 2019-05-16 10:32:11.504110+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IMEI device IMEI 2019-05-16 10:32:11.504116+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504121+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 40300 value 2019-05-16 10:32:11.504130+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device HDEF 0x8086 0x40300 2019-05-16 10:32:11.504135+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found HDEF device HDEF 2019-05-16 10:32:11.504140+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504145+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 60400 value 2019-05-16 10:32:11.504151+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP03 0x8086 0x60400 2019-05-16 10:32:11.504156+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci bridge RP03 2019-05-16 10:32:11.504165+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IOPP on pci bridge 2019-05-16 10:32:11.504169+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504175+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found PXSX on pci bridge 2019-05-16 10:32:11.504180+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 10EC value 2019-05-16 10:32:11.504185+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 20000 value 2019-05-16 10:32:11.504192+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found RTL8111 on pci bridge 2019-05-16 10:32:11.504197+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504203+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found en0 on pci bridge 2019-05-16 10:32:11.504208+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504215+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IONetworkStack on pci bridge 2019-05-16 10:32:11.504223+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504231+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IONetworkStackUserClient on pci bridge 2019-05-16 10:32:11.504237+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504249+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504255+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 60400 value 2019-05-16 10:32:11.504261+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device RP04 0x8086 0x60400 2019-05-16 10:32:11.504266+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci bridge RP04 2019-05-16 10:32:11.504273+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found IOPP on pci bridge 2019-05-16 10:32:11.504278+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id was not found 2019-05-16 10:32:11.504284+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found PXSX on pci bridge 2019-05-16 10:32:11.504290+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 168C value 2019-05-16 10:32:11.504296+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 28000 value 2019-05-16 10:32:11.504304+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504310+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has C0320 value 2019-05-16 10:32:11.504315+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device EHC1 0x8086 0xc0320 2019-05-16 10:32:11.504321+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504327+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 60100 value 2019-05-16 10:32:11.504333+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device LPCB 0x8086 0x60100 2019-05-16 10:32:11.504344+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504349+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has 10601 value 2019-05-16 10:32:11.504354+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device SAT0 0x8086 0x10601 2019-05-16 10:32:11.504359+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504364+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData class-code has C0500 value 2019-05-16 10:32:11.504369+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found pci device D00C 0x8086 0xc0500 2019-05-16 10:32:11.504377+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKA 2019-05-16 10:32:11.504382+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKB 2019-05-16 10:32:11.504387+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKC 2019-05-16 10:32:11.504391+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKD 2019-05-16 10:32:11.504397+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKE 2019-05-16 10:32:11.504401+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKF 2019-05-16 10:32:11.504406+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKG 2019-05-16 10:32:11.504410+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device LNKH 2019-05-16 10:32:11.504415+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device SLPB 2019-05-16 10:32:11.504419+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device PWRB 2019-05-16 10:32:11.504424+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device AMW0 2019-05-16 10:32:11.504430+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found root device AppleEFINVRAM 2019-05-16 10:32:11.504449+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData apple-layout-id was not found 2019-05-16 10:32:11.504459+0300 localhost kernel[0]: (Lilu) Lilu: iokit @ (DBG) getOSData AAPL,ig-platform-id has 16260006 value 2019-05-16 10:32:11.504465+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) found property frame id override to 371589126 2019-05-16 10:32:11.504474+0300 localhost kernel[0]: (Lilu) Lilu: dev @ (DBG) detected 5 firmware 2019-05-16 10:32:11.504481+0300 localhost kernel[0]: (Lilu) AppleALC: iokit @ (DBG) getOSData vendor-id has 8086 value 2019-05-16 10:32:11.504487+0300 localhost kernel[0]: (Lilu) AppleALC: iokit @ (DBG) getOSData device-id has 9CA0 value 2019-05-16 10:32:11.504493+0300 localhost kernel[0]: (Lilu) AppleALC: iokit @ (DBG) getOSData revision-id has 3 value 2019-05-16 10:32:11.504500+0300 localhost kernel[0]: (Lilu) AppleALC: iokit @ (DBG) getOSData alc-layout-id was not found 2019-05-16 10:32:11.504506+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ failed to obtain device info for analog controller (1) 2019-05-16 10:32:11.504513+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) found 1 audio controllers 2019-05-16 10:32:11.504518+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) validating 0 controller 8086:160C:9 2019-05-16 10:32:11.504524+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 0 mod 8086:A2F0 2019-05-16 10:32:11.504529+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 1 mod 8086:A348 2019-05-16 10:32:11.504535+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 2 mod 8086:A171 2019-05-16 10:32:11.504540+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 3 mod 8086:8D21 2019-05-16 10:32:11.504545+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 4 mod 8086:8D20 2019-05-16 10:32:11.504550+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 5 mod 8086:F04 2019-05-16 10:32:11.504555+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 6 mod 8086:24 2019-05-16 10:32:11.504560+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 7 mod 8086:C0C 2019-05-16 10:32:11.504566+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 8 mod 8086:8D20 2019-05-16 10:32:11.504571+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 9 mod 1002:AB08 2019-05-16 10:32:11.504576+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 10 mod 1002:AAC8 2019-05-16 10:32:11.504581+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 11 mod 10DE:E0F 2019-05-16 10:32:11.504590+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 12 mod 10DE:10EF 2019-05-16 10:32:11.504596+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 13 mod 10DE:10F1 2019-05-16 10:32:11.504601+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 14 mod 10DE:FBA 2019-05-16 10:32:11.504605+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 15 mod 10DE:FB0 2019-05-16 10:32:11.504610+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 16 mod 10DE:FBB 2019-05-16 10:32:11.504615+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 17 mod 10DE:FB8 2019-05-16 10:32:11.504619+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 18 mod 10DE:FB9 2019-05-16 10:32:11.504624+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 19 mod 10DE:10F0 2019-05-16 10:32:11.504629+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 20 mod 10DE:FBC 2019-05-16 10:32:11.504633+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 21 mod 1022:1457 2019-05-16 10:32:11.504638+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) comparing to 22 mod 1022:15E3 2019-05-16 10:32:11.504644+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2019-05-16 10:32:11.506357+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.506366+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0449000 and its name is org.hwsensors.driver.CPUSensors 2019-05-16 10:32:11.507792+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.507801+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FC82000 and its name is com.apple.driver.eficheck 2019-05-16 10:32:11.509385+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.509393+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FFDF000 and its name is com.apple.AGDCPluginDisplayMetrics 2019-05-16 10:32:11.511024+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.511032+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0EA2000 and its name is com.apple.driver.AppleIntelBDWGraphics 2019-05-16 10:32:11.511041+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) caught the right kext at 0xFFFFFF7FA0EA2000, invoking handler 2019-05-16 10:32:11.511049+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7fa0ea2000 2019-05-16 10:32:11.511091+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) found symbol __ZN16IntelAccelerator19PAVPCommandCallbackE22PAVPSessionCommandID_tjPjb at 0xffffff7fa0ec6e94 (non-aslr 0x24e94) 2019-05-16 10:32:11.511103+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7FA0EC6E94 to 0xFFFFFF7FA0EC6E94 diff 0xFFFFFFFFFE89B357 argument FE89B357 2019-05-16 10:32:11.511114+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) from 0xFFFFFF7F9F6F1271 to 0xFFFFFF7F9F6F1271 diff 0x00000000017D5C24 argument 17D5C24 2019-05-16 10:32:11.511125+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) wrapped __ZN16IntelAccelerator19PAVPCommandCallbackE22PAVPSessionCommandID_tjPjb 2019-05-16 10:32:11.513268+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.513276+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FFE3000 and its name is com.apple.driver.AppleGraphicsControl 2019-05-16 10:32:11.514989+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.514997+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FFE6000 and its name is com.apple.driver.AppleGraphicsDevicePolicy 2019-05-16 10:32:11.661058+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.661063+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA061F000 and its name is com.apple.kext.OSvKernDSPLib 2019-05-16 10:32:11.662082+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.662087+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0632000 and its name is com.apple.driver.DspFuncLib 2019-05-16 10:32:11.663095+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.663100+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA077E000 and its name is com.apple.driver.AppleHDA 2019-05-16 10:32:11.663105+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) caught the right kext at 0xFFFFFF7FA077E000, invoking handler 2019-05-16 10:32:11.663111+0300 localhost kernel[0]: (Lilu) Lilu: mach @ (DBG) aslr/load slide is 0xffffff7fa077e000 2019-05-16 10:32:11.663117+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) failed to find a suitable codec, we have nothing to do 2019-05-16 10:32:11.663121+0300 localhost kernel[0]: (Lilu) AppleALC: alc @ (DBG) missing ControllerModInfo for 0 controller 2019-05-16 10:32:11.664577+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.664584+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1428000 and its name is com.apple.driver.AppleSMBusController 2019-05-16 10:32:11.665684+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.665691+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1439000 and its name is com.apple.driver.AppleMCCSControl 2019-05-16 10:32:11.666519+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.666524+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA117B000 and its name is com.apple.driver.AppleUpstreamUserClient 2019-05-16 10:32:11.667529+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.667535+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA061B000 and its name is com.apple.driver.AppleHDAHardwareConfigDriver 2019-05-16 10:32:11.699336+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.699342+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA17CD000 and its name is com.radiosilenceapp.nke.filter 2019-05-16 10:32:11.929022+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.929028+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9F8E8000 and its name is com.paragon-software.filesystems.ntfs 2019-05-16 10:32:11.988253+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.988262+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA12CF000 and its name is com.apple.driver.ApplePlatformEnabler 2019-05-16 10:32:11.989754+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.989762+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA1196000 and its name is com.apple.driver.AGPM 2019-05-16 10:32:11.991052+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:11.991061+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D70000 and its name is com.apple.driver.X86PlatformShim 2019-05-16 10:32:12.375727+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:12.375734+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA0D79000 and its name is com.apple.kext.triggers 2019-05-16 10:32:12.376543+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:12.376547+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7FA12EC000 and its name is com.apple.filesystems.autofs 2019-05-16 10:32:13.098880+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) invoked at kext loading/unloading 2019-05-16 10:32:13.098886+0300 localhost kernel[0]: (Lilu) Lilu: patcher @ (DBG) last kext is 0xFFFFFF7F9FD12000 and its name is com.apple.fileutil 2019-05-16 10:32:16.502111+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:16.502117+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 5F415E415D415C41 to expected 5641E5894855C35D 2019-05-16 10:32:21.107451+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:21.107460+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 4855C35D5F415E41 to expected 5641E5894855C35D 2019-05-16 10:32:21.798337+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:21.798347+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 4855C35D5F415E41 to expected 5641E5894855C35D 2019-05-16 10:32:32.025523+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:32.025533+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 441F0F66C35D to expected 5641E5894855C35D 2019-05-16 10:32:32.917014+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:32.917023+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 8FFEF73D8D48C35D to expected 5641E5894855C35D 2019-05-16 10:32:37.258993+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:37.259002+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 41E5894855E0FF5D to expected 5641E5894855C35D 2019-05-16 10:32:51.519626+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:51.519635+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 4855C35D5F415E41 to expected 5641E5894855C35D 2019-05-16 10:32:54.644123+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:32:54.644132+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 441F0FE0FF5D to expected 5641E5894855C35D 2019-05-16 10:33:19.249480+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:33:19.249490+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 441F0F66C35D to expected 5641E5894855C35D 2019-05-16 10:33:19.511405+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:33:19.511414+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 90660B0F0B0FC35D to expected 5641E5894855C35D 2019-05-16 10:33:21.399806+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) found a possible match for 0 of 5B08C48348D88948 2019-05-16 10:33:21.399815+0300 localhost kernel[0]: (Lilu) Lilu: user @ (DBG) failure not matching 1 of 8FEEE8C78948C35D to expected 5641E5894855C35D EDIT: even though I have inject layout 3 in Clover, IOREG shows layout id 7: Edited May 16, 2019 by adrianmihai83 Link to comment Share on other sites More sharing options...
bronxteck Posted May 17, 2019 Share Posted May 17, 2019 does anyone with ALC255 still have audio after the 10.14.5 update? Link to comment Share on other sites More sharing options...
DoZe Posted May 20, 2019 Share Posted May 20, 2019 On 5/15/2019 at 12:55 AM, DoZe said: Ouch….. Sorry just see that now ! As soon as i can , i provide you the Dump. Regards. @MacPeet Like i promise, this is the dump i made with Ubuntu 18.04 LTS LiveCD. I precise in older post than Ubuntu detect my Codec as CX8200 but is NOT, it's CX7700 Codec (HP Zbook 15u G4), like ProBook 430,440,450 G4. BUT, internal speakers and internal Mic working without problems unde Ubuntu. CodecDump.zip Link to comment Share on other sites More sharing options...
MacPeet Posted May 21, 2019 Share Posted May 21, 2019 @DoZe try this with ID 15 trial1_CX8200_layoutID_15.zip native AppleHDA is a requirement! Inject ID 15 either ... ... with Clover 15 + FixHDA or ... with DSDT/HDEF (HEX) 0F without FixHDA in the Clover Link to comment Share on other sites More sharing options...
DoZe Posted May 21, 2019 Share Posted May 21, 2019 (edited) On 5/21/2019 at 6:54 AM, MacPeet said: @DoZe try this with ID 15 trial1_CX8200_layoutID_15.zip native AppleHDA is a requirement! Inject ID 15 either ... ... with Clover 15 + FixHDA or ... with DSDT/HDEF (HEX) 0F without FixHDA in the Clover @MacPeet Clover 4928, HDAS to HDEF in patch section, DSDT made by MaLd0n, Osx 10.14.5 Try : id15 + FixHDA + your AppleHDA.kext (trial1_CX8200LayoutID_15.zip) : NO sound, Grey Speaker (AppleHDA is in Mint condition) I heard a "tick" sound (like on old vinyl) at boot, but nothing. Dunno if it could help, but I put a dump made with Clover 4930: CloverCodecDump.zip As i said before, perhaps it change Nothing for the special Kext you've made, but it's not CX8200, it's CX7700 (see page 37) : http://www8.hp.com/h20195/v2/GetPDF.aspx/c05322740.pdf My ioReg : https://www.insanelymac.com/forum/topic/311293-applealc-—-dynamic-applehda-patching/?do=findComment&comment=2665650 And why a lot of codecdump from clover is recognized as "unknown" or sometimes bad assignement : https://sourceforge.net/p/cloverefiboot/code/HEAD/tree/Include/Library/HdaModels.h ahhh just see than the AppleALC v1.3.8 have been removed, see in the changelog before than it can solve some init problem in 10.14 (i'm in 10.14.5) Your Kext is 1.3.6 , perhaps a prob come from this ? Regards, Ray. Edited May 22, 2019 by DoZe Link to comment Share on other sites More sharing options...

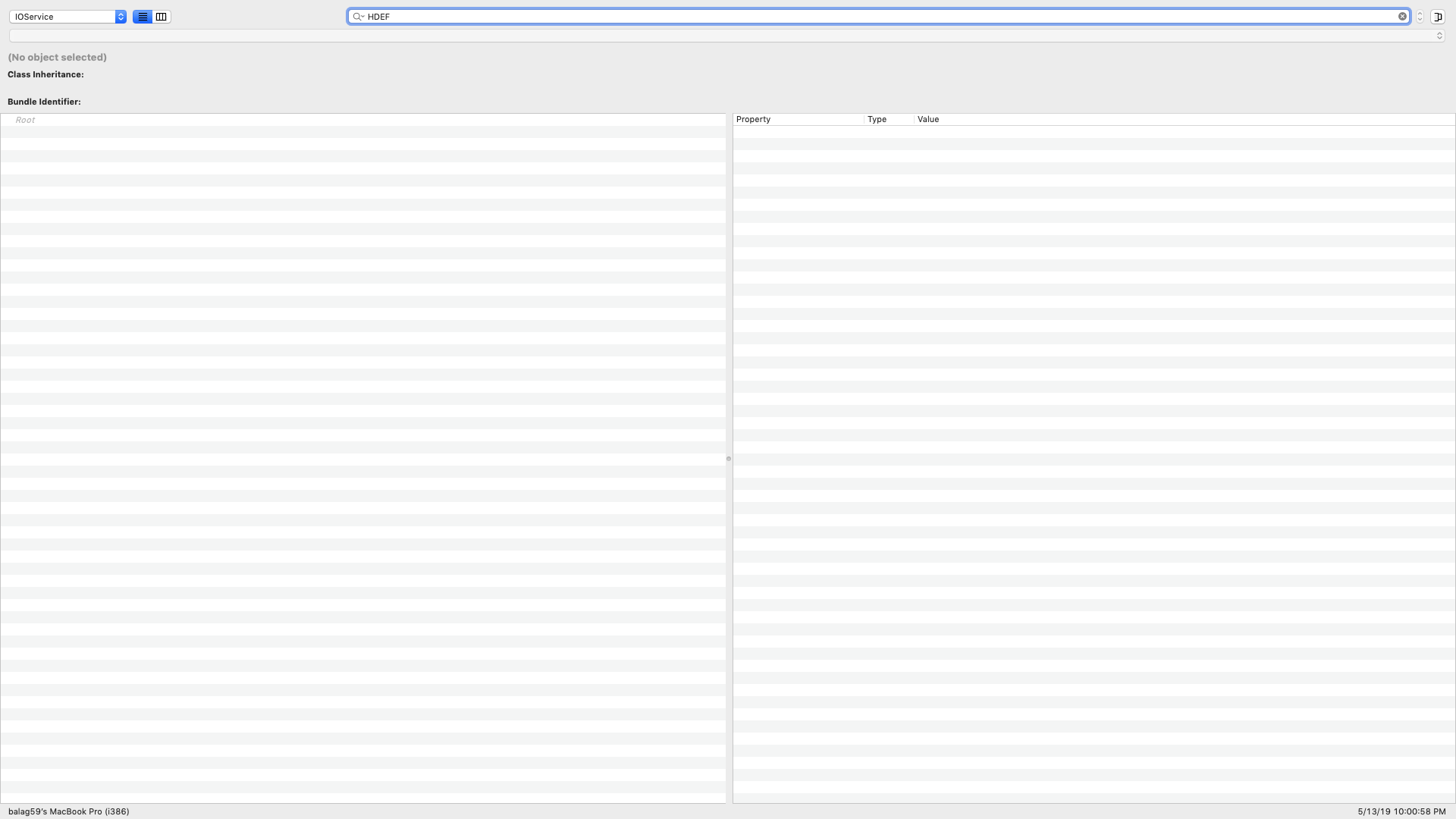

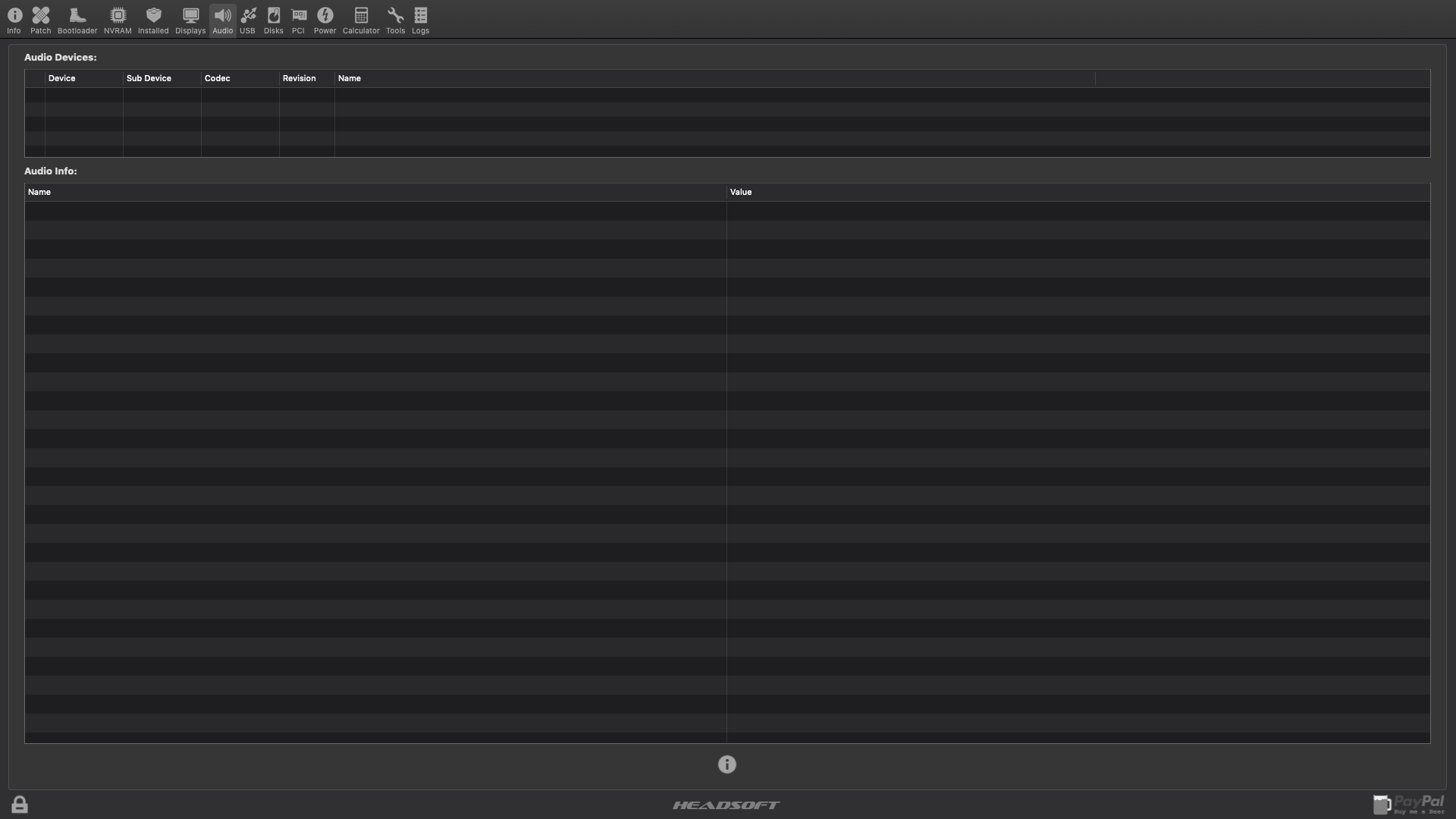

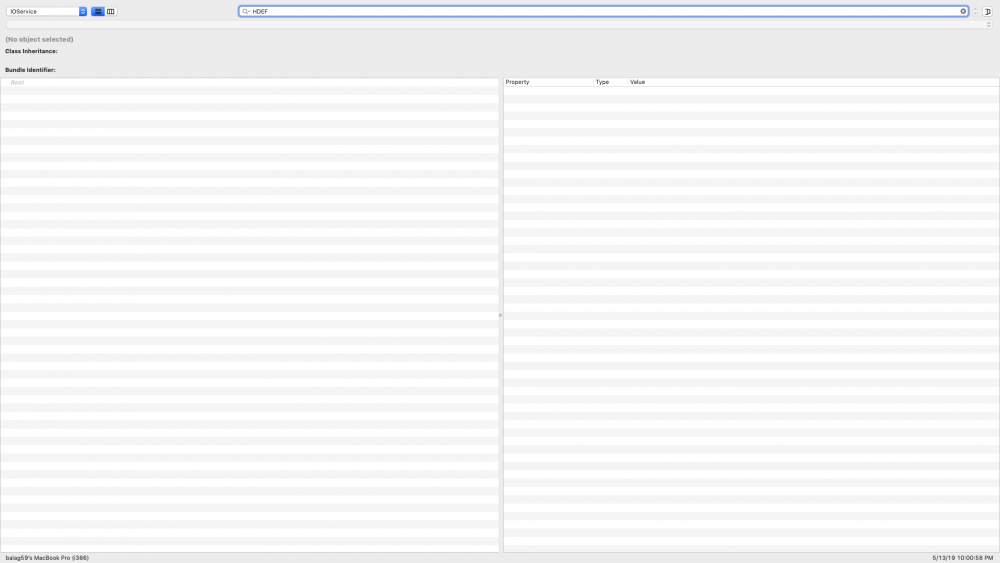

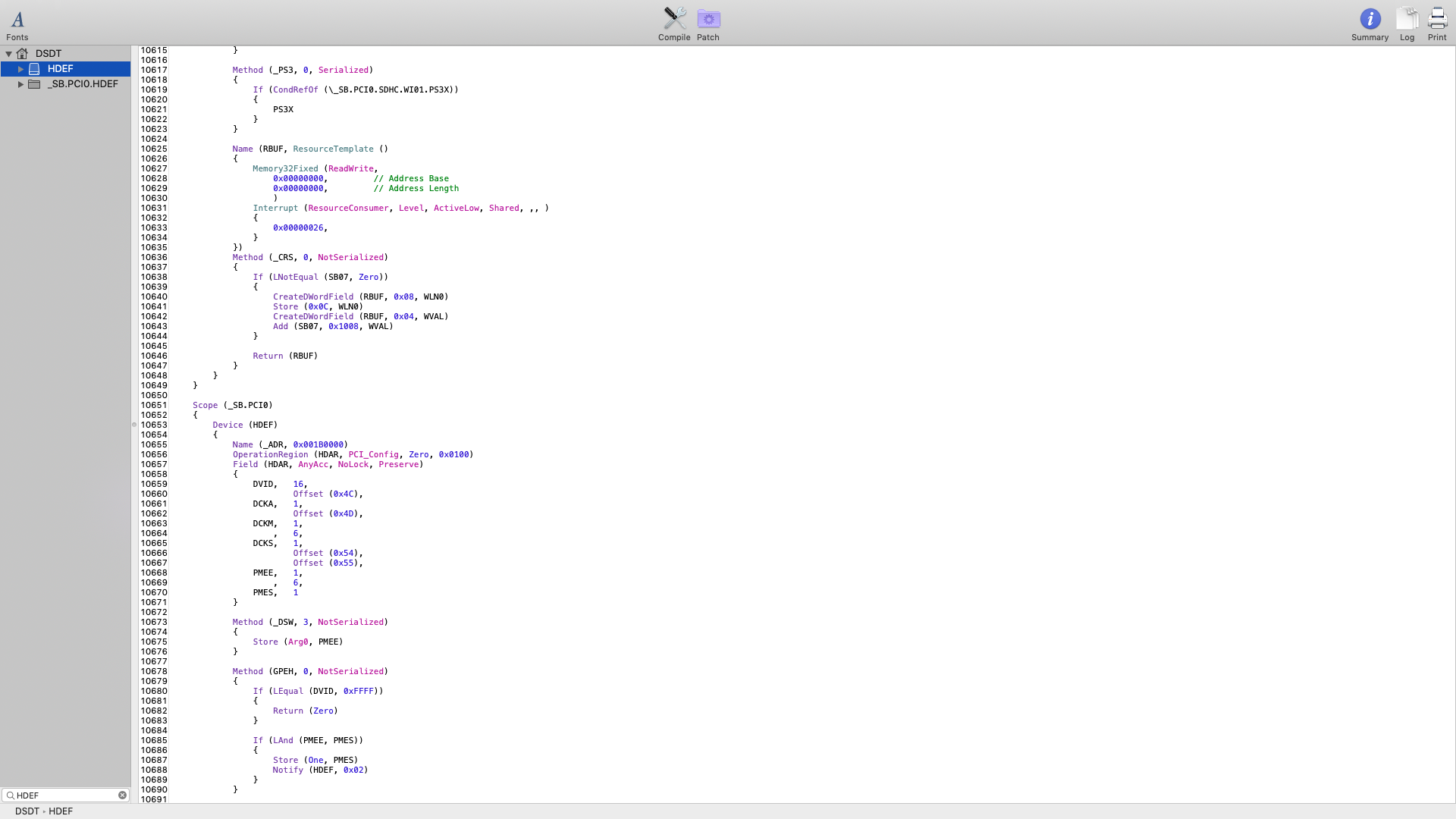

balag59 Posted May 22, 2019 Share Posted May 22, 2019 Hi, Here are my laptop specs: HP Spectre X360(2015) Intel Core i7 5500u + Intel HD Graphics 5500 I think my soundcard is Realtek ALC 286(not sure though). I've installed Lilu and AppleALC kexts to L/E(repaired permissions and rebuilt kext cache). My audio devices tab under Hackingtool is completely empty as shown below: A search for HDEF turns up empty in IORegisteryExplorer as expected(see below). But the funny thing is that I can find HDEF in MaciASL( can't find HDAS or AZAL).(see below) Here is a copy of my debug report. I can get the sound to work only via bluetooth and internal speakers and normal headphones don't work. I was told that I would require some form of DSDT patching and this is the best place to find some help with that. I would appreciate any guidance on this matter. Please let me know if you need anything else from me. Thanks in advance! debug_10688.zip Link to comment Share on other sites More sharing options...
certuna Posted May 22, 2019 Share Posted May 22, 2019 (edited) @DoZe I've got the same Conexant CX7700 in a Probook 430 G4: working: - internal speakers - internal mic not working - headphones audio - headphones mic - headphones sensing (= automatic muting of the internal speakers) Edited May 22, 2019 by certuna Link to comment Share on other sites More sharing options...
DoZe Posted May 22, 2019 Share Posted May 22, 2019 (edited) 1 hour ago, certuna said: @DoZe I've got the same Conexant CX7700 in a Probook 430 G4: working: - internal speakers - internal mic not working - headphones audio - headphones mic - headphones sensing (= automatic muting of the internal speakers) Ok, fine. Under osx 10.14.5 ? With AppleALC and native AppleHDA ? Clover version ? with ou W/out DSDT ? Edited May 22, 2019 by DoZe Link to comment Share on other sites More sharing options...
MacPeet Posted May 23, 2019 Share Posted May 23, 2019 @DoZe I have not loaded the new SourceCode yet, but my version works with Mojave as well. With you the Inject does not work under Mojave. Ioreg has layoutid 7, but no alc layoutid. try boot flag alcid=15 or alcid=3 or alcid=21 1 Link to comment Share on other sites More sharing options...
ammoune78 Posted May 23, 2019 Share Posted May 23, 2019 On 11/5/2017 at 11:01 AM, polyzargone said: Hi vusun123 Just wondering if anything could be done for IDT 92HD75BX on an HP Pavilion dv6 laptop? I tried AppleALC.kext but it hangs a lot at boot and doesn't recognize anything. Funny thing, it worked pretty fine in El Capitan but fails in both Sierra and HS . Attached codec dump from Ubuntu in case you need it : Thx CodecDump.zip On 11/5/2017 at 11:50 AM, vusun123 said: The codec listed in the current AppleALC repo doesn't list what kind of machine it worked on, so I'm gonna take a wild guess it won't work with your laptop, will take a look into it tonight How does that even possible? His guide works on your machine I guarantee, maybe you have done it wrong somewhere. About the desktop, I'm gonna need people guiding me in the right direction of the correct kext-to-patch first, since that's the one bugging me the most while working on this codec On 11/5/2017 at 1:05 PM, vusun123 said: @polyzargone Does your laptop even have a headphone jack ? The codec dump indicates no Headphone jack, only a Line Out Nevertheless, install this AppleALC with the latest Lilu release, test with layout 12 (Line Out converted into Headphone for testing purporse) and layout 28 (LineOut removed) AppleALC_IDT.kext.zip On 11/5/2017 at 2:36 PM, polyzargone said: Well I'm not sure what it really has actually . It looks like this : So here's the results : 12 = Nothing at all 28 = Internal HP works but no mic/lineOut as expected 3 = Internal HP works, auto-switch to headphone when plugged in (middle and right-sided jacks) also working which is great but mic/lineOut not working even if they show in Syspref On 11/6/2017 at 3:03 AM, vusun123 said: So my file is also a mess right now, but does AppleALC hang your laptop often ? I changed the kext-to-patch a bit On 11/6/2017 at 6:35 AM, polyzargone said: No, it doesn't hang anymore but this wasn't related to AppleALC actually. In fact, it was a wrong DSDT injection that cause it. Anyway, sounds work the right way with Layout 3 and I don't really care about mic. One thing I have to investigate though is that sleep seems to be broken. I Don't know if it's AppleALC related or something else … Thanks again ! Hi there, i have the same problem, as i have same codec and laptop, which worked well with old Mac OS X versions until 10.12 & 10.13. Didn't find the solution from @polyzargone, and what DSDT injection i missed, as the alcid=3 was the one that worked on previous OS X release. Can you share please the fix? Link to comment Share on other sites More sharing options...
ammoune78 Posted May 23, 2019 Share Posted May 23, 2019 @MacPeet , please can you add the attached codec dump to the AppleALC? CodecDump.zip Link to comment Share on other sites More sharing options...
certuna Posted May 23, 2019 Share Posted May 23, 2019 19 hours ago, DoZe said: Under osx 10.14.5 ? With AppleALC and native AppleHDA ? Clover version ? with ou W/out DSDT ? Yes, latest everything, 10.14.5, Clover r4920, Lilu 1.3.5, AppleALC 1.3.7, native AppleHDA, with the unchanged config.plist and SSDT (config_4x0_G4_Kabylake.plist, SSDT-4x0G4k.aml, see attached) from the RehabMan repo. SSDT-4x0G4k.aml Link to comment Share on other sites More sharing options...
