Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 Your problem can't be sure 100% from AppleALC.kext and Lilu.kext, you must patch/configure your system to normal ones. After that, we can test new AppleALC.kext for your Device Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 (edited) 10 minutes ago, Andres ZeroCross said: Your codec is still not recognized by AppleHDA.kext. 1. Did you use any DSDT / SSDT??? 2. Write detail your notebook model and specifications 3. Make sure patch IRQFlag for RTC, TIMR, HPET and IPIC or tick Fix HPET, Add DTGP, IRQ, TIMR, IPIQ on Config.plist (use Clover Configurator) 4. For best analyze,, upload your CLover folder So I have an Acer Predator Helios 500 PH517-51-72NU laptop; here are the basic specs: CPU: i7 8750H GPU: 1070 Ram: 16gb DDR4 Here is my clover CLOVER.zip Edited January 12, 2019 by yamahahornist Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 10 minutes ago, yamahahornist said: So I have an Acer Predator Helios 500 PH517-51-72NU laptop; here are the basic specs: CPU: i7 8750H GPU: 1070 Ram: 16gb DDR4 Here is my clover CLOVER.zip So I have an Acer Predator Helios 500 PH517-51-72NU laptop; here are the basic specs: CPU: i7 8750H GPU: 1070 Ram: 16gb DDR4 Here is my clover Use this,, reboot and upload your IOREG again CLOVER.zip Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 4 minutes ago, Andres ZeroCross said: Use this,, reboot and upload your IOREG again CLOVER.zip new ioreg dump with updated clover iodump3.ioreg Link to comment Share on other sites More sharing options...

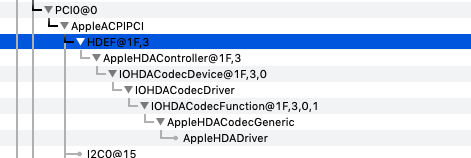

Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 Now,, your codec is recognized I can check for future solution,, just wait Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 Just now, Andres ZeroCross said: Now,, your codec is recognized I can check for future solution,, just wait okay, thank you for your help Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 Now use this,, just remove old AppleALC.kext ini EFI/CLOVER/Kexts/Other,, and replace with this,, reboot and post your IOREG again AppleALC.kext.zip Link to comment Share on other sites More sharing options...

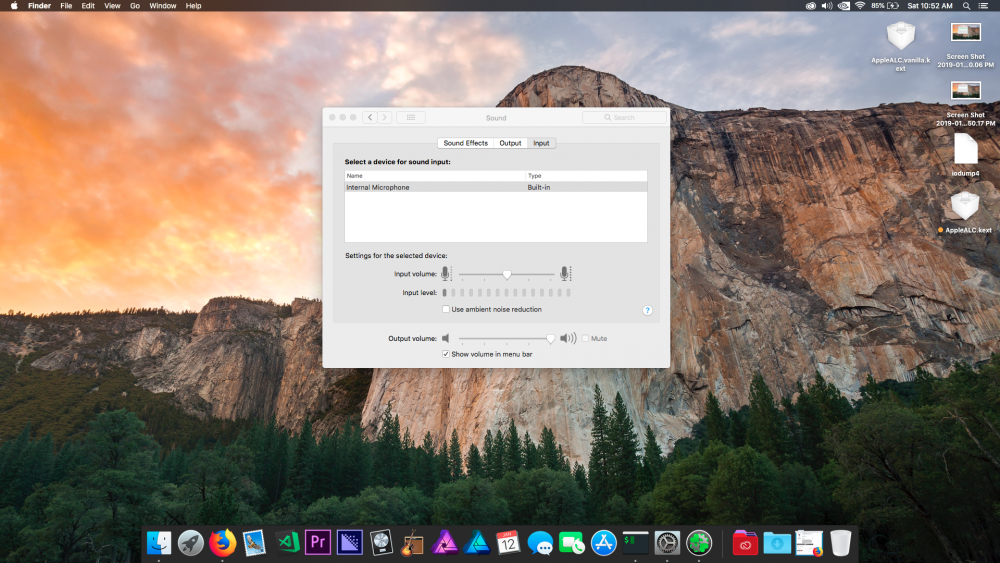

yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 6 minutes ago, Andres ZeroCross said: Now use this,, just remove old AppleALC.kext ini EFI/CLOVER/Kexts/Other,, and replace with this,, reboot and post your IOREG again AppleALC.kext.zip I have speaker audio now! Output shows: Speakers Input shows: nothing My laptop has: Speakers Line-out headphone line-in microphone iodump4.ioreg Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 1 minute ago, yamahahornist said: I have speaker audio now! Output shows: Speakers Input shows: nothing My laptop has: Speakers Line-out headphone line-in microphone iodump4.ioreg Nice,, wait. I checked your Mic Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 4 minutes ago, Andres ZeroCross said: Nice,, wait. I checked your Mic What layout id should I be using? So my laptop has a 3.5mm microphone input and also a built in microphone. The speakers are working and headphone detecting and auto switching is working though! Link to comment Share on other sites More sharing options...

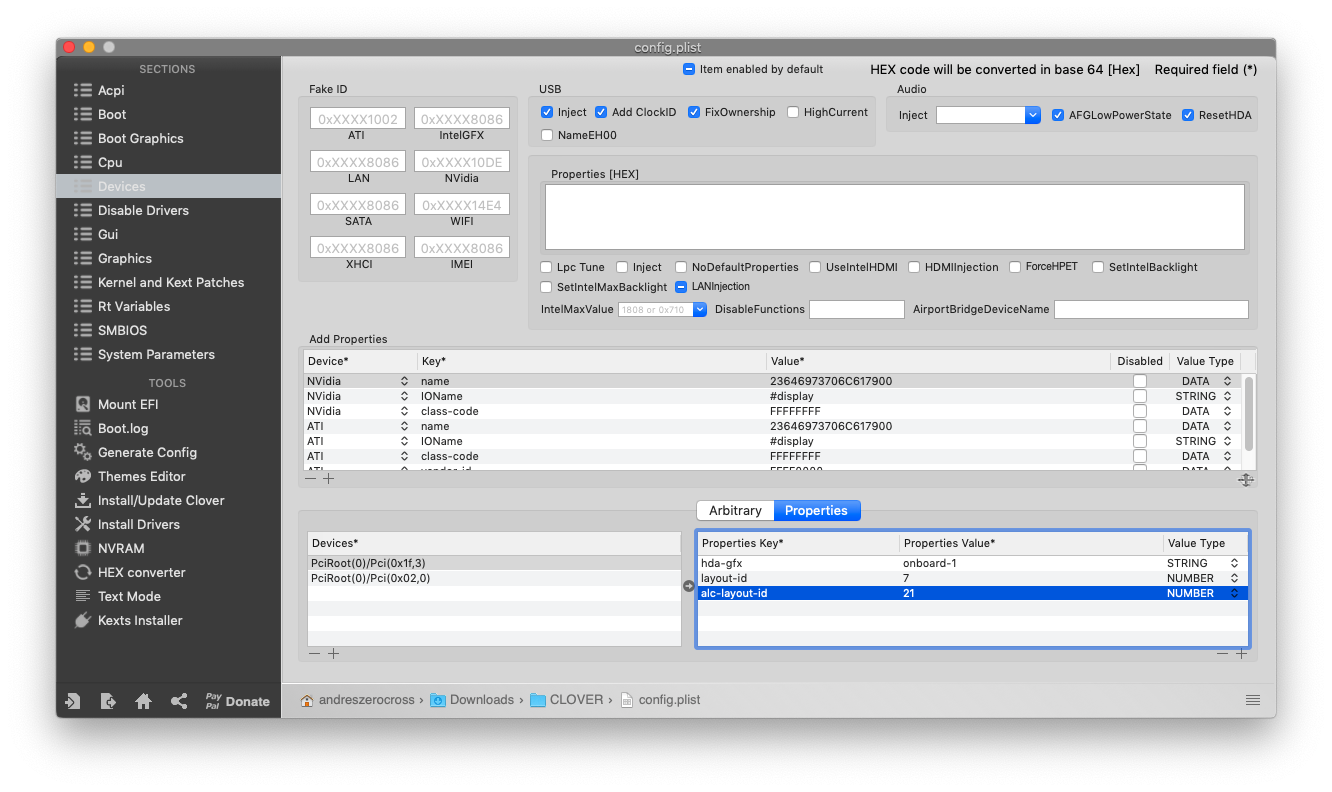

Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 Just now, yamahahornist said: What layout id should I be using? So my laptop has a 3.5mm microphone input and also a built in microphone. The speakers are working and headphone detecting and auto switching is working though! I already set layout = 21 in your config.plist I need to check for Mic device Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 Use this,, reboot and check your internal mic AppleALC.kext.zip Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 3 minutes ago, Andres ZeroCross said: Use this,, reboot and check your internal mic AppleALC.kext.zip Ouput is still working, but no inputs Link to comment Share on other sites More sharing options...

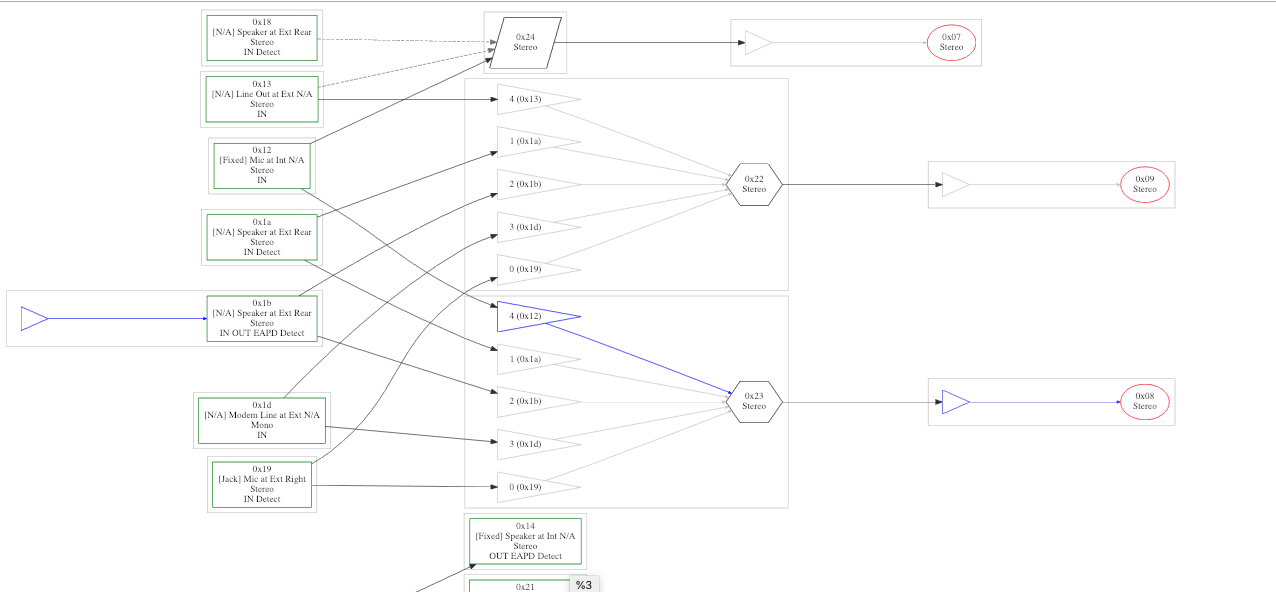

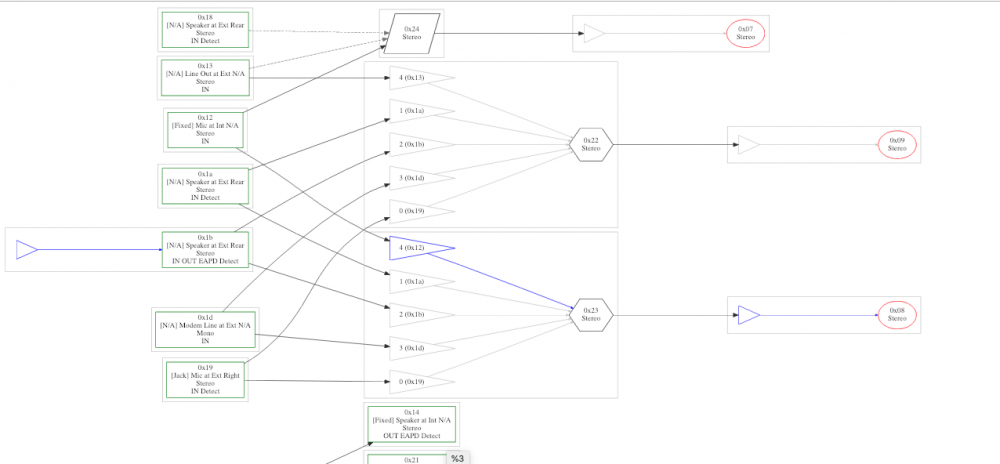

Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 I will check it later,, need to lunch. Your path of internal mis is this from your codec_dump.txt above. Did you upload wrong codec_dump??? Make sure it's from yours not other person Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 2 minutes ago, Andres ZeroCross said: I will check it later,, need to lunch. Your path of internal mis is this from your codec_dump.txt above. Did you upload wrong codec_dump??? Make sure it's from yours not other person That was my dump from linux, but I will go get another one and post it here. I need to head of to bed, hitting midnight here. Thank you for all your work! Please let me know how I can support you. Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 1 minute ago, yamahahornist said: That was my dump from linux, but I will go get another one and post it here. I need to head of to bed, hitting midnight here. Thank you for all your work! Please let me know how I can support you. Just upload new codec dump, I will upload resource to AppleALC.kext's github soon Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 3 minutes ago, Andres ZeroCross said: Just upload new codec dump, I will upload resource to AppleALC.kext's github soon Here is a fresh codec dump straight from Linux; thank you! codec_dump1.txt Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 2 minutes ago, yamahahornist said: Here is a fresh codec dump straight from Linux; thank you! codec_dump1.txt Ok.,, take a rest. I will upload new file soon 1 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 1 hour ago, yamahahornist said: Here is a fresh codec dump straight from Linux; thank you! codec_dump1.txt Replace the old ones,, and boot. Cek your internal mic AppleALC.kext.zip Link to comment Share on other sites More sharing options...
matgeo Posted January 12, 2019 Share Posted January 12, 2019 Same problem here as above with ALC256. Laptop specs : Dell 5570 , with Intel i5-8250u and Intel uhd620. Using ssdt for alc256 , codeccommander in l/e and latest build of applealc. Problem is with headphones audio. With layout 13 or 56 internal audio is fine but no audio from headphones(headphone are recognised but no audio at all). With layout 11 or 5 audio from headphones is back but it is at low volume and it is lost after sleep. After second time waking up from sleep it comes back again. Please help fix this problem. Terminal Saved Output.txt debug_11806.zip Link to comment Share on other sites More sharing options...
ACIDSky Posted January 12, 2019 Share Posted January 12, 2019 I have a question. Anyone have a working pass-through of AC3 and DTS streams to the SPDIF output? I have on codecs ALC 1150, 892 and 887 is obtained only stereo. If you use VoodooHDA then AC3 and DTS are transmitted as is. And with AppleALC it turns out only stereo. Link to comment Share on other sites More sharing options...

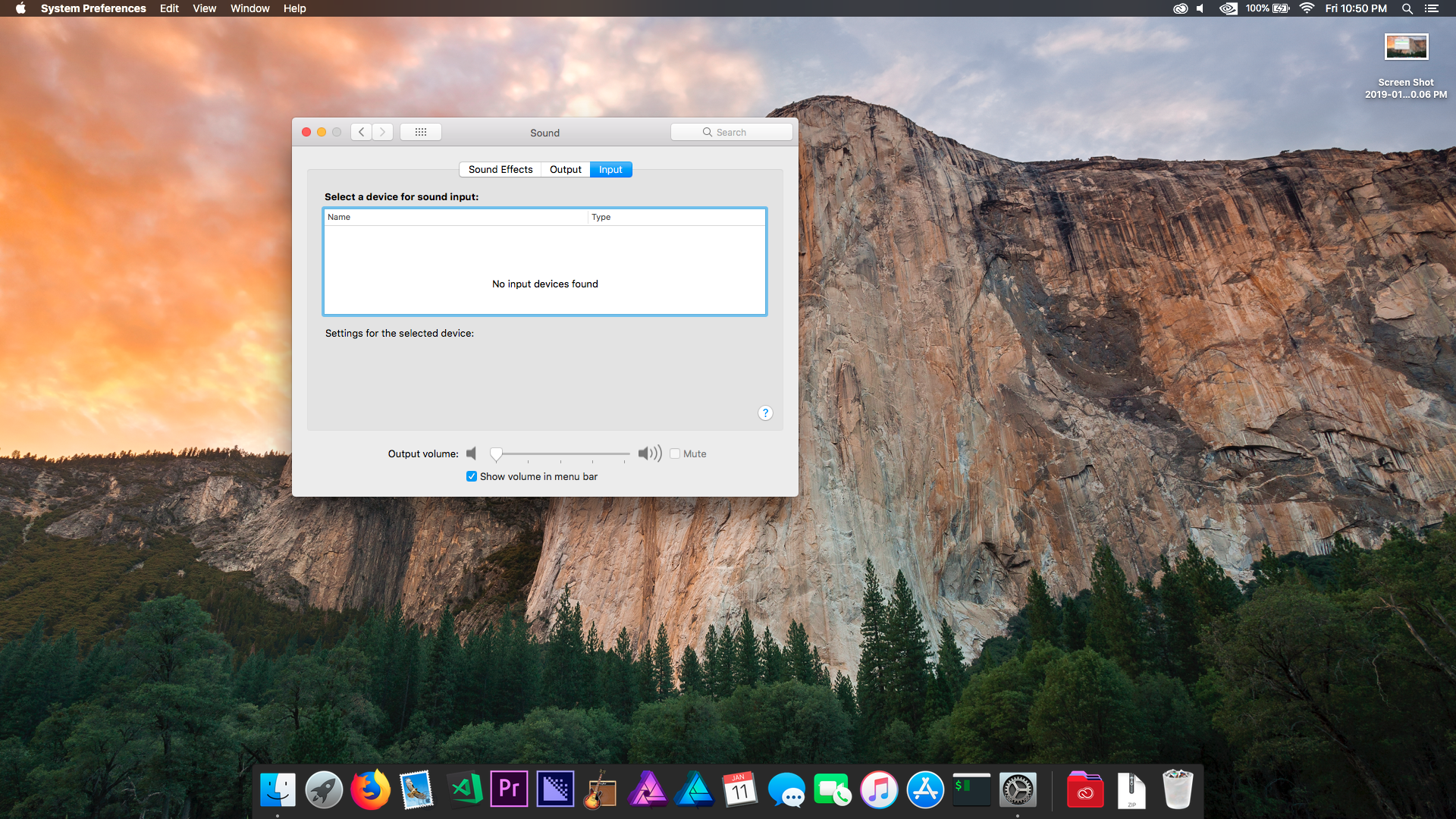

yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 7 hours ago, Andres ZeroCross said: Replace the old ones,, and boot. Cek your internal mic AppleALC.kext.zip So this one broke output and input; no devices showing in output or input Link to comment Share on other sites More sharing options...
tyufhl Posted January 12, 2019 Share Posted January 12, 2019 (edited) 1 hour ago, ACIDSky said: I have a question. Anyone have a working pass-through of AC3 and DTS streams to the SPDIF output? I have on codecs ALC 1150, 892 and 887 is obtained only stereo. If you use VoodooHDA then AC3 and DTS are transmitted as is. And with AppleALC it turns out only stereo. acidsky on realtek does not work. Edited January 12, 2019 by tyufhl Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted January 12, 2019 Share Posted January 12, 2019 1 hour ago, yamahahornist said: So this one broke output and input; no devices showing in output or input Use this,, check the internal mic AppleALC.kext.zip Link to comment Share on other sites More sharing options...
yamahahornist Posted January 12, 2019 Share Posted January 12, 2019 1 hour ago, Andres ZeroCross said: Use this,, check the internal mic AppleALC.kext.zip Output is working great; input is showing "internal microphone" but it's just white noise and isn't actually picking anything up. My laptop does have two "inputs": There is a 3.5mm jack for a microphone; then it has the built in one. Link to comment Share on other sites More sharing options...
