Mirone Posted April 28, 2016 Share Posted April 28, 2016 Edit: Yup, that's the codec I want to find. I wonder why RM was able to dump it ? It was not RehabMan who extracted this codec_dump, was @b101, RehabMan helped him with settings in your config file, I forgot to change HDAS to HDEF a silly mistake, but after that AppleHDA work, so RehabMan get CX20724 files that I had patched and added to your Github repository. EDIT: sorry for the Off Topic. 1 Link to comment Share on other sites More sharing options...
LockDown Posted April 30, 2016 Share Posted April 30, 2016 (edited) Has anyone gotten 887 or any other codec + HD4600 HDMI working?My codec (887) works but not the HDMI audio of HD4600. Its like, its not seeing codec of the iGPU. That what the log states. AppleALC: (DEBUG) alc @ found 2u audio controllers AppleALC: (DEBUG) alc @ validating 0u controller 8086:412:6 AppleALC: (DEBUG) alc @ comparing to 0u mod 8086:8CA0 AppleALC: (DEBUG) alc @ comparing to 1u mod 8086:C0C AppleALC: (DEBUG) alc @ comparing to 2u mod 8086:8D20 AppleALC: (DEBUG) alc @ comparing to 3u mod 8086:412 AppleALC: (DEBUG) alc @ found mod for 0u controller AppleALC: (DEBUG) alc @ validating 1u controller 8086:C0C:6 AppleALC: (DEBUG) alc @ comparing to 0u mod 8086:8CA0 AppleALC: (DEBUG) alc @ comparing to 1u mod 8086:C0C AppleALC: (DEBUG) alc @ found mod for 1u controller AppleALC: (DEBUG) alc @ applying patches for 2u kext AppleALC: (DEBUG) alc @ applying 0u patch for 2u kext AppleALC: (DEBUG) mach @ getRunningPosition <ptr> of memory 69000u size AppleALC: (DEBUG) alc @ applying patches for 2u kext AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleLPC AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleSMBusPCI AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleOSXWatchdog AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.vecLib.kext AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOAudioFamily AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOHDAFamily AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHDAController AppleALC: (DEBUG) patcher @ caught the right kext at <ptr>, invoking handler AppleALC: (DEBUG) mach @ aslr/load slide is 0x<ptr> AppleALC: (DEBUG) alc @ failed to find a suitable codec, we have nothing to do AppleALC: (DEBUG) alc @ applying patches for 1u kext AppleALC: (DEBUG) alc @ applying patches for 1u kext AppleALC: (DEBUG) alc @ applying 4u patch for 1u kext AppleALC: (DEBUG) mach @ getRunningPosition <ptr> of memory 1e000u size AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IONDRVSupport AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOSMBusFamily AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleSMBusController AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHV AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOSurface AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleIntelHD5000Graphics AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.corecapture AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.CoreCaptureResponder AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.Dont_Steal_Mac_OS_X AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.kext.OSvKernDSPLib AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.DspFuncLib AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHDA AppleALC: (DEBUG) patcher @ caught the right kext at <ptr>, invoking handler AppleALC: (DEBUG) mach @ aslr/load slide is 0x<ptr> AppleALC: (DEBUG) alc @ found unsupported Intel codec 0x2807 revision 0x100000 AppleALC: (DEBUG) alc @ failed to find a suitable codec, we have nothing to do AppleALC: (DEBUG) alc @ applying patches for 3u kext AppleALC: (DEBUG) alc @ applying patches for 3u kext AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.ricky.driver.Disabler AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleMCCSControl AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleUpstreamUserClient AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOBluetoothFamily AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOBluetoothSerialManager AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHDAHardwareConfigDriver AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleGraphicsControl AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleGraphicsDevicePolicy AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOUserEthernet AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.pmtelemetry AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.kext.triggers AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.filesystems.autofs AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.X86PlatformShim AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.ApplePlatformEnabler AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AGPM can you share what you have done in the DSDT please. Note: Both works with Toleda's method. Edited May 1, 2016 by ellaosx Link to comment Share on other sites More sharing options...
LockDown Posted May 2, 2016 Share Posted May 2, 2016 problem solved by manipulating sources for my preference. 1 Link to comment Share on other sites More sharing options...
Micky1979 Posted May 3, 2016 Share Posted May 3, 2016 HD4600-HDMI connectors are inside the azul kext, DSDT does nothing less/at least that inject the id-platform-ig. So it's "video" related 2 Link to comment Share on other sites More sharing options...
LockDown Posted May 4, 2016 Share Posted May 4, 2016 The poblem was the default connector of applealc for azul. And even some patches for applehdacontroller. Chaged it and it worked Link to comment Share on other sites More sharing options...
Denicio Posted May 4, 2016 Share Posted May 4, 2016 Important!! 1. Your AppleHDA.kext MUST be clean (vanilla) 2. HDEF section in your DSDT (or clover fix FixHDA_8000->True) 3. Layout-id specified in your DSDT (or clover Audio->Inject) 4. Remove ALL patches for audio from your config.plist KextsToPatch 5. Remove DummyHDA.kext from S/L/E (if exists) 6. Remove VoodooHDA.kext and AppleHDADisabler.kext (if exists) 7. Intel HDMI Audio on HD4000/HD4600 - use clover key UseIntelHDMI->True Thanks for mentioning DSDT-alternative options, worked like a charm! 1 Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 I have a Conexant CX20757 card (<"pci8086,8c20">) and couldn't get it to work. There's "failed to find a suitable codec, we have nothing to do" and "missing ControllerModInfo for 0u controller" in the log. 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) init @ boot arguments disabled 0, debug 1 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) init @ initialising AppleALC with policy mode 5/7/16 6:11:42.000 AM kernel[0]: calling mpo_policy_init for AppleALC 5/7/16 6:11:42.000 AM kernel[0]: Security policy loaded: AppleALC Kernel Module (AppleALC) 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) init @ policy hit 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) init @ initialising enabler 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ MachInfo asKernel 1 object constructed 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Address of interrupt 80 stub is 0x<ptr> 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found kernel mach-o header address at <ptr> 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found executable at path: /System/Library/Kernels/kernel 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found TEXT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found LINKEDIT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found SYMTAB 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Address of interrupt 80 stub is 0x<ptr> 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found kernel mach-o header address at <ptr> 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ aslr/load slide is 0x13800000 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ MachInfo asKernel 0 object constructed 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found executable at path: /System/Library/Extensions/AppleHDA.kext/Contents/PlugIns/AppleHDAController.kext/Contents/MacOS/AppleHDAController 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found TEXT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found LINKEDIT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found SYMTAB 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ loaded kinfo com.apple.driver.AppleHDAController at 1u index 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found symbol _OSKextLoadedKextSummariesUpdated at 0x<ptr> (non-aslr 0x<ptr>) 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ _OSKextLoadedKextSummariesUpdated address <ptr> value 2E66C35DE5894855 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found symbol _gLoadedKextSummaries at 0x<ptr> (non-aslr 0x<ptr>) 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ _gLoadedKextSummaries address <ptr> 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ diff <ptr> argument 81D4F77B 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ MachInfo asKernel 0 object constructed 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found executable at path: /System/Library/Extensions/AppleIntelFramebufferAzul.kext/Contents/MacOS/AppleIntelFramebufferAzul 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found TEXT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found LINKEDIT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found SYMTAB 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ loaded kinfo com.apple.driver.AppleIntelFramebufferAzul at 2u index 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ MachInfo asKernel 0 object constructed 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found executable at path: /System/Library/Extensions/AppleHDA.kext/Contents/MacOS/AppleHDA 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found TEXT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found LINKEDIT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found SYMTAB 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ loaded kinfo com.apple.driver.AppleHDA at 3u index 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ MachInfo asKernel 0 object constructed 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ Found executable at path: /System/Library/Extensions/AppleIntelFramebufferCapri.kext/Contents/MacOS/AppleIntelFramebufferCapri 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found TEXT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found LINKEDIT 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) mach @ header processing found SYMTAB 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ loaded kinfo com.apple.driver.AppleIntelFramebufferCapri at 4u index 5/7/16 6:11:42.000 AM kernel[0]: AppleALC: (DEBUG) init @ policy hit 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOAcceleratorFamily2 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.AppleGraphicsDeviceControl 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleIntelFramebufferAzul 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ caught the right kext at <ptr>, invoking handler 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) mach @ aslr/load slide is 0x<ptr> 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) ioutil @ failed to find IGPU 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) ioutil @ failed to find HDAU 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) util @ getOSData vendor-id has 8086 value 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) util @ getOSData device-id has 8C20 value 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) util @ getOSData revision-id has 5 value 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) util @ getOSData layout-id has 3 value 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) util @ getOSData AAPL,ig-platform-id was not found 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ found 1u audio controllers 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ validating 0u controller 8086:8C20:5 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 0u mod 8086:8CA0 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 1u mod 8086:C0C 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 2u mod 8086:8D20 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 3u mod 8086:412 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 4u mod 8086:166 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 5u mod 8086:166 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ comparing to 6u mod 8086:166 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ missing ControllerModInfo for 0u controller 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IONDRVSupport 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOSlowAdaptiveClockingFamily 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleIntelSlowAdaptiveClocking 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHV 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is org.emlydinesh.driver.ApplePS2SmartTouchPad 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.IOPlatformPluginFamily 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleSMC 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.X86PlatformPlugin 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleSMBusPCI 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.vecLib.kext 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOAudioFamily 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.iokit.IOHDAFamily 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ invoked at kext loading/unloading 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ last kext is <ptr> and its name is com.apple.driver.AppleHDAController 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) patcher @ caught the right kext at <ptr>, invoking handler 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) mach @ aslr/load slide is 0x<ptr> 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ failed to find a suitable codec, we have nothing to do 5/7/16 6:11:46.000 AM kernel[0]: AppleALC: (DEBUG) alc @ missing ControllerModInfo for 0u controller Codec: Conexant CX20757 Address: 0 AFG Function Id: 0x1 (unsol 1) Vendor Id: 0x14f15115 Subsystem Id: 0x17aac03f Revision Id: 0x100100 No Modem Function Group found Default PCM: rates [0x160]: 44100 48000 96000 bits [0xe]: 16 20 24 formats [0x1]: PCM Default Amp-In caps: N/A Default Amp-Out caps: N/A State of AFG node 0x01: Power states: D0 D1 D2 D3 D3cold S3D3cold CLKSTOP EPSS Power: setting=D0, actual=D0 GPIO: io=3, o=0, i=0, unsolicited=1, wake=0 IO[0]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[1]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 IO[2]: enable=0, dir=0, wake=0, sticky=0, data=0, unsol=0 Node 0x10 [Audio Output] wcaps 0xc1d: Stereo Amp-Out R/L Control: name="Headphone Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Headphone Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Device: name="CX20757 Analog", type="Audio", device=0 Amp-Out caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1 Amp-Out vals: [0x80 0x80] Converter: stream=5, channel=0 PCM: rates [0x60]: 44100 48000 bits [0xa]: 16 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x11 [Audio Output] wcaps 0xc1d: Stereo Amp-Out R/L Control: name="Speaker Playback Volume", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Control: name="Speaker Playback Switch", index=0, device=0 ControlAmp: chs=3, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1 Amp-Out vals: [0x36 0x36] Converter: stream=5, channel=0 PCM: rates [0x60]: 44100 48000 bits [0xa]: 16 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x12 [Beep Generator Widget] wcaps 0x70000c: Mono Amp-Out Control: name="Beep Playback Volume", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Control: name="Beep Playback Switch", index=0, device=0 ControlAmp: chs=1, dir=Out, idx=0, ofs=0 Amp-Out caps: ofs=0x07, nsteps=0x07, stepsize=0x0f, mute=0 Amp-Out vals: [0x03] Node 0x13 [Audio Input] wcaps 0x100d1b: Stereo Amp-In R/L Control: name="Capture Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=2, ofs=0 Control: name="Capture Switch", index=0, device=0 ControlAmp: chs=3, dir=In, idx=2, ofs=0 Device: name="CX20757 Analog", type="Audio", device=0 Amp-In caps: ofs=0x4a, nsteps=0x50, stepsize=0x03, mute=1 Amp-In vals: [0x80 0x80] [0x50 0x50] [0x50 0x50] Converter: stream=1, channel=0 SDI-Select: 0 PCM: rates [0x160]: 44100 48000 96000 bits [0xa]: 16 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 3 0x18 0x1a* 0x19 Node 0x14 [Audio Input] wcaps 0x100d1b: Stereo Amp-In R/L Amp-In caps: ofs=0x4a, nsteps=0x50, stepsize=0x03, mute=1 Amp-In vals: [0x4a 0x4a] [0x4a 0x4a] [0x4a 0x4a] Converter: stream=0, channel=0 SDI-Select: 0 PCM: rates [0x160]: 44100 48000 96000 bits [0xa]: 16 24 formats [0x1]: PCM Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 3 0x19* 0x1a 0x15 Node 0x15 [Audio Mixer] wcaps 0x20050b: Stereo Amp-In Amp-In caps: ofs=0x4a, nsteps=0x4a, stepsize=0x03, mute=1 Amp-In vals: [0x00 0x00] [0x00 0x00] Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x10 0x11 Node 0x16 [Pin Complex] wcaps 0x400581: Stereo Pincap 0x0000001c: OUT HP Detect Pin Default 0x03211040: [Jack] HP Out at Ext Left Conn = 1/8, Color = Black DefAssociation = 0x4, Sequence = 0x0 Pin-ctls: 0xc0: OUT HP Unsolicited: tag=01, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x10* 0x11 Node 0x17 [Pin Complex] wcaps 0x400501: Stereo Pincap 0x00000010: OUT Pin Default 0x90170110: [Fixed] Speaker at Int N/A Conn = Analog, Color = Unknown DefAssociation = 0x1, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x40: OUT Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Connection: 2 0x10 0x11* Node 0x18 [Pin Complex] wcaps 0x40048b: Stereo Amp-In Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x2f, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00001124: IN Detect Vref caps: HIZ 80 Pin Default 0x40f001f0: [N/A] Other at Ext N/A Conn = Unknown, Color = Unknown DefAssociation = 0xf, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x00: VREF_HIZ Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x19 [Pin Complex] wcaps 0x40048b: Stereo Amp-In Control: name="Mic Boost Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x2f, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00001124: IN Detect Vref caps: HIZ 80 Pin Default 0x03a11030: [Jack] Mic at Ext Left Conn = 1/8, Color = Black DefAssociation = 0x3, Sequence = 0x0 Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=02, enabled=1 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1a [Pin Complex] wcaps 0x40048b: Stereo Amp-In Control: name="Internal Mic Boost Volume", index=0, device=0 ControlAmp: chs=3, dir=In, idx=0, ofs=0 Amp-In caps: ofs=0x00, nsteps=0x03, stepsize=0x2f, mute=0 Amp-In vals: [0x00 0x00] Pincap 0x00001120: IN Vref caps: HIZ 80 Pin Default 0x95a70120: [Fixed] Mic at Int Top Conn = Analog, Color = Unknown DefAssociation = 0x2, Sequence = 0x0 Misc = NO_PRESENCE Pin-ctls: 0x24: IN VREF_80 Unsolicited: tag=00, enabled=0 Power states: D0 D1 D2 D3 EPSS Power: setting=D0, actual=D0 Node 0x1b [Vendor Defined Widget] wcaps 0xf00000: Mono Node 0x1c [Vendor Defined Widget] wcaps 0xf00000: Mono Relevant part of config.plist: <key>Devices</key> <dict> <key>FakeID</key> <dict> <key>IntelGFX</key> <string>0x04128086</string> </dict> <key>Audio</key> <dict> <key>Inject</key> <string>3</string> </dict> </dict> <key>Graphics</key> <dict> <key>Inject</key> <dict> <key>ATI</key> <false/> <key>Intel</key> <true/> <key>NVidia</key> <false/> </dict> <key>ig-platform-id</key> <string>0x0a260006</string> </dict> $ sw_vers ProductName: Mac OS X ProductVersion: 10.11.4 BuildVersion: 15E65 Link to comment Share on other sites More sharing options...
vandroiy2012 Posted May 7, 2016 Share Posted May 7, 2016 I have a Conexant CX20757 card (<"pci8086,8c20">) and couldn't get it to work. There's "failed to find a suitable codec, we have nothing to do" and "missing ControllerModInfo for 0u controller" in the log. Important!! 1. Your AppleHDA.kext MUST be clean (vanilla) 2. HDEF section in your DSDT (or clover fix FixHDA_8000->True) 3. Layout-id specified in your DSDT (or clover Audio->Inject) 4. Remove ALL patches for audio from your config.plist KextsToPatch 5. Remove DummyHDA.kext from S/L/E (if exists) 6. Remove VoodooHDA.kext and AppleHDADisabler.kext (if exists) 7. Intel HDMI Audio on HD4000/HD4600 - use clover key UseIntelHDMI->True Especially pay attention on paragraph 1 and 2 Then give me info.plist with attached script and terminal output. Codec-Info.command.zip And DarwinDumper report please. Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 Important!! 1. Your AppleHDA.kext MUST be clean (vanilla) 2. HDEF section in your DSDT (or clover fix FixHDA_8000->True) 3. Layout-id specified in your DSDT (or clover Audio->Inject) 4. Remove ALL patches for audio from your config.plist KextsToPatch 5. Remove DummyHDA.kext from S/L/E (if exists) 6. Remove VoodooHDA.kext and AppleHDADisabler.kext (if exists) 7. Intel HDMI Audio on HD4000/HD4600 - use clover key UseIntelHDMI->True Especially pay attention on paragraph 1 and 2 Then give me info.plist with attached script and terminal output. Codec-Info.command.zip And DarwinDumper report please. I got bad terminal output: $ ./Codec-Info.command HDEF@1B = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = Layout, hex: 0x00000003 , dec: 3 PinConfigurations: 00 Codecs Found: 0 HDA: ./Codec-Info.command: line 53: let: CodecID=: syntax error: operand expected (error token is "=") 0 CodecAddress: VendorID: RevisionID: CodecID: ./Codec-Info.command: line 59: let: Revisiond=: syntax error: operand expected (error token is "=") Revision(dec):= Id=0x Id(dec)=0 Vendor=0x Vendor(dec)=0 File Doesn't Exist, Will Create: /Users/l2dy/Desktop/Info.plist Merge: Error Reading File: Patch.plist ./Codec-Info.command: line 115: [: !=: unary operator expected ./Codec-Info.command: line 127: ((: < 885 : syntax error: operand expected (error token is "< 885 ") Merge: Error Reading File: Patch.plist Merge: Error Reading File: Patch.plist Merge: Error Reading File: Patch.plist ./Codec-Info.command: line 40: VendorID: bad array subscript ./Codec-Info.command: line 40: VendorID: bad array subscript ./Codec-Info.command: line 40: VendorID: bad array subscript HDA: ./Codec-Info.command: line 53: VendorID: bad array subscript ./Codec-Info.command: line 53: let: CodecID=: syntax error: operand expected (error token is "=") ./Codec-Info.command: line 54: CodecAddress: bad array subscript -1 CodecAddress: ./Codec-Info.command: line 55: VendorID: bad array subscript VendorID: ./Codec-Info.command: line 56: RevisionID: bad array subscript RevisionID: CodecID: ./Codec-Info.command: line 58: VendorID: bad array subscript ./Codec-Info.command: line 59: RevisionID: bad array subscript ./Codec-Info.command: line 59: let: Revisiond=: syntax error: operand expected (error token is "=") Revision(dec):= Id=0x Id(dec)=0 Vendor=0x Vendor(dec)=0 ./Codec-Info.command: line 74: VendorID: bad array subscript ./Codec-Info.command: line 75: VendorID: bad array subscript File Doesn't Exist, Will Create: /Users/l2dy/Desktop/Info.plist ./Codec-Info.command: line 84: VendorID: bad array subscript ./Codec-Info.command: line 84: RevisionID: bad array subscript Merge: Error Reading File: Patch.plist ./Codec-Info.command: line 115: [: !=: unary operator expected ./Codec-Info.command: line 127: ((: < 885 : syntax error: operand expected (error token is "< 885 ") Merge: Error Reading File: Patch.plist Merge: Error Reading File: Patch.plist Merge: Error Reading File: Patch.plist Link to comment Share on other sites More sharing options...

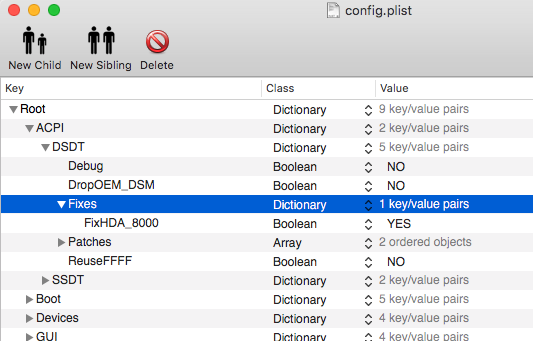

vandroiy2012 Posted May 7, 2016 Share Posted May 7, 2016 I got bad terminal output You have to resolve problem with HDEF section in DSDT or try to use Clover fix FixHDA_8000. You forgot ACPI->DSDT->Fixes AddDTGP_0001 and NewWay_8000000. And don't use Clover Configurator. Use PlistEdit Pro or TextEdit. Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 You have to resolve problem with HDEF section in DSDT or try to use Clover fix FixHDA_8000. Снимок экрана 2016-05-07 в 15.45.54.png You forgot ACPI->DSDT->Fixes AddDTGP_0001 and NewWay_8000000. And don't use Clover Configurator. Use PlistEdit Pro or TextEdit. Didn't notice any difference. Edit: I've been using git and vim for config.plist. Did used a tool to generate SMBIOS though. Link to comment Share on other sites More sharing options...

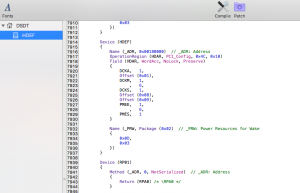

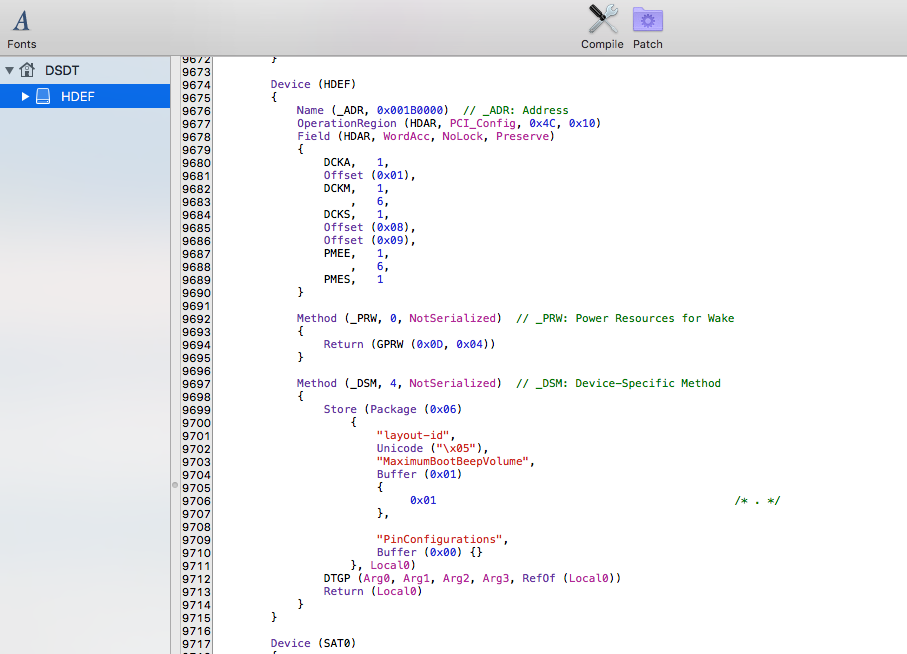

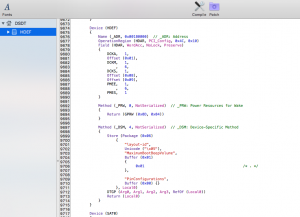

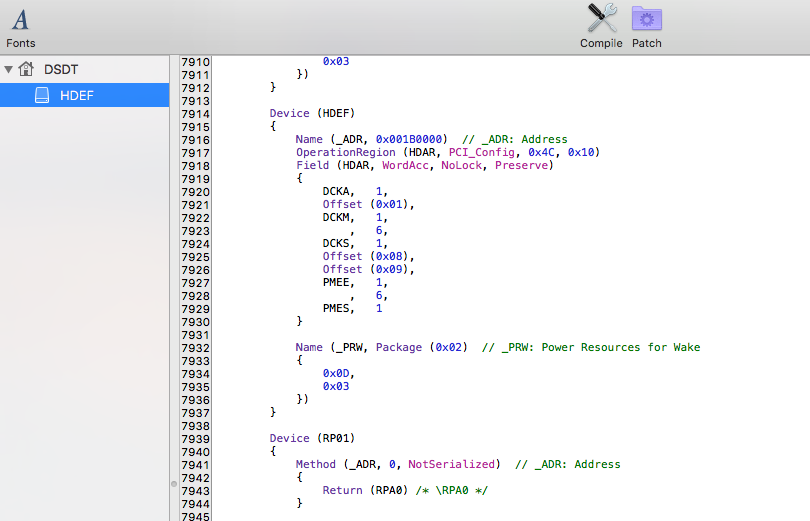

vandroiy2012 Posted May 7, 2016 Share Posted May 7, 2016 Your HDEF section must be like this And you have in DSDT this Resolve this problem and you'll have sound... Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 Your HDEF section must be like this Снимок экрана 2016-05-07 в 16.26.48.png And you have in DSDT this Снимок экрана 2016-05-07 в 16.28.07.png Resolve this problem and you'll have sound... Where can I get the patch? Link to comment Share on other sites More sharing options...
vandroiy2012 Posted May 7, 2016 Share Posted May 7, 2016 Sorry. I don't know(( I use clover to inject HDEF properties. Try to look in RehabMan's repository on GitHub https://github.com/RehabMan?tab=repositories Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 Sorry. I don't know(( I use clover to inject HDEF properties. Try to look in RehabMan's repository on GitHub https://github.com/RehabMan?tab=repositories I'm using clover too. Is it that clover won't work for my laptop? Link to comment Share on other sites More sharing options...
vandroiy2012 Posted May 7, 2016 Share Posted May 7, 2016 Really don't know((( Maybe wrong settings in config.plist... But i don't have time now to look deeper in it... Try to read Clover Wiki or ask someone to help you with this... Link to comment Share on other sites More sharing options...
al6042 Posted May 7, 2016 Share Posted May 7, 2016 @I2dy: Use Maciasl to edit your DSDT which you should extract in your Clover-Bootmenu with the use of the F4-Key. After the usage of F4-Key and reboot to OSX you will find the Original .aml files under /EFI/CLOVER/Acpi/origin. To later use this DSDT.aml you have to put it in the folder /EFI/CLOVER/Acpi/patched 1 Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 @I2dy: Use Maciasl to edit your DSDT which you should extract in your Clover-Bootmenu with the use of the F4-Key. After the usage of F4-Key and reboot to OSX you will find the Original .aml files under /EFI/CLOVER/Acpi/origin. To later use this DSDT.aml you have to put it in the folder /EFI/CLOVER/Acpi/patched I do know these. But which patch should I apply and should I remove Audio Inject from Clover? Link to comment Share on other sites More sharing options...
al6042 Posted May 7, 2016 Share Posted May 7, 2016 You use a laptop... What vendor and model is this machine? Do you have any idea which hardware components are assembled in your laptop? The result of the codec-info.command cannot find anything, since there is no inject for your AudioCodec. Can you post a screenshot from the "Status"- and "PCI-List"-Window of the app DPCI-Manager? Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 You use a laptop... What vendor and model is this machine? Do you have any idea which hardware components are assembled in your laptop? The result of the codec-info.command cannot find anything, since there is no inject for your AudioCodec. Can you post a screenshot from the "Status"- and "PCI-List"-Window of the app DPCI-Manager? lspci and codec info. Edit: Lenovo G410AM-IFI (H) it is. Link to comment Share on other sites More sharing options...

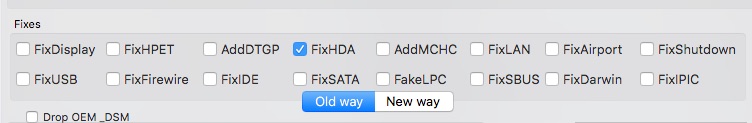

al6042 Posted May 7, 2016 Share Posted May 7, 2016 The Conexant Chip should work if you use the correct layout-id... In AppleALC the ID for your Conexant 20757 is the number 3. Did you enter that into Clover like that: and don't forget to activate the FixHDA DSDT-Patch: Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 The Conexant Chip should work if you use the correct layout-id... In AppleALC the ID for your Conexant 20757 is the number 3. Did you enter that into Clover like that: LayoutID3.jpg and don't forget to activate the FixHDA DSDT-Patch: FixHDA.jpg Didn't use the GUI but yes, I do have those in config.plist. <?xml version="1.0" encoding="UTF-8"?> <!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd"> <plist version="1.0"> <dict> <key>ACPI</key> <dict> <key>DSDT</key> <dict> <key>Fixes</key> <dict> <key>FixHDA_8000</key> <true/> <key>AddDTGP_0001</key> <true/> <key>NewWay_80000000</key> <true/> </dict> ... <key>Devices</key> <dict> <key>FakeID</key> <dict> <key>IntelGFX</key> <string>0x04128086</string> </dict> <key>USB</key> <dict> <key>FixOwnership</key> <false/> <key>Inject</key> <false/> </dict> <key>Audio</key> <dict> <key>Inject</key> <string>3</string> </dict> <key>UseIntelHDMI</key> <true/> </dict> Link to comment Share on other sites More sharing options...
al6042 Posted May 7, 2016 Share Posted May 7, 2016 In that case the AppleALC with the integrated CX20757 stuff will not work... I guess your Lenovo Laptop uses another Layout-ID for the chip... My Lenovo uses ID 28 on a ALC269 and the HP uses 12 on an IDT-Chip, so everythings possible... Link to comment Share on other sites More sharing options...
l2dy Posted May 7, 2016 Share Posted May 7, 2016 In that case the AppleALC with the integrated CX20757 stuff will not work... I guess your Lenovo Laptop uses another Layout-ID for the chip... My Lenovo uses ID 28 on a ALC269 and the HP uses 12 on an IDT-Chip, so everythings possible... How should I test different IDs? Link to comment Share on other sites More sharing options...
al6042 Posted May 7, 2016 Share Posted May 7, 2016 I just checked if there is another already patched AppleHDA for your codec around but only found Mirone's patch which is already part of the AppleALC... Let me try something for you... Link to comment Share on other sites More sharing options...
