NVMe driver for all Macs & Hacks from JimJ740 available at MacVidCards

[rominator]

Decided to start a separate thread.



Please post results, I'm curious how much faster it will be on Hacks. And curious if it can be a boot volume now.



Thanks to JimJ740.



A free driver for everyone to use, please respect the legal document for continued freebies.



http://www.macvidcards.com/nvme-driver1.html

[Smallersen]

I installed the kext on my X99 Deluxe i7 5960 system. As this hardware does not support El Capitain it´s still on Yosemite.

Yosemite system information says: NVMeGeneric.kext loadable.



So it seems this driver could also support Yosemite. Did anybody already try?

I still do not have a NVME device, would like to buy a Samsung 950.

[rominator]

I tested it in Yosemite, it works but was much slower IIRC.

[Smallersen]

What board/processor did you use? Which SSD? Native NVMe slot or PCI card? What is the speed in El Capitan and how was the speed in Yosemite? Did you manage to boot from NVMe?



Would be nice to get more information about your experiences.

[rominator]

I am testing on "Designed in Cupertino" Macs so no booting for me.



Speeds were 2/3 or so of El Cap speeds, but I'm pretty sure JimJ wrote it for El Cap so not surprising.

[Smallersen]

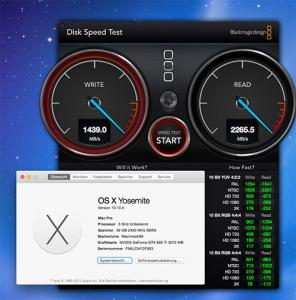

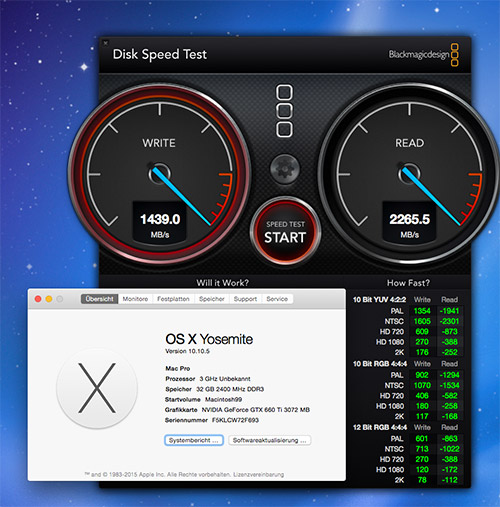

I tried it with success:



Installed a Samsung 950 Pro 512 on my Asus X99 Deluxe with 5960x processor using the onboard slot, running Yosemite (!). Absolutely no configuration in bios necessary, just partition with hd utility.
Hassle free till now, super speed with the driver NVMeGeneric.kext. The driver is working perfectly with Yosemite - and this board at least.

I dont want it as boot volume, so I didnt try this. As there is a normal EFI partition on the disk, it should work.

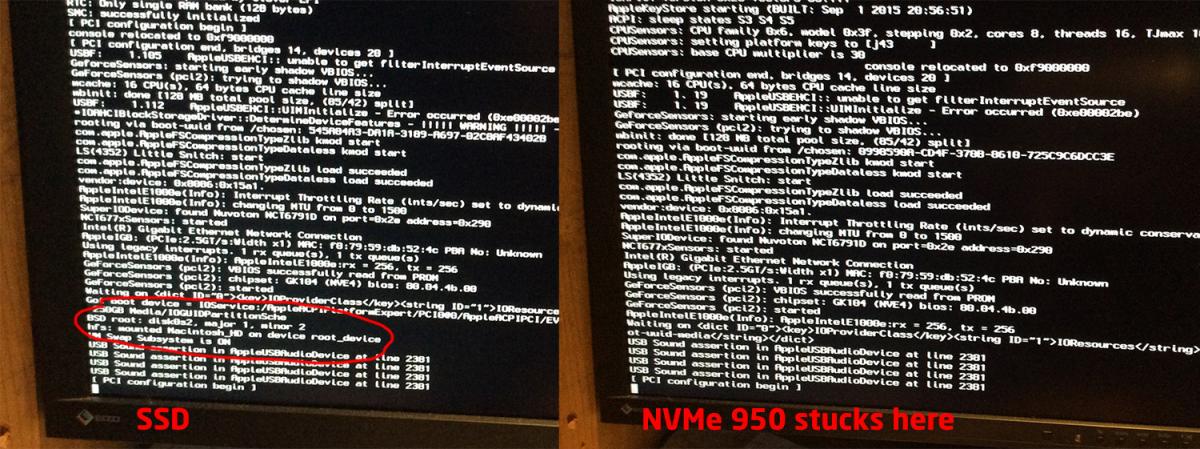

Update: Tried to boot, no luck, stuck at "PCI configuration begin". But perfect as work volume - and for aplications and cache.

[AppleIIGuy]

My GA-Z97X-UD5H can now boot from my 950 EVO NVME. I have it in a 4x pcie  adapter due to the m.2 slot only being 2x on the motherboard





[rominator]

Great that it is working.



Grateful to JimJ740 for his gift to the Mac community.

[magnifico]

My GA-Z97X-UD5H can now boot from my 950 EVO NVME. I have it in a 4x pcie  adapter due to the m.2 slot only being 2x on the motherboard

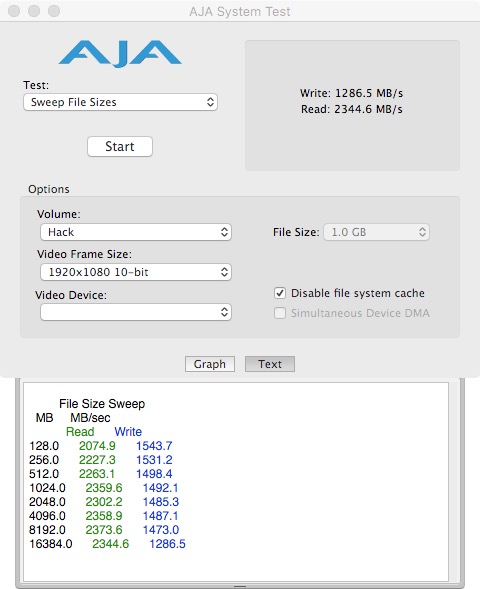

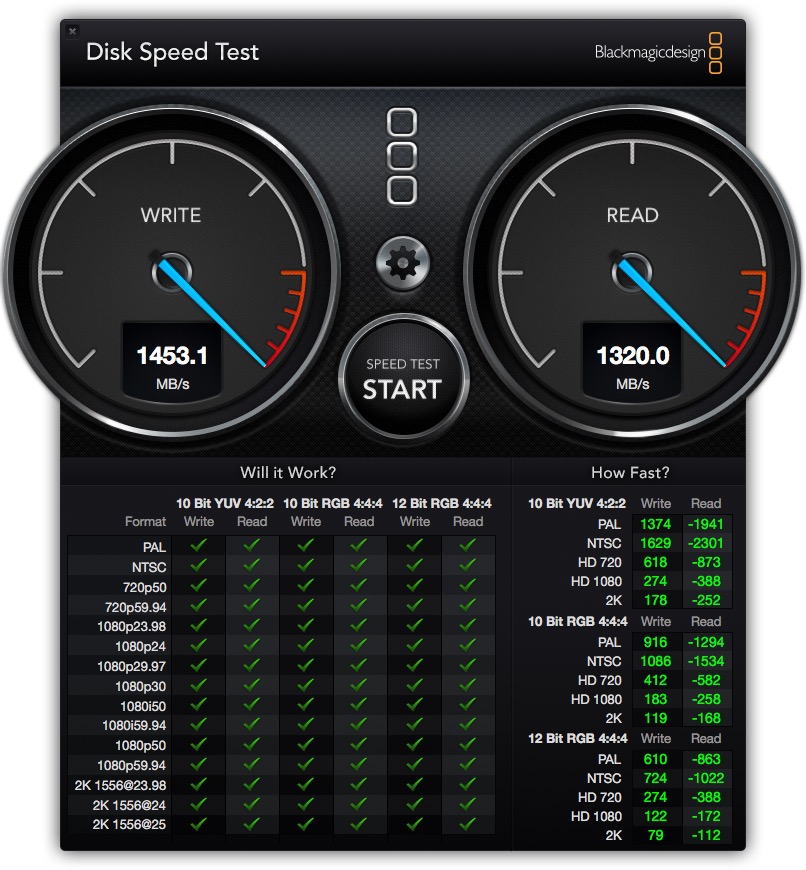

AJA.jpg 950 NVME.jpg

but it is bootable?

[AppleIIGuy]

but it is bootable?

Yes it boots from the NVMe drive. UEFI Bios sees the drive after it is formatted. Clover sees it also.

[magnifico]

Yes it boots from the NVMe drive. UEFI Bios sees the drive after it is formatted. Clover sees it also.

Listen me...even if I put it in the slot m2 Ultra?

[AppleIIGuy]

If your bios has nvme support. (which it should). I believe the m.2 slots on 97x motherboards are PCIe x2. At least mine is that is why I have a PCIe X4 to M.2 card

[magnifico]

If your bios has nvme support. (which it should). I believe the m.2 slots on 97x motherboards are PCIe x2. At least mine is that is why I have a PCIe X4 to M.2 card

No no on asrock in firme. .It is a m2 ultrà

[magnifico]

@ AppleIIGuy



but you can install on the ssd , that you inject the kext from clover? And during installation see the ssd nvme?

[AppleIIGuy]

I don't see why it wouldn't work if you put the nvme driver on the usb install stick

[magnifico]

sorry ... but you have not tried to do a clean install on this nvme? It seems strange to me .... and I'll explain why: I do not see the disk from the BIOS ... and yet ... I BIOS has support for nvme.

So You have cloned osx on It? And You have set To bios. .The first boot?

[AppleIIGuy]

Bios didn't see mine until i formatted it as gpt.

[iStigPL]

OK I've tested the driver with Intel 750 PCI-E 400GB and there are some questions.



1. in log file I've noticed "unable to map BAR4 resources" - is it important ?

30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: com_MinnowStor_NVMeDisk::start
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: This driver must be licensed for commercial use.
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: This driver may not be posted, distributed, bundled, shared, or sold without the written consent of MinnowStor.com
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: This driver is free for personal, non-commercial use.
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: No guarantee of performance, suitibility, or warranty expressed or implied. Use at your own risk.
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: Copyright 2015 MinnowStor, all rights reserved.
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: devid 9538086 subdev 370d
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: class 1, subclass 8
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: Generic NVMe Device
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: unable to map BAR4 resources
30.12.2015 11:18:13,000 kernel[0]: NVMeGeneric: Using INTX interrupts
30.12.2015 11:18:13,000 kernel[0]: Got boot device = IOService:/AppleACPIPlatformExpert/PCI0@0/AppleACPIPCI/PEG1@1,1/IOPP/PEGP@0/com_MinnowStor_NVMeDisk/com_MinnowStor_NVMeDiskStorageDevice/IOBlockStorageDriver/MinnowStor INTEL SSDPEDMW400G4 Media/IOGUIDPartitionScheme/MacOS@2

2. it seems the driver has some problem with handling sleep/wake. After waking my screen is showing with login, but you can not type, like the system freeze. After some time (quite long) it is possible to login and it seems everything is working ok, but there are some errors in logs and I'm wondering if it is safe to use sleep....

23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:52 nsid:1 lba:41931568 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:52 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:125 nsid:1 lba:40004104 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:125 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:91 nsid:1 lba:40008032 len:160
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:91 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:126 nsid:1 lba:40008192 len:40
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:126 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:70 nsid:1 lba:40966984 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:70 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:104 nsid:1 lba:40010672 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:104 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:77 nsid:1 lba:40061040 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:77 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:60 nsid:1 lba:40099568 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:60 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:119 nsid:1 lba:40099584 len:48
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:119 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:86 nsid:1 lba:40103184 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:86 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:83 nsid:1 lba:40857912 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:83 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:72 nsid:1 lba:40103192 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:72 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:118 nsid:1 lba:84410872 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:118 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:115 nsid:1 lba:84410880 len:32
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:115 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:113 nsid:1 lba:40109264 len:48
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:113 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:61 nsid:1 lba:40109312 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:61 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:80 nsid:1 lba:40109328 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:80 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:82 nsid:1 lba:46535984 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:82 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:63 nsid:1 lba:46536240 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:63 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:114 nsid:1 lba:46536248 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:114 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:107 nsid:1 lba:46536256 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:107 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:111 nsid:1 lba:46536264 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:111 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:106 nsid:1 lba:57849736 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:106 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:97 nsid:1 lba:58081880 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:97 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:13 nsid:1 lba:49986968 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:13 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:98 nsid:1 lba:49978400 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:98 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:84 nsid:1 lba:41858152 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:84 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:103 nsid:1 lba:41857968 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:103 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:58 nsid:1 lba:41858160 len:8
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:58 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:123 nsid:1 lba:42547632 len:80
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:123 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:102 nsid:1 lba:42547712 len:56
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:102 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:2 nsid:1 lba:38275104 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:2 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:79 nsid:1 lba:46276816 len:16
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:79 cdw0:0
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: async event occurred (log page id=0x1)
23.12.2015 17:26:42,000 kernel[0]: NVMeGeneric: aer completion data
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:12,000 kernel[0]: NVMeGeneric: nvme_timeout
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:52 nsid:1 lba:41931568 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:52 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:125 nsid:1 lba:40004104 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:125 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:91 nsid:1 lba:40008032 len:160
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:91 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:126 nsid:1 lba:40008192 len:40
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:126 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:70 nsid:1 lba:40966984 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:70 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:104 nsid:1 lba:40010672 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:104 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:77 nsid:1 lba:40061040 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:77 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:60 nsid:1 lba:40099568 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:60 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:119 nsid:1 lba:40099584 len:48
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:119 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:86 nsid:1 lba:40103184 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:86 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:83 nsid:1 lba:40857912 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:83 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:72 nsid:1 lba:40103192 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:72 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:118 nsid:1 lba:84410872 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:118 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:115 nsid:1 lba:84410880 len:32
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:115 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:113 nsid:1 lba:40109264 len:48
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:113 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:61 nsid:1 lba:40109312 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:61 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:80 nsid:1 lba:40109328 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:80 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:82 nsid:1 lba:46535984 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:82 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:63 nsid:1 lba:46536240 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:63 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:114 nsid:1 lba:46536248 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:114 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:107 nsid:1 lba:46536256 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:107 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:111 nsid:1 lba:46536264 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:111 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:106 nsid:1 lba:57849736 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:106 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:97 nsid:1 lba:58081880 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:97 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:13 nsid:1 lba:49986968 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:13 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:98 nsid:1 lba:49978400 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:98 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:84 nsid:1 lba:41858152 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:84 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:103 nsid:1 lba:41857968 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:103 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:58 nsid:1 lba:41858160 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:58 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:123 nsid:1 lba:42547632 len:80
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:123 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:102 nsid:1 lba:42547712 len:56
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:102 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:2 nsid:1 lba:38275104 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:2 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:79 nsid:1 lba:46276816 len:16
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:79 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:11 nsid:1 lba:433488 len:1
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:11 cdw0:0
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:90 nsid:1 lba:46536272 len:8
23.12.2015 17:27:18,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:90 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:86 nsid:1 lba:40968760 len:8
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:86 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:70 nsid:1 lba:40968784 len:8
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:70 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:91 nsid:1 lba:42555752 len:8
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:91 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:61 nsid:1 lba:42248576 len:8
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:61 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:104 nsid:1 lba:42294600 len:8
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:104 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:83 nsid:1 lba:5204544 len:16
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:83 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:13 nsid:1 lba:730096 len:16
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:13 cdw0:0
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: async event occurred (log page id=0x1)
24.12.2015 12:01:31,000 kernel[0]: NVMeGeneric: aer completion data
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:01,000 kernel[0]: NVMeGeneric: nvme_timeout
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:86 nsid:1 lba:40968760 len:8
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:86 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:70 nsid:1 lba:40968784 len:8
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:70 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:91 nsid:1 lba:42555752 len:8
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:91 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:61 nsid:1 lba:42248576 len:8
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:61 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: WRITE sqid:1 cid:104 nsid:1 lba:42294600 len:8
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:104 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:83 nsid:1 lba:5204544 len:16
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:83 cdw0:0
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: aborting outstanding i/o
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: READ sqid:1 cid:13 nsid:1 lba:730096 len:16
24.12.2015 12:02:07,000 kernel[0]: NVMeGeneric: ABORTED - BY REQUEST (00/07) sqid:1 cid:13 cdw0:0

[onmybikedrunk]

Thanks you JimJ740!  Thanks Rom for all your work too... Been reading your posts for years over at netkas...  Anyway, got my Samsung 950 Pro up and running (boot volume - 10.10.5/Clover) via the Asus X99 Sabertooth machine listed in my sig.  This particular MB features a x4 M.2 slot on-board.   Still no El Capitan on the 5960X (we're trying!) but works rather well in Yosemite.  Not sure I'll keep it as a boot disk though.  Getting around 2400 read and 1500 write.  That's with AJA Standalone test.  Since I'm on a 5960X I had to do the install via an SSD Dock on my real Mac then throw the drive in my Hack and next cloned it to the NVMe.  Installed Clover in the EFI with the NVMeGeneric.kext in the 10.10 folder with "Inject Kexts" set to "Yes".  Couldn't be happier, especially since these were on sale at Frys last week for $300 for the 512GB version.



Side note: Speaking of 10.11 refusing to boot on the 5960X... a group of 5960X users have gotten together with the sole purpose of finding a coder to help us out with the issue.  The contributor that puts in the most time/help to get this solved gets a donated 5960X, 16Gb 2666 DDR and some cash to help further their work.  Not a bad deal...  We started a thread here on IM -- plenty more details there.  We started a gofundme to eliminate the phony folks who swear to donate to the coder that solves the issue.  Instead it's all there up front.  Cash donations can be seen from the link in my sig.



Thanks JimJ!



Edited January 2, 2016 by onmybikedrunk

[Smallersen]

Hi onmybikedrunk



Did you try to reboot several times?



I have a Asus x99 Deluxe with 5960x and 950 Pro NVMe. After a lot of  trying I managed to boot from 950 Pro, but only twice. Would you mind to post your Clover config here, which EFI drivers you are using, which kexts and so on. Would be very helpful.



It seems while booting from NVMe 950 my system does not see the BSD subsystem, so stucks at "Configuration begin". Dont know how to solve this. No problem when booting from a normal SSD with same settings.

[magnifico]

Hi onmybikedrunk



Did you try to reboot several times?



I have a Asus x99 Deluxe with 5960x and 950 Pro NVMe. After a lot of trying I managed to boot from 950 Pro, but only twice. Would you mind to post your Clover config here, which EFI drivers you are using, which kexts and so on. Would be very helpful.



It seems while booting from NVMe 950 my system does not see the BSD subsystem, so stucks at "Configuration begin". Dont know how to solve this. No problem when booting from a normal SSD with same settings.

Have you set in BIOS ( first boot) 950 pro ?

[Smallersen]

Yes, of course.



I also tried to boot with just the 950 Pro connected, or loading EFI from normal SSD and switch in Clover boot screen to 950 Pro, without success.



But this is strange: The 950 Pro has only a entry "UEFI OS"without addition in BIOS, while the normal SSD is named "UEFI OS (P7: Samsung 850 ..."

[magnifico]

Yes, of course.



I also tried to boot with just the 950 Pro connected, or loading EFI from normal SSD and switch in Clover boot screen to 950 Pro, without success.



But this is strange: The 950 Pro has only a entry "UEFI OS"without addition in BIOS, while the normal SSD is named "UEFI OS (P7: Samsung 850 ..."

Have you installed on it clover boot?

Yes, of course.



I also tried to boot with just the 950 Pro connected, or loading EFI from normal SSD and switch in Clover boot screen to 950 Pro, without success.



But this is strange: The 950 Pro has only a entry "UEFI OS"without addition in BIOS, while the normal SSD is named "UEFI OS (P7: Samsung 850 ..."

Have you installed on it clover boot?

[Smallersen]

Yes, Clover folder is on EFI partition of 950 Pro.



There is a entry in Bios accordingly to the P... named entrys "N1: Samsung 950 Pro..." which is not usable as UEFI boot at all (of course). The "UEFI OS" entry does not have the addition "UEFI OS (N1:Samsung 950...) .



I start to think it is not a BIOS problem but a Clover/Kext problem not recognizing the BSD root system. See attached file where the file system entrys are missing.



Missing:

BSD root:...
hfs:...
VM Swap Subsystem is ON

[magnifico]

Yes, Clover folder is on EFI partition of 950 Pro.



There is a entry in Bios accordingly to the P... named entrys "N1: Samsung 950 Pro..." which is not usable as UEFI boot at all (of course). The "UEFI OS" entry does not have the addition "UEFI OS (N1:Samsung 950...) .



I start to think it is not a BIOS problem but a Clover/Kext problem not recognizing the BSD root system. See attached file where the file system entrys are missing.



Missing:

BSD root:...

hfs:...

VM Swap Subsystem is ON

Many strange. ..can you attached pic your BIOS about boot manager?
