cmanns
cmanns
Posted
Posted

i7-5820K

I can't get About this mac to see it as anything other then 6-Core Intel Xeon to run Intel Gadget

HW Sensors info shows x39 multi as the highest during Geekbench 3

cmanns$ sysctl machdep.xcpm
machdep.xcpm.mode: 1
machdep.xcpm.hard_plimit_max_100mhz_ratio: 41
machdep.xcpm.hard_plimit_min_100mhz_ratio: 8
machdep.xcpm.soft_plimit_max_100mhz_ratio: 41
machdep.xcpm.soft_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_plimit_max_100mhz_ratio: 41
machdep.xcpm.tuib_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_enabled: 0
machdep.xcpm.power_source: 0
machdep.xcpm.bootplim: 0
machdep.xcpm.bootpst: 41
machdep.xcpm.tuib_ns: 0
machdep.xcpm.ratio_changes_total: 202182
machdep.xcpm.maxbusdelay: 4294967295
machdep.xcpm.maxintdelay: 0
machdep.xcpm.mbd_mode: 1
machdep.xcpm.mbd_applications: 3
machdep.xcpm.mbd_relaxations: 3
machdep.xcpm.forced_idle_ratio: 100
machdep.xcpm.forced_idle_period: 30000000
machdep.xcpm.deep_idle_log: 0
machdep.xcpm.qos_txfr: 1
machdep.xcpm.deep_idle_count: 0
machdep.xcpm.deep_idle_last_stats: n/a
machdep.xcpm.deep_idle_total_stats: n/a
machdep.xcpm.cpu_thermal_level: 0
machdep.xcpm.gpu_thermal_level: 0
machdep.xcpm.io_thermal_level: 0
machdep.xcpm.io_control_engages: 0
machdep.xcpm.io_control_disengages: 1
machdep.xcpm.io_filtered_reads: 0



This is without null, without SSDT generated for OC (4.1ghz x41 OC) EPU & TPU II enabled

Link to comment
Share on other sites
nmano
nmano
Posted
Posted

i7-5820K



I can't get About this mac to see it as anything other then 6-Core Intel Xeon to run Intel Gadget



HW Sensors info shows x39 multi as the highest during Geekbench 3



cmanns$ sysctl machdep.xcpm
machdep.xcpm.mode: 1
machdep.xcpm.hard_plimit_max_100mhz_ratio: 41
machdep.xcpm.hard_plimit_min_100mhz_ratio: 8
machdep.xcpm.soft_plimit_max_100mhz_ratio: 41
machdep.xcpm.soft_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_plimit_max_100mhz_ratio: 41
machdep.xcpm.tuib_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_enabled: 0
machdep.xcpm.power_source: 0
machdep.xcpm.bootplim: 0
machdep.xcpm.bootpst: 41
machdep.xcpm.tuib_ns: 0
machdep.xcpm.ratio_changes_total: 202182
machdep.xcpm.maxbusdelay: 4294967295
machdep.xcpm.maxintdelay: 0
machdep.xcpm.mbd_mode: 1
machdep.xcpm.mbd_applications: 3
machdep.xcpm.mbd_relaxations: 3
machdep.xcpm.forced_idle_ratio: 100
machdep.xcpm.forced_idle_period: 30000000
machdep.xcpm.deep_idle_log: 0
machdep.xcpm.qos_txfr: 1
machdep.xcpm.deep_idle_count: 0
machdep.xcpm.deep_idle_last_stats: n/a
machdep.xcpm.deep_idle_total_stats: n/a
machdep.xcpm.cpu_thermal_level: 0
machdep.xcpm.gpu_thermal_level: 0
machdep.xcpm.io_thermal_level: 0
machdep.xcpm.io_control_engages: 0
machdep.xcpm.io_control_disengages: 1
machdep.xcpm.io_filtered_reads: 0

This is without null, without SSDT generated for OC (4.1ghz x41 OC) EPU & TPU II enabled

Try this patched Kernel DP6

            #262

Link to comment
Share on other sites
Matthew82
Matthew82
Posted
Posted

i7-5820K



I can't get About this mac to see it as anything other then 6-Core Intel Xeon to run Intel Gadget



HW Sensors info shows x39 multi as the highest during Geekbench 3



cmanns$ sysctl machdep.xcpm
machdep.xcpm.mode: 1
machdep.xcpm.hard_plimit_max_100mhz_ratio: 41
machdep.xcpm.hard_plimit_min_100mhz_ratio: 8
machdep.xcpm.soft_plimit_max_100mhz_ratio: 41
machdep.xcpm.soft_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_plimit_max_100mhz_ratio: 41
machdep.xcpm.tuib_plimit_min_100mhz_ratio: 8
machdep.xcpm.tuib_enabled: 0
machdep.xcpm.power_source: 0
machdep.xcpm.bootplim: 0
machdep.xcpm.bootpst: 41
machdep.xcpm.tuib_ns: 0
machdep.xcpm.ratio_changes_total: 202182
machdep.xcpm.maxbusdelay: 4294967295
machdep.xcpm.maxintdelay: 0
machdep.xcpm.mbd_mode: 1
machdep.xcpm.mbd_applications: 3
machdep.xcpm.mbd_relaxations: 3
machdep.xcpm.forced_idle_ratio: 100
machdep.xcpm.forced_idle_period: 30000000
machdep.xcpm.deep_idle_log: 0
machdep.xcpm.qos_txfr: 1
machdep.xcpm.deep_idle_count: 0
machdep.xcpm.deep_idle_last_stats: n/a
machdep.xcpm.deep_idle_total_stats: n/a
machdep.xcpm.cpu_thermal_level: 0
machdep.xcpm.gpu_thermal_level: 0
machdep.xcpm.io_thermal_level: 0
machdep.xcpm.io_control_engages: 0
machdep.xcpm.io_control_disengages: 1
machdep.xcpm.io_filtered_reads: 0

This is without null, without SSDT generated for OC (4.1ghz x41 OC) EPU & TPU II enabled

Try my config from Asus X99 deluxe U3.1 and 5820k. (ssdt is set for 45 turbo frecuency) https://www.dropbox.com/s/jutl1baxjtmzn22/asus%20x99%20and%205820%20efi.zip?dl=0

Link to comment
Share on other sites
cmanns
cmanns
Posted
Posted



is for Sierra or El Capitan?

TPU II its for oc to 125 Mhz so 125x41=5125Mhz

TPU I=100Mhz

My ram is non XMP, TPU I = 3.9~ ghz 100mhz BCLK, TPU II = 4.1~ ghz 100mhz BCLK







Try my config from Asus X99 deluxe U3.1 and 5820k. (ssdt is set for 45 turbo frecuency) https://www.dropbox.com/s/jutl1baxjtmzn22/asus%20x99%20and%205820%20efi.zip?dl=0



Will do! Also do you have the Asmedia 3.1 working? I guess these Asus X99-whatever boards range I have no audio / usb 3 link and I've used like 4 Asus X99- users EFI folders lol.

Link to comment
Share on other sites
Matthew82
Matthew82
Posted
Posted

is for Sierra or El Capitan?

My ram is non XMP, TPU I = 3.9~ ghz 100mhz BCLK, TPU II = 4.1~ ghz 100mhz BCLK









Will do! Also do you have the Asmedia 3.1 working? I guess these Asus X99-whatever boards range I have no audio / usb 3 link and I've used like 4 Asus X99- users EFI folders lol.

USB 3.1 is working in Sierra. Im in Capitan because my GPU is not supported in 10.12. Everything what you need for working audio is in my EFI folder.

Link to comment
Share on other sites
cmanns
cmanns
Posted
Posted

Ok so Matthew's SSDT (and his clover config) give me 1.20ghz to 4.1ghz!

It also hangs around x35 to x41 mult during geek bench, this is with all power management enabled on the Asus BIOS side (EIST, Speedstep, EPU)

also without Null CPU, without Kernel PM, without patch Apple PM, without Asus PM patch, without kernel support cpu, without Haswell-E fix.


Now to up the mult in bios closer to x45 and see how goes







USB 3.1 is working in Sierra. Im in Capitan because my GPU is not supported in 10.12. Everything what you need for working audio is in my EFI folder.

I'll promptly try Sierra again, I just want my USB ports lol found out American Truck Simulator works with OS X but don't have spare ports for wheel pedals and shifter :(!

btw 8/19/16 12:42:36.000 PM kernel[0]: AppleALC: alc @ layout-id was not provided by controller at HDEF


Oh and figured out long time mem map problems using you Asus X99 guy's clover configs, I need that OsxAptioFix2Drv-free2000.efi. Hell I swapped my entire 10.11 folder nearly with yours now HW sensors shows more info and very good- plopped your entire 10.12 now just need to figure out how to fix boot cache's on my 10.12 install, or reinstall.

Also on a side note Matthew did you ever have problems with 2x GPU on that Asus X99 your sig mentions 2x R9- I had absolutely no luck even with custom SSDT to run 1x R9 270X primary and 1x GTX650 secondary, had to drop the R9 270X it couldn't do more then two displays in Windows anyways else I'd of dropped the GTX650. I wonder if its related to OSXAptioFixdrv instead of DSDT/SSDT
Link to comment
Share on other sites
Matthew82
Matthew82
Posted
Posted

Apply only patch from "Kernel to patch" In bios disable only EIST. I have hybrid cooling system and x45 working wery well. This config is only tested with El Capitan. dual 290x working without any problem in 10.11. In 10.12 there is only beautiful black screen :)

Link to comment
Share on other sites
AsusFreak
AsusFreak
Posted
Posted

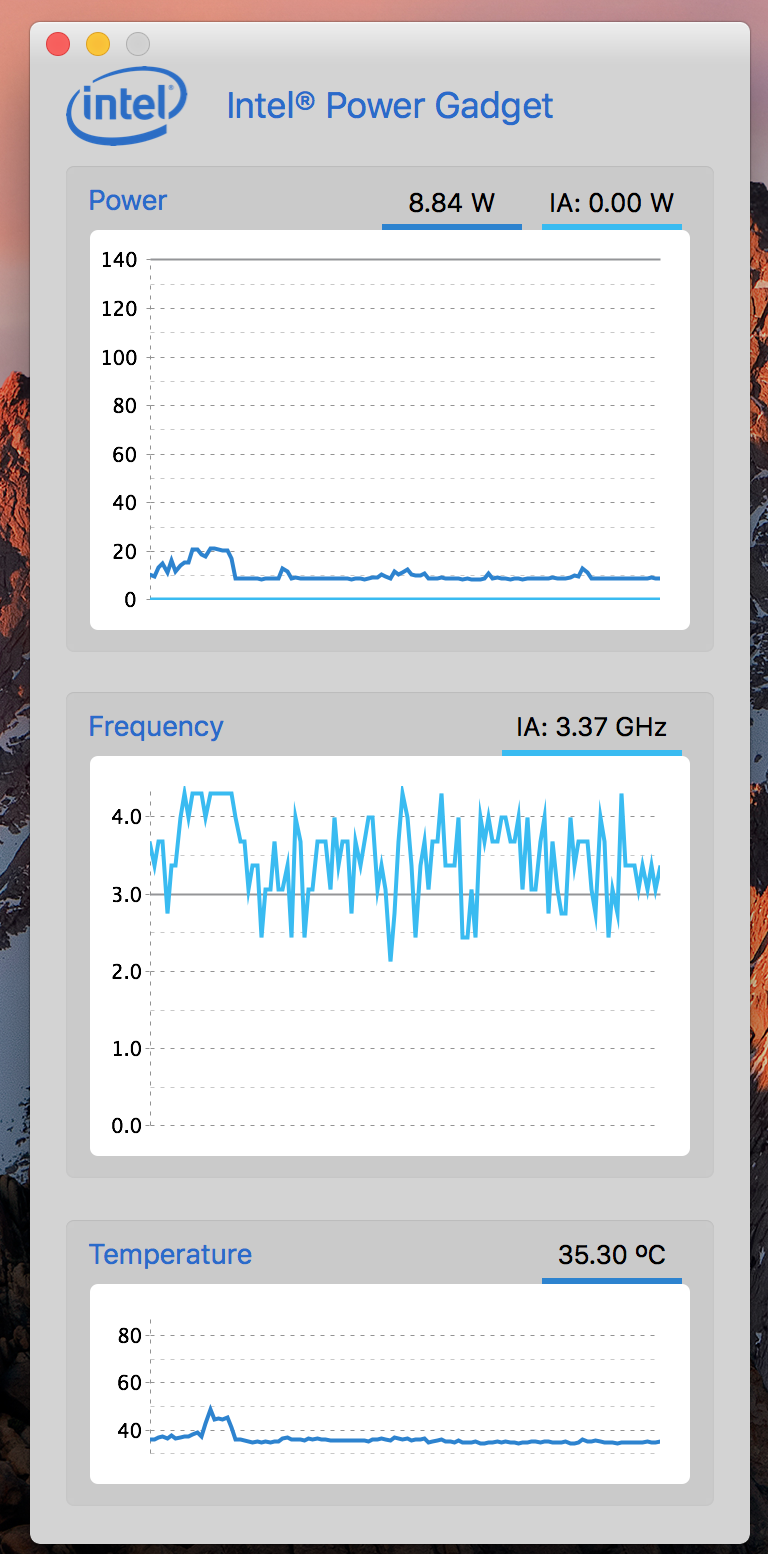

Hi Sammlers

I try this DP6 better Score I like this

Thank you ver much.

Without NullCPUPowerManagement.kext

Without VoodooTSCSync.kext

@nmano - yep your kernel patch works fine here though I don't see an advantage using it vers. having Clover patch it on boot. Am I missing something?  Thanks

Link to comment
Share on other sites
ergot
ergot
Posted
Posted

USB 3.1 is working in Sierra. Im in Capitan because my GPU is not supported in 10.12. Everything what you need for working audio is in my EFI folder.

how to verify USB 3.1 working state in Sierra?

Is is native supported or need a kext/patch?

Link to comment
Share on other sites
ergot
ergot
Posted
Posted

For X99 board you can use(test) this config (running my X99 Deluxe perfect)



_xcpm_bootstrap Sierra © Pike R. Alpha

Find 83C3C483FB22

Replace 83C3C183FB22



_xcpm_pkg_scope_msr  © Pike R. Alpha

Find BE0700000031D2E894FCFFFF

Replace BE0700000031D29090909090



_xcpm_core_scope_msrs  © Pike R. Alpha

Find BE0200000031D2E86CFCFFFF

Replace BE0200000031D29090909090



xcpm performance fix 1 (wrsmr fix to get CPU max) © okrasit

Find 89D8C1E008B99901

Replace B800FF0000B99901



XCPM_idle fix by Pike R. Alpha

Find 20B9E20000000F30

Replace 20B9E20000009090



and use no other clover kernel patches (Asus AICPUPM, KernelPm ....)



and use no clover Acpi PM or SSDT options



EDIT: generate your own SSDT for example:



~/ssdtPRGen.sh -b Mac-27ADBB7B4CEE8E61 -turbo 4500 (your OC setting!)








IS that can work with Xeon Haswell CPU?

I have tried that, removing NullCPU and VoodoTCS, XCPM can load my Intel Power Gadget shows PM correctly but it was showing also when not using kernel patches only using NullCPU and voodooTCS kexts, the issue with the kernel patches is sleep...when even i wake the system it auto restart, when using nullCPU and voodoo kexts system wake up normally and still Intel power gadget show me nice PM states (well my CPU is ES so not sure if all states are working), Geekbence results are same with the patch and without the patch, bottom line is that OK to leave the hack with NullCPU and voodoo instead of patches? or there is a patch to fix the auto restart...?

Thanks

Link to comment
Share on other sites
nmano
nmano
Posted
Posted

@nmano - yep your kernel patch works fine here though I don't see an advantage using it vers. having Clover patch it on boot. Am I missing something?  Thanks

Clover config patched not test.

Remove-FakeCPUID-No

Remove-KernelHaswellE-No

Bios setting

Eiest-Disabled


Link to comment
Share on other sites
macandrea
macandrea
Posted
Posted

I had some stability issues with all Sierra DP versions on my setup (i7 5820k, ASUS X99/A 3.1). I patched the Kernel as per Pike's blog comments in:



XCPM for unsupported Processor…



Specifically the comment below:

To get a stable system, please read this blog article. I would start by disabling the 0x01A0 and 0x01AA MSR’s. You can do that by replace DC 33 00 00 with 00 00 00 00

I disabled the 0x01A0 and 0x01AA MSRs and system seems to be very stable. XCMP enabled, Geekbench score >27000 (3k more than El Capitan) overclocked @4.6 GHz.



On a side note: Apple Logic performance issues disappeared with DP6 (I had CPU spikes resulting in overloads with DP5).

Link to comment
Share on other sites
SammlerG
SammlerG
Posted
Posted

I had some stability issues with all Sierra DP versions on my setup (i7 5820k, ASUS X99/A 3.1). I patched the Kernel as per Pike's blog comments in:



XCPM for unsupported Processor…



Specifically the comment below:

To get a stable system, please read this blog article. I would start by disabling the 0x01A0 and 0x01AA MSR’s. You can do that by replace DC 33 00 00 with 00 00 00 00

I disabled the 0x01A0 and 0x01AA MSRs and system seems to be very stable. XCMP enabled, Geekbench score >27000 (3k more than El Capitan) overclocked @4.6 GHz.



On a side note: Apple Logic performance issues disappeared with DP6 (I had CPU spikes resulting in overloads with DP5).



did you solve the reboots with this patch completely?



First i thought this will solve my reboots, but they are back. Not so often, but there are unexpected reboots.



Is this a ASUS board problem?



Have other users this problems with Sierra?

Link to comment
Share on other sites
macandrea
macandrea
Posted
Posted

I also tried with stock speed and it happens anyway :(

No issues with El Capitan and Yosemite @4.6.

On sunday I've been working all day long on a huge Project in apple logic with a high stress on CPU wih no issues. On monday morning it rebooted after 10 mins almost idle... checking again as Soon as I get Back home.

Link to comment
