abdouoi Posted February 2, 2016 Share Posted February 2, 2016 At my tutorials, you need layoutID=1 and use kext and patch at config.plist. Check carefully It's working now! but no volume control. I used to have volume control with the kext from post #25. Can you tell me how to get volume control for the 2 channel kext ? Link to comment Share on other sites More sharing options...

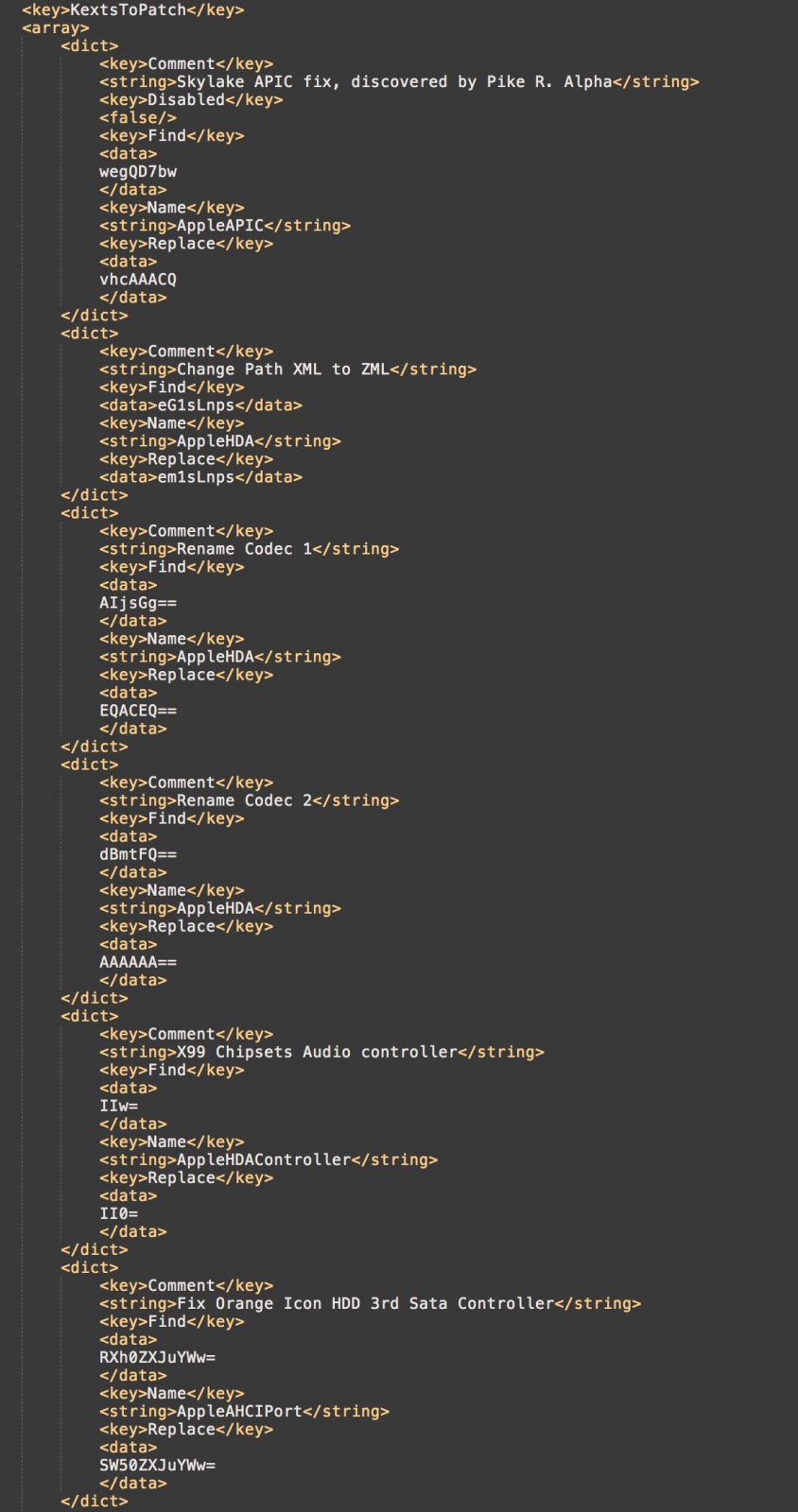

wern apfel Posted February 2, 2016 Author Share Posted February 2, 2016 after deleting the kext creative ca-0132, my audio device was back again but no sound this time For volume control use only one of my two 2 channel kexts, no ca0132 voodoo whatever and set layout-id to 0 and power off your PC a few minutes. if you have an unsupported AppleHDAController add also that patch These guys only mix and merge my kexts which makes no sense, im sorry guys Like i said it makes no sense to upload more test files, you only make confusions with your merged kexts and changed layout-IDs. 1 Link to comment Share on other sites More sharing options...
nmano Posted February 2, 2016 Share Posted February 2, 2016 Codec: Creative CA0132 Address: 2 codec_dump 2.zip Link to comment Share on other sites More sharing options...
abdouoi Posted February 2, 2016 Share Posted February 2, 2016 For volume control use only one of my two 2 channel kexts, no ca0132 voodoo whatever and set layout-id to 0 and power off your PC a few minutes. if you have an unsupported AppleHDAController add also that patch These guys only mix and merge my kexts which makes no sense, im sorry guys Like i said it makes no sense to upload more test files, you only make confusions with your merged kexts and changed layout-IDs. After following exactly your advice, it is working now with volume control! thank you so much! Link to comment Share on other sites More sharing options...
nmano Posted February 2, 2016 Share Posted February 2, 2016 This kext worked any of this IDS. LayoutID = 0 LayoutID = 1 LayoutID = 2 LayoutID = 3 LayoutID = 9 Id=0-1-2-3-9.zip Link to comment Share on other sites More sharing options...
abdouoi Posted February 2, 2016 Share Posted February 2, 2016 This kext worked any of this IDS. LayoutID = 0 LayoutID = 1 LayoutID = 2 LayoutID = 3 LayoutID = 9 Is it 2channels with volume control? Link to comment Share on other sites More sharing options...

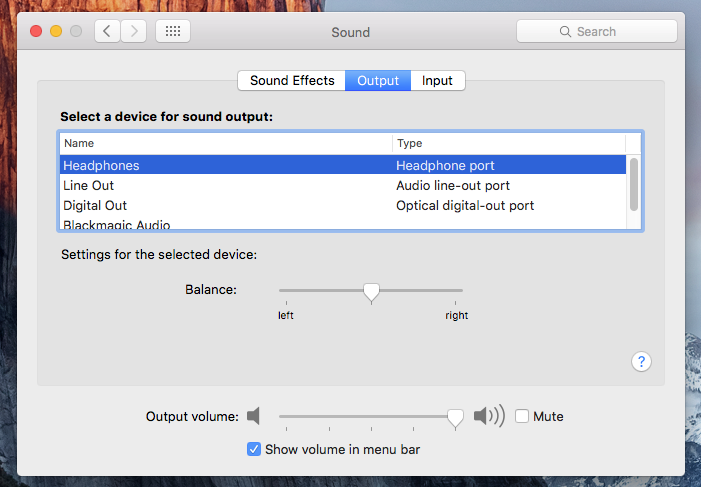

nmano Posted February 2, 2016 Share Posted February 2, 2016 Is it 2channels with volume control? this worked 2 outputs with volume control mac OS X 10.11.3 when you testing you have to choose Headphones or line out. Link to comment Share on other sites More sharing options...
nmano Posted February 2, 2016 Share Posted February 2, 2016 Keep waiting,, it's about pin config. Manor still keep trying, i am not expert to config data. I will send configuration when it's perfect friends Sorry,, i played music with high BASS and sound still bad . Can you send me your "codec_dump_dec.txt.svg"??? I want to compare with mine. You can see my thread http://www.insanelymac.com/forum/topic/309729-gigabyte-z170x-gaming-7-success-hackintosh/. I make tutorial for CA0132 from Wern Apfel' AppleHDA. If you follow those methods, then your sound still works when you updated OS X. Sound is good for me.I thing you have to set config and ssdt I update my. confing and SSDT.zip Link to comment Share on other sites More sharing options...
abdouoi Posted February 2, 2016 Share Posted February 2, 2016 For volume control use only one of my two 2 channel kexts, no ca0132 voodoo whatever and set layout-id to 0 and power off your PC a few minutes. if you have an unsupported AppleHDAController add also that patch These guys only mix and merge my kexts which makes no sense, im sorry guys Like i said it makes no sense to upload more test files, you only make confusions with your merged kexts and changed layout-IDs. my audio and volume control are working but when I connect a headphone, the headphone is not detected Link to comment Share on other sites More sharing options...

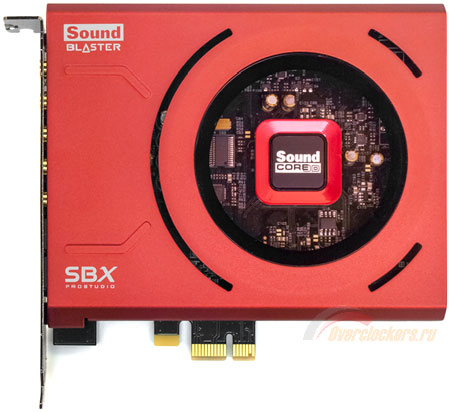

Rocky12 Posted February 3, 2016 Share Posted February 3, 2016 Creative Sound Blaster does it work with appleHDA Link to comment Share on other sites More sharing options...
wern apfel Posted February 3, 2016 Author Share Posted February 3, 2016 my audio and volume control are working but when I connect a headphone, the headphone is not detected Does it switch to headphone @audio PrefPane?, have you tried the old kext ?, there are two headphone nodes we have to try both Creative Sound Blaster does it work with appleHDA Is the device-ID the same, can we see a codec dump ?, does it work with voodooHDA ? Link to comment Share on other sites More sharing options...
nmano Posted February 3, 2016 Share Posted February 3, 2016 3 Ports worked 2CH with VC Microphone Headphone Output CA0132.zip 1 Link to comment Share on other sites More sharing options...

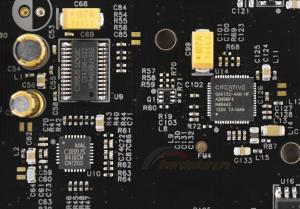

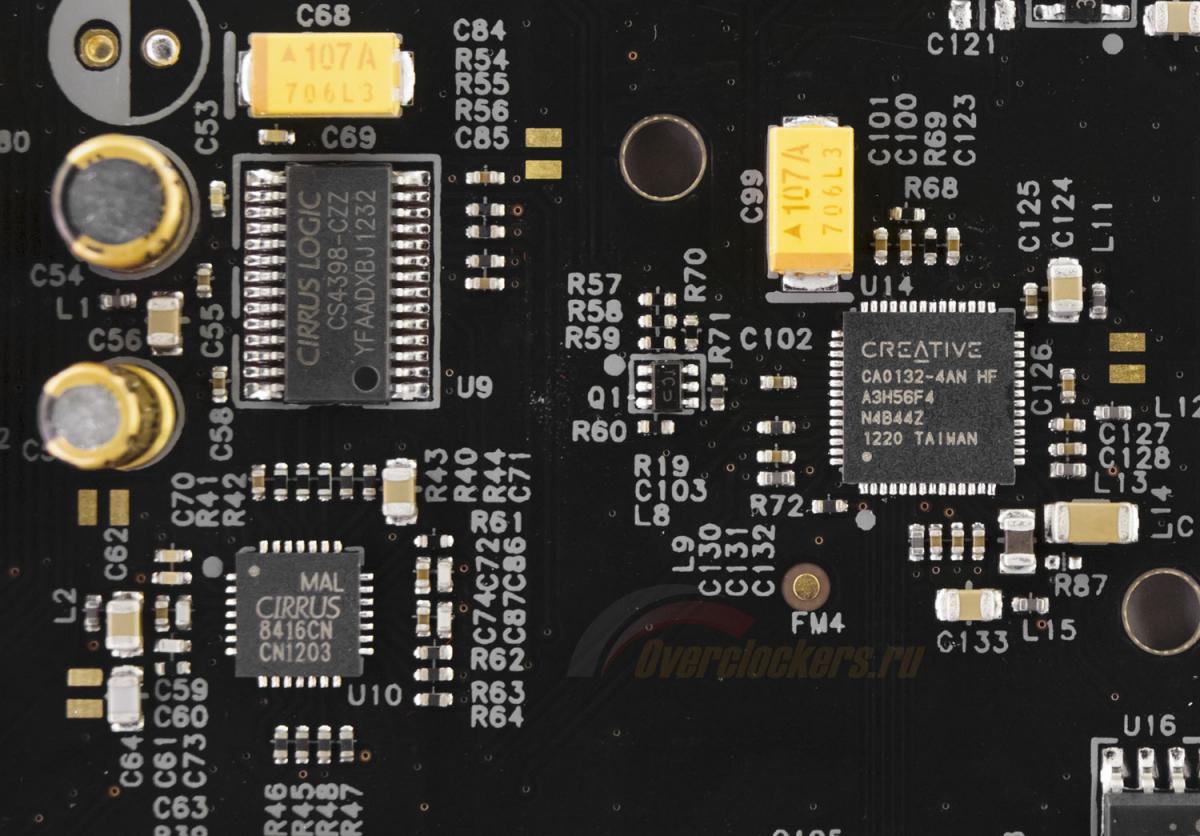

Rocky12 Posted February 3, 2016 Share Posted February 3, 2016 i don,t know about device id but it has the same chip CA0132 Link to comment Share on other sites More sharing options...
abdouoi Posted February 3, 2016 Share Posted February 3, 2016 Does it switch to headphone @audio PrefPane?, have you tried the old kext ?, there are two headphone nodes we have to try both After installing the second 2channels kext (the one with sound quality) it's working! thanks! Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted February 4, 2016 Share Posted February 4, 2016 3 Ports worked 2CH with VC Microphone Headphone Output I look at your SSDT,, so your HDMI Audio is not working. Correct??? Link to comment Share on other sites More sharing options...
nmano Posted February 4, 2016 Share Posted February 4, 2016 I look at your SSDT,, so your HDMI Audio is not working. Correct??? HDMI worked. Link to comment Share on other sites More sharing options...
buyjoey Posted February 4, 2016 Share Posted February 4, 2016 HDMI worked. Hi, Manor What MB is you using? GA z170x gaming7? or x99? If you provide your clover folder, please let me download it. For some reason I can't use your kext. Thank you! Link to comment Share on other sites More sharing options...
nmano Posted February 6, 2016 Share Posted February 6, 2016 Hi, Manor What MB is you using? GA z170x gaming7? or x99? If you provide your clover folder, please let me download it. For some reason I can't use your kext. Thank you! X99GamingG1wifi Link to comment Share on other sites More sharing options...
buyjoey Posted February 8, 2016 Share Posted February 8, 2016 X99GamingG1wifi Oh that's why mine is not working with yours Link to comment Share on other sites More sharing options...

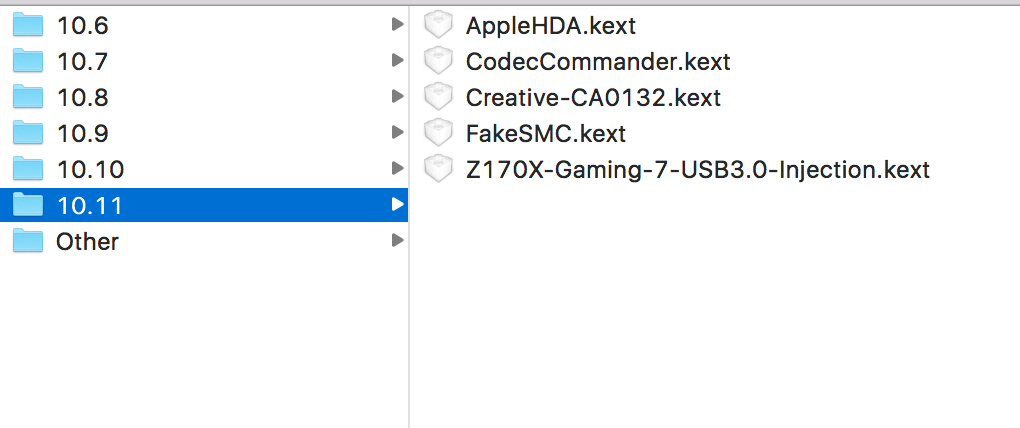

sssteve Posted February 20, 2016 Share Posted February 20, 2016 Ok, So I followed all the instructions and tried the id:9 and got no sound. Everything works if my id is 2 except for volume. My motherboard is a Z170X-gaming7 Any ideas ? Thanks! Link to comment Share on other sites More sharing options...
wern apfel Posted February 22, 2016 Author Share Posted February 22, 2016 Ok, So I followed all the instructions and tried the id:9 and got no sound. Everything works if my id is 2 except for volume. My motherboard is a Z170X-gaming7 Any ideas ? Thanks! Have you tried a kext from the 1st post ?, install the kext to /S/L/E Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted February 24, 2016 Share Posted February 24, 2016 HDMI worked.If i use your Pin Config Data and my layout9.xml.zlib then sound is good, no cracking at HIGH BASS MUSIC but fake "VOLUME CONTROL", if i use your layout9.xml.zlib then sound will crack at HIGH BASS MUSIC. Can you check your layout9.xml.zlib or my layout9.xml.zlib. I attach my Layout9.xml.zliblayout9.xml.zlib.zip Link to comment Share on other sites More sharing options...
nmano Posted February 24, 2016 Share Posted February 24, 2016 If i use your Pin Config Data and may layout ID then sound is good but no cracking at HIGH BASS MUSIC. But fake "VOLUME CONTROL", if i use your layout9.xml.zlib then sound will crack at HIGH BASS MUSIC. Can you check your layout9.xml.zlib or my layout9.xml.zlib Try this set ID 9 AppleHDA.kext.zip Link to comment Share on other sites More sharing options...
nmano Posted February 25, 2016 Share Posted February 25, 2016 set ID 9 4 ports worked. ID-9.zip Link to comment Share on other sites More sharing options...

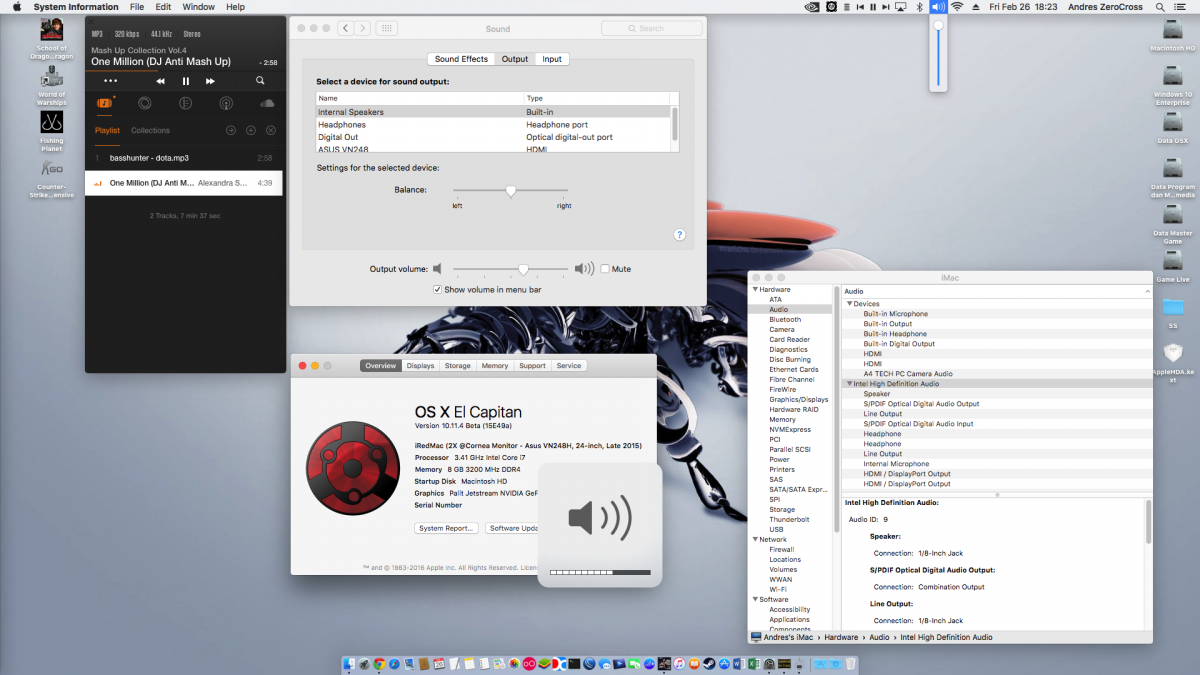

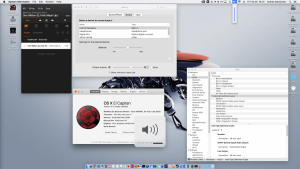

Andres ZeroCross Posted February 26, 2016 Share Posted February 26, 2016 set ID 9 4 ports worked. I don't this version still make crackling sound at high bass music Edit : Ok,, i found temporary solution. I need to decrease volume from System Preference 1/3 bars. And it give me good quality bass music. But you can see,, Volume Icon bar and System Preference are not synchronize 1 Link to comment Share on other sites More sharing options...
