wern apfel Posted July 30, 2019 Author Share Posted July 30, 2019 (edited) On 7/8/2019 at 9:44 PM, Delecta said: Hello, I have the Gigabyte Z270x Gaming 9 and with the last AppleALC+lilu+codeccommander attached in your post I just have sometimes the Line-out working without volume control (destroy my ears haha) I have the HDAS to HDEF and the AZAL to HDEF patch and I am on Layout 4. Do you have any idea ? Thank you The ZxRi has a different mixer and needs different settings. HDAS to HDEF is enough. Use a CodecCommander without CA0132 profile and use the SSDT from the attachment instead. CC must be installed to /L/E. Set the layout-id to 1. I'll upload a new AppleALC the next days. SSDT-ZxRi.aml.zip AppleALC.kext_1.4.2_ZxRi_layout_4.zip Edited October 13, 2019 by wern apfel ZxRi kext added Link to comment Share on other sites More sharing options...
madicineman Posted October 16, 2019 Share Posted October 16, 2019 Well, it has been a while... But I wanted to let you know, that I upgraded my build to Catalina (10.15). The Layout is still 4 and the CA0132 Switcher is working like it should. Only the Apple-Pull-down-menue is looking different compared with Mojave. This time I had to choose "Headphones" to get my CA0132 Switcher to work. It´s working like a charm. Thank you again, @wern apfel! Link to comment Share on other sites More sharing options...
wern apfel Posted October 19, 2019 Author Share Posted October 19, 2019 On 10/16/2019 at 11:59 PM, madicineman said: Well, it has been a while... But I wanted to let you know, that I upgraded my build to Catalina (10.15). The Layout is still 4 and the CA0132 Switcher is working like it should. Only the Apple-Pull-down-menue is looking different compared with Mojave. This time I had to choose "Headphones" to get my CA0132 Switcher to work. It´s working like a charm. Thank you again, @wern apfel! I think that happens if the rear headphone is plugged in. You can try the AppleALC from the attachment. AppleALC.kext_1.4.2.zip Link to comment Share on other sites More sharing options...
madicineman Posted October 20, 2019 Share Posted October 20, 2019 On 10/19/2019 at 10:35 AM, wern apfel said: I think that happens if the rear headphone is plugged in. You can try the AppleALC from the attachment. AppleALC.kext_1.4.2.zip Yes, you are right. The headphone is plugged in. Tried the AppleALC.kext_1.4.2.zip: unpacked it (the kext got the name "AppleALC-2.kext automatically, the date of origin is 10-11-2019), copied it in /Clover/kexts/Other, removed the previous version (date of origin: 10-16-2019), renamed your version to "AppleALC.kext" and restarted the computer. But there is no difference. Don´t take me wrong: It is not bothering me. I am just happy to make use of the audio chip on that board with my old 5.1-sound-system... But I have another question a little bit off topic: Did you upgraded to Catalina too? And do you have issues sometimes with a kernel panic during hibernation ("Entering darkwake")? With Catalina and a complete rebuild of my config.plist according to https://hackintosh.gitbook.io/-r-hackintosh-vanilla-desktop-guide/config.plist-per-hardware/skylake my built is hibernating correctly most of the nights. But twice I had a new login screen in the morning and an macos-error report with a "Panic entering darkwake" with "Suspected bundle: com.apple.iokit.IOusbFamily." Most of the posts are having issues with "Suspected bundle: com.apple.iokit.IOGraphicsFamily.", but not in my case. Can you give me a hint, what I can improve? Thanks in advance! Gichin Link to comment Share on other sites More sharing options...
wern apfel Posted October 20, 2019 Author Share Posted October 20, 2019 (edited) 3 hours ago, madicineman said: Yes, you are right. The headphone is plugged in. Tried the AppleALC.kext_1.4.2.zip: unpacked it (the kext got the name "AppleALC-2.kext automatically, the date of origin is 10-11-2019), copied it in /Clover/kexts/Other, removed the previous version (date of origin: 10-16-2019), renamed your version to "AppleALC.kext" and restarted the computer. But there is no difference. Don´t take me wrong: It is not bothering me. I am just happy to make use of the audio chip on that board with my old 5.1-sound-system... Than an error has occurred, you should see 3 Speaker outputs, instead Line-Out. But that's more of an optical issue. 3 hours ago, madicineman said: But I have another question a little bit off topic: Did you upgraded to Catalina too? And do you have issues sometimes with a kernel panic during hibernation ("Entering darkwake")? With Catalina and a complete rebuild of my config.plist according to https://hackintosh.gitbook.io/-r-hackintosh-vanilla-desktop-guide/config.plist-per-hardware/skylake my built is hibernating correctly most of the nights. But twice I had a new login screen in the morning and an macos-error report with a "Panic entering darkwake" with "Suspected bundle: com.apple.iokit.IOusbFamily." Most of the posts are having issues with "Suspected bundle: com.apple.iokit.IOGraphicsFamily.", but not in my case. Can you give me a hint, what I can improve? Thanks in advance! Gichin I also use Catalina, the issue could be the digital audio output of the IGPU. The new AppleALC has already a fix for that. Personally, I have disabled it via the firmware, if you want to do the same, I can give you more info about that. Edited October 20, 2019 by wern apfel 1 Link to comment Share on other sites More sharing options...
madicineman Posted October 20, 2019 Share Posted October 20, 2019 6 minutes ago, wern apfel said: I also use Catalina, the issue could be the digital audio output of the IGPU. The new AppleALC has already a fix for that. Personally, I have disabled it via the firmware, if you want to do the same, I can give you more info about that. I would love to learn how to do it. Link to comment Share on other sites More sharing options...

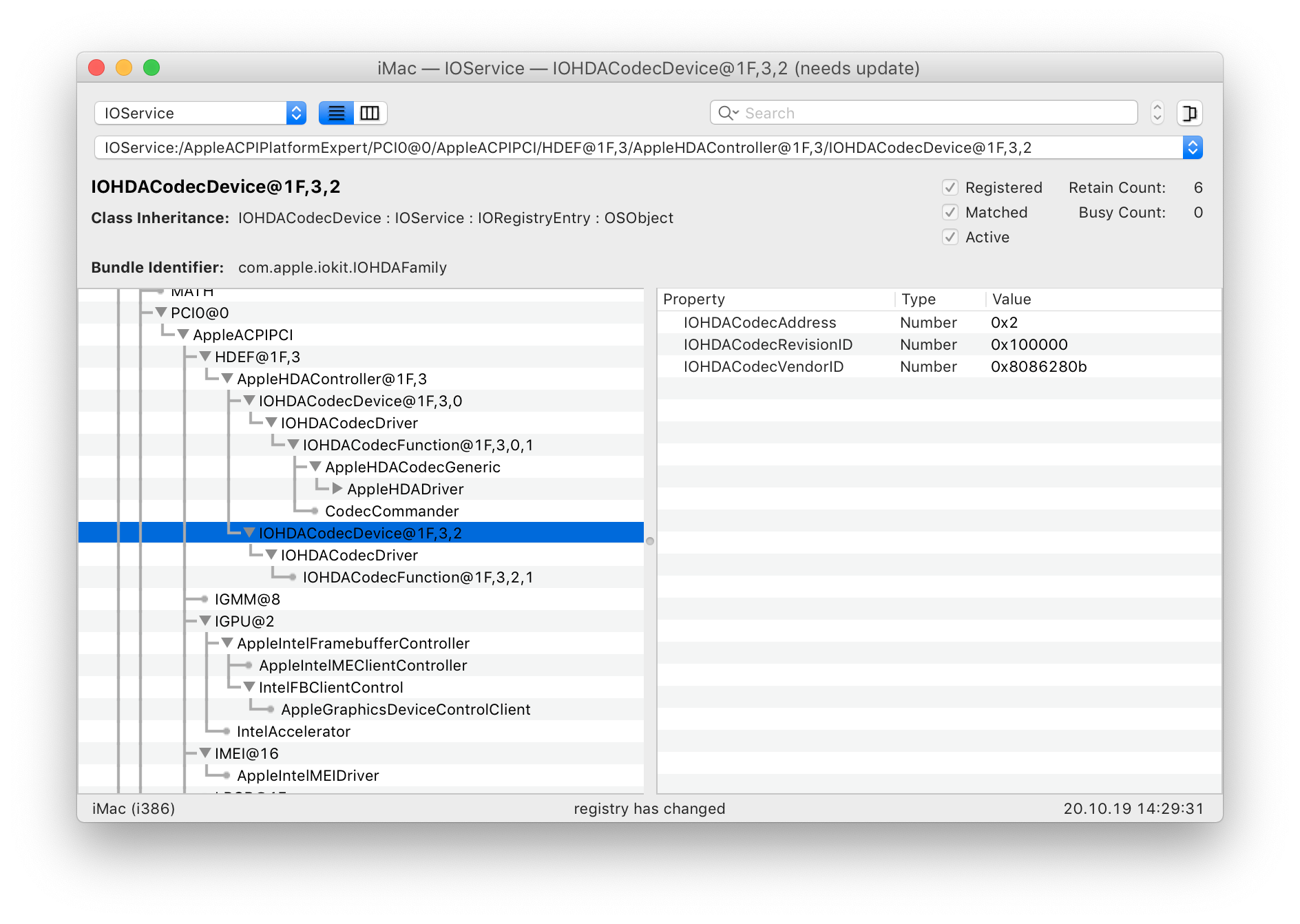

wern apfel Posted October 20, 2019 Author Share Posted October 20, 2019 (edited) 1 hour ago, madicineman said: I would love to learn how to do it. I'm not good on writing guides. But I try to make it understandable. First, look at your IOReg to see if there is a second audio codec on the HDEF device, if so, we will try to disable it. Download the modified grub from here and copy it to the root of your EFI partition or wherever you want, but you'll need to navigate to that location anyway. Launch the Shell from the Clover menu, navigate to the grub shell, and run it. You will promoted to enter a command. The command to disable the IGPU audio codec is "setup_var 0xD68 0x1" where 0x1 is to disable the codec. You can check it with the IORegistryExplorer. Good luck. @ALL, please do not use this command for your mainboard, this only applies to the Z170X-Gaming7 EK Edited October 20, 2019 by wern apfel 1 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 20, 2019 Share Posted October 20, 2019 4 hours ago, wern apfel said: I'm not good on writing guides. But I try to make it understandable. First, look at your IOReg to see if there is a second audio codec on the HDEF device, if so, we will try to disable it. Download the modified grub from here and copy it to the root of your EFI partition or wherever you want, but you'll need to navigate to that location anyway. Launch the Shell from the Clover menu, navigate to the grub shell, and run it. You will promoted to enter a command. The command to disable the IGPU audio codec is "setup_var 0xD68 0x1" where 0x1 is to disable the codec. You can check it with the IORegistryExplorer. Good luck. @ALL, please do not use this command for your mainboard, this only applies to the Z170X-Gaming7 EK Disable from Shell can take risk for not expert people. It's better to set hda-no-gfx like my post here : https://www.insanelymac.com/forum/topic/339695-fix-kernel-panic-freeze-because-hdmi_dp-applehda-after-wake-in-catalina-with-connectorless-ig-platfrom-id-of-igpu-supported-egpu/ 1 Link to comment Share on other sites More sharing options...
wern apfel Posted October 21, 2019 Author Share Posted October 21, 2019 19 hours ago, Andres ZeroCross said: It's better to set hda-no-gfx like my post here : https://www.insanelymac.com/forum/topic/339695-fix-kernel-panic-freeze-because-hdmi_dp-applehda-after-wake-in-catalina-with-connectorless-ig-platfrom-id-of-igpu-supported-egpu/ I don't know why the method you used is the better one. There is still an unused device. We do not know what Apple is doing. Maybe another update will enable it again. But if you disable via the firmware, it does not matter what Apple does in the future. With the latest AppleALC it's more easier by adding the No-hda-gfx property. BTW. if you do something wrong with the grub shell, you can simply do a clear CMOS and all values will be restored. 1 Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 (edited) 45 minutes ago, wern apfel said: I don't know why the method you used is the better one. There is still an unused device. We do not know what Apple is doing. Maybe another update will enable it again. But if you disable via the firmware, it does not matter what Apple does in the future. With the latest AppleALC it's more easier by adding the No-hda-gfx property. BTW. if you do something wrong with the grub shell, you can simply do a clear CMOS and all values will be restored. What do you mean by unused device?? With your method and my method and comparing the IOREG Output then the result is same. I don't see any unused device there. Can you point my mistake? Edited October 21, 2019 by Andres ZeroCross Link to comment Share on other sites More sharing options...
madicineman Posted October 21, 2019 Share Posted October 21, 2019 (edited) Thanks for both suggestions. But it makes sense to me, to use that method which is more bullet proof for future updates. I like GUI´s but a Shell is not scaring me (anymore)... So first of all I looked for the second device. I do not know where your sleek GUI-IOreg is from, but I only got the Shell-output: Edited October 21, 2019 by madicineman Link to comment Share on other sites More sharing options...

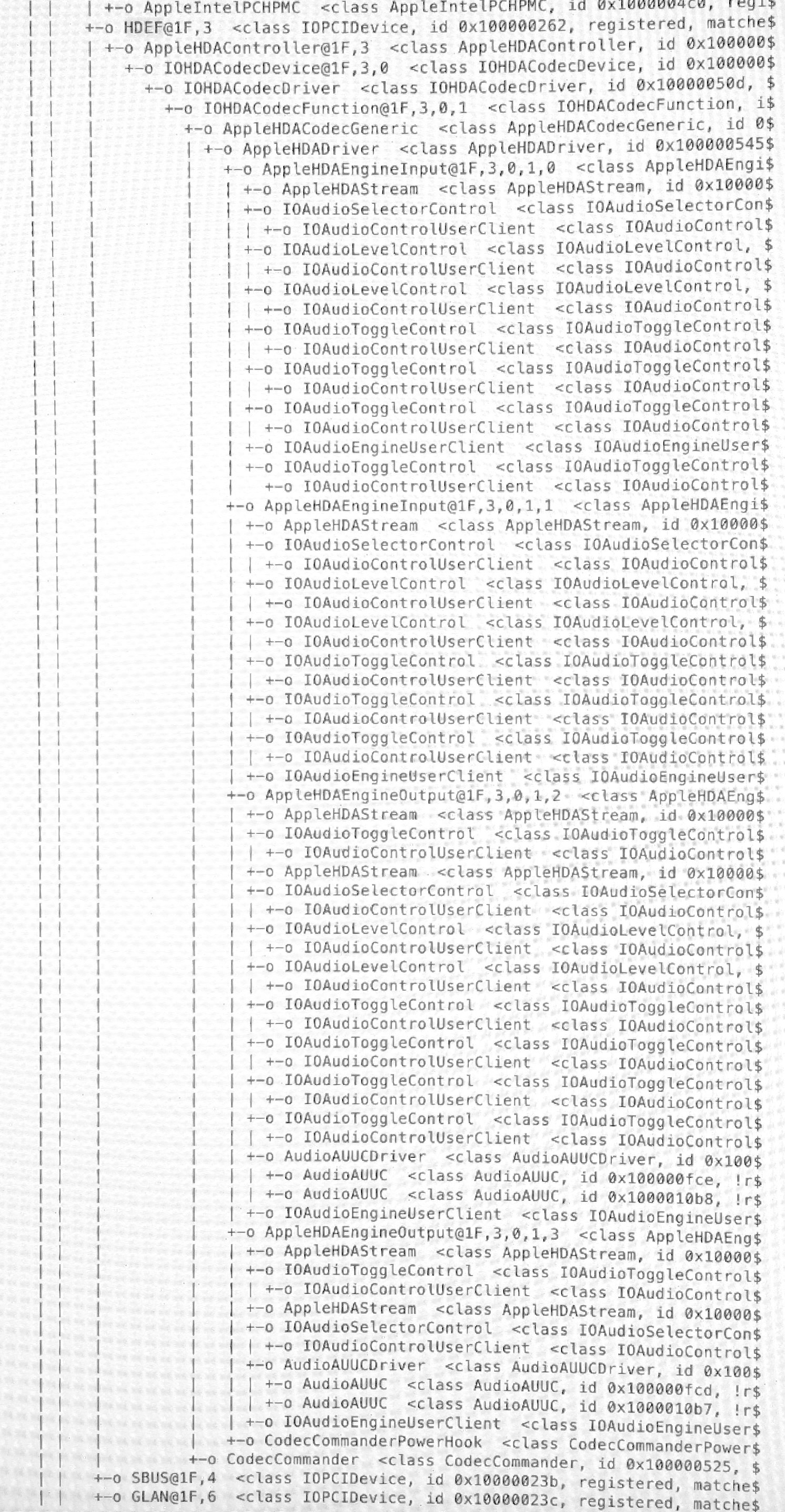

madicineman Posted October 21, 2019 Share Posted October 21, 2019 (edited) Too me, that does not look like a second device. Am I right? So it might be useful to have a look to the kernel panic which greeted me this morning (BTW: It looked a little bit different to the former ones): "panic(cpu 6 caller 0xffffff8011ca31fc): Sleep transition timed out after 180 seconds while entering darkwake on way to sleep. Suspected bundle: com.apple.driver.usb.AppleUSBXHCI. Thread 0x4ee39. Failure code:: 0x3c6d0765 00000031 Backtracing specified thread Backtrace (CPU 6), Frame : Return Address 0xffffff83c8583900 : 0xffffff8011663848 mach_kernel : _machine_switch_context + 0xc8 0xffffff80403f3b00 : 0xffffff8011561334 mach_kernel : _thread_unstop + 0x1784 0xffffff80403f3b70 : 0xffffff801155fb1f mach_kernel : _thread_block_reason + 0xbf 0xffffff80403f3bc0 : 0xffffff8011660989 mach_kernel : _lck_mtx_lock_wait_x86 + 0x139 0xffffff80403f3c00 : 0xffffff80116602ab mach_kernel : _lck_mtx_lock_slow + 0x1cb 0xffffff80403f3c30 : 0xffffff801155082a mach_kernel : _lck_mtx_sleep + 0x8a 0xffffff80403f3c70 : 0xffffff8011c3ff3c mach_kernel : __ZN10IOWorkLoop9sleepGateEPvj + 0xbc 0xffffff80403f3cb0 : 0xffffff8011c4141b mach_kernel : __ZN13IOEventSource9sleepGateEPvj + 0x4b 0xffffff80403f3ce0 : 0xffffff7f9233a933 com.apple.iokit.IOUSBHostFamily : __ZN16AppleUSBHostPort15forcePowerGatedENS_11tPowerStateEj + 0x1df 0xffffff80403f3d70 : 0xffffff8011c42d78 mach_kernel : __ZN13IOCommandGate9runActionEPFiP8OSObjectPvS2_S2_S2_ES2_S2_S2_S2_ + 0x138 0xffffff80403f3dd0 : 0xffffff7f92716bcf com.apple.driver.usb.AppleUSBXHCI : __ZN18AppleUSB30XHCIPort22powerStateWillChangeToEmmP9IOService + 0x59 0xffffff80403f3e00 : 0xffffff8011c2814b mach_kernel : __ZN9IOService23driverInformPowerChangeEv + 0x1eb 0xffffff80403f3ea0 : 0xffffff8011c27b44 mach_kernel : __ZN9IOService15pmDriverCalloutEPS_ + 0x34 0xffffff80403f3ec0 : 0xffffff80115811d5 mach_kernel : _thread_call_delayed_timer + 0xea5 0xffffff80403f3f40 : 0xffffff8011580d01 mach_kernel : _thread_call_delayed_timer + 0x9d1 0xffffff80403f3fa0 : 0xffffff80114e613e mach_kernel : _call_continuation + 0x2e Kernel Extensions in backtrace: com.apple.iokit.IOUSBHostFamily(1.2)[70761A70-11A9-3F83-B2F7-0FCEC749EE99]@0xffffff7f92319000->0xffffff7f92410fff dependency: com.apple.driver.AppleBusPowerController(1.0)[B4001F35-E1A9-385A-9B45-1AF7ECD5E51E]@0xffffff7f922ff000 dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[3DE1C066-5E08-3F07-BC5C-5273A7A38363]@0xffffff7f92307000 dependency: com.apple.driver.AppleUSBHostMergeProperties(1.2)[D890F1D7-ADE3-3D96-8A24-9A91E5D0F202]@0xffffff7f92315000 com.apple.driver.usb.AppleUSBXHCI(1.2)[9CE96A1A-12FC-3D0B-9F48-14B8D8AB6A75]@0xffffff7f926e3000->0xffffff7f9273afff dependency: com.apple.iokit.IOACPIFamily(1.4)[9BA2613C-A129-3EDD-8DC1-2CFF6B62B832]@0xffffff7f9228f000 dependency: com.apple.iokit.IOUSBHostFamily(1.2)[70761A70-11A9-3F83-B2F7-0FCEC749EE99]@0xffffff7f92319000 dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[3DE1C066-5E08-3F07-BC5C-5273A7A38363]@0xffffff7f92307000 BSD process name corresponding to current thread: kernel_task Boot args: keepsyms=1 dart=0 debug=0x100 shiki-id=Mac-7BA5B2D9E42DDD94 Mac OS version: 19A602 Kernel version: Darwin Kernel Version 19.0.0: Wed Sep 25 20:18:50 PDT 2019; root:xnu-6153.11.26~2/RELEASE_X86_64 Kernel UUID: 70EDD61F-86EE-3E1B-873F-98D909B78160 Kernel slide: 0x0000000011200000 Kernel text base: 0xffffff8011400000 __HIB text base: 0xffffff8011300000 System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94) System shutdown begun: NO Panic diags file available: YES (0x0) System uptime in nanoseconds: 33696446380243 last loaded kext at 248069866617: @filesystems.msdosfs 1.10 (addr 0xffffff7f925ee000, size 69632) loaded kexts: com.paragon-software.filesystems.extfs 620.8.9 org.tw.CodecCommander 2.6.3 com.Logitech.Control Center.HID Driver 3.9.8 org.hwsensors.driver.LPCSensors 1800 net.osx86.kexts.GenericUSBXHCI 1.2.11 com.insanelymac.!IMausiEthernet 2.2.0 org.hwsensors.driver.GPUSensors 1800 org.hwsensors.driver.ACPISensors 1800 org.hwsensors.driver.SMMSensors 1800 org.hwsensors.driver.CPUSensors 1800 as.vit9696.WhateverGreen 1.3.2 org.netkas.driver.FakeSMC 1800 as.vit9696.!AALC 1.4.2 as.vit9696.Lilu 1.3.8 com.rehabman.driver.USBInjectAll 0.7.1 @filesystems.msdosfs 1.10 @fileutil 20.036.15 @kext.AMDFramebuffer 3.0.0 >!APlatformEnabler 2.7.0d0 >AGPM 111.1.18 >X86PlatformShim 1.0.0 @filesystems.autofs 3.0 >!AHDAHardwareConfigDriver 283.14 >!AHDA 283.14 >!AUpstreamUserClient 3.6.8 >!AMCCSControl 1.12 @kext.AMDRadeonX4000 3.0.0 @kext.AMDRadeonServiceManager 3.0.0 >!AGraphicsDevicePolicy 4.1.46 @AGDCPluginDisplayMetrics 4.1.46 >!AHV 1 |IOUserEthernet 1.0.1 |IO!BSerialManager 7.0.0f8 >pmtelemetry 1 @Dont_Steal_Mac_OS_X 7.0.0 >!A!ISlowAdaptiveClocking 4.0.0 @kext.AMD9500!C 3.0.0 >!A!IMCEReporter 115 >AudioAUUC 1.70 >!A!IPCHPMC 2.0.1 >eficheck 1 >!A!ISKLGraphics 14.0.0 >ACPI_SMC_PlatformPlugin 1.0.0 >!AGFXHDA 100.1.421 >!A!ISKLGraphicsFramebuffer 14.0.0 >!A16X50ACPI 3.2 >!AFIVRDriver 4.1.0 @filesystems.apfs 1412.11.7 |IO!BUSBDFU 7.0.0f8 >!ATopCaseHIDEventDriver 153 >!UTopCaseDriver 153 |SCSITaskUserClient 422.0.2 >!AFileSystemDriver 3.0.1 >AirPort.BrcmNIC 1400.1.1 >!AVirtIO 1.0 @filesystems.hfs.kext 522.0.9 @!AFSCompression.!AFSCompressionTypeDataless 1.0.0d1 @BootCache 40 @!AFSCompression.!AFSCompressionTypeZlib 1.0.0 >!AAHCIPort 341.0.2 @private.KextAudit 1.0 >!ARTC 2.0 >!AACPIButtons 6.1 >!AHPET 1.8 >!ASMBIOS 2.1 >!AAPIC 1.7 $!AImage4 1 @nke.applicationfirewall 302 $TMSafetyNet 8 @!ASystemPolicy 2.0.0 |EndpointSecurity 1 @kext.triggers 1.0 >DspFuncLib 283.14 @kext.OSvKernDSPLib 529 @kext.AMDRadeonX4000HWLibs 1.0 >!ASMBus!C 1.0.18d1 |IOSMBus!F 1.1 @kext.AMDRadeonX4000HWServices 3.0.0 >!AGraphicsControl 4.1.46 |IOAVB!F 800.17 >!ASSE 1.0 @!AGPUWrangler 4.1.46 |IOSlowAdaptiveClocking!F 1.0.0 >!AHDA!C 283.14 |IOHDA!F 283.14 @kext.AMDSupport 3.0.0 >IOPlatformPluginLegacy 1.0.0 >X86PlatformPlugin 1.0.0 >IOPlatformPlugin!F 6.0.0d8 |IONDRVSupport 558.3 @!AGraphicsDeviceControl 4.1.46 |IOAccelerator!F2 438.1.23 |IOGraphics!F 558.3 >!ASMBusPCI 1.0.14d1 >!A16X50Serial 3.2 @plugin.IOgPTPPlugin 800.14 |IOEthernetAVB!C 1.1.0 |IOAHCIBlock!S 316.0.5 >!AXsanScheme 3 |Broadcom!BHost!CUSBTransport 7.0.0f8 |IO!BHost!CUSBTransport 7.0.0f8 |IO!BHost!CTransport 7.0.0f8 >!AHS!BDriver 153 >!AMultitouchDriver 3400.35 >!AInputDeviceSupport 3400.27 >!AHIDKeyboard 209 >usb.IOUSBHostHIDDevice 1.2 >IO!BHIDDriver 7.0.0f8 |IO!B!F 7.0.0f8 |IO!BPacketLogger 7.0.0f8 |IOUSBHIDDriver 900.4.2 >usb.!UHub 1.2 >!UAudio 320.47 |IOAudio!F 300.2 @vecLib.kext 1.2.0 >usb.cdc 5.0.0 >usb.networking 5.0.0 >usb.!UHostCompositeDevice 1.2 |IO80211!F 1200.12.2b1 >mDNSOffloadUserClient 1.0.1b8 >corecapture 1.0.4 |IOSkywalk!F 1 |IOSerial!F 11 |IOSurface 269.6 @filesystems.hfs.encodings.kext 1 >!A!ILpssI2C 3.0.60 >!A!ILpssGspi 3.0.60 |IOAHCI!F 290.0.1 >usb.!UXHCIPCI 1.2 >usb.!UXHCI 1.2 >usb.!UHostPacketFilter 1.0 |IOUSB!F 900.4.2 >!AEFINVRAM 2.1 >!AEFIRuntime 2.1 |IOHID!F 2.0.0 $quarantine 4 $sandbox 300.0 @kext.!AMatch 1.0.0d1 >DiskImages 493.0.0 >!AFDEKeyStore 28.30 >!AEffaceable!S 1.0 >!AKeyStore 2 >!UTDM 489.11.2 |IOSCSIBlockCommandsDevice 422.0.2 >!ACredentialManager 1.0 >KernelRelayHost 1 >!ASEPManager 1.0.1 >IOSlaveProcessor 1 |IOUSBMass!SDriver 157.11.2 |IOSCSIArchitectureModel!F 422.0.2 |IO!S!F 2.1 |IOUSBHost!F 1.2 >!UHostMergeProperties 1.2 >usb.!UCommon 1.0 >!ABusPower!C 1.0 |CoreAnalytics!F 1 >!AMobileFileIntegrity 1.0.5 @kext.CoreTrust 1 |IOTimeSync!F 800.14 |IONetworking!F 3.4 |IOReport!F 47 >!AACPIPlatform 6.1 >!ASMC 3.1.9 >watchdog 1 |IOPCI!F 2.9 |IOACPI!F 1.4 @kec.pthread 1 @kec.corecrypto 1.0 @kec.Libm 1" Does that make any sense to you? Edited October 21, 2019 by madicineman Link to comment Share on other sites More sharing options...
madicineman Posted October 21, 2019 Share Posted October 21, 2019 And just during supper I had the regular kernel panic after leaving Netflix opened: "panic(cpu 2 caller 0xffffff80070a31fc): Sleep transition timed out after 180 seconds while entering darkwake on way to sleep. Suspected bundle: com.apple.iokit.IOUSBHostFamily. Thread 0x1dc38. Failure code:: 0xa806f29c 00000031 Backtracing specified thread Backtrace (CPU 2), Frame : Return Address 0xffffff83aaaa3900 : 0xffffff8006a63848 mach_kernel : _machine_switch_context + 0xc8 0xffffff83c4e23c30 : 0xffffff8006961334 mach_kernel : _thread_unstop + 0x1784 0xffffff83c4e23ca0 : 0xffffff800695fb1f mach_kernel : _thread_block_reason + 0xbf 0xffffff83c4e23cf0 : 0xffffff800693a990 mach_kernel : _delay_for_interval + 0xa0 0xffffff83c4e23d10 : 0xffffff7f87b099ce com.apple.driver.usb.AppleUSBXHCI : __ZN16AppleUSBXHCIPort7powerOnEv + 0x1e0 0xffffff83c4e23d70 : 0xffffff7f87739d71 com.apple.iokit.IOUSBHostFamily : __ZN16AppleUSBHostPort18setPowerStateGatedEmP9IOService + 0x417 0xffffff83c4e23dd0 : 0xffffff8007042d78 mach_kernel : __ZN13IOCommandGate9runActionEPFiP8OSObjectPvS2_S2_S2_ES2_S2_S2_S2_ + 0x138 0xffffff83c4e23e30 : 0xffffff8007027d34 mach_kernel : __ZN9IOService19driverSetPowerStateEv + 0x184 0xffffff83c4e23ea0 : 0xffffff8007027b3a mach_kernel : __ZN9IOService15pmDriverCalloutEPS_ + 0x2a 0xffffff83c4e23ec0 : 0xffffff80069811d5 mach_kernel : _thread_call_delayed_timer + 0xea5 0xffffff83c4e23f40 : 0xffffff8006980d01 mach_kernel : _thread_call_delayed_timer + 0x9d1 0xffffff83c4e23fa0 : 0xffffff80068e613e mach_kernel : _call_continuation + 0x2e Kernel Extensions in backtrace: com.apple.iokit.IOUSBHostFamily(1.2)[70761A70-11A9-3F83-B2F7-0FCEC749EE99]@0xffffff7f87719000->0xffffff7f87810fff dependency: com.apple.driver.AppleBusPowerController(1.0)[B4001F35-E1A9-385A-9B45-1AF7ECD5E51E]@0xffffff7f876ff000 dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[3DE1C066-5E08-3F07-BC5C-5273A7A38363]@0xffffff7f87707000 dependency: com.apple.driver.AppleUSBHostMergeProperties(1.2)[D890F1D7-ADE3-3D96-8A24-9A91E5D0F202]@0xffffff7f87715000 com.apple.driver.usb.AppleUSBXHCI(1.2)[9CE96A1A-12FC-3D0B-9F48-14B8D8AB6A75]@0xffffff7f87ae3000->0xffffff7f87b3afff dependency: com.apple.iokit.IOACPIFamily(1.4)[9BA2613C-A129-3EDD-8DC1-2CFF6B62B832]@0xffffff7f8768f000 dependency: com.apple.iokit.IOUSBHostFamily(1.2)[70761A70-11A9-3F83-B2F7-0FCEC749EE99]@0xffffff7f87719000 dependency: com.apple.driver.usb.AppleUSBCommon(1.0)[3DE1C066-5E08-3F07-BC5C-5273A7A38363]@0xffffff7f87707000 BSD process name corresponding to current thread: kernel_task Boot args: keepsyms=1 dart=0 debug=0x100 shiki-id=Mac-7BA5B2D9E42DDD94 Mac OS version: 19A602 Kernel version: Darwin Kernel Version 19.0.0: Wed Sep 25 20:18:50 PDT 2019; root:xnu-6153.11.26~2/RELEASE_X86_64 Kernel UUID: 70EDD61F-86EE-3E1B-873F-98D909B78160 Kernel slide: 0x0000000006600000 Kernel text base: 0xffffff8006800000 __HIB text base: 0xffffff8006700000 System model name: iMacPro1,1 (Mac-7BA5B2D9E42DDD94) System shutdown begun: NO Panic diags file available: YES (0x0) System uptime in nanoseconds: 6925735177218 last loaded kext at 247037741313: @filesystems.msdosfs 1.10 (addr 0xffffff7f879ee000, size 69632) loaded kexts: com.paragon-software.filesystems.extfs 620.8.9 org.tw.CodecCommander 2.6.3 com.Logitech.Control Center.HID Driver 3.9.8 org.hwsensors.driver.GPUSensors 1800 org.hwsensors.driver.LPCSensors 1800 net.osx86.kexts.GenericUSBXHCI 1.2.11 com.insanelymac.!IMausiEthernet 2.2.0 org.hwsensors.driver.ACPISensors 1800 org.hwsensors.driver.SMMSensors 1800 org.hwsensors.driver.CPUSensors 1800 as.vit9696.WhateverGreen 1.3.2 org.netkas.driver.FakeSMC 1800 as.vit9696.!AALC 1.4.2 as.vit9696.Lilu 1.3.8 com.rehabman.driver.USBInjectAll 0.7.1 @filesystems.msdosfs 1.10 @fileutil 20.036.15 @kext.AMDFramebuffer 3.0.0 >AGPM 111.1.18 >!APlatformEnabler 2.7.0d0 >X86PlatformShim 1.0.0 @filesystems.autofs 3.0 >!AHDAHardwareConfigDriver 283.14 >!AUpstreamUserClient 3.6.8 >!AMCCSControl 1.12 >!AHDA 283.14 @kext.AMDRadeonX4000 3.0.0 @kext.AMDRadeonServiceManager 3.0.0 >!AGraphicsDevicePolicy 4.1.46 >!A16X50ACPI 3.2 @AGDCPluginDisplayMetrics 4.1.46 >!A!ISKLGraphics 14.0.0 >!AHV 1 |IOUserEthernet 1.0.1 |IO!BSerialManager 7.0.0f8 >!A!IPCHPMC 2.0.1 >pmtelemetry 1 @Dont_Steal_Mac_OS_X 7.0.0 >eficheck 1 @kext.AMD9500!C 3.0.0 >!A!IMCEReporter 115 >ACPI_SMC_PlatformPlugin 1.0.0 >!A!ISKLGraphicsFramebuffer 14.0.0 >!AGFXHDA 100.1.421 >AudioAUUC 1.70 >!A!ISlowAdaptiveClocking 4.0.0 >!AFIVRDriver 4.1.0 @filesystems.apfs 1412.11.7 |IO!BUSBDFU 7.0.0f8 >!ATopCaseHIDEventDriver 153 >!UTopCaseDriver 153 |SCSITaskUserClient 422.0.2 >!AFileSystemDriver 3.0.1 >!AVirtIO 1.0 @filesystems.hfs.kext 522.0.9 @!AFSCompression.!AFSCompressionTypeDataless 1.0.0d1 @BootCache 40 @!AFSCompression.!AFSCompressionTypeZlib 1.0.0 >AirPort.BrcmNIC 1400.1.1 @private.KextAudit 1.0 >!AAHCIPort 341.0.2 >!AACPIButtons 6.1 >!ARTC 2.0 >!AHPET 1.8 >!ASMBIOS 2.1 >!AAPIC 1.7 $!AImage4 1 @nke.applicationfirewall 302 $TMSafetyNet 8 @!ASystemPolicy 2.0.0 |EndpointSecurity 1 @kext.triggers 1.0 >!ASMBus!C 1.0.18d1 |IOSMBus!F 1.1 >DspFuncLib 283.14 @kext.OSvKernDSPLib 529 @kext.AMDRadeonX4000HWLibs 1.0 @kext.AMDRadeonX4000HWServices 3.0.0 >!AGraphicsControl 4.1.46 >!A16X50Serial 3.2 |IOAVB!F 800.17 >!ASSE 1.0 @!AGPUWrangler 4.1.46 >!ASMBusPCI 1.0.14d1 >!AHDA!C 283.14 |IOHDA!F 283.14 >IOPlatformPluginLegacy 1.0.0 >X86PlatformPlugin 1.0.0 >IOPlatformPlugin!F 6.0.0d8 |IOAccelerator!F2 438.1.23 |IONDRVSupport 558.3 @kext.AMDSupport 3.0.0 @!AGraphicsDeviceControl 4.1.46 |IOGraphics!F 558.3 |IOSlowAdaptiveClocking!F 1.0.0 @plugin.IOgPTPPlugin 800.14 |IOEthernetAVB!C 1.1.0 |IOAHCIBlock!S 316.0.5 >!AXsanScheme 3 |Broadcom!BHost!CUSBTransport 7.0.0f8 |IO!BHost!CUSBTransport 7.0.0f8 |IO!BHost!CTransport 7.0.0f8 >!AHS!BDriver 153 >usb.IOUSBHostHIDDevice 1.2 >!AMultitouchDriver 3400.35 >!AInputDeviceSupport 3400.27 >!AHIDKeyboard 209 >IO!BHIDDriver 7.0.0f8 |IO!B!F 7.0.0f8 |IO!BPacketLogger 7.0.0f8 |IOUSBHIDDriver 900.4.2 >!UAudio 320.47 |IOAudio!F 300.2 @vecLib.kext 1.2.0 >usb.cdc 5.0.0 >usb.networking 5.0.0 >usb.!UHostCompositeDevice 1.2 >usb.!UHub 1.2 |IOSerial!F 11 |IOSurface 269.6 @filesystems.hfs.encodings.kext 1 |IO80211!F 1200.12.2b1 >mDNSOffloadUserClient 1.0.1b8 >corecapture 1.0.4 |IOSkywalk!F 1 >usb.!UHostPacketFilter 1.0 |IOUSB!F 900.4.2 >!A!ILpssI2C 3.0.60 >usb.!UXHCIPCI 1.2 >usb.!UXHCI 1.2 |IOAHCI!F 290.0.1 >!AEFINVRAM 2.1 >!AEFIRuntime 2.1 >!A!ILpssGspi 3.0.60 |IOHID!F 2.0.0 $quarantine 4 $sandbox 300.0 @kext.!AMatch 1.0.0d1 >DiskImages 493.0.0 >!AFDEKeyStore 28.30 >!AEffaceable!S 1.0 >!AKeyStore 2 >!UTDM 489.11.2 |IOSCSIBlockCommandsDevice 422.0.2 >!ACredentialManager 1.0 >KernelRelayHost 1 >!ASEPManager 1.0.1 >IOSlaveProcessor 1 |IOUSBMass!SDriver 157.11.2 |IOSCSIArchitectureModel!F 422.0.2 |IO!S!F 2.1 |IOUSBHost!F 1.2 >!UHostMergeProperties 1.2 >usb.!UCommon 1.0 >!ABusPower!C 1.0 |CoreAnalytics!F 1 >!AMobileFileIntegrity 1.0.5 @kext.CoreTrust 1 |IOTimeSync!F 800.14 |IONetworking!F 3.4 |IOReport!F 47 >!AACPIPlatform 6.1 >!ASMC 3.1.9 >watchdog 1 |IOPCI!F 2.9 |IOACPI!F 1.4 @kec.pthread 1 @kec.corecrypto 1.0 @kec.Libm 1" Link to comment Share on other sites More sharing options...
wern apfel Posted October 21, 2019 Author Share Posted October 21, 2019 (edited) 1 hour ago, Andres ZeroCross said: What do you mean by unused device?? With your method and my method and comparing the IOREG Output then the result is same. I don't see any unused device there. Can you point my mistake? Take a look at your screenshot, where you can see the IGPU audio codec with the device ID: 8086 0101, which should disappear. Assuming the modgrub command is right. You can temporarily disable the IGPU, where the audio codec is also disabled to see the difference. 1 hour ago, madicineman said: Too me, that does not look like a second device. Am I right? Since you use the iMac Pro SMBIOS you probably also have disabled the IGPU, then there is no second device. 1 hour ago, madicineman said: Does that make any sense to you? It seems to be an USB issue. Try to disable the Thunderbolt chip. On my setup, the USB3.1 port does not work anymore after wakeing which sits on the Thunderbolt chip. Edited October 21, 2019 by wern apfel Link to comment Share on other sites More sharing options...
Andres ZeroCross Posted October 21, 2019 Share Posted October 21, 2019 1 hour ago, wern apfel said: Take a look at your screenshot, where you can see the IGPU audio codec with the device ID: 8086 0101, which should disappear. Assuming the modgrub command is right. You can temporarily disable the IGPU, where the audio codec is also disabled to see the difference. ??? Take a look at your screenshot above, you have audio device id too with device id : 8086 280b. There is no difference Link to comment Share on other sites More sharing options...

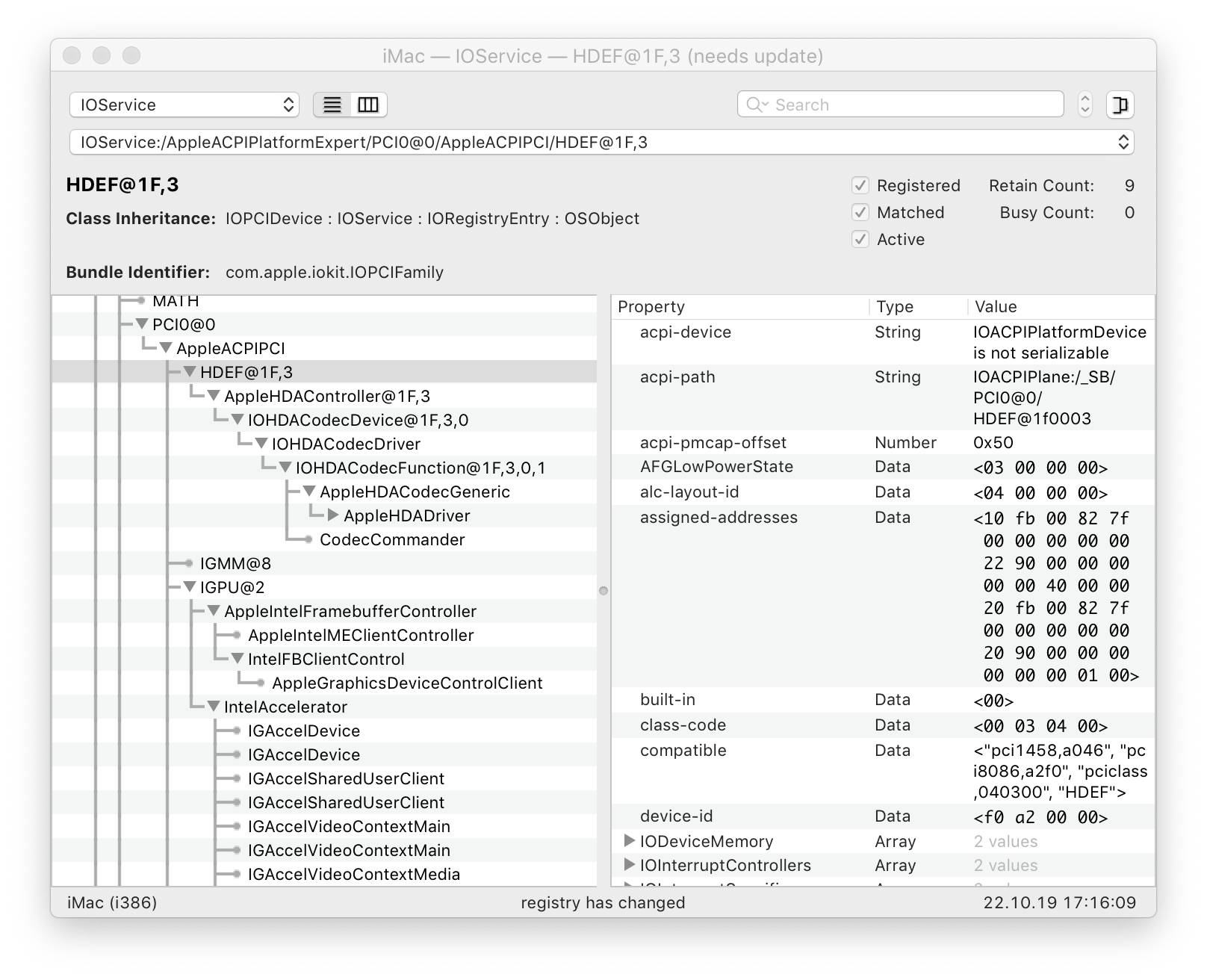

wern apfel Posted October 22, 2019 Author Share Posted October 22, 2019 20 hours ago, Andres ZeroCross said: ??? Take a look at your screenshot above, you have audio device id too with device id : 8086 280b. There is no difference My previous screenshot was taken with digital codec enabled , so that madicineman can see what needs to be disabled. Here a screenshot were the codec is disabled. 1 Link to comment Share on other sites More sharing options...
wern apfel Posted January 5, 2020 Author Share Posted January 5, 2020 (edited) Since some users think the installation of CodecCommander to /L/E is wrong or not vanilla, here a version that should work with CC from the Other folder. Multichannel should also work without CC. So please try and report back, Thanks. R3Di users should try layout-id 4 and the ZxRi users 7 and 8. CC should not have a CA0132 profile, use the SSDT instead. AppleALC_1.4.5.zip Edited January 5, 2020 by wern apfel Link to comment Share on other sites More sharing options...
Muteb Posted February 14, 2020 Share Posted February 14, 2020 (edited) On 1/5/2020 at 1:32 PM, wern apfel said: Since some users think the installation of CodecCommander to /L/E is wrong or not vanilla, here a version that should work with CC from the Other folder. Multichannel should also work without CC. So please try and report back, Thanks. R3Di users should try layout-id 4 and the ZxRi users 7 and 8. CC should not have a CA0132 profile, use the SSDT instead. AppleALC_1.4.5.zip Hey @wern apfel! , I have sound blaster Zx I use the SSDT for R3Di and layout-ID=4 and installed CodeCommand to L/E and I try to put in clover/kext/other still not working can you help me ? thanks for your hard job to try working on these cards. Edited February 14, 2020 by Muteb Link to comment Share on other sites More sharing options...
wern apfel Posted February 14, 2020 Author Share Posted February 14, 2020 15 hours ago, Muteb said: Hey @wern apfel! , I have sound blaster Zx I use the SSDT for R3Di and layout-ID=4 and installed CodeCommand to L/E and I try to put in clover/kext/other still not working can you help me ? thanks for your hard job to try working on these cards. Do you mean ZxRi? If so, use layout-id 7 or 8. Link to comment Share on other sites More sharing options...

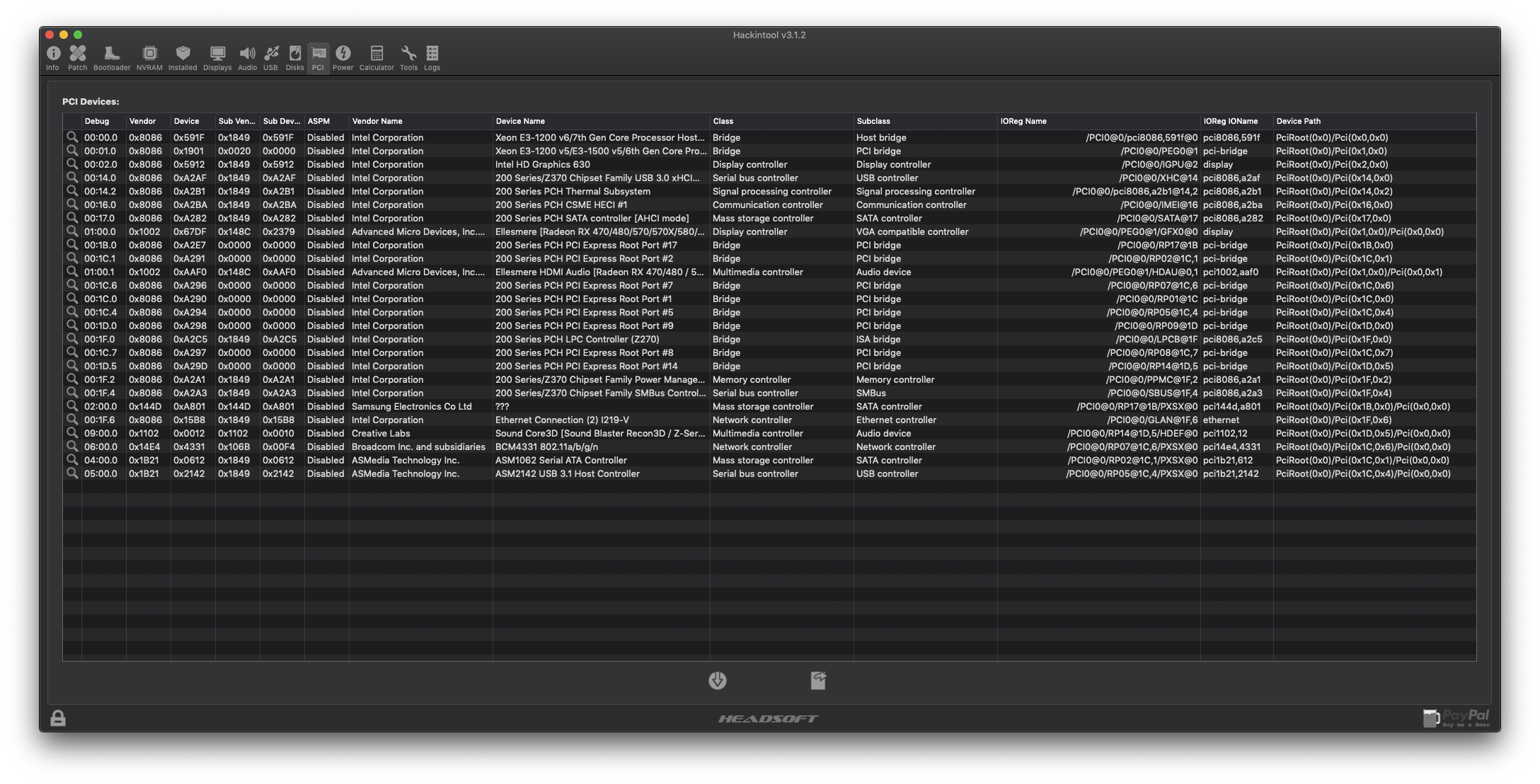

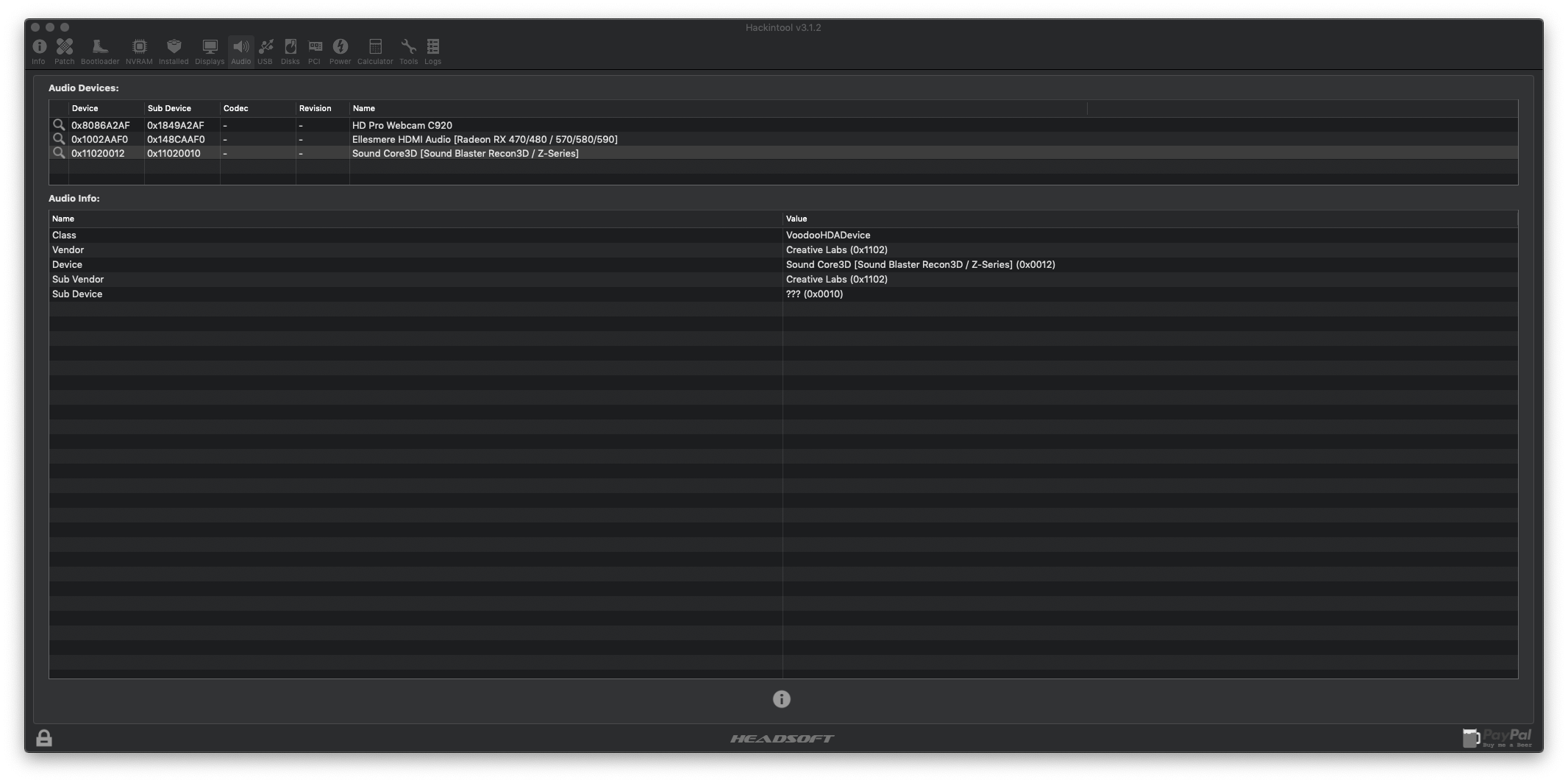

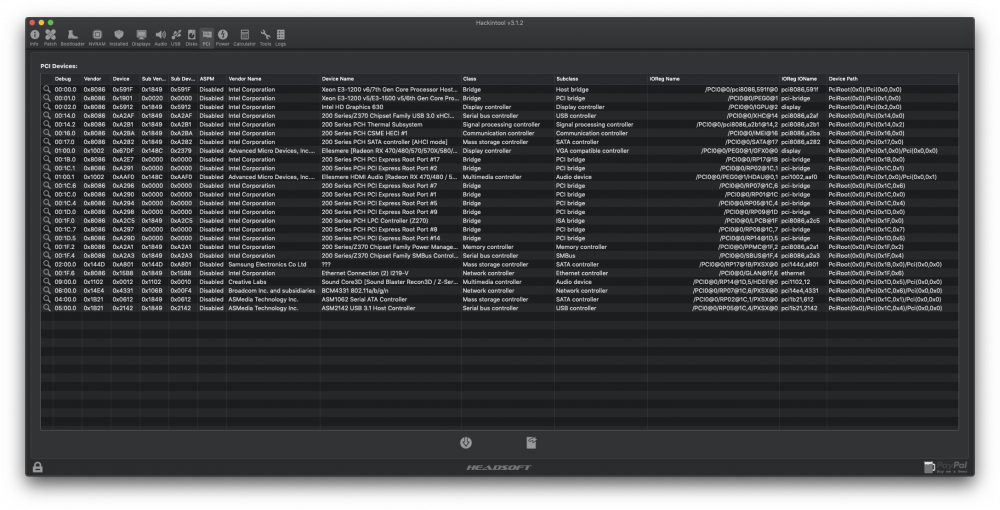

Muteb Posted February 15, 2020 Share Posted February 15, 2020 (edited) 7 hours ago, wern apfel said: Do you mean ZxRi? If so, use layout-id 7 or 8. No I mean the sound blaster ZX pci card the chipset for this card is CA0132 , can you share with me the Applealc sours code so may be I can work it . interesting my card before your kext and .aml installed was showing as pxsx but now its show as HDES, but do I have to run windows or linux first then run Mac OS . please see the photo: and thanks for your replay. Edited February 15, 2020 by Muteb Link to comment Share on other sites More sharing options...
wern apfel Posted February 15, 2020 Author Share Posted February 15, 2020 (edited) On 2/15/2020 at 5:23 AM, Muteb said: No I mean the sound blaster ZX pci card the chipset for this card is CA0132 , can you share with me the Applealc sours code so may be I can work it . interesting my card before your kext and .aml installed was showing as pxsx but now its show as HDES, but do I have to run windows or linux first then run Mac OS . please see the photo: and thanks for your replay. Ok, I didn't know there was a Zx card too. Since the SSID is 0x0010, which is the same as the Soundblaster Z, it should work with the same settings. I will probably upload a test sample later. As far as I know, the AppleHDAController doesn't support PCIe cards, but you can patch it with your device-id to see if the controller is loading. EDIT: Disable the renaming to HDEF patch and try VoodooHDA. This version forwards the microphone to the first Line-Out to see if the mixer works properly. Suppose you own a microphone. If possible, use getdump and upload the output. VoodooHDA.kext.zip Edited February 16, 2020 by wern apfel Link to comment Share on other sites More sharing options...
Muteb Posted February 16, 2020 Share Posted February 16, 2020 On 2/15/2020 at 5:05 PM, wern apfel said: Ok, I didn't know there was a Zx card too. Since the SSID is 0x0010, which is the same as the Soundblaster Z, it should work with the same settings. I will probably upload a test sample later. As far as I know, the AppleHDAController doesn't support PCIe cards, but you can patch it with your device-id to see if the controller is loading. EDIT: Disable the renaming to HDEF patch and try VoodooHDA. This version forwards the microphone to the first Line-Out to see if the mixer works properly. Suppose you own a microphone. If possible, use getdump and upload the output. VoodooHDA.kext.zip okay , its seem the VodooHDA is loading the card and it is recognised , but still no input or out put . also I have a PinConfig dumb form linux you can use it to help you understand . code ca0132.txt Link to comment Share on other sites More sharing options...
wern apfel Posted February 17, 2020 Author Share Posted February 17, 2020 16 hours ago, Muteb said: okay , its seem the VodooHDA is loading the card and it is recognised , but still no input or out put . also I have a PinConfig dumb form linux you can use it to help you understand . code ca0132.txt I think the issue is the second chip (CA0113) which is the controller. As already mentioned, can you please run getdump and show me the output? Does the microphone work? you should normally hear it trough the first line-out. If not, try after sleep. getdump.zip Link to comment Share on other sites More sharing options...
Muteb Posted February 18, 2020 Share Posted February 18, 2020 (edited) On 2/17/2020 at 1:34 PM, wern apfel said: I think the issue is the second chip (CA0113) which is the controller. As already mentioned, can you please run getdump and show me the output? Does the microphone work? you should normally hear it trough the first line-out. If not, try after sleep. getdump.zip hey sorry for not replaying, The microphone did work after sleep . here the dump you ask for. voodoo_dump.txt EDIT: here is the get Config Date: <00B71C10 00B71D41 00B71E01 00B71F01 00B70C02 00F71C1F 00F71DF0 00F71E21 00F71F01 01071C20 01071D60 01071E01 01071F01 01171C30 01171D20 01171E01 01171F01 00C71CF0 00C71D20 00C71E45 00C71F01 00D71CF0 00D71D00 00D71E00 00D71F40 00E71CF0 00E71D10 00E71EC5 00E71F01 01271CF0 01271D91 01271EA7 01271F01 01371CF0 01371D00 01371E00 01371F40 01871CF0 01871D00 01871E00 01871F50> Edited February 18, 2020 by Muteb Link to comment Share on other sites More sharing options...
Muteb Posted February 21, 2020 Share Posted February 21, 2020 On 2/18/2020 at 5:22 PM, Muteb said: hey sorry for not replaying, The microphone did work after sleep . here the dump you ask for. voodoo_dump.txt EDIT: here is the get Config Date: <00B71C10 00B71D41 00B71E01 00B71F01 00B70C02 00F71C1F 00F71DF0 00F71E21 00F71F01 01071C20 01071D60 01071E01 01071F01 01171C30 01171D20 01171E01 01171F01 00C71CF0 00C71D20 00C71E45 00C71F01 00D71CF0 00D71D00 00D71E00 00D71F40 00E71CF0 00E71D10 00E71EC5 00E71F01 01271CF0 01271D91 01271EA7 01271F01 01371CF0 01371D00 01371E00 01371F40 01871CF0 01871D00 01871E00 01871F50> Hey @wern apfel any update? Link to comment Share on other sites More sharing options...
