lig8sp33d Posted November 5, 2016 Share Posted November 5, 2016 The AppleALC.kext that you are using has resources from a poor copy of my kexts, which doesn't work properly, added by some users. Here is a patched kext, which you should install to /S/L/E, also set your audio layout-id to 0. AppleHDA.kext_10.12_front_HP.zip Thank You Wern ! You are a legend. That works perfectly fine ! Volume Slider + Line out + HP Do you reckon that the 5.1 channel is working with this kext or not ? I had HDMI working earlier, but it does not show on my device list, what should i do ? I still have the "Rename HDAS to HDEF" patch still active Link to comment Share on other sites More sharing options...
wern apfel Posted November 5, 2016 Author Share Posted November 5, 2016 Do you reckon that the 5.1 channel is working with this kext or not ? It should work if you make a aggregate device, but so far i know, it works only with VLC and few other players. I've no 5.1 device. I had HDMI working earlier, but it does not show on my device list, what should i do ? I still have the "Rename HDAS to HDEF" patch still active I use the DP port, which works, but i'll try the HDMI port later. Link to comment Share on other sites More sharing options...
stl-dizy Posted November 16, 2016 Share Posted November 16, 2016 So I had audio working.... But it has stopped working a few times now. It works for a few days then stops working. So I reinstall applehda and it works for a few days. Any ideas? Link to comment Share on other sites More sharing options...
wern apfel Posted November 17, 2016 Author Share Posted November 17, 2016 I had HDMI working earlier, but it does not show on my device list, what should i do ? I still have the "Rename HDAS to HDEF" patch still active It seems that there is an device limit, not sure if only digital, or overall. ATM. i'm a bit lazy, i've not try to do anything on that issue. But, if you don't need the S/PDIF output, remove it to use HDMI So I had audio working.... But it has stopped working a few times now. It works for a few days then stops working. So I reinstall applehda and it works for a few days. Any ideas? I guess you also use Windows, you'll be probably surprised if i said that the windows driver is the issue, because the windows driver doesn't reset the DSP on shutdown, but it should. Have you tried the method from post #380 ?. A script at startup should also fix it. Link to comment Share on other sites More sharing options...
slayer2333 Posted November 17, 2016 Share Posted November 17, 2016 It seems that there is an device limit, not sure if only digital, or overall. ATM. i'm a bit lazy, i've not try to do anything on that issue. But, if you don't need the S/PDIF output, remove it to use HDMI I guess you also use Windows, you'll be probably surprised if i said that the windows driver is the issue, because the windows driver doesn't reset the DSP on shutdown, but it should. Have you tried the method from post #380 ?. A script at startup should also fix it. Or the ResetAudio option in Clover ? Link to comment Share on other sites More sharing options...
wern apfel Posted November 17, 2016 Author Share Posted November 17, 2016 Or the ResetAudio option in Clover ? I don't think so. I don't know what that reset makes, i don't use windows, and have not such an issue, and i know that issue from early testing with windows. Link to comment Share on other sites More sharing options...
stl-dizy Posted November 19, 2016 Share Posted November 19, 2016 I have tried shutting down PC, switching off power supply, and pressing the startup button. I tried resethda. no luck. any help with a script? Link to comment Share on other sites More sharing options...
stl-dizy Posted November 19, 2016 Share Posted November 19, 2016 I managed to get it to work again. I had to boot in safe mode than restarted normally and it works. Very strange and I am not enjoying how temperamental it is. If possible can you please provide me with a script that will avoid this issue in the future. Link to comment Share on other sites More sharing options...
JMacIV Posted November 20, 2016 Share Posted November 20, 2016 Hey Wern, Thanks for all your hard work with this CA0132 AppleHDA kext. I am successfully using your Sierra version (C/Sub) with my GA-Z170X-Gaming 7 mobo on 10.12.1. This board has the same CA0132. Sound is great and I have volume control My only question is some times after sleep, the sound either does not output or can be distorted (completely lose highs and mids, only bass). It is not every time after sleep, but some times. A restart does fix it. Do you have any idea why the sound out would not work after sleep? I would imagine it could have to do with one of these kexts becoming unloaded after sleep maybe? Now that I just typed that out, sounds like I am losing the L+R out on the mobo after sleep if I only have bass. I am using the the C/Sub Sierra HDA kext from post 1 + CodecCommander + Layout 0 in Clover. Thanks, JMac 1 Link to comment Share on other sites More sharing options...
wern apfel Posted November 21, 2016 Author Share Posted November 21, 2016 If possible can you please provide me with a script that will avoid this issue in the future. There are a few commands which could help you, but first we have to find out what is the issue. You can try to restart core audio Restart Coreaudio.zip Hey Wern, Thanks for all your hard work with this CA0132 AppleHDA kext. I am successfully using your Sierra version (C/Sub) with my GA-Z170X-Gaming 7 mobo on 10.12.1. This board has the same CA0132. Sound is great and I have volume control My only question is some times after sleep, the sound either does not output or can be distorted (completely lose highs and mids, only bass). It is not every time after sleep, but some times. A restart does fix it. Do you have any idea why the sound out would not work after sleep? I would imagine it could have to do with one of these kexts becoming unloaded after sleep maybe? Now that I just typed that out, sounds like I am losing the L+R out on the mobo after sleep if I only have bass. I am using the the C/Sub Sierra HDA kext from post 1 + CodecCommander + Layout 0 in Clover. Thanks, JMac Try it without the CodecCommander.kext 1 Link to comment Share on other sites More sharing options...
stl-dizy Posted November 23, 2016 Share Posted November 23, 2016 Restart coreaudio killed my audio. Had to go through the process of patching, restarting, booting in safe, deleting kexts process to get audio working again. I lie. Audio is on max volume and it sounds like it is barely on... Link to comment Share on other sites More sharing options...
stl-dizy Posted December 3, 2016 Share Posted December 3, 2016 So it keeps happening. Audio working fine and then a few days later it goes. Any help? Link to comment Share on other sites More sharing options...
buyjoey Posted December 7, 2016 Share Posted December 7, 2016 Hey Wern, Thanks for all your hard work with this CA0132 AppleHDA kext. I am successfully using your Sierra version (C/Sub) with my GA-Z170X-Gaming 7 mobo on 10.12.1. This board has the same CA0132. Sound is great and I have volume control My only question is some times after sleep, the sound either does not output or can be distorted (completely lose highs and mids, only bass). It is not every time after sleep, but some times. A restart does fix it. Do you have any idea why the sound out would not work after sleep? I would imagine it could have to do with one of these kexts becoming unloaded after sleep maybe? Now that I just typed that out, sounds like I am losing the L+R out on the mobo after sleep if I only have bass. I am using the the C/Sub Sierra HDA kext from post 1 + CodecCommander + Layout 0 in Clover. Thanks, JMac Hi, there, How did you work by Sleep/Wake? I have the same board and no luck for sleep/wake. it always display off only... Please guide me for working. Thank you! Joe 1 Link to comment Share on other sites More sharing options...

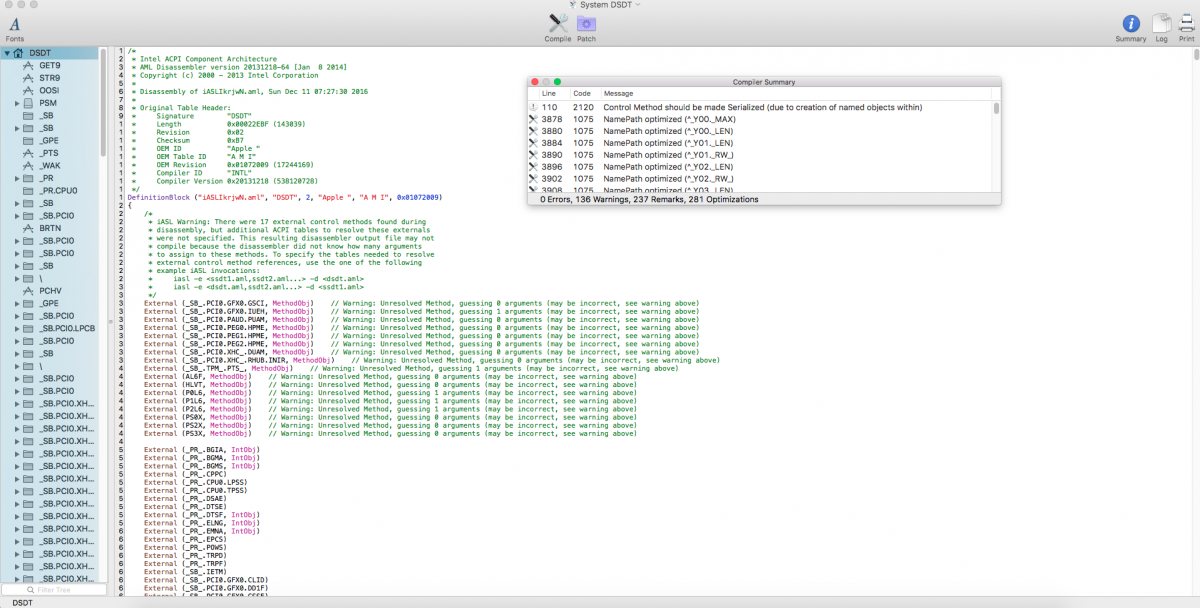

stl-dizy Posted December 10, 2016 Share Posted December 10, 2016 I think my System DSDT Is the problem. When I run it I now get two syntax error unexpected PARSEOP_ARG0. Once I clear them I get hundreds of warnings and remarks. Screenshot attached. Please someone help. Link to comment Share on other sites More sharing options...
abdouoi Posted December 13, 2016 Share Posted December 13, 2016 Hi wern apfel, Can you please upload the patched kext for 10.12.2 release ? For the layout, you can use the one you used to build with the post below With layout, i meant a layout from all patched kexts. So far I know, a mic array are two mono microphones which are used as one stereo microphone. Here the Sierra kext AppleHDA.kext_Sierra_DP8.zip Link to comment Share on other sites More sharing options...
stl-dizy Posted December 14, 2016 Share Posted December 14, 2016 Seriously... any help? I am sick to death of re applying the kext every second or third boot. I need a permenant fix. Any help? Link to comment Share on other sites More sharing options...
wern apfel Posted December 18, 2016 Author Share Posted December 18, 2016 I think my System DSDT Is the problem. When I run it I now get two syntax error unexpected PARSEOP_ARG0. Once I clear them I get hundreds of warnings and remarks. Screenshot attached. Please someone help. If you shutdown the PC and press the startup-button without power, the codec should work again, if not you have another issue. Have you added the HPET fix ?. Hi wern apfel, Can you please upload the patched kext for 10.12.2 release ? For the layout, you can use the one you used to build with the post below Here is the kext:AppleHDA.kext_10.12.2_Alienware.zip 1 Link to comment Share on other sites More sharing options...
Healian Posted December 18, 2016 Share Posted December 18, 2016 If you shutdown the PC and press the startup-button without power, the codec should work again, if not you have another issue. Have you added the HPET fix ?. Here is the kext:AppleHDA.kext_10.12.2_Alienware.zip Dude you are a life saver... this works very nice with me, but no volume control... i have ca0132 on gigabyte z97 can you do me that one favor and help enabling volume control ? Here is some info that maybe useful... Codec dump: http://pastebin.com/XDS2UMPS System Report->Audio: http://pastebin.com/8nEtgfVH OS Ver. 10.12 Motherboard: Gigabyte G1.Sniper z97 Link to comment Share on other sites More sharing options...
abdouoi Posted December 18, 2016 Share Posted December 18, 2016 Here is the kext:AppleHDA.kext_10.12.2_Alienware.zip Thanks wern apfel . My Alienware has HDMI and DP. Currently HDMI works flawlessly but DP doesn't. Do you know how I can activate DP ? Link to comment Share on other sites More sharing options...
wern apfel Posted December 19, 2016 Author Share Posted December 19, 2016 Dude you are a life saver... this works very nice with me, but no volume control... i have ca0132 on gigabyte z97 can you do me that one favor and help enabling volume control ? Here is some info that maybe useful... Codec dump: http://pastebin.com/XDS2UMPS System Report->Audio: http://pastebin.com/8nEtgfVH OS Ver. 10.12 Motherboard: Gigabyte G1.Sniper z97 Your Audio system report shows me that you are using the layout-id 11, so far i know i've never uploaded a kext patched for that layout-id. You can try a kext from the 1st post. Thanks wern apfel . My Alienware has HDMI and DP. Currently HDMI works flawlessly but DP doesn't. Do you know how I can activate DP ? Here, a screenshot with loaded kext from post 400, so it should work. You have to edit your DSDT, to have the same "hda-gfx" "onboard-x" values for the HDMI and DP device. Link to comment Share on other sites More sharing options...
Healian Posted December 19, 2016 Share Posted December 19, 2016 the last patched kext you posted in a comment (the alienware one) works with audio id 11, the ones in the main thread work but there is strange static noise that only goes away if there is sound playing but once it is idle it starts the static/white noise again. Link to comment Share on other sites More sharing options...

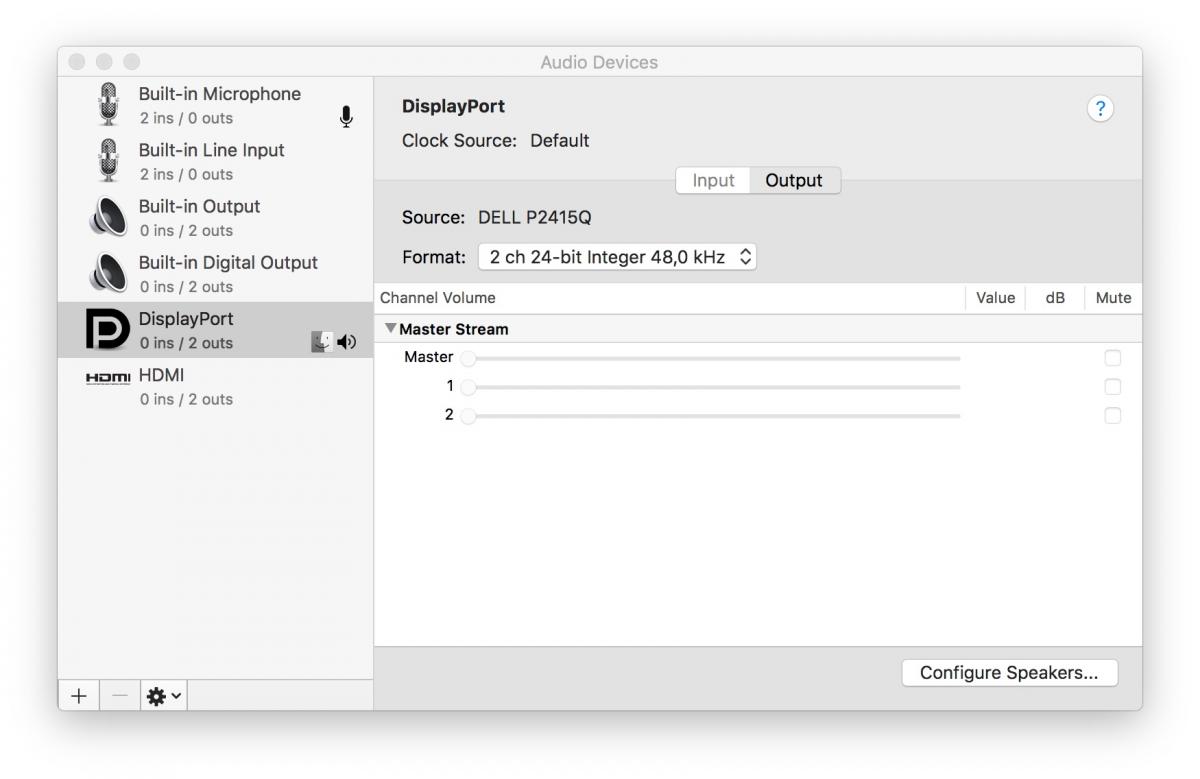

abdouoi Posted December 19, 2016 Share Posted December 19, 2016 Here, a screenshot with loaded kext from post 400, so it should work. You have to edit your DSDT, to have the same "hda-gfx" "onboard-x" values for the HDMI and DP device. audio-midi.jpg My problem was I didn't even get the DP detected (no graphics) but I managed to get it by following a tuto. After that, I tested the sound and it was working. So I didn't have to edit nothing in dsdt. Thanks Link to comment Share on other sites More sharing options...
wern apfel Posted December 20, 2016 Author Share Posted December 20, 2016 the last patched kext you posted in a comment (the alienware one) works with audio id 11, the ones in the main thread work but there is strange static noise that only goes away if there is sound playing but once it is idle it starts the static/white noise again. If you have working audio with layout-id 11, you've not removed all audio related kexts. Remove them, set the layout-id to 0 and install the kext attached below. AppleHDA.kext_noise.zip Link to comment Share on other sites More sharing options...
stl-dizy Posted December 22, 2016 Share Posted December 22, 2016 If you shutdown the PC and press the startup-button without power, the codec should work again, if not you have another issue. Have you added the HPET fix ?. I have tried disconnecting power and pressing start up button but it didn't work. In Xcode it says FIXHPET_0010 - Boolean - Yes. When I run MaciASL I have two errors - 6126 syntax error, unexpected PARSEOP_ARG0 (x2). When I correct I get hundreds of warnings, remarks and optimizations as shown in my previous post attachment. Link to comment Share on other sites More sharing options...
wern apfel Posted December 22, 2016 Author Share Posted December 22, 2016 I have tried disconnecting power and pressing start up button but it didn't work. In Xcode it says FIXHPET_0010 - Boolean - Yes. When I run MaciASL I have two errors - 6126 syntax error, unexpected PARSEOP_ARG0 (x2). When I correct I get hundreds of warnings, remarks and optimizations as shown in my previous post attachment. Then upload your DSDT, also an ioreg dump would be useful. Link to comment Share on other sites More sharing options...
