ola,

instalei o Mavericks 10.9 tranquilamente em uma ga g31m-es2l rev. 2.0, 4gb ram e geforce210, esta fazendo boot pelo pendrive tranquilo, reconheceu a placa de video sem precisar fazer nada, ja esta com total aceleração.

Só que não consigo fazer o boot pelo hd, leio leio leio e releio os guias e nada, na verdade ja tentei instalar o clover no hd 2x e nada, rs...



1. Instalei o mavericks pelo pendrive formatando o hd em guid - mac os extended (journaled), instalando normalmente.

2. montei as 2 partições efi (hd e pendrive) utilizando o app "efimounter" e copiei a pasta clover de uma para a outra.

3. rodei o app Clover_v2.3k_r3193.pkg, clover em ESP drivers 64, segui aos guias e tutoriais.



O que estou fazendo errado?





Link to comment
https://www.insanelymac.com/forum/topic/309222-boot-pelo-hd/
Share on other sites
Mirone
Mirone
Posted
Posted

Faça boot novamente pelo pen drive. No menu do Clover, entre na opção Clover Boot Options do drive SATA (normalmente 0x1F, 0x2) e selecione Add as UEFI boot option. A partir de agora você conseguirá iniciar sem o pen drive, pelo Clover da partição EFI, no modo UEFI.



lembrando que tanto quanto na partição EFI e no pendrive tem que ser instalado a mesma versão do clover.

macinpc
macinpc
Posted
  • Author
Posted

consegui instalar o clover na EFI e já esta subindo o sistema pelo hd.



Extrai o DSDT utilizando maciasl mas quando aplico os patches para minha placa mãe gigabye ga g31m-es2l, ele da um monte de erros.

Resolvi salvar o DSDT sem aplicar patch nenhum e da erro (local 0) e não deixa nem salvar.



O maciasl esta extraindo o dsdt com erro? Preciso aplicar os patches para ter shutdown, lpc, etc... etc...

macinpc
macinpc
Posted
  • Author
Posted

Extrai, corrigi e apliquei esse patch para a ga g31m-es2l

into device name_adr 0x001F0000 insert
begin
OperationRegion (LPC0, PCI_Config, 0xA4, 0x02)\n
                Field (LPC0, ByteAcc, NoLock, Preserve)\n
                {\n
                    AG3E,   1\n
                }
end;
into method label DTGP remove_entry;
into definitionblock code_regex . insert
begin
Method (DTGP, 5, NotSerialized)\n
{\n
    If (LEqual (Arg0, Buffer (0x10)\n
            {\n
                /* 0000 */    0xC6, 0xB7, 0xB5, 0xA0, 0x18, 0x13, 0x1C, 0x44, \n
                /* 0008 */    0xB0, 0xC9, 0xFE, 0x69, 0x5E, 0xAF, 0x94, 0x9B\n
            }))\n
    {\n
        If (LEqual (Arg1, One))\n
        {\n
            If (LEqual (Arg2, Zero))\n
            {\n
                Store (Buffer (One)\n
                    {\n
                        0x03\n
                    }, Arg4)\n
                Return (One)\n
            }\n
            If (LEqual (Arg2, One))\n
            {\n
                Return (One)\n
            }\n
        }\n
    }\n
    Store (Buffer (One)\n
        {\n
            0x00\n
        }, Arg4)\n
    Return (Zero)\n
}
end;
into method label _DSM parent_adr 0x001D0007 remove_entry;
into device name_adr 0x001D0007 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x04)\n
{\n
"AAPL,clock-id",\n
Buffer (One)\n
{\n
0x01\n
},\n
"device_type",\n
Buffer (0x05)\n
{\n
"EHCI"\n
}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into method label _DSM parent_adr 0x001A0007 remove_entry;
into device name_adr 0x001A0007 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
Store (Package (0x04)\n
{\n
"AAPL,clock-id",\n
Buffer (One)\n
{\n
0x02\n
},\n
"device_type",\n
Buffer (0x05)\n
{\n
"EHCI"\n
}\n
}, Local0)\n
DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
Return (Local0)\n
}
end;
into device label PWRB code_regex (Name\s\()_HID(\,\sEisaId\s\(\"PNP0C0C\"\)\)) replace_matched begin %1_CID%2 end;
into method label _STA parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_STA, 0, NotSerialized)\n
{\n
    Return (0x0F)\n
}
end;
into method label _CRS parent_hid PNP0103 remove_entry;
into device name_hid PNP0103 insert
begin
Method (_CRS, 0, NotSerialized)\n
{\n
    Return (ATT3)\n
}
end;
into_all all code_regex Or\s\(0x03,\sPARM\) replaceall_matched
begin
Or (PARM, 0x03, PARM)
end;
into device name_hid PNP0000 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0100 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0B00 code_regex IRQNoFlags\s\(\)\n\s+\{(\d+)\} remove_matched;
into device name_hid PNP0103 code_regex_not IRQNoFlags code_regex Name\s\(([^,]+),\sResourceTemplate\s\(\)\n\s+\{((?:.|\n)*)\}\) replace_matched
begin
Name (%1, ResourceTemplate ()\n
                    {\n
                        IRQNoFlags ()\n
                            {0}\n
                        IRQNoFlags ()\n
                            {8}\n
%2
})
end;
into method label _DSM parent_adr 0x001F0000 remove_entry;
into device name_adr 0x001F0000 insert
begin
Method (_DSM, 4, NotSerialized)\n
{\n
    Store (Package (0x02)\n
        {\n
            "device-id", \n
            Buffer (0x04)\n
            {\n
                0xb9, 0x27, 0x00, 0x00\n
            }\n
        }, Local0)\n
    DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
    Return (Local0)\n
}
end;
into device label SPKR remove_entry;
into device label FDC remove_entry;
into device label FDC0 remove_entry;
into device label LPT1 remove_entry;
into device label LPTE remove_entry;
into device label ECP1 remove_entry;
into device label MEM remove_entry;
into device label ^^RMEM remove_entry;
into device label IDE1 set_label begin SATA end;
into device label USB0 set_label begin UHC1 end;
into device label USB1 set_label begin UHC2 end;
into device label USB2 set_label begin UHC3 end;
into device label USB3 set_label begin UHC4 end;
into device label USB4 set_label begin UHC5 end;
into device label USB5 set_label begin UHC6 end;
into device label USBE set_label begin EHC1 end;
into device label USE2 set_label begin EHC2 end;
into_all all code_regex USB0 replaceall_matched begin UHC1 end;
into_all all code_regex USB1 replaceall_matched begin UHC2 end;
into_all all code_regex USB2 replaceall_matched begin UHC3 end;
into_all all code_regex USB3 replaceall_matched begin UHC4 end;
into_all all code_regex USB4 replaceall_matched begin UHC5 end;
into_all all code_regex USB5 replaceall_matched begin UHC6 end;
into_all all code_regex USBE replaceall_matched begin EHC1 end;
into_all all code_regex USE2 replaceall_matched begin EHC2 end;
into device name_hid PNP0B00 code_regex (IO\s\((?:\s*[^,]+,\s*(?:\/\/\s.*)?\s*\n)+\s*)(\dx\d+)(,\s*(?:\/\/\s.*)?\s*\n\s*\)) replace_matched begin %10x02%3 end;
into method label _WAK code_regex Return\s\(\s*\n?\s*Package\s*\n?\s*\(0x02\)\s*\n?\s*\{\s*\n?(?:\s*Zero,?\s*\n?){2}\s*\}\s*\n?\s*\) remove_matched;
into method label _WAK insert
begin
Return (Package (0x02)\n
{\n
    Zero, \n
    Zero\n
})
end;
into method label \_WAK code_regex Return\s\(\s*\n?\s*Package\s*\n?\s*\(0x02\)\s*\n?\s*\{\s*\n?(?:\s*Zero,?\s*\n?){2}\s*\}\s*\n?\s*\) remove_matched;
into method label \_WAK insert
begin
Return (Package (0x02)\n
{\n
    Zero, \n
    Zero\n
})
end;
into method label _PTS code_regex (If\s*\(LEqual\s*\(Arg0,\s*0x05\)\)\s*\n\s*\{\s*\n)(?:[^\n\}]+\n)+(\s*\}) replace_matched
begin
%1
            Store (One, \\_SB.PCI0.PX40.AG3E)\n
            Store (Zero, SLPE)\n
            Sleep (0x10)\n
%2\n
Else\n
{\n
    Store (Zero, \\_SB.PCI0.PX40.AG3E)\n
}
end;
into method label \_PTS code_regex (If\s*\(LEqual\s*\(Arg0,\s*0x05\)\)\s*\n\s*\{\s*\n)(?:[^\n\}]+\n)+(\s*\}) replace_matched
begin
%1
            Store (One, \\_SB.PCI0.PX40.AG3E)\n
            Store (Zero, SLPE)\n
            Sleep (0x10)\n
%2\n
Else\n
{\n
    Store (Zero, \\_SB.PCI0.PX40.AG3E)\n
}
end;
into definitionblock code_regex . code_regex_not OperationRegion\s*\(PMRS insert
begin
OperationRegion (PMRS, SystemIO, 0x0430, One)\n
Field (PMRS, ByteAcc, NoLock, Preserve)\n
{\n
        ,   4, \n
    SLPE,   1\n
}
end;
into device name_adr 0x001B0000 set_label
begin
HDEF
end;
into_all all code_regex AZAL replaceall_matched
begin
HDEF
end;
into device label HDEF insert
begin
Method (_DSM, 4, NotSerialized)\n
    {\n
        Store (Package (0x04)\n
            {\n
                "layout-id", \n
                Buffer (0x04)\n
                {\n
                    0x0C, 0x00, 0x00, 0x00\n
                }, \n
                "PinConfigurations", \n
                Buffer (Zero) {}\n
            }, Local0)\n
        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
        Return (Local0)\n
    }
end;
into_all all code_regex Or\s\(0x03,\sPARM\) replaceall_matched
begin
Or (PARM, 0x03, PARM)
end;
into method label _DSM parent_adr 0x001F0003 remove_entry;
into device name_adr 0x001F0003 insert
begin
Device (BUS0)\n
                {\n
                    Name (_CID, "smbus")\n
                    Name (_ADR, Zero)\n
                    Device (DVL0)\n
                    {\n
                        Name (_ADR, 0x57)\n
                        Name (_CID, "diagsvault")\n
                        Method (_DSM, 4, NotSerialized)\n
                        {\n
                            Store (Package (0x02)\n
                                {\n
                                    "address", \n
                                    0x57\n
                                }, Local0)\n
                            DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n
                            Return (Local0)\n
                        }\n
                    }\n
                }
end

Não sei se esta correto ou faltando alguma coisa, também tenho algumas duvidas em relação ao config.plist.

Por favor, poderiam dar uma conferida no dsdt e no config: dsdt_config.zip



Tive bastante problema na edição do config.plist, várias vezes reiniciava na fase final do boot (quando ia entrar na area de trabalho, reiniciava). Algumas outras vezes o sistema logo após iniciar dava KP, outras vezes dava KP assim que eu mexia na partição EFI, inserindo ou removendo arquivos. Dessa forma o sistema carrega normalmente, mas deve ter muita coisa desnecessária no config.

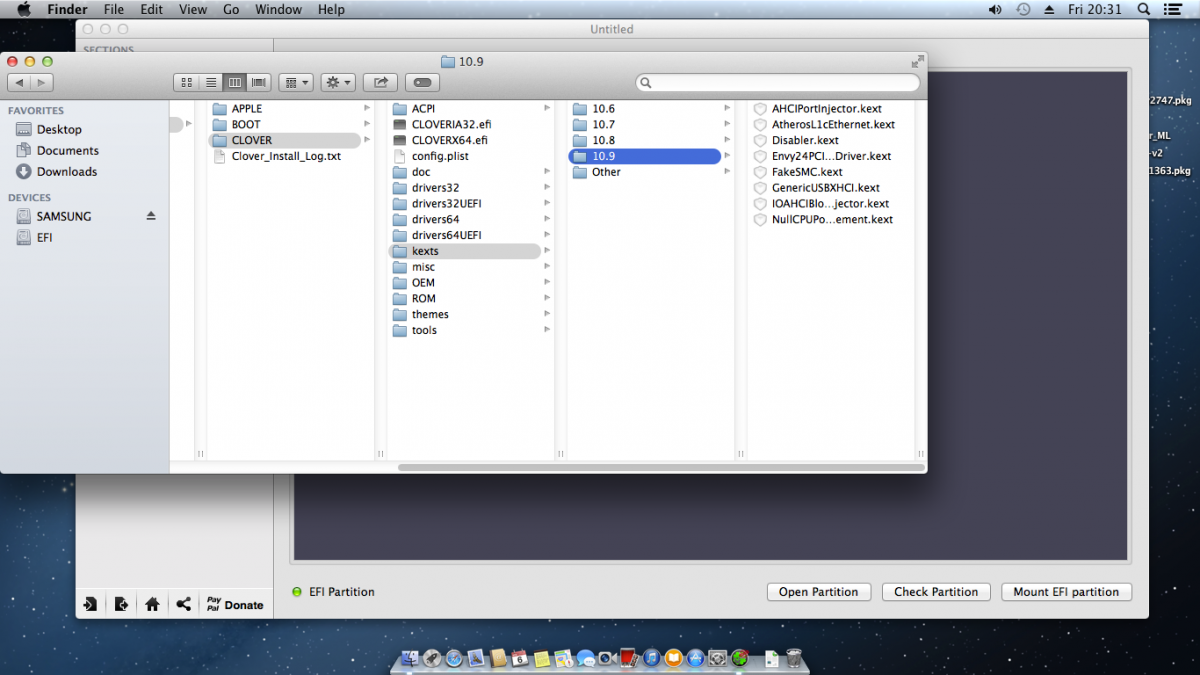

Agora esta estabilizado mas preciso de ajuda com o Gerenciamento de Energia a appleLPC não esta carregando, estou com essas kexts na pasta 10.9 do clover






aqui esta o resultado do kextstat: kextstat_mav_g31mes2l.zip



Hardware: Gigabyte GA G31M-ES2L, C2D 8400 3GHZ, 4GB RAM, GeForce 210
