Hi, Thanks for your reply.  One thing is not clear and I would appreciate if you could elaborate.  You write:



For x99 audio see Post #1/Unsupported/Non-working Realtek ALC AppleHDA/2. X99/Intel High Definition Audio

Steps 1 and 5 ignored/missing





If I am following what you are saying correctly, Step 1 says:



Install 10.9.5 AppleHDA.kext_v2.6.3

  1. Extract from Mavericks Installer



Do you mean "copy the AppleHDA.kext" from a working real Mac OS X 10.9.5 machine? I have one. (Or must it be copied only from the Installer)?  And then do you mean I should remove the AppleHDA.kext from my Hackintosh El Capitan installation and replace it with the one from Mavericks?  There was another place in your instructions that said:



El Capitan requires native AppleHDA.kext.





But it wasn't so clear if you mean it requires the native El Capitan version or just any Native version.  The instructions appear to conflict!  Anyway, if I need to remove the El Capitan version and replace it with the Mavericks version, is the correct (or at least a valid) procedure to:

  • Boot into Single User Mode
  • Delete the Old AppleHDA.kext
  • Reboot into the normal OS X desktop
  • Use an El Capitan-compatible kext installer to put the Mavericks kext in place
  • Reboot





Thanks for picking up that I missed Step 5.  I'm not sure how this happened because I followed your instructions and copied the patched plist entries into my config.plist, but perhaps I failed to save my the edited plist at some point.   Is there a better way to insert the patches into the config.plist besides just cutting and pasting them in?  It's not a big deal -- I'm a vi/vim user and copying and pasting is simple -- but it can be prone to "fat fingering" and other user errors.  Is there an equivalent to the "patch" command for plist files?



Link to comment
Share on other sites

Do you mean "copy the AppleHDA.kext" from a working real Mac OS X 10.9.5 machine? I have one. (Or must it be copied only from the Installer)?  And then do you mean I should remove the AppleHDA.kext from my Hackintosh El Capitan installation and replace it with the one from Mavericks?



But it wasn't so clear if you mean it requires the native El Capitan version or just any Native version.  The instructions appear to conflict! Anyway, if I need to remove the El Capitan version and replace it with the Mavericks version, is the correct (or at least a valid) procedure



Is there an equivalent to the "patch" command for plist files?

Yes. No. Yes.



Use 10.9.5 AppleHDA.kext, not 10.11 AppleHDA.kext.  No conflict, x99 requires specific version.



cloverALC patches config.plist (x99 not included, not native). Several plist editors: Xcode, Property List editor, PlistEditPro, etc.

Link to comment
Share on other sites

Hey there,



First I want to thank you for your interest and I congratulate him on his work that serves as much help as many people

The problem I have is that after installing and updating a captain 10.11.1, I see appear in preferences

System Devices audio input and output, only appears as a USB audio device from Logitech,

Wireless works and there if that sounds only through the headphones. Nothing kext installed AppleHDA

After his 10.11.1 This version and run the script audio_cloverALC-110_v1.0l.command. "You can see patching

in clover and appear and input and output devices in System Preferences, but still sin if the audio is not through

USB headset, wireless.

Thanking you for the help, try placing the necessary information



Budget



GA-Z97M-DS3H - F7 bios

Core i7 4790K

10 Gb of RAM DDR3 1600 MHz

OS X 10.11.1

CLOVER BOOTLOADER

NVIDIA GA-640 GT





The installation procedure is done through USB installer chris111










Then the necessary files attached, I think they are all

AppleHDA.zip

audio_cloverALC-110_v1.0l 2.command.zip

AUDIO.DISPOSITIVOS..zip

CONFIG.PLIST CLOVER.zip

consoleAllMessages.zip

DCPI BOOT LOG.zip

DPCI STATUS.zip

IO SERVICE.zip

Link to comment
Share on other sites

appear and input and output devices in System Preferences, but still sin if the audio is not through

USB headset, wireless.

887 audio is working.

IOReg shows Internal Speakers(motherboard green audio port) selected, no audio playing.  Try iTunes.

USB and wireless sound, off topic.

Link to comment
Share on other sites

Hi Toleda,



first off all, thank you for this massive support in the past and your quality descriptions about dsdt patching, etc.

In addition to your help for others, I would also appreciate your input to my sound problems.



I'm using an older ASUS P6T-SE with ALC888s version 0x0101. Therefore I'm running Clover legacy boot, installed in my EFI partition with Yosemite 10.10.5.



Here is my report:



Problem Reporting

  1. Description of audio problem
    Layout Problem is it. I've tried layout 1, 2 and 3. Layout 1 would be the correct one after all the descriptions and regarding my sound in- and outputs at my motherboard (6 on the back plus SPDIF and optical, plus two internals for the front audio). Using Layout 1, I'm just able to get sound from my speaker/headphone output at the front, back outputs are dead. Layout 2 gives me sound for the "internal speakers", my speakers are connected to the front line out (green) at the back, when Layout 2 is active, the "internal speakers" in the system preferences/sound are connected to this hardware output - so I have sound from the speakers. The audio line-out-port (only 1 in addition to digital output and internal speakers) is dead, front headphone output doesn't work too. Layout 3 gives me sound like in Layout 1, just through "internal speakers".
    What I would like to use: Headphone Outputs at the Front and Speaker Line-Out at the back. Is my AppleHDA.kext not original? I've installed 10.10.4 and used the 10.10.5 combo update through the mac app store to update.
  2. OS X version/motherboard model/BIOS version/processor/graphics
    10.10.5, Asus P6T-SE, Bios 0908 (the latest version), Xeon X5660, Gigabyte Geforce GTX 970
  3. Procedure/Guide Used
    I've started with the HDA8 script, that failed. I've deleted every 888 Kext (S/L/E, Clover/Kext/10.10) which is installed via the HDA8 Script. Then I've read your instruction to another guy in this topic, that his ALC888S was to old and that he should try the legacy 888 version with the cloverALC v1.0 command. That is what I've tried. I'm using my own dsdt.aml which I've edited with MaciASL through your patch repository (Layout 1, then 2 then 3). I've restarted every time, there is no error in my dsdt, IORegistryExplorer gives me the correct layout-id after I've restarted, your cloverALC command patches my config.plist and add the realtekALC.kext in /efi/clover/kexts/10.10/. After the restart I can configure the audio output in the audio panel.
    What I dont understand: Why is the realtekALC.kext not loaded after I've used your cloverALC command? Kext Wizard and Terminal does tell me, that the realtekALC.kext is not loaded (which sits in /efi/clover/kexts/10.10/)!

  4. Copy of IOReg - IOReg_v2.1/File/Save a Copy As…, verify file (Tools 1.)
    IOReg ALC AppleHDA ASUSP6T-SE.ioreg.zip

  5. Copy Of Console/All Messages  (last boot)/File/Save a Copy As..
    Console_all_messages.log.zip

  6. Installed S/L/E/AppleHDA.kext or AppleHDA8Series AppleHDAxxx kext
    AppleHDA.kext.zip

  7. Screen shots:

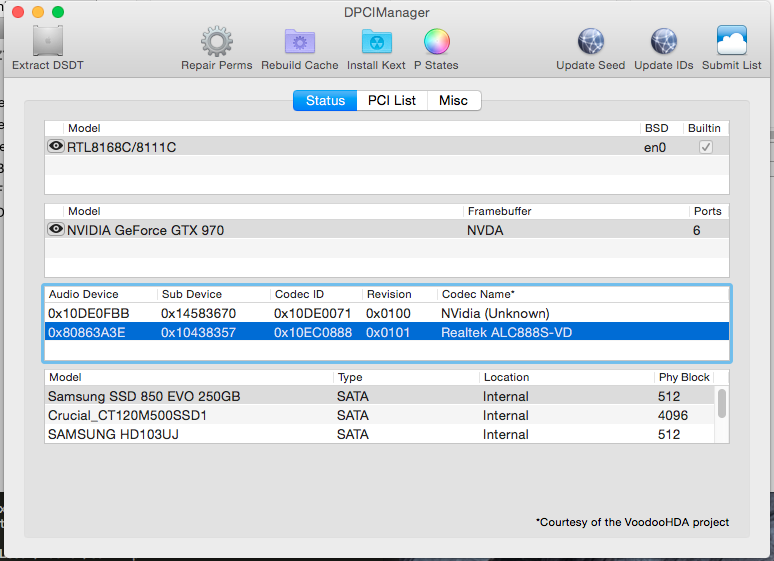

    1. DPCIManager/Status (Tools 2.)

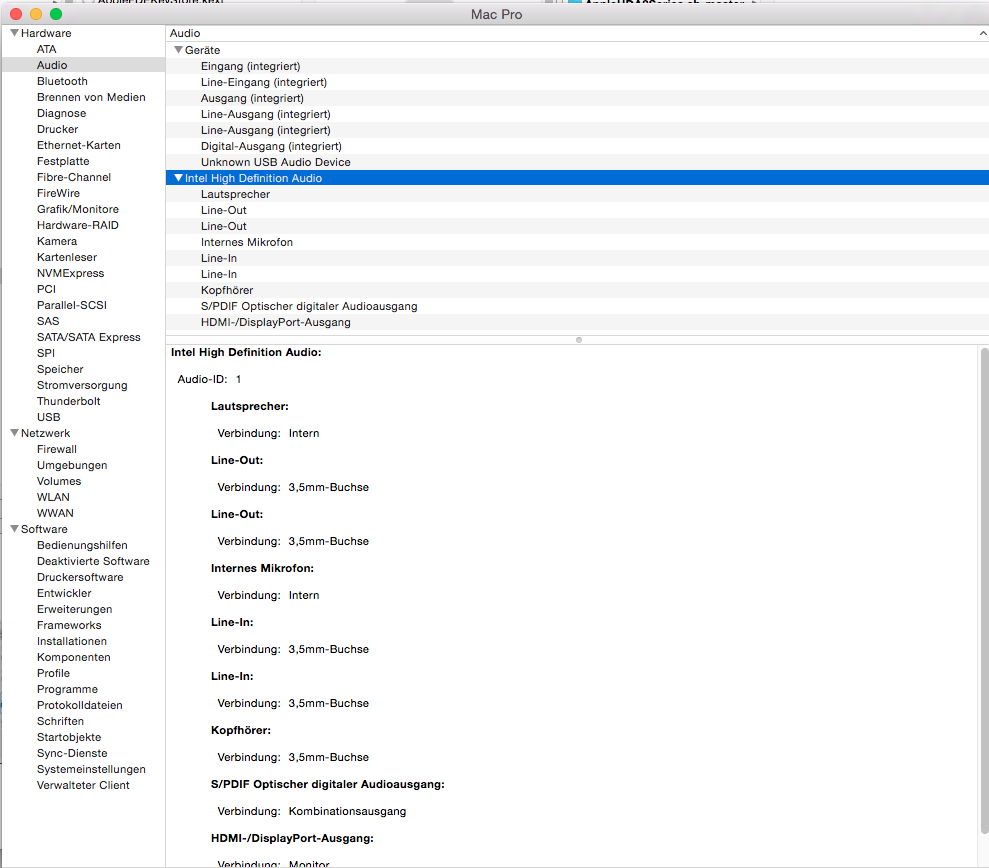

    2. System Information/Hardware/Audio/Intel High Definition Audio (not Devices)

  8. Terminal/Shell/Export Test As. . .  (if script used)
    1. audio_cloverALC-100.command
      Terminal CloverALC Command.zip
  9. Clover
    1. EFI/Clover/config.plist
      config.plist.zip
    2. DPCIManager/Misc/Boot Log
      DPCIManager Boot Log.txt
    3. EFI/Clover/ACPI/Patched/dsdt.aml (if installed)
      DSDT.aml.zip


Thank you for your help! Any feedback is highly welcome.

Link to comment
Share on other sites

  1. What I would like to use: Headphone Outputs at the Front and Speaker Line-Out at the back. Is my AppleHDA.kext not original? I've installed 10.10.4 and used the 10.10.5 combo update through the mac app store to update.
  2. What I dont understand: Why is the realtekALC.kext not loaded after I've used your cloverALC command?

ALC888 audio is working.

Use Audio ID: 1, appropriate for your motherboard

realtekALC.kext has no executable to load, Info.plist only.

Headphone mutes motherboard green (native AppleHDA.kext, customization possible, Post #1).

Link to comment
Share on other sites

Hey Toleda,



its awsome sometimes, when you write your own problems down, you can sometimes find a better - clearer - vision on your problem. I've started from scratch with my dsdt, used your dsdt fix which you have posted on page 2 or 3 in this tread, and now I'm having sound on speakers and on headphones. I've realized that Headphone mutes green motherboard output after some minutes of testing why the system audio tab switches from headphones to internal speakers in use :)



Thanks man!!! This topic and your knowledge and help deserves some respect!

Link to comment
Share on other sites

Hi,



I've a problem: I installed the Kext and Audio works (SIP disabled). Then I restart and the Audio works again. I shut down the PC and casually the audio doesn't work anymore. This happens both if SIP is after the install enabled or disabled. Is there a solution for this?



Cheers

Link to comment
Share on other sites

Yes, once kernel cache is rebuild with unsigned kexts, set CsrActiveConfig=0x0 before restarting.  On next boot, SIP is fully enabled.

There is something wrong in my hackintosh. After some reboots, soundcard disappears from mac audio settings. So when it happens, I must set back "CsrActiveConfig=0x67", launch your script, reboot and finally soundcard works again.



Any ideas?

Link to comment
Share on other sites

Is there a solution for this?

SIP has nothing to do with working or non working audio. If you rebuild cache with SIP enabled, all unsigned kexts are ignored including AppleHDA.kext.



No audio: see Post #1, Problem Reporting. Attach all requested files.

After some reboots, soundcard disappears from mac audio settings.

No audio: see Post #1, Problem Reporting. Attach all requested files.

Link to comment
Share on other sites

  1. Description of audio problem:

    I used audio_cloverALC-110_v1.0l.command and my soundcard works well. After some reboots, soundcard disappears from mac audio settings. So when it happens, I must set back "CsrActiveConfig=0x67" (or 0x3), launch your script, reboot and finally soundcard works again.

  2. OS X version/motherboard model/BIOS version/processor/graphics:

    El Capitan (10.11.2), GA-P35-DS4 (rev1.1), BIOS F14, Intel Q6600, Nvidia GTX 560 OC

  3. Procedure/Guide Used:

    I used audio_cloverALC-110_v1.0l.command

  4. Copy of IOReg - IOReg_v2.1/File/Save a Copy As…, verify file (Tools 1.):

    IOReg_GA-P35-DS4.zip

  5. Copy Of Console/All Messages  (last boot)/File/Save a Copy As..

    Console last boot.log.zip (i hope this is what you need)

  6. Installed S/L/E/AppleHDA.kext or AppleHDA8Series AppleHDAxxx kext

    AppleHDA.kext.zip

  7. Screen shots:

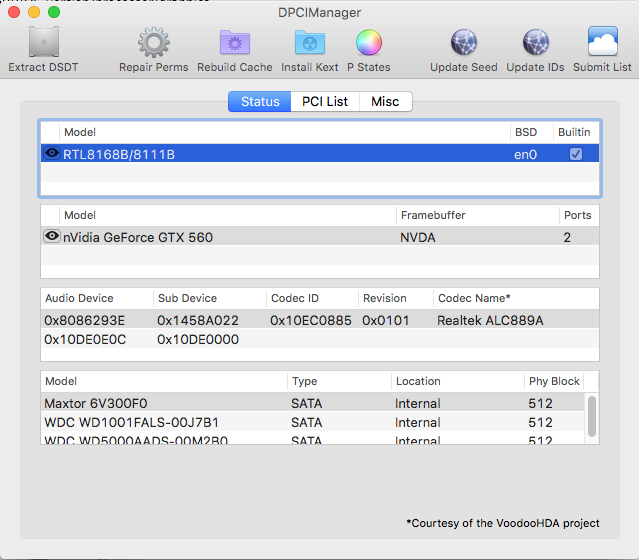

    1. DPCIManager/Status (Tools 2.)

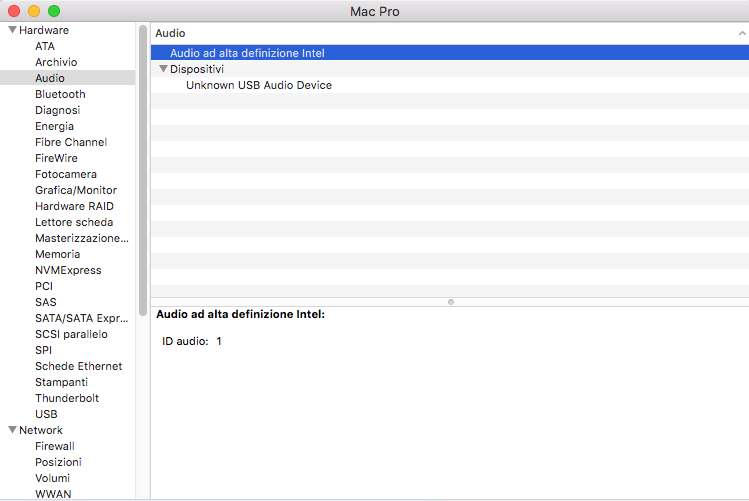

    2. System Information/Hardware/Audio/Intel High Definition Audio (not Devices)


  8. Terminal/Shell/Export Test As. . .  (if script used)
    1.  audio_cloverALC-110_v1.0l.zip
  9. Clover
    1. EFI/Clover/config.plist

      config.plist.zip

    2. DPCIManager/Misc/Boot Log

      DPCIManager Boot Log.rtf

    3. EFI/Clover/ACPI/Patched/dsdt.aml (if installed)

      DSDT.aml.zip

Link to comment
Share on other sites

Dear Toleda,



OSX: El Capitan 10.11.2

Processor: 3.49 GHz Intel Core i7

Graphics: NVIDIA GeForce GTX 760 connected via displayport

Motherboard: GA-Z87X-UD7-TH



I am trying to get sound to play through the display port. I have used the audio_cloverALC-110.command.zip which patched successfully and I can see all the options in the sound preferences.



Attached are my files.

Archive.zip

Link to comment
Share on other sites

Hi Guys, I could really need some help, battling with Audio Problems for hours now.



So I upgraded my 10.10.5 Installation directly to 10.11.2, after I ran a fresh test installation with success before. Both configs are essentially the same, using Pikes AppleHDA989.kext with the Clover patches, and on the test installation audio just works fine.



However, unlike on my test setup I really can't get Audio to work. I always have beachballs and freezes with anything sound related, apparently every time the OS tries to play a sound, the corresponding app freezes. Also cannot open the Sound Panel in Syspref, it hangs there as well.



Plus, I get the following log messages about every 10 seconds:

13.12.15 20:29:43,427 com.apple.audio.DriverHelper[585]: The plug-in named AirPlay.driver requires extending the sandbox for the mach service named com.apple.AirPlayXPCHelper.
13.12.15 20:29:43,427 com.apple.audio.DriverHelper[585]: The plug-in named AirPlay.driver requires extending the sandbox for the mach service named com.apple.coremedia.endpointmanager.xpc.
13.12.15 20:29:43,427 com.apple.audio.DriverHelper[585]: The plug-in named AirPlay.driver requires extending the sandbox for the mach service named com.apple.coremedia.endpoint.xpc.
13.12.15 20:29:43,427 com.apple.audio.DriverHelper[585]: The plug-in named AirPlay.driver requires extending the sandbox for the mach service named com.apple.coremedia.endpointstream.xpc.
13.12.15 20:29:43,433 coreaudiod[584]: [20:29:43.433] << FigXPC >> __FigXPCRemoteClientCreateWithConnectionCreatingBlock_block_invoke: *** Invalid connection Connection invalid
13.12.15 20:29:43,433 coreaudiod[584]: [20:29:43.433] << FigXPC >> FigXPCRemoteClientSendSyncMessageCreatingReply: xpc_connection_send_message_with_reply_sync error: Connection invalid
13.12.15 20:29:43,433 coreaudiod[584]: [20:29:43.433] FigXPCRemoteClientSendSyncMessageCreatingReply signalled err=-16155 (kFigXPCError_MessageSendFailed) (Message sending failure) at /Library/Caches/com.apple.xbs/Sources/CoreMedia_frameworks/CoreMedia-1731.15.33/Prototypes/FigXPC/FigXPCClientServer.c line 518
13.12.15 20:29:43,433 coreaudiod[584]: 2015-12-13 08:29:43.433293 PM [AirPlay] ### HAL plugin initialize failed: -16155/0xFFFFC0E5 Unknown error: -16155
13.12.15 20:29:43,434 diagnosticd[142]: error evaluating process info - pid: 584, puniqueid: 584
13.12.15 20:29:43,434 com.apple.xpc.launchd[1]: (com.apple.audio.coreaudiod[584]) Service exited due to signal: Trace/BPT trap: 5
13.12.15 20:29:43,435 com.apple.xpc.launchd[1]: (com.apple.audio.coreaudiod) Service only ran for 0 seconds. Pushing respawn out by 10 seconds.
13.12.15 20:29:43,441 com.apple.xpc.launchd[1]: (com.apple.ReportCrash.Root[586]) Endpoint has been activated through legacy launch(3) APIs. Please switch to XPC or bootstrap_check_in(): com.apple.ReportCrash.DirectoryService
13.12.15 20:29:43,588 ReportCrash[586]: Saved crash report for coreaudiod[584] version 1 to /Library/Logs/DiagnosticReports/coreaudiod_2015-12-13-202943_Darkside.crash

And here is one of the crashlog that are produced like mad:

Process:               coreaudiod [636]
Path:                  /usr/sbin/coreaudiod
Identifier:            coreaudiod
Version:               1
Code Type:             X86-64 (Native)
Parent Process:        launchd [1]
Responsible:           coreaudiod [636]
User ID:               202

Date/Time:             2015-12-13 20:32:24.530 +0100
OS Version:            Mac OS X 10.11.2 (15C50)
Report Version:        11
Anonymous UUID:        258EC5C7-EFFE-4CAB-58A2-27CA39CC849F


Time Awake Since Boot: 220 seconds

System Integrity Protection: disabled

Crashed Thread:        0  Dispatch queue: com.apple.main-thread

Exception Type:        EXC_BREAKPOINT (SIGTRAP)
Exception Codes:       0x0000000000000002, 0x0000000000000000
Exception Note:        EXC_CORPSE_NOTIFY

Application Specific Information:
*** CFRetain() called with NULL ***

Thread 0 Crashed:: Dispatch queue: com.apple.main-thread
0   com.apple.CoreFoundation      	0x00007fff97d48cc4 CFRetain + 180
1   com.apple.audio.AirTunesHALPlugin	0x0000000110c0bf11 0x110c00000 + 48913
2   com.apple.audio.AirTunesHALPlugin	0x0000000110c0d230 0x110c00000 + 53808
3   coreaudiod                    	0x000000010f11a621 0x10f083000 + 620065
4   coreaudiod                    	0x000000010f10f6ee 0x10f083000 + 575214
5   coreaudiod                    	0x000000010f10b872 0x10f083000 + 559218
6   coreaudiod                    	0x000000010f114c77 0x10f083000 + 597111
7   coreaudiod                    	0x000000010f114750 0x10f083000 + 595792
8   coreaudiod                    	0x000000010f0e9c97 0x10f083000 + 421015
9   coreaudiod                    	0x000000010f101f1d 0x10f083000 + 519965
10  coreaudiod                    	0x000000010f1014b4 0x10f083000 + 517300
11  coreaudiod                    	0x000000010f0e78eb 0x10f083000 + 411883
12  coreaudiod                    	0x000000010f0e7747 0x10f083000 + 411463
13  coreaudiod                    	0x000000010f0e750f 0x10f083000 + 410895
14  coreaudiod                    	0x000000010f0ffefd 0x10f083000 + 511741
15  libdyld.dylib                 	0x00007fff8e3f05ad start + 1

Thread 1:: Dispatch queue: com.apple.libdispatch-manager
0   libsystem_kernel.dylib        	0x00007fff8e514ff6 kevent_qos + 10
1   libdispatch.dylib             	0x00007fff878aa099 _dispatch_mgr_invoke + 216
2   libdispatch.dylib             	0x00007fff878a9d01 _dispatch_mgr_thread + 52

Thread 2:
0   libsystem_kernel.dylib        	0x00007fff8e5146de __workq_kernreturn + 10
1   libsystem_pthread.dylib       	0x00007fff92fa7729 _pthread_wqthread + 1283
2   libsystem_pthread.dylib       	0x00007fff92fa5365 start_wqthread + 13

Thread 3:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 4:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 5:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 6:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 7:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 8:
0   libsystem_kernel.dylib        	0x00007fff8e50e3da semaphore_timedwait_trap + 10
1   libdispatch.dylib             	0x00007fff878afb9b _dispatch_semaphore_wait_slow + 149
2   libdispatch.dylib             	0x00007fff878a9c4f _dispatch_worker_thread + 148
3   libsystem_pthread.dylib       	0x00007fff92fa7c13 _pthread_body + 131
4   libsystem_pthread.dylib       	0x00007fff92fa7b90 _pthread_start + 168
5   libsystem_pthread.dylib       	0x00007fff92fa5375 thread_start + 13

Thread 9:
0   libsystem_kernel.dylib        	0x00007fff8e5146de __workq_kernreturn + 10
1   libsystem_pthread.dylib       	0x00007fff92fa7729 _pthread_wqthread + 1283
2   libsystem_pthread.dylib       	0x00007fff92fa5365 start_wqthread + 13

Thread 0 crashed with X86 Thread State (64-bit):
  rax: 0x00007fff980f41db  rbx: 0x0000000000000000  rcx: 0x0000000110c12618  rdx: 0x0000000000000000
  rdi: 0x0000000000000000  rsi: 0x0000000000000008  rbp: 0x00007fff50b7c1e0  rsp: 0x00007fff50b7c1d0
   r8: 0x00007fff50b7c418   r9: 0x0000000000000008  r10: 0x00007fff50b7c414  r11: 0x0000000000000008
  r12: 0x0000000000000000  r13: 0x000000002173697a  r14: 0x0000000000000000  r15: 0x00007fff50b7c408
  rip: 0x00007fff97d48cc4  rfl: 0x0000000000000246  cr2: 0x0000000110c0b034

Logical CPU:     8
Error Code:      0x00000000
Trap Number:     3


Binary Images:
       0x10f083000 -        0x10f164ffb  coreaudiod (1) <BD8F33B9-EB5B-34B6-88E2-F72C3A8F4834> /usr/sbin/coreaudiod
       0x110c00000 -        0x110c10ffb  com.apple.audio.AirTunesHALPlugin (2.0 - 250.10) <5454DC5C-CDCC-3B1D-B42B-239A95DD52E6> /Library/Audio/Plug-Ins/HAL/AirPlay.driver/Contents/MacOS/AirPlay
    0x7fff66eb9000 -     0x7fff66eeffa7  dyld (360.18) <1A7F8274-FC32-3B86-9979-66B8F2B7B5E2> /usr/lib/dyld
    0x7fff8715c000 -     0x7fff871afff7  libc++.1.dylib (120.1) <8FC3D139-8055-3498-9AC5-6467CB7F4D14> /usr/lib/libc++.1.dylib
    0x7fff871b0000 -     0x7fff871b7ff7  libcompiler_rt.dylib (62) <D3C4AB40-23B4-3BC6-8C38-5B8758D14E80> /usr/lib/system/libcompiler_rt.dylib
    0x7fff871e1000 -     0x7fff871fdff3  libresolv.9.dylib (60) <A650B5C8-1950-36A0-86D1-0B2465318BFA> /usr/lib/libresolv.9.dylib
    0x7fff873ac000 -     0x7fff873dcff3  com.apple.CoreAVCHD (5.8.0 - 5800.4.2) <C34F0ECF-AABA-3FBC-980F-B4809C9B2DD1> /System/Library/PrivateFrameworks/CoreAVCHD.framework/Versions/A/CoreAVCHD
    0x7fff873dd000 -     0x7fff873f6fef  libcompression.dylib (25) <C8546222-B022-39EA-9896-0387BA1D5C51> /usr/lib/libcompression.dylib
    0x7fff87453000 -     0x7fff8747cff7  libxslt.1.dylib (14) <CF5C6F5F-75D6-3C00-B6B2-1032D2799FBC> /usr/lib/libxslt.1.dylib
    0x7fff8747d000 -     0x7fff875a2ff7  com.apple.LaunchServices (728.6 - 728.6) <8658230B-5894-3244-BDBA-A6C9DD347219> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/LaunchServices.framework/Versions/A/LaunchServices
    0x7fff87832000 -     0x7fff878a1fff  com.apple.datadetectorscore (7.0 - 460) <CDBB7D7D-B189-37B0-AA4B-DC79090D0D71> /System/Library/PrivateFrameworks/DataDetectorsCore.framework/Versions/A/DataDetectorsCore
    0x7fff878a2000 -     0x7fff878cffff  libdispatch.dylib (501.20.1) <324C9189-2AF3-3356-847F-6F4CE1C6E901> /usr/lib/system/libdispatch.dylib
    0x7fff878d3000 -     0x7fff878d4fff  libDiagnosticMessagesClient.dylib (100) <4243B6B4-21E9-355B-9C5A-95A216233B96> /usr/lib/libDiagnosticMessagesClient.dylib
    0x7fff878f8000 -     0x7fff87900fff  libsystem_networkextension.dylib (385.20.6) <DC8A102A-BF02-31A4-8914-65C34DF6B592> /usr/lib/system/libsystem_networkextension.dylib
    0x7fff8792b000 -     0x7fff87936fff  com.apple.CrashReporterSupport (10.11 - 717) <474544AD-1199-3ECC-90E5-071847BA72C6> /System/Library/PrivateFrameworks/CrashReporterSupport.framework/Versions/A/CrashReporterSupport
    0x7fff87937000 -     0x7fff87989fff  com.apple.AppleVAFramework (5.0.32 - 5.0.32) <082B5F3A-6FB2-3444-9B84-F8675BFCE517> /System/Library/PrivateFrameworks/AppleVA.framework/Versions/A/AppleVA
    0x7fff87991000 -     0x7fff8799cff7  libcommonCrypto.dylib (60075.20.1) <766BC3F5-41F3-3315-BABC-72718A98EA92> /usr/lib/system/libcommonCrypto.dylib
    0x7fff87b2a000 -     0x7fff87b2cfff  com.apple.loginsupport (1.0 - 1) <9B2F5F9B-ED38-313F-B798-D2B667BCD6B5> /System/Library/PrivateFrameworks/login.framework/Versions/A/Frameworks/loginsupport.framework/Versions/A/loginsupport
    0x7fff87b75000 -     0x7fff87c1cfff  com.apple.LanguageModeling (1.0 - 1) <E1E4091D-6CAB-36E0-A206-AAADE69791DC> /System/Library/PrivateFrameworks/LanguageModeling.framework/Versions/A/LanguageModeling
    0x7fff87c1d000 -     0x7fff87c22ff3  libunwind.dylib (35.3) <124E0F05-2350-3774-A32C-7F5BF38EDE73> /usr/lib/system/libunwind.dylib
    0x7fff87c8b000 -     0x7fff87c94ff3  libsystem_notify.dylib (150.20.3) <243FADE1-255A-3B78-8033-F336CD64B817> /usr/lib/system/libsystem_notify.dylib
    0x7fff87f75000 -     0x7fff87ffdfff  com.apple.CoreSymbolication (3.1 - 58048.1) <2DFAF855-0528-370D-B4B0-EE0236766D9D> /System/Library/PrivateFrameworks/CoreSymbolication.framework/Versions/A/CoreSymbolication
    0x7fff87ffe000 -     0x7fff88072ff3  com.apple.securityfoundation (6.0 - 55126) <943934A2-EC53-330F-BEB9-8A718A18F9FC> /System/Library/Frameworks/SecurityFoundation.framework/Versions/A/SecurityFoundation
    0x7fff88073000 -     0x7fff880adfff  com.apple.QD (3.12 - 302) <3F36A108-C557-353A-A3F7-80DDCB82BB37> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/QD.framework/Versions/A/QD
    0x7fff8813b000 -     0x7fff884a6657  libobjc.A.dylib (680) <58CB8CFC-7DBD-3A53-BD72-A42FF799B21E> /usr/lib/libobjc.A.dylib
    0x7fff88613000 -     0x7fff8861bfff  libMatch.1.dylib (27) <3AC0BFB8-7E69-3DBE-A175-7F3946FC4554> /usr/lib/libMatch.1.dylib
    0x7fff88628000 -     0x7fff88643ff7  libCRFSuite.dylib (34) <078B4CD8-6A8C-3067-B2BA-0C2A0BAB8AC3> /usr/lib/libCRFSuite.dylib
    0x7fff88644000 -     0x7fff88650ff7  com.apple.OpenDirectory (10.11 - 194) <5409AC27-3B83-3F35-8EB5-51228B4604AE> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/OpenDirectory
    0x7fff88bf5000 -     0x7fff88c16fff  com.apple.Sharing (442.9.1 - 442.9.1) <672DE6DF-98E0-30A4-BA25-44BDE188D0BE> /System/Library/PrivateFrameworks/Sharing.framework/Versions/A/Sharing
    0x7fff89296000 -     0x7fff89336ff7  com.apple.Metadata (10.7.0 - 972.16) <98CA1355-3E2C-364C-9C4F-3CA286DB08A7> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/Metadata.framework/Versions/A/Metadata
    0x7fff89338000 -     0x7fff89482fc7  com.apple.coreui (2.1 - 365.2) <727C55D3-503A-3EC4-8A23-C984E320F65F> /System/Library/PrivateFrameworks/CoreUI.framework/Versions/A/CoreUI
    0x7fff89de7000 -     0x7fff89e0bff7  libJPEG.dylib (1442) <0F9069AB-D830-37DD-8813-B635D1ECB3E4> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJPEG.dylib
    0x7fff89e0c000 -     0x7fff89e11fff  com.apple.AirPlaySupport (2.0 - 250.10) <DAEAEFC4-830B-334C-B077-CE28749DC699> /System/Library/PrivateFrameworks/AirPlaySupport.framework/Versions/A/AirPlaySupport
    0x7fff89e92000 -     0x7fff8b0fdff3  com.apple.CoreGraphics (1.600.0 - 948) <08CF6D47-D0DC-3FF2-8E9E-4394F0358252> /System/Library/Frameworks/CoreGraphics.framework/Versions/A/CoreGraphics
    0x7fff8b101000 -     0x7fff8b156ff7  com.apple.AE (701 - 701) <FB22BE84-9CB8-36BF-8061-F93D716C0A84> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/AE.framework/Versions/A/AE
    0x7fff8b1fd000 -     0x7fff8b249fff  com.apple.print.framework.PrintCore (11.2 - 472.2) <449D8AB5-7891-32D0-9DC5-C90FE10DC0BF> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/PrintCore.framework/Versions/A/PrintCore
    0x7fff8b262000 -     0x7fff8b3e0fff  com.apple.UIFoundation (1.0 - 436.1) <8C254BB0-1DED-36A2-AAAF-786EB19CCE39> /System/Library/PrivateFrameworks/UIFoundation.framework/Versions/A/UIFoundation
    0x7fff8b3e1000 -     0x7fff8b40fff7  com.apple.DictionaryServices (1.2 - 250) <D9AB6B92-CAF5-3EC2-8D07-639B42DA1CB9> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/DictionaryServices.framework/Versions/A/DictionaryServices
    0x7fff8b410000 -     0x7fff8b4fffff  libxml2.2.dylib (29.2) <F70308DF-313F-334F-8F0E-82E79821583D> /usr/lib/libxml2.2.dylib
    0x7fff8b6bc000 -     0x7fff8b8c9ff7  com.apple.CoreImage (11.2.0 - 366.2.7) <344F1067-5F52-3626-8F6C-2B678DEB80A1> /System/Library/Frameworks/CoreImage.framework/Versions/A/CoreImage
    0x7fff8b8cf000 -     0x7fff8b8e9ff3  liblzma.5.dylib (10) <CC03591B-FA57-3CA5-AC81-0D76033AC0CE> /usr/lib/liblzma.5.dylib
    0x7fff8b925000 -     0x7fff8b98fff7  com.apple.framework.CoreWLAN (11.0 - 1101.20) <6A535459-6A8A-3D60-986B-EE7ED833A9C3> /System/Library/Frameworks/CoreWLAN.framework/Versions/A/CoreWLAN
    0x7fff8b9a4000 -     0x7fff8b9c0fff  com.apple.GenerationalStorage (2.0 - 239) <EE667C63-3ADF-34D3-A8A7-316B66C7E290> /System/Library/PrivateFrameworks/GenerationalStorage.framework/Versions/A/GenerationalStorage
    0x7fff8c524000 -     0x7fff8c592ff7  com.apple.ApplicationServices.ATS (377 - 394.3) <66E581EE-67E2-39E9-97A7-0614F334B9B3> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/ATS
    0x7fff8c593000 -     0x7fff8c5a6fff  com.apple.CoreBluetooth (1.0 - 1) <BF5F87E3-6AAA-3B1F-9979-7A03D77937C8> /System/Library/Frameworks/CoreBluetooth.framework/Versions/A/CoreBluetooth
    0x7fff8c5a7000 -     0x7fff8c5affe7  libsystem_platform.dylib (74.10.3) <D3A27E10-7F08-3603-ACC8-7A92B2C04BAB> /usr/lib/system/libsystem_platform.dylib
    0x7fff8c6b6000 -     0x7fff8c6bafff  libGIF.dylib (1442) <2F7DA684-3510-38C2-B48F-9D33194860A1> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libGIF.dylib
    0x7fff8c6bc000 -     0x7fff8c719fff  com.apple.CoreServices.OSServices (728.6 - 728.6) <E86385ED-70AA-3371-8E58-8FFDEF81C854> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/OSServices.framework/Versions/A/OSServices
    0x7fff8c71a000 -     0x7fff8c722fff  com.apple.AppleSRP (5.0 - 1) <25775E90-1DBB-3BFA-B4B4-F8F262B9EC1F> /System/Library/PrivateFrameworks/AppleSRP.framework/Versions/A/AppleSRP
    0x7fff8c723000 -     0x7fff8c768ff7  com.apple.coreservices.SharedFileList (24.4 - 24.5) <72156BE7-0804-3F90-9AF9-14C4739430C2> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SharedFileList.framework/Versions/A/SharedFileList
    0x7fff8c769000 -     0x7fff8c769fff  com.apple.audio.units.AudioUnit (1.13 - 1.13) <D2E8EA94-3828-3D7C-87E2-97E4CD00269D> /System/Library/Frameworks/AudioUnit.framework/Versions/A/AudioUnit
    0x7fff8c76a000 -     0x7fff8c81afff  com.apple.backup.framework (1.7.2 - 1.7.2) <890AF1EE-CFC9-3DAB-B236-88E203B4ADBC> /System/Library/PrivateFrameworks/Backup.framework/Versions/A/Backup
    0x7fff8ccb9000 -     0x7fff8ccbbfff  libsystem_coreservices.dylib (19.2) <1B3F5AFC-FFCD-3ECB-8B9A-5538366FB20D> /usr/lib/system/libsystem_coreservices.dylib
    0x7fff8ccbc000 -     0x7fff8ccfeff7  com.apple.Metal (55.2.8 - 55.2.8) <4EC5571C-8A19-3774-BDA0-CB15DB04D06A> /System/Library/Frameworks/Metal.framework/Versions/A/Metal
    0x7fff8cd15000 -     0x7fff8cd19fff  libpam.2.dylib (20) <CFCD19BD-87BC-3F2B-BB1C-4C23E8E55F1A> /usr/lib/libpam.2.dylib
    0x7fff8cdf1000 -     0x7fff8cdf1fff  com.apple.CoreServices (728.6 - 728.6) <1FC9300C-6D3D-330C-829C-C8F094BC38C6> /System/Library/Frameworks/CoreServices.framework/Versions/A/CoreServices
    0x7fff8cdf2000 -     0x7fff8cdf5fff  com.apple.IOSurface (108.0.1 - 108.0.1) <7B05B27A-5CC4-30D4-8A10-ED444A2807A2> /System/Library/Frameworks/IOSurface.framework/Versions/A/IOSurface
    0x7fff8cdf6000 -     0x7fff8cdf6fff  libmetal_timestamp.dylib (600.0.43.5) <A2B1C6F9-50D0-336B-A057-A7FBE2D7BDE2> /System/Library/PrivateFrameworks/GPUCompiler.framework/libmetal_timestamp.dylib
    0x7fff8cdf7000 -     0x7fff8cfc5ffb  com.apple.QuartzCore (1.11 - 410.14) <DB552FA2-D2D1-37F9-A1D4-C77D7EA82ECD> /System/Library/Frameworks/QuartzCore.framework/Versions/A/QuartzCore
    0x7fff8cfc6000 -     0x7fff8dbe9ff7  com.apple.AppKit (6.9 - 1404.34) <FB9C0E8D-8E07-35CD-91D8-7A3869B8EB03> /System/Library/Frameworks/AppKit.framework/Versions/C/AppKit
    0x7fff8dbea000 -     0x7fff8dbf6ff7  com.apple.speech.synthesis.framework (5.4.12 - 5.4.12) <E507D438-517D-32AE-8609-02ACD2F0D692> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/SpeechSynthesis.framework/Versions/A/SpeechSynthesis
    0x7fff8dc03000 -     0x7fff8dc03fff  com.apple.ApplicationServices (48 - 48) <DD9C4070-C0FC-3984-BCED-72E6E99838FC> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/ApplicationServices
    0x7fff8dce7000 -     0x7fff8dd10fff  libc++abi.dylib (125) <DCCC8177-3D09-35BC-9784-2A04FEC4C71B> /usr/lib/libc++abi.dylib
    0x7fff8dd47000 -     0x7fff8ddedfff  com.apple.CoreUtils (4.0 - 400.28) <D9A23856-DDCF-33F5-BFB1-8833572AC6A8> /System/Library/PrivateFrameworks/CoreUtils.framework/Versions/A/CoreUtils
    0x7fff8dffe000 -     0x7fff8e015fff  libsystem_asl.dylib (322) <3C2D3ACD-0DD1-337A-8247-44A910D67A65> /usr/lib/system/libsystem_asl.dylib
    0x7fff8e083000 -     0x7fff8e09cfff  com.apple.CFOpenDirectory (10.11 - 194) <C21F33AA-CD06-3163-A1F3-1D116F788A11> /System/Library/Frameworks/OpenDirectory.framework/Versions/A/Frameworks/CFOpenDirectory.framework/Versions/A/CFOpenDirectory
    0x7fff8e3b9000 -     0x7fff8e3cefff  com.apple.WirelessProximity (1.0 - 1) <657C4797-EAD1-3A51-94DD-609567434577> /System/Library/PrivateFrameworks/WirelessProximity.framework/Versions/A/WirelessProximity
    0x7fff8e3ed000 -     0x7fff8e3f0ffb  libdyld.dylib (360.18) <5F3777A7-F07E-3D5F-BFA3-A920FF4170ED> /usr/lib/system/libdyld.dylib
    0x7fff8e463000 -     0x7fff8e49bfff  com.apple.RemoteViewServices (2.0 - 99) <596153FD-3CB9-3FED-9D63-1B73B01AC6DB> /System/Library/PrivateFrameworks/RemoteViewServices.framework/Versions/A/RemoteViewServices
    0x7fff8e4a9000 -     0x7fff8e4aeff7  libheimdal-asn1.dylib (453.20.2) <EE3DD8E9-E543-3849-ADC9-EDBF2379C97C> /usr/lib/libheimdal-asn1.dylib
    0x7fff8e4af000 -     0x7fff8e4b0fff  liblangid.dylib (122) <9CC4F0D1-5C51-3B69-BC8F-EE3A51FD0822> /usr/lib/liblangid.dylib
    0x7fff8e4fd000 -     0x7fff8e51bfff  libsystem_kernel.dylib (3248.20.55) <0E688457-4915-36DD-8798-5C2EDEE3F1A3> /usr/lib/system/libsystem_kernel.dylib
    0x7fff8e567000 -     0x7fff8e693ff7  com.apple.CoreText (352.0 - 494.10) <9FD834B1-FF8E-3EB0-BB11-6E9120969086> /System/Library/Frameworks/CoreText.framework/Versions/A/CoreText
    0x7fff8e694000 -     0x7fff8e989fff  com.apple.HIToolbox (2.1.1 - 807.2) <D9338BEF-CA84-3085-B6CB-4E93B3B9A2E1> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/HIToolbox.framework/Versions/A/HIToolbox
    0x7fff8e98a000 -     0x7fff8eb95fff  libFosl_dynamic.dylib (16.24) <363B7CEE-B662-32F3-9D7B-245E64927C35> /usr/lib/libFosl_dynamic.dylib
    0x7fff8eb96000 -     0x7fff8ee16ff3  com.apple.security (7.0 - 57337.20.44) <6D1EFB27-3B0F-39EE-B491-6A697A12E98A> /System/Library/Frameworks/Security.framework/Versions/A/Security
    0x7fff8fa92000 -     0x7fff8fa97fff  com.apple.DiskArbitration (2.7 - 2.7) <B7FAE647-156A-30C8-BA8B-69D188D02602> /System/Library/Frameworks/DiskArbitration.framework/Versions/A/DiskArbitration
    0x7fff8fb84000 -     0x7fff8fbfbfe7  libcorecrypto.dylib (335.20.1) <C6BD205F-4ECE-37EE-BCAB-A76F39CDCFFA> /usr/lib/system/libcorecrypto.dylib
    0x7fff8fcdd000 -     0x7fff8fd17ff7  com.apple.DebugSymbols (132 - 132) <BDF57386-2881-35BD-9310-36904C764E93> /System/Library/PrivateFrameworks/DebugSymbols.framework/Versions/A/DebugSymbols
    0x7fff8fd67000 -     0x7fff8fd7dff7  libLinearAlgebra.dylib (1159) <FA316609-9851-3C5C-AF46-685A25768D45> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLinearAlgebra.dylib
    0x7fff8feff000 -     0x7fff8ff1bff7  libextension.dylib (78) <589FA312-F17C-3A8D-986F-FD995D0065D5> /usr/lib/libextension.dylib
    0x7fff8ff72000 -     0x7fff8ffc2fff  libcups.2.dylib (435) <28A05475-9DBF-35EA-B218-3432B69EA18B> /usr/lib/libcups.2.dylib
    0x7fff90025000 -     0x7fff90099fff  com.apple.Heimdal (4.0 - 2.0) <009F223D-B89B-376B-94F5-6D982CBEF771> /System/Library/PrivateFrameworks/Heimdal.framework/Versions/A/Heimdal
    0x7fff90146000 -     0x7fff90149fff  libCoreVMClient.dylib (119.5) <CD7DE25C-D7AD-3ECD-BEEC-F57992A4A08E> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreVMClient.dylib
    0x7fff9014a000 -     0x7fff901d7fff  libsystem_c.dylib (1082.20.4) <EAB38A6C-8671-3B13-B500-90EC1B912063> /usr/lib/system/libsystem_c.dylib
    0x7fff90a4e000 -     0x7fff90a4ffff  libsystem_blocks.dylib (65) <49D42329-7DE9-3413-92C3-A473A7E9CF35> /usr/lib/system/libsystem_blocks.dylib
    0x7fff90b3e000 -     0x7fff90b4dffb  com.apple.LangAnalysis (1.7.0 - 1.7.0) <0D1BCC13-76B9-3C19-85AA-D8DD8299F007> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/LangAnalysis.framework/Versions/A/LangAnalysis
    0x7fff90b4e000 -     0x7fff90c40ff7  libiconv.2.dylib (44) <F05A0A5A-92A9-3668-8F20-F27CBDA26BE9> /usr/lib/libiconv.2.dylib
    0x7fff90da3000 -     0x7fff911d1fff  com.apple.vision.FaceCore (3.3.1 - 3.3.1) <B8482831-77BD-3FBC-A0B1-12502353AA57> /System/Library/PrivateFrameworks/FaceCore.framework/Versions/A/FaceCore
    0x7fff913f1000 -     0x7fff91483ff3  com.apple.airplaysender (1.0 - 250.10) <20466800-AF31-3B4C-A571-F372F42B95AF> /System/Library/PrivateFrameworks/AirPlaySender.framework/Versions/A/AirPlaySender
    0x7fff91557000 -     0x7fff91a15fcf  com.apple.vImage (8.0 - 8.0) <85FB412E-EB30-3433-A79B-B3970FC83580> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vImage.framework/Versions/A/vImage
    0x7fff91a16000 -     0x7fff91a46ff7  libsandbox.1.dylib (460.20.9) <F0002EB6-27DF-38D5-AA6F-DE2A27C9C0A3> /usr/lib/libsandbox.1.dylib
    0x7fff91aa9000 -     0x7fff91d2fff7  com.apple.CFNetwork (760.2.6 - 760.2.6) <DDE325B9-7F6F-3933-8F86-8D031E400DD5> /System/Library/Frameworks/CFNetwork.framework/Versions/A/CFNetwork
    0x7fff91d30000 -     0x7fff92287fff  com.apple.MediaToolbox (1.0 - 1731.15.33) <16374746-DF5E-3103-994B-74CF151BD06A> /System/Library/Frameworks/MediaToolbox.framework/Versions/A/MediaToolbox
    0x7fff92288000 -     0x7fff92299ff7  libz.1.dylib (61.20.1) <B3EBB42F-48E3-3287-9F0D-308E04D407AC> /usr/lib/libz.1.dylib
    0x7fff92b6d000 -     0x7fff92b79ff7  com.apple.SpeechRecognitionCore (2.2.7 - 2.2.7) <8B6C0DB6-8744-3AEB-BD00-9FA6967E7125> /System/Library/PrivateFrameworks/SpeechRecognitionCore.framework/Versions/A/SpeechRecognitionCore
    0x7fff92d34000 -     0x7fff92d36ff7  libsystem_configuration.dylib (802.20.7) <5FD79070-36CC-3D02-BEA7-BB5D2AE97D5D> /usr/lib/system/libsystem_configuration.dylib
    0x7fff92d66000 -     0x7fff92d76fff  libbsm.0.dylib (34) <7E14504C-A8B0-3574-B6EB-5D5FABC72926> /usr/lib/libbsm.0.dylib
    0x7fff92d84000 -     0x7fff92dabfff  com.apple.ChunkingLibrary (167 - 167) <508861C9-F5E6-343B-8DD0-D71DFE49ECFD> /System/Library/PrivateFrameworks/ChunkingLibrary.framework/Versions/A/ChunkingLibrary
    0x7fff92e3f000 -     0x7fff92e49fff  com.apple.NetAuth (6.0 - 6.0) <19E44307-6F9F-3DEC-8C1A-4685BC252A35> /System/Library/PrivateFrameworks/NetAuth.framework/Versions/A/NetAuth
    0x7fff92eab000 -     0x7fff92f12fff  com.apple.framework.CoreWiFi (11.0 - 1101.20) <BEC7B27E-8CE8-3DAB-BFDF-6C240C6A4B12> /System/Library/PrivateFrameworks/CoreWiFi.framework/Versions/A/CoreWiFi
    0x7fff92fa4000 -     0x7fff92fadff7  libsystem_pthread.dylib (138.10.4) <327CECD0-B881-3153-8FCC-4FD4818B7F16> /usr/lib/system/libsystem_pthread.dylib
    0x7fff92fae000 -     0x7fff93022fff  com.apple.framework.IOKit (2.0.2 - 1179.20.6) <BA27E459-85E8-3393-BEAA-BF67FE74F5F4> /System/Library/Frameworks/IOKit.framework/Versions/A/IOKit
    0x7fff93023000 -     0x7fff93069ff7  libauto.dylib (186) <999E610F-41FC-32A3-ADCA-5EC049B65DFB> /usr/lib/libauto.dylib
    0x7fff9306a000 -     0x7fff9322afeb  libBLAS.dylib (1159) <943445A4-F6CA-3923-882C-154D7D4AEFE0> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libBLAS.dylib
    0x7fff93234000 -     0x7fff93275ff7  libGLU.dylib (12.0.40.6) <D51C3497-7EC6-37F4-9E8D-B9BFED23974D> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLU.dylib
    0x7fff93281000 -     0x7fff9328fff7  libbz2.1.0.dylib (38) <28E54258-C0FE-38D4-AB76-1734CACCB344> /usr/lib/libbz2.1.0.dylib
    0x7fff935d3000 -     0x7fff935dbffb  libsystem_dnssd.dylib (625.20.4) <945B5FB1-DA91-3D45-A961-A8FAD53C1E7E> /usr/lib/system/libsystem_dnssd.dylib
    0x7fff93705000 -     0x7fff93801ff7  libFontParser.dylib (158.4) <BF7F82EB-7820-364A-865E-442F42BFDFA4> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontParser.dylib
    0x7fff938cb000 -     0x7fff93954ff7  com.apple.PerformanceAnalysis (1.0 - 1) <67DE6CD9-AA72-3664-9594-0161D03D4919> /System/Library/PrivateFrameworks/PerformanceAnalysis.framework/Versions/A/PerformanceAnalysis
    0x7fff93a0b000 -     0x7fff93cf0ff3  com.apple.CoreServices.CarbonCore (1136 - 1136) <FFBDE3BF-0BB3-37A2-8A44-6E25284CC348> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/CarbonCore.framework/Versions/A/CarbonCore
    0x7fff93cf1000 -     0x7fff93cfcfff  libGL.dylib (12.0.40.6) <3F719CC4-8024-33B5-A49D-15FAE1955A12> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGL.dylib
    0x7fff93ef8000 -     0x7fff93f00fff  libGFXShared.dylib (12.0.40.6) <05770D51-DB02-3ACD-86EF-D3A475A83D4D> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGFXShared.dylib
    0x7fff93f5e000 -     0x7fff93f63fff  com.apple.TCC (1.0 - 1) <C53628CA-0C75-34B6-AE6E-8BCF8A3ED099> /System/Library/PrivateFrameworks/TCC.framework/Versions/A/TCC
    0x7fff94022000 -     0x7fff94030fff  com.apple.opengl (12.0.40 - 12.0.40) <4D469B19-F5B3-3A2F-93D5-31E3AA3B14BF> /System/Library/Frameworks/OpenGL.framework/Versions/A/OpenGL
    0x7fff94034000 -     0x7fff94039fff  com.apple.MediaAccessibility (1.0 - 79) <CCF71DC1-BB6A-3227-BD1B-AFD172592A63> /System/Library/Frameworks/MediaAccessibility.framework/Versions/A/MediaAccessibility
    0x7fff9403f000 -     0x7fff9408bff3  com.apple.HIServices (1.22 - 549) <14FB5BB6-8456-39F9-A694-8A1C12426880> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/HIServices.framework/Versions/A/HIServices
    0x7fff9408c000 -     0x7fff9408cfff  libOpenScriptingUtil.dylib (169) <5CE2080C-398C-34C2-8D65-B9C627AACA19> /usr/lib/libOpenScriptingUtil.dylib
    0x7fff940f6000 -     0x7fff94213fff  libsqlite3.dylib (216.4) <DC3D59E7-91A3-374F-957C-6699729CD82B> /usr/lib/libsqlite3.dylib
    0x7fff94230000 -     0x7fff94238fff  com.apple.CoreServices.FSEvents (1223.10.1 - 1223.10.1) <7F5B7A23-BC1D-3FA9-A9B8-D534F1E1979A> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/FSEvents.framework/Versions/A/FSEvents
    0x7fff9424a000 -     0x7fff9424bffb  libremovefile.dylib (41) <B8D1A5FC-CFD5-3AAB-8A10-14DDC129710A> /usr/lib/system/libremovefile.dylib
    0x7fff94298000 -     0x7fff9433cfff  com.apple.Bluetooth (4.4.3 - 4.4.3f4) <FF130A90-AB16-33C8-B0D6-1FFE38BFFD30> /System/Library/Frameworks/IOBluetooth.framework/Versions/A/IOBluetooth
    0x7fff94346000 -     0x7fff9437aff7  com.apple.CoreVideo (1.8 - 191.2) <88D903C8-E608-320E-8ACD-11E5B3003C18> /System/Library/Frameworks/CoreVideo.framework/Versions/A/CoreVideo
    0x7fff9437b000 -     0x7fff9437ffff  libcache.dylib (75) <6B245C0A-F3EA-383B-A542-5B0D0456A41B> /usr/lib/system/libcache.dylib
    0x7fff945bb000 -     0x7fff945c1fff  com.apple.IOAccelerator (203.14 - 203.14) <D632883D-7A42-38C4-BF31-BD597BD31FAA> /System/Library/PrivateFrameworks/IOAccelerator.framework/Versions/A/IOAccelerator
    0x7fff945c2000 -     0x7fff945e7ff7  libPng.dylib (1442) <E8391CE4-9B83-3895-A406-D987FC826D4A> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libPng.dylib
    0x7fff94635000 -     0x7fff94673ff7  libGLImage.dylib (12.0.40.6) <7A41B04A-8282-3530-809F-FAC4AC953CD2> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libGLImage.dylib
    0x7fff946ef000 -     0x7fff946efff7  libkeymgr.dylib (28) <09397E01-6066-3179-A50C-2CE666FDA929> /usr/lib/system/libkeymgr.dylib
    0x7fff946f6000 -     0x7fff946f6ff7  liblaunch.dylib (756.20.4) <EDF719D6-D2BB-38DD-8C94-4272BEFDA2CD> /usr/lib/system/liblaunch.dylib
    0x7fff94726000 -     0x7fff947dfff7  libvMisc.dylib (563.4) <3114F9E9-2B0D-3371-93A1-04BB55CE8DBD> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvMisc.dylib
    0x7fff947e0000 -     0x7fff947e2ff7  com.apple.xpc.ServiceManagement (1.0 - 1) <3777FD15-B6F3-32A2-A8E3-3E8CE3B8D5E7> /System/Library/Frameworks/ServiceManagement.framework/Versions/A/ServiceManagement
    0x7fff94809000 -     0x7fff9481afff  libcmph.dylib (6) <BA4BF2C6-7F4E-33B8-9DD7-619C9EB83ECF> /usr/lib/libcmph.dylib
    0x7fff948d3000 -     0x7fff948dbfff  com.apple.NetFS (6.0 - 4.0) <BDD59EC5-D399-31EA-9B2A-60E3A859FC42> /System/Library/Frameworks/NetFS.framework/Versions/A/NetFS
    0x7fff948e4000 -     0x7fff94c38ff7  com.apple.Foundation (6.9 - 1256.1) <66106CC9-9D97-3846-88D8-4BF6BB508296> /System/Library/Frameworks/Foundation.framework/Versions/C/Foundation
    0x7fff94c39000 -     0x7fff94c58ff7  com.apple.framework.Apple80211 (11.0 - 1110.33) <EC583C00-9073-39C3-B613-96D5BA0FDD32> /System/Library/PrivateFrameworks/Apple80211.framework/Versions/A/Apple80211
    0x7fff94c59000 -     0x7fff94c8afff  com.apple.GSS (4.0 - 2.0) <25DECD44-0905-3E53-9480-DE7BEB84DB83> /System/Library/Frameworks/GSS.framework/Versions/A/GSS
    0x7fff94db2000 -     0x7fff94f7bff7  com.apple.ImageIO.framework (3.3.0 - 1442) <2C8AF87E-080E-3FD8-824D-332B43DF4B61> /System/Library/Frameworks/ImageIO.framework/Versions/A/ImageIO
    0x7fff95ec9000 -     0x7fff962cbfff  libLAPACK.dylib (1159) <A333AA38-9C2C-329C-AB92-94774C8264C5> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libLAPACK.dylib
    0x7fff96300000 -     0x7fff96303fff  com.apple.Mangrove (1.0 - 1) <7919AD18-0EDE-3408-A6AC-A9121B8D857F> /System/Library/PrivateFrameworks/Mangrove.framework/Versions/A/Mangrove
    0x7fff963b1000 -     0x7fff965beffb  libicucore.A.dylib (551.41) <CFFD7342-A7D6-323A-AC14-B9EECF6EFFED> /usr/lib/libicucore.A.dylib
    0x7fff9696d000 -     0x7fff96978fff  libkxld.dylib (3248.20.55) <3B8A19A8-7B41-3322-BDEC-9A2461E76423> /usr/lib/system/libkxld.dylib
    0x7fff96bf0000 -     0x7fff96c19fff  libxpc.dylib (756.20.4) <61AB4610-9304-354C-9E9B-D57198AE9866> /usr/lib/system/libxpc.dylib
    0x7fff96c1a000 -     0x7fff96c1dfff  libspindump.dylib (197.1) <78CD77B4-3653-35B7-B8E6-3F76BDD7F8B6> /usr/lib/libspindump.dylib
    0x7fff96c1e000 -     0x7fff96c2cfff  libxar.1.dylib (302) <03207F66-2C4A-3DBD-8D81-70F4C85903C4> /usr/lib/libxar.1.dylib
    0x7fff97d42000 -     0x7fff981b8fff  com.apple.CoreFoundation (6.9 - 1256.14) <068D1BA9-3859-34C7-986A-97EDF739C5C8> /System/Library/Frameworks/CoreFoundation.framework/Versions/A/CoreFoundation
    0x7fff98921000 -     0x7fff98a33fef  libvDSP.dylib (563.4) <C069B6A3-D7CD-3B72-918C-15514066A2F3> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libvDSP.dylib
    0x7fff98a34000 -     0x7fff98dafffb  com.apple.VideoToolbox (1.0 - 1731.15.33) <33AED54A-87AE-330F-BAAD-FB8389C3E686> /System/Library/Frameworks/VideoToolbox.framework/Versions/A/VideoToolbox
    0x7fff98dfa000 -     0x7fff98dfbffb  libSystem.B.dylib (1226.10.1) <54388DF0-3813-33E4-BE8D-7743A81ACF4D> /usr/lib/libSystem.B.dylib
    0x7fff98ebd000 -     0x7fff98f02ff3  libFontRegistry.dylib (155.1) <593CC743-3785-3CC5-A229-D3846C51E054> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ATS.framework/Versions/A/Resources/libFontRegistry.dylib
    0x7fff98f14000 -     0x7fff98fa9fff  com.apple.ink.framework (10.9 - 214) <6B573126-A6E9-357F-B36A-AA5BDC0BEAF8> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/Ink.framework/Versions/A/Ink
    0x7fff98fb5000 -     0x7fff98fb5fff  com.apple.Cocoa (6.11 - 22) <0A634D46-B468-3CBC-B2A0-16C381C11BF2> /System/Library/Frameworks/Cocoa.framework/Versions/A/Cocoa
    0x7fff990f3000 -     0x7fff990f3ff7  libunc.dylib (29) <1D0F8265-F026-3CBD-93D3-F8DF14FFCE68> /usr/lib/system/libunc.dylib
    0x7fff99174000 -     0x7fff9940afff  libmecabra.dylib (696.4) <0A1574F0-3222-3856-A1C6-D8BE20DC4C48> /usr/lib/libmecabra.dylib
    0x7fff9940b000 -     0x7fff9940eff7  libCoreFSCache.dylib (119.5) <C7008E64-0AFB-3446-929E-BC3F76DEF049> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCoreFSCache.dylib
    0x7fff9940f000 -     0x7fff9943effb  libsystem_m.dylib (3105) <26655445-CA97-321E-B221-801CB378D1AA> /usr/lib/system/libsystem_m.dylib
    0x7fff99476000 -     0x7fff99492ff7  libsystem_malloc.dylib (67) <9EECAB18-F025-34C4-8E32-7EFFA6720EFC> /usr/lib/system/libsystem_malloc.dylib
    0x7fff99493000 -     0x7fff994f1fff  com.apple.SystemConfiguration (1.14 - 1.14) <A6ABDEA0-88BB-3EA2-8C97-FC1A33ABB1D7> /System/Library/Frameworks/SystemConfiguration.framework/Versions/A/SystemConfiguration
    0x7fff9950a000 -     0x7fff9951afff  libSparseBLAS.dylib (1159) <81330B45-9CA3-34AC-891C-6E770C3DFC24> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/libSparseBLAS.dylib
    0x7fff9952c000 -     0x7fff9959bfff  com.apple.SearchKit (1.4.0 - 1.4.0) <CA50106F-F45A-36AC-AD2B-C3B19F5DD52F> /System/Library/Frameworks/CoreServices.framework/Versions/A/Frameworks/SearchKit.framework/Versions/A/SearchKit
    0x7fff997e2000 -     0x7fff99843ff7  libsystem_network.dylib (583.20.10) <1C0410F3-F66E-3B0D-B8AD-0D49AB15A529> /usr/lib/system/libsystem_network.dylib
    0x7fff99859000 -     0x7fff9985fff7  com.apple.speech.recognition.framework (5.1.1 - 5.1.1) <FA5CB89A-2BFE-38CC-B1A3-E48792CD898C> /System/Library/Frameworks/Carbon.framework/Versions/A/Frameworks/SpeechRecognition.framework/Versions/A/SpeechRecognition
    0x7fff99949000 -     0x7fff9994cff7  libsystem_sandbox.dylib (460.20.9) <1C891336-1B25-365D-B43E-96D5B3BE66B0> /usr/lib/system/libsystem_sandbox.dylib
    0x7fff99be9000 -     0x7fff99beeff7  libmacho.dylib (875.1) <CB745E1F-4885-3F96-B38B-2093DF488FD5> /usr/lib/system/libmacho.dylib
    0x7fff99c44000 -     0x7fff99c61ff7  com.apple.AppleVPAFramework (2.1.2 - 2.1.2) <25691042-E51E-3A47-A908-E2F6D35451FC> /System/Library/PrivateFrameworks/AppleVPA.framework/Versions/A/AppleVPA
    0x7fff99f6b000 -     0x7fff99f73fff  libcopyfile.dylib (127) <F5133269-0B22-388C-A57C-079667B6291E> /usr/lib/system/libcopyfile.dylib
    0x7fff99f7c000 -     0x7fff99f7eff7  libquarantine.dylib (80) <163CF63A-7455-3D1F-AE57-8C4475A9204C> /usr/lib/system/libquarantine.dylib
    0x7fff99f7f000 -     0x7fff99f7ffff  com.apple.Accelerate.vecLib (3.10 - vecLib 3.10) <E0D5C411-052F-3B71-9562-C1098FB2F86D> /System/Library/Frameworks/Accelerate.framework/Versions/A/Frameworks/vecLib.framework/Versions/A/vecLib
    0x7fff9a567000 -     0x7fff9a589fff  com.apple.IconServices (68.1 - 68.1) <3ECAA762-1193-3D76-A25F-7680DB3A957E> /System/Library/PrivateFrameworks/IconServices.framework/Versions/A/IconServices
    0x7fff9a58a000 -     0x7fff9a58afff  libenergytrace.dylib (10) <A4AE7CBD-CF0A-3A74-8098-B642CE496611> /usr/lib/libenergytrace.dylib
    0x7fff9a815000 -     0x7fff9a864ff7  com.apple.opencl (2.6.9 - 2.6.9) <DFB196DD-1863-3E1F-A2CB-41559E898F50> /System/Library/Frameworks/OpenCL.framework/Versions/A/OpenCL
    0x7fff9b6e6000 -     0x7fff9b98cff7  com.apple.CoreData (120 - 641.3) <A29A5491-6169-372B-828F-84EE0CFD4BC4> /System/Library/Frameworks/CoreData.framework/Versions/A/CoreData
    0x7fff9b98d000 -     0x7fff9ba9bff3  com.apple.desktopservices (1.10 - 1.10) <0BAED9FA-EFA5-3DA0-8715-043FD2400B77> /System/Library/PrivateFrameworks/DesktopServicesPriv.framework/Versions/A/DesktopServicesPriv
    0x7fff9baff000 -     0x7fff9bca5ff7  com.apple.audio.toolbox.AudioToolbox (1.13 - 1.13) <F912765D-88ED-3324-B512-3778A8CE878B> /System/Library/Frameworks/AudioToolbox.framework/Versions/A/AudioToolbox
    0x7fff9bca6000 -     0x7fff9bca8fff  libCVMSPluginSupport.dylib (12.0.40.6) <8E97A929-0E60-3F6D-ACF7-67F700BE2530> /System/Library/Frameworks/OpenGL.framework/Versions/A/Libraries/libCVMSPluginSupport.dylib
    0x7fff9c41f000 -     0x7fff9c428ff7  com.apple.CommonAuth (4.0 - 2.0) <B2CEE6B5-9464-35F2-9339-9F52001C8A27> /System/Library/PrivateFrameworks/CommonAuth.framework/Versions/A/CommonAuth
    0x7fff9c440000 -     0x7fff9c4cddd7  com.apple.AppleJPEG (1.0 - 1) <9F0E8564-FCC4-33BE-9C6A-2BA926A33F6F> /System/Library/PrivateFrameworks/AppleJPEG.framework/Versions/A/AppleJPEG
    0x7fff9c60d000 -     0x7fff9c648fff  com.apple.aptransport (1.0 - 250.10) <408C75B7-3725-3699-BADF-E1587FE87055> /System/Library/PrivateFrameworks/APTransport.framework/Versions/A/APTransport
    0x7fff9c649000 -     0x7fff9c649fff  com.apple.Accelerate (1.10 - Accelerate 1.10) <97B71D88-9C93-3943-B09E-642183B4E1AC> /System/Library/Frameworks/Accelerate.framework/Versions/A/Accelerate
    0x7fff9c64a000 -     0x7fff9c65bff7  libsystem_trace.dylib (201.10.3) <F0B7622B-FB6B-31E1-8703-38F57BE84553> /usr/lib/system/libsystem_trace.dylib
    0x7fff9c65f000 -     0x7fff9c6c9ffb  com.apple.MediaControlSender (2.0 - 250.10) <D5954033-50F7-3F90-AB8E-0C15A9D6F069> /System/Library/PrivateFrameworks/MediaControlSender.framework/Versions/A/MediaControlSender
    0x7fff9c733000 -     0x7fff9c74afff  libmarisa.dylib (4) <E4919B03-D9BD-3AF8-B436-C415C98E3F0A> /usr/lib/libmarisa.dylib
    0x7fff9c774000 -     0x7fff9c798fff  com.apple.MultitouchSupport.framework (304.10 - 304.10) <CE5E8A54-180B-39FD-B57A-97E02B599B69> /System/Library/PrivateFrameworks/MultitouchSupport.framework/Versions/A/MultitouchSupport
    0x7fff9cb72000 -     0x7fff9cc08fff  com.apple.ColorSync (4.9.0 - 4.9.0) <8BB8DF19-C24F-39F8-8B90-AD186D74587C> /System/Library/Frameworks/ApplicationServices.framework/Versions/A/Frameworks/ColorSync.framework/Versions/A/ColorSync
    0x7fff9cc09000 -     0x7fff9cc32fff  libsystem_info.dylib (477.20.1) <6513635B-4ADE-3B45-BF63-ED7AC565B0C9> /usr/lib/system/libsystem_info.dylib
    0x7fff9cc9c000 -     0x7fff9cc9dfff  libsystem_secinit.dylib (20) <FD6ECF2C-1489-32CA-981B-9045B5EB1FAA> /usr/lib/system/libsystem_secinit.dylib
    0x7fff9ce72000 -     0x7fff9d24afef  com.apple.CoreAUC (214.0.0 - 214.0.0) <B43C7811-38A4-3F9A-9417-FD8F4B55EA82> /System/Library/PrivateFrameworks/CoreAUC.framework/Versions/A/CoreAUC
    0x7fff9d441000 -     0x7fff9d49cff7  libTIFF.dylib (1442) <FC2ADE78-3710-31E7-9CE7-44CD61F4B8DC> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libTIFF.dylib
    0x7fff9d4a4000 -     0x7fff9d4befff  com.apple.Kerberos (3.0 - 1) <836358DE-2731-3ACD-98E3-E5FA48917728> /System/Library/Frameworks/Kerberos.framework/Versions/A/Kerberos
    0x7fff9d4c9000 -     0x7fff9d519ff7  com.apple.Symbolication (1.4 - 58044) <2EC9F04A-4370-39C8-8549-FC6411D87463> /System/Library/PrivateFrameworks/Symbolication.framework/Versions/A/Symbolication
    0x7fff9d51a000 -     0x7fff9d525ff7  libChineseTokenizer.dylib (16) <998637AB-DC37-3A7C-A85C-F10FD98CAAD7> /usr/lib/libChineseTokenizer.dylib
    0x7fff9d5d9000 -     0x7fff9d5efff7  libsystem_coretls.dylib (83.20.8) <30AF7134-6CA7-3582-B9D3-507D6ED19A88> /usr/lib/system/libsystem_coretls.dylib
    0x7fff9d617000 -     0x7fff9d61affb  libScreenReader.dylib (425.102) <BDC46586-4925-38F2-85D3-BD23DB6E6D43> /usr/lib/libScreenReader.dylib
    0x7fff9d621000 -     0x7fff9d623ff7  libRadiance.dylib (1442) <9E9084DC-C0DF-30DF-BD6B-7AED3799A129> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libRadiance.dylib
    0x7fff9d6df000 -     0x7fff9d730ff7  com.apple.audio.CoreAudio (4.3.0 - 4.3.0) <BB7C0F61-E39B-382C-AF03-1650C054BFE1> /System/Library/Frameworks/CoreAudio.framework/Versions/A/CoreAudio
    0x7fff9d731000 -     0x7fff9d75cffb  libarchive.2.dylib (33.20.2) <6C370A21-63FD-3A68-B4B3-5333F24B770B> /usr/lib/libarchive.2.dylib
    0x7fff9d75e000 -     0x7fff9d850ff7  libJP2.dylib (1442) <3B374049-CCA4-3B4D-9517-583F2BF6B77D> /System/Library/Frameworks/ImageIO.framework/Versions/A/Resources/libJP2.dylib
    0x7fff9d8e2000 -     0x7fff9d9bbfff  com.apple.CoreMedia (1.0 - 1731.15.33) <6109D83B-4E0B-3DE2-9856-9FD80EA51CE0> /System/Library/Frameworks/CoreMedia.framework/Versions/A/CoreMedia

External Modification Summary:
  Calls made by other processes targeting this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by this process:
    task_for_pid: 0
    thread_create: 0
    thread_set_state: 0
  Calls made by all processes on this machine:
    task_for_pid: 270
    thread_create: 0
    thread_set_state: 0

VM Region Summary:
ReadOnly portion of Libraries: Total=228.2M resident=0K(0%) swapped_out_or_unallocated=228.2M(100%)
Writable regions: Total=101.7M written=0K(0%) resident=0K(0%) swapped_out=0K(0%) unallocated=101.7M(100%)

                                VIRTUAL   REGION
REGION TYPE                        SIZE    COUNT (non-coalesced)
===========                     =======  =======
Activity Tracing                  2048K        2
Dispatch continuations            24.0M        2
Kernel Alloc Once                    4K        2
MALLOC                            61.3M       13
MALLOC guard page                   32K        7
Process Corpse Info               2048K        2
STACK GUARD                       56.0M       11
Stack                             12.1M       11
VM_ALLOCATE                         20K        3
__DATA                            17.4M      193
__IMAGE                            528K        2
__LINKEDIT                        91.2M        5
__TEXT                           137.0M      198
__UNICODE                          552K        2
mapped file                       25.1M        2
shared memory                       20K        5
===========                     =======  =======
TOTAL                            429.4M      444



It seems that it might have something to do with AirTunesHALPlugin? But I do not use any AirPlay stuff, never did ....



The only thing I can imagine right now, that something went wrong with the upgrade, since my main System had 10.10 installed before. But I really really really do not want to go all through the hassle to do a clean install, so any help would be greatly appreciated!



Update: So it seems to be in fact a problem with /Library/Audio/Plug-Ins/HAL/AirPlay.driver. When I disable this, I get my sound back again. If I enable it, same problem as before.



As it works on my fresh install, there must be some "bad setting" lurking around in my System that may have migrated from Yosemite. But what can it be? Maybe some "sandbox problems" as indicated by the log messages (see above)? Any ideas?

Link to comment
Share on other sites

I have a Realtek ALC889

I'm still using an AppleHDA patched kext (i'm using it since Osx Lion) and it works very well also with El Capitan .



BTW i will give a try ....

i need this kext for el capitan

Link to comment
Share on other sites

No errors, attached.





It works!

You are a genius man!



Tests:

Analog audio-out = ok

Analog audio-in = ok

Digital audio-out optical = ok

Thanks  A LOT !!

Toleda it was working good until today, after update the system to 10.11.2 my front and surround speakers are reversed, center and subwoofer speakers are reversed too. It does't matter if i use an optical or coaxial cable connected to a 5.1 receiver.



Do you need any log file? Any kind of test to do?



Link to comment
Share on other sites

Hi guys,



i'm using the pre-patched AppleHDA binaries long time ago without any problems. My laptop (Acer M5 481TG) have ALC296, and the ALC296VB_V3 kext used to work with headphone output, but some days ago my headphone output become silent after the update (10.11.2). Hardware tested in Linux, works well.



I wasn't able found any updated pre-patched kext, so i tried to revert back to an earlier version, but no dice. So i decided to patch it myself with Mirone-s AppleHDA patcher tool, but it can't patch it:

Choosen codec is Realteck ALC 269 VC v3
Checking 16 range comparisons between 11d41984 and 10ec0269
Found range comparison 10ec0885
Found range comparison 11d41983
2 codec range comparison(s) to patch
config.plist created and copied to ~/Desktop/MironeAudio/!

HDAEnabler.kext created with layout-id 3!
Zeroing 10ec0885 codec
	occurrences 1 of 2 expected patched!
	occurrences 2 of 2 expected patched!
Zeroing 11d41983 codec
	occurrences 1 of 2 expected patched!
	occurrences 2 of 2 expected patched!
Patching 11d41984 with 10ec0269 codec
	occurrences 1 of 2 expected patched!
	occurrences 2 of 2 expected patched!
AppleHDA binary succesfully patched!
failed to patch layout3.xml.zlib..
AppleHDAHardwareConfigDriver.kext/Contents/Info.plist patched!
Problem patching xml files, aborting

So: reverting doesn't works. Patching doesn't works. Interestingly if i revert the kext back to an pre-patched earlier version, the Speaker works, but the Headphone output silent. Jack sensing works, but silent.



This is my DSDT HDEF section:

        Device (HDEF)
        {
            Name (_ADR, 0x001B0000)  // _ADR: Address
            OperationRegion (HDAR, PCI_Config, 0x4C, 0x10)
            Field (HDAR, WordAcc, NoLock, Preserve)
            {
                DCKA,   1,
                Offset (0x01),
                DCKM,   1,
                    ,   6,
                DCKS,   1,
                Offset (0x08),
                    ,   15,
                PMES,   1
            }

            Method (_DSM, 4, NotSerialized)  // _DSM: Device-Specific Method
            {
                If ((Arg2 == Zero))
                {
                    Return (Buffer (One)
                    {
                         0x03                                             /* . */
                    })
                }

                Return (Package (0x08)
                {
                    "built-in",
                    Buffer (One)
                    {
                         0x00                                             /* . */
                    },

                    "layout-id",
                    Unicode ("\x03"),
                    "hda-gfx",
                    Buffer (0x0A)
                    {
                        "onboard-1"
                    },

                    "PinConfigurations",
                    Buffer (Zero) {}
                })
            }

            Name (_PRW, Package (0x02)  // _PRW: Power Resources for Wake
            {
                0x0D,
                Zero
            })
        }

LSPCI:

00:1b.0 Audio device [0403]: Intel Corporation 7 Series/C210 Series Chipset Family High Definition Audio Controller [8086:1e20] (rev 04)
	Subsystem: Acer Incorporated [ALI] Device [1025:0713]
	Control: I/O- Mem+ BusMaster+ SpecCycle- MemWINV- VGASnoop- ParErr- Stepping- SERR- FastB2B- DisINTx+
	Status: Cap+ 66MHz- UDF- FastB2B- ParErr- DEVSEL=fast >TAbort- <TAbort- <MAbort- >SERR- <PERR- INTx-
	Latency: 0, Cache Line Size: 64 bytes
	Interrupt: pin A routed to IRQ 22
	Region 0: Memory at f90410000 (64-bit, non-prefetchable)
	Capabilities: [50] Power Management version 2
		Flags: PMEClk- DSI- D1- D2- AuxCurrent=55mA PME(D0+,D1-,D2-,D3hot+,D3cold+)
		Status: D0 NoSoftRst- PME-Enable- DSel=0 DScale=0 PME-
	Capabilities: [60] MSI: Enable+ Count=1/1 Maskable- 64bit+
		Address: 00000000fee00000  Data: 4071
	Capabilities: [70] Express (v1) Root Complex Integrated Endpoint, MSI 00
		DevCap:	MaxPayload 128 bytes, PhantFunc 0, Latency L0s <64ns, L1 <1us
			ExtTag- RBE- FLReset+
		DevCtl:	Report errors: Correctable- Non-Fatal- Fatal- Unsupported-
			RlxdOrd- ExtTag- PhantFunc- AuxPwr- NoSnoop+
			MaxPayload 128 bytes, MaxReadReq 128 bytes
		DevSta:	CorrErr- UncorrErr- FatalErr- UnsuppReq- AuxPwr+ TransPend-
		LnkCap:	Port #0, Speed unknown, Width x0, ASPM unknown, Latency L0 <64ns, L1 <1us
			ClockPM- Surprise- LLActRep- BwNot-
		LnkCtl:	ASPM Disabled; Disabled- Retrain- CommClk-
			ExtSynch- ClockPM- AutWidDis- BWInt- AutBWInt-
		LnkSta:	Speed unknown, Width x0, TrErr- Train- SlotClk- DLActive- BWMgmt- ABWMgmt-

Do somebody have idea, how can i patch the vanilla AppleHDA for 10.11.2? Or can somebody do that for me?

Thank you very much!



--z

Link to comment
Share on other sites

i need this kext for el capitan

Not clear what you need, for native:

Post #1/Requirements/3. Native AppleHDA.kext

after update the system to 10.11.2 my front and surround speakers are reversed, center and subwoofer speakers are reversed too.

No changes in 10.11.2.  Never saw this problem.  What did you use to confirm problem?

See Post #1, Problem Reporting. Verify Audio MIDI setup. Attach all requested files, note what selection is doing what.

laptop (Acer M5 481TG) have ALC296, and the ALC296VB_V3 kext used to work

Support only for the codecs and methods described in Post #1 of this thread.  Off topic.

Link to comment
Share on other sites

Not clear what you need, for native:

Post #1/Requirements/3. Native AppleHDA.kext

No changes in 10.11.2.  Never saw this problem.  What did you use to confirm problem?

See Post #1, Problem Reporting. Verify Audio MIDI setup. Attach all requested files, note what selection is doing what.

Support only for the codecs and methods described in Post #1 of this thread.  Off topic.

I made some tests here, it seens to be a problem in my Receiver hardware.

Thanks again man!

Link to comment
Share on other sites

Guest
This topic is now closed to further replies.
 Share

×
×
  • Create New...
