Okay my bad, I had accidentally disabled the kext patches in Clover.  Now I'm kind of back to where I started:  I can see the devices listed in system prefs.  The orange and black jacks are both called Line Out.  The green jack is called Headphones, but when I plug in a pair of headphones, the name changes to Line Out.  I never get any sound from the green jack.  I can get sound from orange and black if I choose the right output, but it only lasts for a second or two, then goes silent.  If I play with the format options in Audio MIDI Setup, it will keep playing audio, but super choppy.  When I stop changing the format, then it goes silent after a couple seconds.



In one of the guides, it says that x99 systems should use version 10.9.5 of AppleHDA, is that true?  I haven't tried that yet, and it's not clear, does that need to be installed before running the scripts?

audio troubleshooting 3.zip

Edited by llamafilm
Link to comment
Share on other sites

The green jack is called Headphones, but when I plug in a pair of headphones, the name changes to Line Out.



In one of the guides, it says that x99 systems should use version 10.9.5 of AppleHDA, is that true?

PinConfigs are not correct, verify Library/Extensions/realtekALC.kext

No.

Link to comment
Share on other sites

PinConfigs are not correct, verify Library/Extensions/realtekALC.kext

Good call, that file does not exist.  I tried running audio_cloverALC-110_v1.0r10.command again just now, but it does not create that file.  Maybe something to do with these lines?  It looks like it's just moving it around in the tmp folder.

sudo cp -R "/tmp/realtekALC.kext" "/tmp/$gCodec"
echo "Install $gLibraryDirectory/realtekALC.kext"

I downloaded and installed that kext manually.  Ran sudo touch /Library/Extensions and sudo kextcache -Boot -U /

After a reboot, the output device is renamed to Internal Speakers, but oddly enough, I don't see realtekALC in kextstat.

Anyway, the problem remains — audio is crackly and only lasts for a couple of seconds.

audio troubleshooting 4.zip

Link to comment
Share on other sites

t looks like it's just moving it around in the tmp folder.

I downloaded and installed that kext manually.

I don't see realtekALC in kextstat.

Not quite, log: Install /Library/Extensions/realtekALC.kext. Is that where you looked?

Where did you install realtekALC.kext?

PinConfigs are correct

No executable, no kextstat

the microphone on the back panel is not working.

See Problem Reporting, Post #1, attach all requested files.

Link to comment
Share on other sites

Not quite, log: Install /Library/Extensions/realtekALC.kext. Is that where you looked?

Where did you install realtekALC.kext?

PinConfigs are correct

Yes, that is where I looked, and that file did not exist, so I put it there manually.
Link to comment
Share on other sites

Not quite, log: Install /Library/Extensions/realtekALC.kext. Is that where you looked?

Where did you install realtekALC.kext?

PinConfigs are correct

No executable, no kextstat

See Problem Reporting, Post #1, attach all requested files.



Eventually I opened a new topic: http://www.insanelymac.com/forum/topic/313779-alc-887-i-dont-know-what-to-do/

Link to comment
Share on other sites

hi

i used audio codec detect file and i get this output :



HDMI audio codec(s)



Onboard audio codec

Device: Not supported

Realtek: 0x10ec0662



OS X/10.11.6 Onboard Audio

Device: HDEF@1B

Audio ID: Not supported

Current Audio ID: 2 (valid: 1, 2, or 3)



what should i do now ?

Link to comment
Share on other sites

[uSER=2393]toleda[/uSER]



After hours of tries I get nothing:



I tried:



- Verify with DPCI Manager and IOReg that I have a compatibile codec. (DPCI Manager reports ALC888B but the Codec ID does not match)

- Add DTGP and FixHDA to clover.plist

- run audio codec detect command 1.6 that shows even without Audio devices that injection is working. That's strange if you ask me:



Realtek: 0x10ec0887

OS X/10.11.6 Onboard Audio

Device: HDEF@1B

Audio ID: 1

Valid audio codec, audio device and Audio ID; audio injection is working

Finished



- run audio_cloverALC-110_v1.0r10.command:





Agreement

The audio_cloverALC-110 script is for personal use only. Do not distribute

the patch, any or all of the files or the resulting patched AppleHDA.kext

for any reason without permission. The audio_cloverALC-110 script is

provided as is and without any kind of warranty.



File: audio_cloverALC-110.command_v1.0r10

Release Mode

EFI partition is mounted

System Integrity Protection status: disabled.



OK to patch

Confirm Realtek ALC887 (y/n): y

ALC887 v_0x100302 (Current)

Clover Audio ID Injection (y/n): y

Use Audio ID: 1 (y/n): y



Download ALC887 files ...

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

100 24502  100 24502    0     0  25979      0 --:--:-- --:--:-- --:--:-- 25983

Edit config.plist/Devices/Audio/Inject/1

Edit config.plist/SystemParameters/InjectKexts/YES

Download kext patches

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

100  1418  100  1418    0     0   5230      0 --:--:-- --:--:-- --:--:--  5232

Print: Entry, ":KernelAndKextPatches:KextsToPatch:", Does Not Exist

Edit config.plist: Add KernelAndKextPatches/KextsToPatch - Fixed

Download config kext and install ...

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current

                                 Dload  Upload   Total   Spent    Left  Speed

100  3665  100  3665    0     0  13552      0 --:--:-- --:--:-- --:--:-- 13574

Install /Volumes/EFI/EFI/CLOVER/kexts/10.11/realtekALC.kext

Install System/Library/Extensions/AppleHDA.kext/ALC887 zml files

Fix permissions ...

Kernel cache...

rebuilding //System/Library/PrelinkedKernels/prelinkedkernel

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakePCIID_XHCIMux.kext

kext-dev-mode allowing invalid signature -67062 0xFFFFFFFFFFFEFA0A for kext FakePCIID.kext

kext-dev-mode allowing invalid signature -67054 0xFFFFFFFFFFFEFA12 for kext AppleHDA.kext

kextcache updated critical boot files, requesting launchd reboot



Install finished, restart required.

To save a Copy of this Terminal session: Terminal/Shell/Export Text As ...

logout

Saving session...

...copying shared history...

...saving history...truncating history files...

...completed.

-



Finally just backpanel audio is working, no front panel or microphone.



What I am doing wrong ?

Archive.zip

Link to comment
Share on other sites

I know somewhere in this tread is the answer to my dilemma- "No audio after waking up in El Capitan". Anybody kindly please provide a step by step process on how to resolve the issue, or the very least  is to direct  me to topic or a post pertaining to the same.



Here is my spec for reference.



OS- El Capitan (installed using chris1111 Clover)

MotherB - GA-Z97X-UD3H

Processor- 3.5 GHz Intel core i5



Thank you.



Link to comment
Share on other sites

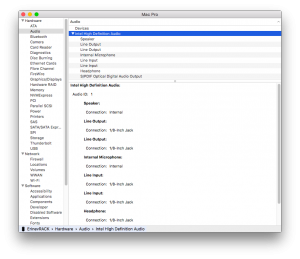

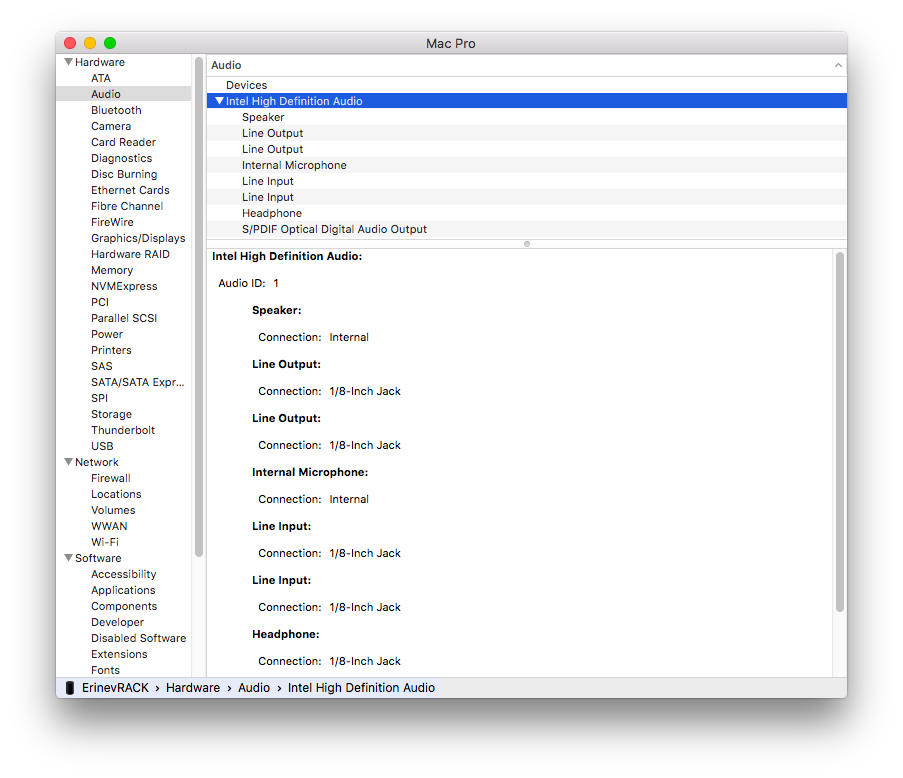

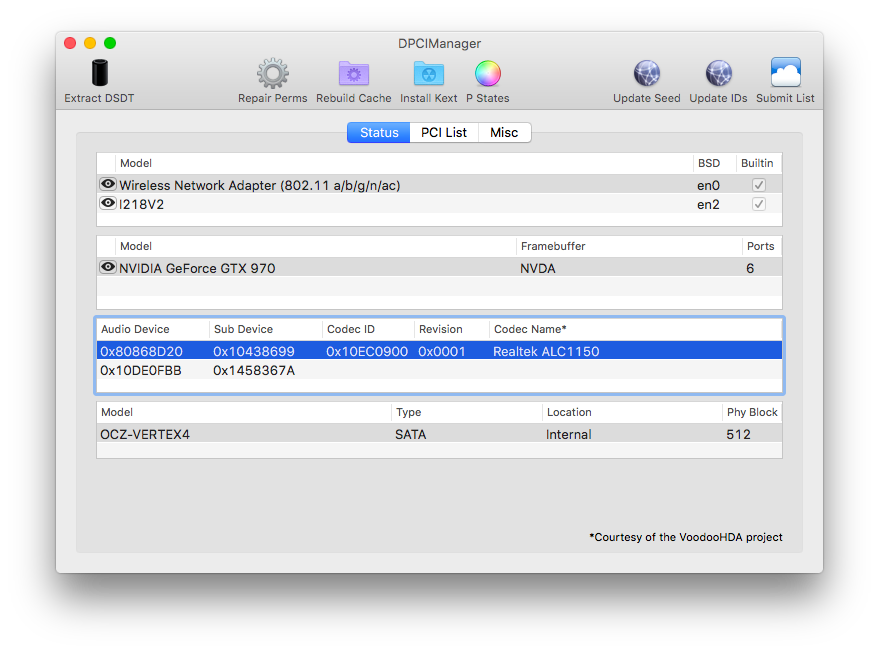

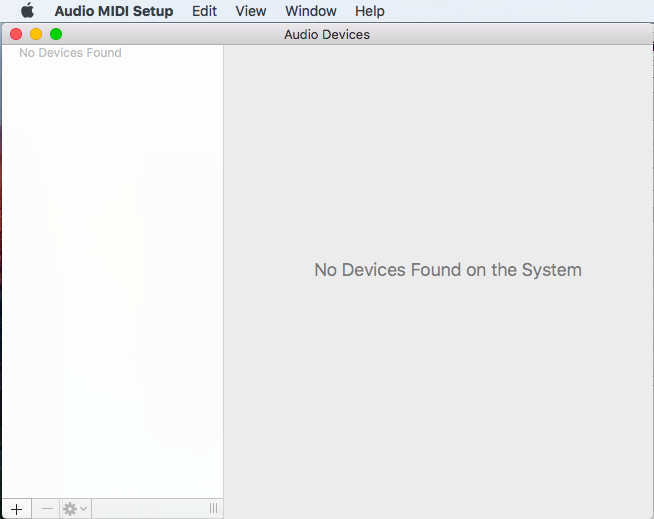

SOLVED!



Problem: No audio devices. 10.11.6 Asus X99-Deluxe II, 0801, GTX970

Codec-detect tells me, that: Valid audio codec, audio device and Audio ID; audio injection is working, but no audio devices nowhere (but system info) to be seen...



Onboard audio codec
Realtek: 0x10ec0900

OS X/10.11.6 Onboard Audio
Device: HDEF@1B
Audio ID: 1

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
	<key>ACPI</key>
	<dict>
		<key>DSDT</key>
		<dict>
			<key>Debug</key>
			<false/>
			<key>DropOEM_DSM</key>
			<false/>
			<key>Name</key>
			<string>DSDT.aml</string>
			<key>Patches</key>
			<array>
				<dict>
					<key>Comment</key>
					<string>Rename ALZA to HDEF</string>
					<key>Disabled</key>
					<false/>
					<key>Find</key>
					<data>
					QUxaQQ==
					</data>
					<key>Replace</key>
					<data>
					SERFRg==
					</data>
				</dict>
			</array>
			<key>ReuseFFFF</key>
			<false/>
		</dict>
		<key>SSDT</key>
		<dict>
			<key>DropOem</key>
			<true/>
			<key>Generate</key>
			<false/>
		</dict>
	</dict>
	<key>Boot</key>
	<dict>
		<key>Arguments</key>
		<string>slide=0 darkwake=8 npci=0x2000 nvda_drv=1</string>
		<key>Debug</key>
		<false/>
		<key>DefaultVolume</key>
		<string>nah</string>
		<key>Secure</key>
		<false/>
		<key>Timeout</key>
		<integer>1</integer>
		<key>XMPDetection</key>
		<integer>1</integer>
	</dict>
	<key>CPU</key>
	<dict>
		<key>UseARTFrequency</key>
		<false/>
	</dict>
	<key>Devices</key>
	<dict>
		<key>Audio</key>
		<dict>
			<key>Inject</key>
			<string>1</string>
		</dict>
		<key>USB</key>
		<dict>
			<key>FixOwnership</key>
			<false/>
			<key>Inject</key>
			<false/>
		</dict>
	</dict>
	<key>DisableDrivers</key>
	<array>
		<string>Nothing</string>
	</array>
	<key>GUI</key>
	<dict>
		<key>CustomIcons</key>
		<true/>
		<key>Language</key>
		<string>en:0</string>
		<key>Mouse</key>
		<dict>
			<key>DoubleClick</key>
			<integer>500</integer>
			<key>Enabled</key>
			<true/>
			<key>Mirror</key>
			<false/>
			<key>Speed</key>
			<integer>8</integer>
		</dict>
		<key>Scan</key>
		<dict>
			<key>Entries</key>
			<true/>
			<key>Kernel</key>
			<string>All</string>
			<key>Legacy</key>
			<false/>
			<key>Linux</key>
			<false/>
			<key>Tool</key>
			<true/>
		</dict>
		<key>Theme</key>
		<string>mac</string>
	</dict>
	<key>Graphics</key>
	<dict>
		<key>Inject</key>
		<dict>
			<key>ATI</key>
			<false/>
			<key>Intel</key>
			<false/>
			<key>NVidia</key>
			<false/>
		</dict>
		<key>NvidiaSingle</key>
		<false/>
	</dict>
	<key>KernelAndKextPatches</key>
	<dict>
		<key>AppleRTC</key>
		<false/>
		<key>AsusAICPUPM</key>
		<false/>
		<key>Debug</key>
		<false/>
		<key>FakeCPUID</key>
		<string>0x0306A0</string>
		<key>KernelCpu</key>
		<false/>
		<key>KernelHaswellE</key>
		<true/>
		<key>KernelLapic</key>
		<false/>
		<key>KernelPm</key>
		<false/>
		<key>KextsToPatch</key>
		<array>
			<dict>
				<key>Comment</key>
				<string>Change 15 Port Limit To 30 in XHCI 10.11 (99-series)</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				g72M/v//EA==
				</data>
				<key>Name</key>
				<string>AppleUSBXHCIPCI</string>
				<key>Replace</key>
				<data>
				g72M/v//Gg==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>5960XPatch 10.11by Brumbaer</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				SIH5AQAAQA==
				</data>
				<key>Name</key>
				<string>IOPCIFamily</string>
				<key>Replace</key>
				<data>
				SIH5AQAAgA==
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>10.10-10.11+x99-ALC-Onboard-Audio</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				oIw=
				</data>
				<key>Name</key>
				<string>AppleHDAController</string>
				<key>Replace</key>
				<data>
				II0=
				</data>
			</dict>
			<dict>
				<key>Comment</key>
				<string>TRIM Enabler</string>
				<key>Disabled</key>
				<false/>
				<key>Find</key>
				<data>
				AEFQUExFIFNTRAA=
				</data>
				<key>Name</key>
				<string>IOAHCIBlockStorage</string>
				<key>Replace</key>
				<data>
				AAAAAAAAAAAAAAA=
				</data>
			</dict>
		</array>
	</dict>
	<key>RtVariables</key>
	<dict>
		<key>BooterConfig</key>
		<string>0x28</string>
		<key>CsrActiveConfig</key>
		<string>0x3</string>
	</dict>
	<key>SMBIOS</key>
	<dict>
		<key>BiosReleaseDate</key>
		<string>06/12/13</string>
		<key>BiosVendor</key>
		<string>Apple Inc.</string>
		<key>BiosVersion</key>
		<string>MP61.88Z.0116.B04.1312061508</string>
		<key>Board-ID</key>
		<string>Mac-F60DEB81FF30ACF6</string>
		<key>BoardManufacturer</key>
		<string>Apple Inc.</string>
		<key>BoardType</key>
		<integer>11</integer>
		<key>ChassisAssetTag</key>
		<string>Pro-Enclosure</string>
		<key>ChassisManufacturer</key>
		<string>Apple Inc.</string>
		<key>ChassisType</key>
		<string>06</string>
		<key>Family</key>
		<string>Mac Pro</string>
		<key>Manufacturer</key>
		<string>Apple Inc.</string>
		<key>Memory</key>
		<dict>
			<key>Channels</key>
			<integer>4</integer>
			<key>Modules</key>
			<array>
				<dict>
					<key>Frequency</key>
					<string>2400</string>
					<key>Part</key>
					<string>HyperX Fury</string>
					<key>Serial</key>
					<string>HX424C15FBK2/32</string>
					<key>Size</key>
					<string>16384</string>
					<key>Slot</key>
					<string>2</string>
					<key>Type</key>
					<string>DDR4</string>
					<key>Vendor</key>
					<string>Kingston</string>
				</dict>
				<dict>
					<key>Frequency</key>
					<string>2400</string>
					<key>Part</key>
					<string>HyperX Fury</string>
					<key>Serial</key>
					<string>HX424C15FBK2/32</string>
					<key>Size</key>
					<string>16384</string>
					<key>Slot</key>
					<string>1</string>
					<key>Type</key>
					<string>DDR4</string>
					<key>Vendor</key>
					<string>Kingston</string>
				</dict>
			</array>
			<key>SlotCount</key>
			<integer>8</integer>
		</dict>
		<key>ProductName</key>
		<string>MacPro6,1</string>
		<key>SerialNumber</key>
		<string>***</string>
		<key>Trust</key>
		<true/>
		<key>Version</key>
		<string>1.0</string>
	</dict>
	<key>SystemParameters</key>
	<dict>
		<key>InjectKexts</key>
		<string>Yes</string>
	</dict>
</dict>
</plist>

0:100  0:100  MemLog inited, TSC freq: 3672256319
0:100  0:000
0:100  0:000  Now is 21.8.2016,  22:53:2 (GMT)
0:100  0:000  Starting Clover revision: 3696 on American Megatrends EFI
0:100  0:000  Build with: [Args: ./ebuild.sh -D NO_GRUB_DRIVERS_EMBEDDED | Command: build -D NO_GRUB_DRIVERS_EMBEDDED -D USE_LOW_EBDA -p Clover/Clover.dsc -a X64 -b RELEASE -t XCODE5 -n 5 | OS: 10.11.6 | XCODE: 7.3.1]
0:100  0:000  SelfDevicePath=PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(1,GPT,91FF8373-F5CB-42AA-862D-9C5F9B22D9F8,0x28,0x64000) @B8207998
0:100  0:000  SelfDirPath = \EFI\CLOVER
0:100  0:000  === [ Get Smbios ] =================================================
0:100  0:000  Total Memory Slots Count = 8
0:100  0:000  Type 17 Index = 0
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A1
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 1
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_A2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 2
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 16384MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B1
0:100  0:000  SmbiosTable.Type17->Vendor = Kingston
0:100  0:000  SmbiosTable.Type17->SerialNumber = E9209159
0:100  0:000  SmbiosTable.Type17->PartNumber = KHX2400C15/16G
0:100  0:000  Type 17 Index = 3
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_B2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 4
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C1
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 5
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_C2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Type 17 Index = 6
0:100  0:000  SmbiosTable.Type17->Speed = 2400MHz
0:100  0:000  SmbiosTable.Type17->Size = 16384MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D1
0:100  0:000  SmbiosTable.Type17->Vendor = Kingston
0:100  0:000  SmbiosTable.Type17->SerialNumber = EA209143
0:100  0:000  SmbiosTable.Type17->PartNumber = KHX2400C15/16G
0:100  0:000  Type 17 Index = 7
0:100  0:000  Ignoring insane frequency value 0MHz
0:100  0:000  SmbiosTable.Type17->Speed = 0MHz
0:100  0:000  SmbiosTable.Type17->Size = 0MB
0:100  0:000  SmbiosTable.Type17->Bank/Device = NODE 1 DIMM_D2
0:100  0:000  SmbiosTable.Type17->Vendor = <null string>
0:100  0:000  SmbiosTable.Type17->SerialNumber = <null string>
0:100  0:000  SmbiosTable.Type17->PartNumber = <null string>
0:100  0:000  Boot status=0
0:100  0:000  Running on: 'All Series' with board 'X99-DELUXE II'
0:100  0:000  === [ GetCPUProperties ] ===========================================
0:100  0:000  CPU Vendor = 756E6547 Model=406F1
0:100  0:000  got cores from CPUID_1 = 0
0:100  0:000  The CPU supported turbo
0:100  0:000  BrandString = Intel(R) Core(TM) i7-6850K CPU @ 3.60GHz
0:100  0:000  FSBFrequency=100MHz DMIvalue=100000kHz
0:100  0:000  Corrected FSBFrequency=100MHz
0:100  0:000  Vendor/Model/Stepping: 0x756E6547/0x4F/0x1
0:100  0:000  Family/ExtFamily: 0x6/0x0
0:100  0:000  MaxDiv/MinDiv: 36.0/6
0:100  0:000  Turbo: 0/0/0/0
0:100  0:000  Features: 0xBFEBFBFF
0:100  0:000  Threads: 12
0:100  0:000  Cores: 6
0:100  0:000  FSB: 100 MHz
0:100  0:000  CPU: 3600 MHz
0:100  0:000  TSC: 3600 MHz
0:100  0:000  PIS: 400 MHz
0:100  0:000  === [ GetDevices ] =================================================
0:100  0:000  PCI (00|00:03.00) : 8086 6F08 class=060400
0:100  0:000  PCI (00|01:00.00) : 10DE 13C2 class=030000
0:100  0:000   - GFX: Model=Gigabyte GeForce GTX 970 family 124 (Nvidia)
0:100  0:000  PCI (00|01:00.01) : 10DE 0FBB class=040300
0:100  0:000   - HDMI Audio:
0:100  0:000  PCI (00|00:02.00) : 8086 6F04 class=060400
0:100  0:000  PCI (00|00:02.03) : 8086 6F07 class=060400
0:100  0:000  PCI (00|03:00.00) : 144D A802 class=010802
0:100  0:000  PCI (00|00:01.00) : 8086 6F02 class=060400
0:100  0:000  PCI (00|00:00.00) : 8086 6F00 class=060000
0:100  0:000  PCI (00|00:05.00) : 8086 6F28 class=088000
0:100  0:000  PCI (00|00:05.01) : 8086 6F29 class=088000
0:100  0:000  PCI (00|00:05.02) : 8086 6F2A class=088000
0:100  0:000  PCI (00|00:05.04) : 8086 6F2C class=080020
0:100  0:000  PCI (00|00:05.06) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:1F.00) : 8086 8D47 class=060100
0:100  0:000  PCI (00|00:1F.02) : 8086 8D02 class=010601
0:100  0:000  PCI (00|00:1F.03) : 8086 8D22 class=0C0500
0:100  0:000  PCI (00|00:1F.06) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:11.00) : 8086 8D7C class=FF0000
0:100  0:000  PCI (00|00:14.00) : 8086 8D31 class=0C0330
0:100  0:000  PCI (00|00:16.00) : 8086 8D3A class=078000
0:100  0:000  PCI (00|00:16.01) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:16.02) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:16.03) : FFFF FFFF class=FFFFFF
0:100  0:000  PCI (00|00:19.00) : 8086 15A1 class=020000
0:100  0:000   - LAN: 0 Vendor=Intel
0:100  0:000  PCI (00|00:1A.00) : 8086 8D2D class=0C0320
0:100  0:000  PCI (00|00:1B.00) : 8086 8D20 class=040300
0:100  0:000  PCI (00|00:1C.00) : 8086 8D10 class=060400
0:100  0:000  PCI (00|00:1C.02) : 8086 8D14 class=060400
0:100  0:000  PCI (00|06:00.00) : 1B21 1242 class=0C0330
0:100  0:000  PCI (00|00:1C.04) : 8086 8D18 class=060400
0:100  0:000  PCI (00|07:00.00) : 1B21 1242 class=0C0330
0:100  0:000  PCI (00|00:1C.07) : 8086 8D1E class=060400
0:100  0:000  PCI (00|08:00.00) : 1B21 1184 class=060400
0:100  0:000  PCI (00|09:01.00) : 1B21 1184 class=060400
0:100  0:000  PCI (00|09:03.00) : 1B21 1184 class=060400
0:100  0:000  PCI (00|0B:00.00) : 8086 1539 class=020000
0:100  0:000   - LAN: 1 Vendor=Intel
0:100  0:000  PCI (00|09:05.00) : 1B21 1184 class=060400
0:100  0:000  PCI (00|09:07.00) : 1B21 1184 class=060400
0:100  0:000  PCI (00|0D:00.00) : 14E4 43A0 class=028000
0:100  0:000   - WIFI: Vendor=Broadcom
0:100  0:000  PCI (00|00:1D.00) : 8086 8D26 class=0C0320
0:100  0:000  === [ GetDefaultSettings ] =========================================
0:100  0:000  Clover load options size = 32 bytes
0:100  0:000  Clover started with option to boot boot.efi from nah
0:101  0:000  Using OEM config.plist at path: EFI\CLOVER\config.plist, Status=Success
0:101  0:000  EFI\CLOVER\config.plist loaded: Success
0:101  0:000  === [ GetListOfThemes ] ============================================
0:101  0:000  - [00]: mac
0:102  0:000  === [ GetEarlyUserSettings ] =======================================
0:102  0:000  timeout set to 1
0:102  0:000  Custom boot CUSTOM_BOOT_DISABLED (0x0)
0:102  0:000  FakeCPUID: 306A0
0:102  0:000  KextsToPatch: 4 requested
0:102  0:000   - [00]: AppleUSBXHCIPCI (Change 15 Port Limit To 30 in XHCI 10.11 (99-series)) :: BinPatch :: data len: 7
0:102  0:000   - [01]: IOPCIFamily (5960XPatch 10.11by Brumbaer) :: BinPatch :: data len: 7
0:102  0:000   - [02]: AppleHDAController (10.10-10.11+x99-ALC-Onboard-Audio) :: BinPatch :: data len: 2
0:102  0:000   - [03]: IOAHCIBlockStorage (TRIM Enabler) :: BinPatch :: data len: 11
0:102  0:000  Default theme: mac
0:102  0:000  === [ LoadDrivers ] ================================================
0:102  0:000  Loading EmuVariableUefi-64.efi  status=Success
0:102  0:000  EmuVariableUefi Initialize: VariableCommonInitialize = Success, orig services stored, install gEmuVariableControlProtocolGuid = Success
0:103  0:000  Loading FSInject-64.efi  status=Success
0:103  0:000  Loading HFSPlus.efi  status=Success
0:103  0:000   - driver needs connecting
0:103  0:000  Loading OsxAptioFix2Drv-64.efi  status=Success
0:103  0:000  Loading OsxFatBinaryDrv-64.efi  status=Success
0:103  0:000  Loading Test2.efi  status=Success
0:103  0:000  Loading NTFS.efi  status=Success
0:104  0:000   - driver needs connecting
0:104  0:000  2 drivers needs connecting ...
0:104  0:000  PlatformDriverOverrideProtocol not found. Installing ... Success
0:104  0:000  HFS+ driver loaded
0:104  0:000  Searching for invalid DiskIo BY_DRIVER connects: not found, all ok
1:690  1:586  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
1:695  0:004  === [ InitScreen ] =================================================
1:695  0:000  SetMaxResolution: found best mode 3: 1024x768
1:696  0:001  Video mode change to mode #3: Success
1:696  0:000   - set
1:696  0:000  Console modes reported: 4, available modes:
1:696  0:000   - [01]: 80x25 (current mode)
1:696  0:000   - [02]: 80x25
1:696  0:000   - [03]: 100x31
1:696  0:000   - [04]: 128x40
1:696  0:000  reinit: self device path=PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(1,GPT,91FF8373-F5CB-42AA-862D-9C5F9B22D9F8,0x28,0x64000)
1:696  0:000  === [ GetMacAddress ] ==============================================
1:696  0:000  MAC address of LAN #0= 34:97:F6:DC:93:4A:
1:696  0:000  MAC address of LAN #1= 34:97:F6:DC:93:4B:
1:696  0:000  === [ ScanSPD ] ====================================================
1:697  0:000  SMBus device : 8086 8D22 class=0C0500 status=Success
1:697  0:000  SMBus CmdReg: 0x1
1:697  0:000  Scanning SMBus [8086:8D22], mmio: 0xFBA3B004, ioport: 0x580, hostc: 0x1
1:697  0:000  Slots to scan [8]...
1:698  0:001  === [ GetAcpiTablesList ] ==========================================
1:699  0:000  Get Acpi Tables List from RSDT:
1:699  0:000   - [00]: FACP  A M I  len=132
1:699  0:000   - [01]: APIC  A M I  len=256
1:699  0:000   - [02]: FPDT  A M I  len=68
1:699  0:000   - [03]: FIDT  A M I  len=156
1:699  0:000   - [04]: MCFG  A M I len=60
1:699  0:000   - [05]: ASF!   HCG len=160
1:699  0:000   - [06]: SSDT  SataTabl len=877
1:699  0:000   - [07]: UEFI  A M I  len=66
1:699  0:000   - [08]: HPET  A M I  len=56
1:699  0:000   - [09]: MSCT  A M I  len=144
1:699  0:000   - [10]: SLIT  A M I  len=45
1:699  0:000   - [11]: SRAT  A M I  len=4440
1:699  0:000   - [12]: WDDT  A M I  len=64
1:699  0:000   - [13]: SSDT  PmMgt len=85209
1:699  0:000  Calibrated TSC frequency =3672256319 =3672MHz
1:699  0:000  === [ GetUserSettings ] ============================================
1:699  0:000  USB FixOwnership: no
1:699  0:000   - final DSDT Fix mask=00000000
1:699  0:000  PatchesDSDT: 1 requested
1:699  0:000   - [00]: (Rename ALZA to HDEF) lenToFind: 4, lenToReplace: 4
1:699  0:000  ChassisType: 0x6
1:699  0:000  Using smbios.plist at path: EFI\CLOVER\smbios.plist, Status=Not Found
1:699  0:000  === [ ScanVolumes ] ================================================
1:699  0:000  Found 11 volumes with blockIO
1:699  0:000  - [00]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)
1:699  0:000  - [01]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(1,GPT,3A530CA1-8A3B-40D6-ABF0-DC56661583CC,0x800,0x8000)
1:700  0:000  - [02]: Volume: PciRoot(0x0)\Pci(0x1F,0x2)\Sata(0x1,0xFFFF,0x0)\HD(2,GPT,E3F51452-B345-4094-83F8-D3C10D4A99D4,0x8800,0xEE73800)
1:700  0:000          Result of bootcode detection: bootable Windows (vista,win)
1:702  0:002  - [03]: Volume: PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)
1:703  0:000  - [04]: Volume: PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(1,GPT,91FF8373-F5CB-42AA-862D-9C5F9B22D9F8,0x28,0x64000)
1:703  0:000          Result of bootcode detection: bootable unknown (legacy)
1:703  0:000          This is SelfVolume !!
1:703  0:000  - [05]: Volume: PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(2,GPT,FD470AF3-A927-4714-8FB6-85C53DD9B0A1,0x64028,0x1DB19340)
1:703  0:000  - [06]: Volume: PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(3,GPT,1AFEB027-4C80-4241-965C-3C2765A3D4A1,0x1DBBD368,0x135F20)
1:703  0:000  - [07]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\USB(0x2,0x0)
1:703  0:000          USB volume
1:703  0:000          USB volume
1:703  0:000          USB volume
1:703  0:000  - [08]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\USB(0x2,0x0)\HD(1,GPT,00797163-9FB7-422B-AFBD-61E034C7704D,0x28,0x64000)
1:704  0:000          Result of bootcode detection: bootable unknown (legacy)
1:704  0:000          USB volume
1:704  0:000          USB volume
1:704  0:000          USB volume
1:711  0:006  - [09]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\USB(0x2,0x0)\HD(2,GPT,4FB76227-6184-4952-AD15-474595F8C5B1,0x64028,0xE8D547B0)
1:711  0:000          USB volume
1:711  0:000          USB volume
1:711  0:000          USB volume
1:711  0:000  - [10]: Volume: PciRoot(0x0)\Pci(0x1D,0x0)\USB(0x0,0x0)\USB(0x4,0x0)\USB(0x2,0x0)\Unit(0x1)
1:711  0:000          USB volume
1:711  0:000          USB volume
1:711  0:000          USB volume
1:711  0:000  === [ PutNvramPlistToRtVars ] ======================================
1:712  0:000  Loading nvram.plist from Vol 'nah' - loaded, size=623
1:712  0:000   Skipping EmuVariableUefiPresent
1:712  0:000   Adding Key: SystemAudioVolume: Size = 1, Data: 41
1:712  0:000   Adding Key: SystemAudioVolumeDB: Size = 1, Data: F0
1:712  0:000   Adding Key: bootercfg: Size = 2, Data: 28 00
1:712  0:000   Adding Key: csr-active-config: Size = 4, Data: 03 00 00 00
1:712  0:000   Adding Key: fmm-computer-name: Size = 10, Data: 45 72 69 6E 65 76 52 41 43 4B
1:712  0:000   Adding Key: prev-lang:kbd: Size = 4, Data: 65 6E 3A 30
1:712  0:000   Adding Key: security-mode: String: Size = 4, Val = 'none'
1:712  0:000  === [ InitTheme ] ==================================================
1:712  0:000  Using theme 'mac' (EFI\CLOVER\themes\mac)
1:713  0:001  Choosing theme mac
1:713  0:000  === [ AddCustomEntries ] ===========================================
1:713  0:000  === [ ScanLoader ] =================================================
1:713  0:000  - [00]: 'Whole Disc Boot', no file system
1:713  0:000  - [01]: 'Legacy HD1', no file system
1:713  0:000  - [02]: ''
1:713  0:000  - [03]: 'Whole Disc Boot', no file system
1:713  0:000  - [04]: 'EFI'
1:715  0:001          AddLoaderEntry for Volume Name=EFI
1:717  0:002  - [05]: 'nah'
1:718  0:000          AddLoaderEntry for Volume Name=nah
1:718  0:000          Check if volume Is Hibernated:
1:718  0:000      Check sleep image 'by signature':
1:719  0:000      read prefs \Library\Preferences\SystemConfiguration\com.apple.PowerManagement.plist status=Success
1:719  0:000      SleepImage name from pref: ImageVolume = 'nah', ImageName = '\private\var\vm\sleepimage'
1:719  0:000      Reading first 512 bytes of sleepimage ...
1:719  0:000   OurBlockIoRead: Lba=2D64218, Offset=5AC843000 (BlockSize=512)
1:719  0:000   sig lion: 0
1:719  0:000   sig snow: 0
1:719  0:000   no valid sleep image offset was found
1:719  0:000      Reading completed -> Success
1:719  0:000       sleepimage offset could not be acquired
1:719  0:000          hibernated: no - sign
1:721  0:001          AddLoaderEntry for Volume Name=nah
1:721  0:000  - [06]: 'Recovery HD'
1:721  0:000          AddLoaderEntry for Volume Name=Recovery HD
1:722  0:000  - [07]: 'Whole Disc Boot', no file system
1:722  0:000  - [08]: 'EFI'
1:722  0:000  - [09]: 'WD2T_marduk'
1:741  0:018          AddLoaderEntry for Volume Name=WD2T_marduk
1:756  0:015  - [10]: 'Whole Disc Boot', no file system
1:756  0:000  === [ AddCustomLegacy ] ============================================
1:756  0:000  === [ AddCustomTool ] ==============================================
1:756  0:000  found tool \EFI\CLOVER\tools\Shell64U.efi
1:756  0:000  Checking EFI partition Volume 4 for Clover
1:756  0:000   Found Clover
1:757  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
1:757  0:000  Checking EFI partition Volume 8 for Clover
1:758  0:001  === [ FindDefaultEntry ] ===========================================
1:758  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
1:763  0:004  === [ FindStartupDiskVolume ] ======================================
1:763  0:000  === [ GetEfiBootDeviceFromNvram ] ==================================
1:763  0:000   - [!] efi-boot-device-data not found
1:763  0:000   - [!] EfiBootVolume not found
1:763  0:000   - found entry 1. 'Boot Mac OS X from nah', Volume 'nah', DevicePath 'PciRoot(0x0)\Pci(0x2,0x3)\Pci(0x0,0x0)\Unit(0x1)\HD(2,GPT,FD470AF3-A927-4714-8FB6-85C53DD9B0A1,0x64028,0x1DB19340)\System\Library\CoreServices\boot.efi'
1:763  0:000  EmuVariable UninstallEmulation: CloseEvent = Success, original var services restored
1:763  0:000  DefaultIndex=1 and MainMenu.EntryCount=11
1:776  0:013  Found Mouse device:
1:777  0:000  GUI ready
3:777  2:000  === [ StartLoader ] ================================================
3:777  0:000  Finally: Bus=102007kHz CPU=3672MHz
3:777  0:000  Loading boot.efi  status=Success
3:780  0:002  GetOSVersion: 10.11.6 (15G31)
3:780  0:000  CSR_CFG: CSR_ALLOW_UNTRUSTED_KEXTS | CSR_ALLOW_UNRESTRICTED_FS
3:780  0:000  Filtering KextPatches:
3:780  0:000   - [00]: AppleUSBXHCIPCI (Change 15 Port Limit To 30 in XHCI 10.11 (99-series)) :: BinPatch :: [OS: 10.11.6 | MatchOS: All | MatchBuild: All] ==> allowed
3:780  0:000   - [01]: IOPCIFamily (5960XPatch 10.11by Brumbaer) :: BinPatch :: [OS: 10.11.6 | MatchOS: All | MatchBuild: All] ==> allowed
3:780  0:000   - [02]: AppleHDAController (10.10-10.11+x99-ALC-Onboard-Audio) :: BinPatch :: [OS: 10.11.6 | MatchOS: All | MatchBuild: All] ==> allowed
3:780  0:000   - [03]: IOAHCIBlockStorage (TRIM Enabler) :: BinPatch :: [OS: 10.11.6 | MatchOS: All | MatchBuild: All] ==> allowed
3:780  0:000  EmuVariable InstallEmulation: orig vars copied, emu.var.services installed, CreateEvent VirtualAddressChange = Success, CreateEvent ExitBootServices = Success, set Status=Success
3:785  0:005  === [ PatchSmbios ] ================================================
3:785  0:000  insert table 9 for dev 0:0
3:785  0:000  insert table 9 for dev 0:1
3:785  0:000  insert table 9 for dev 0:0
3:785  0:000  insert table 9 for dev 0:0
3:786  0:000  Injecting user memory modules to SMBIOS
3:786  0:000  Channels: 4
3:786  0:000  Interleave: 0 2 4 6 1 3 5 7 8 10 12 14 9 11 13 15 16 18 20 22 17 19 21 23
3:786  0:000  %F­N«ÉÍ^jñDIMM1 DIMM1 EMPTY
3:786  0:000  %F­N«ÉÍ^jñDIMM2 DIMM2 2400MHz 16384MB
3:786  0:000  %F­N«ÉÍ^jñDIMM3 DIMM3 EMPTY
3:786  0:000  %F­N«ÉÍ^jñDIMM4 DIMM4 EMPTY
3:786  0:000  %F­N«ÉÍ^jñDIMM5 DIMM5 2400MHz 16384MB
3:786  0:000  %F­N«ÉÍ^jñDIMM6 DIMM6 EMPTY
3:786  0:000  %F­N«ÉÍ^jñDIMM7 DIMM7 EMPTY
3:786  0:000  %F­N«ÉÍ^jñDIMM8 DIMM8 EMPTY
3:786  0:000  mTotalSystemMemory = 32768
3:786  0:000  NumberOfMemoryDevices = 8
3:786  0:000  Type20[0]->End = 0xFFFFFF, Type17[1] = 0x4000
3:786  0:000  Type20[1]->End = 0x1FFFFFF, Type17[4] = 0xC000
3:786  0:000  Table 131 is present, CPUType=10
3:786  0:000  Change to: 402
3:786  0:000  === [ PatchACPI ] ==================================================
3:786  0:000  RSDT 0xBAF5E028
3:786  0:000  FADT from RSDT: 0xBAF5E130
3:786  0:000  XSDT 0xBAF5E090
3:786  0:000  FADT from XSDT: 0xBAF94E10
3:786  0:000  Xsdt reallocation done
3:786  0:000  old FADT length=10C
3:786  0:000  Apply DsdtFixMask=0x00000000 old way
3:786  0:000     drop _DSM mask=0x0000
3:786  0:000  === [ FixBiosDsdt ] ================================================
3:786  0:000  VideoCard devID=0x13C210DE
3:786  0:000  DisplayADR1[0] = 0x30000, DisplayADR2[0] = 0x0
3:786  0:000  USBADR[0] = 0x140000 and PCIe = 0xFFFE
3:786  0:000  USBADR[1] = 0x1A0000 and PCIe = 0xFFFE
3:787  0:001  Audio HDA (addr:0x1B0000) setting specified layout-id=1 (0x1)
3:787  0:000  USBADR[2] = 0x1C0002 and PCIe = 0x0
3:787  0:000  USBADR[3] = 0x1C0004 and PCIe = 0x0
3:787  0:000  Found Airport BCM at 0x1C0007, 0x0
3:787  0:000  USBADR[4] = 0x1D0000 and PCIe = 0xFFFE
3:787  0:000  Patching DSDT:
3:787  0:000   - [00]: pattern 414C5A41, patched at: [ (136DA) ]
3:787  0:000  first CPU found at 2C17 offset 2C1B
3:787  0:000  device candidate at 2B7E
3:787  0:000  device inserted in acpi_cpu_score SCK0
3:787  0:000  score candidate at 2992
3:787  0:000  score inserted in acpi_cpu_score _SB_SCK0
3:787  0:000  Found ACPI CPU: CP00 | CP01 | CP02 | CP03 | CP04 | CP05 | CP06 | CP07 | CP08 | CP09 | CP0A | CP0B | CP0C | CP0D | CP0E | CP0F | CP10 | CP11 | CP12 | CP13 | CP14 | CP15 | CP16 | CP17 | CP18 | CP19 | CP1A | CP1B | CP1C | CP1D | CP1E | CP1F , within the score: _SB_SCK0
3:787  0:000  Found PCIROOTUID = 0
3:787  0:000  === [ ACPIDropTables ] =============================================
3:787  0:000  === [ DropSSDT ] ===================================================
3:787  0:000  Drop tables from Xsdt, SIGN=SSDT TableID= Length=0
3:787  0:000   Xsdt has tables count=14
3:787  0:000   Table: SSDT  SataTabl  877 dropped
3:787  0:000   Table: SSDT  PmMgt  85209 dropped
3:787  0:000  corrected XSDT length=132
3:787  0:000  === [ ACPIPatchedAML ] =============================================
3:787  0:000  Start: Processing Patched AML(s): Unsorted
3:787  0:000  Inserting ssdt.aml from EFI\CLOVER\ACPI\patched ... Success
3:787  0:000  End: Processing Patched AML(s)
3:787  0:000  CPUBase=0 and ApicCPUBase=0 ApicCPUNum=12
3:787  0:000  === [ RestSetupOSX ] ===============================================
3:787  0:000  EdidDiscovered size=128
3:787  0:000  00 | 00 FF FF FF FF FF FF 00 22 F0 0C 26 1F 00 00 00
3:787  0:000  16 | 11 0E 01 03 80 1E 17 78 EA B3 A5 A1 58 4F 89 26
3:787  0:000  32 | 16 50 54 AD EE 00 61 40 01 01 01 01 01 01 01 01
3:787  0:000  48 | 01 01 01 01 01 01 64 19 00 40 41 00 26 30 18 88
3:787  0:000  64 | 36 00 30 E4 10 00 00 18 00 00 00 FD 00 38 4C 1E
3:787  0:000  80 | 3F 08 00 0A 20 20 20 20 20 20 00 00 00 FC 00 68
3:787  0:000  96 | 70 20 4C 31 35 33 30 0A 20 20 20 20 00 00 00 FF
3:787  0:000  112 | 00 43 4E 50 34 31 37 42 33 31 53 0A 20 20 00 AE
3:787  0:000  NVidia GFX injection not set
3:788  0:000   RCBA access disabled; trying to enable
3:788  0:000  HDA Controller [8086:8D20] :: PciRoot(0x0)\Pci(0x1B,0x0) => setting specified layout-id=1 (0x1)
3:788  0:000  stringlength = 772
3:788  0:000  CurrentMode: Width=1024 Height=768
3:788  0:000  Beginning FSInjection
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B8207698
FSInjectionInstall ...
- Our FSI_SIMPLE_FILE_SYSTEM_PROTOCOL installed on handle: B8207698
3:789  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\Other
3:789  0:000  Preparing kexts injection for arch=x86_64 from EFI\CLOVER\kexts\10.11
3:789  0:000    Extra kext: EFI\CLOVER\kexts\10.11\FakeSMC.kext
3:789  0:000    Extra kext: EFI\CLOVER\kexts\10.11\HackrNVMeFamily-10_11_6.kext
3:790  0:000    Extra kext: EFI\CLOVER\kexts\10.11\IntelMausiEthernet.kext
3:791  0:000    Extra kext: EFI\CLOVER\kexts\10.11\NullCPUPowerManagement.kext
3:791  0:000    Extra kext: EFI\CLOVER\kexts\10.11\realtekALC.kext
3:792  0:000    Extra kext: EFI\CLOVER\kexts\10.11\USBInjectAll.kext
3:795  0:002    Extra kext: EFI\CLOVER\kexts\10.11\VoodooTSCSync.kext
3:795  0:000    Extra kext: EFI\CLOVER\kexts\10.11\XHCI-x99-injector.kext
3:796  0:000  Custom boot is disabled

guide used w. cloverALC-x99.plist & audio_cloverALC-120.command





EDIT: did it from scratch with https://github.com/toleda/audio_CloverALC (audio_cloverALC-110_v1.0s10.command) and it's working. nice.



AppleHDA.kext.zip

ioreg.zip

ssdt.zip

Link to comment
Share on other sites

The 120 script worked for me on the Beta 6 install. I once again have 5.1 via line out! :) (for some reason digital Optical only allows Stereo).



ALC892 (Audio Device 0x80868CA0, Sub Device 0x1043860B, Codec 0x10EC0892, Rev 0x0302)

Audio ID 1

Clove Audio Injection.

Link to comment
Share on other sites

Guest
This topic is now closed to further replies.
 Share

×
×
  • Create New...
