I manage to get working USB 3.0 on my DELL Precision  :D




With this



ORICO PVU3-2O2I USB 3.0 PCI Express Card 4 Port







Buy a Front panel 2 port


Here :wink_anim:

You need this kext GenericUSBXHCI.kext injected by Clover
on Yosemite 10.10.5

My new look  :w00t:

  • Like 3
Link to comment
Share on other sites

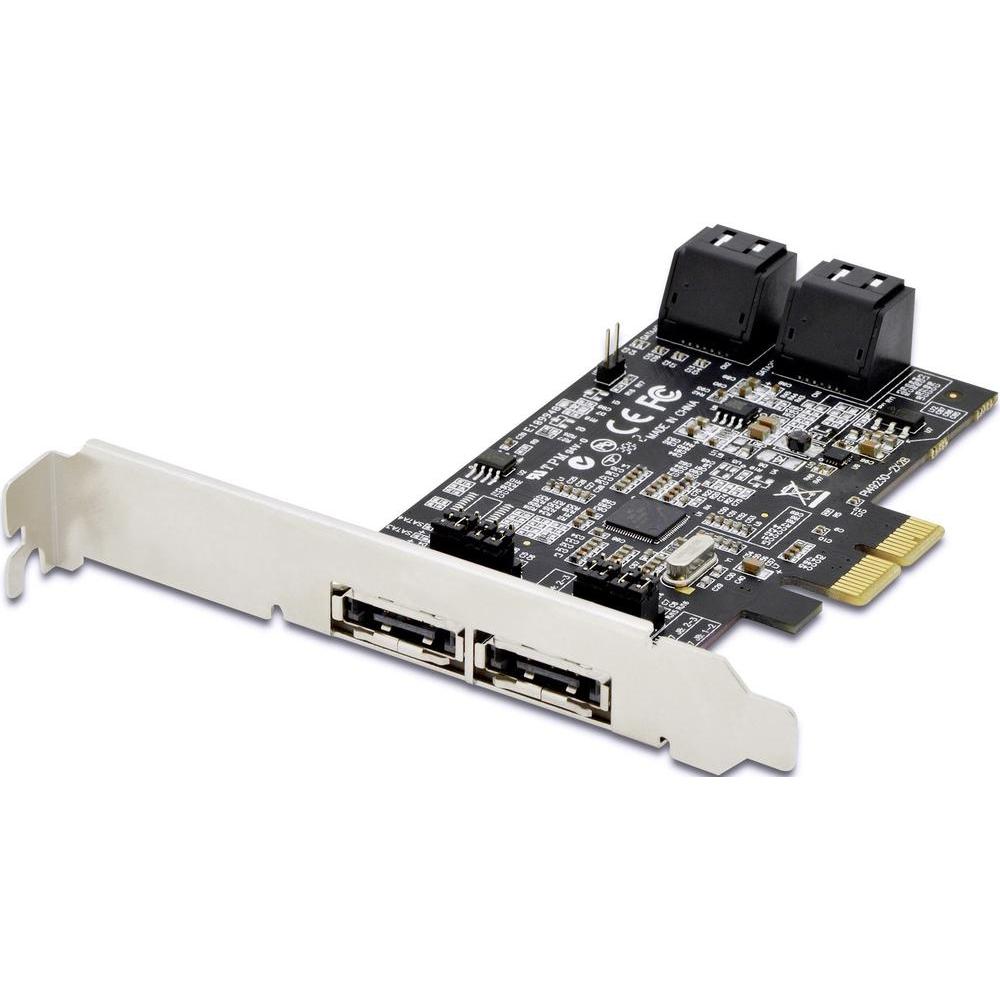

im using this sata controller

DIGITUS SATA III PCI Express 4-Port

  • Chipsatz: MARVELL 88SE9230





Yes Great  :thumbsup_anim:

hi Chris 1111 fantastique :thumbsup_anim:  :king:

How to fix this ?

What is the issue?

Link to comment
Share on other sites

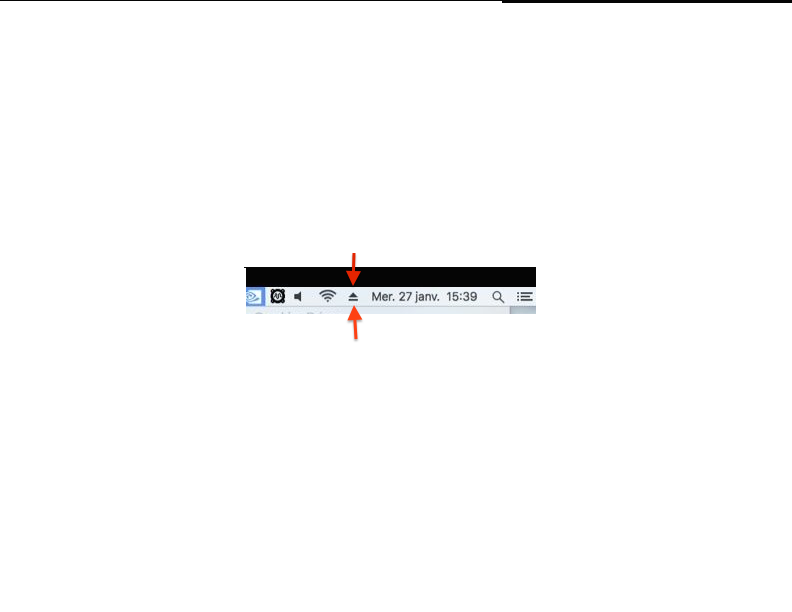

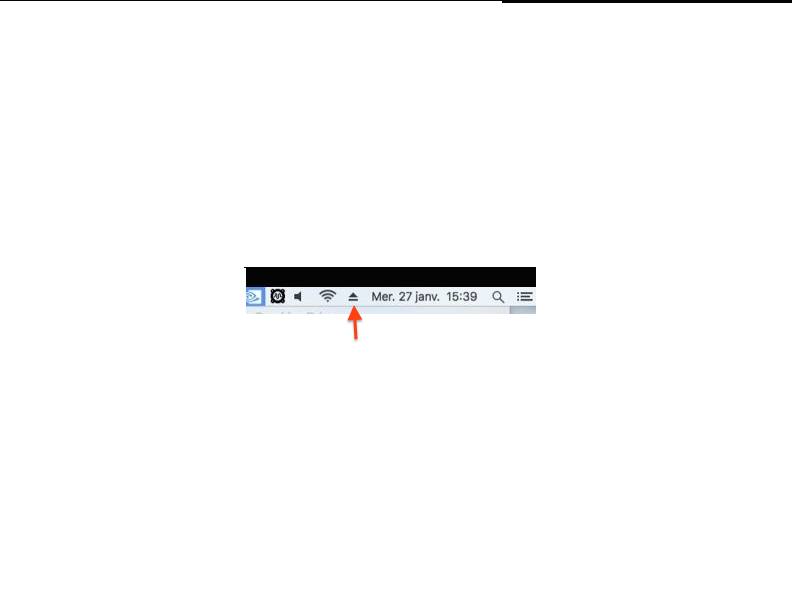

i don't know how to explain but i don,t have this sign

Ha ok you are lost de Eject menue



Go to System /Library /CoreServices / Menue Extras

Double clic to the Eject.menu

 Your done  :wink_anim:

Link to comment
Share on other sites

Hi Chris,

I have another issue when changed UPSTAR M280A1 monitor. My Dell boot up until apple logo appear, loading about 50% and then no display on new monitor. These are what I tried:



- I connected back to old monitor, it works fine.



- I connected Upstar monitor to HP Yosemite with DVI cable, it's working fine



Do you have any suggestion?

Link to comment
Share on other sites

Hi Chris,

I have another issue when changed UPSTAR M280A1 monitor. My Dell boot up until apple logo appear, loading about 50% and then no display on new monitor. These are what I tried:



- I connected back to old monitor, it works fine.



- I connected Upstar monitor to HP Yosemite with DVI cable, it's working fine



Do you have any suggestion?

Connect to HDMI or what ?

Link to comment
Share on other sites

Chris,

I used both DVI, HDMI even DVI to HDMI, still same thing, no display after 50% loading. But when the system booting completely with old monitor, unpluged DVI cable and then connect to new monitor. It has had display and showed exactly monitor name

Same thing with VGA

Link to comment
Share on other sites

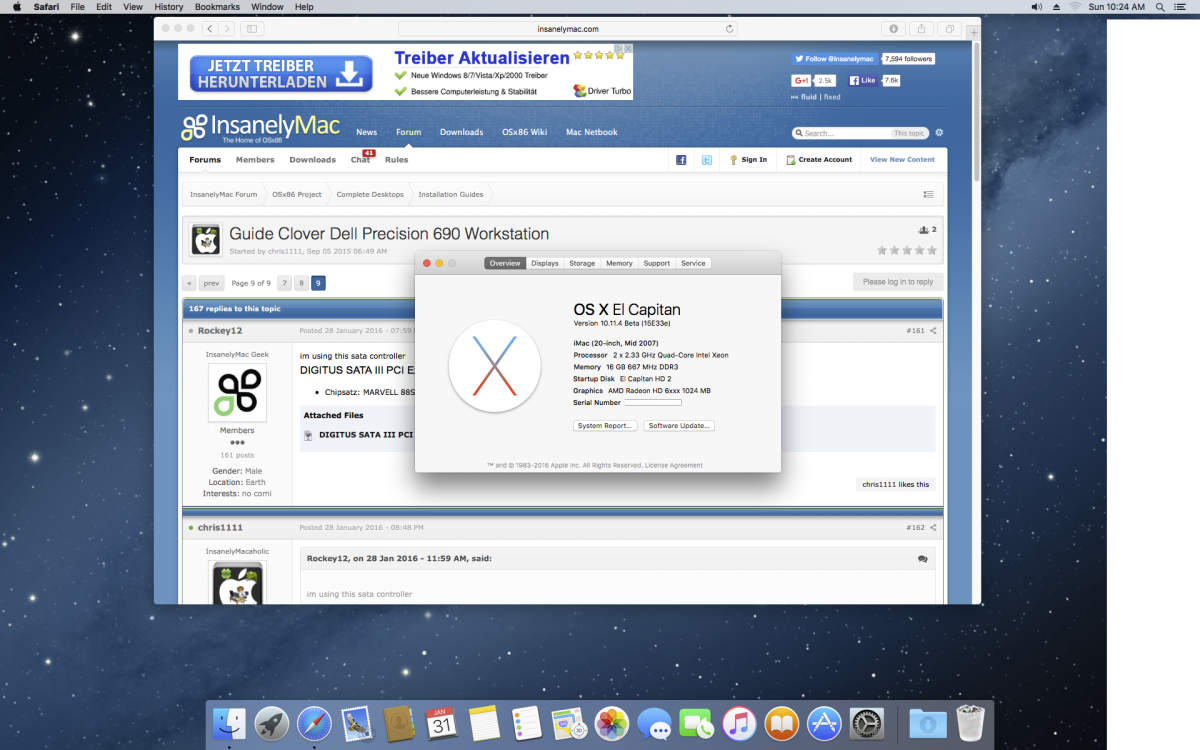

I create new kext for making perfect info About this mac of my

Star Tec- 2 Port SATA 6 Gbps PCI Express SATA Controller Card

The kext name Marvel-Injector.kext



This kext work on OS X 10.6.8 to OS X 10.11








If you have a different PCIe card then mine ( Star Tec- 2 Port SATA 6 Gbps PCI Express SATA Controller Card )
Open DCPI Manager.app
PCI List and see about your Device ID  and Marvel Chip
Follow the step here of this picture
Right clic to Marvel-Injector.kext Show package contents  /Contents / Open the Info.plist  with text edit or any other text editor of your choice

Save  / close

Put the kext inside Clover / kexts
Reboot


ENJOY!  :D
  • Like 2
Link to comment
Share on other sites

Did you used a raid  Virtual Disk



Anyway this is strange because Your name on the Info.plist   is 88SE9128 Star Tec PCI Express



and you show a different name Marvell 88SE9128 PCI Express SATA 6.0  6gb/s Controller  :|

No, I don't. My card is 88SE9123
